bluetooth TOYOTA PRIUS PRIME 2018 Accessories, Audio & Navigation (in English)

115
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19
AUDIO SYSTEM
3
Press to select a track.
 Press and hold to fast forward/rewind.
Turn to select a track.
 Turn to move up/down the list. Also, the knob can be used to en ter selections on the
list screens by pressing it.
 Turn to adjust volume.
 Press to turn the audio system on/off.
 Press and hold to restart the audio system.
WA R N I N G
● Do not operate the player’s controls or connect to the Bluetoot h® audio system while driv-
ing.
● Your audio unit is fitted with Bluetooth
® antennas. People with implantable cardiac pace-
makers, cardiac resynchronization therapy-pacemakers or implant able cardioverter
defibrillators should maintain a reasonable distance between themselves and the
Bluetooth
® antennas. The radio waves may affect the operation of such dev ices.
● Before using Bluetooth
® devices, users of any electrical medical device other than
implantable cardiac pacemakers, cardiac resynchronization thera py-pacemakers or
implantable cardioverter defibrillators should consult the manu facturer of the device for
information about its operation under the influence of radio wa ves. Radio waves could
have unexpected effects on the operation of such medical device s.
NOTICE
●Do not leave your portable player in the vehicle. In particular, high temperatures inside
the vehicle may damage the portable player.
No.Function

116
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19
INFORMATION
●Depending on the Bluetooth® device that is connected to the system, the music may start
playing when selecting while it is paused. Conversely, the mus ic may pause when
selecting while it is playing.
● In the following conditions, the system may not function:
• The Bluetooth
® device is turned off.
• The Bluetooth
® device is not connected.
• The Bluetooth
® device has a low battery.
● It may take time to connect the phone when Bluetooth
® audio is being played.
● For operating the portable player, see the instruction manual that comes with it.
● If the Bluetooth
® device is disconnected due to poor reception from the Bluetoot h® net-
work when the power switch is in ACCESSORY or ON mode, the syst em automatically
reconnects the portable player.
● If the system is attempting to connect to a Bluetooth
® device and the Bluetooth® device is
turned off and then back on, the system will attempt to reconne ct.
● Bluetooth
® device information is registered when the Bluetooth® device is connected to
the Bluetooth® audio system. When selling or disposing of the vehicle, remove the
Bluetooth® audio information from the system. ( P. 6 3 )

117
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19
AUDIO SYSTEM
3
Registering an additional device
1Select “Select Device” on the
Bluetooth
® audio control screen.
2For more information: P.51
 Selecting a registered device
1Select “Select Device” on the
Bluetooth
® audio control screen.
2For more information: P.53
1Select the repeat button to change on/
off.
1Select the random button to change
on/off.
CONNECTING A Bluetooth®
DEVICE
To use the Bluetooth® audio system, it
is necessary to register a Bluetooth
®
device with the system.
LISTENING TO Bluetooth®
AUDIO
REPEATING
The track currently being listened to
can be repeated.
RANDOM ORDER
Tracks can be automatically and ran-
domly selected.

146
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19
2. MOBILE ASSISTANT OPERATION
1. MOBILE ASSISTANT
1Press and hold this switch until you
hear the beeps.
2The Mobile Assistant can be used only
when the following screen is displayed.
To cancel the Mobile Assistant: Select
“Cancel” , press the on the steering
wheel, or press and hold the on the
steering wheel.
 To restart the Mobile Assistant for addi-
tional commands, press the on the
steering wheel.
• Mobile Assistant can only be restarted
after the system responds to a voice
command. • After some phone and music com-
mands, the Mobile Assistant feature will
automatically end to complete the
requested action.
The Mobile Assistant feature will
activate Apple’s Siri
® Eyes Free mode
via the steering wheel switches. To
operate the Mobile Assistant, a
compatible cellular phone must be
registered and connected to this
system via Bluetooth
®. ( P.44)
PS098IO
 The volume of the Mobile Assistant can
be adjusted using the “PWR
·VOL”
knob or steering wheel volume control
switches. The Mobile Assistant and
phone call volumes are synchronized.
INFORMATION
● The available features and functions
may vary based on the iOS version
installed on the connected device.
● Some Siri
® features are limited in Eyes
Free mode. If you attempt to use an
unavailable function, Siri
® will inform
you that the function is not available.
● If Siri
® is not enabled on the cellular
phone connected via Bluetooth®, an
error message will be displayed on the
screen.
● While a phone call is active, the Mobile
Assistant cannot be used.
● If using the navigation feature of the cel-
lular phone, ensure the active audio
source is Bluetooth
® audio or iPod in
order to hear turn by turn direction
prompts.

150
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19
1. USEFUL INFORMATION
1. RECEIVING WEATHER INFORMATION
1Press the “APPS” button.
2Select “Weather” .
3Check that the “Weather” screen is dis-
played.Weather information can be received
via the HD Radio or by the Entune App
Suite application on a Bluetooth
®
phone. For details about the Entune
App Suite application: P.281
DISPLAYING WEATHER
INFORMATION
PS081IO
No.Function
Select to display the weather of the
current location. ( P.151)
Select to display the weather of a
desired location in the recently
checked locations list.
Select to display the weather of a
desired location in the national cities
list.
Select to display the weather of a
desired location in the other local cit-
ies list.
Select to display weather informa-
tion over the map.
INFORMATION
● Weather information is available in the
48 states, D.C. and Alaska of the United
States.
● The weather for current location might
not show the closest city when it first dis-
plays.

152
1. USEFUL INFORMATION
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19
2. DATA SERVICES SETTINGS
1Press the “APPS” button.
2Select “Setup” .
3Select “HD Data” .
4Select the desired item to be set.
Select a checkbox on the right to set.
SETTING DOWNLOAD
METHODS
Data service information, which is
comprised of traffic information and
weather information, can be received
via the HD Radio and by the Entune
App Suite application on a Bluetooth
®
phone. The receiving method can be
set to both or only via the HD Radio.
For details about the Entune App Suite
application: P.281
PS081IO
1R)XQFWLRQ
6HOHFW WR UHFHLYHGDWD VHUYLFHLQIRU
PDWLRQ YLD ERWK WKH +' 5DGLR DQG
WKH(QWXQH$SS6XLWHDSSOLFDWLRQRQ
D %OXHWRRWK
Š SKRQH :KHQ ERWK
PHWKRGV DUH DYDLODEOH WKH +' 5D
GLRZLOOEH\
VHOHFWHG
6HOHFW WR UHFHLYH GDWD RQO\ YLD WKH
+'5DGLR
INFORMATION
● These settings are available in the 48
states, D.C. and Alaska of the United
States.

7
165
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19
1
2
3
4
5
6
7
8
9

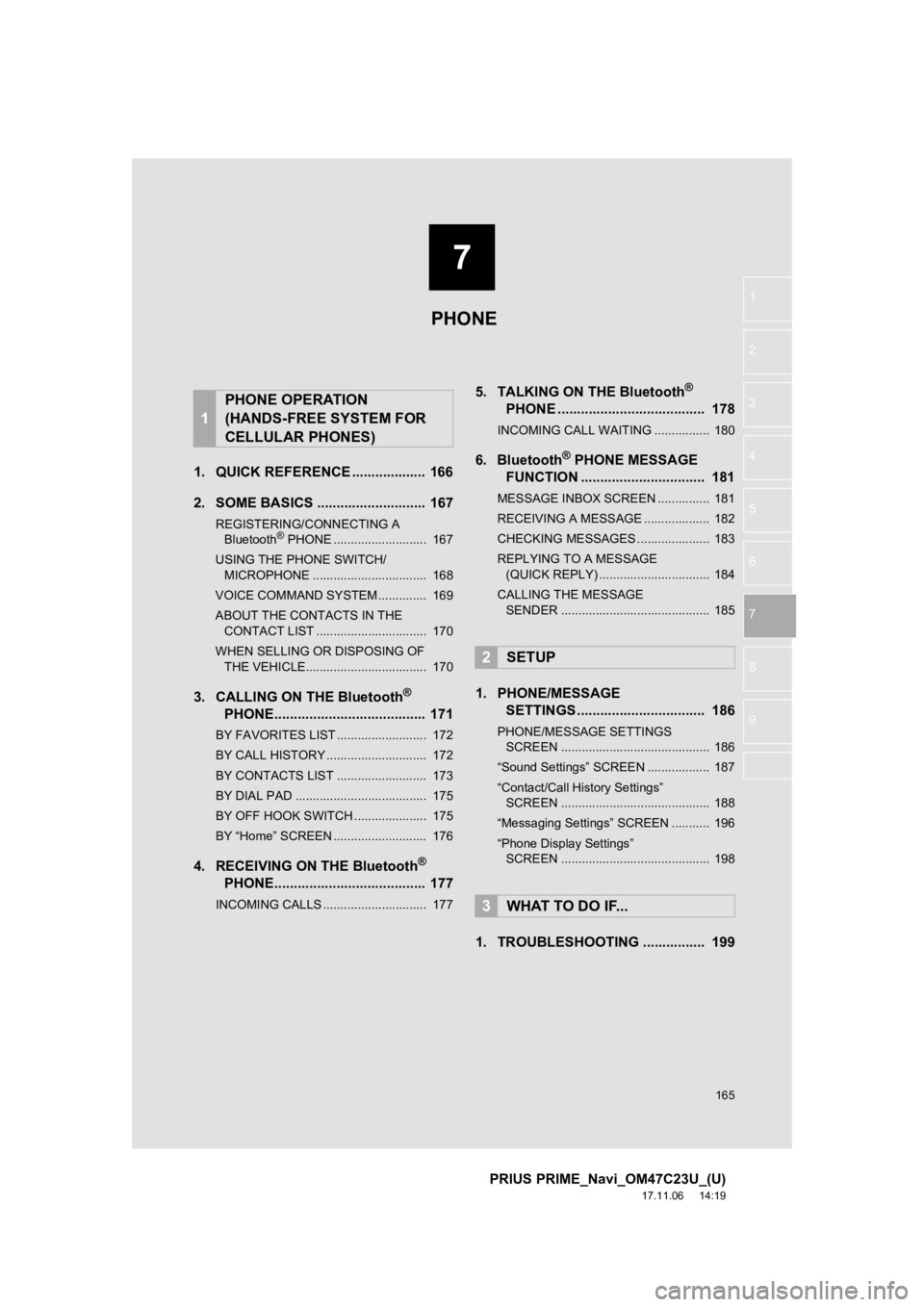

1. QUICK REFERENCE ................... 166
2. SOME BASICS ............................ 167
REGISTERING/CONNECTING A Bluetooth® PHONE ........................... 167
USING THE PHONE SWITCH/ MICROPHONE ................................. 168
VOICE COMMAND SYSTEM .............. 169
ABOUT THE CONTACTS IN THE CONTACT LIST ................................ 170
WHEN SELLING OR DISPOSING OF THE VEHICLE................................... 170
3. CALLING ON THE Bluetooth®
PHO N

E....................................... 171
BY FAVORITES LIST .......................... 172
BY CALL HISTORY ............................. 172
BY CONTACTS LIST .......................... 173
BY DIAL PAD ...................................... 175
BY OFF HOOK SWITCH ..................... 175
BY “Home” SCREEN ........................... 176
4. RECEIVING ON THE Bluetooth®
PHON

E....................................... 177
INCOMING CALLS .............................. 177
5. TALKING ON THE Bluetooth®
PHONE .

..................................... 178
INCOMING CALL WAITING ................ 180
6. Bluetooth® PHONE MESSAGE
FUNCTION ...... ....................... ... 181
MESSAGE INBOX SCREEN ............... 181
RECEIVING A MESSAGE ................... 182
CHECKING MESSAGES ..................... 183
REPLYING TO A MESSAGE
(QUICK REPLY) ................................ 184
CALLING THE MESSAGE SENDER ........................................... 185
1. PHONE/MESSAGE SETTINGS ................................. 186
PHONE/MESSAGE SETTINGS
SC REEN ........................................... 186
“Sound Settings” SCREEN .................. 187
“Contact/Call History Settings” SCREEN ........................................... 188
“Messaging Settings” SCREEN ........... 196
“Phone Display Settings” SCREEN ........................................... 198
1. TROUBLESHOOTING ................ 199
1
PHONE OPERATION
(HANDS-FREE SYSTEM FOR
CELLULAR PHONES)
2SETUP
3WHAT TO DO IF...
PHONE

166
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19

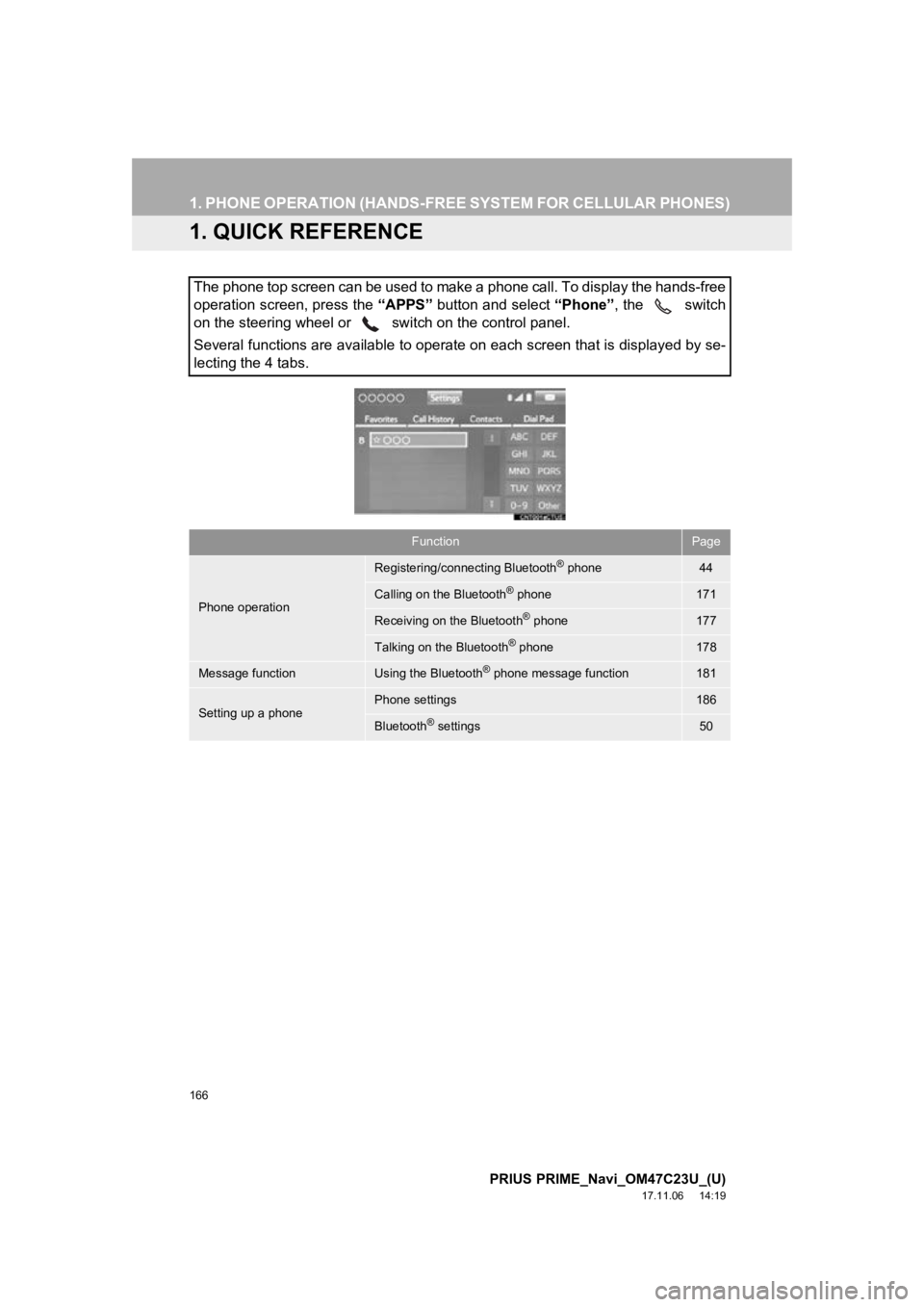

1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
1. QUICK REFERENCE
The phone top screen can be used to make a phone call. To display the hands-free
operation screen, press the “APPS” button and select “Phone”, the switch
on the steering wheel or switch on the control panel.
Several functions are available to operate on each screen that is displayed by se-
lecting the 4 tabs.
FunctionPage
Phone operation
Registering/connecting Bluetooth® phone44
Calling on the Bluetooth® phone171
Receiving on the Bluetooth® phone177
Talking on the Bluetooth® phone178
Message functionUsing the Bluetooth® phone message function181
Setting up a phonePhone settings186
Bluetooth® settings50

167
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19
PHONE
7
2. SOME BASICS
The hands-free system enables calls
to be made and received without hav-
ing to take your hands off the steering
wheel.
This system supports Bluetooth
®.
Bluetooth® is a wireless data system
that enables cellular phones to be used
without being connected by a cable or
placed in a cradle.
The operating procedure of the phone
is explained here.
WA R N I N G
● While driving, do not use a cellular
phone or connect the Bluetooth® phone.
● Your audio unit is fitted with Bluetooth
®
antennas. People with implantable car-
diac pacemakers, cardiac resynchroni-
zation therapy-pacemakers or
implantable cardioverter defibrillators
should maintain a reasonable distance
between themselves and the Bluetooth
®
antennas. The radio waves may affect
the operation of such devices.
● Before using Bluetooth
® devices, users
of any electrical medical device other
than implantable cardiac pacemakers,
cardiac resynchronization therapy-pace-
makers or implantable cardioverter
defibrillators should consult the manu-
facturer of the device for information
about its operation under the influence
of radio waves. Radio waves could have
unexpected effects on the operation of
such medical devices.
NOTICE
● Do not leave your cellular phone in the
vehicle. The temperature inside may rise
to a level that could damage the phone.
INFORMATION
●If your cellular phone does not support
Bluetooth®, this system cannot function.
● In the following conditions, the system
may not function:
• The cellular phone is turned off.
• The current position is outside the
communication area.
• The cellular phone is not connected.
• The cellular phone has a low battery.
● When using Bluetooth
® audio and
hands-free at the same time, the follow-
ing problems may occur:
• The Bluetooth
® connection may be
cut.
• Noise may be heard on the Bluetooth
®
audio playback.
REGISTERING/CONNECTING
A Bluetooth® PHONE
To use the hands-free system for cellu-
lar phones, it is necessary to register a
cellular phone with the system.
(  P.44)
Bluetooth® P H O N E C O N D I T I O N
DISPLAY
The condition of the Bluetooth
® phone
appears on the upper right side of the
screen. ( P.18)

171
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
PRIUS PRIME_Navi_OM47C23U_(U)
17.11.06 14:19
PHONE
7

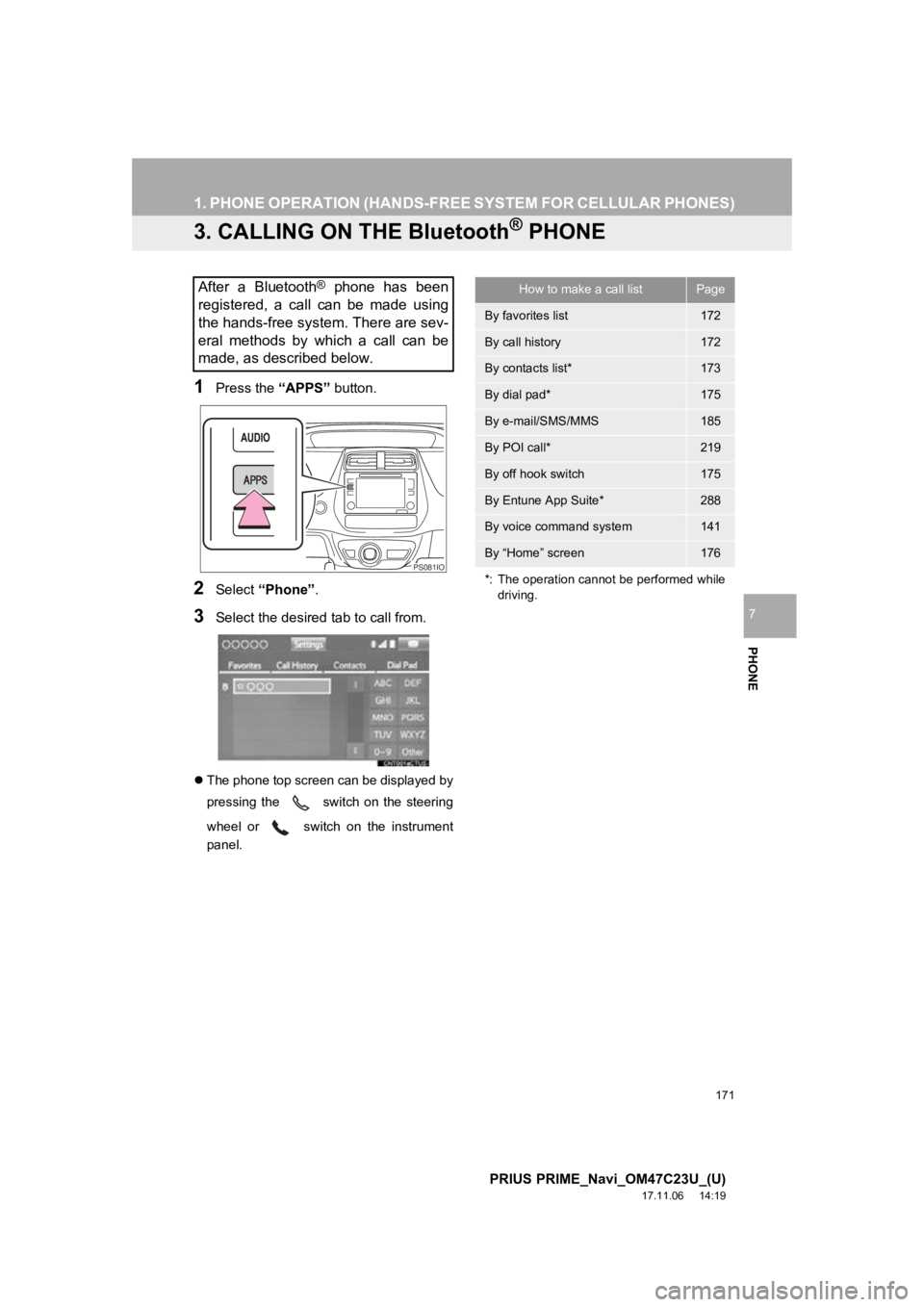

3. CALLING ON THE Bluetooth® PHONE
1Press the “APPS” button.
2Select “Phone” .
3Select the desired tab to call from.
The phone top screen can be displayed by
pressing the
switch on the steering
wheel or switch on the instrument
panel.
After a Bluetooth® phone has been
registered, a call can be made using
the hands-free system. There are sev-
eral methods by which a call can be
made, as described below.
PS081IO
+RZWRPDNHDFDOOOLVW3DJH
%\IDYRULWHVOLVW
%\FDOOKLVWR\
U\
%\FRQWDFWVO\
LVW

%\GLDOSDG

%\HPDLO606006
%\32,FDOO

%\RIIKRRNVZLWFK
%\(QWXQH$SS6XLWH

%\YRLFHFRPP\
DQGV\VWHP
%\³+RPH´VFUHHQ

 7KHRSHUDWLRQFDQQRWEHSHUIRUPHGZKLOH GULYLQJ
