ad blue TOYOTA PRIUS PRIME 2018 Owners Manual (in English)

1
OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY &
EMERGENCY FEATURES
INDEX
Engine maintenance 9
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6-7
Smart Key System1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
ELECTRIC VEHICLE SYSTEMFEATURES & OPERATIONS (continued)
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Charging 11-13
Charging equipment 10
Charging system safety functions 17
Electric Vehicle System 10
Charging information 16
Charging schedule
2 14-15
Prime Applications 17
Air conditioning/heating 26-27
Audio 30-31
Auto lock/unlock
1,2 18
Blind Spot Monitor with Rear
$SPTT5SBGmD"MFSU #4.X3$5"

Clock 33
Color Dual Multi-Information
%JTQMBZ .*%

$PMPS)FBEVQ%JTQMBZ )6%

Door locks 21
Driving mode select 19
EV Auto drive mode 20
EV/HV drive mode 19
Garage door opener (HomeLink
®)3 36
Hybrid Synergy Drive System 18
Hybrid transmission 19
*OUFMMJHFOU$MFBSBODF4POBS *$4

*OUFMMJHFOU1BSLJOH"TTJTU *1"

Lights
1 & turn signals 23
Parking brake 21
Power outlets 32
Qi-compatible wireless charging 32
Rear view monitor system 35Seat adjustments-Front 22
Seat heaters 24
Seats-Folding down rear seats 22
Seats-Head restraints 22
Steering wheel-Heater 25
Steering wheel switches &
UFMFQIPOFDPOUSPMT #MVFUPPUI
®

Tilt & telescopic steering wheel 20
64#"69QPSU
7FIJDMF4UBCJMJUZ$POUSPM 74$

TRAC OFF switch 20
Windows-Power 21
Windshield wipers & washers 24
Floor mat installation 52
Rear door child safety locks 49
Seat belts 48
Seat belts-Shoulder belt anchor 48
Star Safety System
™ 51-52
Tire Pressure Monitoring
XBSOJOH
4ZTUFN 51.4

Tire repair kit & tools 50
BLUETOOTH® DEVICE
PAIRING SECTION 54-63
TOYOTA SAFETY SENSE™ P (TSS-P)
"VUPNBUJD)JHI#FBNT ")#

Full-Speed Range Dynamic Radar
$SVJTF$POUSPM %3$$

Lane Departure Alert with Steering
"TTJTUGVODUJPO -%"X4"

Pre-Collision System with Pedestrian
%FUFDUJPOGVODUJPO 1$4X1%

Quick overview-
Toyota Safety Sense
™1 5441
37
Sensors 37

15
Menu button
displays menu screen Touch screen display

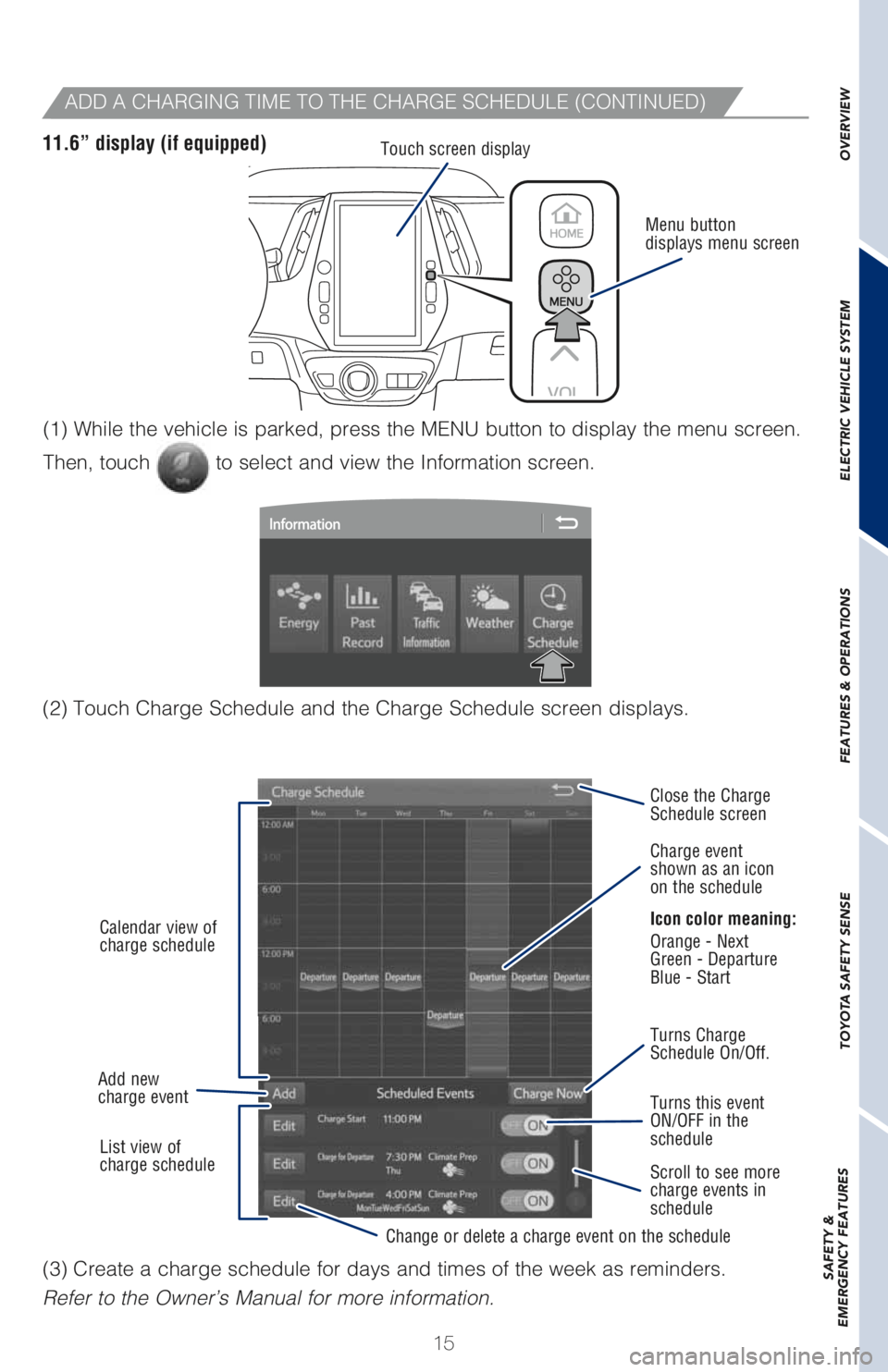

ADD A CHARGING TIME TO THE CHARGE SCHEDULE (CONTINUED)
11.6” display (if equipped)
(2) Touch Charge Schedule and the Charge Schedule screen displays.(1) While the vehicle is parked, press the MENU button to display the menu screen.
Then, touch
to select and view the Information screen.
Calendar view of
charge schedule
Add new
charge eventTurns Charge
Schedule On/Off. Close the Charge
Schedule screen
Turns this event
ON/OFF in the
schedule
Scroll to see more
charge events in
schedule Charge event
shown as an icon
on the schedule
Icon color meaning:
Orange - Next
Green - Departure
Blue - Start
List view of
charge schedule
Change or delete a charge event on the schedule
(3) Create a charge schedule for days and times of the week as reminders.
Refer to the Owner’s Manual for more information.
OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY &
EMERGENCY FEATURES

25 Bluetooth
® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and the
system.
*
Push and hold to access Mobile Assistant. Once you connect a compatible,
registered mobile phone, you can access Siri
® Eyes Free using Mobile Assistant
access switch.
Refer to “Bluetooth
® Device Pairing Section,” in this guide, for more information
about phone connections and compatibility.
Refer to the “Navigation System Owner’s manual for more datails.
Steering wheel-Heater (if equipped)
Push
OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY &
EMERGENCY FEATURES
MICROPHONE
STEERING WHEEL AUDIO AND TELEPHONE CONTROLS
Steering wheel switches &
telephone controls (Bluetooth®)
Type A (7” display)Type B (7” display/11.6” display)
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the hands-free phone system if it will distract you.
Volume control
Start call/
Mobile Assistant access*
End callVoice command switch“MODE”
Push to turn audio ON and select
an audio mode. Push and hold to
mute/unmute or pause/resume the
current operation.
“
vv” Use to search within the
selected audio medium (radio,
CD, etc.).

54
BLUETOOTH® DEVICE PAIRING
SECTION
Do not attempt the Bluetooth® Pairing process while driving.

55
Pairing your phone is the first step in connecting with your Toyota for hands-free
calling and for audio streaming via Bluetooth. This pairing process is quick and
easy: all Android mobile digital devices have Bluetooth integrated; all you have to
do is setup the phone and multimedia system to “talk” to each other and form a
connection.
2
Initiate Bluetooth® on your Android®
STEP 1
STEP 5
STEP 2STEP 3STEP 4
From your APPS
SCREEN, select
SETTINGS.Select
CONNECTIONS and
select BLUETOOTH.Ensure
BLUETOOTH
is ON.Select YOUR PHONE
DEVICE to make it
discoverable.
Phone will seek out
Bluetooth devices
while remaining
discoverable.
While your Android device is seeking
out Bluetooth devices, proceed to
your Entune Multimedia Head Unit on
your Toyota vehicle.
1 To determine which head unit is installed in your vehicle, refer to the Audio section in this guide.
Entune™ Premium Audio screens are shown in this section. Screens and features may vary by
Entune™ system. 2 Some Android devices may have slightly different SETTINGS screen layout depending on manu-
facturer of device and Android OS version.
To begin the Bluetooth® Pairing process, press the HOME button on the faceplate of
your Toyota Vehicle Entune™ Multimedia Head Unit.1
Bluetooth® Pairing for Android phone and
Entune™ touch screen system

56
Initiate Bluetooth® on your Entune™ Multimedia Head Unit
Once you have Bluetooth enabled on your phone and ready to pair, you will need to
initiate Bluetooth on your Entune head unit. Please follow the instructions below to
pair your Bluetooth enabled phone to your Entune system.
On your Toyota Vehicle Entune
Multimedia Head Unit, Select
SETUP BUTTON on the Home
Screen.
For Entune
™ Audio System,
press the SETUP BUTTON
on the faceplate to access the
Setup Screen.Select BLUETOOTH.
Image shown is a sample
image, features may vary.
Select ADD, to add your
phone device.
Back on your smartphone,
you can now select your
TOYOTA VEHICLE in
Bluetooth Settings.
You may need to enter the
provided Bluetooth PIN on
your phone.Your smartphone is now
paired with Entune.Once paired, Entune will
attempt to connect audio and
contacts on your phone.
STEP 6STEP 7STEP 8
STEP 9STEP 11STEP 10
BLUETOOTH® DEVICE PAIRING

57
Initiate Bluetooth® on your Entune™ Multimedia Head Unit
A confirmation will ap-
pear once your phone
has been paired and
connected.Using your smartphone, you will
need to allow Entune access to
your messaging and contacts.
It is recommended to check the
“Don’t ask again” box, so as not
to have to press OK every time the
phone makes a Bluetooth connec
-
tion with your Toyota.
STEP 12STEP 13
Additional Resources
If you’re having trouble pairing your phone, Toyota has you covered. You can get more information
from the following sources:
Online Pairing Guide:
www.toyota.com/connect
Your Toyota Owner’s Manual
Located in the vehicle glovebox
Toyota Customer
Experience Center
(800) 331-4331
Disclosures
This brochure is accurate at the time of print; content subject to change based on periodic multimedia
software updates.
<0012000f000300240050004f00440046004f0055005300420055004a004f004800030050004f00030055004900460003005300500042004500030054004900500056004d004500030042004d00580042005a00540003004300460003005a00500056005300
03006d005300540055000300510053004a00500053004a0055>ZXIJMFESJWJOH%POPUVTFUIFIBOETGSFF
phone system if it will distract you.
2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use
<00500047000300540056004400490003004e00420053004c005400030043005a000300350050005a0050005500420003004a005400030056004f0045004600530003004d004a00440046004f00540046000f00030022000300440050004e00510042005500
4a0043004d004600030023004d005600460055005000500055>IFOBCMFEQIPOFNVTUmSTUCFQBJSFE
Phone performance depends on software, coverage & carrier.
3. Android is a trademark of Google Inc.
4. Apps/services vary by phone/carrier; functionality depends on many factors. Select apps use large
amounts of data; you are responsible for charges. Apps & services subject to change. See Toyota.com/
entune for details.

58
Pairing your phone is the first step in connecting with your Toyota for hands-free
calling and for audio streaming via Bluetooth. This pairing process is quick and
easy: all iPhone mobile digital devices have Bluetooth integrated; all you have to
do is setup the phone and multimedia system to “talk” to each other and form a
connection.
Initiate Bluetooth® on your iPhone®
From the HOME
SCREEN, select
SETTINGS.Select BLUETOOTH.Ensure
BLUETOOTH
is ON.Your iPhone will seek
out Bluetooth devices
while remaining
discoverable.
While your iPhone device is seeking
out Bluetooth devices, proceed to
your Entune Multimedia Head Unit on
your Toyota vehicle.
STEP 1STEP 2STEP 3STEP 4
STEP 5
Bluetooth® Pairing for iPhone and
Entune™ touch screen system
**Do not attempt the Bluetooth® Pairing process while driving.**
BLUETOOTH® DEVICE PAIRING

59
Initiate Bluetooth® on your Entune™ Multimedia Head Unit
Once you have Bluetooth enabled on your phone and ready to pair, you will need to
initiate Bluetooth on your Entune head unit. Please follow the instructions below to
pair your Bluetooth enabled phone to your Entune system.
On your Toyota Vehicle Entune
Multimedia Head Unit, Select
SETUP BUTTON on the Home
Screen.
For Entune
™ Audio System,
press the SETUP BUTTON
on the faceplate to access the
Setup Screen.Select BLUETOOTH.
Image shown is a sample
image, features may vary.
Select ADD, to add your
phone device.
Back on your smartphone,
you can now select your
TOYOTA VEHICLE in
Bluetooth Settings.
You may need to enter the
provided Bluetooth PIN on
your phone.
Your smartphone is now
paired with Entune.Once paired, Entune will
attempt to connect audio and
contacts on your phone.
STEP 6STEP 7STEP 8
STEP 9STEP 11STEP 10

60
Using your smartphone, you may need to
allow Entune access to your messaging
and contacts.
Only current iPhone text messages can
be viewed on the head unit. iPhone does
not allow text message reply.A confirmation will ap
-
pear once your phone
has been paired and
connected.
STEP 12STEP 13
Disclosures
This brochure is accurate at the time of print; content subject to change based on periodic multimedia
software updates.
<0012000f000300240050004f00440046004f0055005300420055004a004f004800030050004f00030055004900460003005300500042004500030054004900500056004d004500030042004d00580042005a00540003004300460003005a00500056005300
03006d005300540055000300510053004a00500053004a0055>ZXIJMFESJWJOH%POPUVTFUIFIBOETGSFF
phone system if it will distract you.
2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use
<00500047000300540056004400490003004e00420053004c005400030043005a000300350050005a0050005500420003004a005400030056004f0045004600530003004d004a00440046004f00540046000f00030022000300440050004e00510042005500
4a0043004d004600030023004d005600460055005000500055>IFOBCMFEQIPOFNVTUmSTUCFQBJSFE
Phone performance depends on software, coverage & carrier.
3. Android is a trademark of Google Inc.
4. Apps/services vary by phone/carrier; functionality depends on many factors. Select apps use large
amounts of data; you are responsible for charges. Apps & services subject to change. See Toyota.com/
entune for details.
Additional Resources
If you’re having trouble pairing your phone, Toyota has you covered. You can get more information
from the following sources:
Online Pairing Guide:
www.toyota.com/connect
Your Toyota Owner’s Manual
Located in the vehicle glovebox
Toyota Customer
Experience Center
(800) 331-4331
BLUETOOTH® DEVICE PAIRING
