TOYOTA PRIUS PRIME 2019 Accessories, Audio & Navigation (in English)

101
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47D14U_(U)
18.10.16 10:48
AUDIO SYSTEM
3

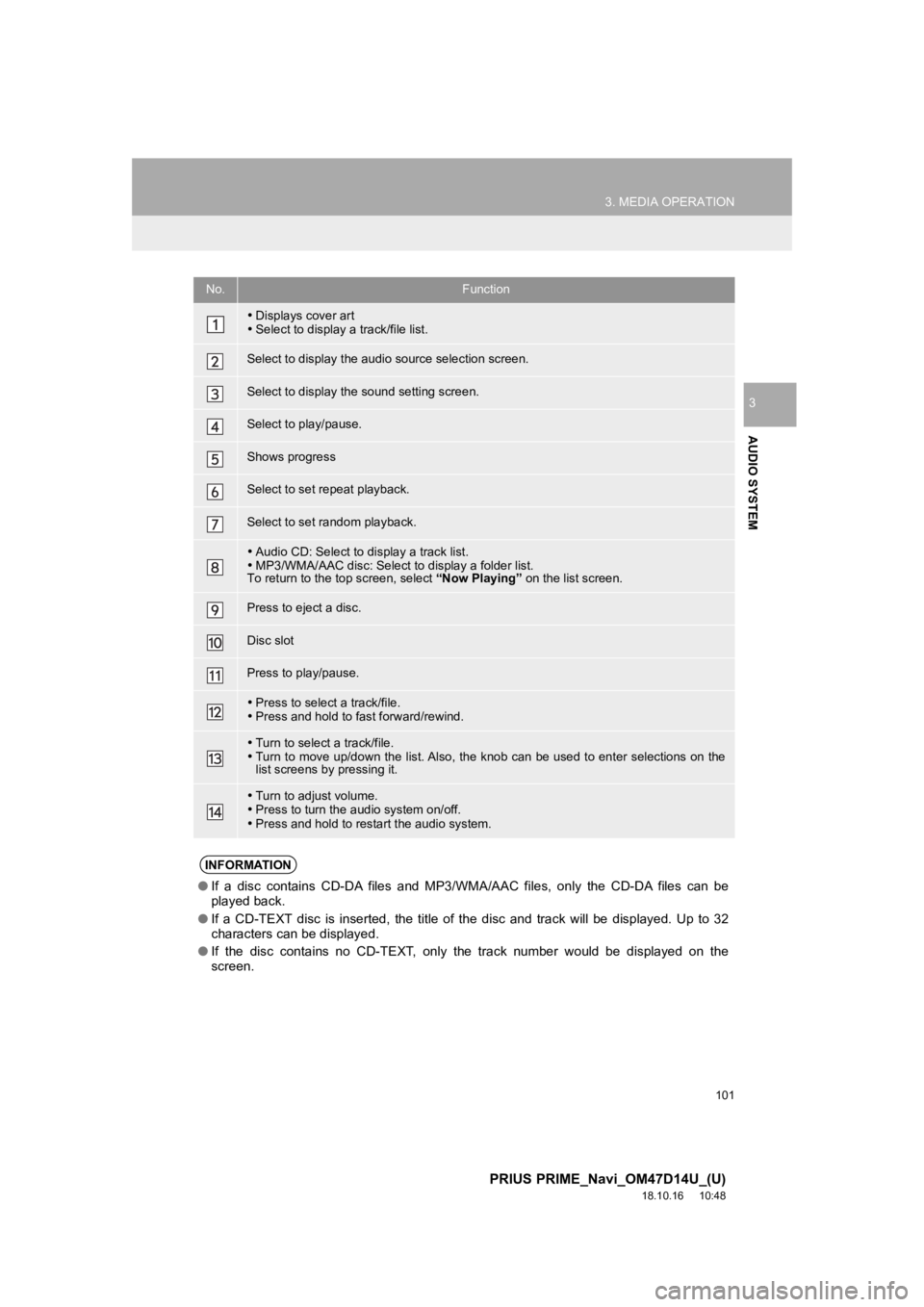

No.Function
Displays cover art
 Select to display a track/file list.
Select to display the audio source selection screen.
Select to display the sound setting screen.
Select to play/pause.
Shows progress
Select to set repeat playback.
Select to set random playback.
Audio CD: Select to display a track list.
 MP3/WMA/AAC disc: Select to display a folder list.
To return to the top screen, select “Now Playing” on the list screen.
Press to eject a disc.
Disc slot
Press to play/pause.
Press to select a track/file.
 Press and hold to fast forward/rewind.
Turn to select a track/file.
 Turn to move up/down the list. Also, the knob can be used to en ter selections on the
list screens by pressing it.
 Turn to adjust volume.
 Press to turn the audio system on/off.
 Press and hold to restart the audio system.
INFORMATION
● If a disc contains CD-DA files and MP3/WMA/AAC files, only the CD-DA files can be
played back.
● If a CD-TEXT disc is inserted, the title of the disc and track will be displayed. Up to 32
characters can be displayed.
● If the disc contains no CD-TEXT, only the track number would be displayed on the
screen.

102
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47D14U_(U)
18.10.16 10:48
1Select the repeat button to change on/
off.
1Select the random button to change
on/off.
1Select the repeat button to change on/
off.
1Select the random button to change
on/off.
PLAYING AN AUDIO CD
REPEATING
The track currently being listened to
can be repeated.
RANDOM ORDER
Tracks can be automatically and ran-
domly selected.
PLAYING AN MP3/WMA/AAC
DISC
REPEATING
The file currently being listened to can
be repeated.
RANDOM ORDER
Files can be automatically and ran-
domly selected.

103
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47D14U_(U)
18.10.16 10:48
AUDIO SYSTEM
3

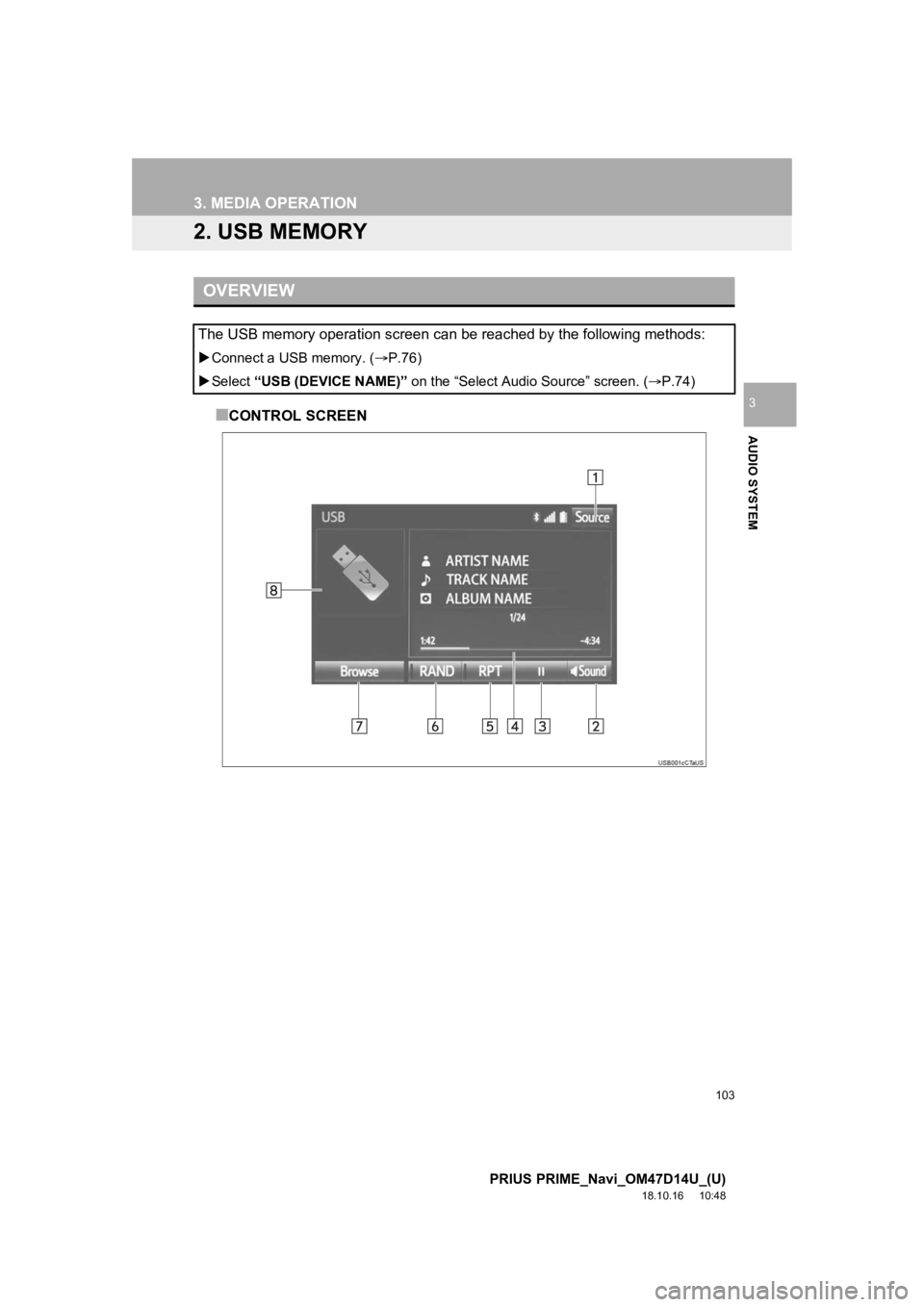

2. USB MEMORY
■CONTROL SCREEN
OVERVIEW
The USB memory operation screen can be reached by the following methods:
Connect a USB memory. ( P.76)
 Select “USB (DEVICE NAME)” on the “Select Audio Source” screen. ( P.74)

104
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47D14U_(U)
18.10.16 10:48

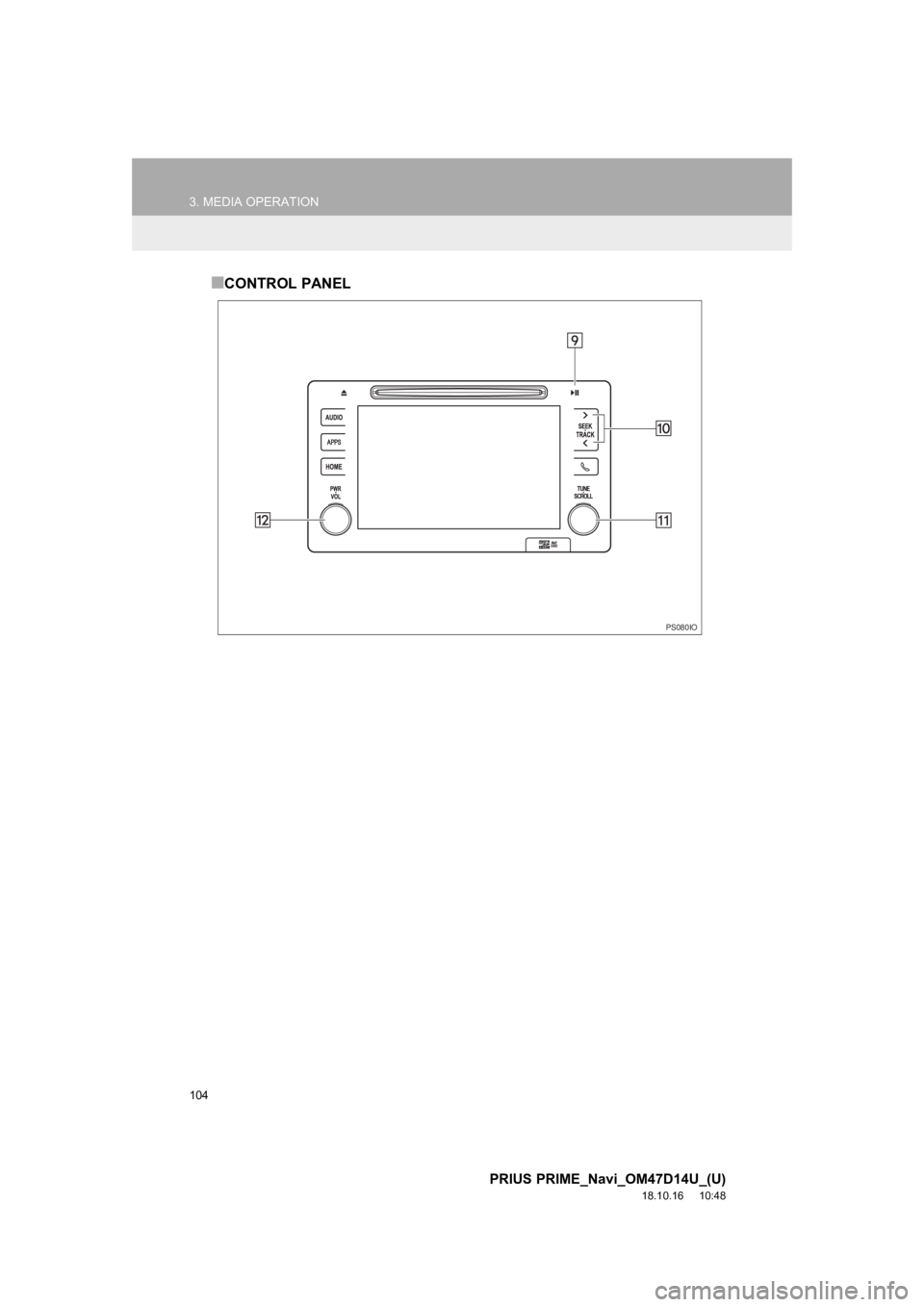

■CONTROL PANEL
PS080IO

105
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47D14U_(U)
18.10.16 10:48
AUDIO SYSTEM
3

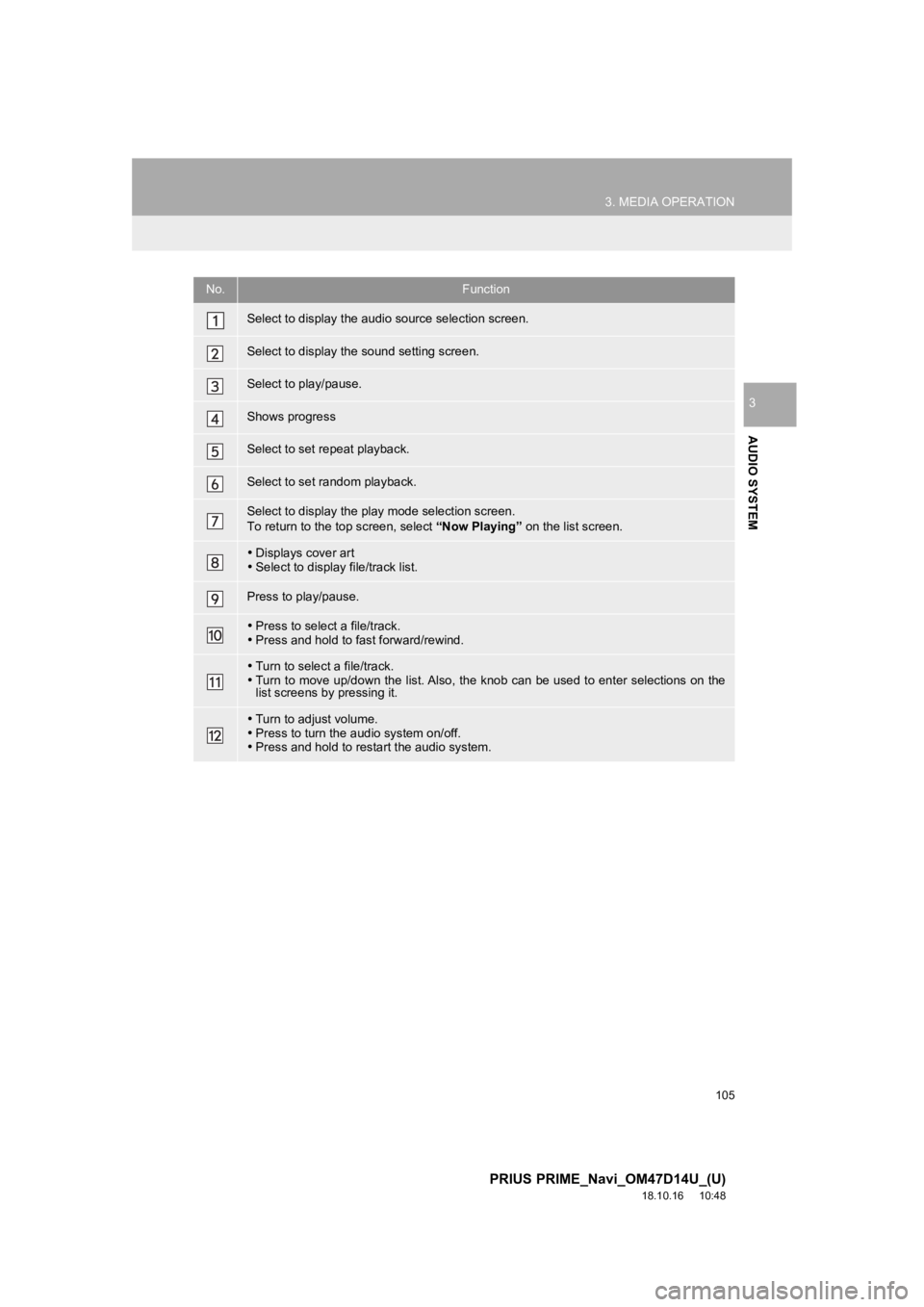

No.Function
Select to display the audio source selection screen.
Select to display the sound setting screen.
Select to play/pause.
Shows progress
Select to set repeat playback.
Select to set random playback.
Select to display the play mode selection screen.
To return to the top screen, select “Now Playing” on the list screen.
Displays cover art
 Select to display file/track list.
Press to play/pause.
Press to select a file/track.
 Press and hold to fast forward/rewind.
Turn to select a file/track.
 Turn to move up/down the list. Also, the knob can be used to en ter selections on the
list screens by pressing it.
 Turn to adjust volume.
 Press to turn the audio system on/off.
 Press and hold to restart the audio system.

106
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47D14U_(U)
18.10.16 10:48
WA R N I N G
●Do not operate the player’s controls or connect the USB memory while driving.
NOTICE
●Do not leave your portable player in the car. In particular, hi gh temperatures inside the
vehicle may damage the portable player.
● Do not push down on or apply unnecessary pressure to the portab le player while it is con-
nected as this may damage the portable player or its terminal.
● Do not insert foreign objects into the port as this may damage the portable player or its
terminal.
INFORMATION
● If tag information exists, the file names will be changed to tr ack names.

107
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47D14U_(U)
18.10.16 10:48
AUDIO SYSTEM
31Select the repeat button to change on/
off.
1Select the random button to change
on/off.
PLAYING A USB AUDIO
REPEATING
The file/track currently being listened
to can be repeated.
RANDOM ORDER
Files/tracks can be automatically and
randomly selected.

108
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47D14U_(U)
18.10.16 10:48
3. iPod
■CONTROL SCREEN
OVERVIEW
The iPod operation screen can be reached by the following methods:
Connect an iPod. ( P.76)
 Select “iPod (DEVICE NAME)” on the “Select Audio Source” screen. ( P.74)
When the iPod connected to the system includes iPod video, the system can only
output the sound by selecting the browse screen. ( P.112)

109
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47D14U_(U)
18.10.16 10:48
AUDIO SYSTEM
3
■CONTROL PANEL
No.Function
Displays cover art
 Select to display a track list.
Select to display the audio source selection screen.
Select to display the sound setting screen.
Select to play/pause.
Shows progress
Select to set repeat playback.
Select to set random playback.
Select to display the play mode selection screen.
To return to the top screen, select “Now Playing” on the list screen.
Press to play/pause.
Press to select a track.
 Press and hold to fast forward/rewind.
Turn to select a track.
 Turn to move up/down the list. Also, the knob can be used to en ter selections on the
list screens by pressing it.
PS080IO

110
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47D14U_(U)
18.10.16 10:48
Turn to adjust volume.
 Press to turn the audio system on/off.
 Press and hold to restart the audio system.
WA R N I N G
● Do not operate the player’s controls or connect the iPod while driving.
NOTICE
●Do not leave your portable player in the car. In particular, hi gh temperatures inside the
vehicle may damage the portable player.
● Do not push down on or apply unnecessary pressure to the portab le player while it is con-
nected as this may damage the portable player or its terminal.
● Do not insert foreign objects into the port as this may damage the portable player or its
terminal.
No.Function
