QUICK REFERENCE GUIDE
Page 2 of 68
PRIUS PRIME 2019
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Prius Prime.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Prius Prime oper\
ations.
Every Prius Prime owner should review the Owner’s Manual that accompa\
nies
this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
Page 3 of 68
1
OVERVIEW
ELECTRIC VEHICLE SYSTEM
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY &
EMERGENCY FEATURES
INDEX
Engine maintenance
9
Fuel tank door release & cap 9
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6-7
Smart Key System1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS (continued)
FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES
Charging 11-13
Charging equipment 10
Charging system safety functions 17
Electric Vehicle System 10
Charging information 16
Charging schedule
2 14-15
Prime Applications 17
Air conditioning/heating 26-27
Audio 30-31
Auto lock/unlock
1,2 18
Blind Spot Monitor with Rear
Cross Traffic Alert (BSM w/RCTA) 35
Clock 21
Color Dual Multi-Information
Display (MID) 28
Color Head-up Display (HUD) 29
Door locks 20
Driving mode select switch 19
EV Auto drive mode 20
EV/HV drive mode 19
Garage door opener (HomeLink
®)3 38
Hybrid Synergy Drive System 18
Hybrid transmission 19
Intelligent Clearance Sonar (ICS) 34
Intelligent Parking Assist (IPA) 36-37
Intuitive Parking Assist 33
Lights
1 & turn signals 23
Parking brake 26
Power outlets-12V DC 32
Qi wireless charger 32Rear view monitor system 38
Seat adjustments-Front
22
Seat heaters 24
Seats-Folding down rear seats 22
Seats-Head restraints 22
Steering wheel-Heater 25
Steering wheel switches &
telephone controls (Bluetooth
®) 25
Tilt & telescopic steering wheel 21
USB/AUX port 29
Vehicle Stability Control (VSC)/
TRAC OFF switch 34
Windows-Power 20
Windshield wipers & washers 24
Floor mat installation 55
Rear door child safety locks 51
Safety Connect 51
Seat belts 50
Seat belts-Shoulder belt anchor 50
Star Safety System
™ 54-55
Tire Pressure Monitoring
(warning) System (TPMS) 52
Tire repair kit & tools 53
BLUETOOTH® DEVICE
PAIRING SECTION 56-62
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 49
Full-Speed Range Dynamic Radar
Cruise Control (DRCC) 46-48
Lane Departure Alert with
Steering Assist (LDA w/SA) 42-45
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 40-42
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 39
Sensors 39
Page 4 of 68
2

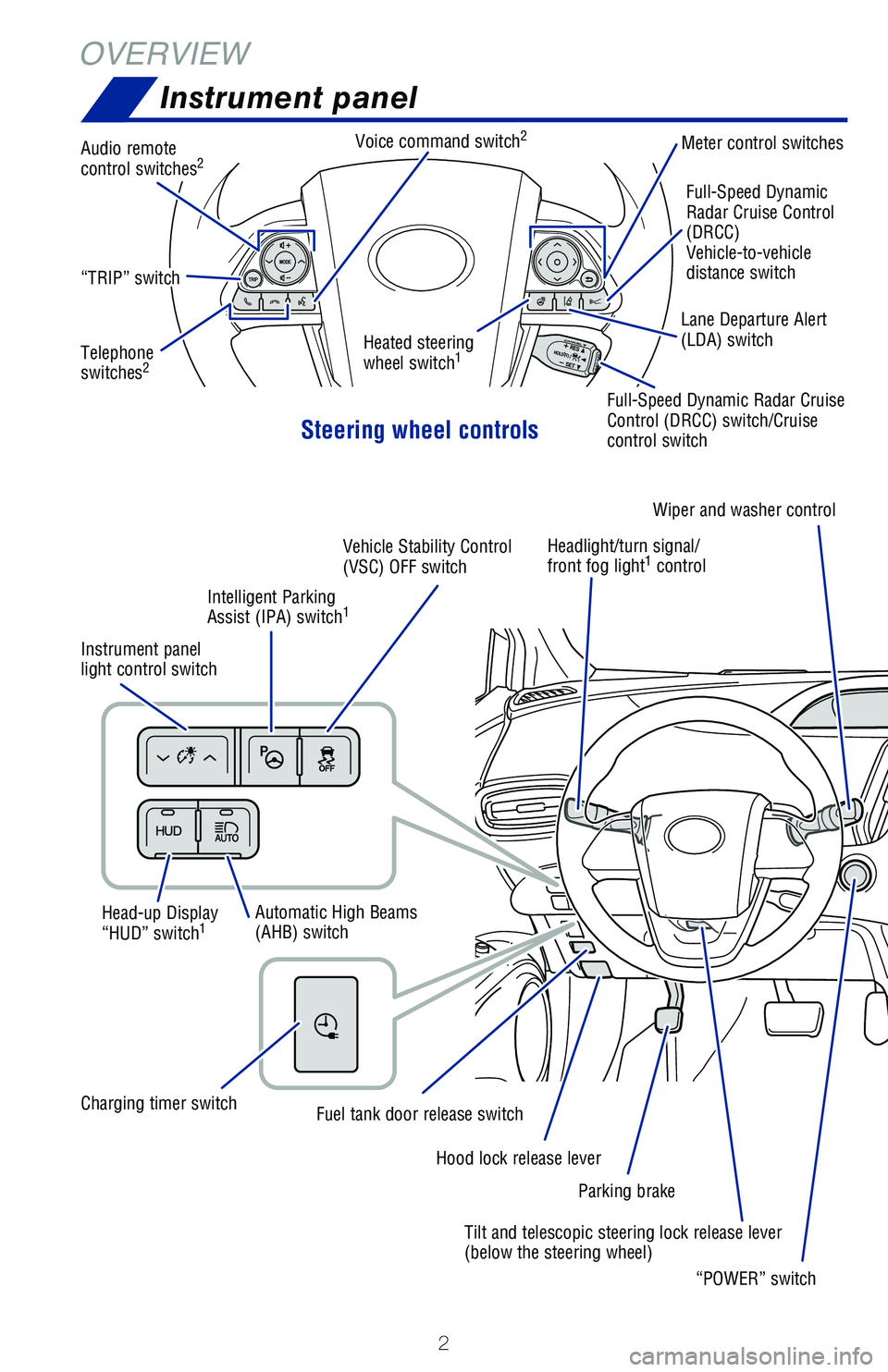

OVERVIEWInstrument panel
Steering wheel controls
Heated steering
wheel switch1
Full-Speed Dynamic
Radar Cruise Control
(DRCC)
Vehicle-to-vehicle
distance switch
“TRIP” switch
Audio remote
control switches2
Telephone
switches2
Voice command switch2Meter control switches
Head-up Display
“HUD” switch
1
Instrument panel
light control switch Headlight/turn signal/
front fog light
1 control
Automatic High Beams
(AHB) switch Tilt and telescopic steering lock release lever
(below the steering wheel)
Hood lock release lever
Fuel tank door release switchCharging timer switchIntelligent Parking
Assist (IPA) switch
1
Vehicle Stability Control
(VSC) OFF switch
Parking brakeWiper and washer control
“POWER” switch
Lane Departure Alert
(LDA) switch
Full-Speed Dynamic Radar Cruise
Control (DRCC) switch/Cruise
control switch
Page 5 of 68
3
OVERVIEW
ELECTRIC VEHICLE SYSTEM
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY &
EMERGENCY FEATURES
1 If equipped.2 For details, refer to the “Navigation System Owner’s Manual and “\
2019 Prius Prime Entune™
Audio Quick Reference Guide”.

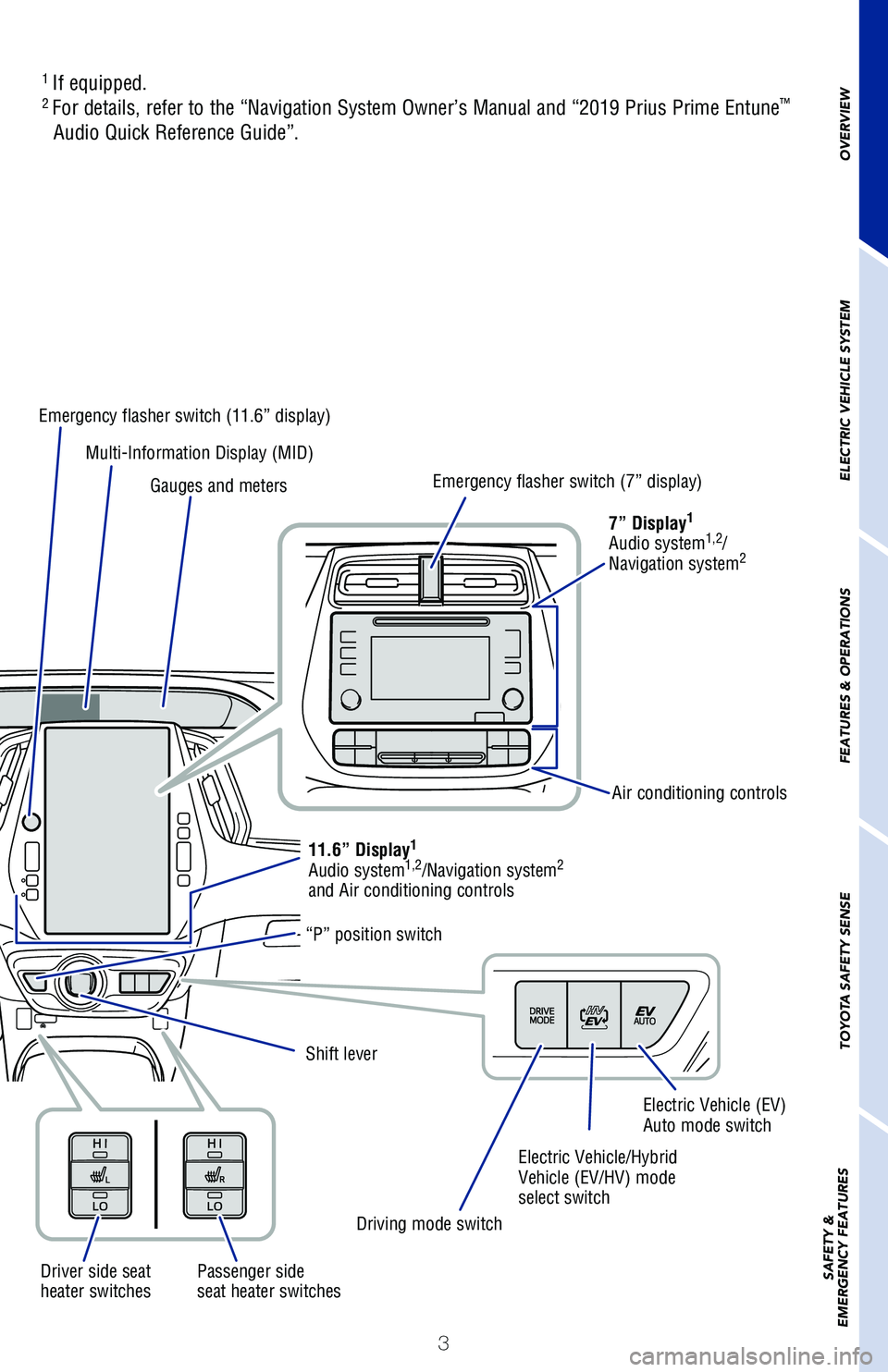

“P” position switch
Driving mode switch
Electric Vehicle/Hybrid
Vehicle (EV/HV) mode
select switch
Electric Vehicle (EV)
Auto mode switch
11.6” Display1
Audio system1,2/Navigation system2
and Air conditioning controls
Shift lever
Multi-Information Display (MID)
Emergency flasher switch (11.6” display)
Emergency flasher switch (7” display)7” Display
1
Audio system1,2/
Navigation system2
Gauges and meters
Driver side seat
heater switches Passenger side
seat heater switches Air conditioning controls
Page 6 of 68
4
Brake system warning1
Blind Spot Monitor (BSM) indicator4
Brake Override System/Drive-Start
Control/Intelligent Clearance Sonar4
Brake system warning
(yellow indicator) 1
Automatic High Beam (AHB)
indicator
OVERVIEW

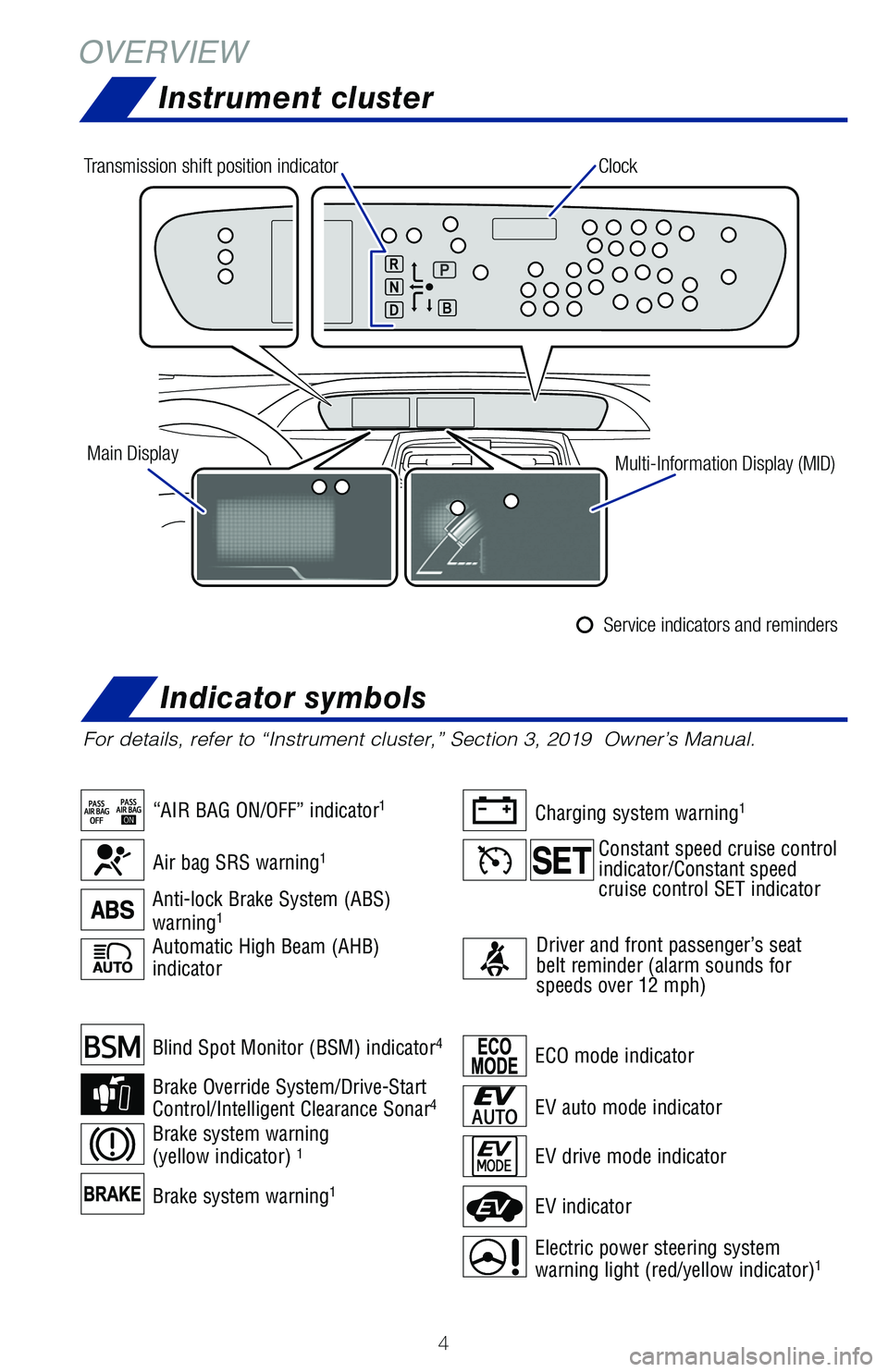

Instrument cluster
For details, refer to “Instrument cluster,” Section 3, 2019 Owner’s Manual.
ECO mode indicator
EV drive mode indicator
EV indicator
Electric power steering system
warning light (red/yellow indicator)1
EV auto mode indicator
Air bag SRS warning1
“AIR BAG ON/OFF” indicator1
Anti-lock Brake System (ABS)
warning1
Charging system warning1
Driver and front passenger’s seat
belt reminder (alarm sounds for
speeds over 12 mph)
Clock
Main Display Multi-Information Display (MID)
Transmission shift position indicator
Service indicators and reminders
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Indicator symbols
Page 7 of 68
5

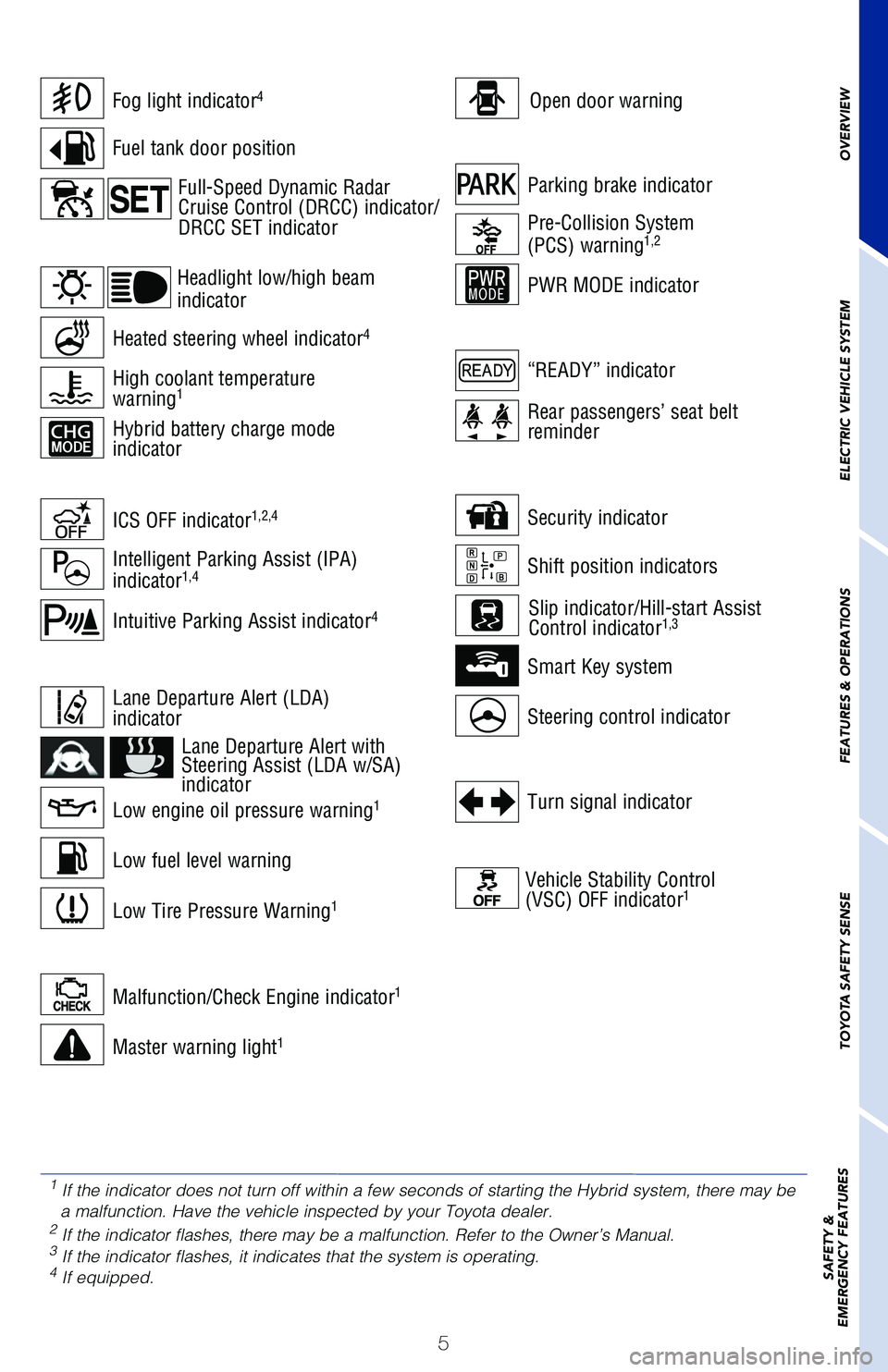

Open door warningFog light indicator4
Malfunction/Check Engine indicator1
Master warning light1
Low engine oil pressure warning1
Low Tire Pressure Warning1
Low fuel level warning
Lane Departure Alert (LDA)
indicator
Heated steering wheel indicator4
Intuitive Parking Assist indicator4
Fuel tank door position
Lane Departure Alert with
Steering Assist (LDA w/SA)
indicator
High coolant temperature
warning1
Hybrid battery charge mode
indicator
Headlight low/high beam
indicator
ICS OFF indicator1,2,4
Parking brake indicator
PWR MODE indicator
Pre-Collision System
(PCS) warning1,2
Rear passengers’ seat belt
reminder
“READY” indicator
Turn signal indicator
Vehicle Stability Control
(VSC) OFF indicator1
Shift position indicators
Steering control indicator
Intelligent Parking Assist (IPA)
indicator1,4
Smart Key system
Security indicator
Slip indicator/Hill-start Assist
Control indicator1,3
OVERVIEW
ELECTRIC VEHICLE SYSTEM
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY &
EMERGENCY FEATURES
Full-Speed Dynamic Radar
Cruise Control (DRCC) indicator/
DRCC SET indicator
1 If the indicator does not turn off within a few seconds of starting the \
Hybrid system, there may be
a malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Page 8 of 68
6

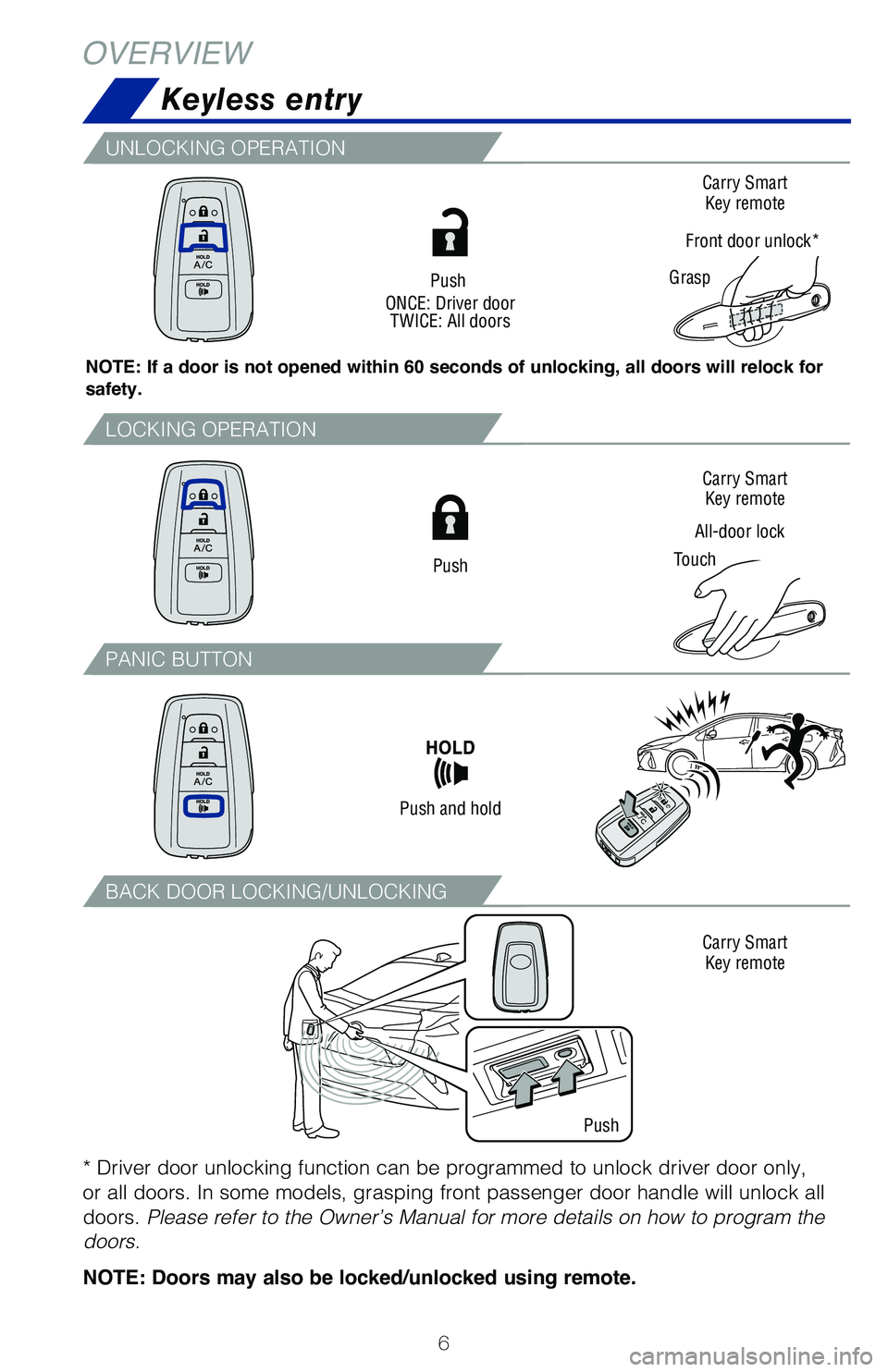

Keyless entry
OVERVIEW
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.Push
ONCE: Driver door TWICE: All doors
All-door lock
Touch Carry Smart
Key remote
Carry Smart Key remote
Carry Smart Key remote
Grasp
Front door unlock*
Push
Push and hold
LOCKING OPERATION
PANIC BUTTON
BACK DOOR LOCKING/UNLOCKING
UNLOCKING OPERATION
* Driver door unlocking function can be programmed to unlock driver door\
only,
or all doors. In some models, grasping front passenger door handle will \
unlock all
doors. Please refer to the Owner’s Manual for more details on how to program\
the
doors.
NOTE: Doors may also be locked/unlocked using remote.
Push
Page 9 of 68
7
Smart Key system

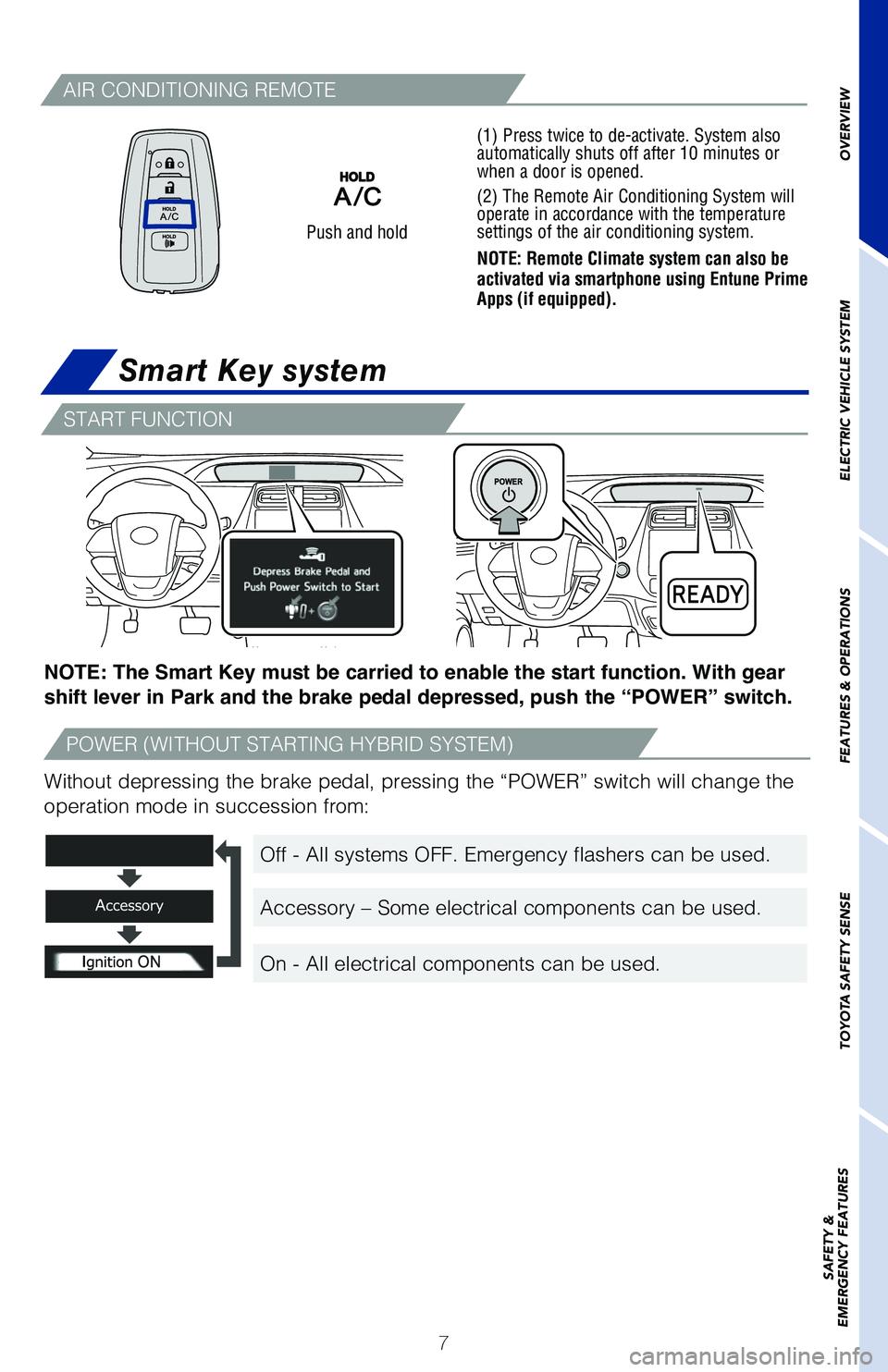

Without depressing the brake pedal, pressing the “POWER” switch wi\
ll change the
operation mode in succession from:
Push and hold
OVERVIEW
ELECTRIC VEHICLE SYSTEM
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY &
EMERGENCY FEATURES
NOTE: The Smart Key must be carried to enable the start function. With gear
shift lever in Park and the brake pedal depressed, push the “POWER” switch.
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
AIR CONDITIONING REMOTE
START FUNCTION
POWER (WITHOUT STARTING HYBRID SYSTEM)
(1) Press twice to de-activate. System also
automatically shuts off after 10 minutes or
when a door is opened.
(2) The Remote Air Conditioning System will
operate in accordance with the temperature
settings of the air conditioning system.
NOTE: Remote Climate system can also be
activated via smartphone using Entune Prime
Apps (if equipped).
Page 10 of 68

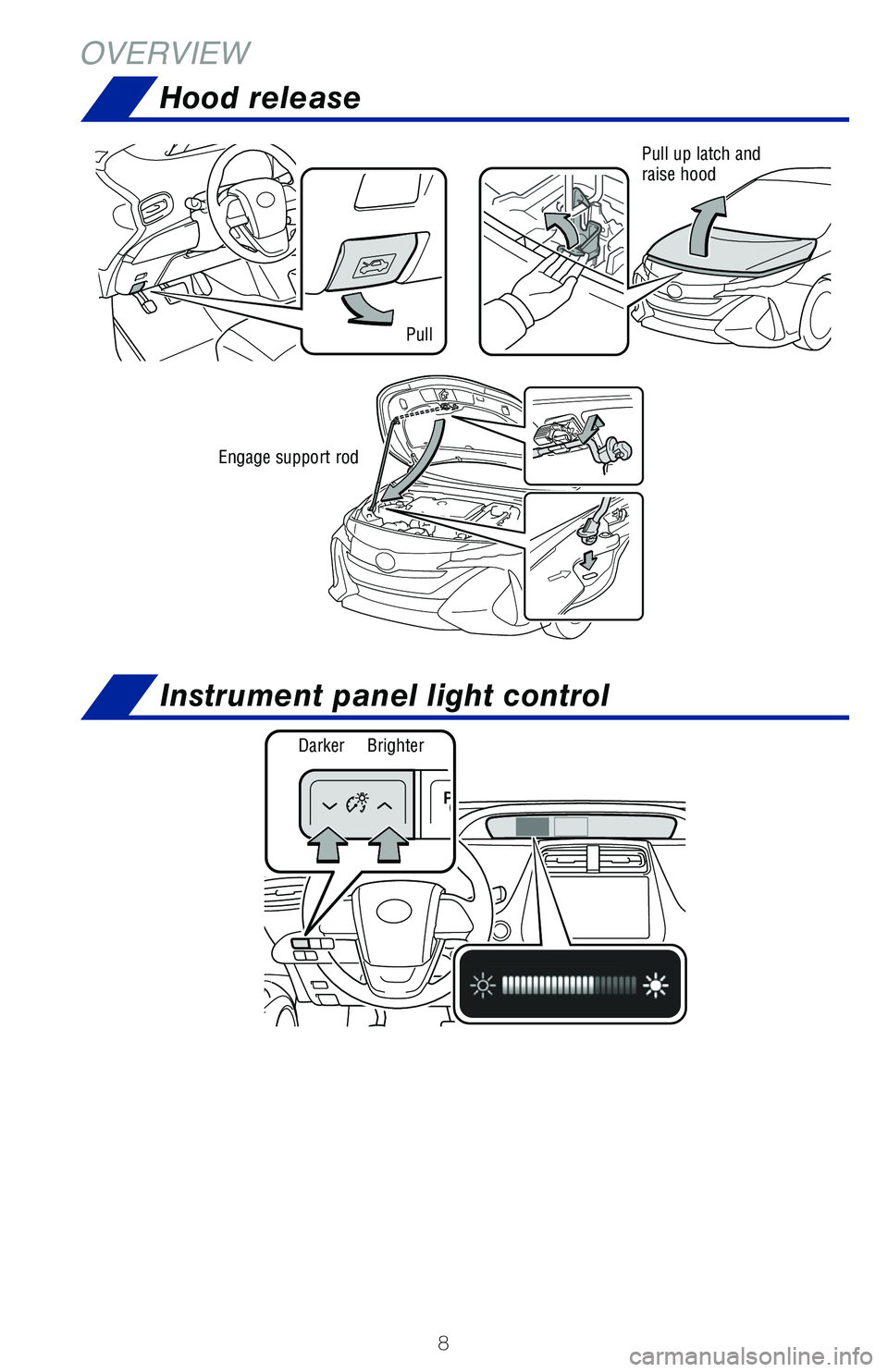

8
OVERVIEW
Pull up latch and
raise hood
Pull
Hood release
Instrument panel light control
Engage support rodBrighter
Darker
