TOYOTA PRIUS PRIME 2019 Accessories, Audio & Navigation (in English)

141
1. VOICE COMMAND SYSTEM OPERATION
PRIUS PRIME_Wide Navi_OM47D15U_(U)
18.10.16 10:29
VOICE COMMAND SYSTEM
4
Info menu
 Climate menu
CommandAction
“Show Forecast”Displays weather information
“Get the forecast for ”Display the forecast for specified area
“Show Doppler weather map”Displays doppler weather map
“Show Traffic”Displays traffic information
“Get traffic along this road”Displays traffic information along the current road
“Show predictive traffic”Displays predictive traffic information
CommandAction
“Turn Climate Control On/Off”Turns air conditioning system on/off
“Warmer”Increases the temperature o f the air conditioning system
“Cooler”Decreases the temperature of the air conditioning system
“<#> degrees”Changes the set temperature of the air conditioning sys-
tem to <#> degrees*1
*1: Only within the possible temper ature range of the air conditioning system

142
PRIUS PRIME_Wide Navi_OM47D15U_(U)
18.10.16 10:29
2. MOBILE ASSISTANT OPERATION
1. MOBILE ASSISTANT
1Press and hold this switch until you
hear the beeps.
2The Mobile Assistant can be used only
when the following screen is displayed.
To cancel the Mobile Assistant: Select
“Cancel” or press and hold the on
the steering wheel.
 To restart the Mobile Assistant for addi-
tional commands, press the on the
steering wheel.
• Mobile Assistant can only be restarted
after the system responds to a voice
command. • After some phone and music com-
mands, the Mobile Assistant feature will
automatically end to complete the
requested action.
The Mobile Assistant feature will
activate Apple’s Siri
® Eyes Free mode
via the steering wheel switches. To
operate the Mobile Assistant, a
compatible cellular phone must be
registered and connected to this
system via Bluetooth
®. ( P.51)
 The volume of the Mobile Assistant can
be adjusted using the “VOL” button or
steering wheel volume control switches.
The Mobile Assistant and phone call
volumes are synchronized.
INFORMATION
● The available features and functions
may vary based on the iOS version
installed on the connected device.
● Some Siri
® features are limited in Eyes
Free mode. If you attempt to use an
unavailable function, Siri
® will inform
you that the function is not available.
● If Siri
® is not enabled on the cellular
phone connected via Bluetooth®, an
error message will be displayed on the
screen.
● While a phone call is active, the Mobile
Assistant cannot be used.
● If using the navigation feature of the cel-
lular phone, ensure the active audio
source is Bluetooth
® audio or iPod in
order to hear turn by turn direction
prompts.

143
2. MOBILE ASSISTANT OPERATION
PRIUS PRIME_Wide Navi_OM47D15U_(U)
18.10.16 10:29
VOICE COMMAND SYSTEM
4
MICROPHONE
It is not necessary to speak directly into
the microphone when using the Mobile
Assistant. (Microphone location:
P.130)
INFORMATION
● Wait for the listening beeps before using
the Mobile Assistant.
● The Mobile Assistant may not recognize
commands in the following situations:
• Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while the
Mobile Assistant is being used.
• The air conditioning speed is set high.
• The air conditioning vents are turned toward the microphone.

144
2. MOBILE ASSISTANT OPERATION
PRIUS PRIME_Wide Navi_OM47D15U_(U)
18.10.16 10:29

5
145
PRIUS PRIME_Wide Navi_OM47D15U_(U)
18.10.16 10:29
1
2
3
4
5
6
7
8
9
1. RECEIVING WEATHER INFORMATION ......................... 146
DISPLAYING WEATHER
INFORMATION ................................. 146
2. DATA SERVICES SET TINGS ..... 148
SETTING DOWNLOAD METHODS .... 148
1USEFUL INFORMATION
INFORMATION

146
PRIUS PRIME_Wide Navi_OM47D15U_(U)
18.10.16 10:29
1. USEFUL INFORMATION

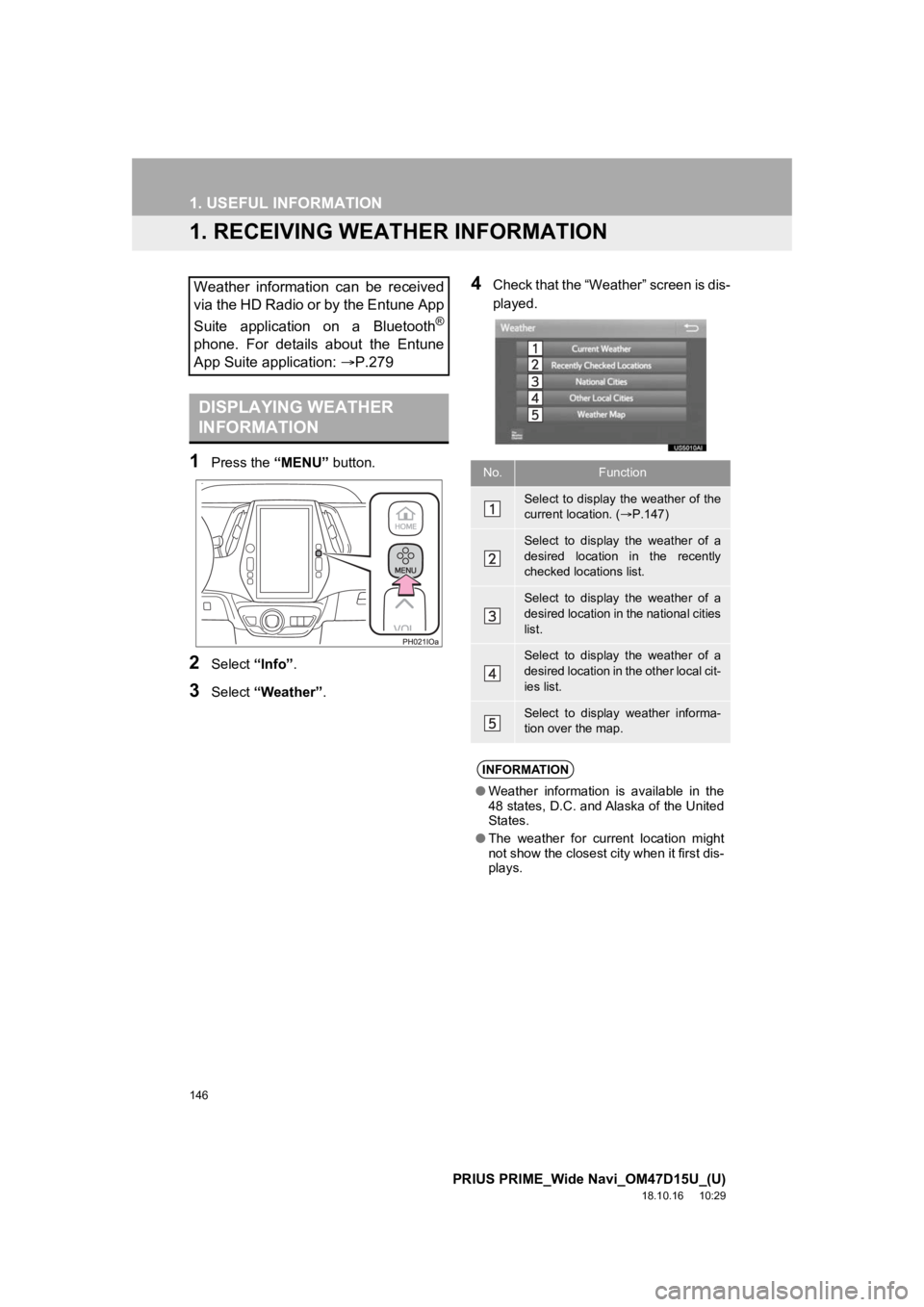

1. RECEIVING WEATHER INFORMATION
1Press the “MENU” button.
2Select “Info”.
3Select “Weather” .
4Check that the “Weather” screen is dis-
played.Weather information can be received
via the HD Radio or by the Entune App
Suite application on a Bluetooth
®
phone. For details about the Entune
App Suite application: P.279
DISPLAYING WEATHER
INFORMATION
No.Function
Select to display the weather of the
current location. ( P.147)
Select to display the weather of a
desired location in the recently
checked locations list.
Select to display the weather of a
desired location in the national cities
list.
Select to display the weather of a
desired location in the other local cit-
ies list.
Select to display weather informa-
tion over the map.
INFORMATION
● Weather information is available in the
48 states, D.C. and Alaska of the United
States.
● The weather for current location might
not show the closest city when it first dis-
plays.

147
1. USEFUL INFORMATION
PRIUS PRIME_Wide Navi_OM47D15U_(U)
18.10.16 10:29
INFORMATION
5
1Display the “Weather” screen.
(P.146)
2Select “Current Weather” .
3Select the desired ta b to be displayed.
DISPLAYING THE WEATHER
OF THE CURRENT LOCATION

148
1. USEFUL INFORMATION
PRIUS PRIME_Wide Navi_OM47D15U_(U)
18.10.16 10:29
2. DATA SERVICES SETTINGS
1Press the “MENU” button.
2Select “Settings” .
3Select “Data Services” .
4Select the desired item to be set.SETTING DOWNLOAD
METHODS
Data service information, which is
comprised of traffic information and
weather information, can be received
via the HD Radio and by the Entune
App Suite application on a Bluetooth
®
phone. The receiving method can be
set to both or only via the HD Radio.
For details about the Entune App Suite
application: P.279No.Function
Select to receive data service infor-
mation via both the HD Radio and
the Entune App Suite application on
a Bluetooth
® phone. When both
methods are available, the HD Ra-
dio will be preferred.
INFORMATION
● These settings are available in the 48
states, D.C. and Alaska of the United
States.

6
149
PRIUS PRIME_Wide Navi_OM47D15U_(U)
18.10.16 10:29
1
2
3
4
5
6
7
8
9
1. REAR VIEW MONITOR SYSTEM .......... ....................... ... 150
REAR VIEW MONITOR SYSTEM ....... 150
DRIVING PRECAUTIONS ................... 150
SCREEN DESCRIPTION .................... 152
2. REAR VIEW MONITOR
SYSTEM PRECAUTIONS ......... 154
AREA DISPLAYED ON SCREEN........ 154
THE CAMERA ..................................... 155
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROAD ................................................ 156
WHEN APPROACHING THREE-DIMENSIONAL OBJECTS ... 157
3. THINGS YOU SHOULD KNOW ....................................... 159
IF YOU NOTICE ANY SYMPTOMS .... 159
1REAR VIEW MONITOR
SYSTEM
PERIPHERAL MONITORING SYSTEM

150
PRIUS PRIME_Wide Navi_OM47D15U_(U)
18.10.16 10:29
1. REAR VIEW MONITOR SYSTEM
1. REAR VIEW MONITOR SYSTEM
REAR VIEW MONITOR
SYSTEM
The rear view monitor system assists
the driver by displaying an image of the
view behind the vehicle with fixed
guide lines on the screen while backing
up, for example while parking.
INFORMATION
●The screen illustrations used in this text
are intended as examples, and may dif-
fer from the image that is actually dis-
played on the screen.
● The image is displayed on the top half of
the screen. A black image is displayed
on the bottom half, but this is not a mal-
function.
DRIVING PRECAUTIONS
The rear view monitor system is a sup-
plemental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the rear view monitor
system.
