This vehicle is equipped with an event data recorder (EDR). The main pur-
pose of an EDR is to record, in certain crash or near crash-lik e situations,
such as an air bag deployment or hitting a road obstacle, data that will assist
in understanding how a vehicle’s systems performed. The EDR is designed to
record data related to vehicle dynamics and safety systems for a short period
of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fas-tened;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circu mstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a non-trivi al crash situ-
ation occurs; no data are recorded by the EDR under normal driv ing condi-
tions and no personal data (e.g., name, gender, age, and crash location) are
recorded. However, other parties, such as law enforcement, could combine
the EDR data with the type of personally identifying data routi nely acquired
during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access
to the vehicle or the EDR is needed. In addition to the vehicle manufacturer,
other parties, such as law enforcement, that have the special e quipment, can
read the information if they have access to the vehicle or the EDR.
●Disclosure of the EDR data
Toyota will not disclose the data recorded in an EDR to a third party except
when:
• An agreement from the vehicle’s owner (or the lessee for a lea sed vehi-
cle) is obtained
• In response to an official request by the police, a court of l aw or a govern-
ment agency
• For use by Toyota in a lawsuit
However, if necessary, Toyota may:
• Use the data for research on vehicle safety performance
• Disclose the data to a third party for research purposes witho ut disclosing
information about the specific vehicle or vehicle owner
Event data recorder

12
PRIUS PRIME_OM_OM47D13U_(U)The SRS airbag and seat belt pretensioner devices in your Toyot
a contain
explosive chemicals. If the vehicle is scrapped with the airbag s and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt preten sioner
removed and disposed of by a qualified service shop or by your Toyota dealer
before you scrap your vehicle.
Special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote con-
trol batteries.
Scrapping of your Toyota
Perchlorate Material
WARNING
■ General precautions while driving
Driving under the influence: Never drive your vehicle when unde r the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judg ment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistake s that other
drivers or pedestrians might make and be ready to avoid acciden ts.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serio us injury to you,
your occupants or others.
■ General precaution regar ding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by p laying with
the windows, or other features of the vehicle. In addition, hea t build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

PRIUS PRIME_OM_OM47D13U_(U)
13

14
PRIUS PRIME_OM_OM47D13U_(U)
Reading this manual
WARNING:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (push-
ing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this hap-
pen”.
123

15
PRIUS PRIME_OM_OM47D13U_(U)
How to search
■Searching by name• Alphabetical index .......P. 772
■Searching by installation
position• Pictorial index ................P. 16
■Searching by symptom or
sound• What to do if... (Troubleshooting) ........P. 768
■Searching by title• Table of contents .............P. 2

16Pictorial index
PRIUS PRIME_OM_OM47D13U_(U)
Pictorial index
■

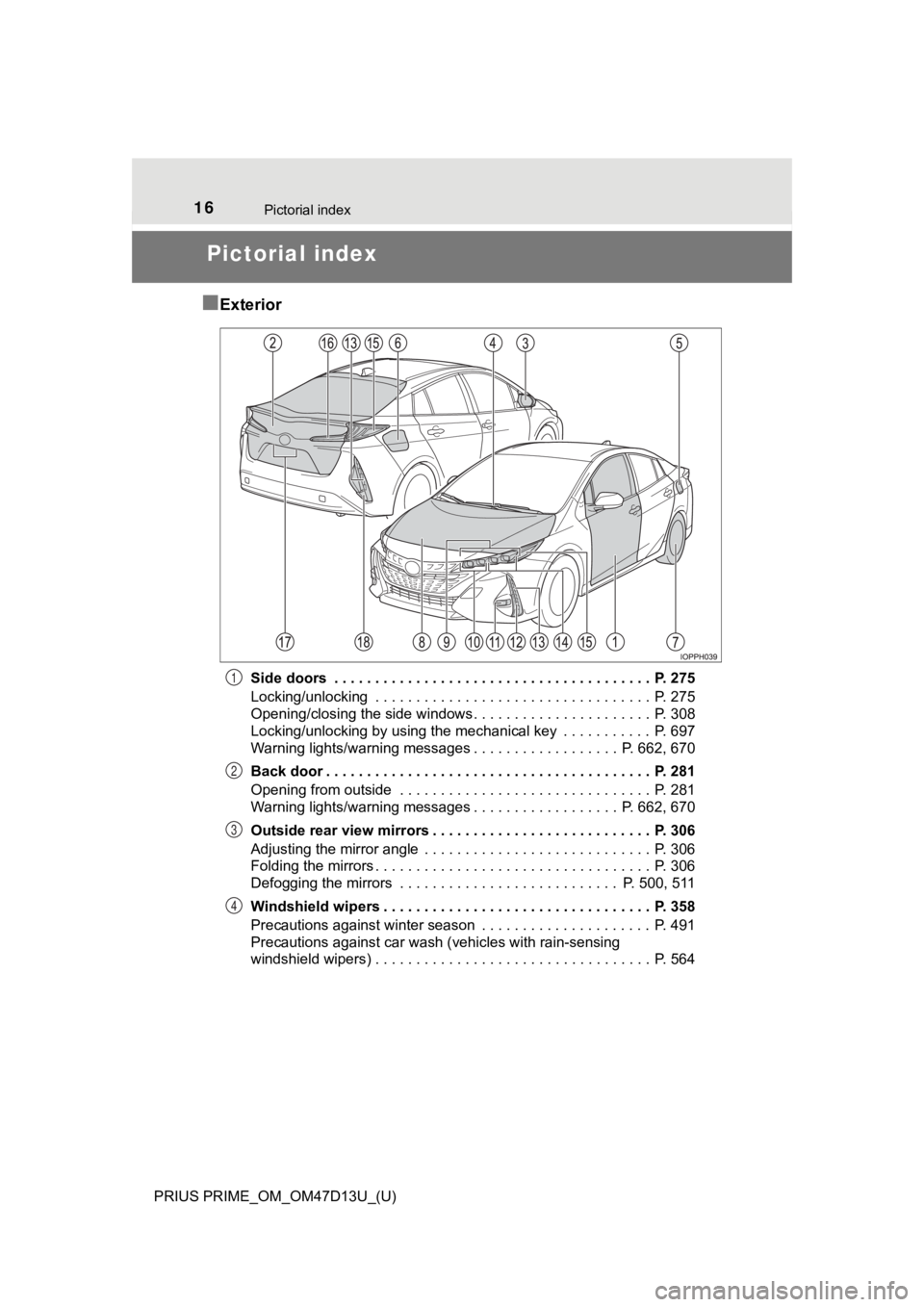

Exterior
Side doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 275
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 275
Opening/closing the side windows. . . . . . . . . . . . . . . . . . . . . . P. 308
Locking/unlocking by using the mechanical key . . . . . . . . . . . P. 697
Warning lights/warning messages . . . . . . . . . . . . . . . . . . P. 662, 670
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 281
Opening from outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 281
Warning lights/warning messages . . . . . . . . . . . . . . . . . . P. 662, 670
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 306
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 306
Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 306
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 500, 511
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 358
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 491
Precautions against car wash (vehicles with rain-sensing
windshield wipers) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 5641
2
3
4

17Pictorial index
PRIUS PRIME_OM_OM47D13U_(U)Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 364
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 364
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 718
Charging port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 108
Charging method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 131
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . P. 600
Replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 615
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 723
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 491
Checking/rotation/tire pressur e warning system . . . . . . . . .P. 600
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 678
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 583
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 583
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 720
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 707
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 346
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 346
Fog lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 356
LED accent lights
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 346
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 344
Daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 346
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 346
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 346
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 346
Back-up lights
Shifting the shift position to R . . . . . . . . . . . . . . . . . . . . . . . . . P. 338
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 641, Watts: P. 724)
*: If equipped
9
10
11
12
13
14
15
16
17
18

18Pictorial index
PRIUS PRIME_OM_OM47D13U_(U)

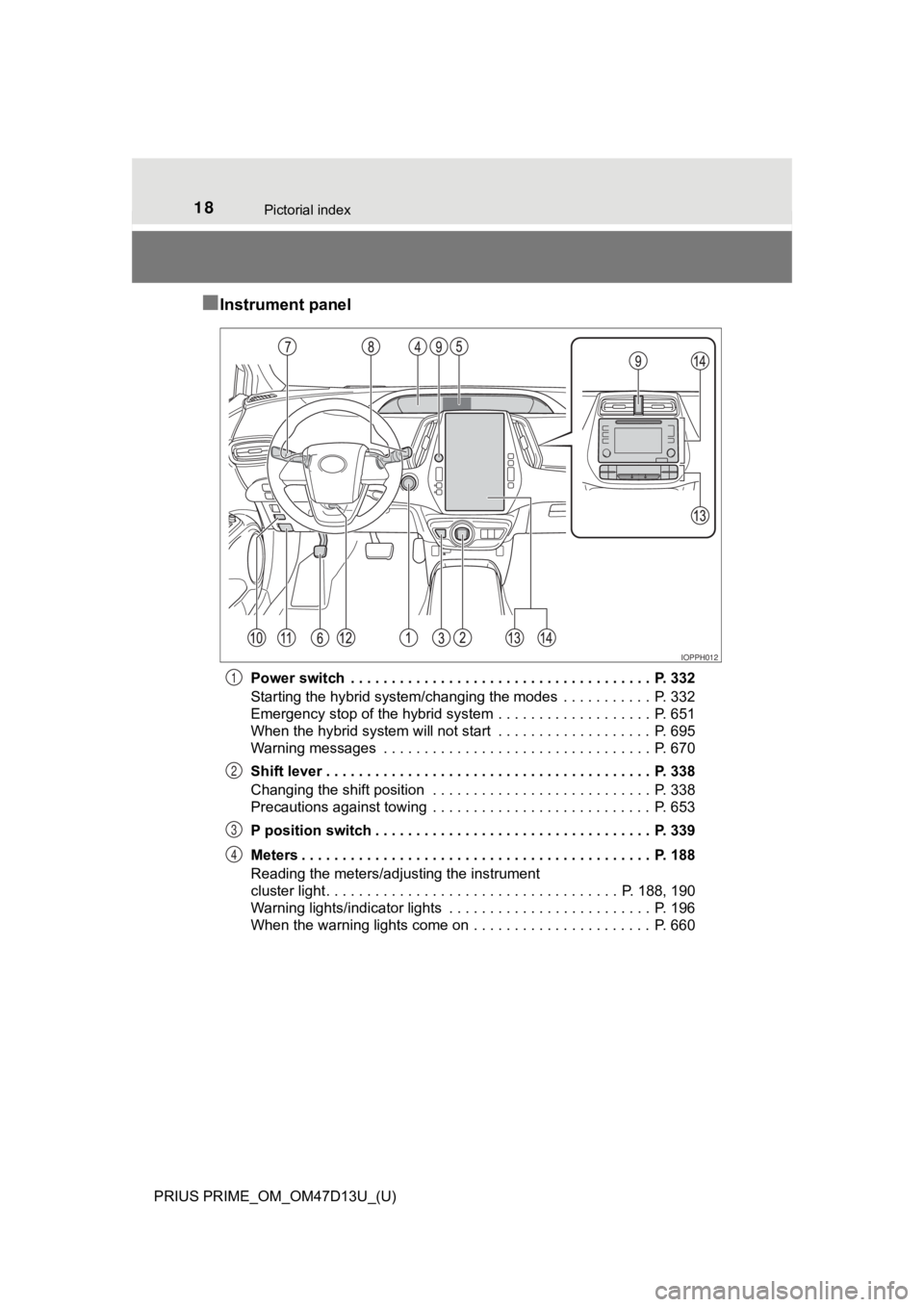

■Instrument panel
Power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 332
Starting the hybrid system/changing the modes . . . . . . . . . . . P. 332
Emergency stop of the hybrid system . . . . . . . . . . . . . . . . . . . P. 651
When the hybrid system will not start . . . . . . . . . . . . . . . . . . . P. 695
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 670
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 338
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 338
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 653
P position switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 339
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 188
Reading the meters/adjusting the instrument
cluster light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 188, 190
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 196
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 660
IOPPH012
1
2
3
4

19Pictorial index
PRIUS PRIME_OM_OM47D13U_(U)Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 216
When the warning messages are displayed . . . . . . . . . . . . . . P. 670
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 345
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 345
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 491
Warning buzzer . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . P. 345
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 344
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 346
Headlights/parking lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 346
Fog lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 356
Windshield wipers and washer switch . . . . . . . . . . . . . . . . P. 358
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 358
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 598
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 650
Fuel filler door opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 366
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 583
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 302
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . P. 496, 507
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 496, 508
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 500, 511
Audio system
*2
*1: If equipped
*2: Refer to “NAVIGATION S YSTEM OWNER’S MANUAL”.
5
6
7
8
9
10
11
12
13
14

20Pictorial index
PRIUS PRIME_OM_OM47D13U_(U)

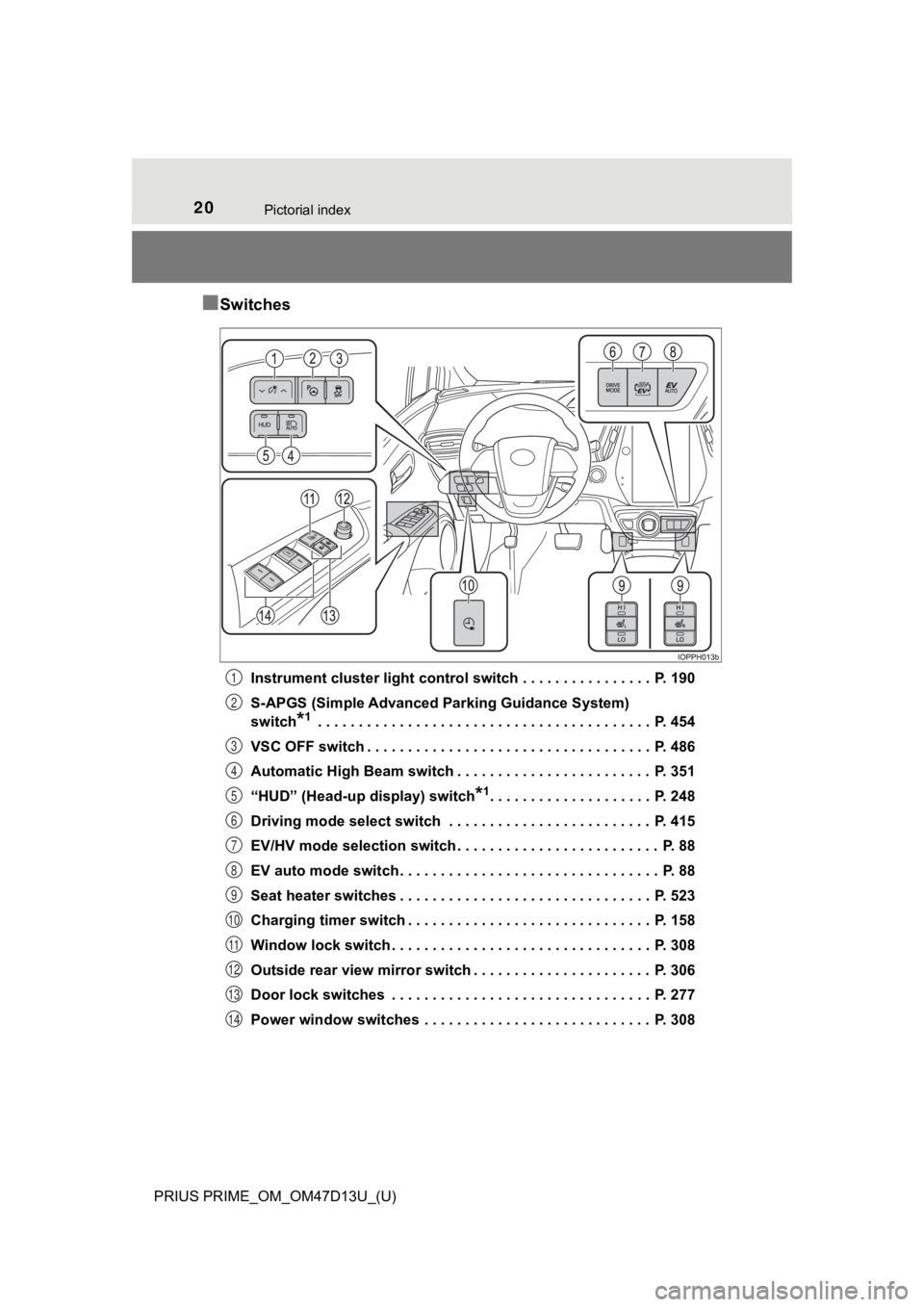

■Switches
Instrument cluster light control switch . . . . . . . . . . . . . . . . P. 190
S-APGS (Simple Advanced Parking Guidance System)
switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 454
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 486
Automatic High Beam switch . . . . . . . . . . . . . . . . . . . . . . . . P. 351
“HUD” (Head-up display) switch
*1. . . . . . . . . . . . . . . . . . . . P. 248
Driving mode select switch . . . . . . . . . . . . . . . . . . . . . . . . . P. 415
EV/HV mode selection switch . . . . . . . . . . . . . . . . . . . . . . . . . P. 88
EV auto mode switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 88
Seat heater switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 523
Charging timer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 158
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
Outside rear view mirror switch . . . . . . . . . . . . . . . . . . . . . . P. 306
Door lock switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 277
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
1
2
3
4
5
6
7
8
9
10
11
12
13
14
