Light bulbs
Check the wattage of the light bulb to be replaced. ( P. 724)
Back-up light
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. If necessary
bulb replacement seems diffic ult to perform, contact your
Toyota dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement

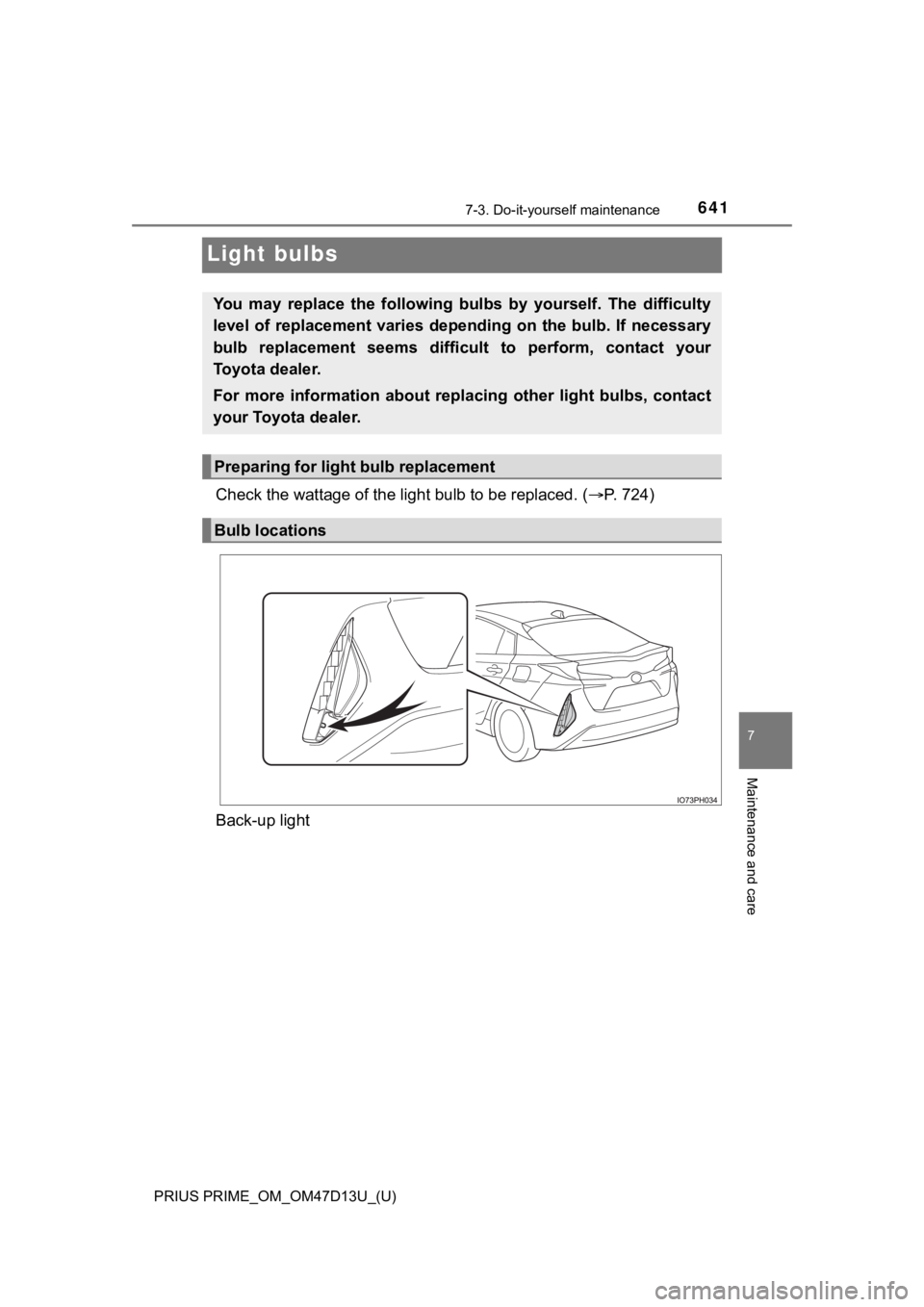

Bulb locations

642
PRIUS PRIME_OM_OM47D13U_(U)
7-3. Do-it-yourself maintenance

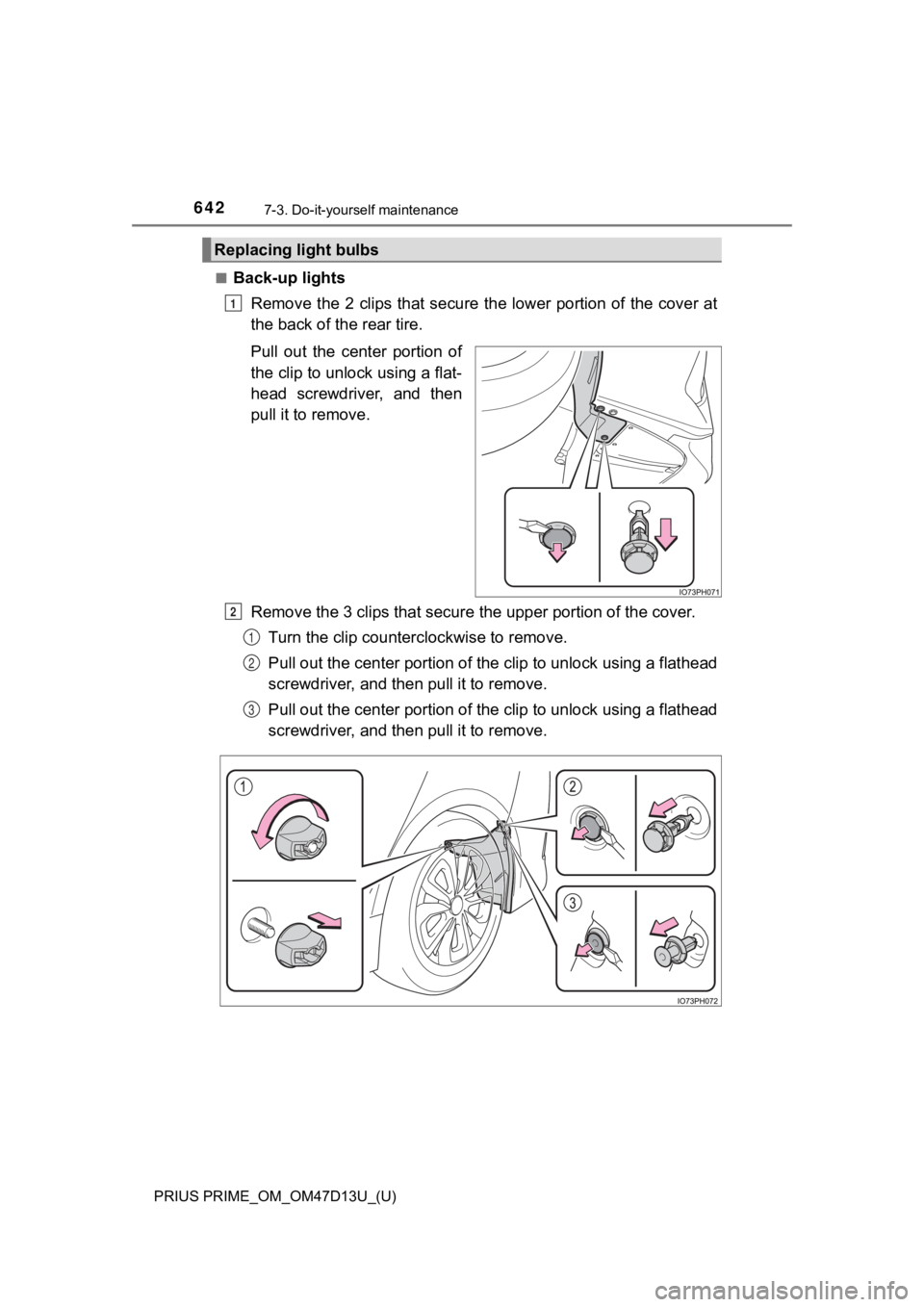

■Back-up lightsRemove the 2 clips that secure t he lower portion of the cover at
the back of the rear tire.
Pull out the center portion of
the clip to unlock using a flat-
head screwdriver, and then
pull it to remove.
Remove the 3 clips that secure the upper portion of the cover.
Turn the clip countercl ockwise to remove.
Pull out the center portion of the clip to unlock using a flathead
screwdriver, and th en pull it to remove.
Pull out the center portion of the clip to unlock using a flathead
screwdriver, and th en pull it to remove.
Replacing light bulbs
1
2
1
2
3

PRIUS PRIME_OM_OM47D13U_(U)
6437-3. Do-it-yourself maintenance
7
Maintenance and care
Remove the cover end and
pull the cover toward the
front of the vehicle to make a
gap between the cover and
rear bumper.

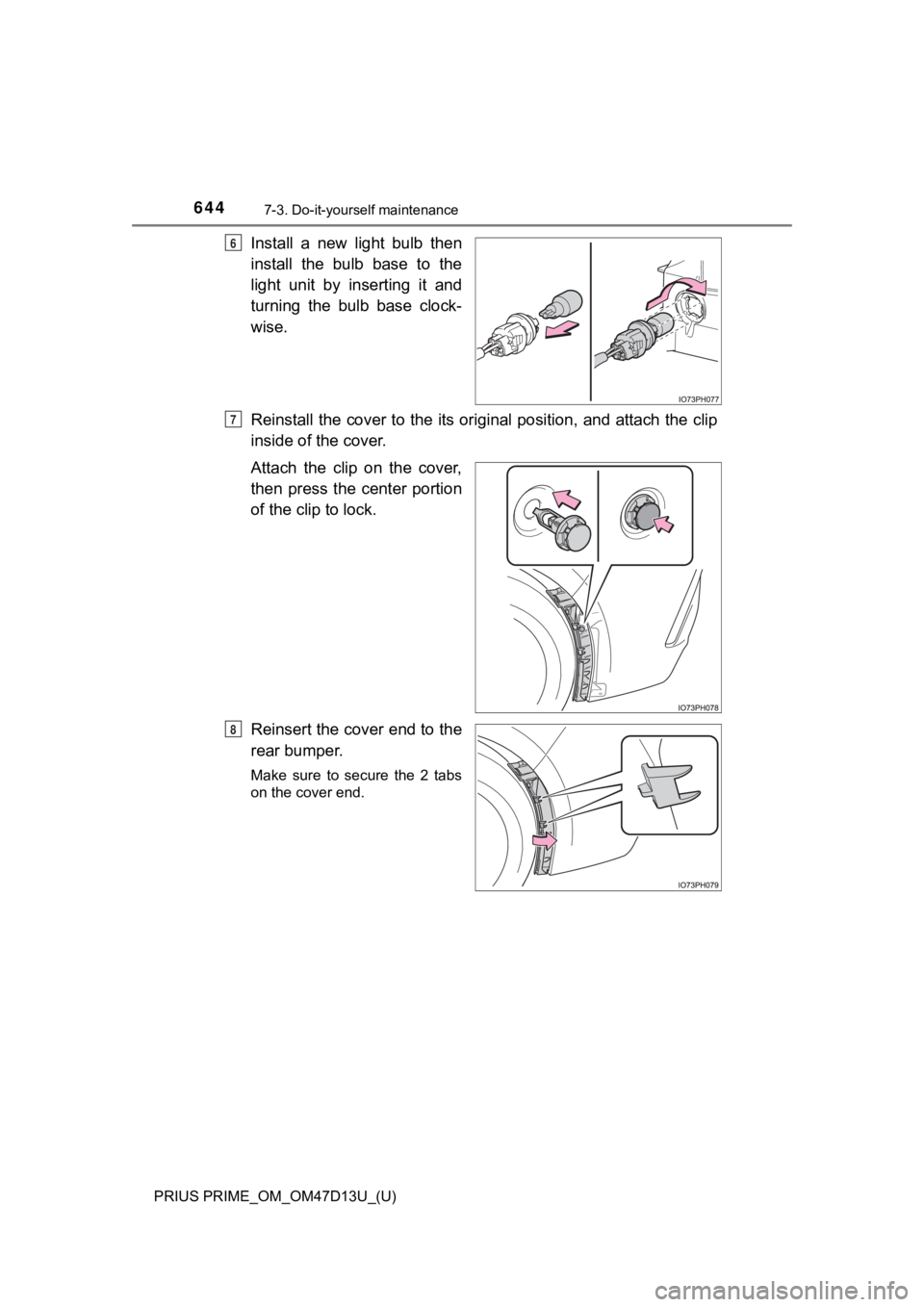

Remove the clip inside of the cover, and remove the cover.
Pull out the center portion of
the clip to unlock using a flat-
head screwdriver, and then
pull it to remove.
Turn the bulb base counter-
clockwise, and then remove
the light bulb.
To remove the light bulb, insert a
hand from the gap between the
rear tire and rear bumper.
3
4
5

644
PRIUS PRIME_OM_OM47D13U_(U)
7-3. Do-it-yourself maintenance
Install a new light bulb then
install the bulb base to the
light unit by inserting it and
turning the bulb base clock-
wise.
Reinstall the cover to the its original position, and attach the clip
inside of the cover.
Attach the clip on the cover,
then press the center portion
of the clip to lock.
Reinsert the cover end to the
rear bumper.
Make sure to secure the 2 tabs
on the cover end.
6
7
8

PRIUS PRIME_OM_OM47D13U_(U)
6457-3. Do-it-yourself maintenance
7
Maintenance and care

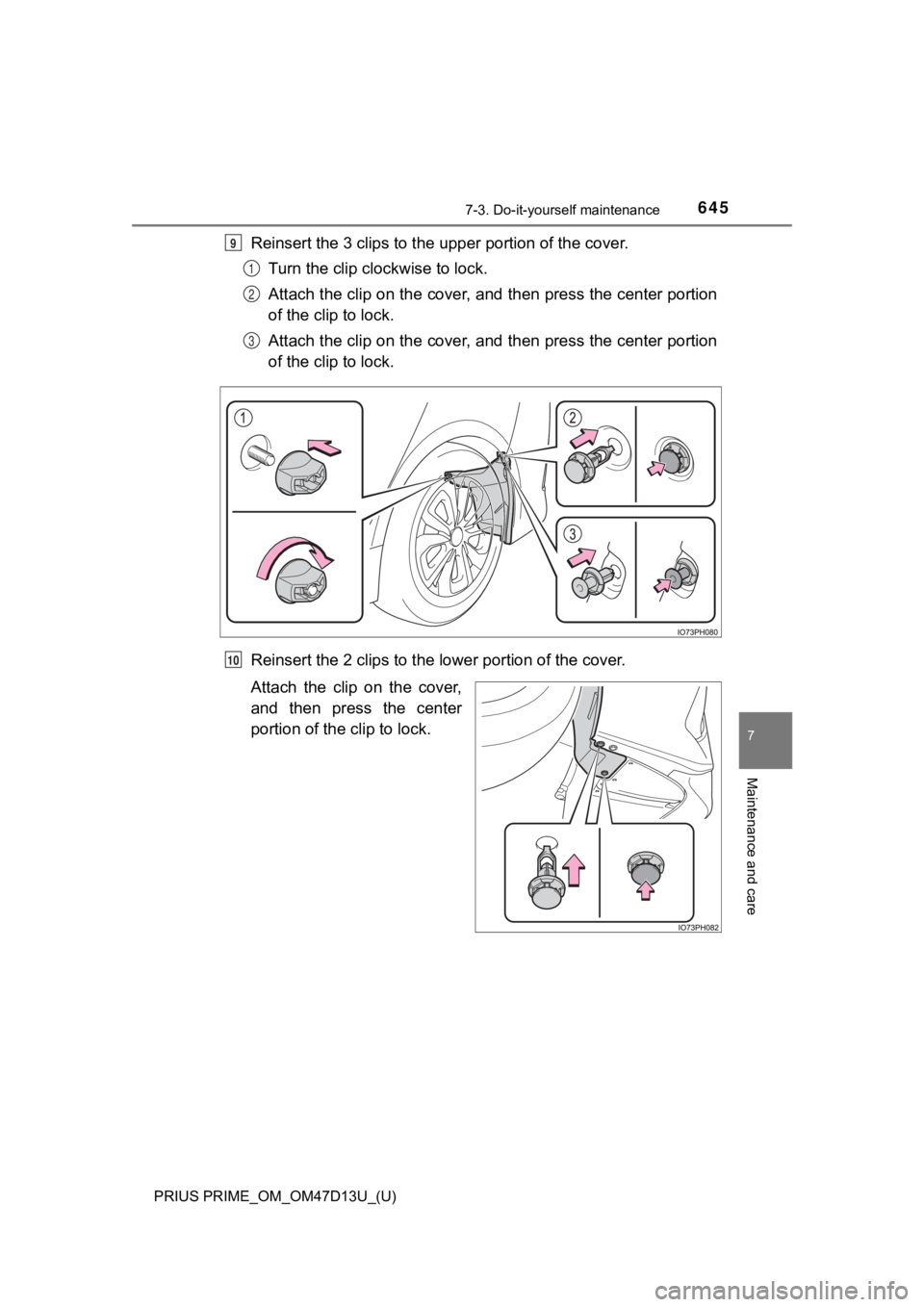

Reinsert the 3 clips to the upper portion of the cover.
Turn the clip clockwise to lock.
Attach the clip on the cover, and then press the center portion
of the clip to lock.
Attach the clip on the cover, and then press the center portion
of the clip to lock.
Reinsert the 2 clips to the lower portion of the cover.
Attach the clip on the cover,
and then press the center
portion of the clip to lock.9
1
2
3
10

646
PRIUS PRIME_OM_OM47D13U_(U)
7-3. Do-it-yourself maintenance
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlights and daytime running lights
● Front side marker lights
● Parking lights
● Fog lights (if equipped)
● LED accent lights (if equipped)
● Front turn signal lights
● Rear turn signal lights
● Rear side marker lights
● Tail lights
● Stop lights
● High mounted stoplight
● License plate lights
■LED lights
The lights other than the back-up lights each consist of a numb er of LEDs. If
any of the LEDs burn out, take your vehicle to your Toyota deal er to have the
light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the lens does not indicate a
malfunction. Contact your Toyota dealer for more information in the following
situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the light.
■ When replacing light bulbs
P. 638

PRIUS PRIME_OM_OM47D13U_(U)
6477-3. Do-it-yourself maintenance
7
Maintenance and care
WARNING
■Replacing light bulbs
● Be sure to stop the hybrid system and turn off the lights. Do not attempt to
replace the bulb immediately after turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clea n dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Fa ilure to do so
may result in heat damage, fire, or water entering the light un it. This may
damage the back-up lights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors , electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
● Do not replace the right-hand back-up light immediately after t he vehicle
has been driven.
After the vehicle has been driven the exhaust pipe will be extr emely hot,
and touching the exhaust pipe may result in burns.
● Use gloves and other protection to prevent injuries on vehicle parts.
There is the danger of being injured on the edges of parts.
■ To prevent damage or fire
● Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.

648
PRIUS PRIME_OM_OM47D13U_(U)
7-3. Do-it-yourself maintenance

649
PRIUS PRIME_OM_OM47D13U_(U)
8When trouble arises
8-1. Essential informationEmergency flashers .......... 650
If your vehicle has to be stopped in an
emergency ...................... 651
If the vehicle is trapped in rising water.................. 652
8-2. Steps to take in an emergency
If your vehicle needs to be towed ......................... 653
If you think something is wrong .............................. 659
If a warning light turns on or a warning buzzer
sounds ............................ 660
If a warning message is displayed......................... 670
If you have a flat tire.......... 678
If the hybrid system will not start ........................... 695
If the electronic key does not operate properly ........ 697
If the 12-volt battery is discharged ...................... 701
If your vehicle overheats ... 707
If the vehicle becomes stuck ............................... 712

650
PRIUS PRIME_OM_OM47D13U_(U)
8-1. Essential information
Emergency flashers
Press the switch.
All the turn signal lights will flash. To turn them off, press the switch once
again.
■ Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is
not operating (while the “READY” indicator is not illuminated), the 12-volt bat-
tery may discharge.

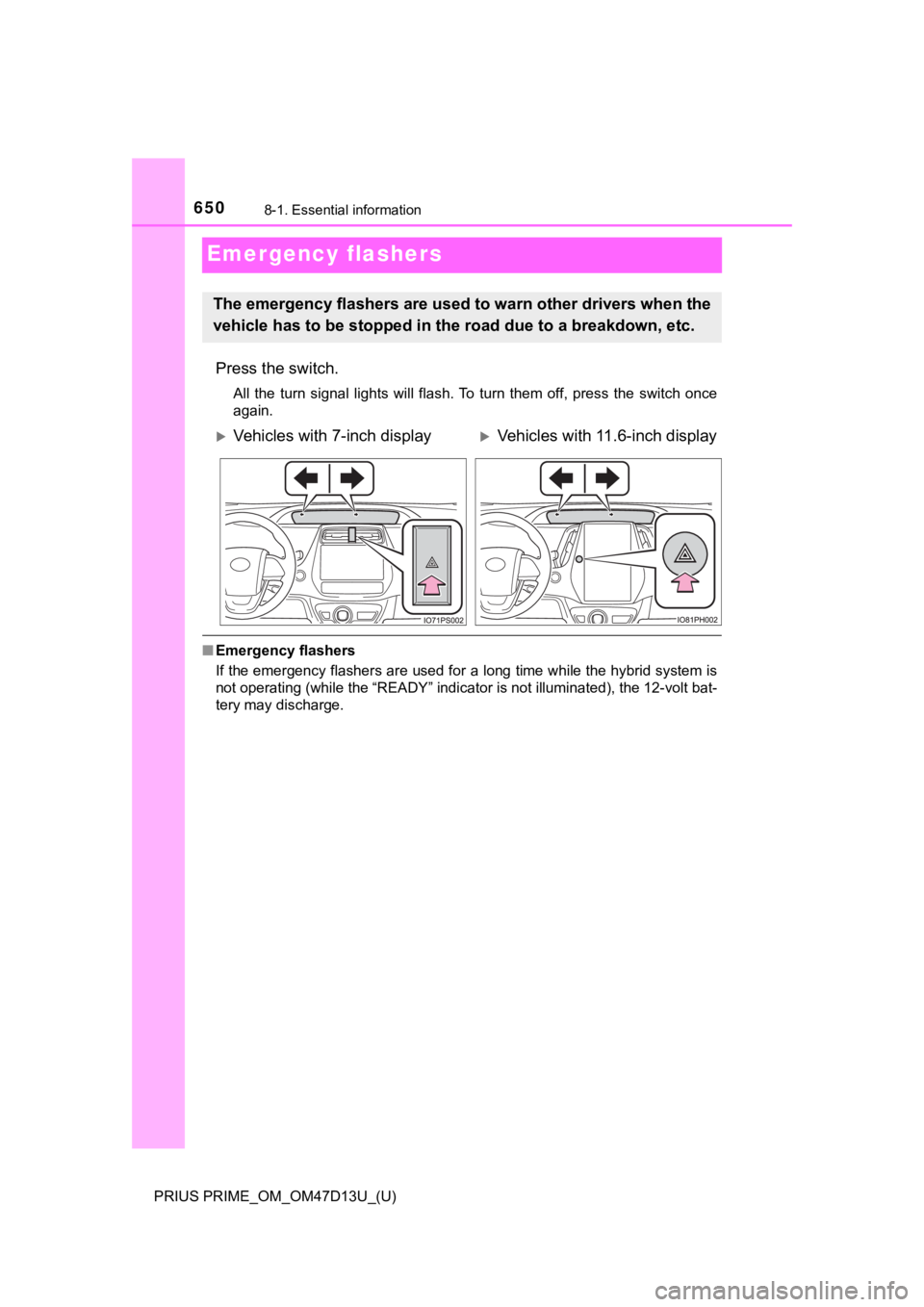

The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
Vehicles with 7-inch displayVehicles with 11.6-inch display
