7118-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47D13U_(U)
8
When trouble arises
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down suff iciently.
Adding cool coolant to a hot hybrid system too quickly can cause damage to
the hybrid system.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sa nd or dust
etc.).
● Do not use any coolant additive.

712
PRIUS PRIME_OM_OM47D13U_(U)
8-2. Steps to take in an emergency
If the vehicle becomes stuck
Set the parking brake and shift the shift position to P. Stop the
hybrid system.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheel s
to help provide traction.
Restart the hybrid system.
Shift the shift position to D or R and release the parking brak e.
Then, while exercising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:

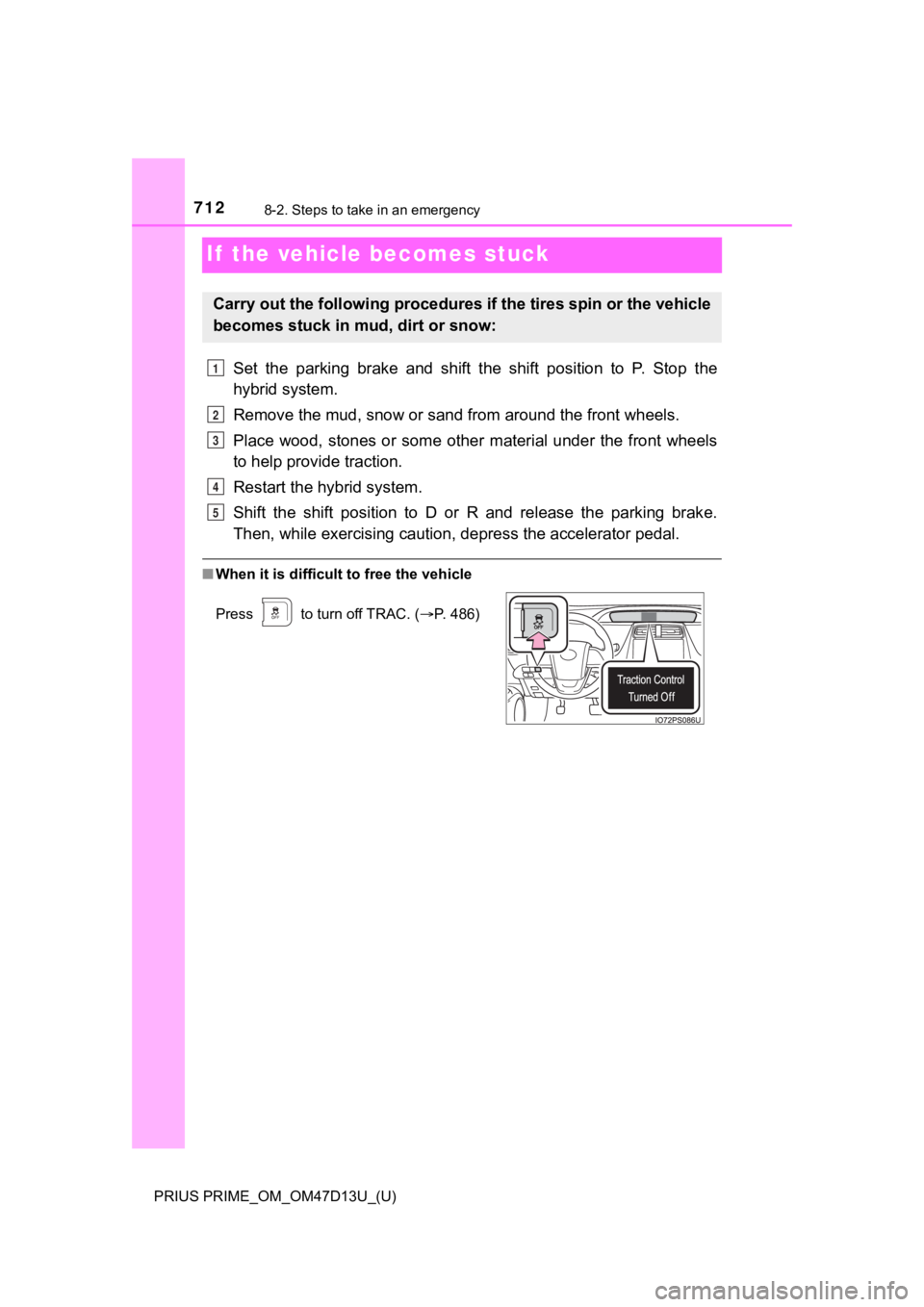

Press to turn off TRAC. ( P. 4 8 6 )
1
2
3
4
5

7138-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47D13U_(U)
8
When trouble arises
WARNING
■When attempting to f ree a stuck vehicle
If you choose to push the vehicle back and forth to free it, ma ke sure the
surrounding area is clear to avoid striking other vehicles, obj ects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When changing the shift position
Be careful not to change the shift position with the accelerato r pedal
depressed.
This may lead to unexpected rapid acceleration of the vehicle t hat may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damage to the hybrid transmission and other components
● Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
● If the vehicle remains stuck even after these procedures are pe rformed,
the vehicle may require towing to be freed.

7148-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47D13U_(U)

715
PRIUS PRIME_OM_OM47D13U_(U)
9Vehicle specifications
9-1. SpecificationsMaintenance data (fuel, oil level, etc.) .......... 716
Fuel information ................ 725
Tire information ................. 728
9-2. Customization Customizable features ...... 739
9-3. Initialization Items to initialize ............... 750

716
PRIUS PRIME_OM_OM47D13U_(U)
9-1. Specifications
Maintenance data (fuel, oil level, etc.)
*: Unladen vehicle
Dimensions and weight
Overall length182.9 in. (4645 mm)
Overall width69.3 in. (1760 mm)
Overall height*57.9 in. (1470 mm)
Wheelbase106.3 in. (2700 mm)
Tread*Front60.2 in. (1530 mm)
Rear60.6 in. (1540 mm)
Vehicle capacity weight
(Occupants + luggage)670 lb. (305 kg)

PRIUS PRIME_OM_OM47D13U_(U)
7179-1. Specifications
9
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for you r
Toyota. It is used in registeri ng the ownership of your vehicle .

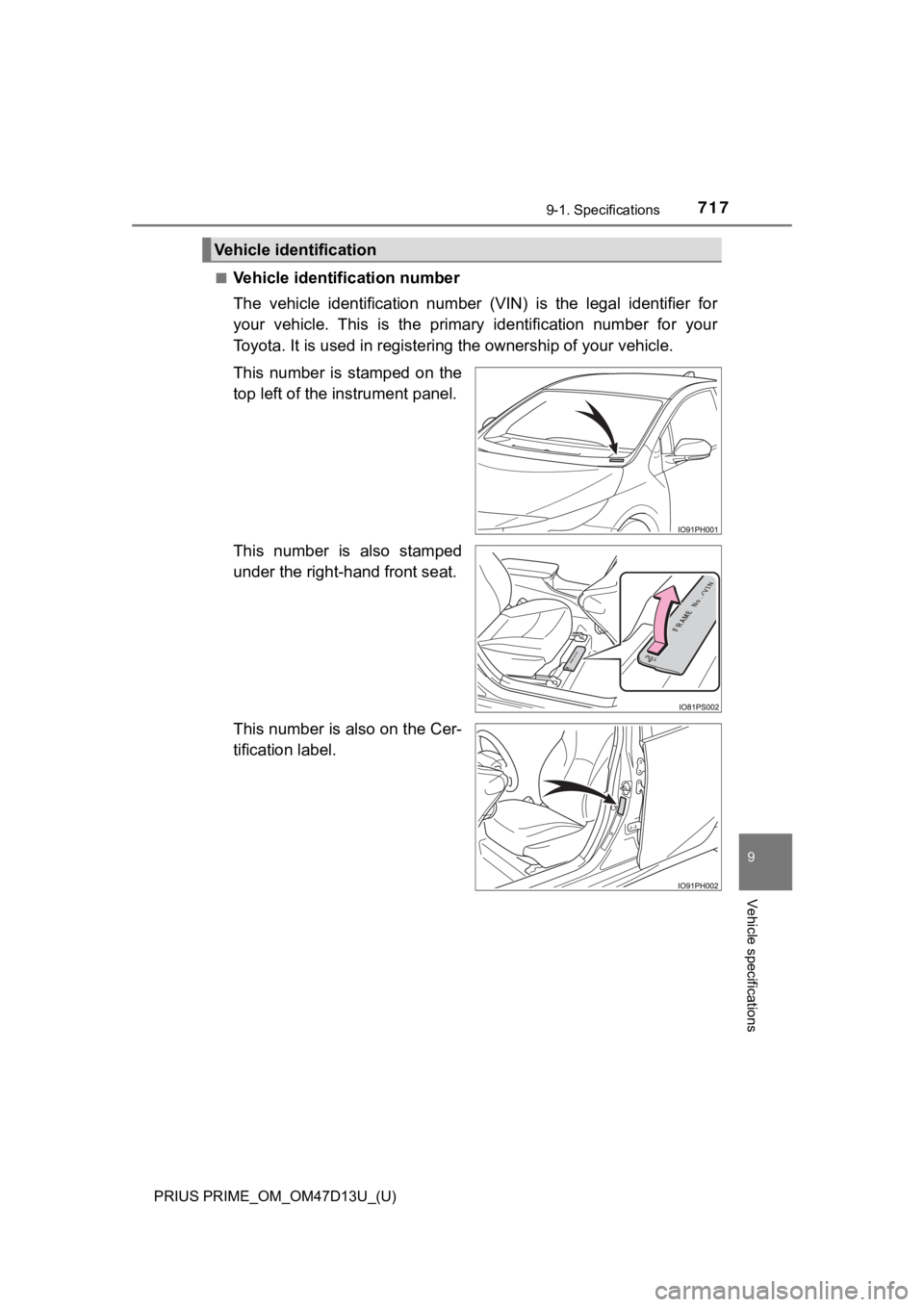

This number is stamped on the
top left of the instrument panel.
This number is also stamped
under the right-hand front seat.
This number is also on the Cer-
tification label.
Vehicle identification

718
PRIUS PRIME_OM_OM47D13U_(U)
9-1. Specifications

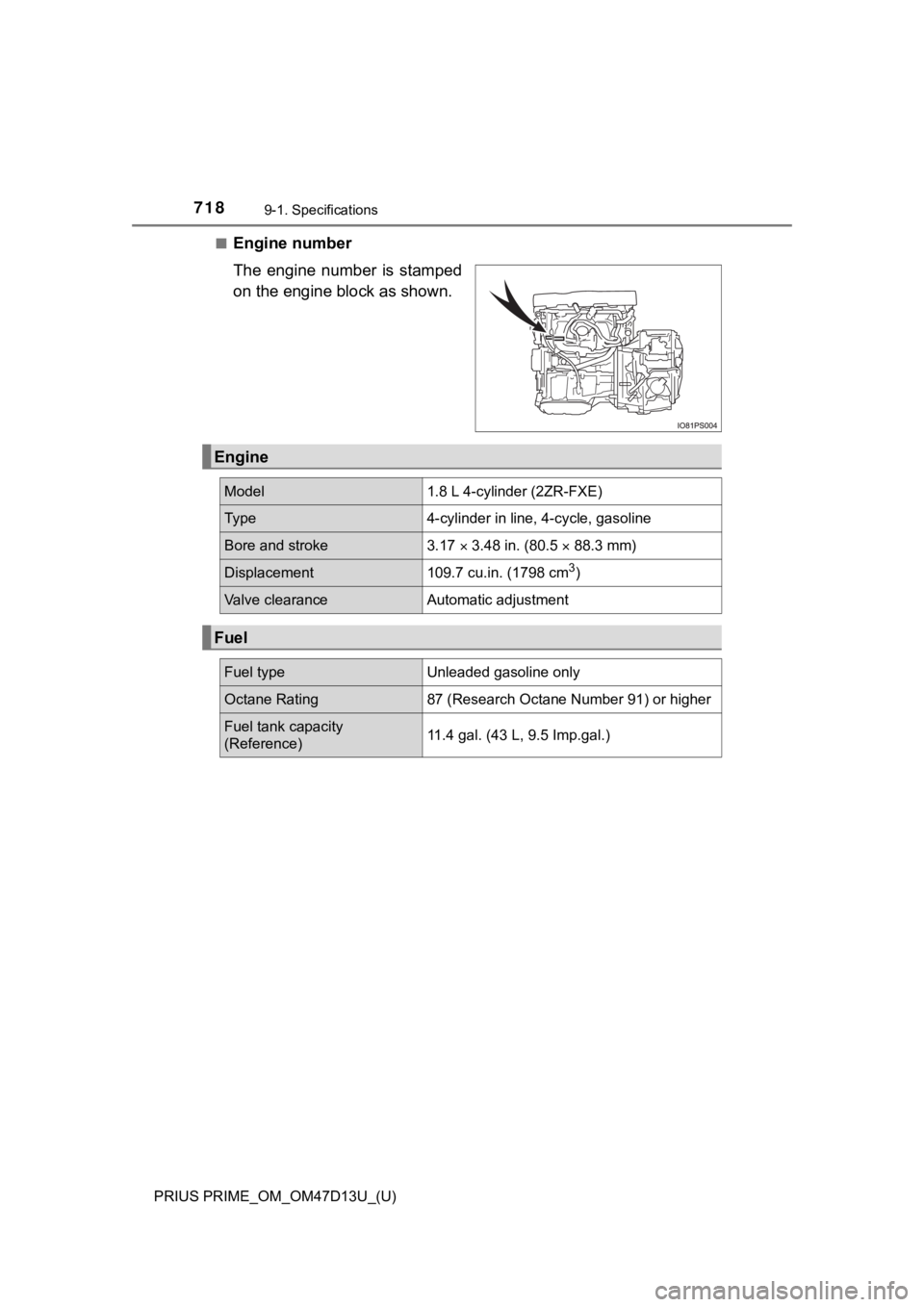

■Engine number
The engine number is stamped
on the engine block as shown.
Engine
Model1.8 L 4-cylinder (2ZR-FXE)
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.17  3.48 in. (80.5  88.3 mm)
Displacement109.7 cu.in. (1798 cm3)
Valve clearanceAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)11.4 gal. (43 L, 9.5 Imp.gal.)

PRIUS PRIME_OM_OM47D13U_(U)
7199-1. Specifications
9
Vehicle specifications

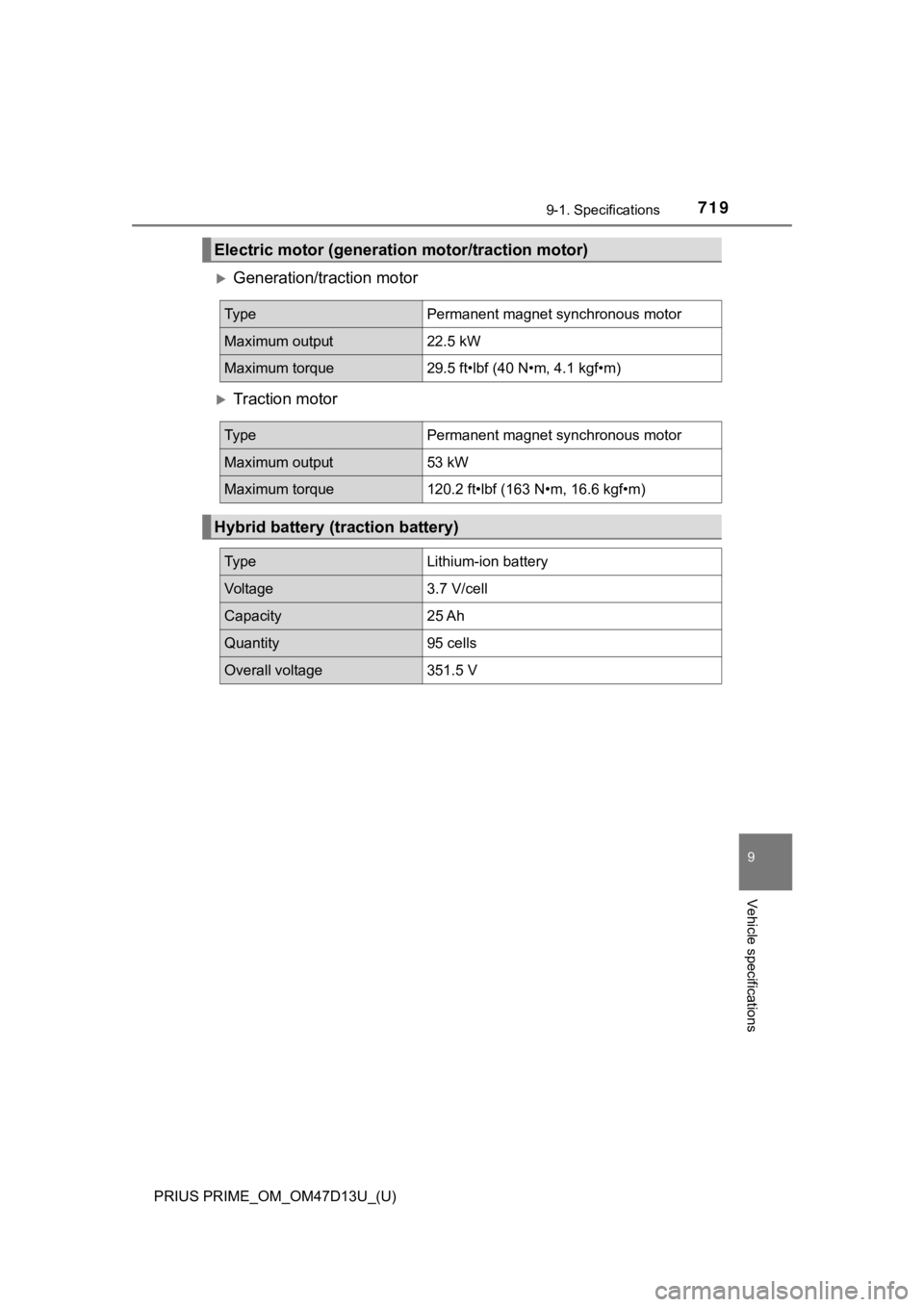

Generation/traction motor
Traction motor
Electric motor (generation motor/traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output22.5 kW
Maximum torque29.5 ft•lbf (40 N•m, 4.1 kgf•m)
Ty p ePermanent magnet synchronous motor
Maximum output53 kW
Maximum torque120.2 ft•lbf (163 N•m, 16.6 kgf•m)
Hybrid battery (traction battery)
Ty p eLithium-ion battery
Vol t a ge3.7 V/cell
Capacity25 Ah
Quantity95 cells
Overall voltage351.5 V

720
PRIUS PRIME_OM_OM47D13U_(U)
9-1. Specifications
■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Park the vehicle on level ground. After warming up the
engine and turning off the hybrid system, wait more than 5 minu tes, and
check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat isfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is expl ained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils wi th a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the vi scosity characteristic of the oil
when the oil is at high temperature. An oil with a higher visco sity
(one with a higher value) may be better suited if the vehicle i s
operated at high speeds, or un der extreme load conditions.

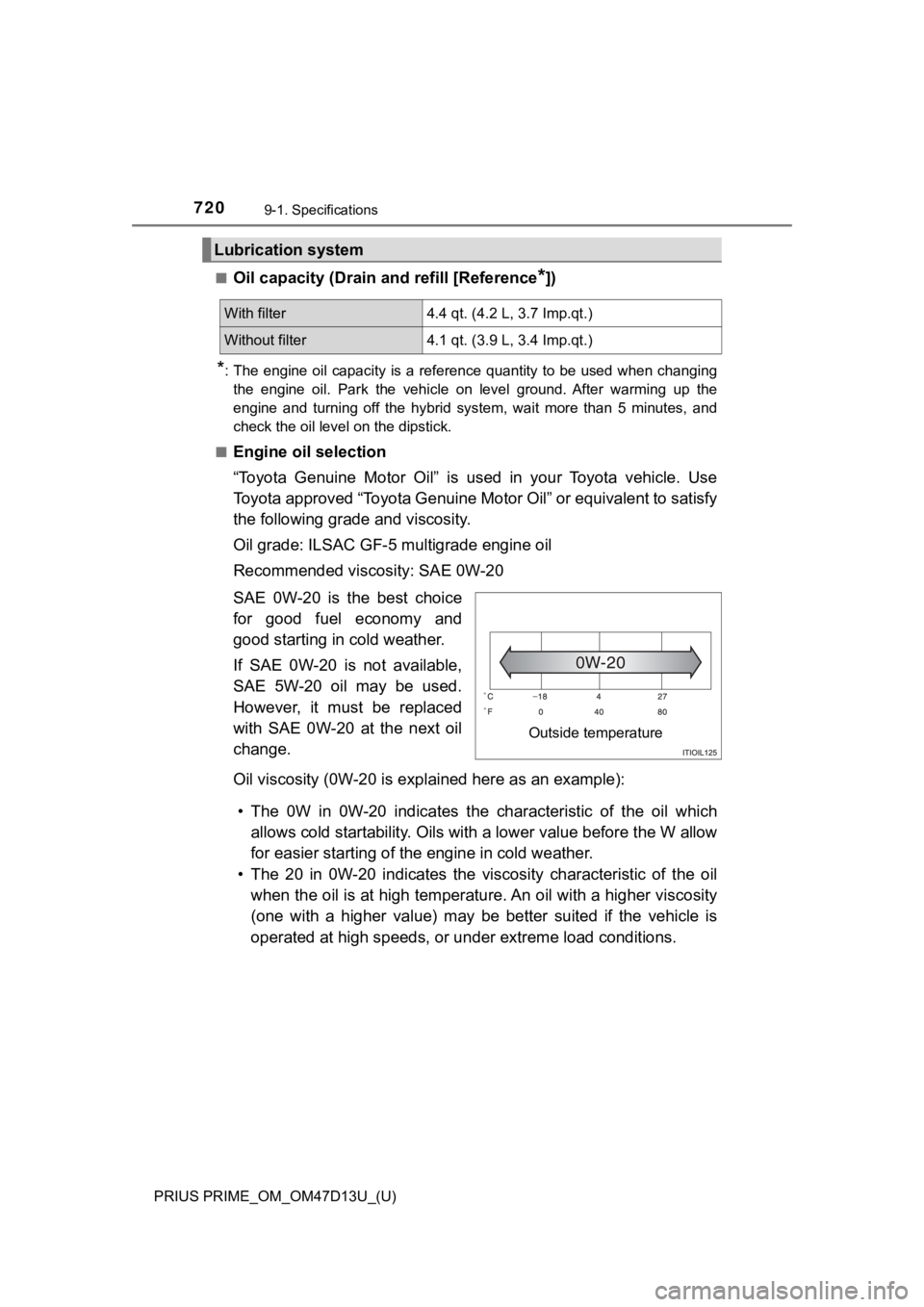

Lubrication system
With filter4.4 qt. (4.2 L, 3.7 Imp.qt.)
Without filter4.1 qt. (3.9 L, 3.4 Imp.qt.)
Outside temperature
