TOYOTA PRIUS PRIME 2019 Warranties & Maintenance Guides (in English)

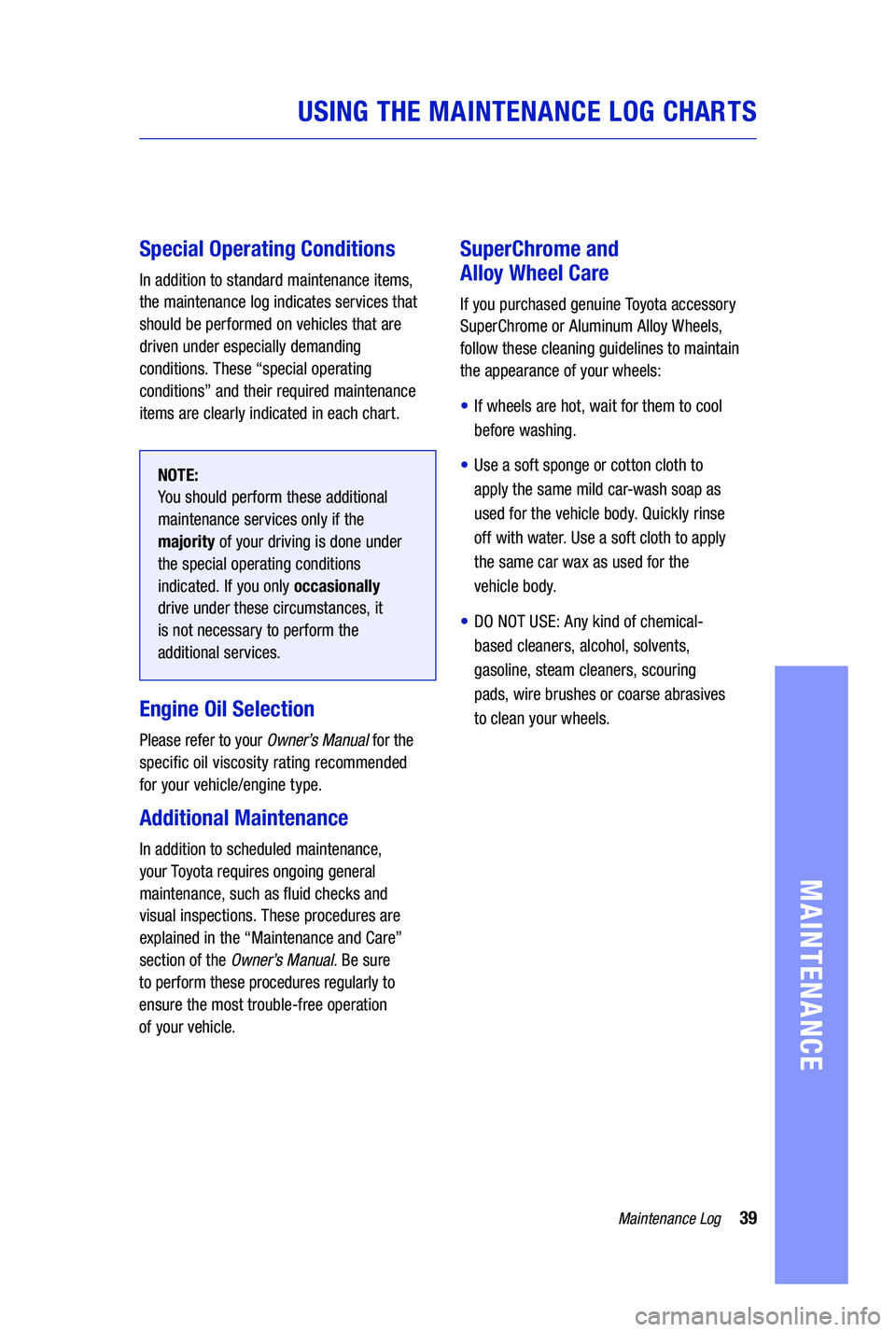

39Maintenance Log
MAINTENANCE
USING THE MAINTENANCE LOG CHARTS
Special Operating Conditions
In addition to standard maintenance items,
the maintenance log indicates services that
should be performed on vehicles that are
driven under especially demanding
conditions. These “special operating
conditions” and their required maintenance
items are clearly indicated in each chart.
NOTE:
You should perform these additional
maintenance services only if the
majority of your driving is done under
the special operating conditions
indicated. If you only occasionally
drive under these circumstances, it
is not necessary to perform the
additional services.
Engine Oil Selection
Please refer to your Owner’s Manual for the
specific oil viscosity rating recommended
for your vehicle/engine type.
Additional Maintenance
In addition to scheduled maintenance,
your Toyota requires ongoing general
maintenance, such as fluid checks and
visual inspections. These procedures are
explained in the “Maintenance and Care”
section of the Owner’ s Manual. Be sure
to perform these procedures regularly to
ensure the most trouble-free operation
of your vehicle.
SuperChrome and
Alloy Wheel Care
If you purchased genuine Toyota accessory
SuperChrome or Aluminum Alloy Wheels,
follow these cleaning guidelines to maintain
the appearance of your wheels:
• If wheels are hot, wait for them to cool
before washing.
• Use a soft sponge or cotton cloth to
apply the same mild car-wash soap as
used for the vehicle body. Quickly rinse
off with water. Use a soft cloth to apply
the same car wax as used for the
vehicle body.
• DO NOT USE: Any kind of chemical-
based cleaners, alcohol, solvents,
gasoline, steam cleaners, scouring
pads, wire brushes or coarse abrasives
to clean your wheels.
00439-GUTS.indd 3912/1/18 9:35 AM

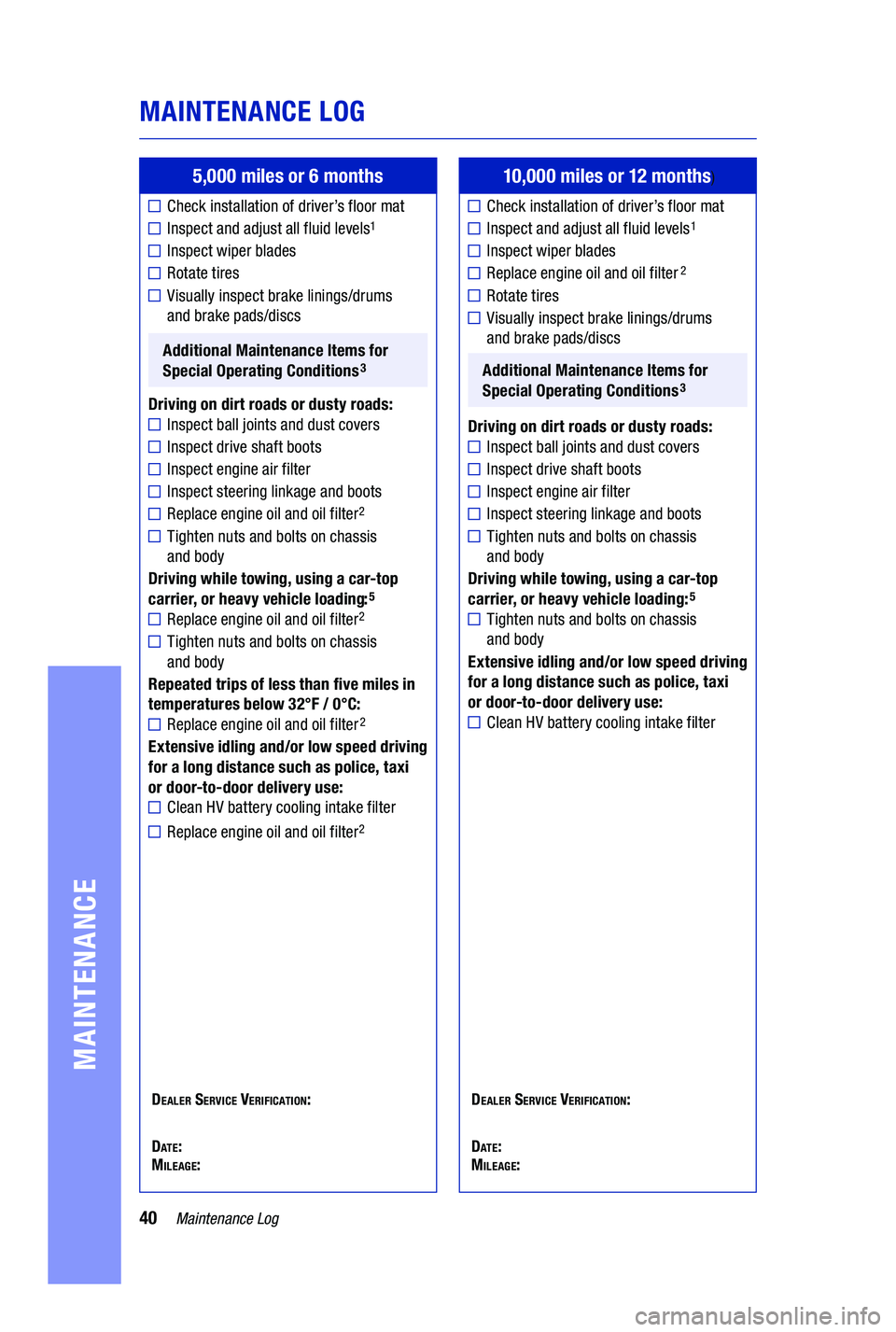

40Maintenance Log
MAINTENANCE LOG
MAINTENANCE
5,000 miles or 6 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
R

epeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2

10,000 miles or 12 months)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
5
Tighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter



Dealer Service verification:
D
ate:
Mileage: D
ealer Service verification:
D
ate:
Mileage:
00439-GUTS.indd 4012/1/18 9:35 AM

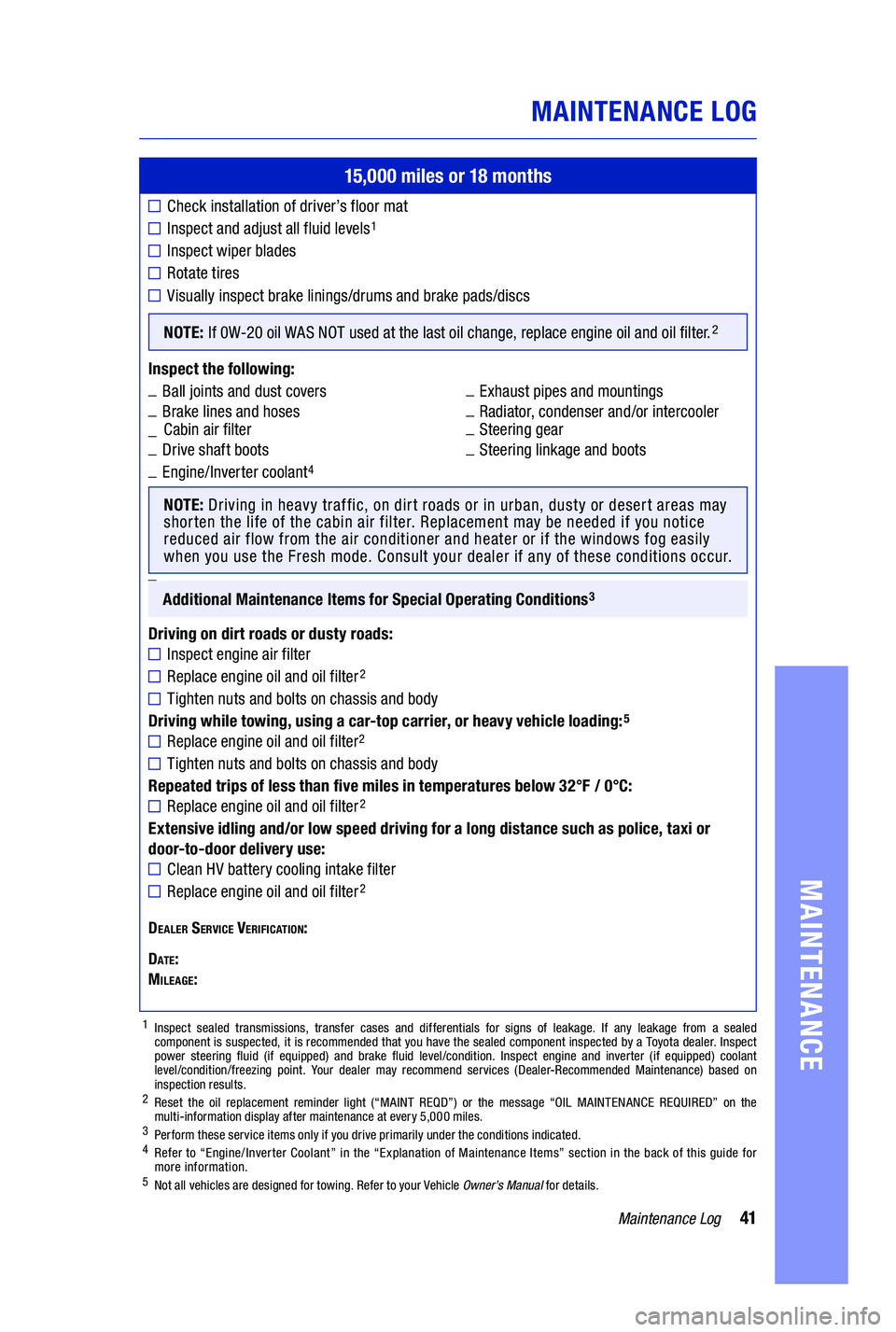

41Maintenance Log
MAINTENANCE LOG
MAINTENANCE
15,000 miles or 18 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following: _
B
all joints and dust covers _
E

xhaust pipes and mountings
_B

rake lines and hoses
_ R
adiator, condenser and/or intercooler
_ Cabin air filter

_

S

teering gear
_D

rive shaft boots
_ S
teering linkage and boots
_E

ngine/Inverter coolant
4



_
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2

Dealer Service verification:
D
ate: Mileage:
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 R eset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 P erform these service items only if you drive primarily under the conditions indicated.4 R efer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more information.
5 N ot all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced air flow from the air conditioner and heater or if the windows fog easily
when you use the Fresh mode. Consult your dealer if any of these conditions occur.
00439-GUTS.indd 4112/1/18 9:35 AM

42Maintenance Log
MAINTENANCE LOG
MAINTENANCE
20,000 miles or 24 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Tighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter



25,000 miles or 30 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
Dealer Service verification:
D
ate:
Mileage: D
ealer Service verification:
D
ate:
Mileage:
00439-GUTS.indd 4212/1/18 9:35 AM

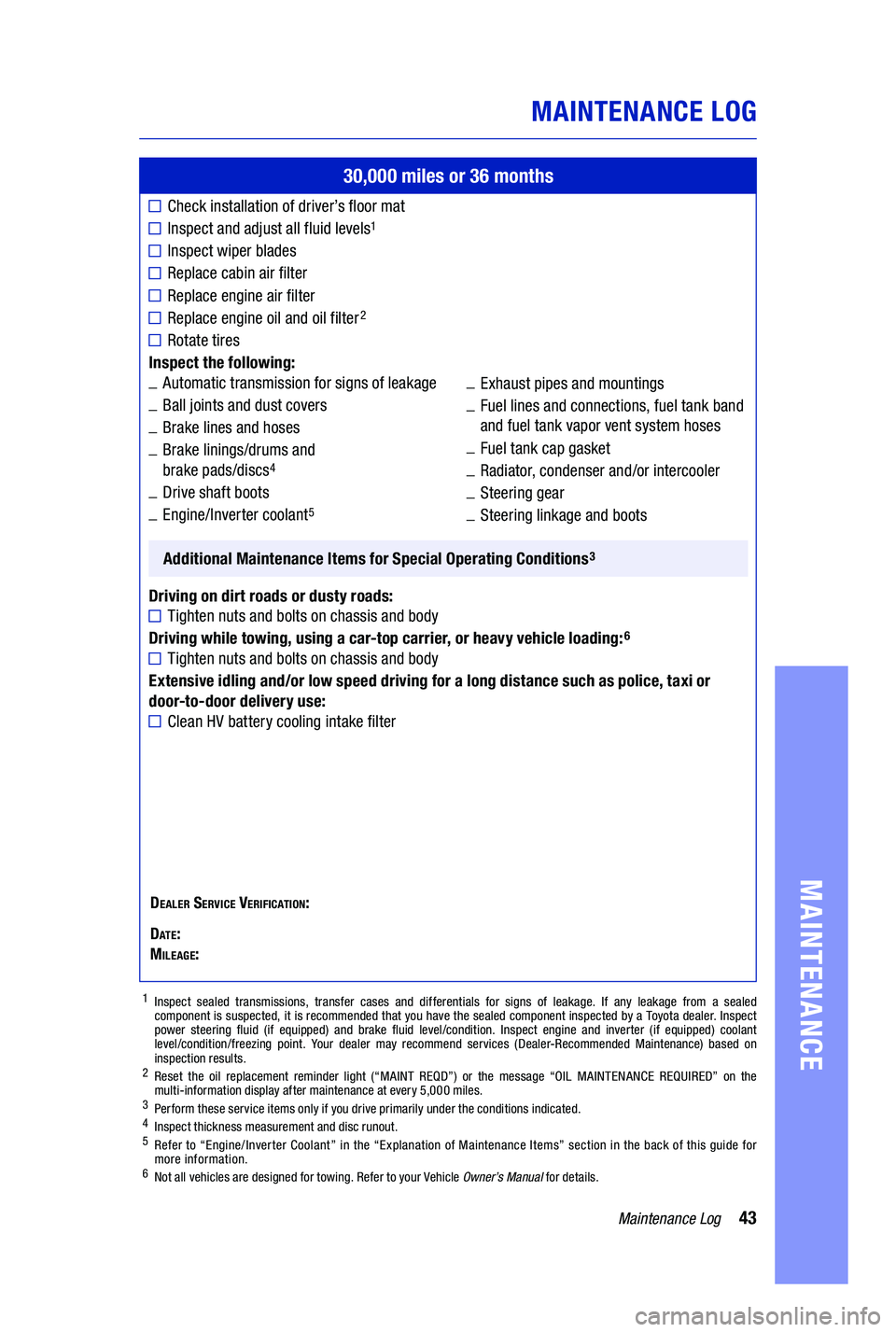

43Maintenance Log
MAINTENANCE LOG
MAINTENANCE
30,000 miles or 36 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires
Inspect the following:
_ A

utomatic transmission for signs of leakage
_ B

all joints and dust covers
_ B

rake lines and hoses
_ B

rake linings/drums and
brake pads/discs
4
_ Dr ive shaft boots
_E

ngine/Inverter coolant
5
_Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake filter




_ E xhaust pipes and mountings
_ F

uel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_ F

uel tank cap gasket
_ R

adiator, condenser and/or intercooler
_S

teering gear
_S

teering linkage and boots
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 R eset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 P erform these service items only if you drive primarily under the conditions indicated. 4 Inspect thickness measurement and disc runout.5 R efer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more information.
6 N ot all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Dealer Service verification:
D
ate: Mileage:
00439-GUTS.indd 4312/1/18 9:35 AM

44Maintenance Log
MAINTENANCE LOG
MAINTENANCE
35,000 miles or 42 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
R

epeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
40,000 miles or 48 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
5
Tighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
Dealer Service verification:
D
ate:
Mileage: D
ealer Service verification:
D
ate:
Mileage:
00439-GUTS.indd 4412/1/18 9:35 AM

45Maintenance Log
MAINTENANCE LOG
MAINTENANCE

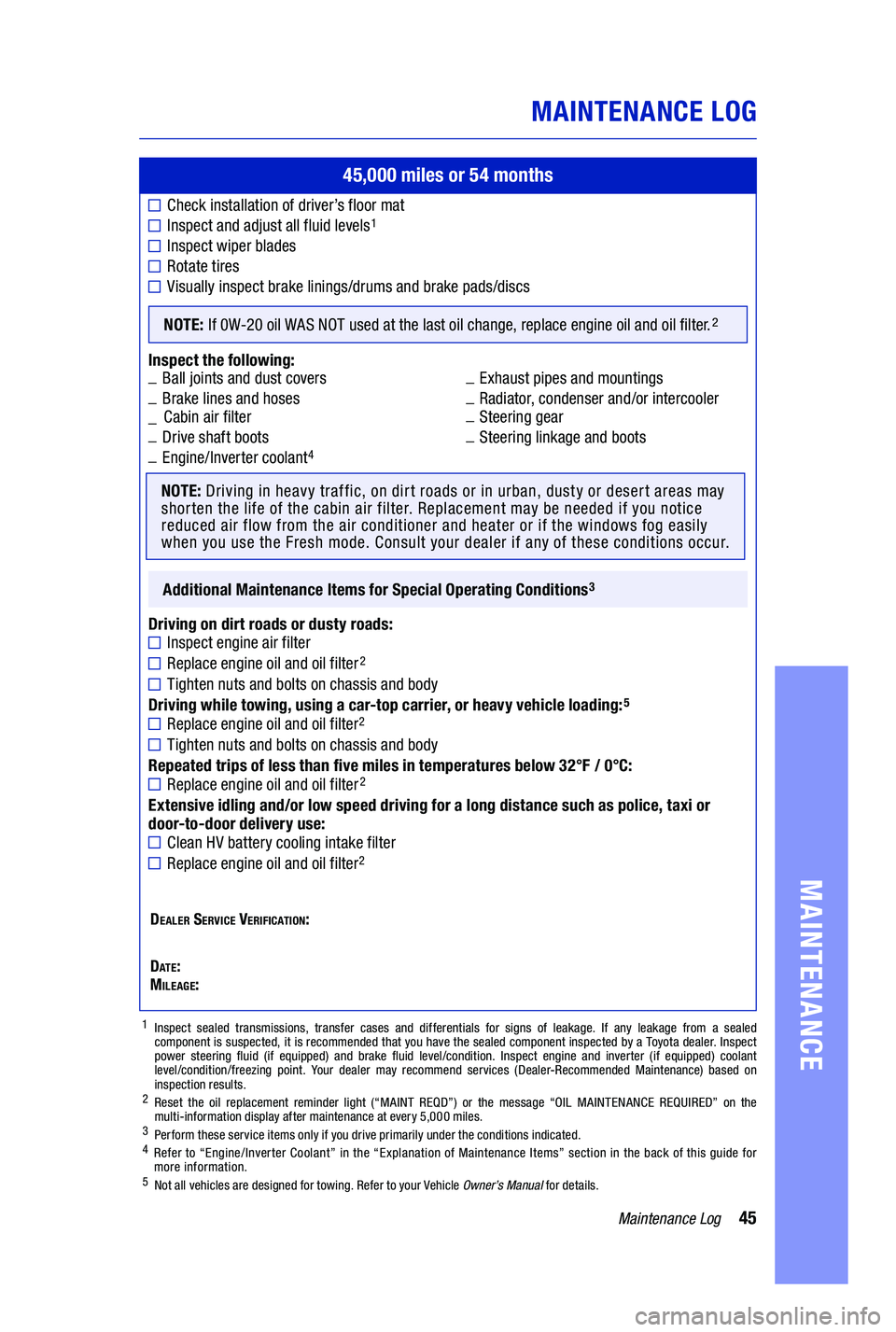

45,000 miles or 54 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following: _
B
all joints and dust covers _ E
xhaust pipes and mountings
_B

rake lines and hoses
_ R
adiator, condenser and/or intercooler
_ Cabin air filter

_

S

teering gear
_D

rive shaft boots
_ S
teering linkage and boots
_E

ngine/Inverter coolant
4






Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
1
Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 R eset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 P erform these service items only if you drive primarily under the conditions indicated.
4 Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more inf ormation.
5 N
ot all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Dealer Service verification:
D
ate:
Mileage:
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced air flow from the air conditioner and heater or if the windows fog easily
when you use the Fresh mode. Consult your dealer if any of these conditions occur.
00439-GUTS.indd 4512/1/18 9:35 AM

46Maintenance Log
MAINTENANCE LOG
MAINTENANCE

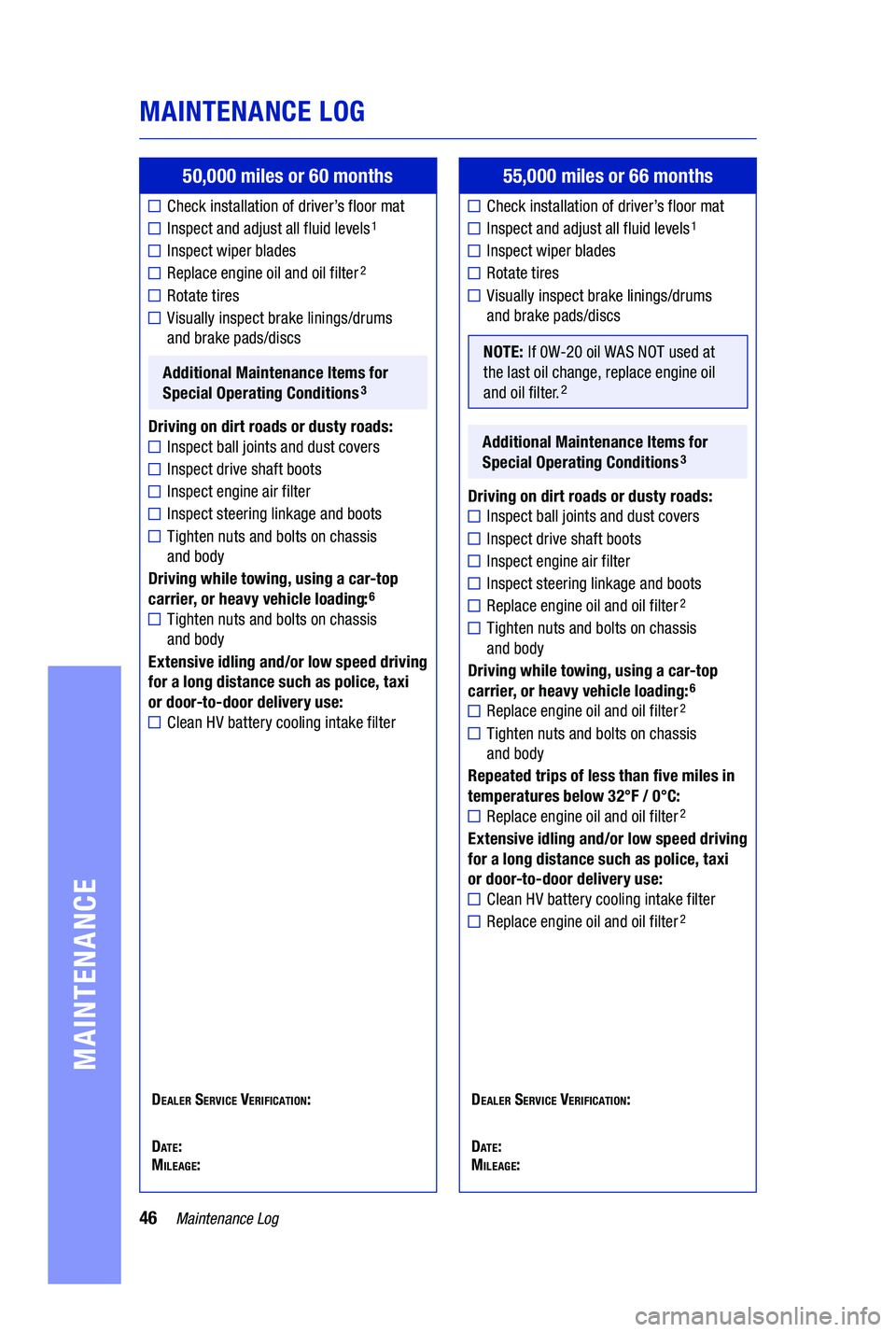

50,000 miles or 60 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Tighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
55,000 miles or 66 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
Dealer Service verification:
D
ate:
Mileage: D
ealer Service verification:
D
ate:
Mileage:
00439-GUTS.indd 4612/1/18 9:35 AM

47Maintenance Log
MAINTENANCE LOG
MAINTENANCE
60,000 miles or 72 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires
Inspect the following:
_ A

utomatic transmission for signs of leakage
_ B

all joints and dust covers
_ B

rake lines and hoses
_ B

rake linings/drums and
brake pads/discs
4
_ Dr ive shaft boots
_E

ngine/Inverter coolant
5

Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace automatic transmission fluid
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake filter

1
Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 R eset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 P erform these service items only if you drive primarily under the conditions indicated. 4 Inspect thickness measurement and disc runout.5 Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more information.
6 N ot all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
_
E xhaust pipes and mountings
_

Fu el lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_ F

uel tank cap gasket
_ R

adiator, condenser and/or intercooler
_S

teering gear
_S

teering linkage and boots
Dealer Service verification:
D
ate:
Mileage:
00439-GUTS.indd 4712/1/18 9:35 AM

48Maintenance Log
MAINTENANCE LOG
MAINTENANCE

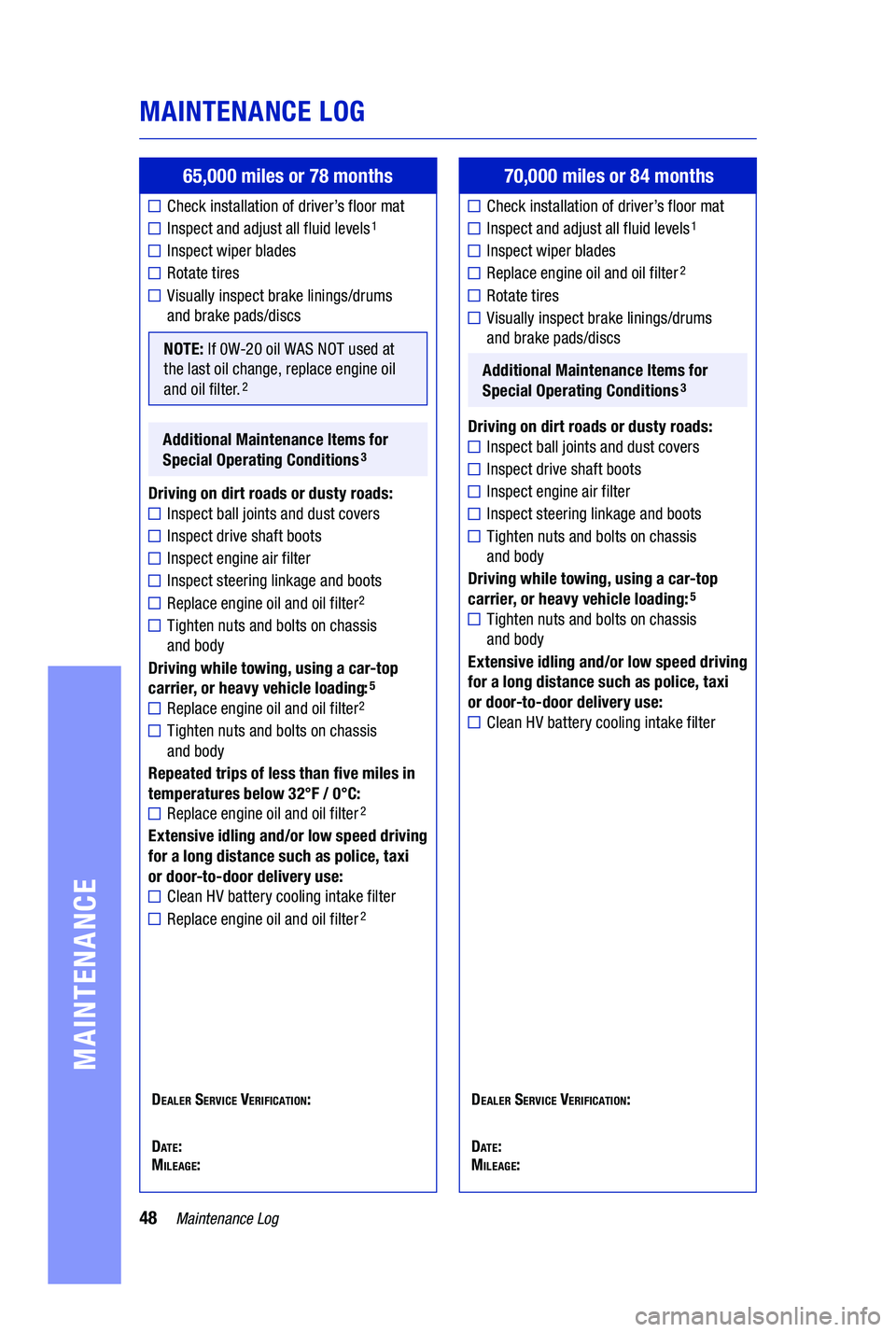

65,000 miles or 78 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
R

epeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
70,000 miles or 84 months
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
5
Tighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
Dealer Service verification:
D
ate:
Mileage: D
ealer Service verification:
D
ate:
Mileage:
00439-GUTS.indd 4812/1/18 9:35 AM
