TOYOTA PRIUS PRIME 2020 Accessories, Audio & Navigation (in English)

111
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:34
AUDIO SYSTEM
3
INFORMATION
●When an iPod is connected using a genuine iPod cable, the iPod starts charging its bat-
tery.
● Depending on the iPod and the songs in the iPod, iPod cover art may be displayed. This
function can be changed to on/off. ( P.121) It may take time to display iPod cover art,
and the iPod may not be operated while the cover art display is in process.
● When an iPod is connected and the audio source is changed to iP od mode, the iPod will
resume playing from the same point it was last used.
● Depending on the iPod that is connected to the system, certain functions may not be
available.
● Files/tracks selected by operating a connected iPod may not be recognized or displayed
properly.
● If an iPhone is connected via Bluetooth
® and USB at the same time, system operation
may become unstable.
For known phone compatibility information, refer to http://www.toyota.com/entune/
.

112
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:34
1Select the repeat button to change on/
off.
1Select the shuffle button to change on/
off.
iPod AUDIO
REPEATING
The track currently being listened to
can be repeated.
RANDOM ORDER
Tracks can be automatically and ran-
domly selected.

113
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:34
AUDIO SYSTEM
3
3. Bluetooth® AUDIO
*1: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
*
2: This function is not made available in some countries or areas.
The Bluetooth® audio system enables users to enjoy listening to music that is
played on a portable player on the vehicle speakers via wireles s communication.
This audio system supports Bluetooth
®, a wireless data system capable of playing
portable audio music without cables. If your device does not support Bluetooth
®,
the Bluetooth
® audio system will not function.
OVERVIEW
Select “Bluetooth*1” on the “Select Audio Source” screen. (P.84)
Depending on the type of portable player connected, some functions may not be
available and/or the screen may look differently than shown in this manual.
When an Apple CarPlay connection is established, Bluetooth
® audio will be sus-
pended and become unavailable.*
2

114
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:34

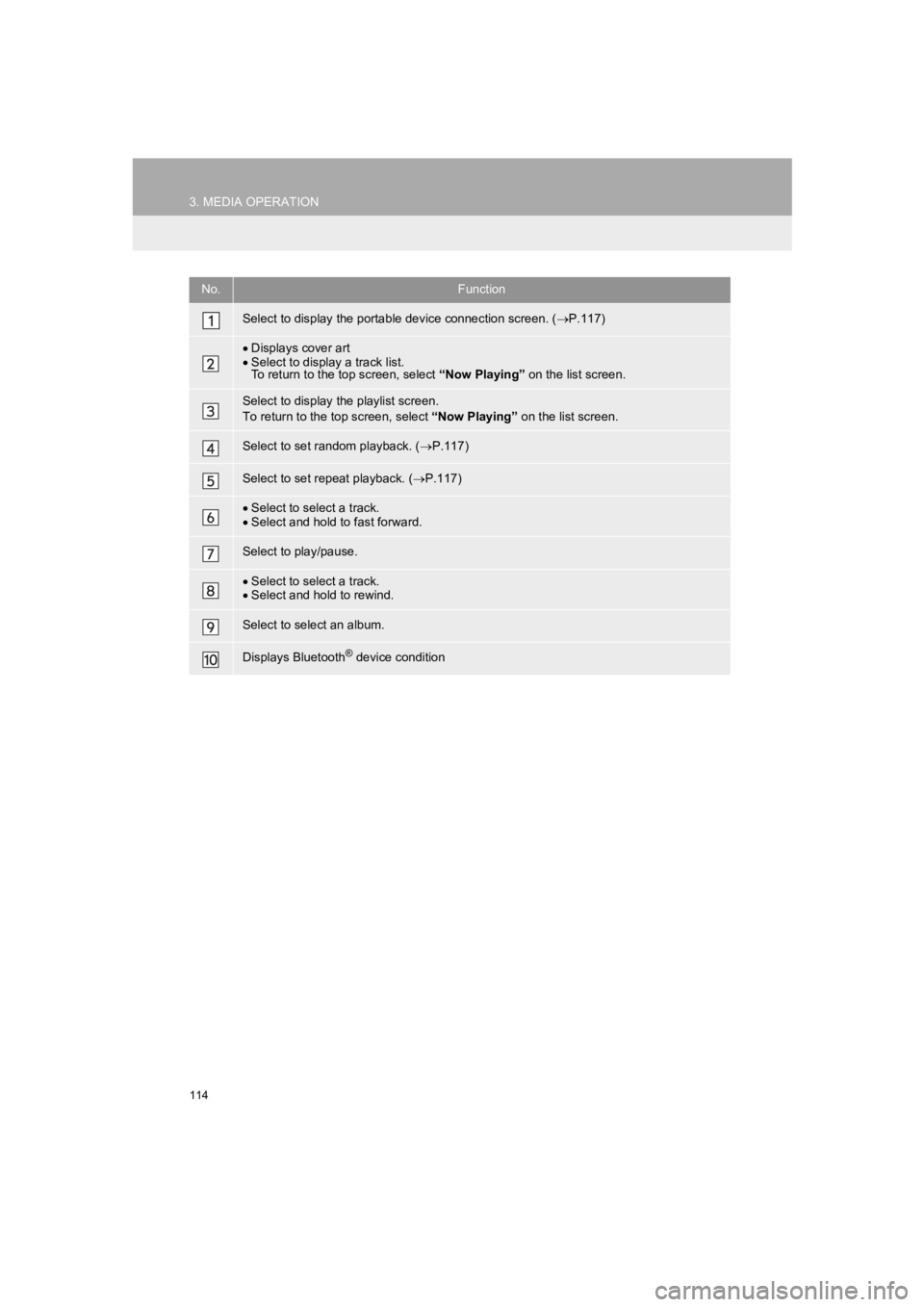

No.Function
Select to display the portable device connection screen. (P.117)
Displays cover art
 Select to display a track list.
To return to the top screen, select “Now Playing” on the list screen.
Select to display the playlist screen.
To return to the top screen, select “Now Playing” on the list screen.
Select to set random playback. (P.117)
Select to set repeat playback. ( P.117)
Select to select a track.
 Select and hold to fast forward.
Select to play/pause.
Select to select a track.
 Select and hold to rewind.
Select to select an album.
Displays Bluetooth® device condition

115
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:34
AUDIO SYSTEM
3
WARNING
●Do not operate the player’s controls or connect to the Bluetoot h® audio system while driv-
ing.
● Your audio unit is fitted with Bluetooth
® antennas. People with implantable cardiac pace-
makers, cardiac resynchronization therapy-pacemakers or implant able cardioverter
defibrillators should maintain a reasonable distance between themselves and the
Bluetooth
® antennas. The radio waves may affect the operation of such devices.
● Before using Bluetooth
® devices, users of any electrical medical device other than
implantable cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should consult the manufacturer of the device for
information about its operation under the influence of radio wa ves. Radio waves could
have unexpected effects on the operation of such medical devices.
NOTICE
● Do not leave your portable player in the vehicle. In particular, high temperatures inside
the vehicle may damage the portable player.

116
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:34
INFORMATION
●Depending on the Bluetooth® device that is connected to the system, the music may start
playing when selecting while it is paused. Conversely, the music may pause when
selecting while it is playing.
● In the following conditions, the system may not function:
• The Bluetooth
® device is turned off.
• The Bluetooth
® device is not connected.
• The Bluetooth
® device has a low battery.
● It may take time to connect the phone when Bluetooth
® audio is being played.
● For operating the portable player, see the instruction manual that comes with it.
● If the Bluetooth
® device is disconnected due to poor reception from the Bluetoot h® net-
work when the power switch is in ACCESSORY or ON mode, the syst em automatically
reconnects the portable player.
● If the Bluetooth
® device is disconnected on purpose, such as it was turned off, this does
not happen. Reconnect the portable player manually.
● Bluetooth
® device information is registered when the Bluetooth® device is connected to
the Bluetooth® audio system. When selling or disposing of the vehicle, remove the
Bluetooth® audio information from the system. ( P. 7 4 )
● In some situations, sound output via the Bluetooth
® audio system may be out of sync with
the connected device or output intermittently.

117
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:34
AUDIO SYSTEM
3
Registering an additional device
1Select “Connect” on the Bluetooth®
audio control screen.
2For more information: P.59
 Selecting a registered device
1Select “Connect” on the Bluetooth®
audio control screen.
2For more information: P.61
1Select .
 Each time is selected, the mode
changes as follows:
• track repeat
 album repeat  off
1Select .
Each time is selected, the mode
changes as follows:
• album random  all track random  off
CONNECTING A Bluetooth®
DEVICE
To use the Bluetooth® audio system, it
is necessary to register a Bluetooth
®
device with the system.
LISTENING TO Bluetooth®
AUDIO
REPEATING
The track or album currently being lis-
tened to can be repeated.
RANDOM ORDER
Tracks or albums can be automatically
and randomly selected.

118
3. MEDIA OPERATION
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:34
4. AUX
OVERVIEW
Select “AUX” on the “Select Audio Source” screen. (P.84)
WARNING
● Do not connect portable audio device or operate the controls while driving.
NOTICE
●Do not leave portable audio device in the vehicle. The temperature inside the vehicle may
become high, resulting in damage to the player.
● Do not push down on or apply unnecessary pressure to the portab le audio device while it
is connected as this may damage the portable audio device or its terminal.
● Do not insert foreign objects into the port as this may damage the portable audio device
or its terminal.

119
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:34
AUDIO SYSTEM
3

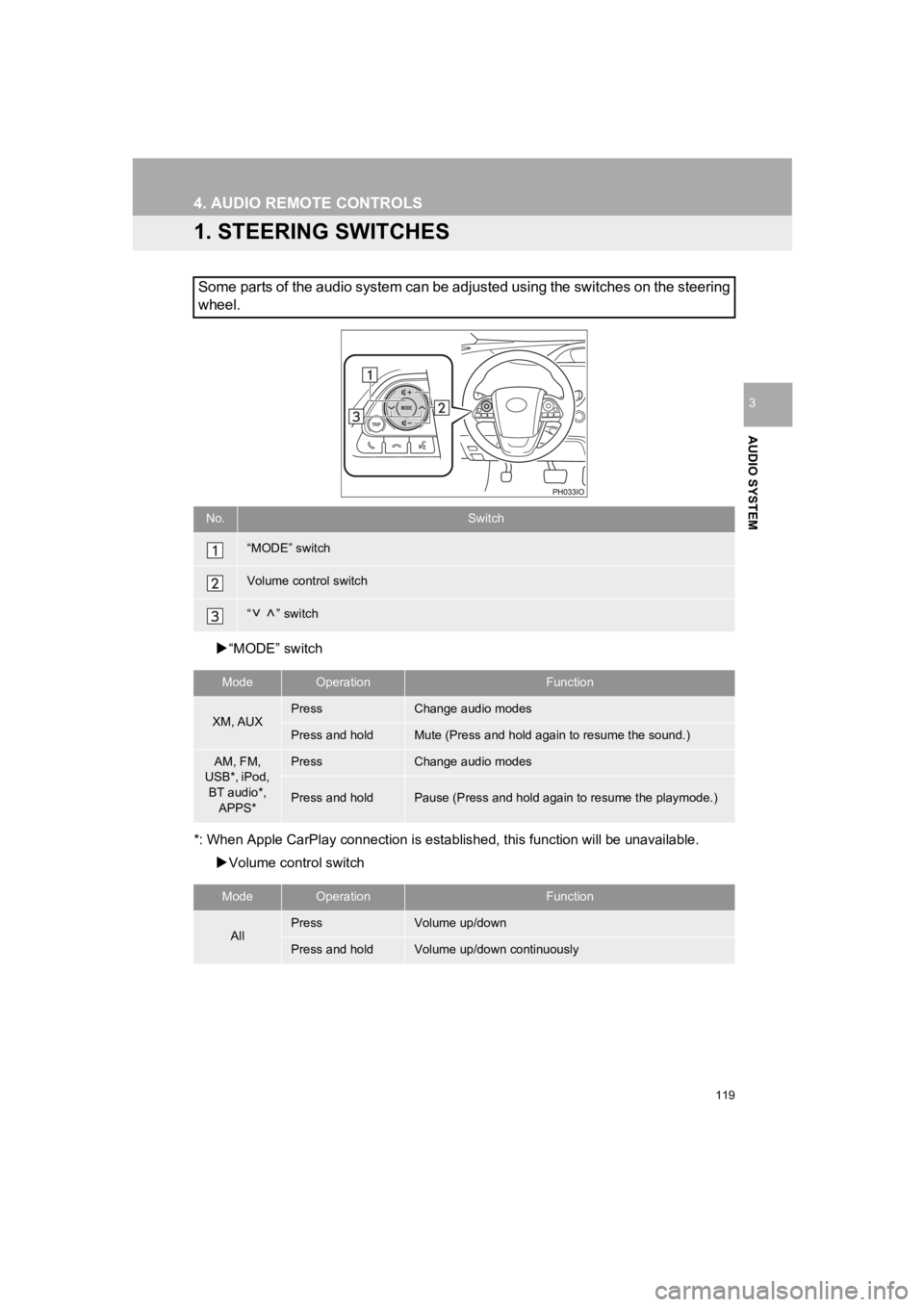

4. AUDIO REMOTE CONTROLS
1. STEERING SWITCHES
“MODE” switch
*: When Apple CarPlay connection i s established, this function will be unavailable.
 Volume control switch
Some parts of the audio system can be adjusted using the switches on the steering
wheel.
No.Switch
“MODE” switch
Volume control switch
“ ” switch
ModeOperationFunction
XM, AUXPressChange audio modes
Press and holdMute (Press and hold again to resume the sound.)
AM, FM,
USB*, iPod,
BT audio*, APPS*PressChange audio modes
Press and holdPause (Press and hold again to resume the playmode.)
ModeOperationFunction
AllPressVolume up/down
Press and holdVolume up/down continuously

120
4. AUDIO REMOTE CONTROLS
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:34

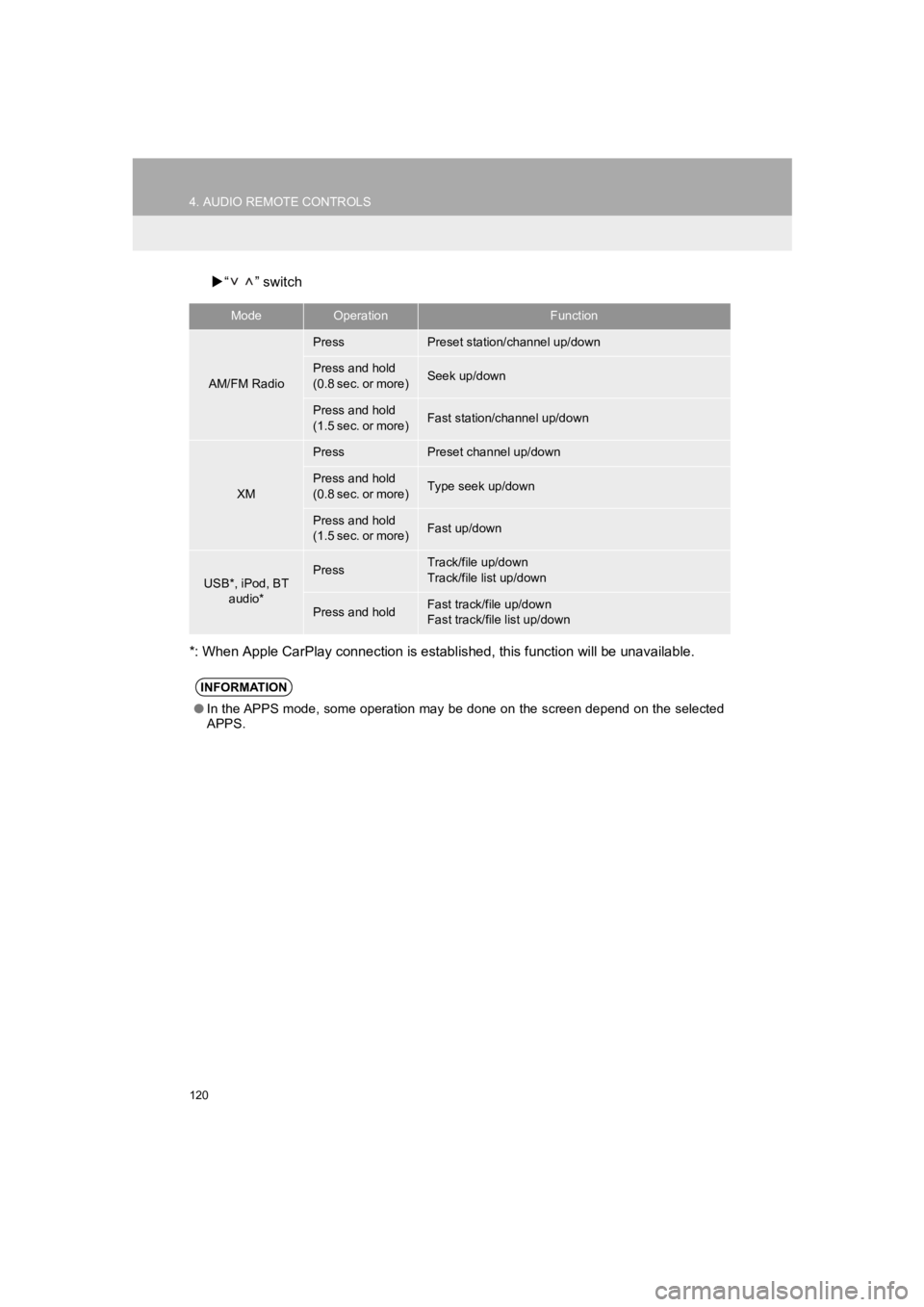

“ ” switch
*: When Apple CarPlay connection is established, this function will be unavailable.
ModeOperationFunction
AM/FM Radio
PressPreset station/channel up/down
Press and hold
(0.8 sec. or more)Seek up/down
Press and hold
(1.5 sec. or more)Fast station/channel up/down
XM
PressPreset channel up/down
Press and hold
(0.8 sec. or more)Type seek up/down
Press and hold
(1.5 sec. or more)Fast up/down
USB*, iPod, BT
audio*PressTrack/file up/down
Track/file list up/down
Press and holdFast track/file up/down
Fast track/file list up/down
INFORMATION
●In the APPS mode, some operation may be done on the screen depend on the selected
APPS.
