TOYOTA PRIUS PRIME 2020 Accessories, Audio & Navigation (in English)

141
1. VOICE COMMAND SYSTEM OPERATION
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:34
VOICE COMMAND SYSTEM
4

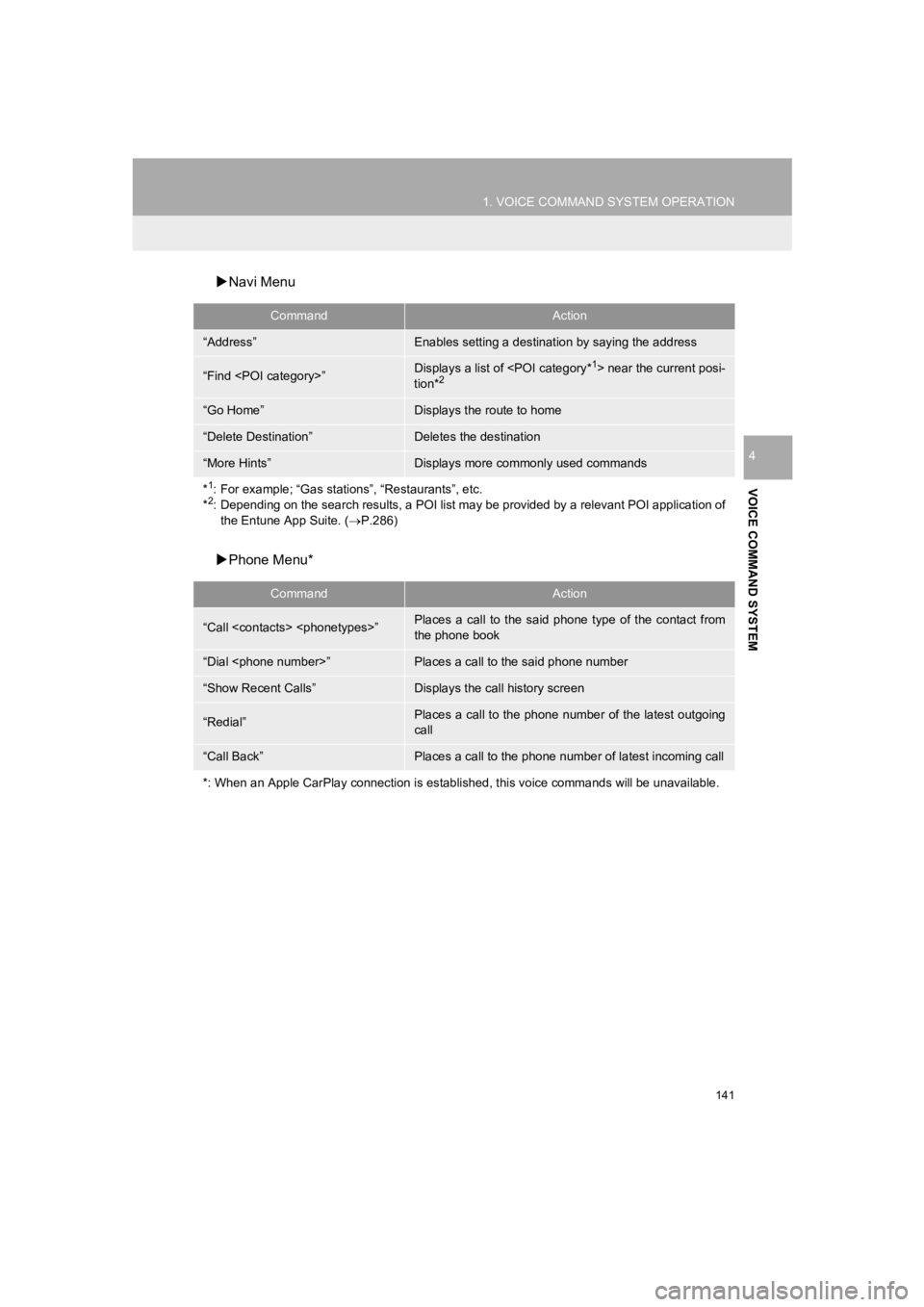

Navi Menu
 Phone Menu*
CommandAction
“Address”Enables setting a destinatio n by saying the address
“Find ”Displays a list of near the current posi-
tion*2
“Go Home”Displays the route to home
“Delete Destination”Deletes the destination
“More Hints”Displays more commonly used commands
*
1: For example; “Gas stations”, “Restaurants”, etc.
*2: Depending on the search results, a POI list may be provided by a relevant POI application of
the Entune App Suite. ( P.286)
CommandAction
“Call ”Places a call to the said phone type of the contact from
the phone book
“Dial ”Places a call to the said phone number
“Show Recent Calls”Displays the call history screen
“Redial”Places a call to the phone number of the latest outgoing
call
“Call Back”Places a call to the phone num ber of latest incoming call
*: When an Apple CarPlay connecti on is established, this voice commands will be unavailable.

142
1. VOICE COMMAND SYSTEM OPERATION
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:34

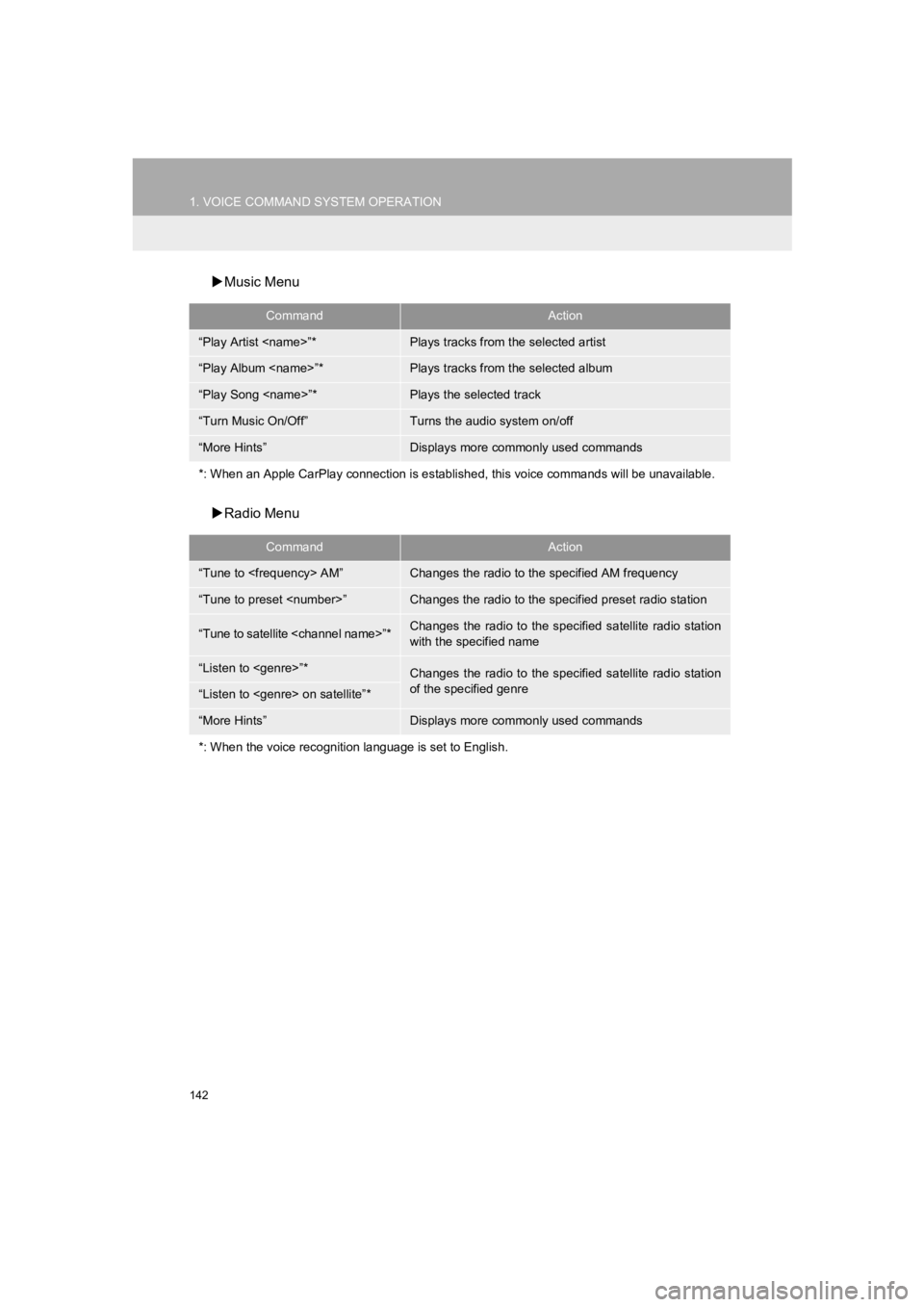

Music Menu
 Radio Menu
CommandAction
“Play Artist ”*Plays tracks from the selected artist
“Play Album ”*Plays tracks from the selected album
“Play Song ”*Plays the selected track
“Turn Music On/Off”Turns the audio system on/off
“More Hints”Displays more commonly used commands
*: When an Apple CarPlay connecti on is established, this voice commands will be unavailable.
CommandAction
“Tune to AM”Changes the radio to the specified AM frequency
“Tune to preset ”Changes the radio to the specified preset radio station
“Tune to satellite ”*Changes the radio to the specified satellite radio station
with the specified name
“Listen to ”*Changes the radio to the specified satellite radio station
of the specified genre
“Listen to on satellite”*
“More Hints”Displays more commonly used commands
*: When the voice recognition language is set to English.

143
1. VOICE COMMAND SYSTEM OPERATION
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:34
VOICE COMMAND SYSTEM
4

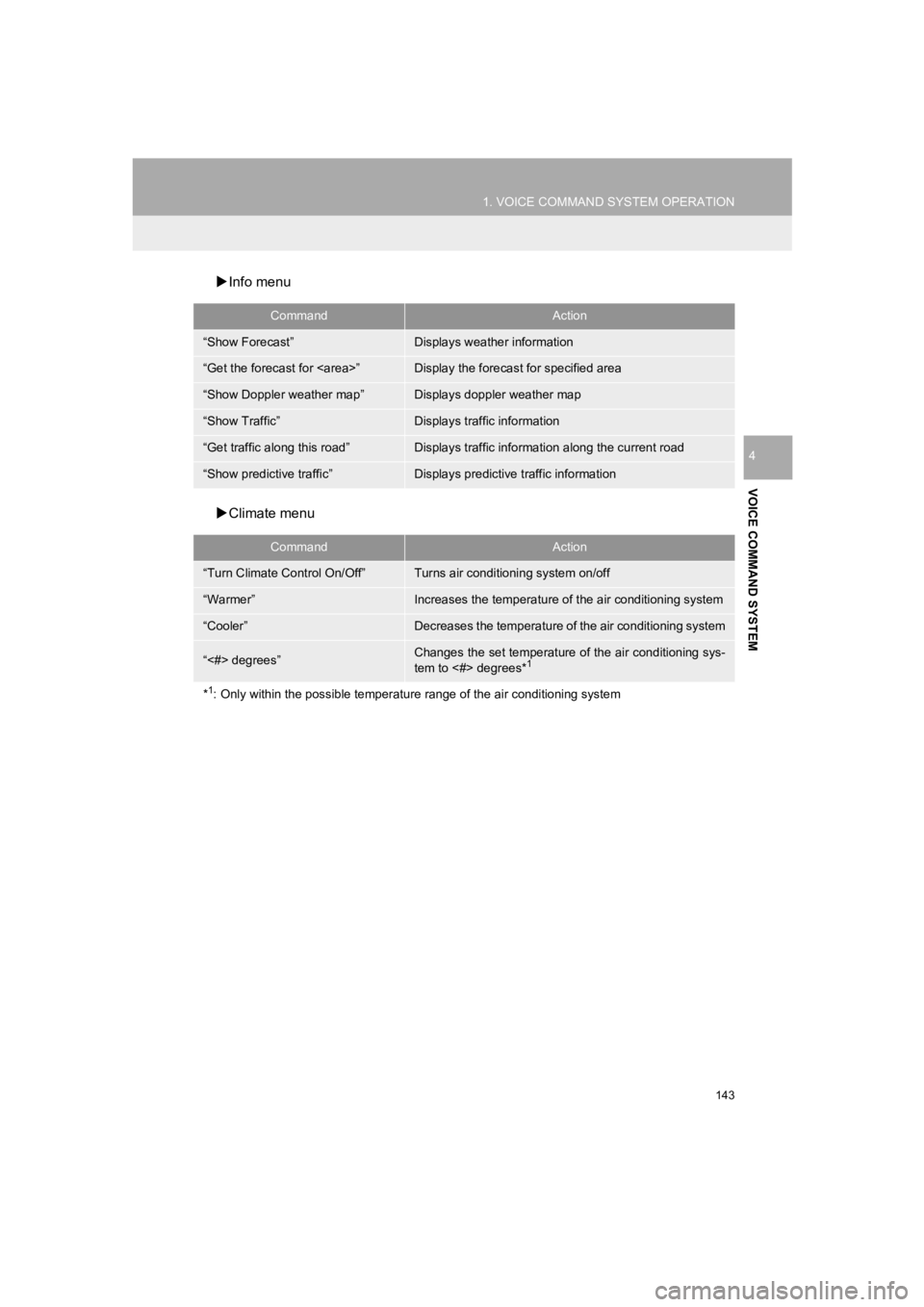

Info menu
 Climate menu
CommandAction
“Show Forecast”Displays weather information
“Get the forecast for ”Display the forecast for specified area
“Show Doppler weather map”Displays doppler weather map
“Show Traffic”Displays traffic information
“Get traffic along this road”Displays traffic information along the current road
“Show predictive traffic”Displays predictive traffic information
CommandAction
“Turn Climate Control On/Off”Turns air conditioning system on/off
“Warmer”Increases the temperature o f the air conditioning system
“Cooler”Decreases the temperature of the air conditioning system
“<#> degrees”Changes the set temperature of the air conditioning sys-
tem to <#> degrees*1
*1: Only within the possible temper ature range of the air conditioning system

144
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:34
2. MOBILE ASSISTANT OPERATION
1. MOBILE ASSISTANT
1Press and hold the talk switch on the
steering wheel until you hear the
beeps.
2The Mobile Assistant can be used only
when the following screen is displayed.
To cancel the Mobile Assistant, select
“Cancel” or press and hold the talk switch
on the steering wheel.
 To restart the Mobile Assistant for addi-
tional commands, press the talk switch on
the steering wheel.
• Mobile Assistant can only be restarted
after the system responds to a voice
command.
• After some phone and music com-
mands, the Mobile Assistant feature will
automatically end to complete the
requested action.
The Mobile Assistant feature will
activate Apple’s Siri
® Eyes Free mode
via the steering wheel switches. To
operate the Mobile Assistant, a
compatible cellular phone must be
registered and connected to this
system via Bluetooth
®. ( P.51)
When an Apple CarPlay connection is
established, this function will be
unavailable.

145
2. MOBILE ASSISTANT OPERATION
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:34
VOICE COMMAND SYSTEM
4
The volume of the Mobile Assistant can
be adjusted using the “VOL” button or
steering wheel volume control switches.
The Mobile Assistant and phone call
volumes are synchronized.
INFORMATION
● The available features and functions
may vary based on the iOS version
installed on the connected device.
● Some Siri
® features are limited in Eyes
Free mode. If you attempt to use an
unavailable function, Siri
® will inform
you that the function is not available.
● If Siri
® is not enabled on the cellular
phone connected via Bluetooth®, an
error message will be displayed on the
screen.
● While a phone call is active, the Mobile
Assistant cannot be used.
● If using the navigation feature of the cel-
lular phone, ensure the active audio
source is Bluetooth
® audio or iPod in
order to hear turn by turn direction
prompts.
MICROPHONE
It is not necessary to speak directly into
the microphone when using the Mobile
Assistant. (Microphone location:
P.132)
INFORMATION
● Wait for the listening beeps before using
the Mobile Assistant.
● The Mobile Assistant may not recognize
commands in the following situations:
• Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while the
Mobile Assistant is being used.
• The air conditioning speed is set high.
• The air conditioning vents are turned toward the microphone.

146
2. MOBILE ASSISTANT OPERATION
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:34

5
147
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:35
1
2
3
4
5
6
7
8
9

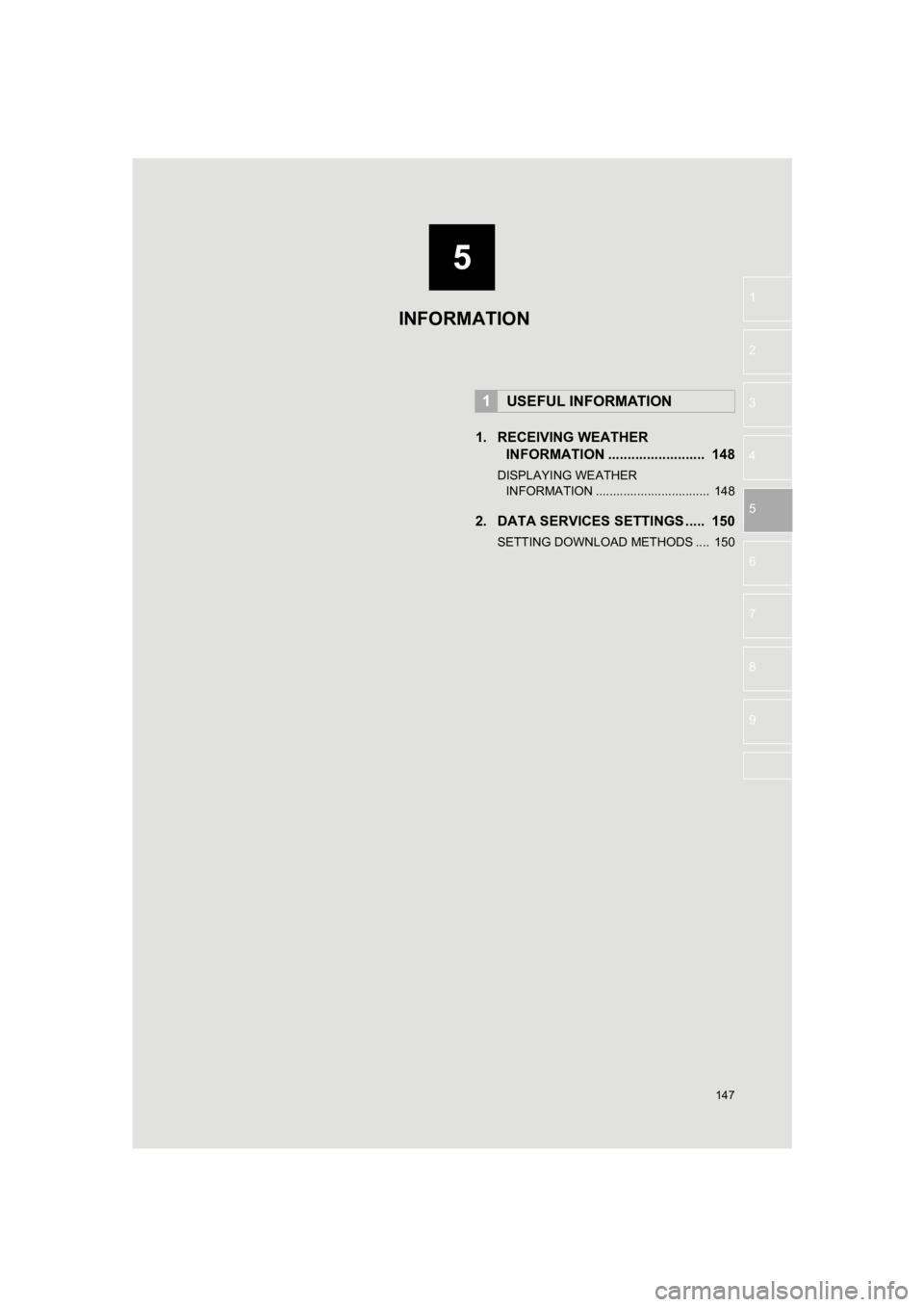

1. RECEIVING WEATHER INFORMATION ......................... 148
DISPLAYING WEATHER
INFORMATION ................................. 148
2. DATA SERVICES SET TINGS ..... 150
SETTING DOWNLOAD METHODS .... 150
1USEFUL INFORMATION
INFORMATION

148
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:35
1. USEFUL INFORMATION
1. RECEIVING WEATHER INFORMATION
1Press the “MENU” button.
2Select “Info”.
3Select “Weather” .
4Check that the “Weather” screen is dis-
played.Weather information can be received
via the HD Radio or by the Entune App
Suite application on a Bluetooth
®
phone. For details about the Entune
App Suite application: P.281
DISPLAYING WEATHER
INFORMATION
No.Function
Select to display the weather of the
current location. ( P.149)
Select to display the weather of a
desired location in the recently
checked locations list.
Select to display the weather of a
desired location in the national cities
list.
Select to display the weather of a
desired location in the other local cit-
ies list.
Select to display weather informa-
tion over the map.
INFORMATION
● Weather information is available in the
48 states, D.C. and Alaska of the United
States.
● The weather for current location might
not show the closest city when it first dis-
plays.

149
1. USEFUL INFORMATION
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:35
INFORMATION
5
1Display the “Weather” screen.
(P.148)
2Select “Current Weather” .
3Select the desired ta b to be displayed.
DISPLAYING THE WEATHER
OF THE CURRENT LOCATION

150
1. USEFUL INFORMATION
PRIUS PRIME_Navi_OM47C85U_(U)
19.03.07 12:35
2. DATA SERVICES SETTINGS
1Press the “MENU” button.
2Select “Settings” .
3Select “Data Services” .
4Select the desired item to be set.SETTING DOWNLOAD
METHODS
Data service information, which is
comprised of traffic information and
weather information, can be received
via the HD Radio and by the Entune
App Suite application on a Bluetooth
®
phone. The receiving method can be
set to both or only via the HD Radio.
For details about the Entune App Suite
application: P.281No.Function
Select to receive data service infor-
mation via both the HD Radio and
the Entune App Suite application on
a Bluetooth
® phone. When both
methods are available, the HD Ra-
dio will be preferred.
INFORMATION
● These settings are available in the 48
states, D.C. and Alaska of the United
States.
