6417-3. Do-it-yourself maintenance
7
Maintenance and care
With the glove box fully open,
slightly lift up the glove box and
pull toward the seat to detach
the bottom of the glove box.
Do not use excessive force if the
glove box does not detach when
lightly pulled. Instead, pull toward
the seat while slightly adjusting the
height of the glove box.
Remove the filter cover.
Unlock the filter cover.
Move the filter cover in the
direction of the arrow, and then
pull it out of the claws.
Remove the filter case.
Remove the air conditioning fil-
ter from the filter case and
replace it with a new one.
The “UP” marks shown on the fil-
ter should be pointing up.
When installing, reverse the steps listed.
5
6
1
2
7
8
9

642
PRIUS PRIME_OM_OM47D71U_(U)
7-3. Do-it-yourself maintenance
■Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
<00b300360046004b004800470058004f00480047000300300044004c005100570048005100440051004600480003002a0058004c0047004800b4000300520055000300b30032005a00510048005500b60056000300300044005100580044004f0003003600
5800530053004f0048005000480051005700b40011000c[
■If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
WARNING
■When replacing the air conditioning filter
Observe the following precautions. Failure to do so may result in the air
conditioning system operating during the procedure, possibly resulting in
injury.
●Check that the charging connector is not connected
The air conditioning may operate due to the “Climate Prep” (P. 157) or
“Traction Battery Cooler” (P. 136) setting.
●Do not use the Remote Air Conditioning System

PRIUS PRIME_OM_OM47D71U_(U)
6437-3. Do-it-yourself maintenance
7
Maintenance and care
NOTICE
■When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.
■When removing the glove box
Always follow the specified procedure to remove the glove box (P. 640). If
the glove box is removed without following the specified procedure, the
hinge of the glove box may become damaged.
■To prevent damage to the filter cover
When moving the filter cover in the direc-
tion of arrow to release the fitting, pay
attention not to apply excessive force to
the claws. Otherwise, the claws may be
damaged.

644
PRIUS PRIME_OM_OM47D71U_(U)
7-3. Do-it-yourself maintenance
Wiper insert replacement
While securely supporting the
wiper blade connection by
hand, press the lock knob to
release the lock, and then pull
out the wiper blade.
Align the wiper blade with the
connecting portion of the wiper
arm, and then slide it in the
direction it was removed from.
After installing the wiper blade,
check that the connection is
locked.
When replacing the wiper insert, perform the following proce-
dure.
Windshield wiper blade removal and installation
1
2

PRIUS PRIME_OM_OM47D71U_(U)
6457-3. Do-it-yourself maintenance
7
Maintenance and care

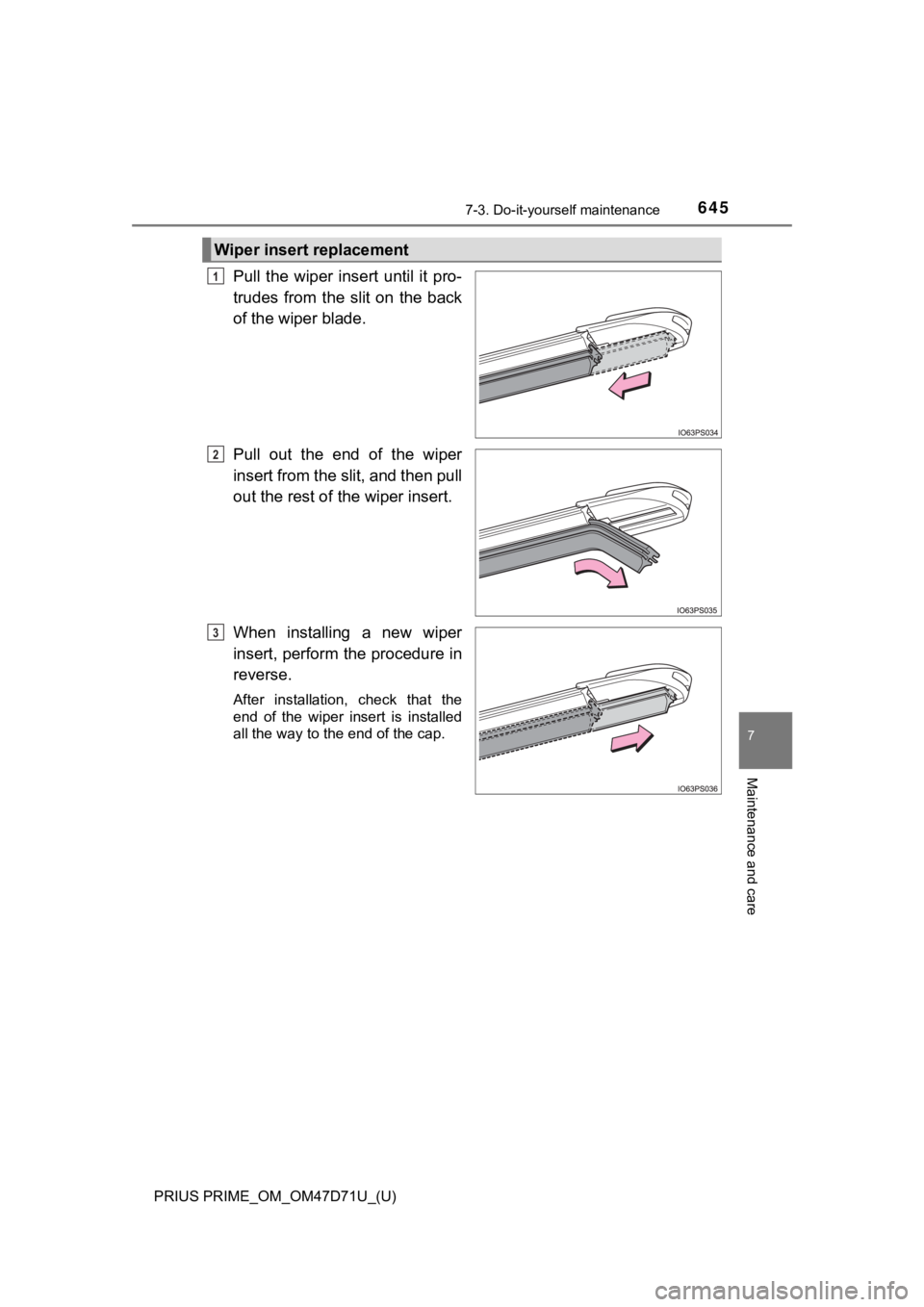

Pull the wiper insert until it pro-
trudes from the slit on the back
of the wiper blade.
Pull out the end of the wiper
insert from the slit, and then pull
out the rest of the wiper insert.
When installing a new wiper
insert, perform the procedure in
reverse.
After installation, check that the
end of the wiper insert is installed
all the way to the end of the cap.
Wiper insert replacement
1
2
3

646
PRIUS PRIME_OM_OM47D71U_(U)
7-3. Do-it-yourself maintenance
■Wiper blade and wiper insert handling
Improper handling may result in damage to the wiper blades or wiper insert. If
you have any concerns about replacing the wiper blades or wiper insert your-
self, contact your Toyota dealer.
■Wiper blade cap
The cap cannot be removed, as it is integrated with the front wiper blade.
NOTICE
■To prevent damage
●Be careful not to damage the claws when replacing the wipers.
●After the wiper blade is removed from the wiper arm, place a cloth, etc.,
between the windshield and wiper arm to prevent damage to the wind-
shield.
●<00250048000300560058005500480003005100520057000300570052000300530058004f004f00030048005b0046004800560056004c00590048004f005c00030052005100030057004b00480003005a004c0053004800550003004c005100560048005500
570011[

647
PRIUS PRIME_OM_OM47D71U_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care
Electronic key batter y
●Flathead screwdriver
●Lithium battery CR2032
Release the lock and take out
the mechanical key.
Remove the cover.
Use a screwdriver of an appropri-
ate size. Forcedly prying may
cause the cover damaged.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2

648
PRIUS PRIME_OM_OM47D71U_(U)
7-3. Do-it-yourself maintenance
Remove the depleted battery.
When removing the cover, if the
battery cannot be seen due to the
electronic key module attaching to
the upper cover, remove the elec-
tronic key module from the cover
so that the battery is visible as
shown in the illustration.
When removing the battery, use a
screwdriver of an appropriate size.
Insert a new battery with the “+” terminal facing up.
When installing, reverse the steps listed.
■Use a CR2032 lithium battery
●Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.
●Replace only with the same or equivalent type recommended by the manu-
facturer.
●Dispose of used batteries according to the local laws.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart key system and wireless remote control will not function properly.
●The operational range will be reduced.
3
4

PRIUS PRIME_OM_OM47D71U_(U)
6497-3. Do-it-yourself maintenance
7
Maintenance and care
WARNING
■Battery precautions
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not swallow the battery. Doing so may cause chemical burns.
●A coin battery or button battery is used in the electronic key. If a battery is
swallowed, it may cause severe chemical burns in as little as 2 hours and
may result in death or serious injury.
●Keep away new and removed batteries from children.
●If the cover cannot be firmly closed, stop using the electronic key and stow
the key in the place where children cannot reach, and then contact your
Toyota dealer.
●If you accidentally swallow a battery or put a battery into a part of your
body, get emergency medical attention immediately.
■To prevent battery explosion or leakage of flammable liquid or gas
●Replace the battery with a new battery of the same type. If a wrong type of
battery is used, it may explode.
●Do not expose batteries to extremely low pressure due to high altitude or
extremely high temperatures.
●Do not burn, break or cut a battery.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote control.
●Do not bend either of the battery terminals.

650
PRIUS PRIME_OM_OM47D71U_(U)
7-3. Do-it-yourself maintenance
Checking and replacing fuses
Turn the power switch off.
Confirm that the charging connector is not connected. Also, do not use the
Remote Air Conditioning System during the procedure.
Open the fuse box cover.
Engine compartment type A fuse box
While pushing the 2 claws, lift
up the cover.
When closing the cover, make
sure to attach the 2 claws.
Engine compartment type B fuse box
While pushing the 3 claws, lift
up the cover.
When closing the cover, make
sure to attach the 3 claws.
Left side instrument panel
Remove the lid.
Make sure to press the claw
during removal or installation.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
