TOYOTA PRIUS PRIME 2021 Owners Manual (in English)

6818-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47D71U_(U)
8
When trouble arises
■If the tire pressure warning light frequently comes on after blinking
for 1 minute
If the tire pressure warning light frequently comes on after blinking for
1 minute when the power switch is turned to ON mode, have it checked
by your Toyota dealer.
■Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location
or audio sound.
WARNING
■When the electric power steering system warning light comes on
When the light comes on yellow, the assist to the power steering is
restricted. When the light comes on red, the assist to the power steering is
lost and handling operations of the steering wheel become extremely
heavy. When steering wheel operations are heavier than usual, grip the
steering wheel firmly and operate it using more force than usual.
■
If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause a loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
●If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is probable that you have a flat tire. Check the tires.
If a tire is flat, repair the flat tire by using emergency tire puncture
repair kit.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

6828-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47D71U_(U)
WARNING
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire inflation pressure
label (tire and load information label). (If your vehicle has tires of a dif-
ferent size than the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine
the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS-tire pressure warning system) that
illuminates a low tire pressure telltale (tire pressure warning light) when
one or more of your tires is significantly under-inflated. Accordingly,
when the low tire pressure telltale (tire pressure warning light) illumi-
nates, you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency and tire tread life, and may
affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a sub-
stitute for proper tire maintenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has not reached
the level to trigger illumination of the TPMS low tire pressure telltale (tire
pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warn-
ing system) malfunction indicator to indicate when the system is not
operating properly. The TPMS (tire pressure warning system) malfunc-
tion indicator is combined with the low tire pressure telltale (tire pressure
warning light). When the system detects a malfunction, the telltale will
flash for approximately one minute and then remain continuously illumi-
nated. This sequence will continue upon subsequent vehicle start-ups
as long as the malfunction exists. When the malfunction indicator is illu-
minated, the system may not be able to detect or signal low tire pres-
sure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installation of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction telltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.

6838-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47D71U_(U)
8
When trouble arises
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with different specifications or makers, as the tire
pressure warning system may not operate properly.

684
PRIUS PRIME_OM_OM47D71U_(U)
8-2. Steps to take in an emergency
If a warning message is displayed
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
*
Multi-information display
Handling method
Follow the instructions of the mes-
sage on the multi-information dis-
play.
If any of the warning messages are shown again after the following
actions have been performed, contact your Toyota dealer.
*: The master warning light may not come on or flash when a warning mes-
sage is displayed.
The multi-information display shows warnings of system mal-
functions, incorrectly performed operations, and messages that
indicate a need for maintenance. When a message is shown,
perform the correction procedure appropriate to the message.
When a message about charging is displayed, refer to P. 185.
1
2
3

6858-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47D71U_(U)
8
When trouble arises

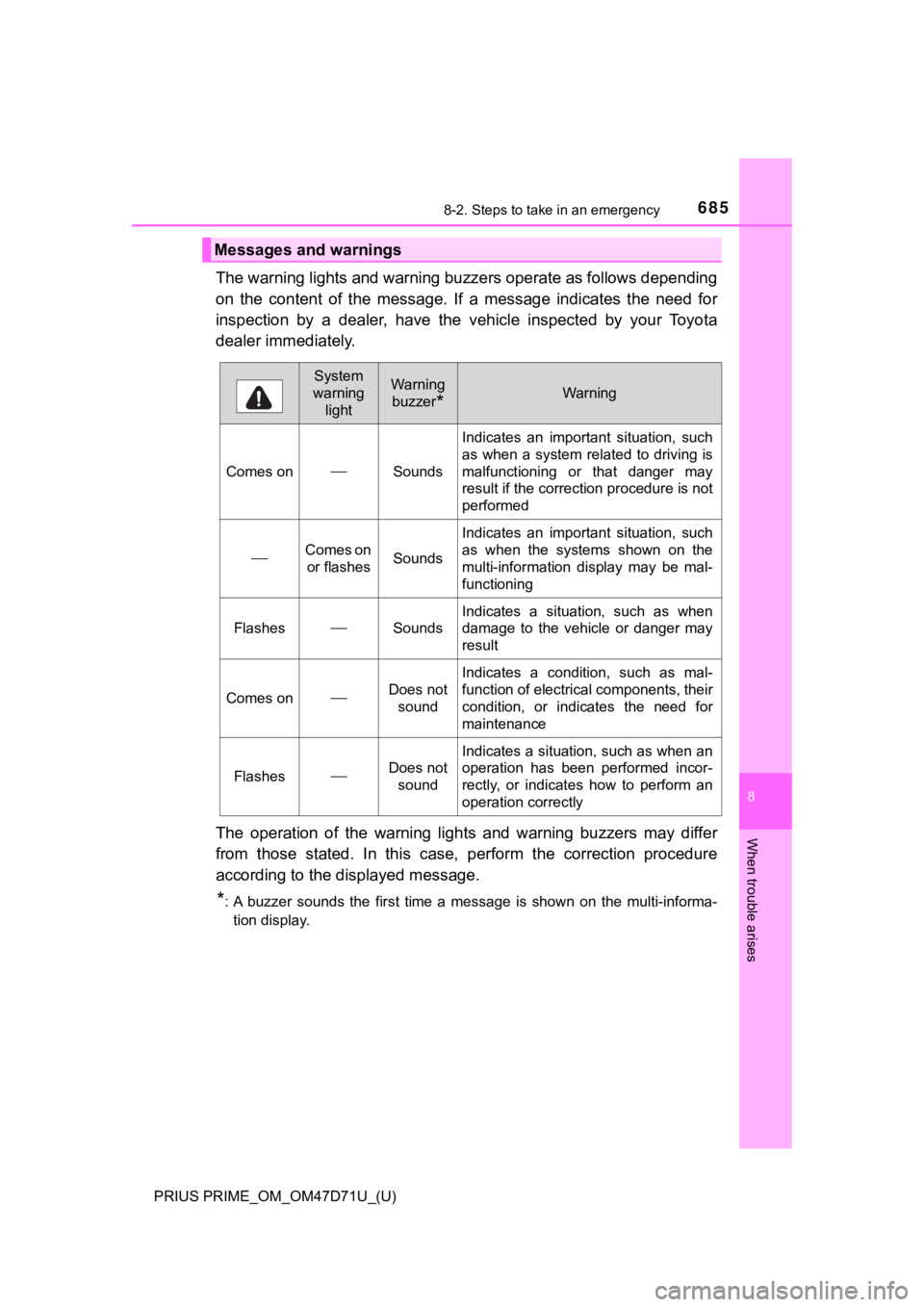

The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection by a dealer, have the vehicle inspected by your Toyota
dealer immediately.
The operation of the warning lights and warning buzzers may differ
from those stated. In this case, perform the correction procedure
according to the displayed message.
*: A buzzer sounds the first time a message is shown on the multi-informa-
tion display.
Messages and warnings
System
warning
lightWarning
buzzer
*Warning
Comes onSounds
Indicates an important situation, such
as when a system related to driving is
malfunctioning or that danger may
result if the correction procedure is not
performed
Comes on
or flashesSounds
Indicates an important situation, such
as when the systems shown on the
multi-information display may be mal-
functioning
FlashesSounds
Indicates a situation, such as when
damage to the vehicle or danger may
result
Comes onDoes not
sound
Indicates a condition, such as mal-
function of electrical components, their
condition, or indicates the need for
maintenance
FlashesDoes not
sound
Indicates a situation, such as when an
operation has been performed incor-
rectly, or indicates how to perform an
operation correctly

6868-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47D71U_(U)
■Warning messages
The warning messages explained below may differ from the actual messages
<004400460046005200550047004c0051004a0003005700520003005200530048005500440057004c0052005100030046005200510047004c0057004c0052005100560003004400510047000300590048004b004c0046004f00480003005600530048004600
4c0049004c004600440057004c0052005100560011[
■System warning lights
The master warning light does not come on or flash in the following cases.
Instead, a separate system warning light will come on along with a message
or image shown on the multi-information display.
●“Antilock Brake System Malfunction Visit Your Dealer”:
The ABS warning light comes on. (P. 675)
●“Braking Power Low Visit Your Dealer”:
The brake system warning light (yellow) will come on. (P. 674)
●Indicates that a door is not fully closed while the vehicle is stopped.:
The Open door warning light comes on. (P. 676)
■If “Visit Your Dealer” is shown
The system or part shown on the multi-information display is malfunctioning.
Have the vehicle inspected by your Toyota dealer.
■If a message about an operation is shown
●If a message about an operation of the accelerator pedal or brake pedal is
shown
• A warning message about an operation of the brake pedal may be shown
while the driving assist systems such as PCS (Pre-Collision System) or
the dynamic radar cruise control with full-speed range is operating. If a
warning message is shown, be sure to decelerate the vehicle or follow an
instruction shown on the multi-information display.
• A warning message is shown when Brake Override System operates.
(P. 322, 689)
• A warning message is shown when Drive-Start Control or Parking Sup-
port Brake function (if equipped) operates (P. 322, 460). Follow the
instructions on the multi-information display.
●If a message about an operation of the power switch is shown
An instruction for operation of the power switch is shown when the incorrect
procedure for starting the hybrid system is performed or the power switch is
operated incorrectly. Follow the instructions shown on the multi-information
display to operate the power switch again.
●If a message about a shift operation is shown
To prevent the shift position from being selected incorrectly or the vehicle
from moving unexpectedly, the shift position may be changed automatically
(P. 347) or shift operation may be required. In this case, change the shift
<005300520056004c0057004c00520051000300490052004f004f0052005a004c0051004a00030057004b00480003004c0051005600570055005800460057004c00520051005600030052005100030057004b0048000300500058004f0057004c0010004c00
51004900520055005000440057004c0052005100030047004c[splay.
●If a message or image about an open/close state of a part or replenishment
of a consumable is shown
Confirm the part indicated by the multi-information display or a warning light,
and then perform the coping method such as closing the open door or
replenishing a consumable.

6878-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47D71U_(U)
8
When trouble arises
■If “See Owner’s Manual” is shown
●<002c0049000300b3002500550044004e004c0051004a000300330052005a004800550003002f0052005a000300360057005200530003004c0051000300440003003600440049004800030033004f004400460048000300360048004800030032005a005100
48005500b60056000300300044005100580044004f00b40003[is shown,
this may be a malfunction. Immediately stop the vehicle in a safe place and
contact your Toyota dealer. Continuing to drive the vehicle may be danger-
ous.
●If “Engine Oil Pressure Low” is shown, this may be a malfunction. Immedi-
ately stop the vehicle in a safe place and contact your Toyota dealer.
●If the following messages are shown, there may be a malfunction. Immedi-
ately have the vehicle inspected by your Toyota dealer.
• “Plug-in charging system malfunction.”
• “Hybrid System Malfunction”
• “Check Engine”
• “Hybrid Battery System Malfunction”
• “Accelerator System Malfunction”
• “Smart Key System Malfunction See Owner’s Manual”
■If “Shift System Not Active Apply Parking Brake Securely While Parking
See Owner’s Manual” is shown
Indicates a temporary operation failure or malfunction in the shift control sys-
tem. Immediately have the vehicle inspected by your Toyota dealer.
When the message is shown, the hybrid system may not be started or the
shift position may not be changed normally. (Coping method: P. 691)
■If “Shift System Malfunction Apply Parking Brake Securely While Park-
ing See Owner’s Manual” is shown
Indicates a malfunction in the shift control system. Immediately have the vehi-
cle inspected by your Toyota dealer.
When the message is shown, the hybrid system may not be started or the
shift position may not be changed normally. (Coping method: P. 691)
■If “ Switch Malfunction Apply Parking Brake Securely While Parking
See Owner’s Manual” is shown
The P position switch may not operate. Immediately have the vehicle
inspected by your Toyota dealer.
When parking the vehicle, stop the vehicle on level ground and apply the
parking brake firmly.
■If “Shift System Malfunction Shifting Unavailable See Owner’s Manual”
is shown
Indicates a malfunction in the shift control system. Immediately have the vehi-
cle inspected by your Toyota dealer.
The shift position may not be shifted from P to other than P.
■If “Shift System Malfunction Stop in a Safe Place See Owner’s Manual”
is shown
Indicates a malfunction in the shift control system. Immediately have the vehi-
cle inspected by your Toyota dealer.
The shift position may not be changed. Stop the vehicle in a safe place.

6888-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47D71U_(U)■If “Shift System Malfunction See Owner’s Manual” is shown
Indicates a malfunction in the shift control system. Immediately have the sys-
tem inspected by your Toyota dealer.
The system may not operate properly.
■If “Low 12-Volt Battery Apply Parking Brake Securely While Parking See
Owner’s Manual” is shown
Indicates that the 12-volt battery charge is insufficient. Charge or replace the
12-volt battery.
●When the message is shown, the hybrid system may not start or the shift
position may not be changed normally. (Coping method: P. 691)
●After charging the 12-volt battery, the message may not go off until the shift
position is changed from P.
■If “Shifting Unavailable Low 12-Volt Battery See Owner’s Manual” is
shown
Indicates that the shift position cannot be changed because the voltage of the
12-volt battery drops. Charge or replace the 12-volt battery.
(Coping method in the case the 12-volt battery is discharged: P. 715)
■If “Hybrid System Overheated. Reduced Output Power.” is shown
The message may be shown when driving under severe operating conditions.
(For example, when driving up a long steep hill or driving up a steep hill in
reverse.)
Coping method: P. 721
■If “Maintenance required for Traction battery cooling parts See owner’s
manual” is shown
There is a possibility that the filter may be clogged, the air intake vent may be
blocked or there may be a gap in the duct.
●When the air intake vents or filters are dirty, clean them by the procedures
on P. 582.
●When the air intake vents or filters are not dirty and the warning message is
shown, have the vehicle inspected at your Toyota dealer.
■If “Traction Battery Needs to be Protected Refrain From the Use of
Position” is shown
This message may be displayed when the shift position is in N.
As the hybrid battery (traction battery) can not be charged when the shift
position is in N, shift the shift position to P when the vehicle is stopped.
■If “Traction Battery Needs to be Protected Shift into to Restart” is
shown
This message is displayed when the hybrid battery (traction battery) charge
has become extremely low because the vehicle has been left with the N shift
position selected for a certain amount of time.
When operating the vehicle, shift to P and restart the hybrid system.

6898-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47D71U_(U)
8
When trouble arises
■If “Shift to Before Exiting Vehicle” is shown
Message is displayed when the driver’s door is opened without turning the
power switch to off with the shift position in any position other than P.
Shift the shift position to P.
■If “Shift is in Release Accelerator Before Shifting” is shown
Message is displayed when the accelerator pedal has been depressed and
the shift position is in N.
Release the accelerator pedal and shift the shift position to D or R.
■If “Depress Brake When Vehicle is Stopped. Hybrid System may Over-
heat.” is shown
The message may be shown when the accelerator pedal is depressed to hold
the vehicle while the vehicle is stopped on an uphill, etc.
The hybrid system may overheat. Release the accelerator pedal and depress
the brake pedal.
■If “Shifted to Stop Vehicle to Shift to ” is shown
If the P position switch is pressed while driving, the shift position is changed
to N and the message is shown. (P. 347)
■If “Auto Power OFF to Conserve Battery” is shown
The power switch has been turned off by the automatic power off function.
When starting the hybrid system next time, operate the hybrid system for
approximately 5 minutes to recharge the 12-volt battery.
■If “Engine Oil Level Low Add or Replace” is displayed
The engine oil level may be low. Check the level of the engine oil, and add
engine oil if necessary. This message may be displayed if the vehicle is
stopped on a slope. Move the vehicle to a level surface and check if the mes-
sage disappears.
■If “Accelerator and Brake Pedals Pressed Simultaneously” is shown
The accelerator and brake pedals are being depressed simultaneously.
(P. 322)
Release the accelerator pedal and depress the brake pedal.
■If a message that indicates the malfunction of front camera is displayed
The following systems may be suspended until the problem shown in the
message is resolved. (P. 382, 674)
●PCS (Pre-Collision System)
●LTA (Lane Tracing Assist)
●AHB (Automatic High Beam)
●RSA (Road Sign Assist)
*
●Dynamic radar cruise control with full-speed range
*: If equipped

6908-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47D71U_(U)■If “Radar Cruise Control Unavailable See Owner’s Manual” is shown
The dynamic radar cruise control with full-speed range system is suspended
temporarily or until the problem shown in the message is resolved. (causes
and coping methods: P. 382)
■If “Radar Cruise Control Unavailable” is shown
The dynamic radar cruise control with full-speed range system cannot be
used temporarily. Use the system when it becomes available again.
■If “Maintenance Required Soon” is displayed (U.S.A. only)
Indicates that all maintenance according to the driven distance on the mainte-
nance schedule
* should be performed soon.
Comes on approximately 4500 miles (7200 km) after the message has been
reset.
If necessary, perform maintenance. Please reset the message after the main-
tenance is performed. (P. 588)
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual
Supplement” for the maintenance interval applicable to your vehicle.
■If “Maintenance Required Visit Your Dealer” is displayed (U.S.A. only)
Indicates that all maintenance is required to correspond to the driven distance
on the maintenance schedule
*.
Comes on approximately 5000 miles (8000 km) after the message has been
reset. (The indicator will not work properly unless the message has been
reset.)
Perform the necessary maintenance. Please reset the message after the
maintenance is performed. (P. 588)
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual
Supplement” for the maintenance interval applicable to your vehicle.
