Page 91 of 808
PRIUS PRIME_OM_OM47D71U_(U)
912-1. Plug-in hybrid system
2
Plug-in hybrid system
■Switching to the hybrid battery (traction battery) charge mode
Press and hold the switch.
Take your hand off the switch
once the hybrid battery charge
mode indicator starts to blink.
The hybrid battery charge mode
indicator illuminates when the
switch to hybrid battery (traction
battery) charge mode is com-
plete.
When the hybrid battery (traction battery) is fully charged
*, the hybrid
battery (traction battery) charge mode is automatically canceled and the
operation mode will be switched to HV mode.
The hybrid battery (traction battery) charge mode will be canceled by
pressing EV/HV mode selection switch or EV auto mode switch.
*: The maximum charge amount in the hybrid battery (traction battery)
charge mode is approximately 80% of the fully charged capacity for the
charging from an external power source.
■If the plug-in hybrid system operation mode cannot be changed
In the following situations, the plug-in hybrid system operation mode cannot
be changed even if the EV/HV mode selection switch or EV auto mode switch
is pressed. (In this case, the warning message is displayed on the multi-infor-
mation display when the switch is pressed.)
●When electricity needed for EV driving is not remaining (when in EV/EV
auto mode)
●When the traction battery is almost completely charged (hybrid battery [trac-
tion battery] charge mode)
■When switching from EV mode to another mode using the switch
When the power switch is turned off, operation mode switching is canceled
and the system returns to EV mode the next time the vehicle is started.
■Hybrid battery (traction battery) charge mode
●The following may occur to protect the system, etc.
• Cannot switch to hybrid battery (traction battery) charge mode or cannot
cancel it
• Gasoline engine does not start or stops even after switching to hybrid bat-
tery (traction battery) charge mode
●If a load to the system is large, such as when the power consumption of the
air conditioning system is large or when the temperature of the engine cool-
ant is high, it may take longer time than usual to charge using the hybrid bat-
tery (traction battery) charge mode, or charging to the hybrid battery
(traction battery) may not be performed.
Page 100 of 808
100
PRIUS PRIME_OM_OM47D71U_(U)
2-1. Plug-in hybrid system
■If a warning light comes on, a warning message is displayed or the 12-
volt battery is disconnected
The hybrid system may not start. In that case, try to start the system again. If
the “READY” indicator does not come on, contact your Toyota dealer.
■Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started,
refuel the vehicle with at least enough gasoline to make the low fuel level
warning light (P. 676) go off. If there is only a small amount of fuel, the
hybrid system may not be able to start. (The standard amount of fuel is about
2.0 gal. [7.5 L, 1.7 Imp.gal.], when the vehicle is on a level surface. This value
may vary when the vehicle is on a slope. Add extra fuel when the vehicle is
inclined.)
■Electromagnetic waves
●High voltage parts and cables on the hybrid vehicles incorporate electro-
magnetic shielding, and therefore emit approximately the same amount of
electromagnetic waves as conventional gasoline powered vehicles or home
electronic appliances.
●Your vehicle may cause sound interference in some third party-produced
radio parts.
■Effect of magnetic forces
If objects that generate strong magnetic forces, such as large speakers, are
placed inside the luggage compartment or installed nearby, the generated
magnetic forces may negatively affect the hybrid system.
■Hybrid battery (traction battery) (lithium-ion battery)
The hybrid battery (traction battery) has a limited service life.
The hybrid battery (traction battery) capacity (the ability to hold a charge)
reduces with time and use in the same way as other rechargeable batteries.
The extent at which capacity reduces changes drastically depending on the
environment (ambient temperature, etc.) and usage conditions, such as how
the vehicle is driven and how the hybrid battery (traction battery) is charged.
This is a natural characteristic of lithium-ion batteries, and is not a malfunc-
tion. Also, even though the distance that can be driven in EV mode decreases
when the hybrid battery (traction battery) capacity reduces, vehicle perfor-
mance does not significantly become worse.
In order to reduce the possibility of the capacity reducing, follow the directions
listed on P. 143, “Capacity reduction of the hybrid battery (traction battery)”.
■Starting the hybrid system in an extremely cold environment
When the hybrid battery (traction battery) is extremely cold (below approxi-
mately -22F [-30C]) under the influence of the outside temperature, it may
not be possible to start the hybrid system. In this case, try to start the hybrid
system again after the temperature of the hybrid battery increases due to the
outside temperature increase etc.
Page 134 of 808
134
PRIUS PRIME_OM_OM47D71U_(U)
2-2. Charging
Charging methods
◆Charging from an external power source (P. 146)
This is a charging method used when charging from an AC outlet
(120 V) with the charging cable equipped to the vehicle or charging
at a public charging station.
The charging start time (or departure time) and day can be set to carry
out charging using the charging schedule at the desired date and time.
(P. 157)
◆Using the hybrid battery (traction battery) charge mode
(P. 89)
The plug-in hybrid system can be switched to hybrid battery (trac-
tion battery) charge mode to charge the hybrid battery (traction bat-
tery) using electricity generated by gasoline engine operation.
The maximum charge amount in the hybrid battery (traction battery)
charge mode is approximately 80% of the fully charged capacity for the
charging from an external power source.
The time required to charge the hybrid battery (traction battery) differs
according to the charging voltage and charging current.
*1: This is the maximum value. Furthermore, the upper limit of the charging
current can be changed in the “Vehicle Settings” settings. (P. 1 3 2 )
*2: The time required for charging to complete depends on conditions such as
the remaining charge of the hybrid battery (traction battery), the outside
<00570048005000530048005500440057005800550048000300440051004700030056005300480046004c0049004c004600440057004c0052005100560003005200490003004400030046004b00440055004a004800550003000b0046004b00440055004a00
4c0051004a00030056005700440057004c00520051000c0011[
The following methods can be used to charge the hybrid battery
(traction battery).
Estimated charging time
Connected power
sourceCharging stationHome power source
Charging voltageAC 240 VAC 120 V
Charging current*116A12A
Estimated charging
time
*2Approximately 2 hoursApproximately 5 hours
10 minutes
Page 143 of 808
PRIUS PRIME_OM_OM47D71U_(U)
1432-2. Charging
2
Plug-in hybrid system
■Capacity reduction of the hybrid battery (traction battery)
The capacity of the hybrid battery (traction battery) will decline gradually
when the hybrid battery (traction battery) is in use. The rate at which it
declines will differ in accordance with environmental conditions and the way
in which the vehicle is used. Observing the following can help suppress bat-
tery capacity decline.
●Avoid parking the vehicle in areas with a high temperature under direct sun-
light when the hybrid battery (traction battery) is fully charged.
●Avoid accelerating and decelerating frequently and suddenly when EV driv-
ing.
●Avoid frequent driving near the top speed for EV driving. (P. 95)
●Leave a low level of charge in the hybrid battery (traction battery) when
<004f004800440059004c0051004a00030057004b0048000300590048004b004c0046004f004800030058005100470055004c0059004800510003004900520055000300440003004f00520051004a0003005300480055004c00520047000300520049000300
57004c005000480011[
After confirming that EV mode has switched to HV mode, turn the power
switch off.
●Use the charging schedule function as much as possible in order to fully
charge the hybrid battery (traction battery) immediately before starting
off. (P. 157)
Also, if the hybrid battery (traction battery) capacity reduces, the distance that
can be driven in EV mode decreases. However, vehicle performance does
not significantly become worse.
■When the remaining charge of the hybrid battery (traction battery) is low
after charging
In the following situations, the remaining charge of the hybrid battery (traction
battery) after charging completes may be less than normal in order to protect
the system (the EV driving range after the battery is fully charged may be
shorter).
*
●<0026004b00440055004a004c0051004a0003004c005600030046004400550055004c0048004700030052005800570003005a004b0048005100030057004b004800030052005800570056004c00470048000300570048005000530048005500440057005800
5500480003004c00560003004f0052005a0003005200550003[high
●Charging is carried out immediately after high-load driving or in extreme
heat
When none of the above situations apply and there is a drastic drop in the
remaining charge of the hybrid battery (traction battery) after charging com-
pletes, have the vehicle inspected by your Toyota dealer.
*: When this occurs, even if the remaining charge display of the hybrid battery
(traction battery) shows that it is fully charged, the remaining charge rapidly
decreases faster than normal.
■When the charging amount sent to the hybrid battery (traction battery)
decreases
When the amount of power supplied by the charger is low or operation of the
“Traction Battery Heater”, etc., reduces the charging power sent to the hybrid
battery (traction battery), the charging amount sent to the hybrid battery (trac-
tion battery) may decrease.
Page 273 of 808
PRIUS PRIME_OM_OM47D71U_(U)
2733. Instrument cluster
3
Instrument cluster

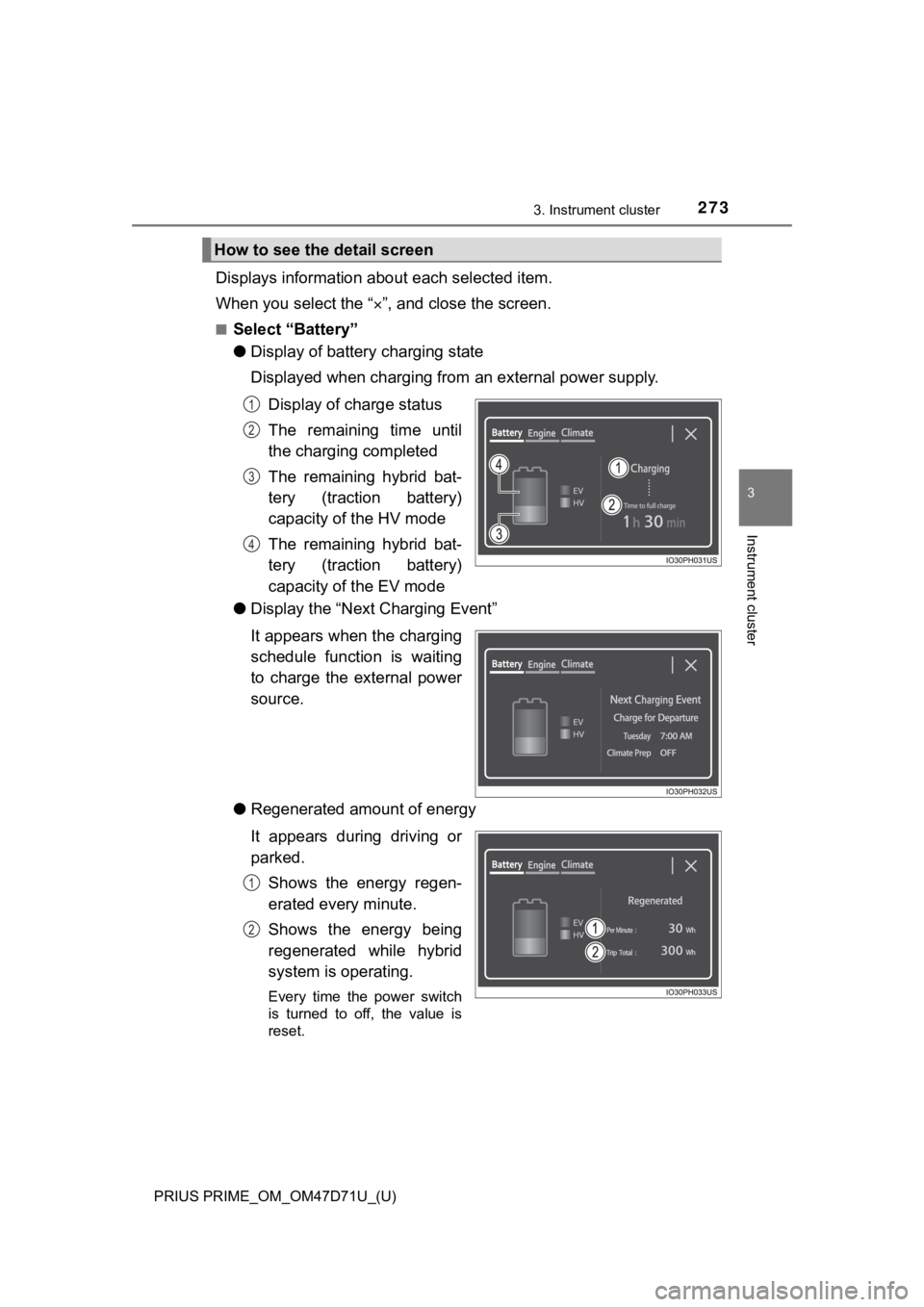

Displays information about each selected item.
When you select the “”, and close the screen.
■Select “Battery”
●Display of battery charging state
Displayed when charging from an external power supply.
Display of charge status
The remaining time until
the charging completed
The remaining hybrid bat-
tery (traction battery)
capacity of the HV mode
The remaining hybrid bat-
tery (traction battery)
capacity of the EV mode
●Display the “Next Charging Event”
It appears when the charging
schedule function is waiting
to charge the external power
source.
●Regenerated amount of energy
It appears during driving or
parked.
Shows the energy regen-
erated every minute.
Shows the energy being
regenerated while hybrid
system is operating.
Every time the power switch
is turned to off, the value is
reset.
How to see the detail screen
1
2
3
4
1
2
Page 718 of 808
7188-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47D71U_(U)■When recharging or replacing the 12-volt battery
●In some cases, it may not be possible to unlock the doors using the smart
key system when the 12-volt battery is discharged. Use the wireless remote
control or the mechanical key to lock or unlock the doors.
●The hybrid system may not start on the first attempt after the 12-volt battery
has recharged but will start normally after the second attempt. This is not a
malfunction.
●Vehicles with smart lid & connector locking system:
It may be impossible to unlock the charging port lid or locking and unlocking
the charging connector immediately after the 12-volt battery is reconnected.
In this case, carry the electronic key on your person and operate the
charging port lid or charging connector lock switch again.
●The power switch mode is memorized by the vehicle. When the 12-volt bat-
tery is reconnected, the system will return to the mode it was in before the
12-volt battery was discharged. Before disconnecting the 12-volt battery,
turn the power switch off.
If you are unsure what mode the power switch was in before the 12-volt bat-
tery discharged, be especially careful when reconnecting the 12-volt battery.
●If the 12-volt battery discharges while the shift position is in P, it may not be
possible to shift the shift position to other positions. In this case, the vehicle
cannot be towed without lifting both front wheels because the front wheels
will be locked. (P. 667)
■When replacing the 12-volt battery
●Use a 12-volt battery that conforms to European regulations.
●Use a 12-volt battery that the case size is same as the previous one (LN1),
20 hour rate capacity (20HR) is equivalent (45Ah) or greater, and perfor-
mance rating (CCA) is equivalent (295A) or greater.
• If the sizes differ, the 12-volt battery cannot be properly secured.
• If the 20 hour rate capacity is low, even if the time period where the vehi-
cle is not used is a short time, the 12-volt battery may discharge and the
hybrid system may not be able to start.
●For details, consult your Toyota dealer.
Page 733 of 808
PRIUS PRIME_OM_OM47D71U_(U)

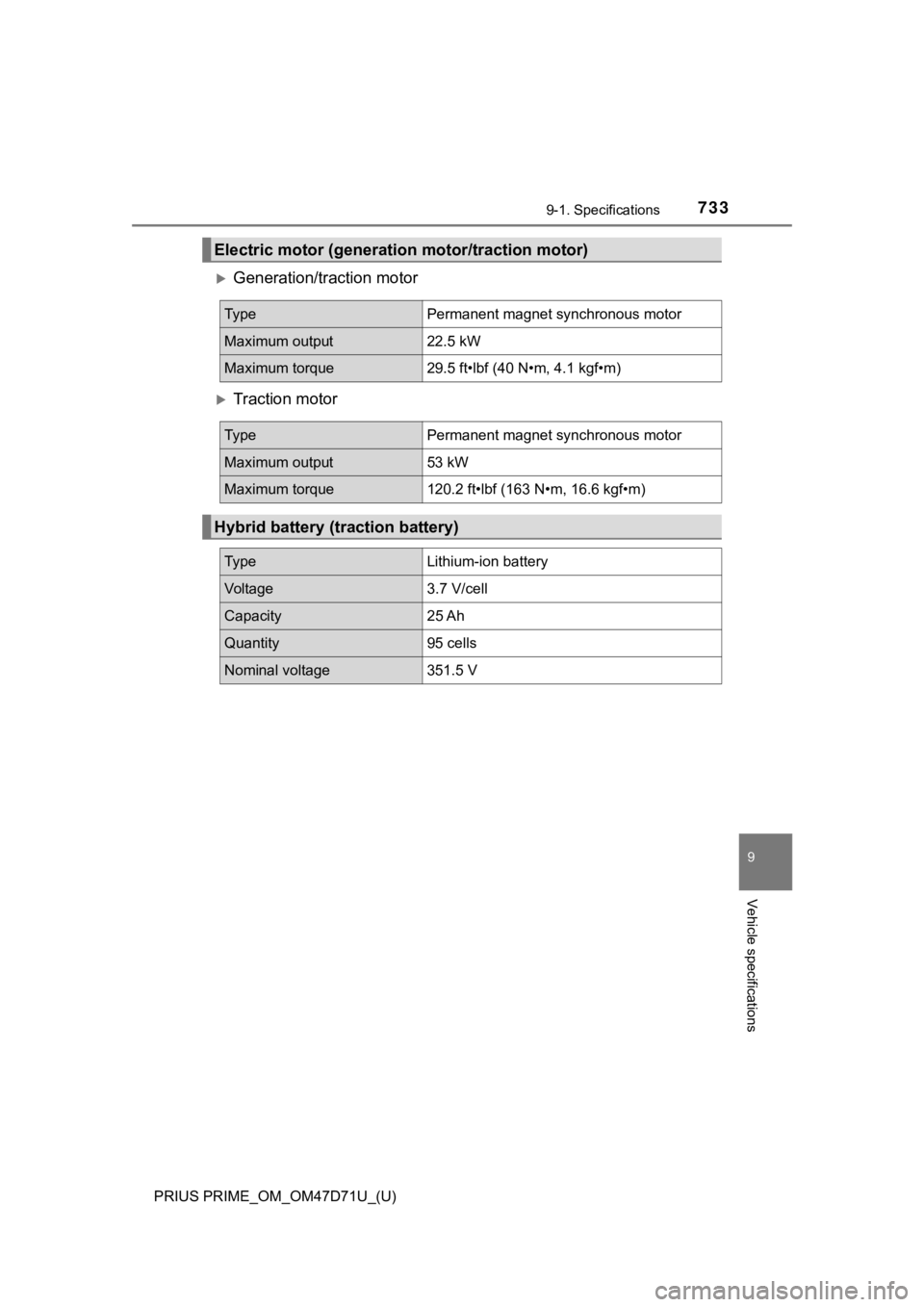

7339-1. Specifications
9
Vehicle specifications
Generation/traction motor
Traction motor
Electric motor (generation motor/traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output22.5 kW
Maximum torque29.5 ft•lbf (40 N•m, 4.1 kgf•m)
Ty p ePermanent magnet synchronous motor
Maximum output53 kW
Maximum torque120.2 ft•lbf (163 N•m, 16.6 kgf•m)
Hybrid battery (traction battery)
Ty p eLithium-ion battery
Vol t a ge3.7 V/cell
Capacity25 Ah
Quantity95 cells
Nominal voltage351.5 V
Page 736 of 808
736
PRIUS PRIME_OM_OM47D71U_(U)

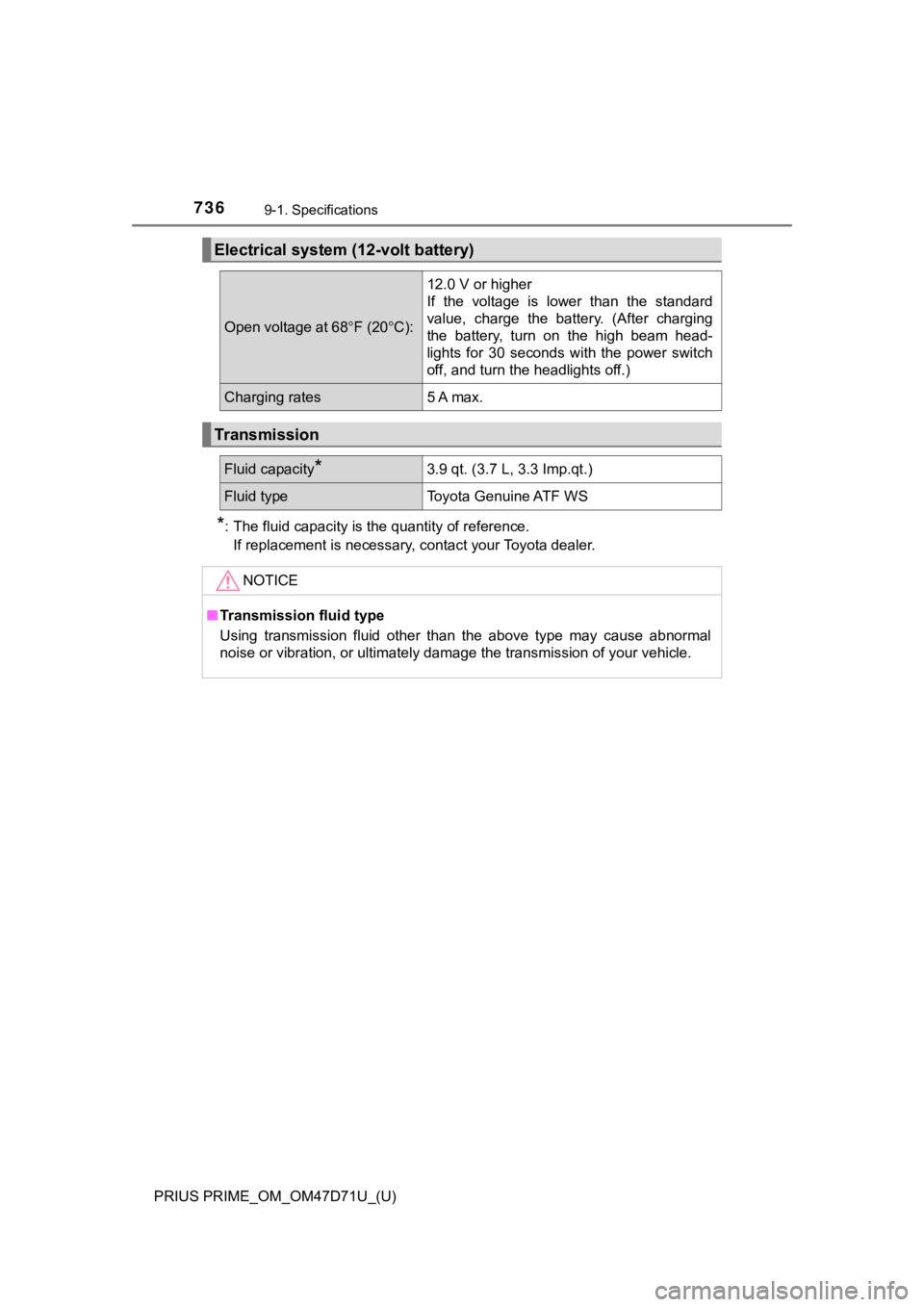

9-1. Specifications
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact your Toyota dealer.
Electrical system (12-volt battery)
Open voltage at 68F (20C):
12.0 V or higher
If the voltage is lower than the standard
value, charge the battery. (After charging
the battery, turn on the high beam head-
lights for 30 seconds with the power switch
off, and turn the headlights off.)
Charging rates5 A max.
Transmission
Fluid capacity*3.9 qt. (3.7 L, 3.3 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than the above type may cause abnormal
noise or vibration, or ultimately damage the transmission of your vehicle.
Page 748 of 808
748
PRIUS PRIME_OM_OM47D71U_(U)
9-1. Specifications
Production options
weight
The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy
duty 12-volt battery, and special trim
Rim
A metal support for a tire or a tire and tube
assembly upon which the tire beads are
seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer’s designation for a
rim by style or code
Rim widthNominal distance between rim flanges
Vehicle capacity
weight
(Total load capacity)The rated cargo and luggage load plus 150 lb.
(68 kg) times the vehicle’s designated seating
capacity
Vehicle maximum load
on the tire
The load on an individual tire that is deter-
mined by distributing to each axle its share of
the maximum loaded vehicle weight, and
dividing by two
Vehicle normal load on
the tire
The load on an individual tire that is deter-
mined by distributing to each axle its share of
curb weight, accessory weight, and normal
occupant weight (distributed in accordance
with Table 1
* below), and dividing by two
Weather sideThe surface area of the rim not covered by the
inflated tire
Bead
The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim
Tire related termMeaning
Page 790 of 808
790Alphabetical index
PRIUS PRIME_OM_OM47D71U_(U)
Care................................... 576, 581
Aluminum wheels.................. 577
Exterior ................................. 576
Front camera ........................ 379
Interior................................... 581
Radar sensor ........................ 378
Seat belts .............................. 584
Water-repellent coating......... 577
Cargo capacity ......................... 335
Catch protection function ....... 315
CD player
*
Chains....................................... 508
Charging ................................... 110
Charging cable...................... 115
Charging equipment ............. 110
Charging indicator................. 114
Charging messages .............. 185
Charging precautions............ 153
Charging procedure .............. 146
Charging time may
increase .............................. 135
Charging schedule function .. 157
High voltage components ....... 98
Information related to
charging display ................. 140
Opening and closing the
charging port lid .................. 111
Power sources
precautions ......................... 133
Power sources that can be
used.................................... 131
Safety functions ............ 142, 151
When normal charging
cannot be carried out.......... 180
Charging cable......................... 115
CCID (Charging Circuit
Interrupting Device) ............ 115
If the charging cable
cannot be unlocked ............ 128
Indicator................................. 117
Maintenance ......................... 120
Safety functions .................... 116Charging port........................... 110
Opening and closing ............. 111
Smart lid & connector
locking system.................... 121
If the charging port lid does
not open ............................. 124
Child restraint system............... 58
Fixed with a LATCH
system .................................. 70
Fixed with a seat belt .............. 64
Front passenger occupant
classification system ............ 50
Points to remember ................ 58
Riding with children ................ 57
Types of child restraint system
installation method ............... 60
Using an anchor bracket......... 73
Child safety ................................ 57
12-volt battery precautions ... 608
Airbag precautions.................. 40
Back door precautions .......... 289
Charging precautions ........... 141
Child restraint system ............. 58
How your child should wear
the seat belt.......................... 32
Installing child restraints ......... 60
Power window lock switch .... 314
Power window precautions ... 316
Rear door child-protectors .... 284
Removed key battery
precautions......................... 649
Riding with children ................ 57
Seat belt extender
precautions........................... 34
Seat belt precautions .............. 69
Seat heater precautions ....... 539
Child-protectors ...................... 284
Cleaning ........................... 576, 581
Aluminum wheels ................. 577
Exterior ................................. 576
Front camera ........................ 379
Hybrid battery (traction
battery) air intake vent........ 582
Interior .................................. 581
C
