TOYOTA PRIUS PRIME 2022 Owners Manual

111
PRIUS PRIME_OM_OM47E74U_(U)
2-2. Charging
2
Plug-in hybrid system

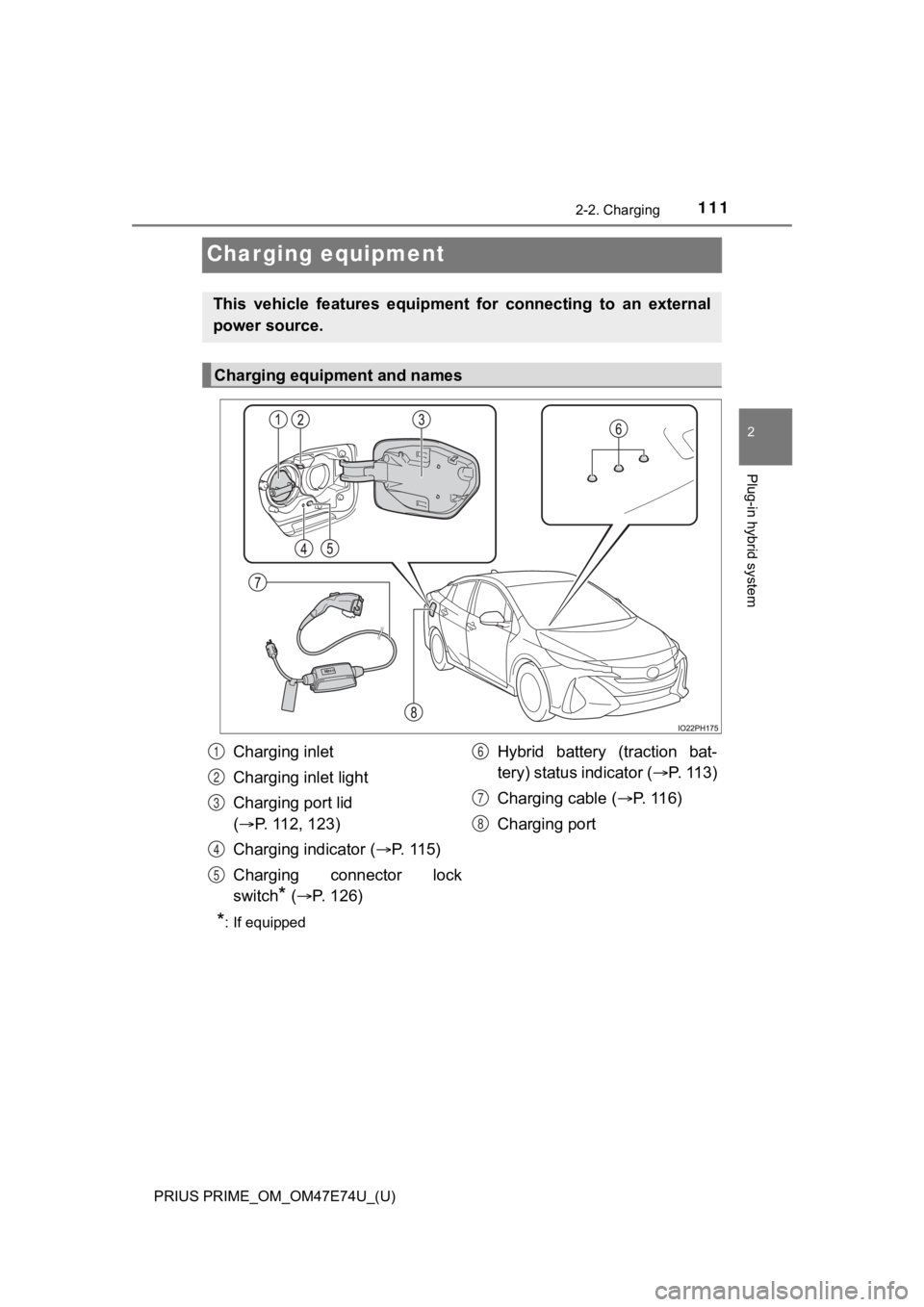

Charging equipment
*: If equipped
This vehicle features equipment for connecting to an external
power source.
Charging equipment and names
Charging inlet
Charging inlet light
Charging port lid
( P. 112, 123)
Charging indicator ( P. 1 1 5 )
Charging connector lock
switch
* (  P. 126) Hybrid battery (traction bat-
tery) status indicator (
P. 1 1 3 )
Charging cable ( P. 116)
Charging port
1
2
3
4
5
6
7
8

112
PRIUS PRIME_OM_OM47E74U_(U)
2-2. Charging

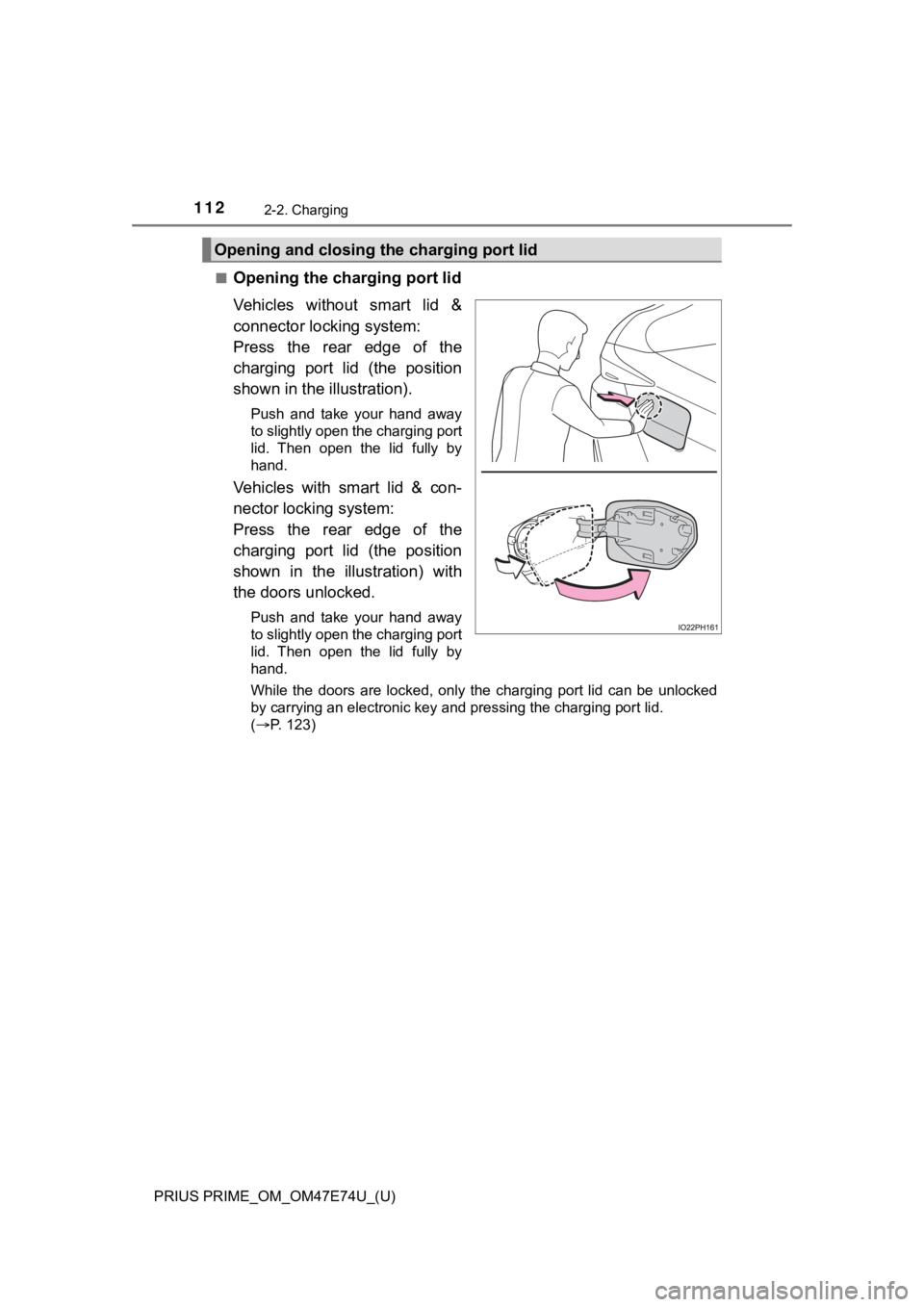

■Opening the charging port lid
Vehicles without smart lid &
connector locking system:
Press the rear edge of the
charging port lid (the position
shown in the illustration).
Push and take your hand away
to slightly open the charging port
lid. Then open the lid fully by
hand.
Vehicles with smart lid & con-
nector locking system:
Press the rear edge of the
charging port lid (the position
shown in the illustration) with
the doors unlocked.
Push and take your hand away
to slightly open the charging port
lid. Then open the lid fully by
hand.
While the doors are locked, only the charging port lid can be u nlocked
by carrying an electronic key and pressing the charging port li d.
( P. 123)
Opening and closing the charging port lid

PRIUS PRIME_OM_OM47E74U_(U)
1132-2. Charging
2
Plug-in hybrid system

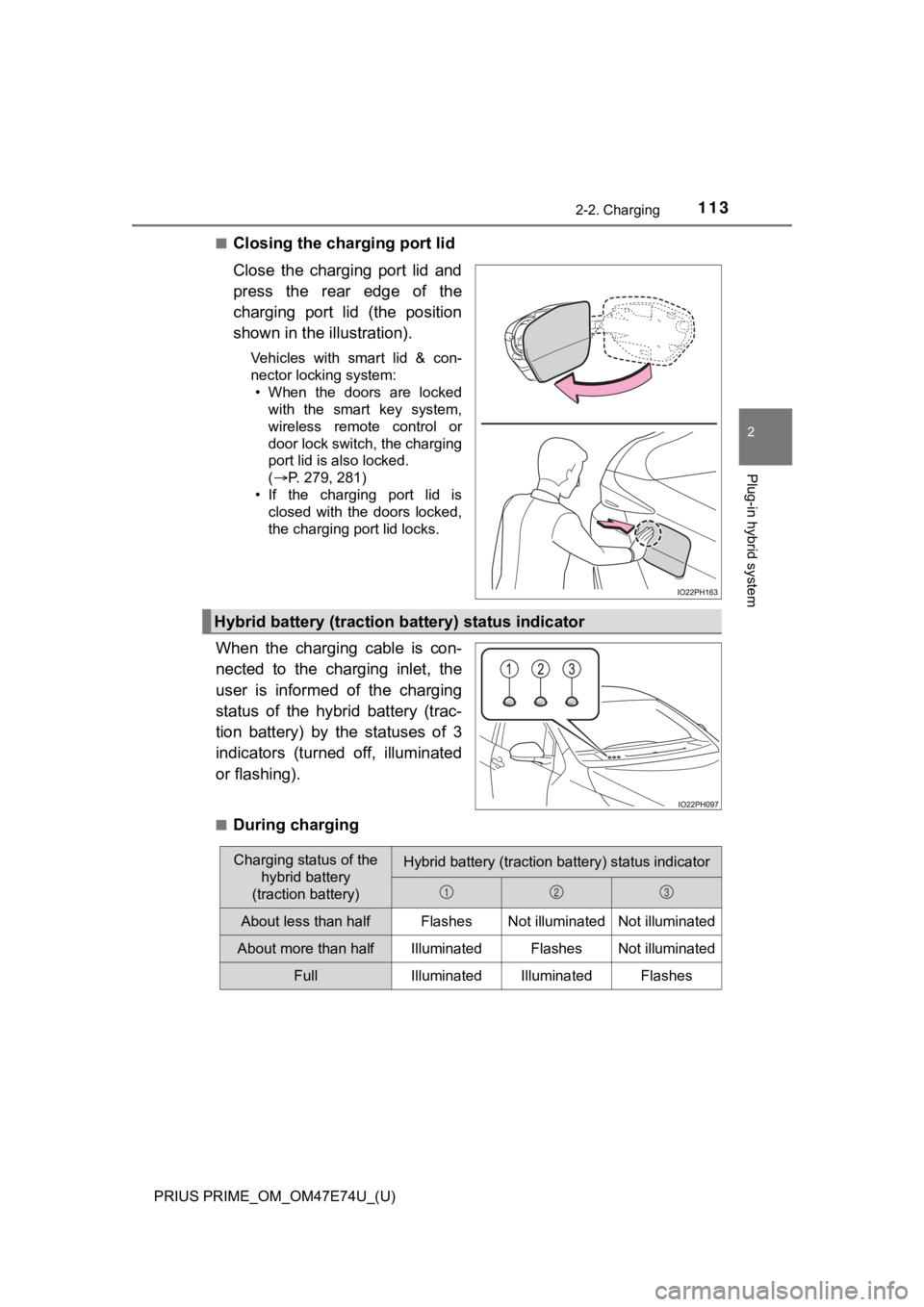

■Closing the charging port lid
Close the charging port lid and
press the rear edge of the
charging port lid (the position
shown in the illustration).
Vehicles with smart lid & con-
nector locking system:
• When the doors are locked with the smart key system,
wireless remote control or
door lock switch, the charging
port lid is also locked.
(P. 279, 281)
• If the charging port lid is closed with the doors locked,
the charging port lid locks.
When the charging cable is con-
nected to the charging inlet, the
user is informed of the charging
status of the hybrid battery (trac-
tion battery) by the statuses of 3
indicators (turned off, illuminated
or flashing).
■During charging
Hybrid battery (traction battery) status indicator
Charging status of the
hybrid battery
(traction battery)Hybrid battery (traction battery) status indicator
About less than halfFlashesNot illuminatedNot illuminated
About more than halfIlluminatedFlashesNot illuminated
FullIlluminatedIlluminatedFlashes
123

114
PRIUS PRIME_OM_OM47E74U_(U)
2-2. Charging

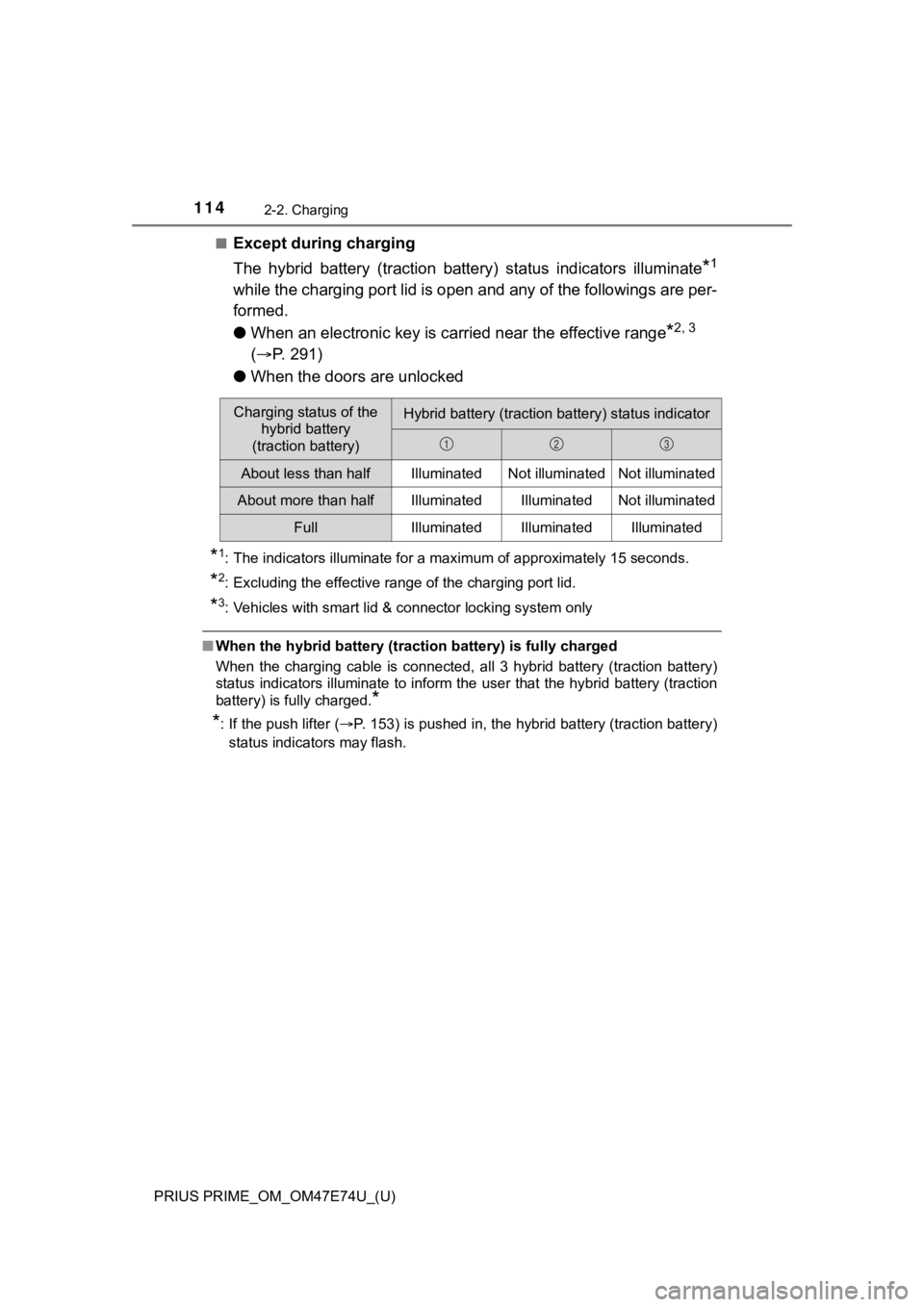

■Except during charging
The hybrid battery (traction battery) status indicators illuminate
*1
while the charging port lid is open and any of the followings are per-
formed.
●When an electronic key is carri ed near the effective range
*2, 3
(  P. 291)
● When the doors are unlocked
*1: The indicators illuminate for a maximum of approximately 15 se conds.
*2: Excluding the effective range of the charging port lid.
*3: Vehicles with smart lid & connector locking system only
■When the hybrid battery (tract ion battery) is fully charged
When the charging cable is connected, all 3 hybrid battery (tra ction battery)
status indicators illuminate to inform the user that the hybrid battery (traction
battery) is fully charged.
*
*
: If the push lifter ( P. 153) is pushed in, the hybrid battery (traction battery)
status indicators may flash.
Charging status of the hybrid battery
(traction battery)Hybrid battery (traction battery) status indicator
About less than halfIlluminatedNot illuminatedNot illuminated
About more than halfIlluminatedIlluminatedNot illuminated
FullIlluminatedIlluminatedIlluminated
123

PRIUS PRIME_OM_OM47E74U_(U)
1152-2. Charging
2
Plug-in hybrid system
The illumination/flashing pattern
changes to inform the user of the
charging status in the following
ways.
*: Turns off after flashing for a certain period of time.

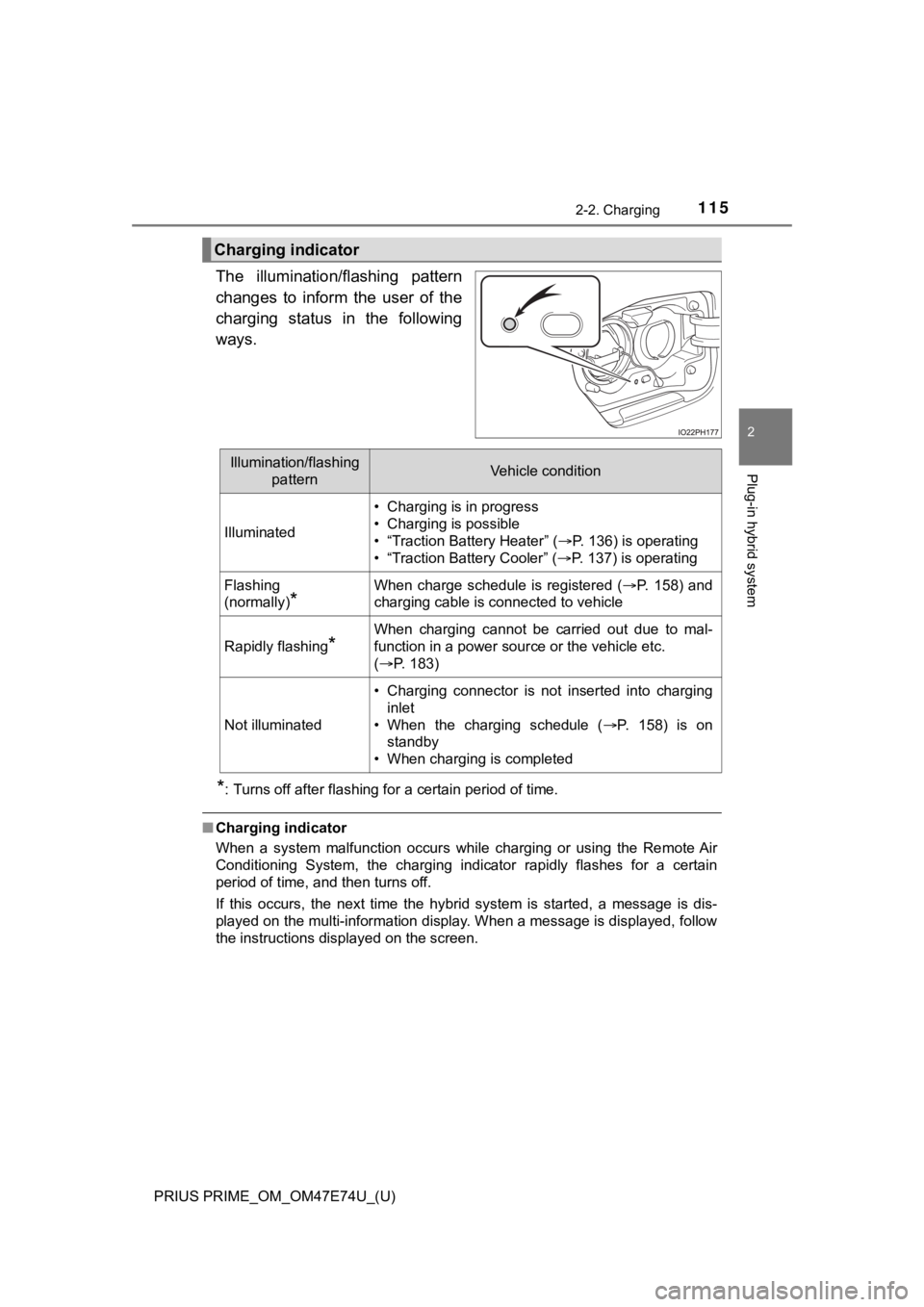

■Charging indicator
When a system malfunction occurs while charging or using the Re mote Air
Conditioning System, the charging indicator rapidly flashes for a certain
period of time, and then turns off.
If this occurs, the next time the hybrid system is started, a m essage is dis-
played on the multi-information display. When a message is displayed, follow
the instructions displayed on the screen.
Charging indicator
Illumination/flashing patternVehicle condition
Illuminated
• Charging is in progress
• Charging is possible
• “Traction Battery Heater” ( P. 136) is operating
• “Traction Battery Cooler” ( P. 137) is operating
Flashing
(normally)
*
When charge schedule is registered ( P. 158) and
charging cable is connected to vehicle
Rapidly flashing*
When charging cannot be carried out due to mal-
function in a power source or the vehicle etc.
( P. 183)
Not illuminated
• Charging connector is not inserted into charging
inlet
• When the charging schedule ( P. 158) is on
standby
• When charging is completed

116
PRIUS PRIME_OM_OM47E74U_(U)
2-2. Charging

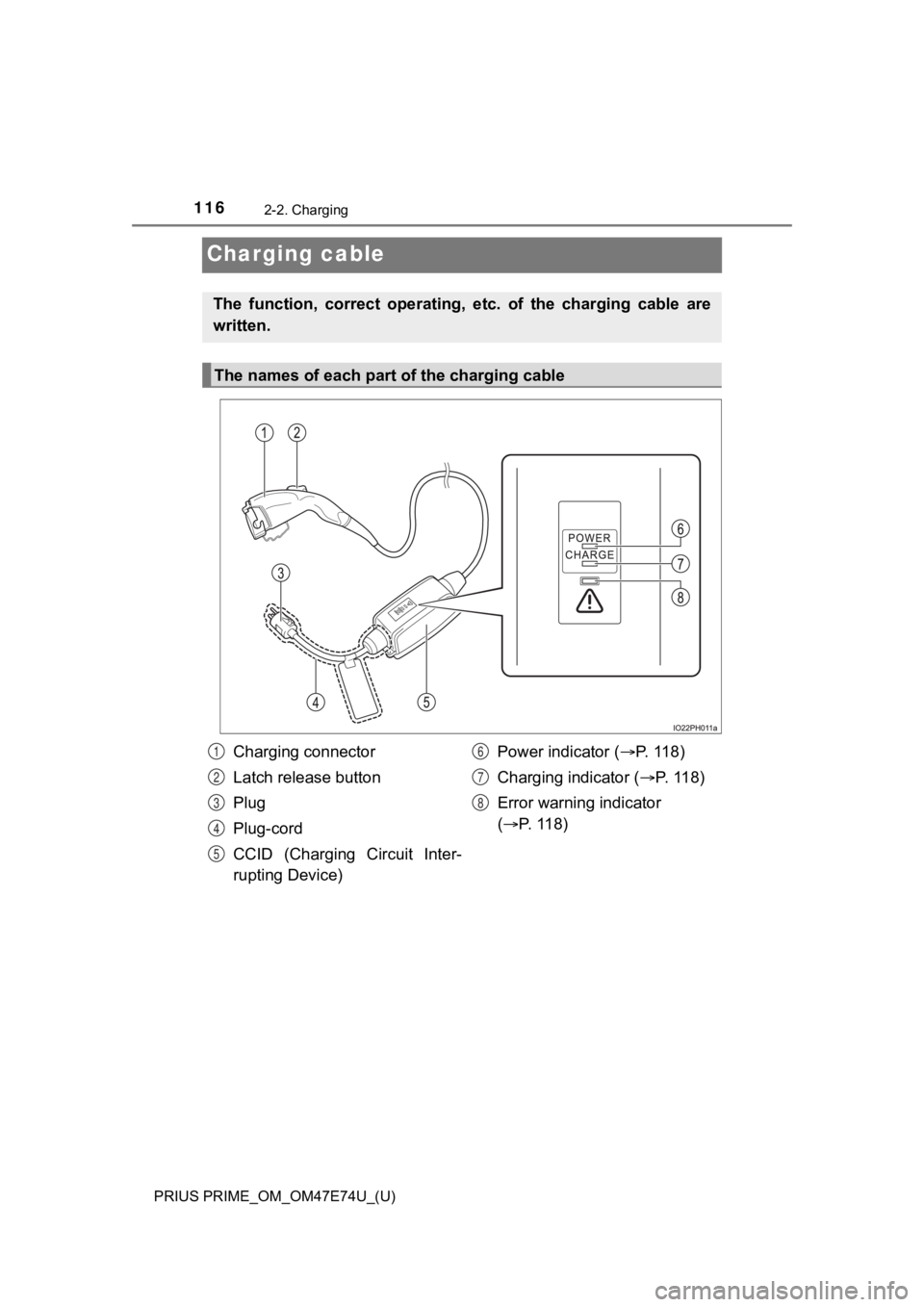

Charging cable
The function, correct operating, etc. of the charging cable are
written.
The names of each part of the charging cable
Charging connector
Latch release button
Plug
Plug-cord
CCID (Charging Circuit Inter-
rupting Device)Power indicator (
P. 118)
Charging indicator ( P. 118)
Error warning indicator
(  P. 118)1
2
3
4
5
6
7
8

PRIUS PRIME_OM_OM47E74U_(U)
1172-2. Charging
2
Plug-in hybrid system
The CCID (Charging Circuit Interrupting Device) has the following
safety features.
■Electrical leakage detection function
If an electrical leakage is detected during charging, the power
source will be automatically interrupted, thus preventing fires or
electrical shocks caused by electrical leakage.
If the power source is interrupted, the error warning indicator flashes.
If the power source is interrupted: P. 1 1 9
■
Automatic check function
This is an automatic system check that is run before charging
begins to check for pr oblems in the operation of the electrical leak-
age detection function.
If a malfunction is found in the electrical leakage detection f unction as a
result of the check, the error warning indicator flashes to inf orm the
user. ( P. 119)
■
Temperature detection function
A temperature detection function is equipped to the plug. While
charging, if heat is generated due to looseness on the outlet s ide
etc., this function suppresses heat by controlling the charging cur-
rent.
■Conditions for supplying current to the vehicle
The CCID (Charging Circuit Interrupting Device) is designed to pre-
vent electrical current from bei ng supplied to the charging con nec-
tor when it is not connected to the vehicle, even if the plug i s
inserted into the outlet.
Safety functions

118
PRIUS PRIME_OM_OM47E74U_(U)
2-2. Charging

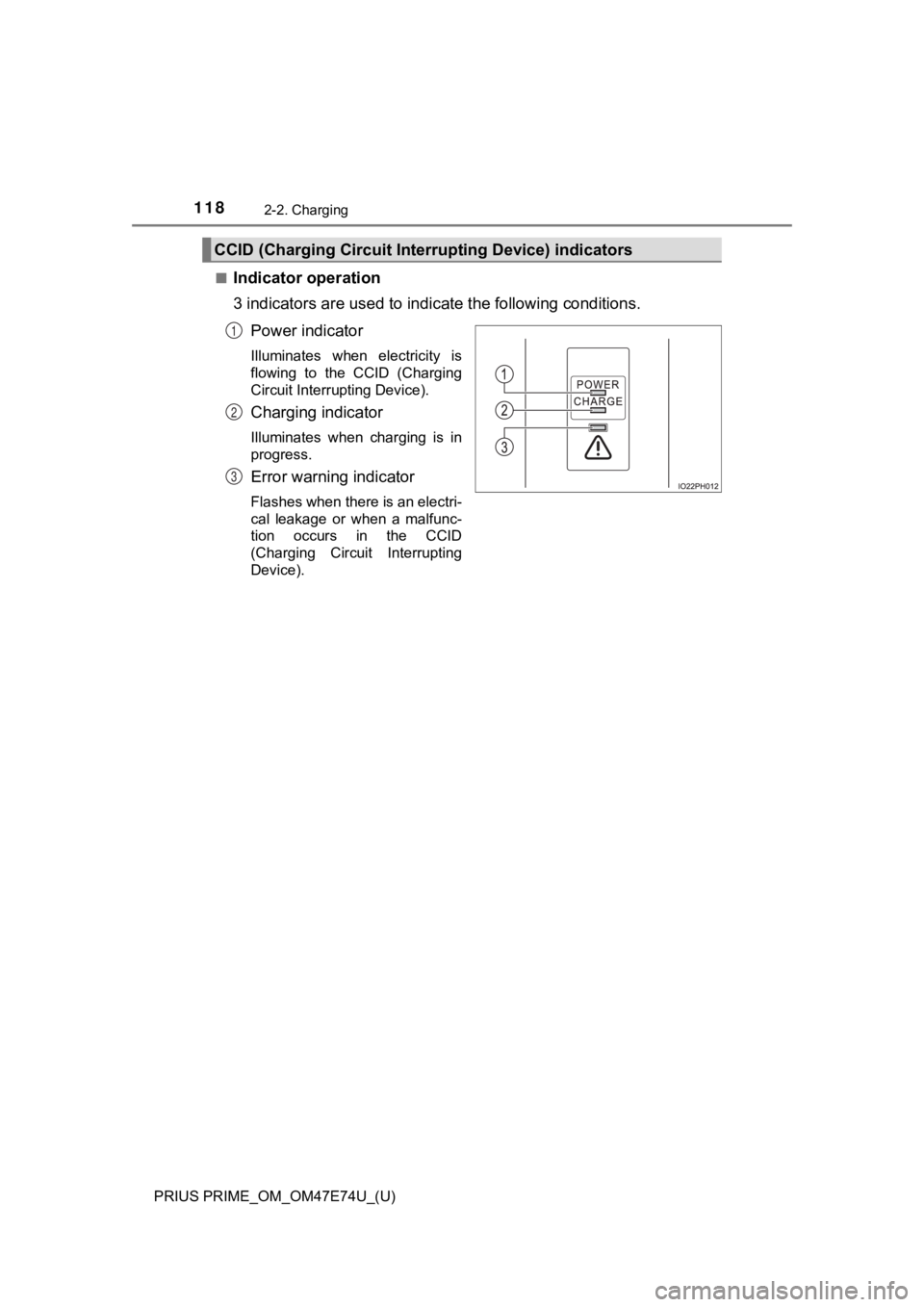

■Indicator operation
3 indicators are used to indicate the following conditions.
Power indicator
Illuminates when electricity is
flowing to the CCID (Charging
Circuit Interrupting Device).
Charging indicator
Illuminates when charging is in
progress.
Error warning indicator
Flashes when there is an electri-
cal leakage or when a malfunc-
tion occurs in the CCID
(Charging Circuit Interrupting
Device).
CCID (Charging Circuit Interrupting Device) indicators
1
2
3

PRIUS PRIME_OM_OM47E74U_(U)
1192-2. Charging
2
Plug-in hybrid system

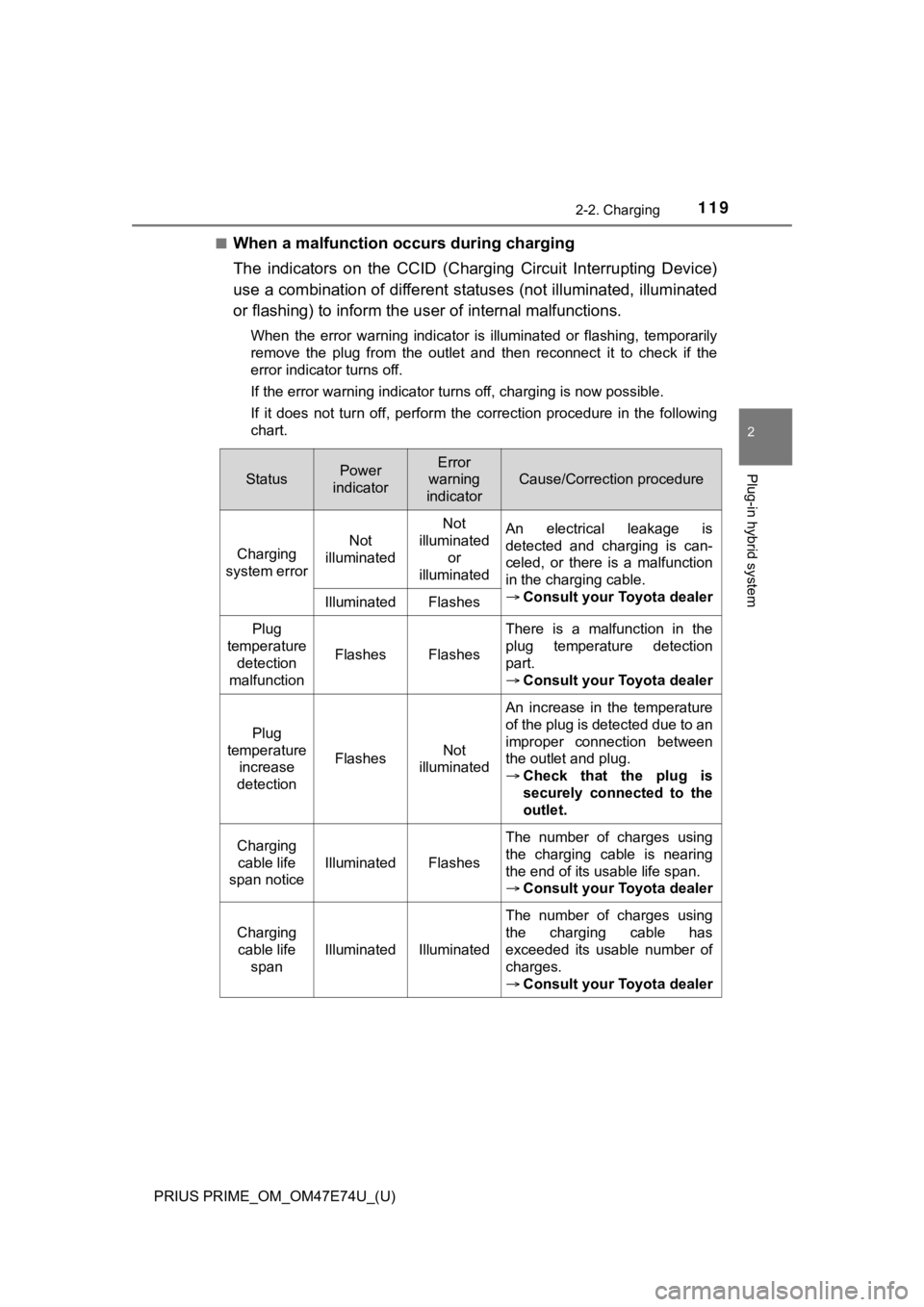

■When a malfunction occurs during charging
The indicators on the CCID (Charging Circuit Interrupting Device)
use a combination of different s tatuses (not illuminated, illuminated
or flashing) to inform the u ser of internal malfunctions.
When the error warning indicator is illuminated or flashing, te mporarily
remove the plug from the outlet and then reconnect it to check if the
error indicator turns off.
If the error warning indicator turns off, charging is now possible.
If it does not turn off, perform the correction procedure in the following
chart.
StatusPower
indicatorError
warning
indicator
Cause/Correction procedure
Charging
system error Not
illuminated Not
illuminated
or
illuminated An electrical leakage is
detected and charging is can-
celed, or there is a malfunction
in the charging cable.

Consult your Toyota dealer
Illuminated Flashes
Plug
temperature detection
malfunction
FlashesFlashes
There is a malfunction in the
plug temperature detection
part.
 Consult your Toyota dealer
Plug
temperature increase
detection
FlashesNot
illuminated
An increase in the temperature
of the plug is detected due to an
improper connection between
the outlet and plug.
 Check that the plug is
securely connected to the
outlet.
Charging
cable life
span notice
IlluminatedFlashes
The number of charges using
the charging cable is nearing
the end of its usable life span.
 Consult your Toyota dealer
Charging
cable life
span
IlluminatedIlluminated
The number of charges using
the charging cable has
exceeded its usable number of
charges.
 Consult your Toyota dealer

120
PRIUS PRIME_OM_OM47E74U_(U)
2-2. Charging
WARNING
■When using the charging cable and CCID (Charging Circuit Interr upt-
ing Device)
Observe the following precautions.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
● Do not attempt to disassemble or repair the charging cable, cha rging con-
nector, plug or CCID (Charging Circuit Interrupting Device).
If a problem arises with the charging cable or the CCID (Chargi ng Circuit
Interrupting Device), stop charging immediately and contact your Toyota
dealer.
● Do not subject the charging cable, charging connector, plug or CCID
(Charging Circuit Interrupting Device) to strong force or impact.
● Do not apply excessive force to the charging cable by forcefully folding,
twisting, pulling or dragging the charging cable.
● Do not damage the charging cable with sharp objects.
● Do not fold the charging connector or plug or insert foreign objects into
them.
● Do not put the charging connector and plug into water.
● Do not bring the charging cable to a high-temperature item such as a heat-
ing device.
● Do not apply a load to the charging cable and plug-cord (such a s wrapping
the charging cable around the CCID (Charging Circuit Interrupting Device)
and the charging connector).
● Do not use or leave the charging cable in situations where a lo ad is
applied to the outlet and the plug (such as when the CCID (Charging Cir-
cuit Interrupting Device) is hanging in the air without contacting the
ground).
NOTICE
■ When use the charging cable and related parts
 P. 156
■ Precautions for low temperatures
In low temperatures, the charging cable and plug-cord may becom e hard.
Therefore, make sure to not apply excessive force when they are hard. If
excessive force is applied to the hardened charging cable and p lug-cord,
they may be damaged.
