TOYOTA PRIUS PRIME 2022 Manual Online

811-3. Emergency assistance
PRIUS PRIME_OM_OM47E74U_(U)
1
For safety and security
■Free/Open Source Software Information
This product contains Free/Open Source Software (FOSS).
The license information and/or the source code of such FOSS can be found
at the following URL.
https://www.denso.com/global/en/opensource/dcm/toyota/

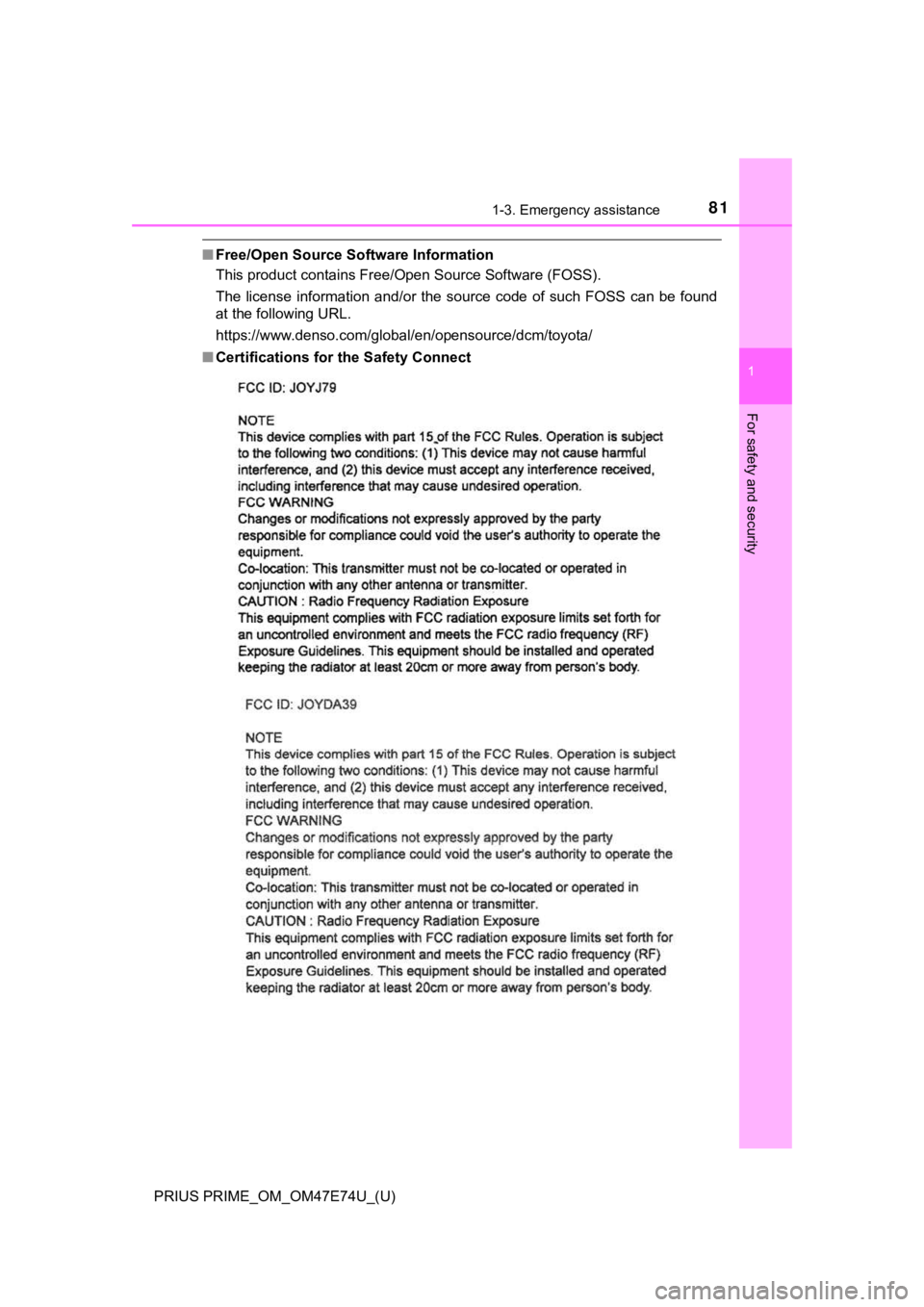

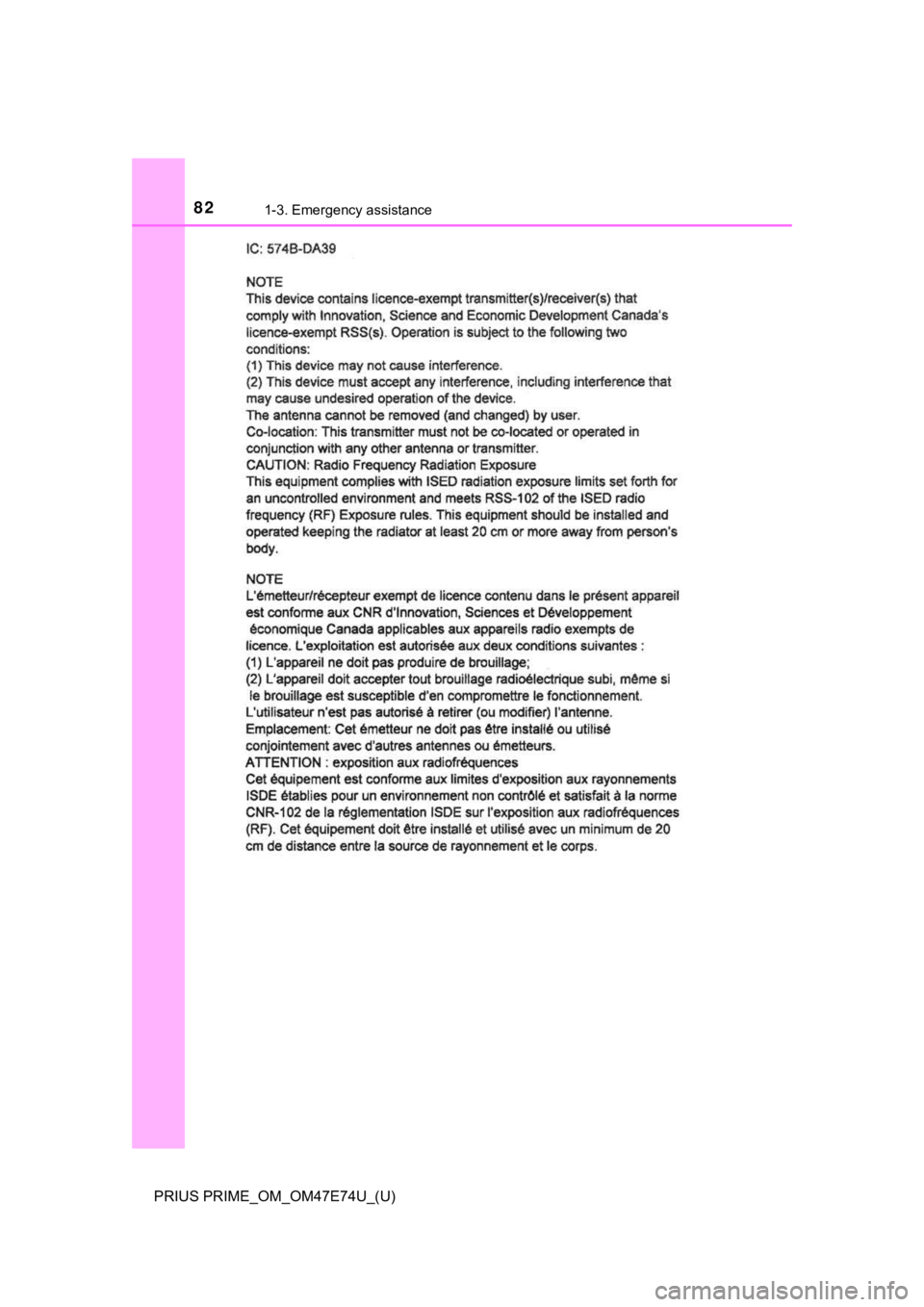

■ Certifications for the Safety Connect

821-3. Emergency assistance
PRIUS PRIME_OM_OM47E74U_(U)

831-4. Theft deterrent system
PRIUS PRIME_OM_OM47E74U_(U)
1
For safety and security

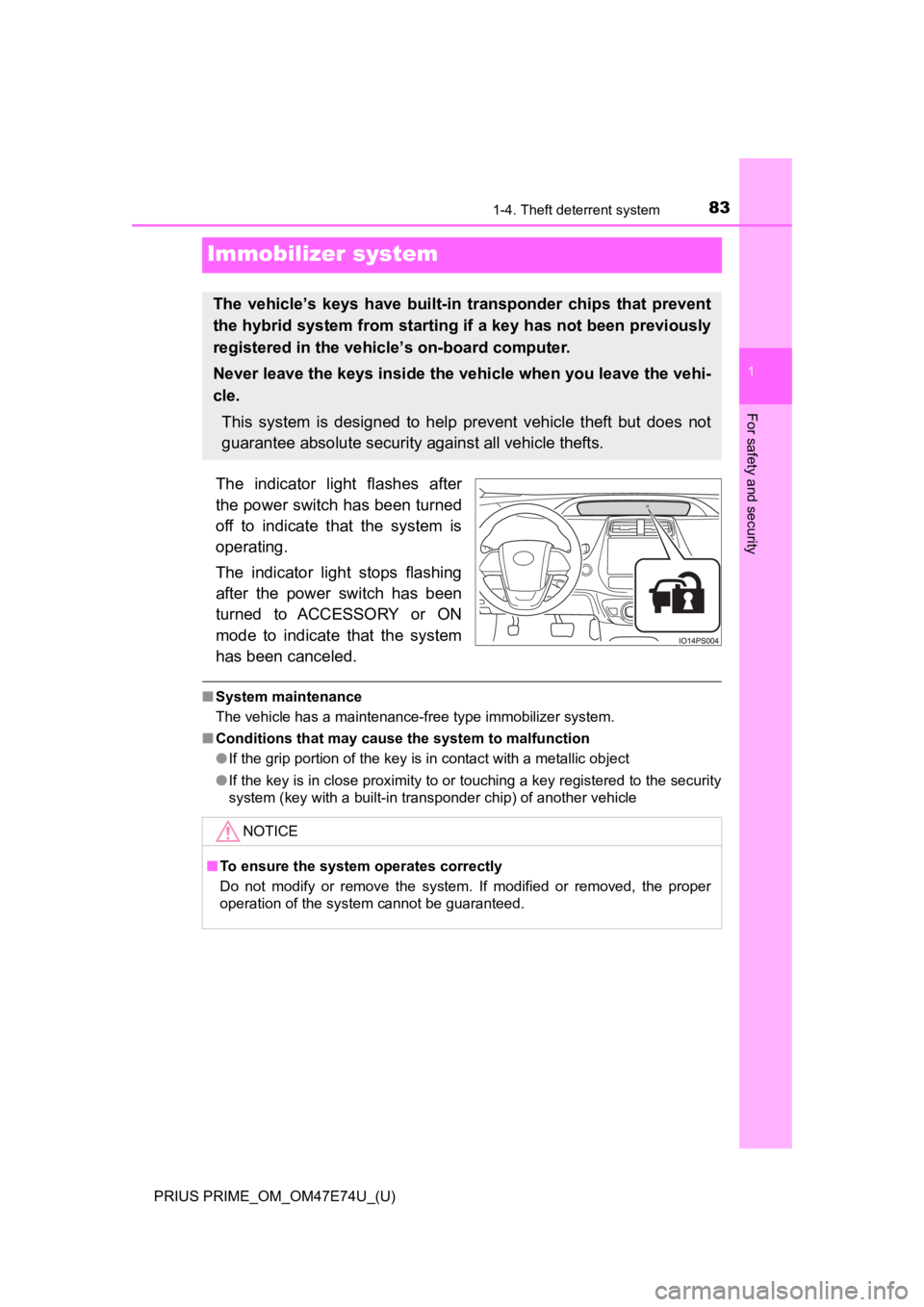

Immobilizer system
The indicator light flashes after
the power switch has been turned
off to indicate that the system is
operating.
The indicator light stops flashing
after the power switch has been
turned to ACCESSORY or ON
mode to indicate that the system
has been canceled.
■System maintenance
The vehicle has a maintenance-free type immobilizer system.
■ Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key registered to the security
system (key with a built-in transponder chip) of another vehicl e
The vehicle’s keys have built-in transponder chips that prevent
the hybrid system from starting if a key has not been previously
registered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle. This system is designed to help prevent vehicle theft but does not
guarantee absolute security against all vehicle thefts.
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

841-4. Theft deterrent system
PRIUS PRIME_OM_OM47E74U_(U)

85
PRIUS PRIME_OM_OM47E74U_(U)
Plug-in hybrid system2
2-1. Plug-in hybrid systemPlug-in hybrid system features ............................. 86
Plug-in hybrid system precautions ....................... 99
Plug-in hybrid vehicle driving tips ....................... 106
EV driving range ............... 109
2-2. Charging Charging equipment.......... 111
Charging cable .................. 116
Smart lid & connector locking system ................ 122
Power sources that can be used ................................ 132
Charging methods............. 135
Charging tips ..................... 140
Things to know before charging .......................... 142
How to charge ................... 147
Using the charging schedule function ........................... 158
When normal charging cannot be carried out ...... 181

86
PRIUS PRIME_OM_OM47E74U_(U)
2-1. Plug-in hybrid system
Plug-in hybrid system features

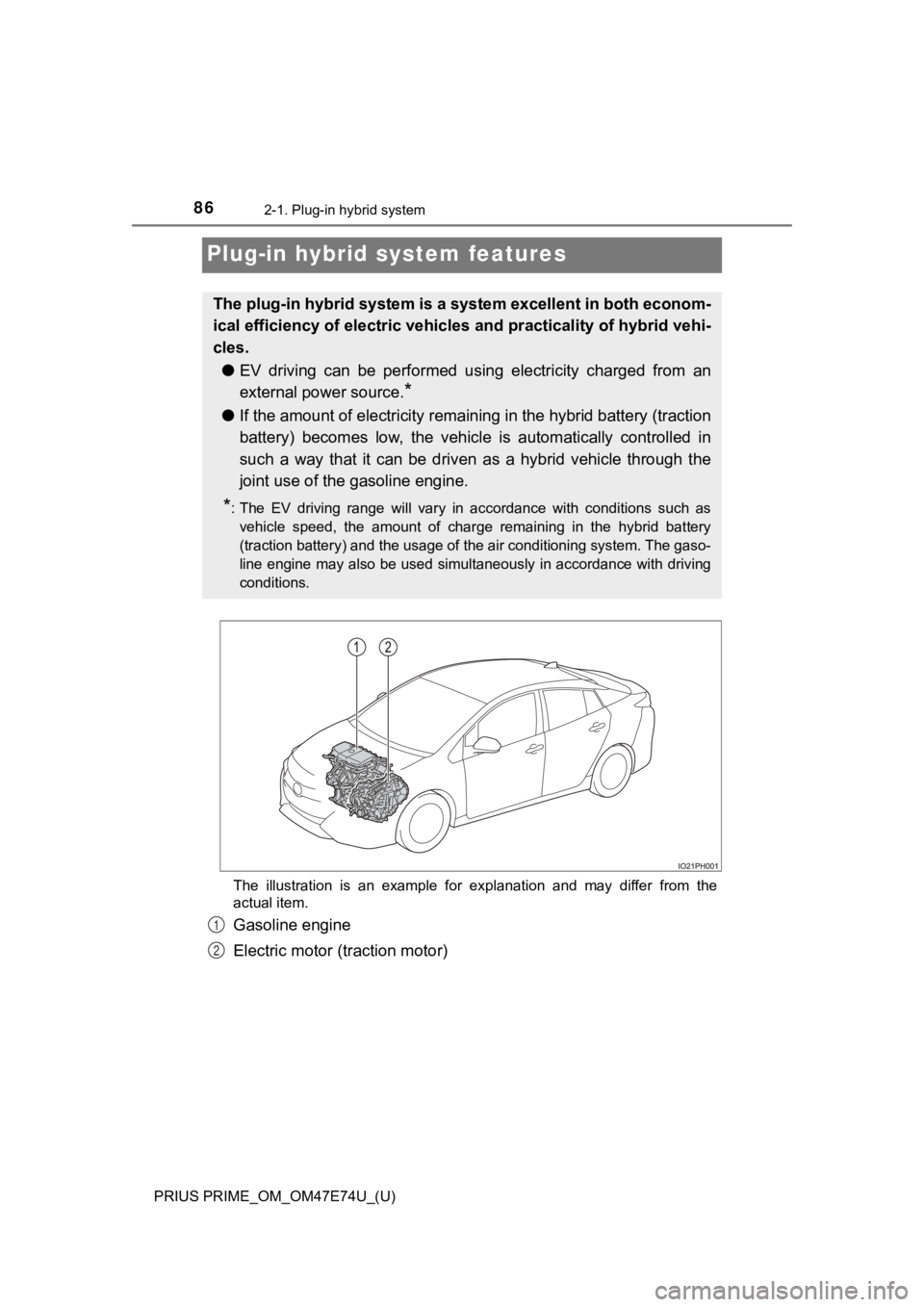

The illustration is an example for explanation and may differ from the
actual item.
Gasoline engine
Electric motor (traction motor)
The plug-in hybrid system is a system excellent in both econom-
ical efficiency of electric vehicles and practicality of hybrid vehi-
cles.
● EV driving can be performed using electricity charged from an
external power source.
*
●If the amount of electricity remaining in the hybrid battery (t raction
battery) becomes low, the vehicle is automatically controlled i n
such a way that it can be driven as a hybrid vehicle through the
joint use of the gasoline engine.
*: The EV driving range will vary in accordance with conditions s uch as
vehicle speed, the amount of charge remaining in the hybrid bat tery
(traction battery) and the usage of the air conditioning system. The gaso-
line engine may also be used simultaneously in accordance with driving
conditions.
1
2

PRIUS PRIME_OM_OM47E74U_(U)
872-1. Plug-in hybrid system
2
Plug-in hybrid system

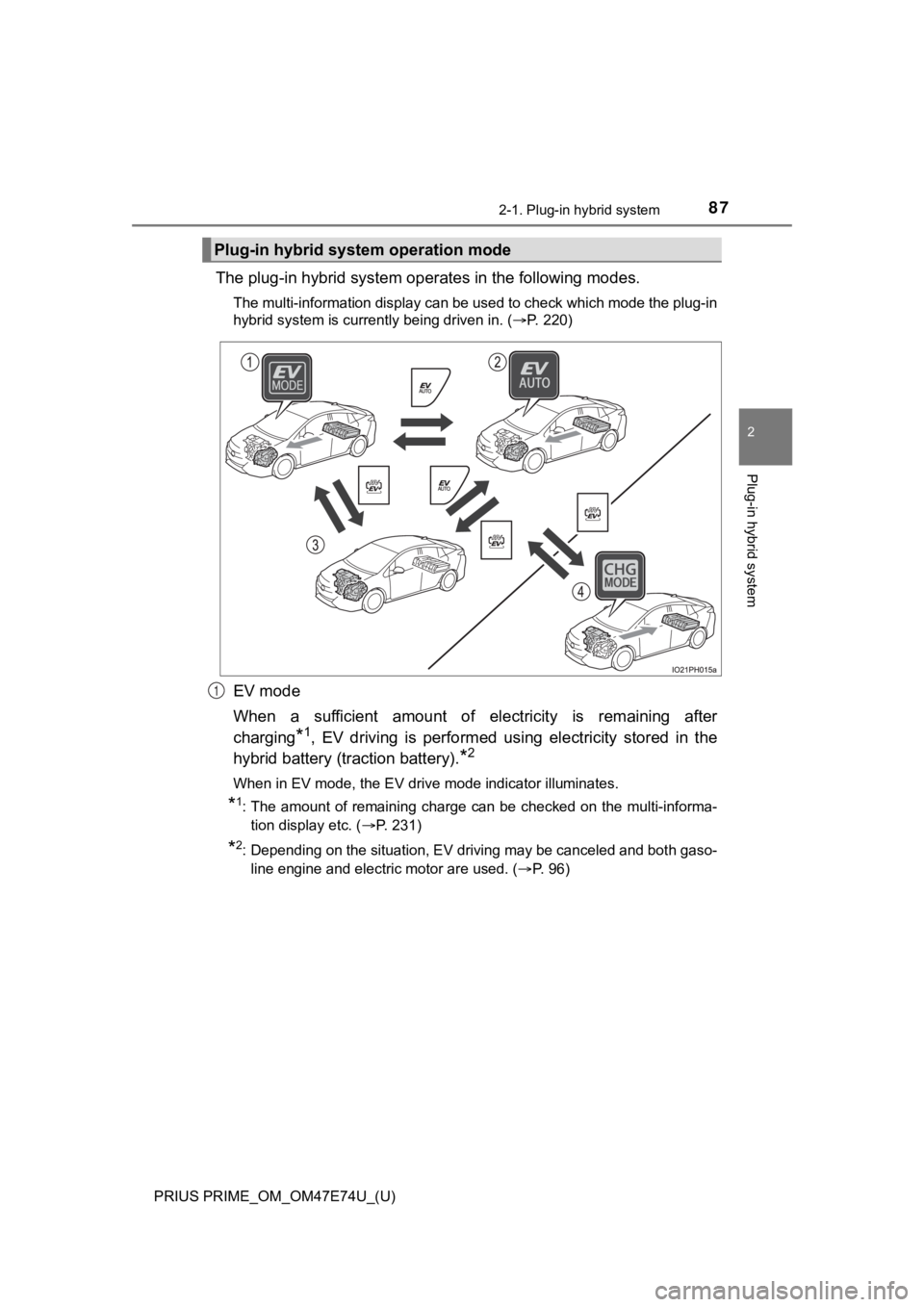

The plug-in hybrid system operates in the following modes.
The multi-information display can be used to check which mode t he plug-in
hybrid system is currently being driven in. ( P. 220)
EV mode
When a sufficient amount of electricity is remaining after
charging
*1, EV driving is performed using electricity stored in the
hybrid battery (traction battery).
*2
When in EV mode, the EV drive mode indicator illuminates.
*1: The amount of remaining charge can be checked on the multi-informa- tion display etc. ( P. 231)
*2: Depending on the situation, EV driving may be canceled and bot h gaso-
line engine and electric motor are used. ( P. 96)
Plug-in hybrid syst em operation mode
1

88
PRIUS PRIME_OM_OM47E74U_(U)
2-1. Plug-in hybrid system
EV auto mode (P. 9 0 )
When a sufficient amount of elect ricity for EV driving is remaining in
the hybrid battery (traction battery) after charging
*, the operation
mode can be switched to EV auto mode.
Switching to EV auto mode make powerful driving possible by usi ng
both the gasoline engine and elec tric motor in a driving condition
that requires large driving force, such as when passing a vehicle on
a highway or driving on a steep slope.
When in EV auto mode, the EV auto mode indicator illuminates.
*: The amount of remaining charge can be checked on the multi-informa- tion display etc. ( P. 231)
HV mode
When in HV mode, the vehicle is driven using both the gasoline
engine and electric mot or (traction motor). (P. 9 2 )
● If electricity needed for EV driving in EV mode or EV auto mode
is not remaining, the operation mode will be automatically
switched to HV mode.
● The operation mode can be switched to HV mode at any timing
by operating the switch to keep electricity for EV driving etc.
*
( P. 90). Switching to HV mode when driving on a highway or
when driving uphill is recommended in order to conserve battery
power.
When in HV mode, the EV drive mode indicator and EV auto mode i ndi-
cator turn off.
*: The EV driving range may reduce even after switching to HV mode.
2
3

PRIUS PRIME_OM_OM47E74U_(U)
892-1. Plug-in hybrid system
2
Plug-in hybrid system
Hybrid battery (traction battery) charge mode ( P. 91)
Electricity generated in the gas oline engine can be charged in the
hybrid battery (traction battery) by switching to the hybrid battery
(traction battery) charge mode wh en electricity needed for EV driv-
ing is not remaining.
*
● The system may not be able to switch to the hybrid battery (tra c-
tion battery) charge mode due to the state of the plug-in hybri d
system. ( P. 9 1 )
● Charging time differs depending on the driving state of the vehi-
cle when driving in hybrid batte ry (traction battery) charge mode.
When in the hybrid battery (traction battery) charge mode, the hybrid
battery charge mode indicator illuminates.
*: When in the hybrid battery (traction battery) charge mode, the hybrid
battery can be charged while driving. However, the gasoline eng ine runs
to charge the battery and fuel consumption becomes higher compa red
with driving in HV mode.
4

90
PRIUS PRIME_OM_OM47E74U_(U)
2-1. Plug-in hybrid system
The plug-in hybrid system operation modes can be switched using the
switches.
If there is not enough charge remaining in the hybrid battery ( traction bat-
tery) to allow EV driving, EV/EV auto mode will not be selectab le.
The hybrid battery (traction battery) charge mode cannot be sel ected if the
hybrid battery (traction battery) is almost completely charged.
■
Switching the plug-in hybrid system operation modes
Press the EV/HV mode selection switch or EV auto mode switch to
change modes as the fo llowing table shows.
When in EV mode, the EV drive mode indicator illuminates.
When in EV auto mode, the EV auto mode indicator illuminates.
When in HV mode, the EV drive mode indicator and EV auto mode i ndi-
cator turn off.
*: If there is not enough charge remaining in the hybrid battery (traction bat-
tery) to allow EV driving, EV/EV auto mode will not be selectab le.
Plug-in hybrid system operation mode selection switches
EV/HV mode selection switchEV auto mode switch
Current mode
Switch operated
EV modeHV modeEV auto mode
EV auto modeHV modeEV mode
HV modeEV mode*EV auto mode*
