TOYOTA PRIUS V 2013 Accessories, Audio & Navigation (in English)

41
2. DESTINATION SEARCH
2
APPLICATION-“Map”
■ENTER GEO-COORDINATES
1Touch “Enter Geo-coordinates” on
the “Advanced” screen.
2Touch “N” or “S” .
3Input the latitude (Degrees°, Minutes’,
Seconds”).
4Touch “W” or “E”.
5Input the longitude (Degrees°, Min-
utes’, Seconds”).
6Touch “OK”.
7Touch “Calculate” .
8The starting route guidance screen will
be displayed. (See page 42.)
■ENTER INTERSECTION
1Touch “Enter Intersection” on the
“Advanced” screen.
2Touch “Country” to select a country.
3Touch “State” and enter the desired
state (USA and Mexico) or province
(Canada).
4Touch “City” or “Zip” to enter the city
name or zip code.
5Touch “Street” to input the name of
the first intersecting street and then
touch “OK”.
6Touch “Street” to input the name of
the second intersecting street and then
touch “OK”.
7Touch “Start Calculation” .
8The starting route guidance screen will
be displayed. (See page 42.)
Geo coordinates can be entered in
DMS format (Degrees
°, Minutes’, Sec-
onds”). Only coordinate values that
can potentially exist are able to be en-
tered. Impossible coordinate values
and their relevant screen buttons will
be dimmed.
 When “Save” is touched, the point is
registered in the “Stored” list on the “My
Destinations” screen. (See page 55.)
INFORMATION
● If a destination that is not located on a
road is set, the vehicle will be guided to
the point on a road nearest to the desti-
nation.
● This function cannot be operated while
driving.

42
3. ROUTE GUIDANCE
1. STARTING ROUTE GUIDANCE
1Touch “Start” .
2Starts route guidan ce. (See page 44.)
1Touch one of the three recommended
routes to select it.
2Start route guidance. (See page 44.)
STARTING ROUTE
GUIDANCE SCREEN
After searching the destination, the
starting route guidance screen will be
displayed.
According to the setting, either the nor-
mal screen or route alternatives screen
will be displayed. (See page 64.)
CAUTION
●Be sure to obey traffic regulations and
keep road conditions in mind while driv-
ing. If a traffic sign on the road has been
changed, the route guidance may not
indicate such changed information.
NORMAL SCREEN
The recommended route will be dis-
played on the map.
 “Preferences” : Touch to adjust the
route preferences before starting the
route guidance. (See page 43.)
 “Avoid”: Touch to adjust the avoidance
criteria before starting the route guid-
ance. (See page 43.)
INFORMATION
●The default recommended route can be
changed. (See pages 43 and 64.)
● The arrival time or the remaining time
will be displayed in the upper right area
of the map. Each time the area is
touched, the display switches between
displaying the arrival time and remaining
time.
● Distance of the entire route is displayed
on the map.
● The starting route guidance screen will
always be displayed in 2D North.
ROUTE ALTERNATIVES
SCREEN
Three recommended routes are dis-
played on the map.
 “Avoid”: Touch to adjust the avoidance
criteria before starting the route guid-
ance. (See page 43.)
INFORMATION
●The arrival time and distance of the
entire route will be displayed in the list.
● The starting route guidance screen will
always be displayed in 2D North.

43
3. ROUTE GUIDANCE
2
APPLICATION-“Map”
1Touch “Preferences” on the starting
route guidance screen.
2Touch the desired item.
“Fast Route” : Touch to calculate the fast-
est route.
“Short Route” : Touch to calculate the
shortest route.
“Ecological Route” : Touch to calculate
an ecological route.
3The route will be recalculated.
1Touch “Avoid” on the starting route
guidance screen.
2Touch the desired item.
“Avoid Freeways” : Touch to avoid
freeways.
“Avoid Toll Roads” : Touch to avoid toll
roads.
“Avoid Tunnels” : Touch to avoid tun-
nels.
“Avoid Ferries” : Touch to avoid ferries.
“Avoid Border Crossings”: Touch to
avoid border crossings.
3Touch .
4The route will be recalculated.
SETTING THE ROUTE
SETTING THE ROUTE
PREFERENCES
SETTING THE AVOIDANCE
CRITERIA
INFORMATION
● Setting the route preference and avoid-
ance can be also changed from the
“Route Options” screen. (See page 64.)

44
3. ROUTE GUIDANCE
2. ROUTE GUIDANCE
On this screen, the following information is
displayed.
■SIGNPOSTS
■LANE RECOMMENDATION
ROUTE GUIDANCE SCREEN
While guiding the route, the following
screen will be displayed.
No.Information
Distance and travel/arrival time to
the destination
Traffic message on the route (See
page 86.)
The colored section of the bar re-
duces as the vehicle approaches
the next turn
Distance to the next turn with the ar-
row indicating the turn direction
The name of the road currently be-
ing travelled on
Guidance route
Current position
When approaching the turn, a signpost
will automatically be displayed.
When approaching a maneuver, the
lane recommendation will automatical-
ly be displayed.
INFORMATION
●If the vehicle goes off the guided route,
the route will be recalculated.
● For some areas, the roads have not
been completely digitized in our data-
base. For this reason, the route guid-
ance may select a road that should not
be traveled on.
● The above items will be displayed
depending on the map scale.
● The displaying of the above items can
be switched off. (See page 61.)

45
3. ROUTE GUIDANCE
2
APPLICATION-“Map”
When is touched while route guid-
ance is active, the last navigation
announcement will be repeated.
 After touching , touch “+” or “-” to
adjust the volume level of the navigation
announcements.
 After touching “+” or “-” , short audible
information will be given to control the cur-
rent volume level (e.g. turn up/turn down).
VOICE GUIDANCE
The voice guidance provides various
messages as you approach an inter-
section, or other points where maneu-
vering the vehicle is necessary.
INFORMATION
● The street names may not be pro-
nounced correctly or clearly due to the
text to-speech function.
● On freeways, interstates or other high-
ways with higher speed limits, the voice
guidance will be made at earlier points
than on city streets in order to allow time
to maneuver the vehicle.
● If the system cannot determine the cur-
rent vehicle position correctly (in cases
of poor GPS signal reception), the voice
guidance may be early or delayed.
CAUTION
● Be sure to obey the traffic regulations
and keep the road condition in mind
especially when you are driving on IPD
roads. The route guidance may not have
the updated information such as the
direction of a one way street.

46

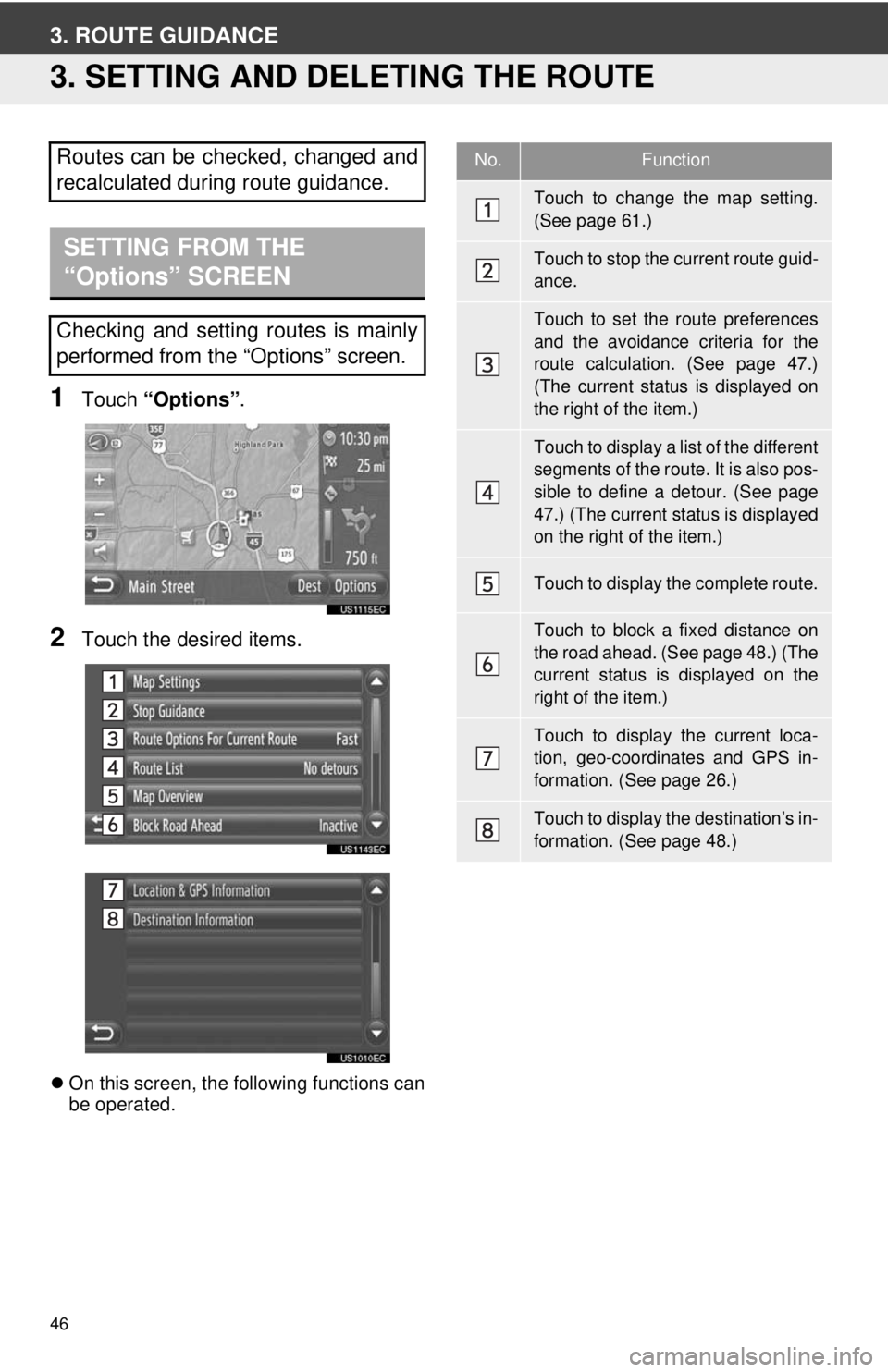

3. ROUTE GUIDANCE
3. SETTING AND DELETING THE ROUTE
1Touch “Options”.
2Touch the desired items.
On this screen, the following functions can
be operated.
Routes can be checked, changed and
recalculated during route guidance.
SETTING FROM THE
“Options” SCREEN
Checking and setting routes is mainly
performed from the “Options” screen.
No.Function
Touch to change the map setting.
(See page 61.)
Touch to stop the current route guid-
ance.
Touch to set the route preferences
and the avoidance criteria for the
route calculation. (See page 47.)
(The current status is displayed on
the right of the item.)
Touch to display a list of the different
segments of the route. It is also pos-
sible to define a detour. (See page
47.) (The current status is displayed
on the right of the item.)
Touch to display the complete route.
Touch to block a fixed distance on
the road ahead. (See page 48.) (The
current status is displayed on the
right of the item.)
Touch to display the current loca-
tion, geo-coordinates and GPS in-
formation. (See page 26.)
Touch to display the destination’s in-
formation. (See page 48.)

47
3. ROUTE GUIDANCE
2
APPLICATION-“Map”
1Touch “Route Options For Current
Route” on the “Options” screen.
2Touch the desired item to change the
route setting.
“Preferences” : Touch to adjust the route
preferences. (See page 43.)
“Avoid”: Touch to adjust the avoidance
criteria. (See page 43.)
3The route will be recalculated.
1Touch “Route List” on the “Options”
screen.
2Touch the desired item to display the
segment.
 Guidance arrow, street name, distance to
the point are displayed.
3The detail of the segment is displayed.
or : Touch to display the next or pre-
vious segment.
SETTING THE ROUTE
PREFERENCE OR AVOIDANCE
CRITERIADISPLAYING THE ROUTE LIST
A list of the different segments of the
route can be displayed.
 To u c h “Detour” to detour the desired
segment. (See page 51.)

48
3. ROUTE GUIDANCE
1Touch “Block Road Ahead” on the
“Options” screen.
2Touch the desired item to select the
desired detour distance.
“Deactivate Block Road Ahead” : Touch
to deactivate the function.
“Block Next 1 mi” ~ “Block Next 12mi”:
Touch to detour the next 1 mile ~ 12 miles
of the current route (road).
 “Deactivate Block Road Ahead” can be
selected when the block road ahead func-
tion has been activated.
3The route will be recalculated.
 A blocked route will be marked in the map.
 After the blocked route has been
detoured, the block road ahead function
will automatically be deactivated.
1Touch “Destination Information” on
the “Options” screen.
2The destination information screen will
be displayed.
 On this screen, the following information is
displayed.
BLOCK ROAD AHEAD
A fixed distance on the road ahead can
be blocked.DISPLAYING THE
DESTINATION INFORMATION
The destination information is dis-
played.
No.Information
Address of destination
Selected route preference
Selected avoidance criteria
Arrival time, remaining time and
distance to destination
Address of each waypoint (if en-
tered)

49
3. ROUTE GUIDANCE
2
APPLICATION-“Map”
1Touch “Dest” on the map.
2Touch “Enter Destination” .
The “Enter Destination” screen can be dis-
played by touching on any of the
“Navigation” screens.
3Touch “Waypoint” on the “Enter Des-
tination” screen.
4Touch the desired method to search
the destination.
 For detailed information about searching
the destination on the map, see page 33.
If you search the destination by “Enter
Address”
5Touch “Add as Waypoint” .
 If you search the destination by “Select
Point on Map” or “Enter Geo-coordi-
nates”
5Touch “Add”.
 If you search the destination by the other
methods
5Touch the desired entry.
6Touch “Insert Waypoint” to select the
position of the waypoint.
7The route will be recalculated.
ADDING DESTINATIONS
Destinations can be added and the
route changed accordingly.
INFORMATION
● In addition to the main destination, a
maximum of 4 waypoints can be set.
● The main destination is marked by ,
t

he waypoints are marked by .

50
3. ROUTE GUIDANCE
1Touch “Show Destination List” on
the “Waypoint” screen.
2Touch the desired destination to be ed-
ited.
3Touch desired item.
 On this screen, the following functions can
be operated.EDITING DESTINATIONS
No.Function
Touch to register the point in the
“Stored” list on the “My Destina-
tions” screen. (See page 55.)
Touch to change the order of the
destinations. Touch or to
move the destination up or down the
order displayed on the next screen.
Touch to delete the destination.
Touch to delete all waypoints.
INFORMATION
●If the main destination is deleted, the
last waypoint before the deleted destina-
tion will become the new main destina-
tion.
