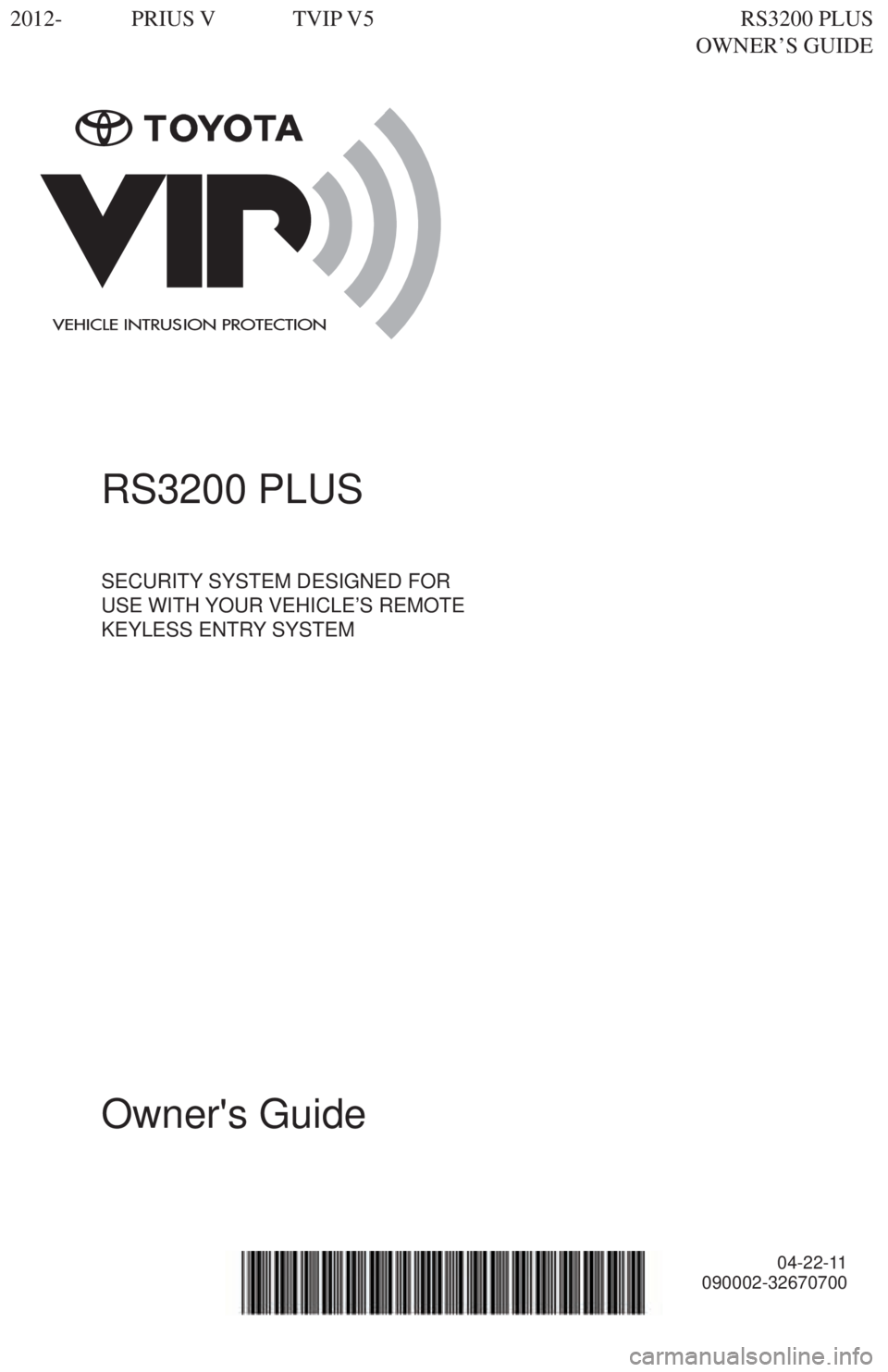

TOYOTA PRIUS V 2013 Accessories, Audio & Navigation (in English)

RS3200 PLUS
SECURITY SYSTEM DESIGNED FOR
USE WITH YOUR VEHICLE’S REMOTE
KEYLESS ENTRY SYSTEM
Owner's Guide
04-22-11
090002-32670700
2012- PRIUS V TVIP V5 RS3200 PLUS
OWNER’S GUIDE

Page 1 T OYOTA — RS3200 PLUS Security System

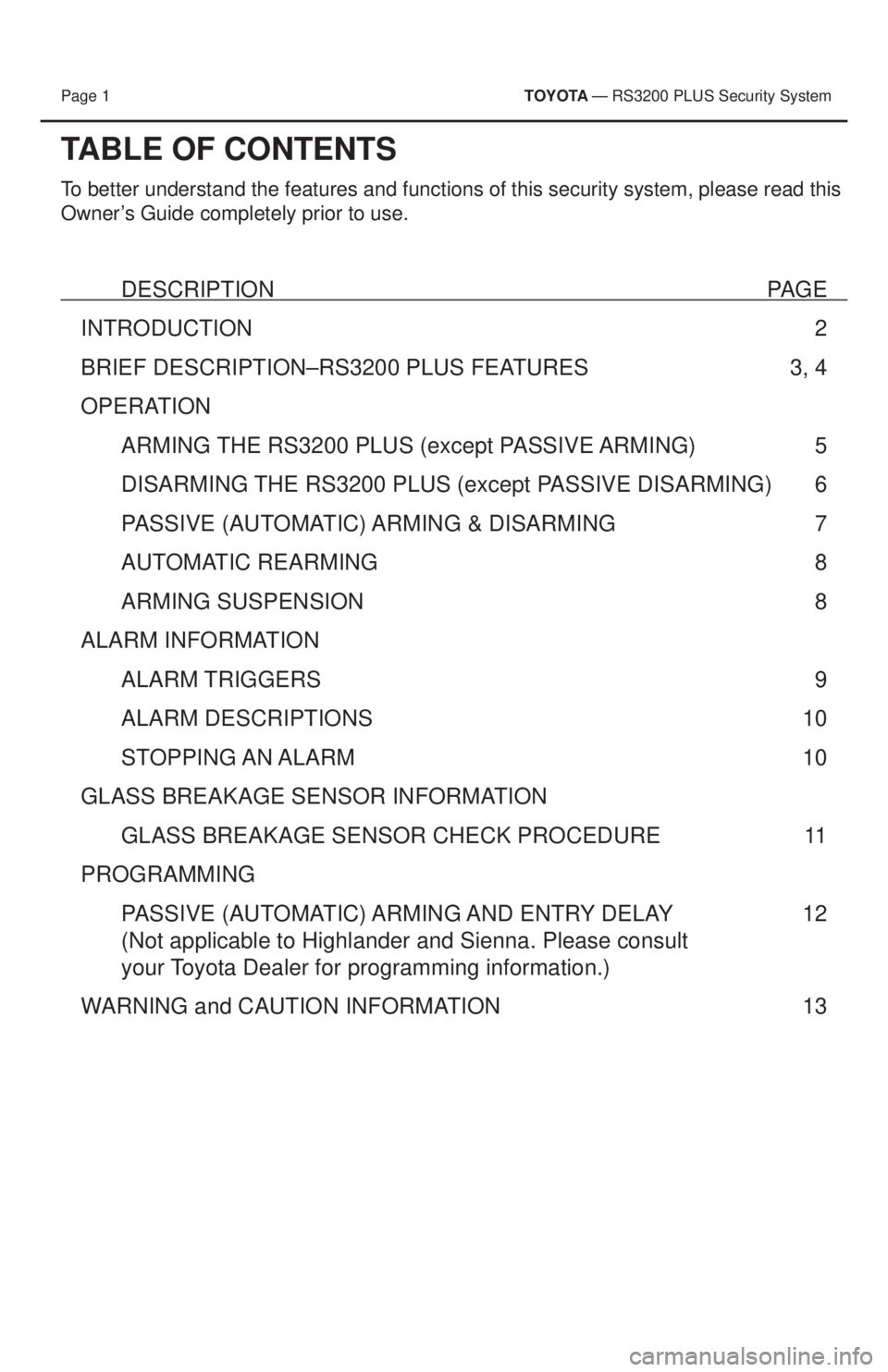

TABLE OF CONTENTS
To better understand the features and functions of this security system, \
please read this
Owner’s Guide completely prior to use.
DESCRIPTION P AGE
INTRODUCTION
2
BRIEF DESCRIPTION–RS3200 PLUS FEA

TURES
3, 4
OPERA

TION
ARMING

THE RS3200 PLUS (except PASSIVE ARMING)
5
DISARMING

THE RS3200 PLUS (except PASSIVE DISARMING)
6
P

ASSIVE (AUTOMATIC) ARMING & DISARMING
7
AUT

OMATIC REARMING
8
ARMING SUSPENSION


8
ALARM INFORMA

TION
ALARM TRIGGERS 9
ALARM DESCRIPTIONS


10
ST

OPPING AN ALARM
10
GLASS BREAKAGE SENSOR INFORMA

TION
GLASS BREAKAGE SENSOR CHECK PROCEDURE


1
1
PROGRAMMING
P

ASSIVE (AUTOMATIC) ARMING AND ENTRY DELAY
12
(Not applicable to Highlander and Sienna. Please consult
your

Toyota Dealer for programming information.)
WARNING and CAUTION INFORMATION

13

TOYOTA — RS3200 PLUS Security System Page 2

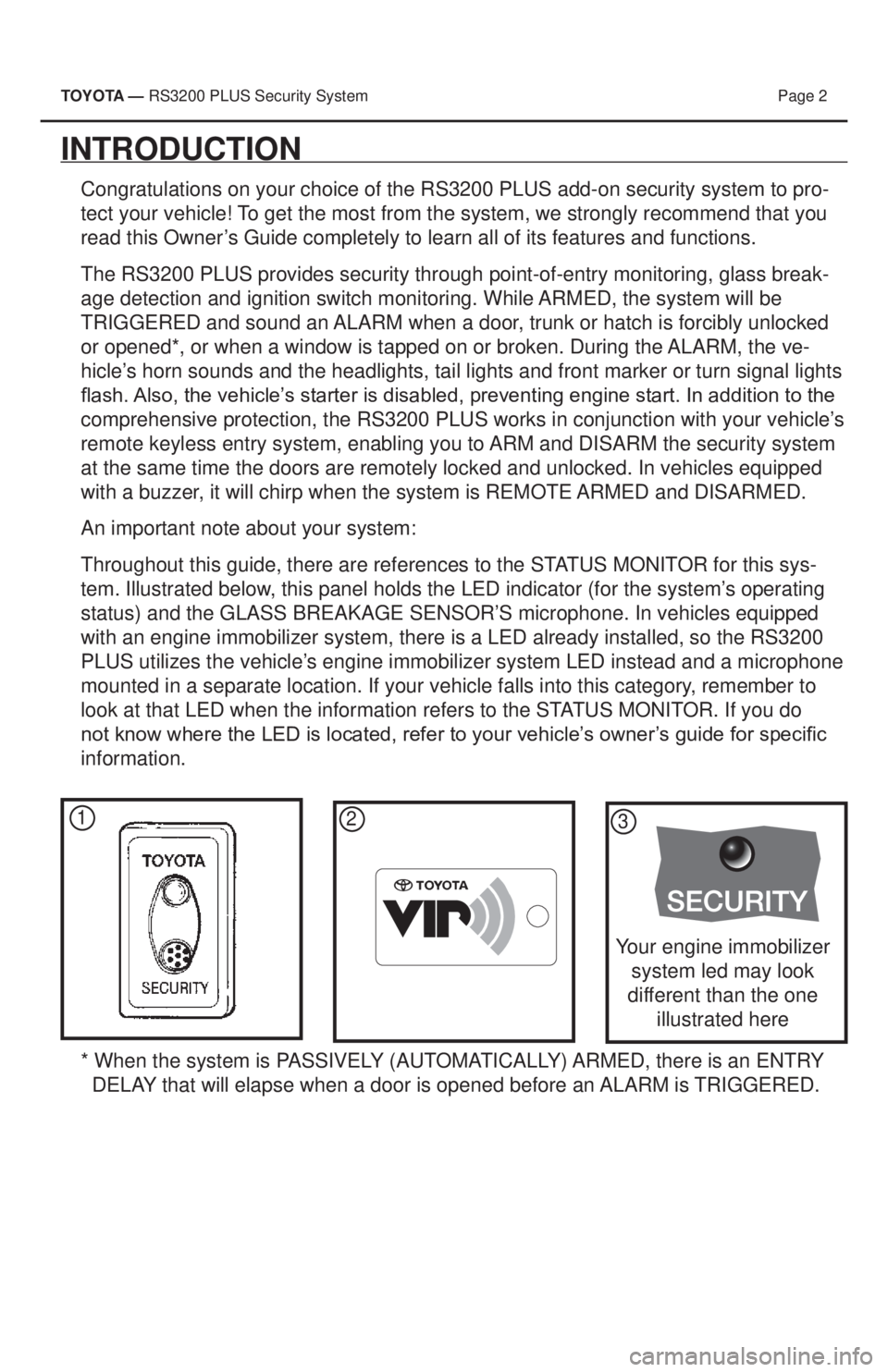

INTRODUCTION
Congratulations on your choice of the RS3200 PLUS add-on security system\
to pro-
tect your vehicle! To get the most from the system, we strongly recommend that you
read this Owner’s Guide completely to learn all of its features and functions.
The RS3200 PLUS provides security through point-of-entry monitoring, gla\
ss break-
age detection and ignition switch monitoring. While ARMED, the system will be
TRIGGERED and sound an ALARM when a door, trunk or hatch is forcibly unlocked
or opened*, or when a window is tapped on or broken. During the ALARM, the ve-
hicle’s horn sounds and the headlights, tail lights and front marker or turn s\
ignal lights
flash. Also, the vehicle’s starter is disabled, preventing engine start. In addition to the
comprehensive protection, the RS3200 PLUS works in conjunction with your\
vehicle’s
remote keyless entry system, enabling you to ARM and DISARM the security system
at the same time the doors are remotely locked and unlocked. In vehicles\
equipped
with a buzzer, it will chirp when the system is REMOTE ARMED and DISARMED.
An important note about your system:
Throughout this guide, there are references to the STATUS MONITOR for this sys-
tem. Illustrated below, this panel holds the LED indicator (for the system’s operating
status) and the GLASS BREAKAGE SENSOR’S microphone. In vehicles equi\
pped
with an engine immobilizer system, there is a LED already installed, so \
the RS3200
PLUS utilizes the vehicle’s engine immobilizer system LED instead and a microphone
mounted in a separate location. If your vehicle falls into this category\
, remember to
look at that LED when the information refers to the STATUS MONITOR. If you do
not know where the LED is located, refer to your vehicle’s owner’s guide for specific
information.










* When the system is PASSIVELY (AUTOMATICALLY) ARMED, there is an ENTRY
DELAY that will elapse when a door is opened before an ALARM is TRIGGERED.
123123123
Your engine immobilizer system led may look
different than the one illustrated here

Page 3 T OYOTA — RS3200 PLUS Security System

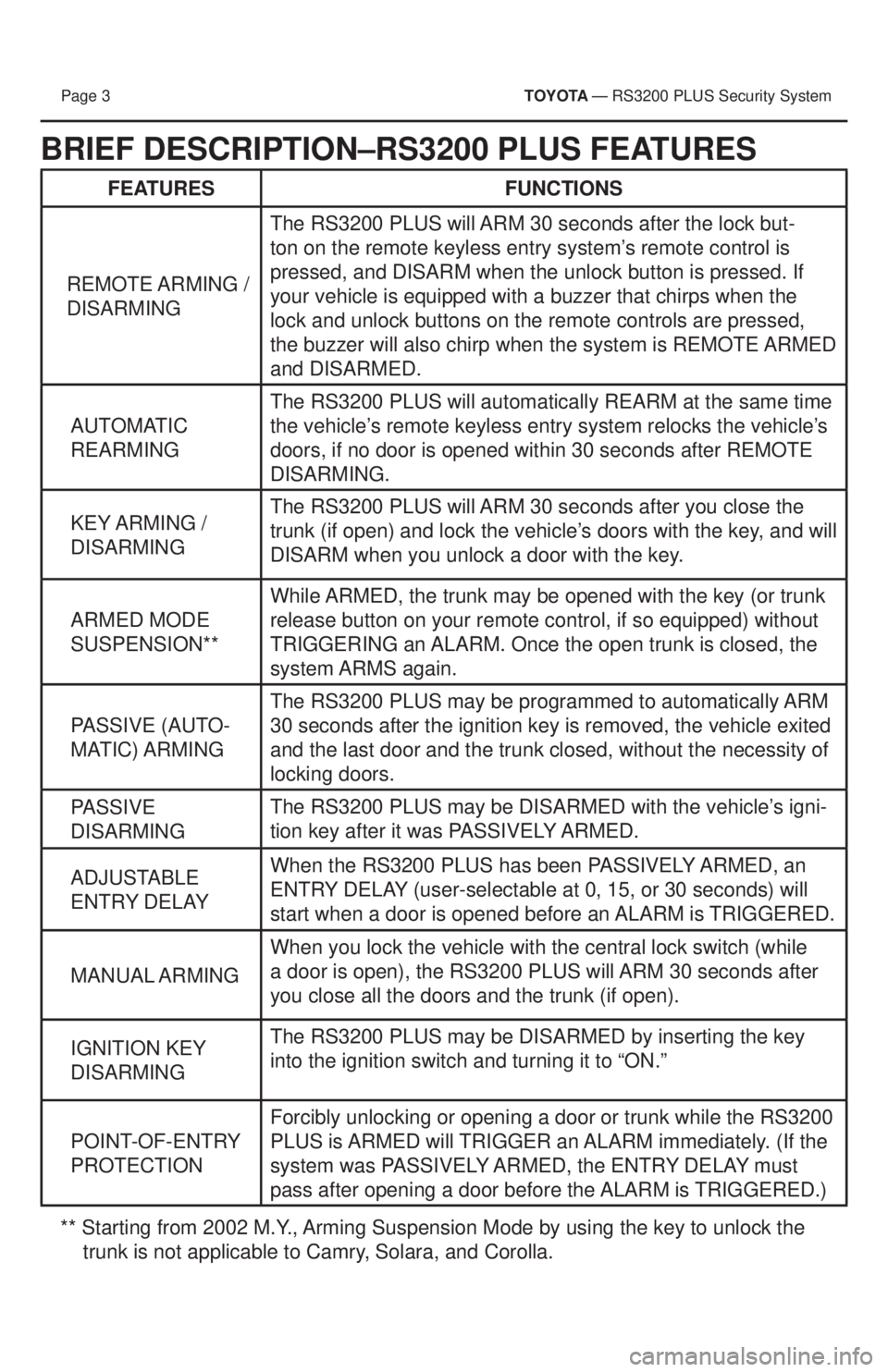

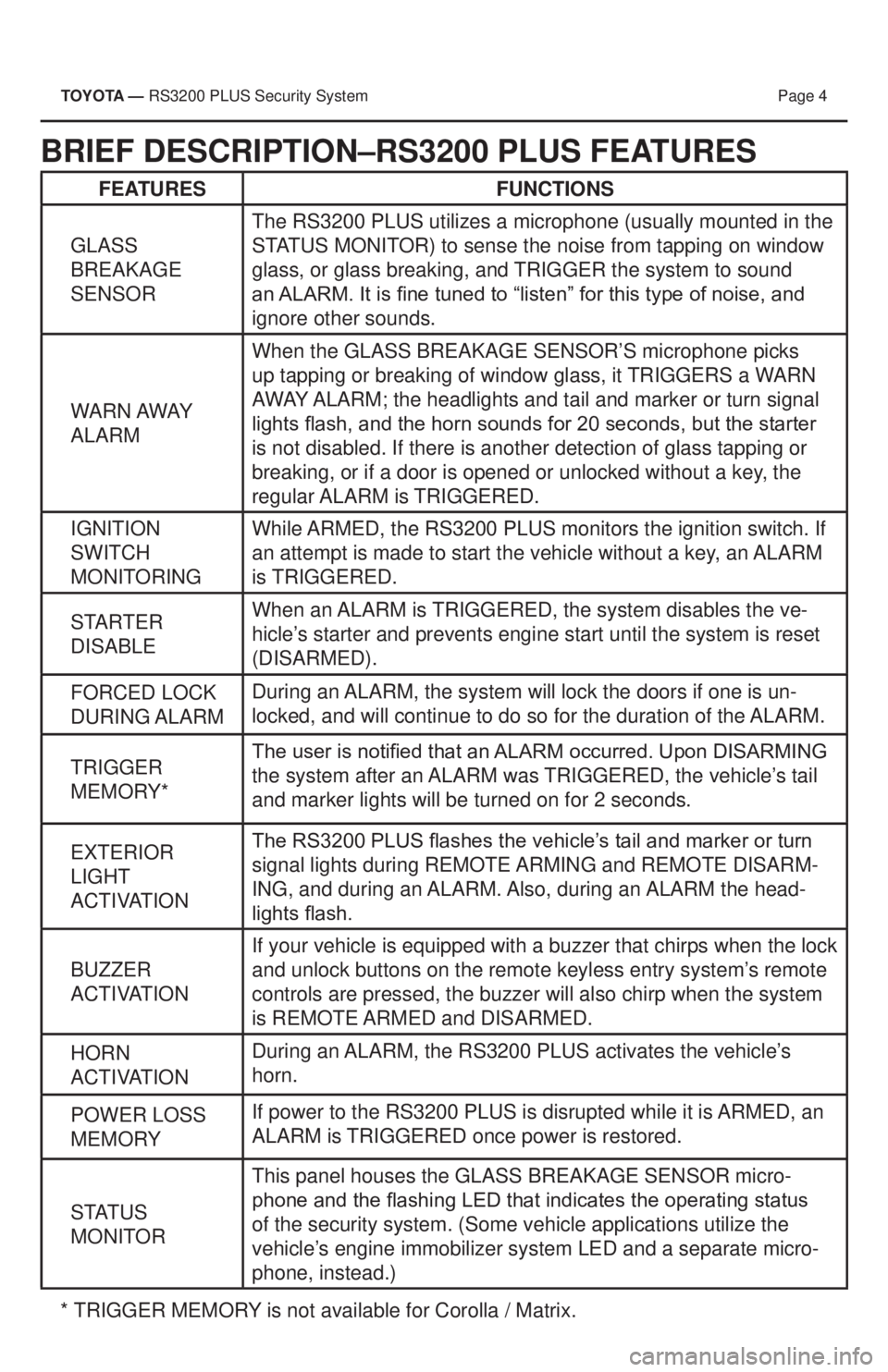

BRIEF DESCRIPTION–RS3200 PLUS FEATURES
FEATURESFUNCTIONS
REMOTE ARMING /
DISARMING The RS3200 PLUS will ARM 30 seconds after the lock but-
ton on the remote keyless entry system’s remote control is
pressed, and DISARM when the unlock button is pressed. If
your vehicle is equipped with a buzzer that chirps when the
lock and unlock buttons on the remote controls are pressed,
the buzzer will also chirp when the system is REMOTE ARMED
and DISARMED.
AUTOMATIC
REARMING The RS3200 PLUS will automatically REARM at the same time
the vehicle’s remote keyless entry system relocks the vehicle’s
doors, if no door is opened within 30 seconds after REMOTE
DISARMING.
KEY ARMING /
DISARMING The RS3200 PLUS will ARM 30 seconds after you close the
trunk (if open) and lock the vehicle’s doors with the key, and will
DISARM when you unlock a door with the key.
ARMED MODE
SUSPENSION** While ARMED, the trunk may be opened with the key (or trunk
release button on your remote control, if so equipped) without
TRIGGERING an ALARM. Once the open trunk is closed, the
system ARMS again.
PASSIVE (AUTO-
MATIC) ARMING The RS3200 PLUS may be programmed to automatically ARM
30 seconds after the ignition key is removed, the vehicle exited
and the last door and the trunk closed, without the necessity of
locking doors.
PASSIVE
DISARMING The RS3200 PLUS may be DISARMED with the vehicle’s igni-
tion key after it was PASSIVELY ARMED.
ADJUSTABLE
ENTRY DELAY When the RS3200 PLUS has been PASSIVELY ARMED, an
ENTRY DELAY (user-selectable at 0, 15, or 30 seconds) will
start when a door is opened before an ALARM is TRIGGERED.
MANUAL ARMING When you lock the vehicle with the central lock switch (while
a door is open), the RS3200 PLUS will ARM 30 seconds after
you close all the doors and the trunk (if open).
IGNITION KEY
DISARMING The RS3200 PLUS may be DISARMED by inserting the key
into the ignition switch and turning it to “ON.”
POINT-OF-ENTRY
PROTECTION Forcibly unlocking or opening a door or trunk while the RS3200
PLUS is ARMED will TRIGGER an ALARM immediately. (If the
system was PASSIVELY ARMED, the ENTRY DELAY must
pass after opening a door before the ALARM is TRIGGERED.)
** Starting from 2002 M.Y., Arming Suspension Mode by using the key to unlock the
trunk is not applicable to Camry, Solara, and Corolla.

TOYOTA — RS3200 PLUS Security System Page 4
BRIEF DESCRIPTION–RS3200 PLUS FEATURES
FEATURESFUNCTIONS
GLASS
BREAKAGE
SENSOR The RS3200 PLUS utilizes a microphone (usually mounted in the
STATUS MONITOR) to sense the noise from tapping on window
glass, or glass breaking, and TRIGGER the system to sound
an ALARM. It is fine tuned to “listen” for this type of noise, and
ignore other sounds.
WARN AWAY
ALARM When the GLASS BREAKAGE SENSOR’S microphone picks
up tapping or breaking of window glass, it TRIGGERS a WARN
AWAY ALARM; the headlights and tail and marker or turn signal
lights flash, and the horn sounds for 20 seconds, but the starter
is not disabled. If there is another detection of glass tapping or
breaking, or if a door is opened or unlocked without a key, the
regular ALARM is TRIGGERED.
IGNITION
SWITCH
MONITORING While ARMED, the RS3200 PLUS monitors the ignition switch. If
an attempt is made to start the vehicle without a key, an ALARM
is TRIGGERED.
STARTER
DISABLE When an ALARM is TRIGGERED, the system disables the ve-
hicle’s starter and prevents engine start until the system is reset
(DISARMED).
FORCED LOCK
DURING ALARM During an ALARM, the system will lock the doors if one is un-
locked, and will continue to do so for the duration of the ALARM.
TRIGGER
MEMORY* The user is notified that an ALARM occurred. Upon DISARMING
the system after an ALARM was TRIGGERED, the vehicle’s tail
and marker lights will be turned on for 2 seconds.
EXTERIOR
LIGHT
ACTIVATION The RS3200 PLUS flashes the vehicle’s tail and marker or turn
signal lights during REMOTE ARMING and REMOTE DISARM-
ING, and during an ALARM. Also, during an ALARM the head-
lights flash.
BUZZER
ACTIVATION If your vehicle is equipped with a buzzer that chirps when the lock
and unlock buttons on the remote keyless entry system’s remote
controls are pressed, the buzzer will also chirp when the system
is REMOTE ARMED and DISARMED.
HORN
ACTIVATION During an ALARM, the RS3200 PLUS activates the vehicle’s
horn.
POWER LOSS
MEMORY If power to the RS3200 PLUS is disrupted while it is ARMED, an
ALARM is TRIGGERED once power is restored.
STATUS
MONITOR This panel houses the GLASS BREAKAGE SENSOR micro-
phone and the flashing LED that indicates the operating status
of the security system. (Some vehicle applications utilize the
vehicle’s engine immobilizer system LED and a separate micro-
phone, instead.)
* TRIGGER MEMORY is not available for Corolla / Matrix.

Page 5 T OYOTA — RS3200 PLUS Security System

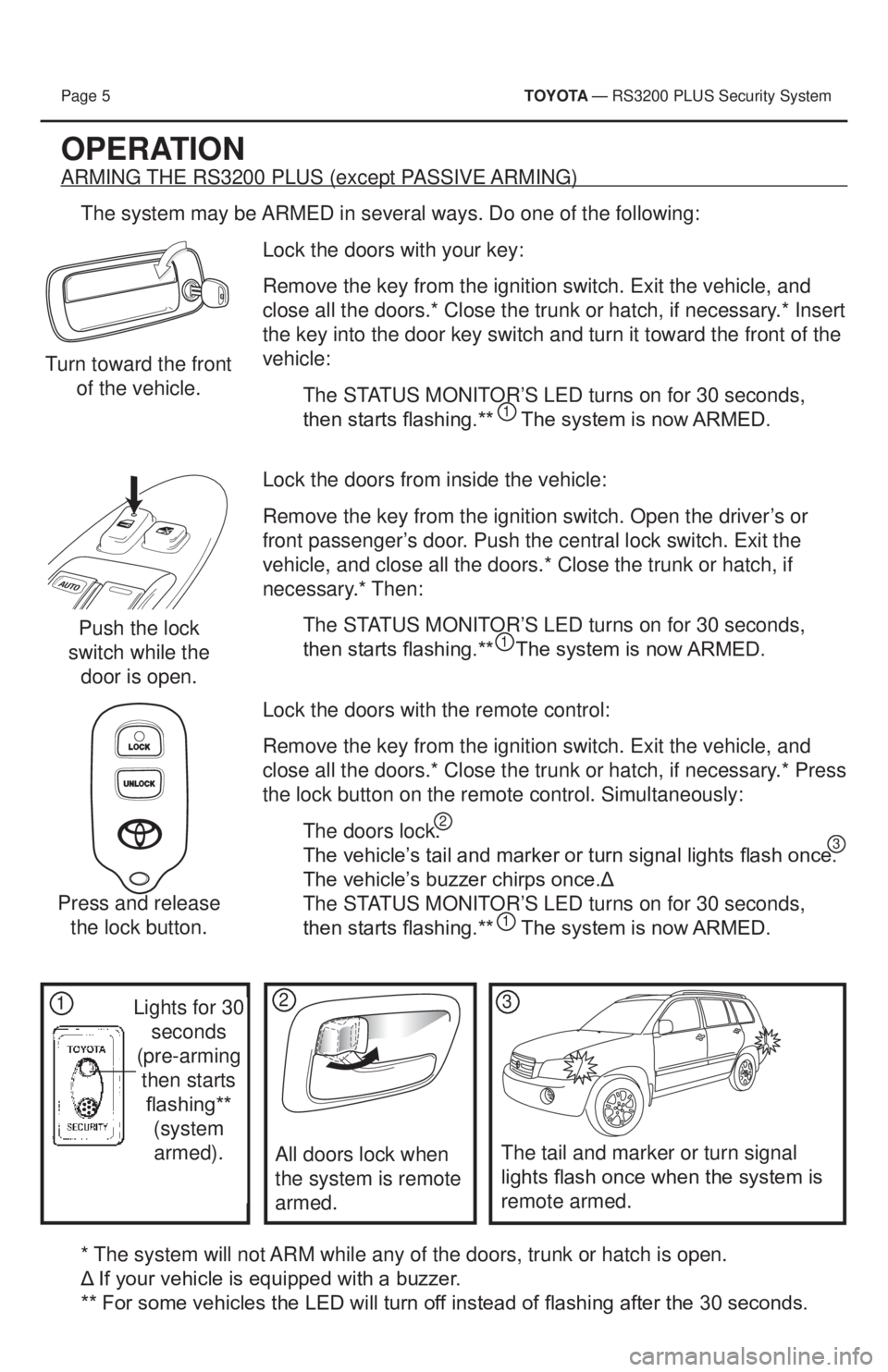

OPERATION
ARMING THE RS3200 PLUS (except PASSIVE ARMING)
The system may be ARMED in several ways. Do one of the following: Lock the doors with your key:
Remove the key from the ignition switch. Exit the vehicle, and
close all the doors.* Close the trunk or hatch, if necessary.* Insert
the key into the door key switch and turn it toward the front of the
vehicle: The STATUS MONITOR’S LED turns on for 30 seconds,
then starts flashing.** The system is now ARMED.
Lock the doors from inside the vehicle:
Remove the key from the ignition switch. Open the driver’s or
front passenger’s door. Push the central lock switch. Exit the
vehicle, and close all the doors.* Close the trunk or hatch, if
necessary.* Then: The STATUS MONITOR’S LED turns on for 30 seconds,
then starts flashing.** The system is now ARMED.
Lock the doors with the remote control:
Remove the key from the ignition switch. Exit the vehicle, and
close all the doors.* Close the trunk or hatch, if necessary.* Press
the lock button on the remote control. Simultaneously: The doors lock.
The vehicle’s tail and marker or turn signal lights flash once.
The vehicle’s buzzer chirps once.Δ
The STATUS MONITOR’S LED turns on for 30 seconds,
then starts flashing.** The system is now ARMED.

* The system will not ARM while any of the doors, trunk or hatch is open.
Δ If your vehicle is equipped with a buzzer.
** For some vehicles the LED will turn off instead of flashing after the 30 seconds.
123
123
123
123
123
Turn toward the front of the vehicle.
Press and releasethe lock button.
Push the lock
switch while the door is open.
Lights for 30 seconds
(pre-arming then startsflashing** (system armed).123
The tail and marker or turn signal
lights flash once when the system is
remote armed.
123
All doors lock when
the system is remote
armed.
123

TOYOTA — RS3200 PLUS Security System Page 6
OPERATION

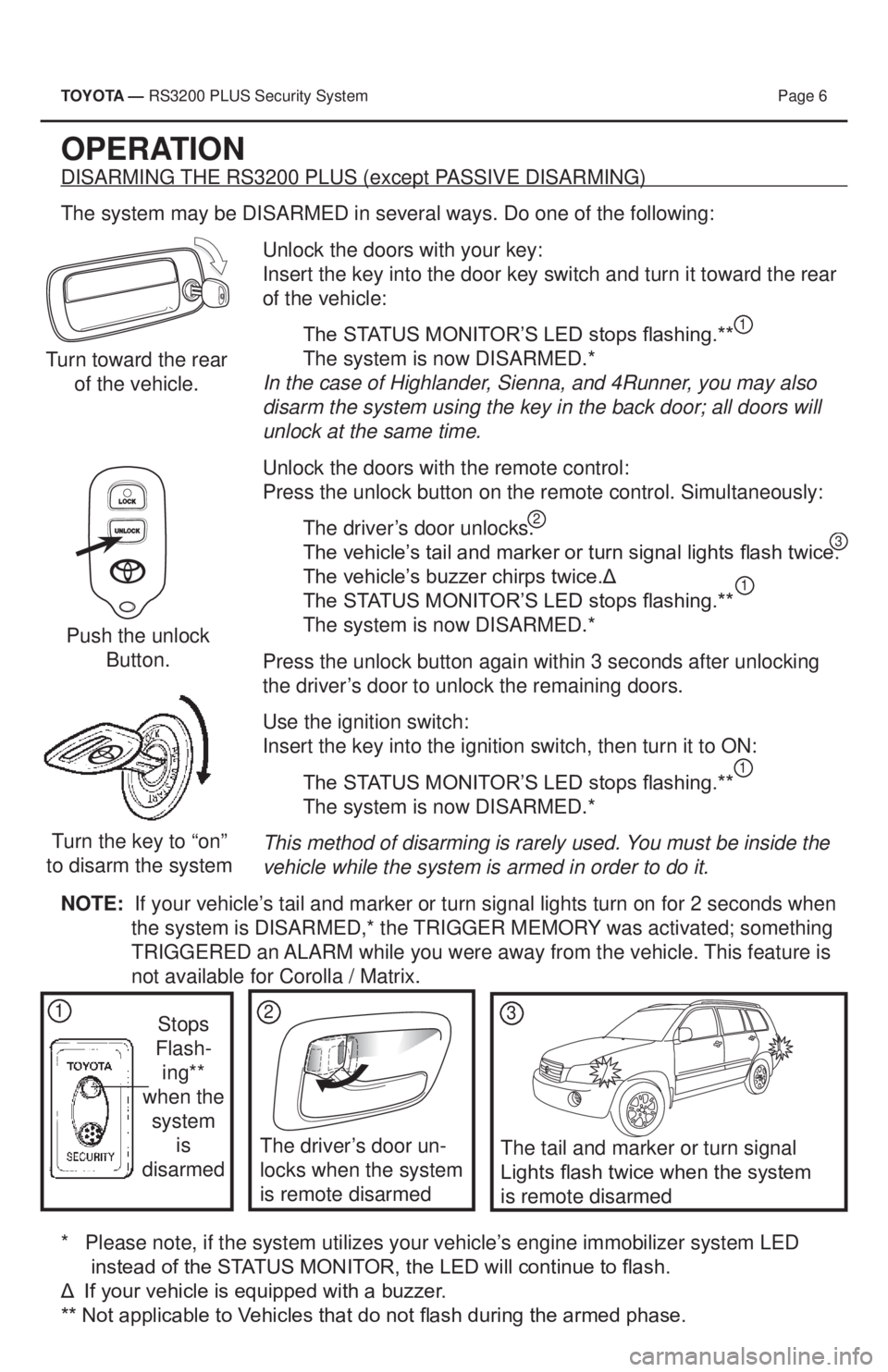

DISARMING THE RS3200 PLUS (except PASSIVE DISARMING)
The system may be DISARMED in several ways. Do one of the following:Unlock the doors with your key:
Insert the key into the door key switch and turn it toward the rear
of the vehicle: The STATUS MONITOR’S LED stops flashing.**
The system is now DISARMED.*
In the case of Highlander, Sienna, and 4Runner, you may also
disarm the system using the key in the back door; all doors will
unlock at the same time.
Unlock the doors with the remote control:
Press the unlock button on the remote control. Simultaneously:
The driver’s door unlocks.
The vehicle’s tail and marker or turn signal lights flash twice.
The vehicle’s buzzer chirps twice.Δ
The STATUS MONITOR’S LED stops flashing.**
The system is now DISARMED.*
Press the unlock button again within 3 seconds after unlocking
the driver’s door to unlock the remaining doors.
Use the ignition switch:
Insert the key into the ignition switch, then turn it to ON: The STATUS MONITOR’S LED stops flashing.**
The system is now DISARMED.*
This method of disarming is rarely used. You must be inside the
vehicle while the system is armed in order to do it.
NOTE: If your vehicle’s tail and marker or turn signal lights turn on for 2 seconds when the system is DISARMED,* the TRIGGER MEMORY was activated; something
TRIGGERED an ALARM while you were away from the vehicle. This feature is
not available for Corolla / Matrix.
* Please note, if the system utilizes your vehicle’s engine immobilizer system LED instead of the STATUS MONITOR, the LED will continue to flash.
Δ If your vehicle is equipped with a buzzer.
** Not applicable to Vehicles that do not flash during the armed phase.
123
123
123
123
123
Turn toward the rear of the vehicle.
Turn the key to “on”
to disarm the system
Push the unlock Button.
The driver’s door un-
locks when the system
is remote disarmed The tail and marker or turn signal
Lights flash twice when the system
is remote disarmed
Stops
Flash- ing**
when the system is
disarmed123123123

Page 7 T OYOTA — RS3200 PLUS Security System
OPERATION

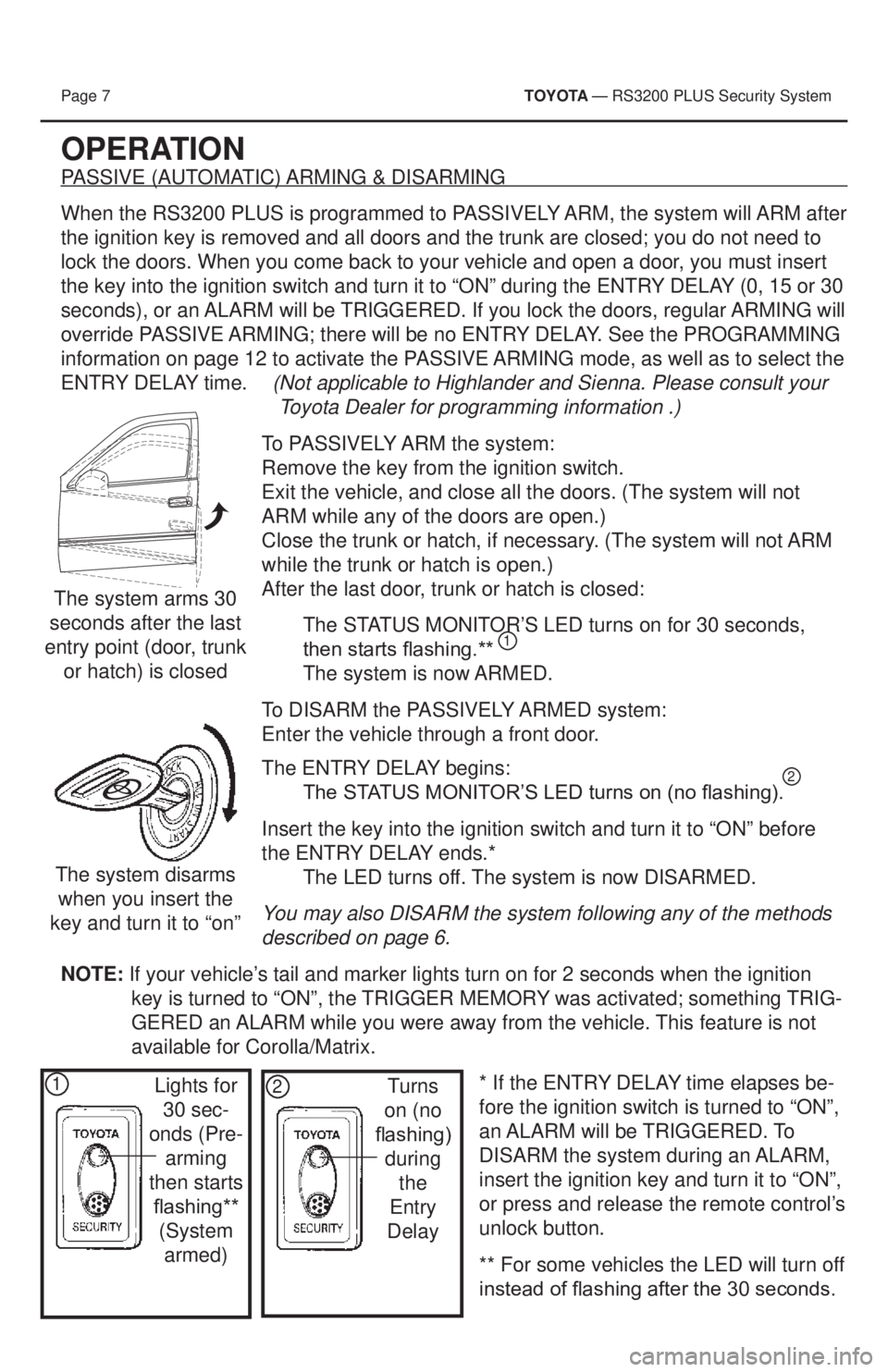

PASSIVE (AUTOMATIC) ARMING & DISARMING
When the RS3200 PLUS is programmed to PASSIVELY ARM, the system will ARM after
the ignition key is removed and all doors and the trunk are closed; you \
do not need to
lock the doors. When you come back to your vehicle and open a door, you must insert
the key into the ignition switch and turn it to “ON” during the EN\
TRY DELAY (0, 15 or 30
seconds), or an ALARM will be TRIGGERED. If you lock the doors, regular ARMING will
override PASSIVE ARMING; there will be no ENTRY DELAY. See the PROGRAMMING
information on page 12 to activate the PASSIVE ARMING mode, as well as to select the
ENTRY DELAY time.

(Not applicable to Highlander and Sienna. Please consult your

Toyota Dealer for programming information .)
To PASSIVELY ARM the system:
Remove the key from the ignition switch.
Exit the vehicle, and close all the doors. (The system will not
ARM while any of the doors are open.)
Close the trunk or hatch, if necessary. (The system will not ARM
while the trunk or hatch is open.)
After the last door, trunk or hatch is closed:
The STATUS MONITOR’S LED turns on for 30 seconds,
then starts flashing.**
The system is now ARMED.
To DISARM the PASSIVELY ARMED system:
Enter the vehicle through a front door.
The ENTRY DELAY begins: The STATUS MONITOR’S LED turns on (no flashing).
Insert the key into the ignition switch and turn it to “ON” before\

the ENTRY DELAY ends.* The LED turns off. The system is now DISARMED.
You may also DISARM the system following any of the methods
described on page 6.
NOTE: If your vehicle’s tail and marker lights turn on for 2 seconds when the ignition key is turned to “ON”, the TRIGGER MEMORY was activated; something TRIG-
GERED an ALARM while you were away from the vehicle. This feature is not
available for Corolla/Matrix.
* If the ENTRY DELAY time elapses be-
fore the ignition switch is turned to “ON”,
an ALARM will be TRIGGERED. To
DISARM the system during an ALARM,
insert the ignition key and turn it to “ON”,
or press and release the remote control’s
unlock button.
** For some vehicles the LED will turn off
instead of flashing after the 30 seconds.
123
The system arms 30
seconds after the last
entry point (door, trunk or hatch) is closed
The system disarms when you insert the
key and turn it to “on”
Turns
on (no
flashing) during the
Entry
Delay123Lights for 30 sec-
onds (Pre- arming
then starts flashing** (System armed)123
123

TOYOTA — RS3200 PLUS Security System Page 8
OPERATION

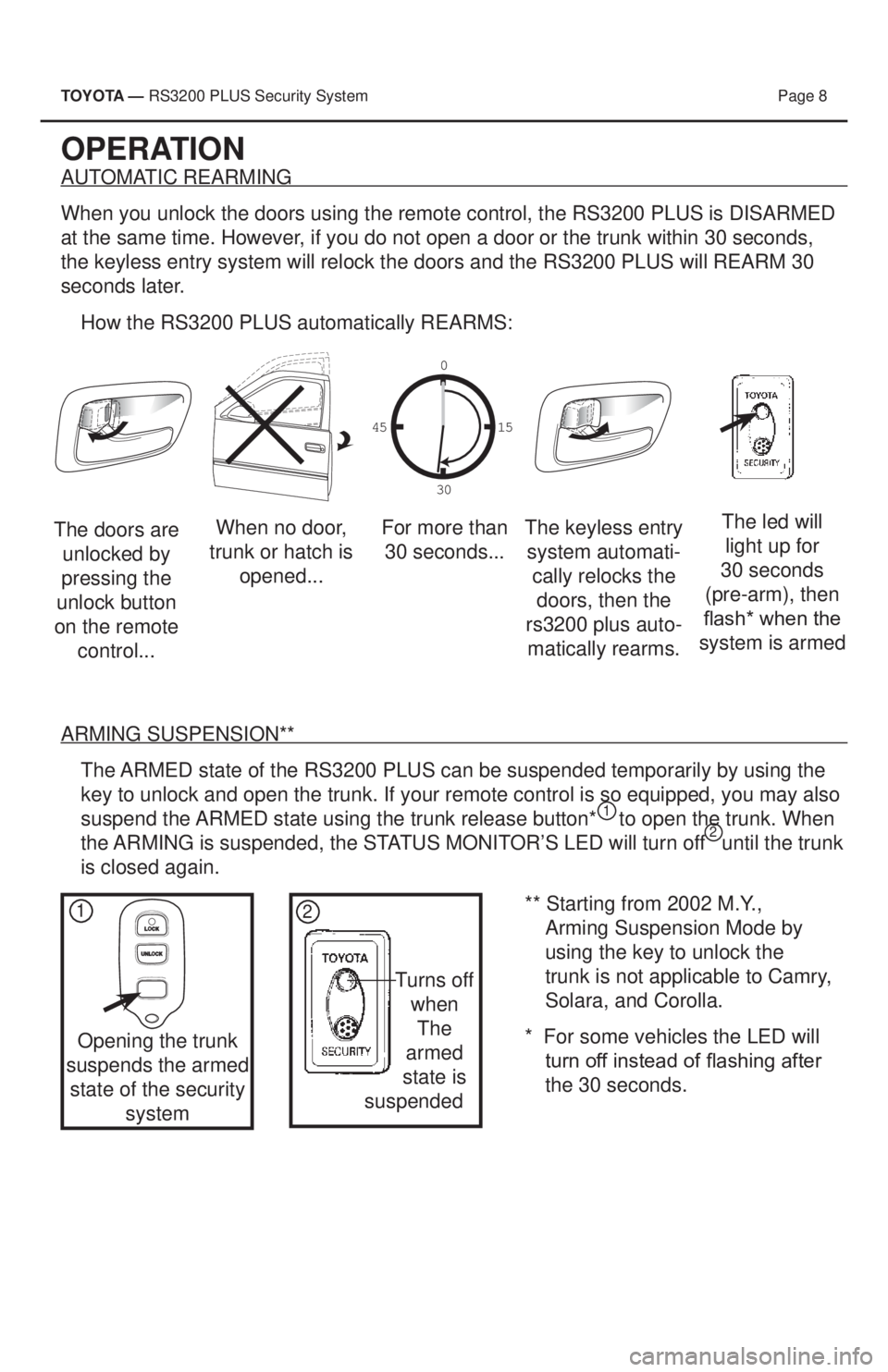

AUTOMATIC REARMING
When you unlock the doors using the remote control, the RS3200 PLUS is D\
ISARMED
at the same time. However, if you do not open a door or the trunk within 30 seconds,
the keyless entry system will relock the doors and the RS3200 PLUS will \
REARM 30
seconds later.How the RS3200 PLUS automatically REARMS:


ARMING SUSPENSION** The ARMED state of the RS3200 PLUS can be suspended temporarily by using the\

key to unlock and open the trunk. If your remote control is so equipped,\
you may also
suspend the ARMED state using the trunk release button* to open the trunk. When
the ARMING is suspended, the STATUS MONITOR’S LED will turn off until the trunk
is closed again. ** Starting from 2002 M.Y., Arming Suspension Mode by
using the key to unlock the
trunk is not applicable to Camry,
Solara, and Corolla.
* For some vehicles the LED will turn off instead of flashing after
the 30 seconds.
123
123
0
15
30
45
The doors are
unlocked by
pressing the
unlock button
on the remote control... When no door,
trunk or hatch is opened... For more than
30 seconds... The keyless entry
system automati- cally relocks the doors, then the
rs3200 plus auto- matically rearms. The led will
light up for
30 seconds
(pre-arm), then
flash* when the
system is armed
123
Turns off whenThe
armed
state is
suspended
Opening the trunk
suspends the armed state of the security system
123

Page 9 T OYOTA — RS3200 PLUS Security System

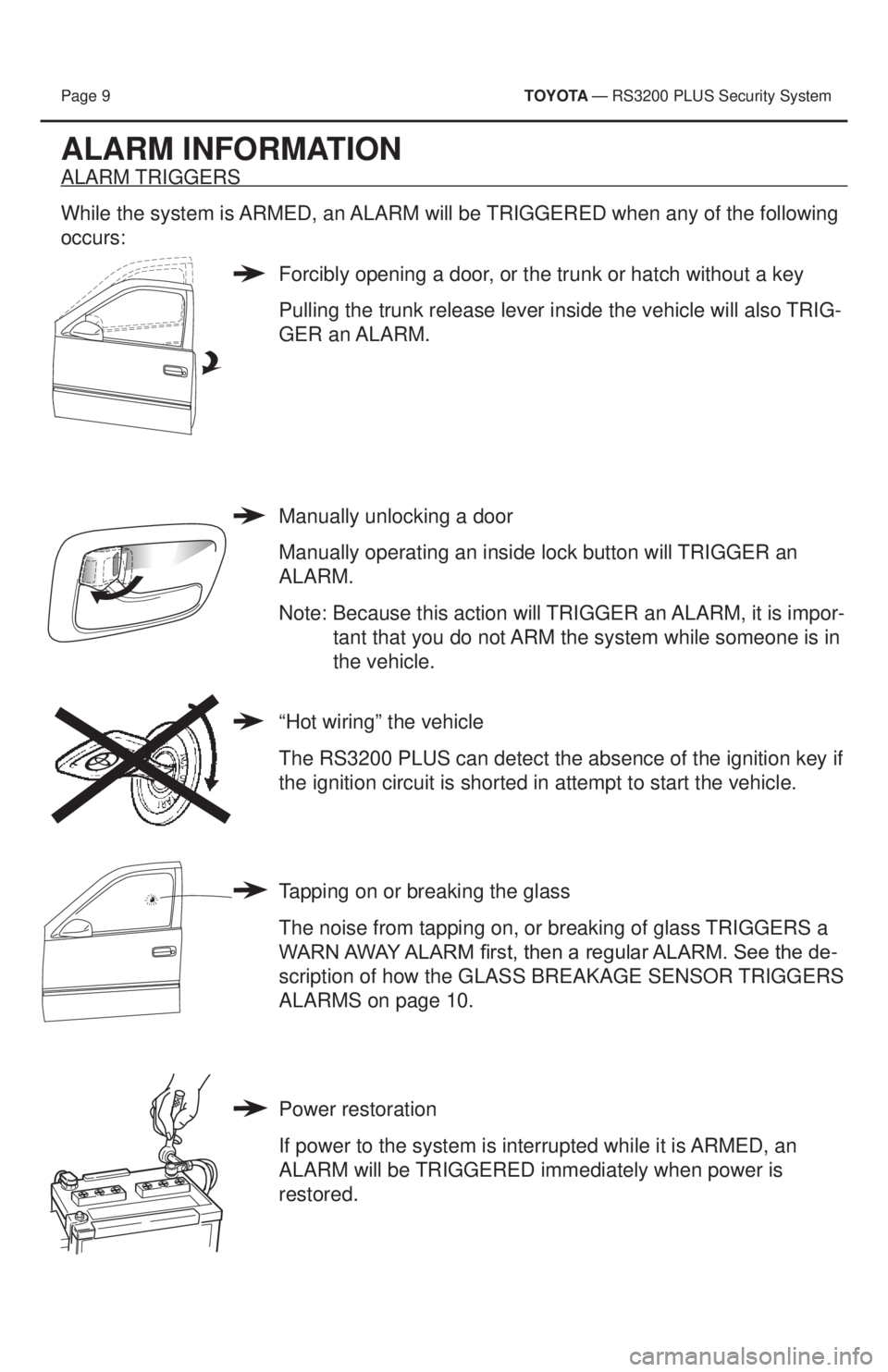

ALARM INFORMATION
ALARM TRIGGERS
While the system is ARMED, an ALARM will be TRIGGERED when any of the following
occurs:
Forcibly opening a door, or the trunk or hatch without a key
Pulling the trunk release lever inside the vehicle will also TRIG-
GER an ALARM.





Manually unlocking a door
Manually operating an inside lock button will TRIGGER an
ALARM.
Note: Because this action will TRIGGER an ALARM, it is impor-tant that you do not ARM the system while someone is in
the vehicle.
“Hot wiring” the vehicle
The RS3200 PLUS can detect the absence of the ignition key if
the ignition circuit is shorted in attempt to start the vehicle.



Tapping on or breaking the glass
The noise from tapping on, or breaking of glass TRIGGERS a
WARN AWAY ALARM first, then a regular ALARM. See the de-
scription of how the GLASS BREAKAGE SENSOR TRIGGERS
ALARMS on page 10.


Power restoration
If power to the system is interrupted while it is ARMED, an
ALARM will be TRIGGERED immediately when power is
restored.
