TOYOTA PRIUS V 2013 (in English) Owner's Manual

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

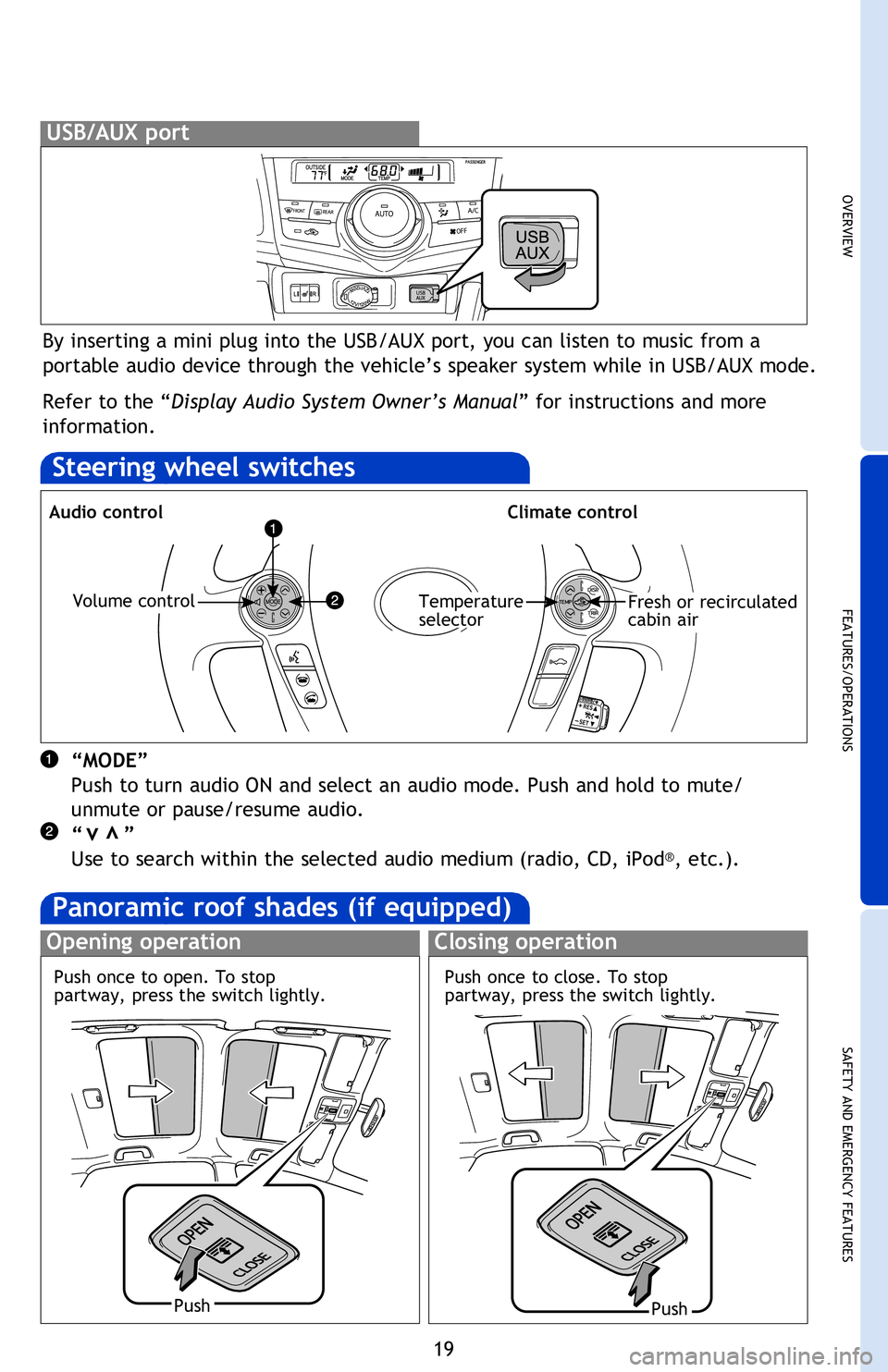

19
By inserting a mini plug into the USB/AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in USB/AUX mode.
Refer to the “Display Audio System Owner’s Manual” for instructions and more
information.
USB/AUX port
Steering wheel switches
Audio controlClimate control
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to mute/
unmute or pause/resume audio.
“ ”
Use to search within the selected audio medium (radio, CD, iPod
®, etc.).
vv
Volume controlTemperature
selectorFresh or recirculated
cabin air
Turn to tune
radio stations
manually or
select tracks
or files
Push to pause
or resume
playing
Panoramic roof shades (if equipped)
Opening operationClosing operation
PushPush
Access to
navigation
system
1
Refer to the “Display Audio System Owner’s Manual ” for instructions and more
information.
1 Refer to the “Navigation System with Entune Quick Reference Guide.”
2 Refer to the “Navigation System Owner’s Manual .”
Push once to close. To stop
partway, press the switch lightly.
Push once to open. To stop
partway, press the switch lightly.
2013Prius-v.indd 1910/2/12 6:52 PM

20
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel
1
Resume2
Set
Distance control mode will cruise at a set speed, decelerate to maintain selected
distance from a slower vehicle traveling in front of you, and accelerate back up to
the selected speed if the vehicle in front of you changes lanes or speeds up.
(1) To select distance control
mode Push the ON-OFF button. The “” will
come on.
(2) To set, cancel or resume a speed Refer to instructions for Cruise Control
section.
(3) To change the vehicle-to-vehicle distance
Push the distance button to cycle through the settings, which will change
progressively from LONG to MIDDLE to SHORT.
(1) To select conventional/fixed speed control Push the ON-OFF button. Push the lever forward and hold until the “
” indicator appears.
(2) To set, cancel and resume a speed Refer to instructions in the Cruise Control
section.
Fixed speed mode
Refer to the Owner’s Manual for more details and complete safety precautions
before attempting to use “Dynamic Radar Cruise Control.”
Distance control mode
FEATURES/OPERATIONS
Dynamic Radar Cruise Control
(if equipped)Power outlets
Center console Luggage compartment (if equipped)
Power switch must be set at “ACCESSORY” or “ON” mode to be used.
2013Prius-v.indd 2010/2/12 6:52 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

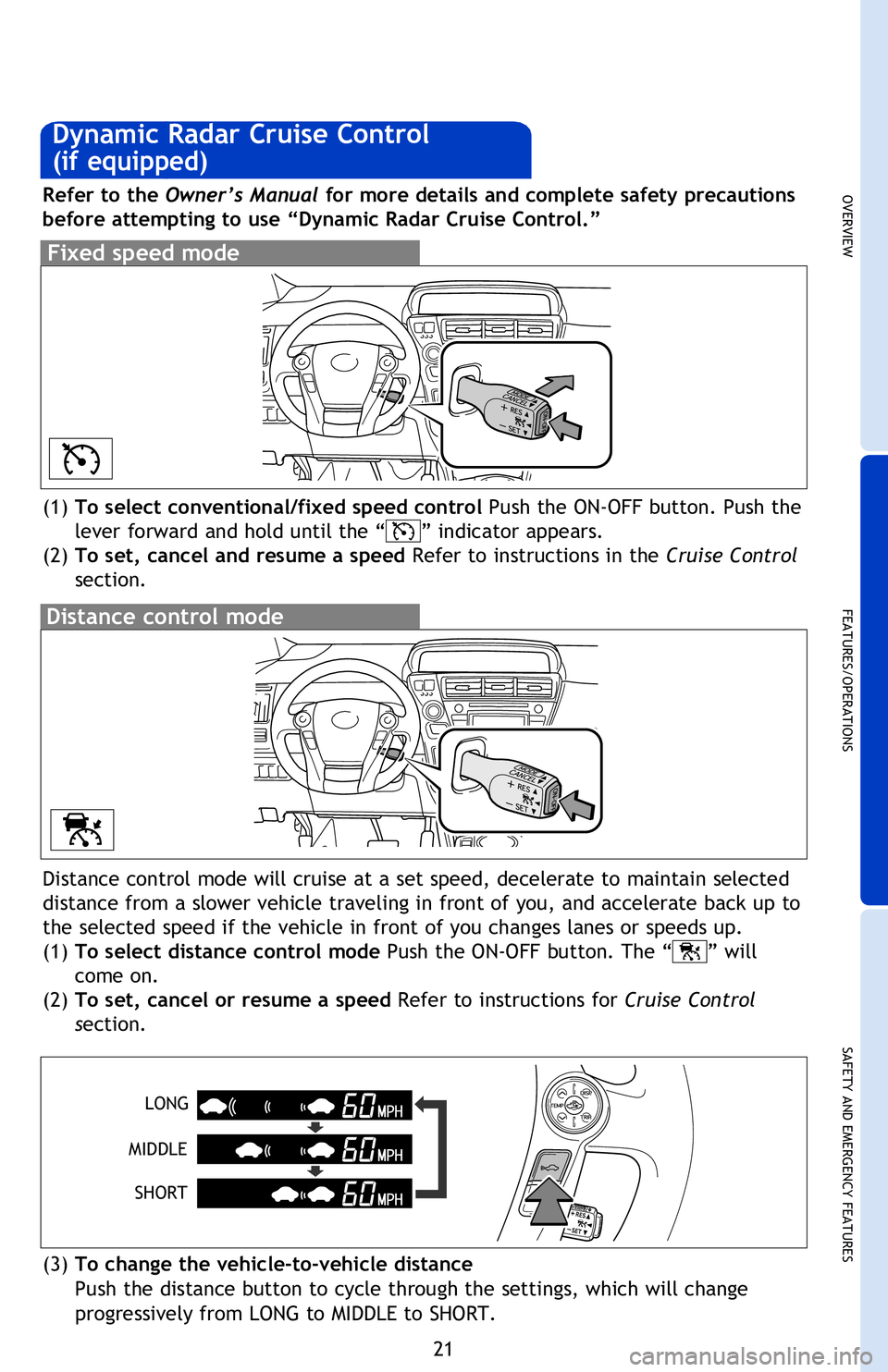

21
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Increase speedDistance control mode will cruise at a set speed, decelerate to maintain selected
distance from a slower vehicle traveling in front of you, and accelerate back up to
the selected speed if the vehicle in front of you changes lanes or speeds up.
(1) To select distance control mode Push the ON-OFF button. The “
” will
come on.
(2) To set, cancel or resume a speed Refer to instructions for Cruise Control
section.
(3) To change the vehicle-to-vehicle distance
Push the distance button to cycle through the settings, which will change
progressively from LONG to MIDDLE to SHORT.
(1)
To select conventional/fixed speed control Push the ON-OFF button. Push the
lever forward and hold until the “
” indicator appears.
(2) To set, cancel and resume a speed Refer to instructions in the Cruise Control
section.
Fixed speed mode
Refer to the Owner’s Manual for more details and complete safety precautions
before attempting to use “Dynamic Radar Cruise Control.”
Distance control mode
Dynamic Radar Cruise Control
(if equipped)
LONG
MIDDLE SHORT
Luggage compartment (if equipped)
Power switch must be set at “ACCESSORY” or “ON” mode to be used.
2013Prius-v.indd 2110/2/12 6:52 PM

22
FEATURES/OPERATIONS
Trip information display
Push “DISP” to change between the following information screens:
(1) Current fuel consumption
(2) Average fuel consumption
(3) Cruising range
(4) Hybrid System Indicator set up
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the telephone and the system.
Refer to the “Display Audio System Owner’s Manual ” or the “Navigation System
Owner’s Manual” for more information about phone connections and compatibility.
Microphone (type A)
Audio unitSteering wheel telephone switches
Volume
Start call
End call
Voice command
button
Microphone (type B)
Clock
Refer to the Owner’s Manual for details on adjusting time.
HAC helps prevent rolling backwards on an incline. To engage, push further down
on brake pedal while at a complete stop until a beep sounds and slip indicator
illuminates. HAC holds for approximately two seconds after releasing brake pedal.
Refer to the Owner’s Manual for more details.
Hill-start Assist Control (HAC)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 3-5 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*
(if equipped)
Telephone controls (Bluetooth®)
2013Prius-v.indd 2210/2/12 7:13 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
23
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the telephone and the system.
Refer to the “Display Audio System Owner’s Manual ” or the “Navigation System
Owner’s Manual” for more information about phone connections and compatibility.
Start call
End call
Voice command
button
Clock
Refer to the Owner’s Manual for details on adjusting time.
H- Hour set
M- Minute set
:00- Round off
minutes
HAC helps prevent rolling backwards on an incline. To engage, push further down
on brake pedal while at a complete stop until a beep sounds and slip indicator
illuminates. HAC holds for approximately two seconds after releasing brake pedal.
Refer to the Owner’s Manual for more details.
Brake
pedal
Hill-start Assist Control (HAC)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 3-5 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*
(if equipped)
2013Prius-v.indd 2310/2/12 6:52 PM

24
SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Push up, or squeeze
lock release to lower
Seat belts-Shoulder belt anchor
Door locks
If the Tire Pressure Warning indicator “” illuminates without blinking, adjust
tire pressures to factory-specified levels.* The light will turn off after a few
minutes. The warning light may come on due to temperature changes or changes
in tire pressure from natural air leakage.
If the tire pressure indicator flashes for more than 60 seconds and then remains
on, take the vehicle to your local Toyota dealer.
Refer to the Owner’s Manual for more details.
* Refer to load label on door jamb or the Owner’s Manual for tire inflation specifications.
Tire Pressure Monitoring (warning)
System
Spare tire & tools
Tool location
Removing the spare tire
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
Moving the lever downward will allow the door to be opened only from the outside.
Rear door
Doors-Child safety locks
Left side deck board
2013Prius-v.indd 2410/2/12 6:52 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
25
SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Take up slack
Door locks
If the Tire Pressure Warning indicator “” illuminates without blinking, adjust
tire pressures to factory-specified levels.* The light will turn off after a few
minutes. The warning light may come on due to temperature changes or changes
in tire pressure from natural air leakage.
If the tire pressure indicator flashes for more than 60 seconds and then remains
on, take the vehicle to your local Toyota dealer.
Refer to the Owner’s Manual for more details.
* Refer to load label on door jamb or the Owner’s Manual for tire inflation specifications.
Spare tire & tools
Tool location
Removing the spare tire
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
Wheel nut wrench
Spare tire
Towing eyelet
Center auxiliary box
Moving the lever downward will allow the door to be opened only from the outside.
Rear door
Jack
Jack handle
Doors-Child safety locks
Lock
Unlock
Left side deck board
Lock
Unlock
2013Prius-v.indd 2510/2/12 6:52 PM

26
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use floor mats designed for your specific model.

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

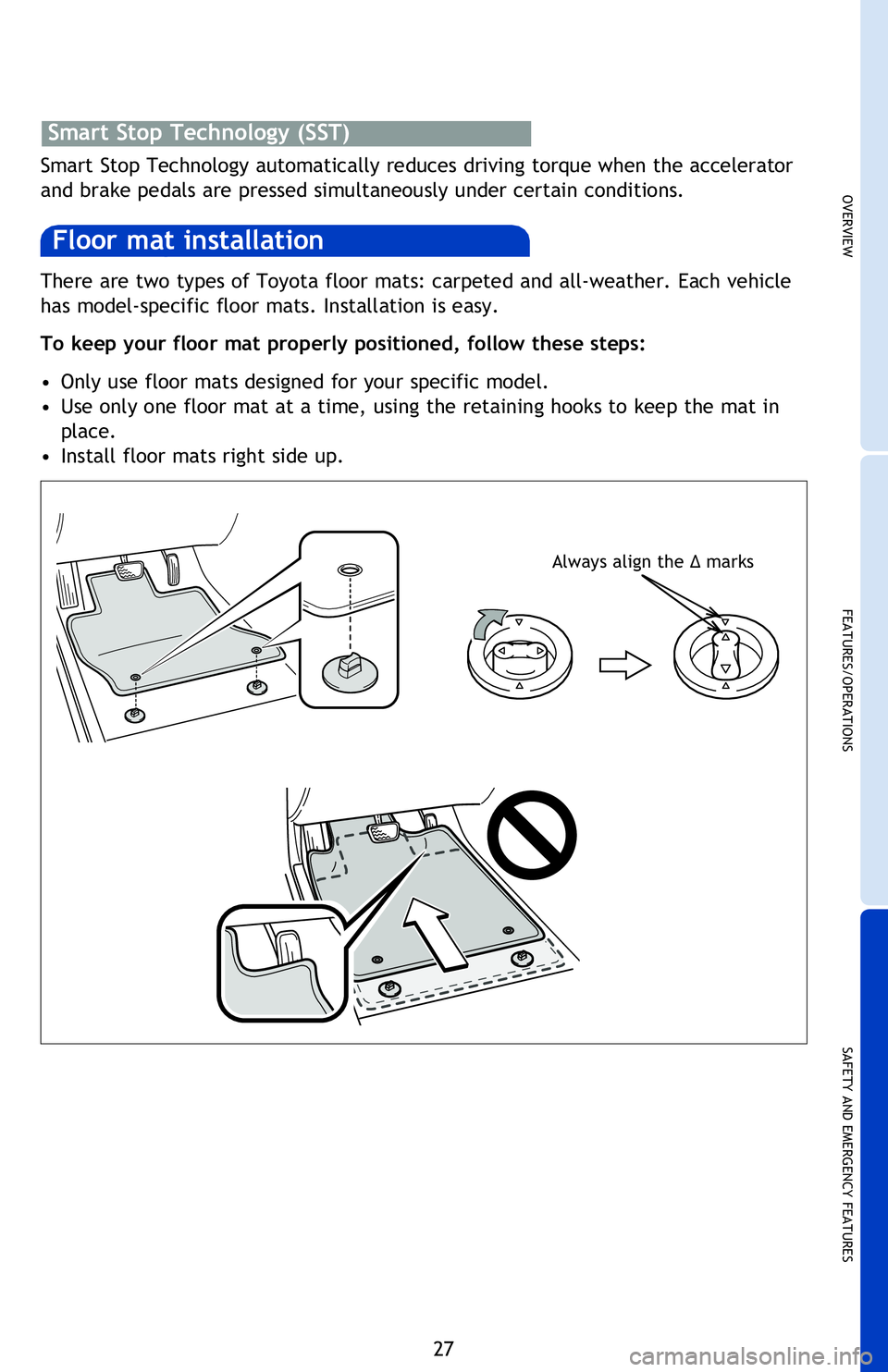

27
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
•
Only use floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in
place.
• Install floor mats right side up.
Floor mat installation
Smart Stop Technology automatically reduces driving torque when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
Smart Stop Technology (SST)
Always align the Δ marks
Pg_27_2013Prius-v_R1.indd 110/9/12 3:18 PM

28

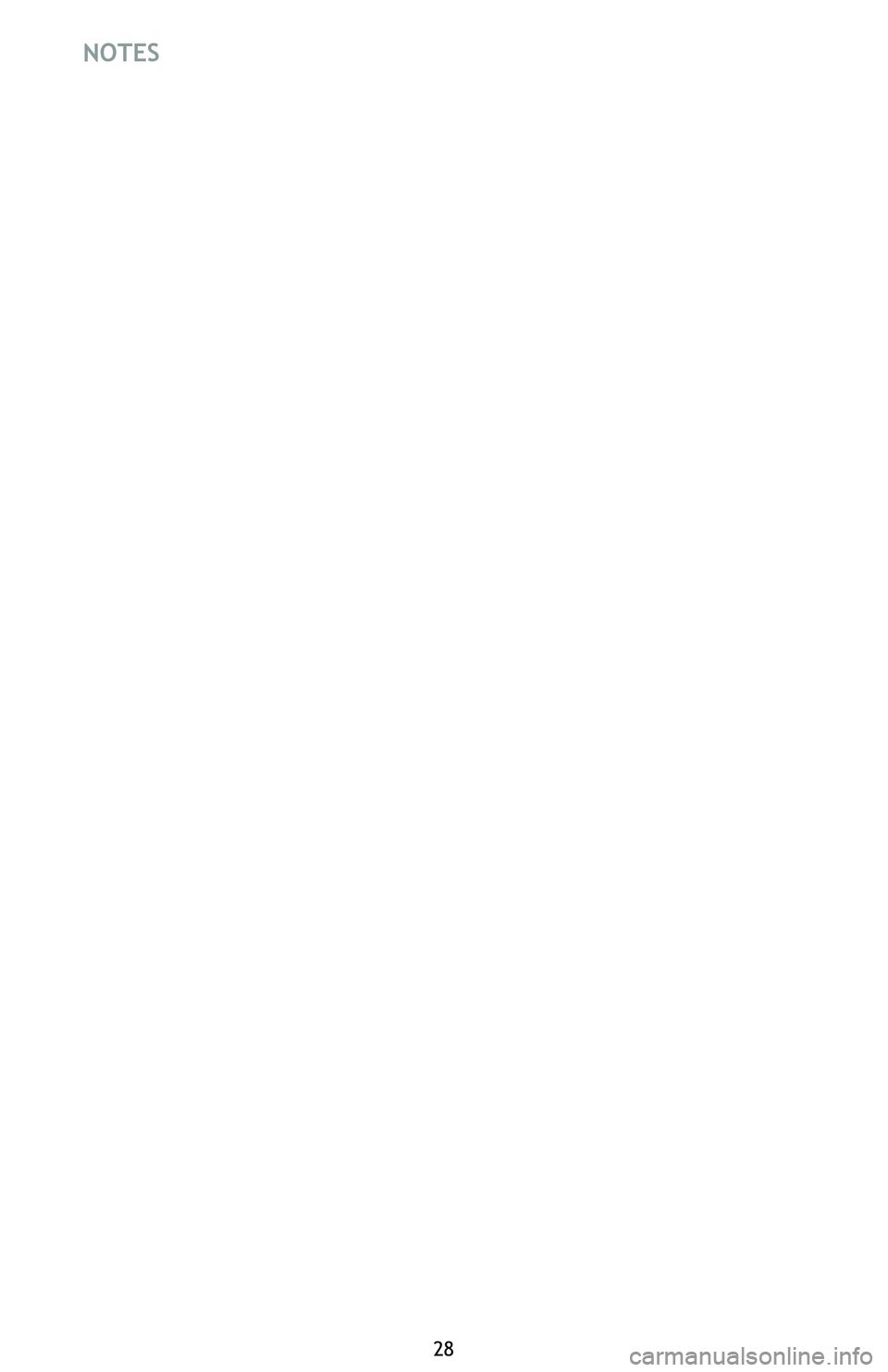

NOTES
