PHONE
6
3. WHAT TO DO IF...
1. TROUBLESHOOTING
When using the hands-free system with a Bluetooth® device
If there is a problem with the hands-free system or a Bluetooth® device, first check
the table below.
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
The hands-free sys-
tem or Bluetooth® de-
vice does not work.
The connected de-
vice may not be a
compatible
Bluetooth
® cellular
phone.
For a list of specific
devices which
operation has been
confirmed on this
system, check with
your Toyota dealer or
the following website:
http://www.toyota.com/
entune/

The Bluetooth® ver-
sion of the connect-
ed cellular phone
may be older than
the specified ver-
sion.Use a cellular phone
with Bluetooth® ver-
sion 2.0 or higher (rec-
ommended: Ver. 3.0
+EDR or higher).46

182
3. WHAT TO DO IF...
PRIUS v_Navi_OM47B14U_(U)
15.06.04 12:24
When registering/connecting a cellular phone
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
A cellular phone can-
not be registered.
An incorrect pass-
code was entered
on the cellular
phone.Enter the correct pass-
code on the cellular
phone.

The registration op-
eration has not been
completed on the
cellular phone side.Complete the registra-
tion operation on the
cellular phone (ap-
prove registration on
the phone).

Old registration in-
formation remains
on either this sys-
tem or the cellular
phone.
Delete the existing reg-
istration information
from both this system
and the cellular phone,
then register the cellu-
lar phone you wish to
connect to this system.
51
A Bluetooth® connec-
tion cannot be made.
Another Bluetooth®
device is already
connected.
Manually connect the
cellular phone you wish
to use to this system.
52
Bluetooth® function
is not enabled on
the cellular phone.Enable the Bluetooth®
function on the cellular
phone.
Automatic
Bluetooth® connec-
tion on this system
is set to off.
Set automatic
Bluetooth® connection
on this system to on
when the power switch
is in ACCESSORY or
ON mode.
56

183
3. WHAT TO DO IF...
PRIUS v_Navi_OM47B14U_(U)
15.06.04 12:24
PHONE
6
When making/receiving a call
“Unable to dial.
Please check your
phone.”
Bluetooth® function
is not enabled on
the cellular phone.Enable the Bluetooth®
function on the cellular
phone.
Old registration in-
formation remains
on either this sys-
tem or the cellular
phone.Delete the existing reg-
istration information
from both this system
and the cellular phone,
then register the cellu-
lar phone you wish to
connect to this system.
51
SymptomLikely causeSolution
Page
Cellular phoneThis
system
A call cannot be
made/received.Your vehicle is in a
“No Service” area.Move to where “No
Service” no longer ap-
pears on the display.

SymptomLikely causeSolution
Page
Cellular phoneThis
system

184
3. WHAT TO DO IF...
PRIUS v_Navi_OM47B14U_(U)
15.06.04 12:24

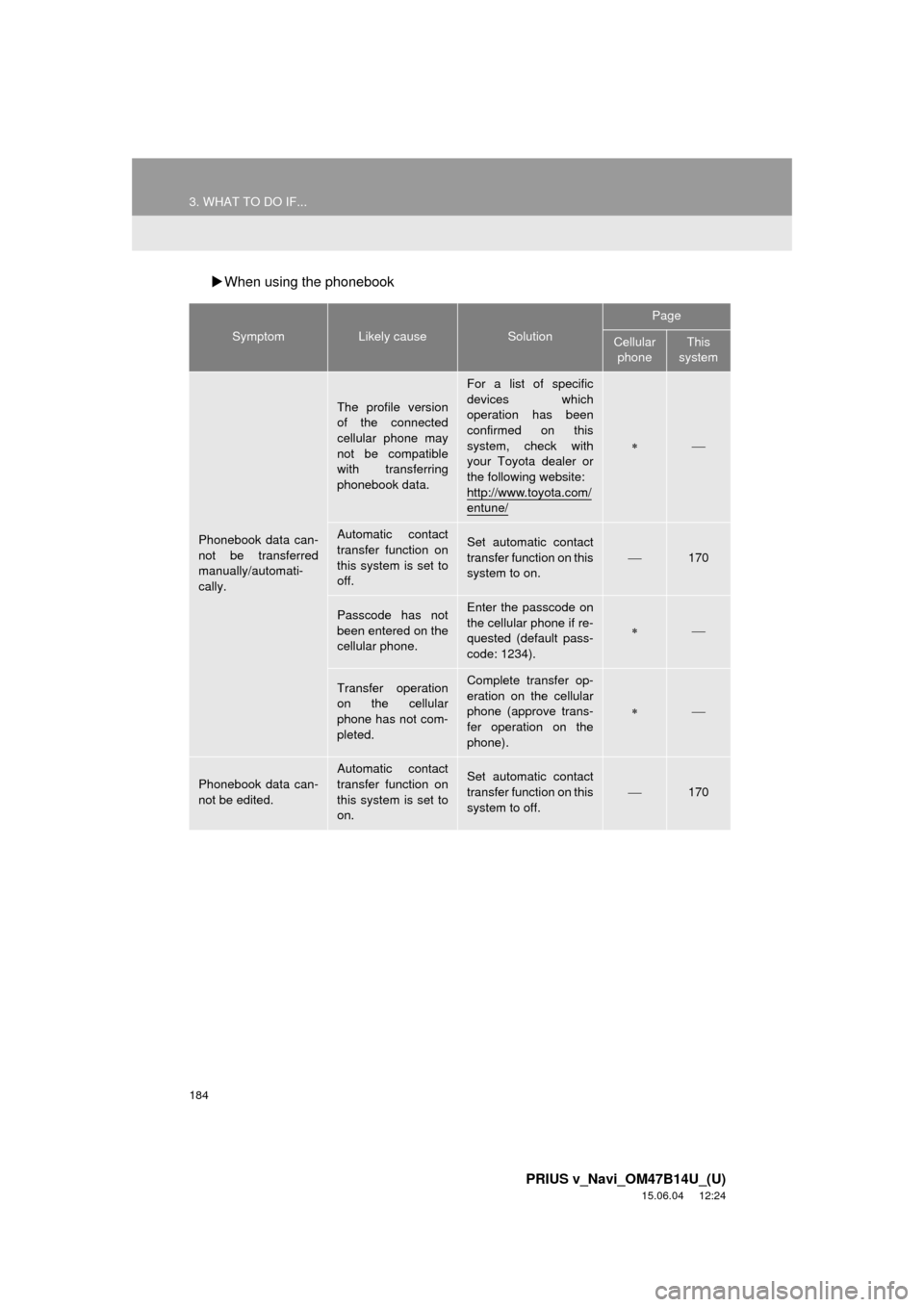

When using the phonebook
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
Phonebook data can-
not be transferred
manually/automati-
cally.
The profile version
of the connected
cellular phone may
not be compatible
with transferring
phonebook data.
For a list of specific
devices which
operation has been
confirmed on this
system, check with
your Toyota dealer or
the following website:
http://www.toyota.com/
entune/

Automatic contact
transfer function on
this system is set to
off.Set automatic contact
transfer function on this
system to on.
170
Passcode has not
been entered on the
cellular phone.Enter the passcode on
the cellular phone if re-
quested (default pass-
code: 1234).

Transfer operation
on the cellular
phone has not com-
pleted.Complete transfer op-
eration on the cellular
phone (approve trans-
fer operation on the
phone).

Phonebook data can-
not be edited.
Automatic contact
transfer function on
this system is set to
on.Set automatic contact
transfer function on this
system to off.170

185
3. WHAT TO DO IF...
PRIUS v_Navi_OM47B14U_(U)
15.06.04 12:24
PHONE
6

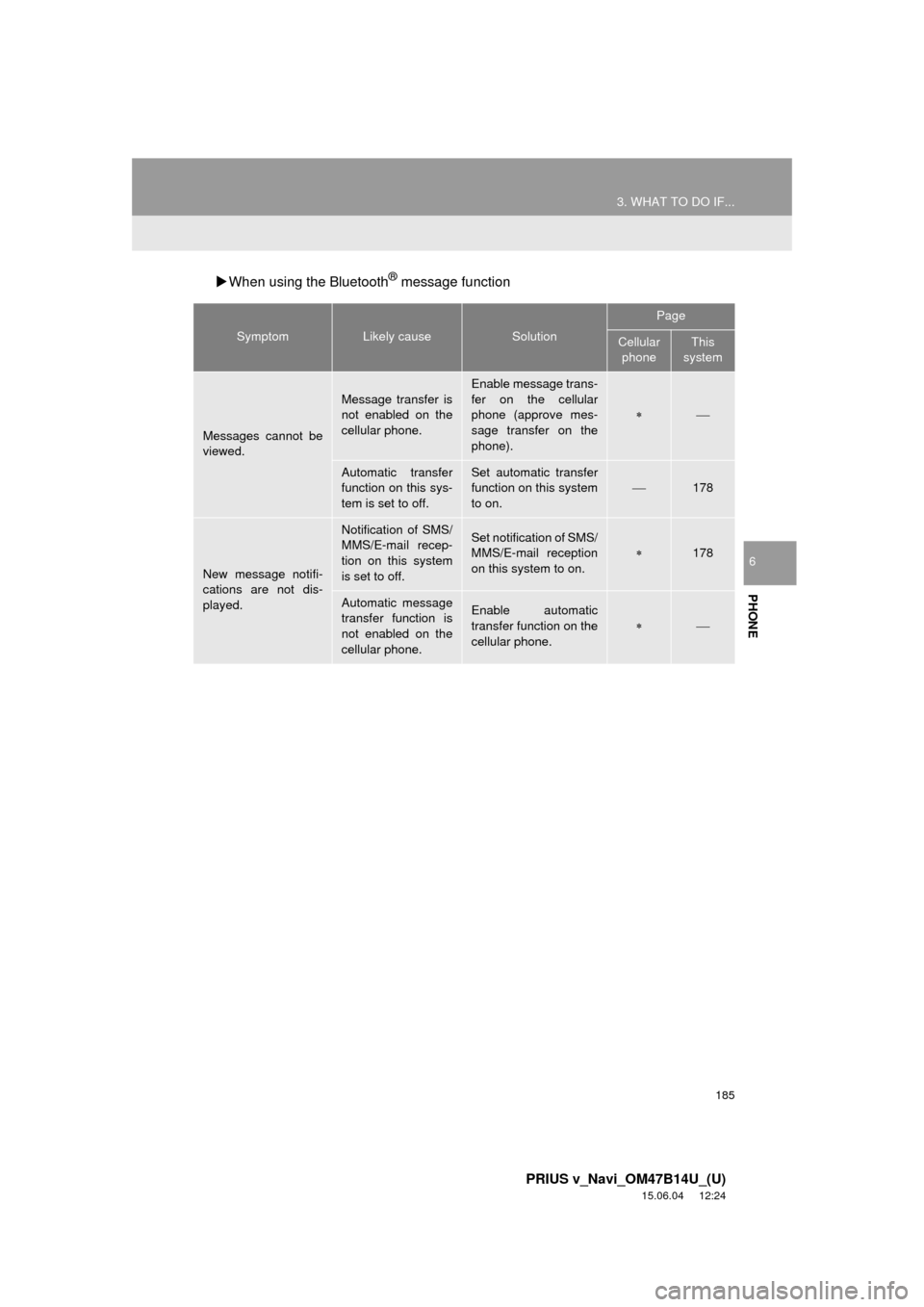

When using the Bluetooth® message function
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
Messages cannot be
viewed.
Message transfer is
not enabled on the
cellular phone.
Enable message trans-
fer on the cellular
phone (approve mes-
sage transfer on the
phone).

Automatic transfer
function on this sys-
tem is set to off.Set automatic transfer
function on this system
to on.
178
New message notifi-
cations are not dis-
played.
Notification of SMS/
MMS/E-mail recep-
tion on this system
is set to off.Set notification of SMS/
MMS/E-mail reception
on this system to on.
178
Automatic message
transfer function is
not enabled on the
cellular phone.Enable automatic
transfer function on the
cellular phone.


186
3. WHAT TO DO IF...
PRIUS v_Navi_OM47B14U_(U)
15.06.04 12:24
In other situations
: For details, refer to the owner’s manual that came with the cellular phone.
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
The Bluetooth® con-
nection status is dis-
played at the top of
the screen each time
the power switch is in
ACCESSORY or ON
mode.
Connection confir-
mation display on
this system is set to
on.To turn off the display,
set connection confir-
mation display on this
system to off.
55
Even though all con-
ceivable measures
have been taken, the
symptom status does
not change.
The cellular phone
is not close enough
to this system.Bring the cellular
phone closer to this
system.

The cellular phone
is the most likely
cause of the symp-
tom.
Turn the cellular phone
off, remove and rein-
stall the battery pack,
and then restart the
cellular phone.

Enable the cellular
phone’s Bluetooth®
connection.

Stop the cellular
phone’s security soft-
ware and close all ap-
plications.

Before using an appli-
cation installed on the
cellular phone, careful-
ly check its source and
how its operation might
affect this system.


7
187
PRIUS v_Navi_OM47B14U_(U)
15.06.04 12:24
1
2
3
4
5
6
7
8
1. QUICK REFERENCE .................. 190
MAP SCREEN ..................................... 190
NAVIGATION OPTIONS SCREEN...... 192
2. MAP SCREEN OPERATION....... 193
CURRENT POSITION DISPLAY ......... 193
MAP SCALE ........................................ 194
ORIENTATION OF THE MAP ............. 195
SWITCHING THE MAP MODE............ 196
SCREEN SCROLL OPERATION ........ 198
ADJUSTING LOCATION IN SMALL INCREMENTS ................................... 199
3. MAP SCREEN INFORMATION ......................... 200
DISPLAYING MAP INFORMATION .... 200
DISPLAYING INFORMATION ABOUT
THE ICON WHERE THE CURSOR
IS SET ............................................... 202
STANDARD MAP ICONS .................... 203
4. TRAFFIC INFORMATION ........... 204
DISPLAYING TRAFFIC INFORMATION ON THE MAP .......... 206
1BASIC OPERATION
NAVIGATION SYSTEM

188
PRIUS v_Navi_OM47B14U_(U)
15.06.04 12:24

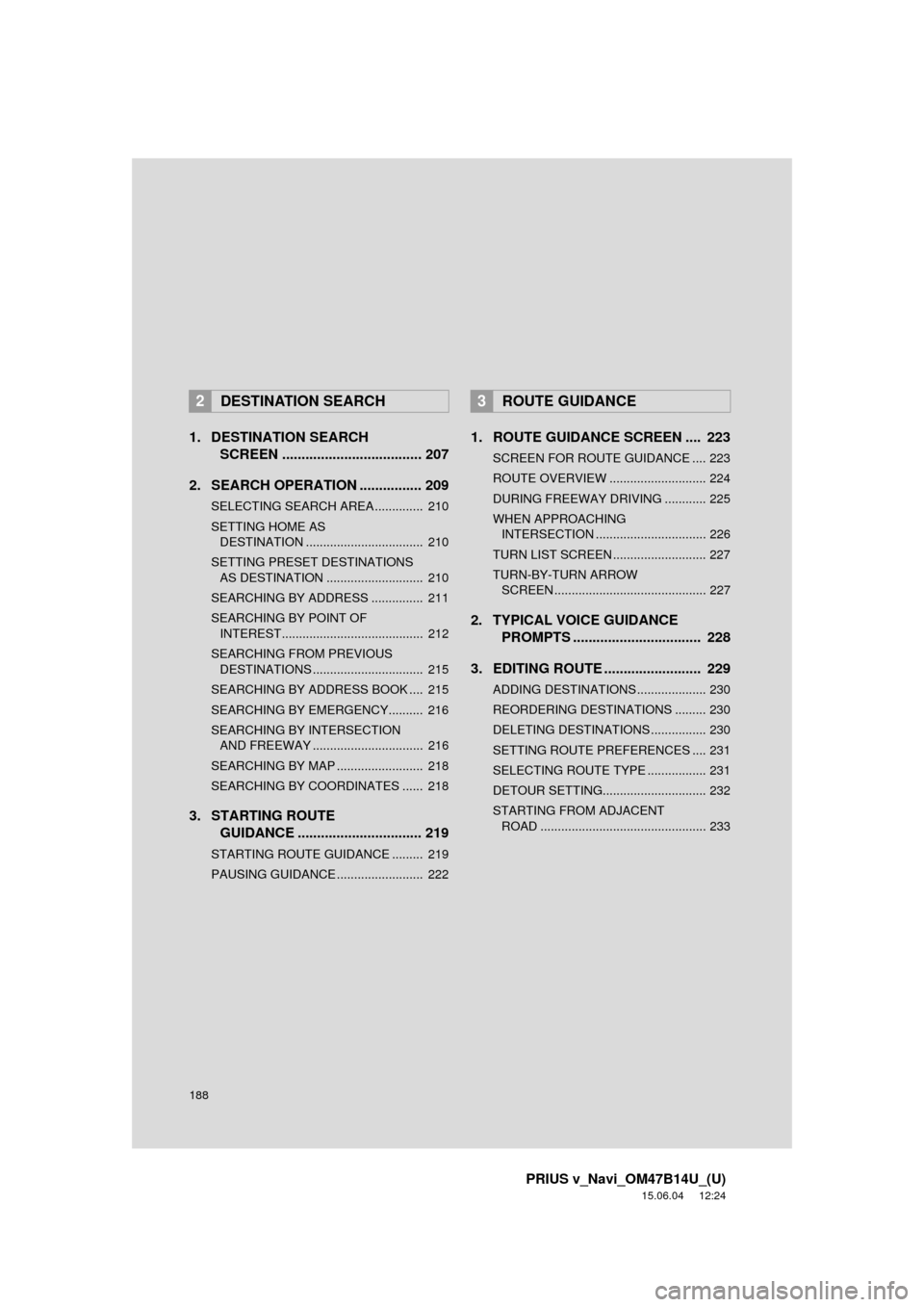

1. DESTINATION SEARCH SCREEN .................................... 207
2. SEARCH OPERATION . ............... 209
SELECTING SEARCH AREA .............. 210
SETTING HOME AS
DESTINATION .................................. 210
SETTING PRESET DESTINATIONS AS DESTINATION ............................ 210
SEARCHING BY ADDRESS ............... 211
SEARCHING BY POINT OF INTEREST......................................... 212
SEARCHING FROM PREVIOUS DESTINATIONS ................................ 215
SEARCHING BY ADDRESS BOOK .... 215
SEARCHING BY EMERGENCY.......... 216
SEARCHING BY INTERSECTION AND FREEWAY ................................ 216
SEARCHING BY MAP ......................... 218
SEARCHING BY COORDINATES ...... 218
3. STARTING ROUTE GUIDANCE ............... ................. 219
STARTING ROUTE GUIDANCE ......... 219
PAUSING GUIDANCE ......................... 222
1. ROUTE GUIDANCE SCREEN .... 223
SCREEN FOR ROUTE GUIDANCE .... 223
ROUTE OVERVIEW ............................ 224
DURING FREEWAY DRIVING ............ 225
WHEN APPROACHING
INTERSECTION ................................ 226
TURN LIST SCREEN ........................... 227
TURN-BY-TURN ARROW SCREEN ............................................ 227
2. TYPICAL VOICE GUIDANCE PROMPTS ................................. 228
3. EDITING ROUTE ......................... 229
ADDING DESTINATIONS .................... 230
REORDERING DESTINATIONS ......... 230
DELETING DESTINATIONS ................ 230
SETTING ROUTE PREFERENCES .... 231
SELECTING ROUTE TYPE ................. 231
DETOUR SETTING.............................. 232
STARTING FROM ADJACENT ROAD ................................................ 233
2DESTINATION SEARCH3ROUTE GUIDANCE

189
PRIUS v_Navi_OM47B14U_(U)
15.06.04 12:24
1
2
3
4
5
6
7
8
1. MEMORY POINTS SETTINGS .... 234
SETTING UP HOME ........................... 235
SETTING UP PRESET DESTINATIONS................................ 236
SETTING UP ADDRESS BOOK ......... 238
SETTING UP AREAS TO AVOID ........ 241
DELETING PREVIOUS DESTINATIONS................................ 243
1. DETAILED NAVIGATION SETTINGS ................................. 244
SCREENS FOR NAVIGATION
SETTINGS ........................................ 244
2. TRAFFIC SETTINGS ................... 248
SCREEN FOR TRAFFIC
SETTINGS ........................................ 248
AUTO AVOID TRAFFIC ...................... 249
MY TRAFFIC ROUTES ....................... 250
1. GPS (GLOBAL POSITIONING SYSTEM) .................... ............... 255
LIMITATIONS OF THE
NAVIGATION SYSTEM..................... 255
2. MAP DATABASE VERSION AND COVERED AREA ............. 258
MAP INFORMATION ........................... 258
ABOUT THE MAP DATA ..................... 259
4MEMORY POINTS
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM

190
PRIUS v_Navi_OM47B14U_(U)
15.06.04 12:24
1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
To display this screen, press the “APPS” button, then select “Navigation” on the
“Apps” screen.
No.NameFunctionPage
2D North-up, 2D
heading-up or 3D
heading-up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. The letter(s) beside this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
195
Options buttonSelect to display the “Navigation Options” screen.192
“GPS” mark
(Global Position-
ing System)Shows that the vehicle is receiving signals from
the GPS.255
