TOYOTA PRIUS V 2016 ZVW40 / 1.G Manual Online

811-2. Hybrid system
PRIUS v_OM_OM47B12U_(U)
1
For safety and security
WARNING
■Hybrid battery (traction battery)
●Never resell, hand over or modify the hybrid battery. To prevent accidents,
hybrid batteries that have been removed from a disposed vehicle are col-
lected through Toyota dealer. Do not dispose of the battery yourself.
Unless the battery is properly collected, the following may occur, resulting
in death or serious injury:
• The hybrid battery may be illegally disposed of or dumped, and it is haz-
ardous to the environment or someone may touch a high voltage part,
resulting in an electric shock.
• The hybrid battery is intended to be used exclusively with your hybrid
vehicle. If the hybrid battery is used outside of your vehicle or modified
in any way, accidents such as electric shock, heat generation, smoke
generation, an explosion and electrolyte leakage may occur.
When reselling or handing over your vehicle, the possibility of an accident
is extremely high because the person receiving the vehicle may not be
aware of these dangers.
●If your vehicle is disposed of without the hybrid battery having been
removed, there is a danger of serious electric shock if high voltage parts,
cables and their connectors are touched. In the event that your vehicle
must be disposed of, the hybrid battery must be disposed of by your
Toyota dealer or a qualified service shop. If the hybrid battery is not dis-
posed of properly, it may cause electric shock that can result in death or
serious injury.
NOTICE
■Hybrid battery (traction battery) air intake vent
●Do not place objects that will block the air intake vent. The hybrid battery
(traction battery) may overheat and be damaged.
●Clean the air intake vent regularly to prevent the hybrid battery (traction
battery) from overheating.
●Do not get water or foreign materials in the air intake vent as this may
cause a short circuit and damage the hybrid battery (traction battery).
●Do not carry large amounts of water such as water cooler bottles in the
vehicle. If water spills onto the hybrid battery (traction battery), the battery
may be damaged. Have the vehicle inspected by your Toyota dealer.

821-3. Theft deterrent system
PRIUS v_OM_OM47B12U_(U)

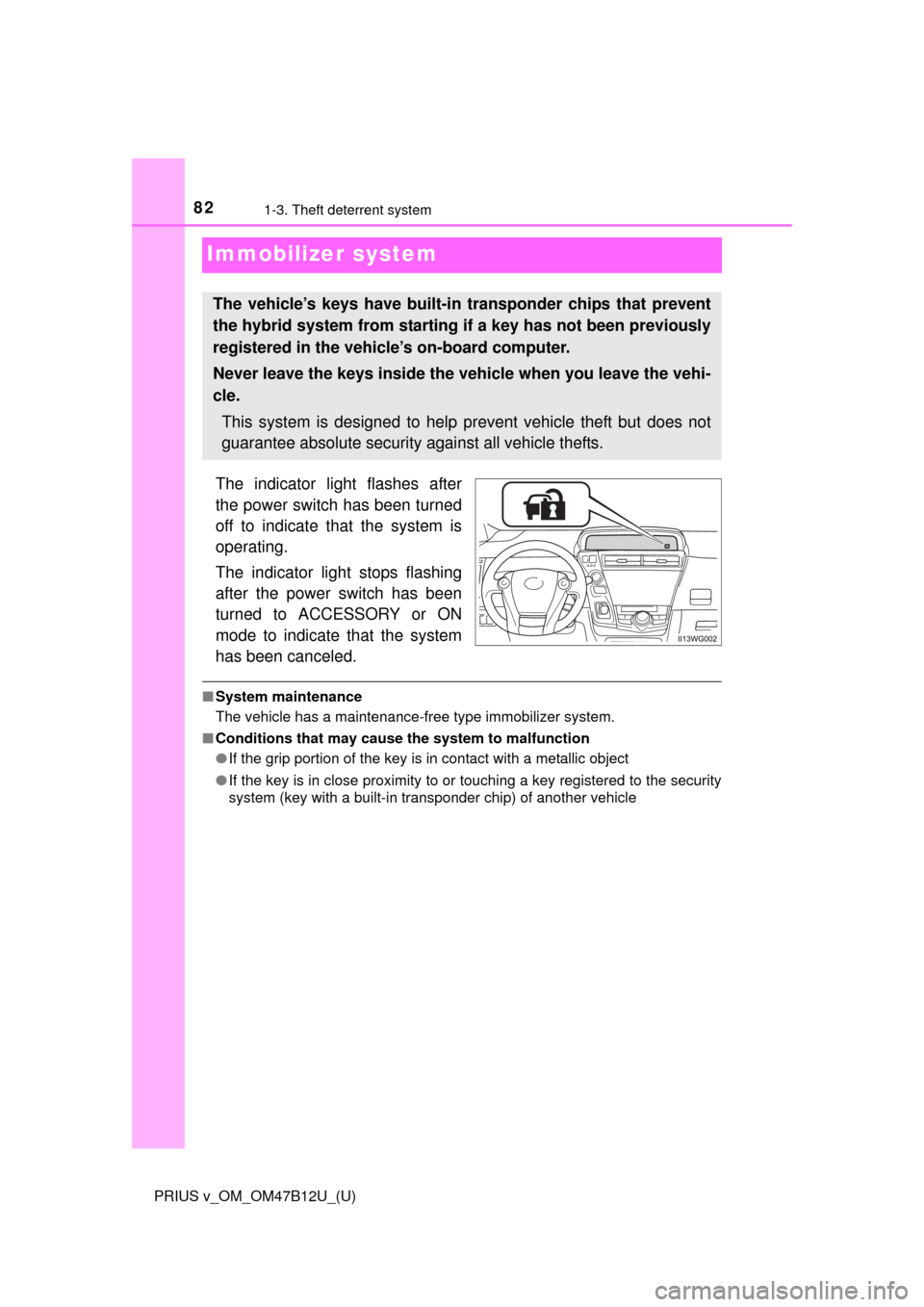

Immobilizer system
The indicator light flashes after
the power switch has been turned
off to indicate that the system is
operating.
The indicator light stops flashing
after the power switch has been
turned to ACCESSORY or ON
mode to indicate that the system
has been canceled.
■System maintenance
The vehicle has a maintenance-free type immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touching a key registered to the security
system (key with a built-in transponder chip) of another vehicle
The vehicle’s keys have built-in transponder chips that prevent
the hybrid system from starting if a key has not been previously
registered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does not
guarantee absolute security against all vehicle thefts.

831-3. Theft deterrent system
PRIUS v_OM_OM47B12U_(U)
1
For safety and security

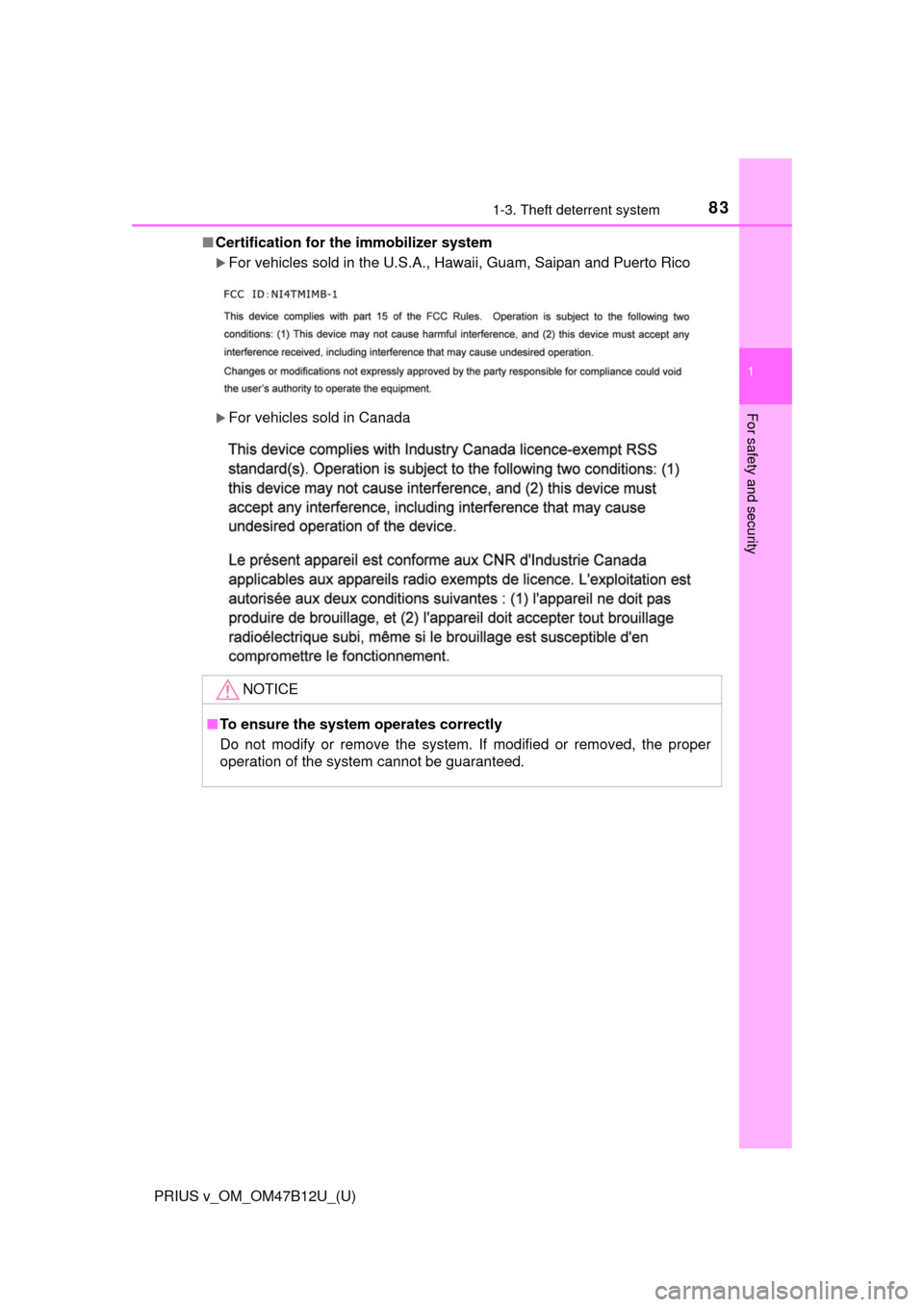

■Certification for the immobilizer system
For vehicles sold in the U.S.A., Hawaii, Guam, Saipan and Puerto Rico
For vehicles sold in Canada
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

841-3. Theft deterrent system
PRIUS v_OM_OM47B12U_(U)

85
PRIUS v_OM_OM47B12U_(U)
Instrument cluster2
2. Instrument cluster
Warning lights and
indicators .......................... 86
Gauges and meters ............ 91
Multi-information display ... 100
Energy monitor/
consumption screen ........ 108

86
PRIUS v_OM_OM47B12U_(U)
2. Instrument cluster
Warning lights and indicators
Vehicles without multi-information display
Vehicles with multi-information display
The units used on the meter and some indicators may differ depend-
ing on the target region.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

PRIUS v_OM_OM47B12U_(U)
872. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light (P. 490)*1
(U.S.A.)
ABS warning light
(P. 491)
*1
(Canada)
(Red)
Brake system warning
light (P. 490)
*1
(Canada)
ABS warning light
(P. 491)
*1
(Yellow)
Brake system warning
light (P. 490)*1Electric power steering
system warning light
(P. 491)
*1Charging system
warning light (P. 490)*1, 2
(If equipped)
PCS warning light
(P. 491)

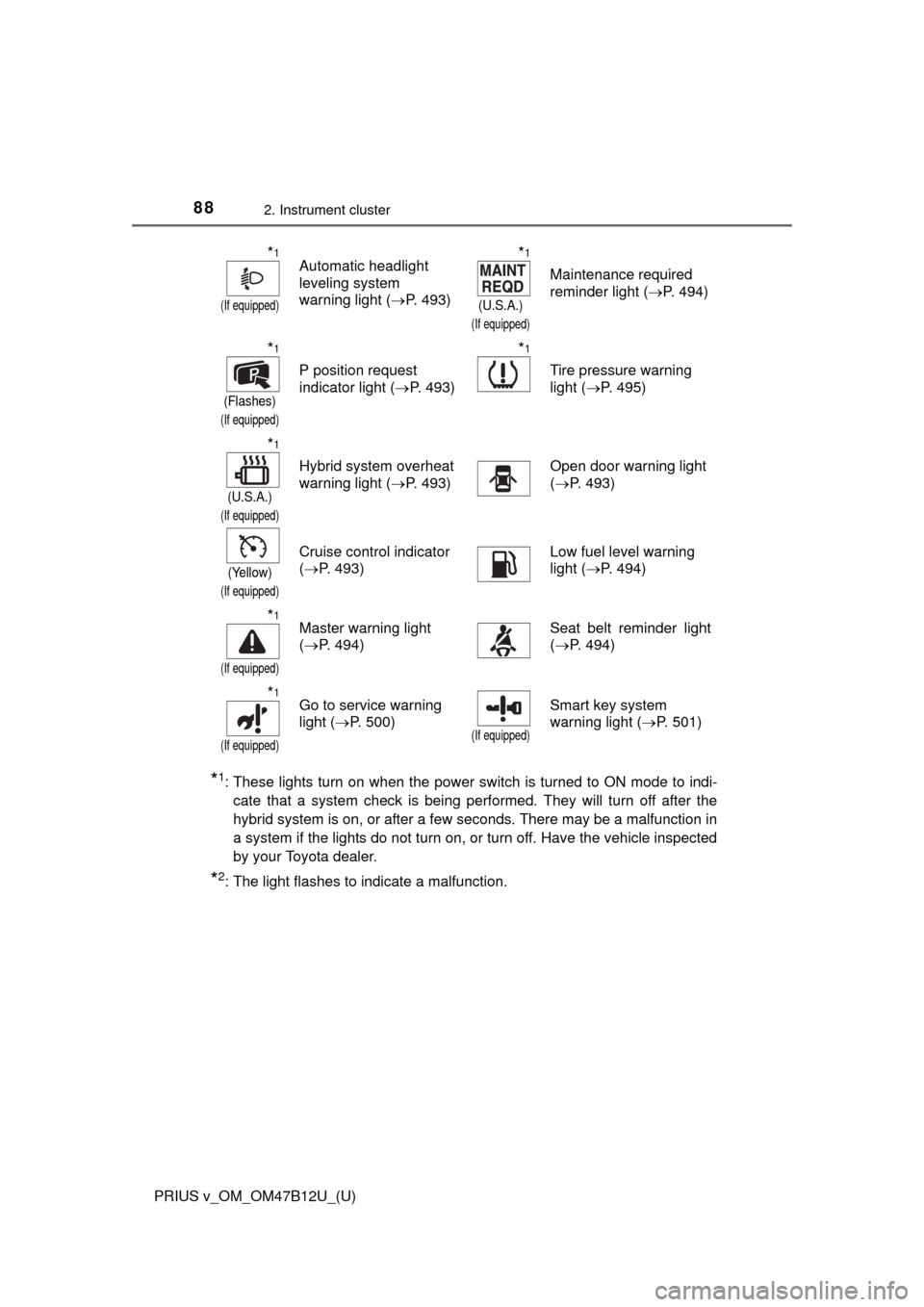

*1
(If equipped)
Low engine oil pressure
warning light (P. 490)*1Slip indicator light
(P. 492)
*1
(If equipped)
Hybrid system warning
light (P. 490)*1High coolant
temperature warning
light (P. 493)
*1
(U.S.A.)
Malfunction indicator
lamp (P. 491)*1
(If equipped)
Parking lock system
warning light (P. 492)
*1
(Canada)
Malfunction indicator
lamp (P. 491)
(If equipped)
Parking lock system
warning message
(P. 492)
*1SRS warning light
(P. 491)*1
(If equipped)
LED headlight warning
light (P. 492)

88
PRIUS v_OM_OM47B12U_(U)
2. Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if the lights do not turn on, or turn off. Have the vehicle inspected
by your Toyota dealer.
*2: The light flashes to indicate a malfunction.
*1
(If equipped)
Automatic headlight
leveling system
warning light (P. 493)*1
(U.S.A.)
(If equipped)
Maintenance required
reminder light (P. 494)
*1
(Flashes)
(If equipped)
P position request
indicator light (P. 493)
*1
Tire pressure warning
light (P. 495)
*1
(U.S.A.)
(If equipped)
Hybrid system overheat
warning light (P. 493)Open door warning light
(P. 493)
(Yellow)
(If equipped)
Cruise control indicator
(P. 493)Low fuel level warning
light (P. 494)
*1
(If equipped)
Master warning light
(P. 494)Seat belt reminder light
(P. 494)
*1
(If equipped)
Go to service warning
light (P. 500)
(If equipped)
Smart key system
warning light (P. 501)

PRIUS v_OM_OM47B12U_(U)
892. Instrument cluster
2
Instrument cluster

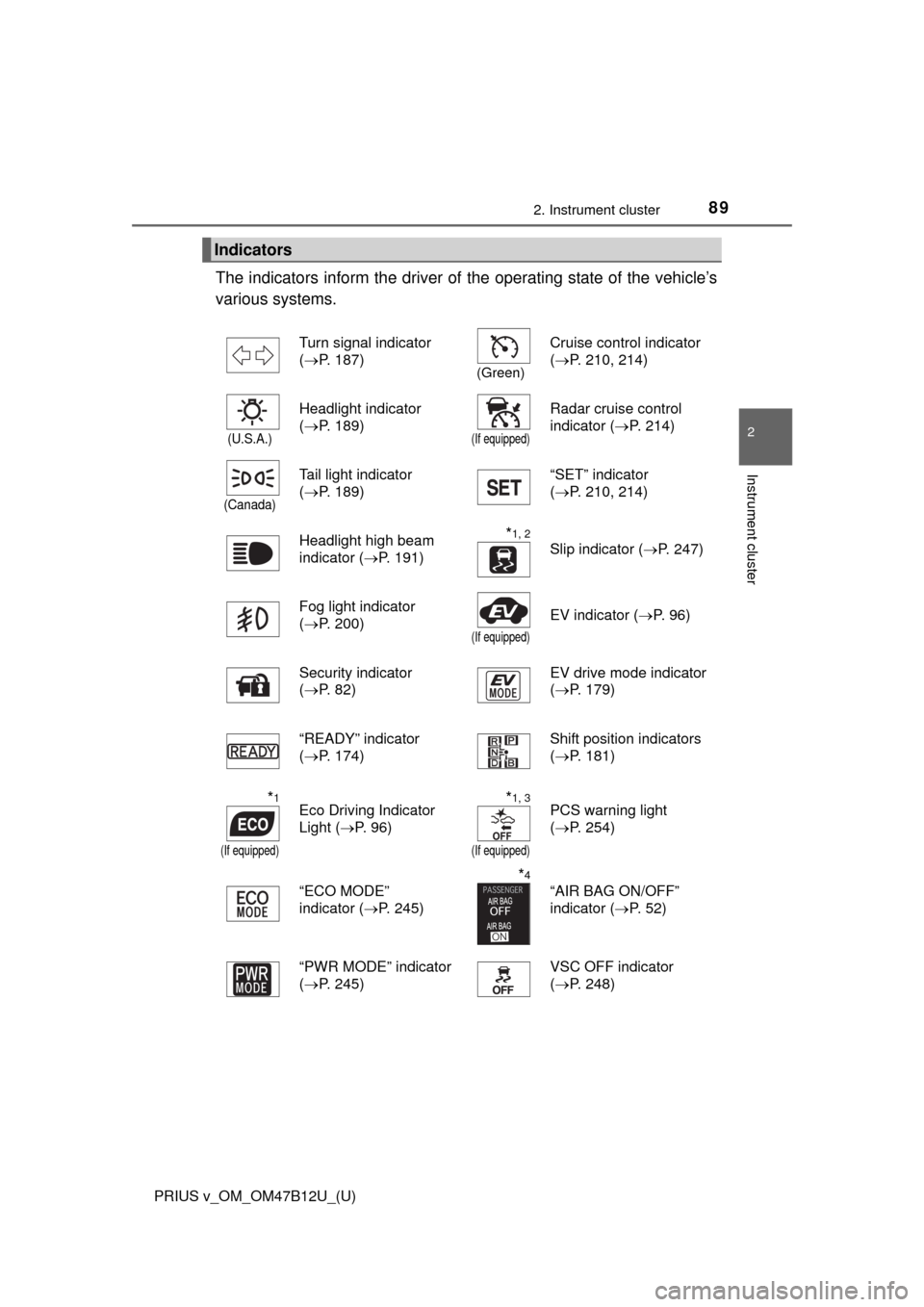

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
(P. 187)
(Green)
Cruise control indicator
(P. 210, 214)
(U.S.A.)
Headlight indicator
(P. 189)
(If equipped)
Radar cruise control
indicator (P. 214)
(Canada)
Tail light indicator
(P. 189)“SET” indicator
(P. 210, 214)
Headlight high beam
indicator (P. 191)
*1, 2
Slip indicator (P. 247)
Fog light indicator
(P. 200)
(If equipped)
EV indicator (P. 9 6 )
Security indicator
(P. 82)EV drive mode indicator
(P. 179)
“READY” indicator
(P. 174)Shift position indicators
(P. 181)
*1
(If equipped)
Eco Driving Indicator
Light (P. 96)*1, 3
(If equipped)
PCS warning light
(P. 254)
“ECO MODE”
indicator (P. 245)
*4
“AIR BAG ON/OFF”
indicator (P. 5 2 )
“PWR MODE” indicator
(P. 245)VSC OFF indicator
(P. 248)

90
PRIUS v_OM_OM47B12U_(U)
2. Instrument cluster
*1: These lights turn on when the power switch is turned to the ON mode to
indicate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if the lights do not turn on, or turn off. Have the vehicle inspected
by your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off.
*4: This light illuminates on the center panel.

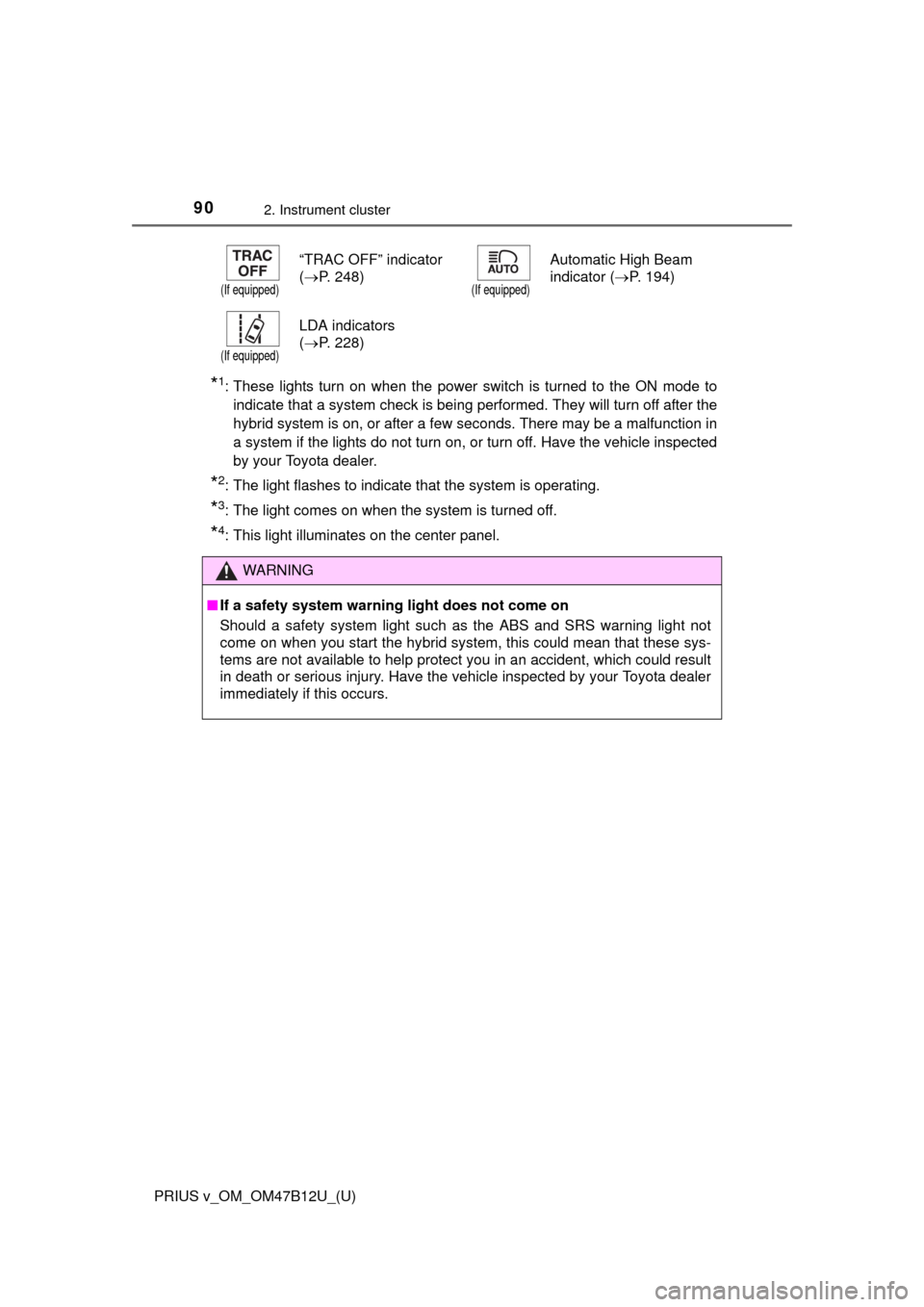

(If equipped)
“TRAC OFF” indicator
(P. 248)
(If equipped)
Automatic High Beam
indicator (P. 194)
(If equipped)
LDA indicators
(P. 228)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.
