TOYOTA PRIUS V 2016 ZVW40 / 1.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
9 Engine coolant reservoir
Engine oil level dipstick
Engine oil filler cap
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.” Maintenance reset light
instructions can be found in “Maintenance Requirements Chapter” in
Owner’s Manual.
Engine maintenance
Light control-Instrument panel
Brightness
control
-
+

10
FEATURES/OPERATIONS

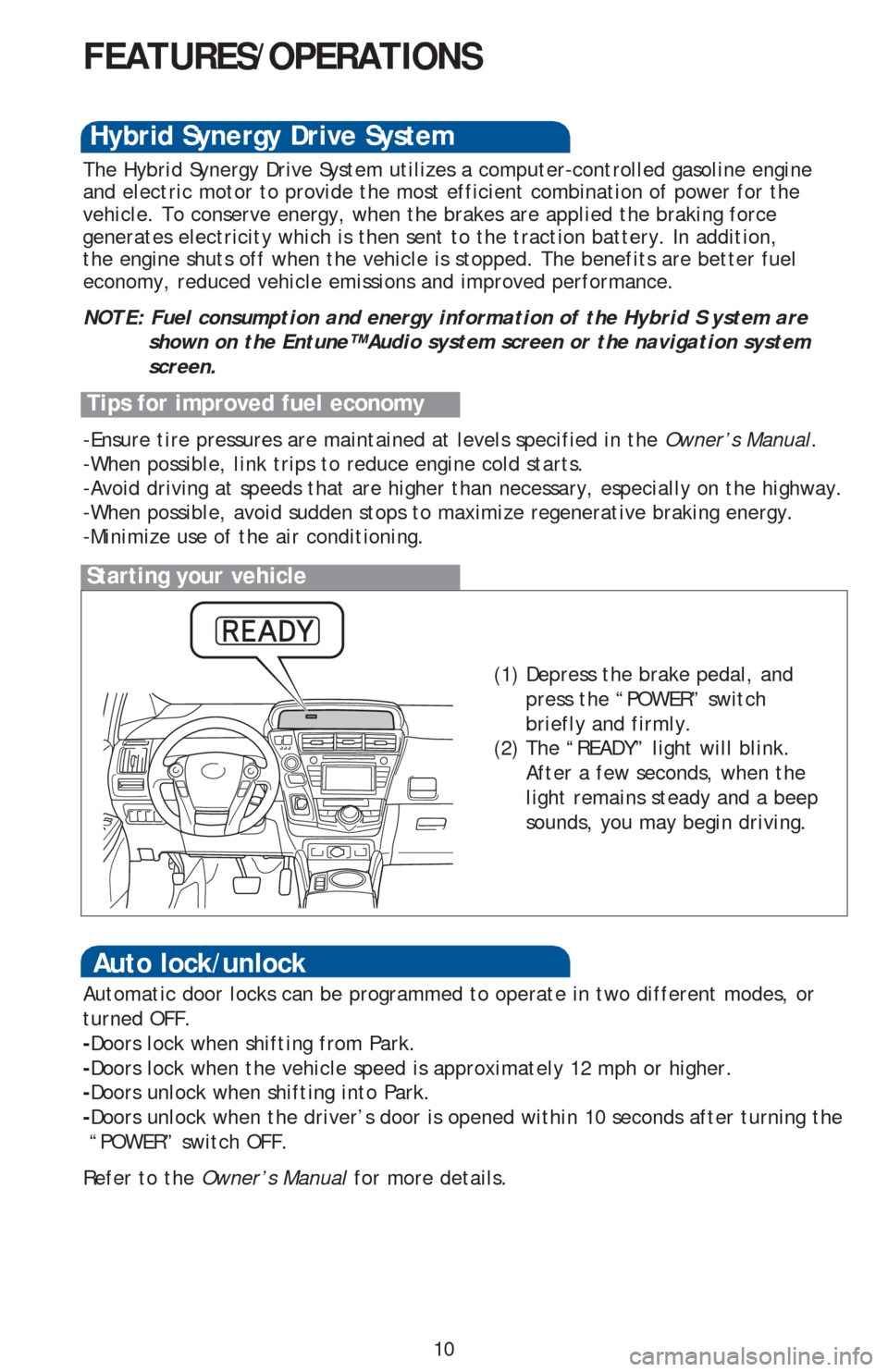

Starting your vehicle
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the
vehicle. To conserve energy, when the brakes are applied the braking force
generates electricity which is then sent to the traction battery. In addition,
the engine shuts off when the vehicle is stopped. The benefits are better fuel
economy, reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the Hybrid S ystem are
shown on the Entune™ Audio system screen or the navigation system
screen.
Tips for improved fuel economy
-Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
-When possible, link trips to reduce engine cold starts.
-Avoid driving at speeds that are higher than necessary, especially on the highway.
-When possible, avoid sudden stops to maximize regenerative braking energy.
-Minimize use of the air conditioning.
Hybrid Synergy Drive System
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the
“POWER” switch OFF.
Refer to the Owner’s Manual for more details.
(1) Depress the brake pedal, and
press the “POWER” switch
briefly and firmly.
(2) The “READY” light will blink.
After a few seconds, when the
light remains steady and a beep
sounds, you may begin driving.

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11

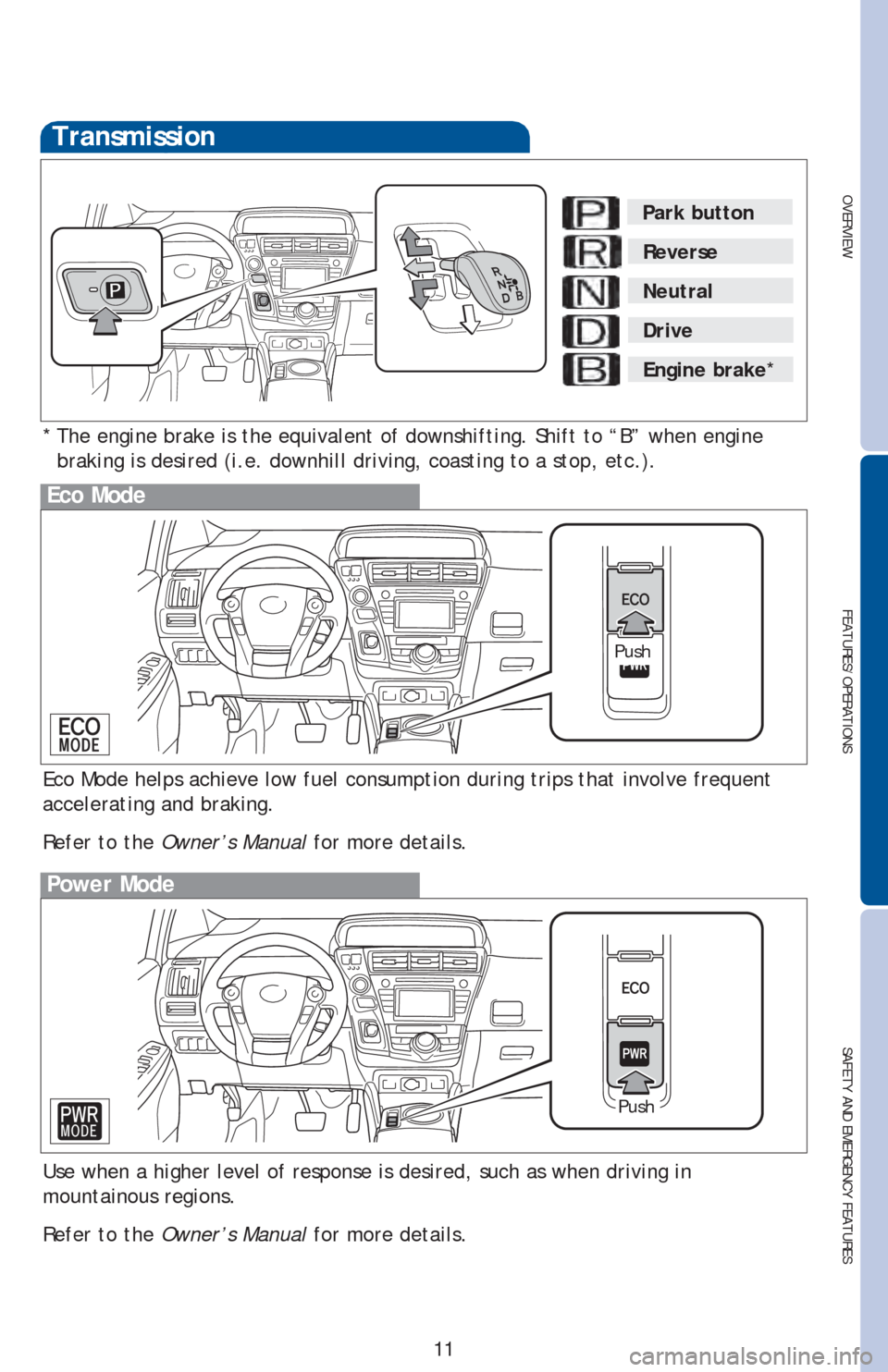

Transmission
* The engine brake is the equivalent of downshifting. Shift to “B” when engine
braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Eco Mode
Push
Eco Mode helps achieve low fuel consumption during trips that involve frequent
accelerating and braking.
Refer to the Owner’s Manual for more details.
Park button
Reverse

Neutral
Drive
Engine brake*
Power Mode
Use when a higher level of response is desired, such as when driving in
mountainous regions.
Refer to the Owner’s Manual for more details.
Push

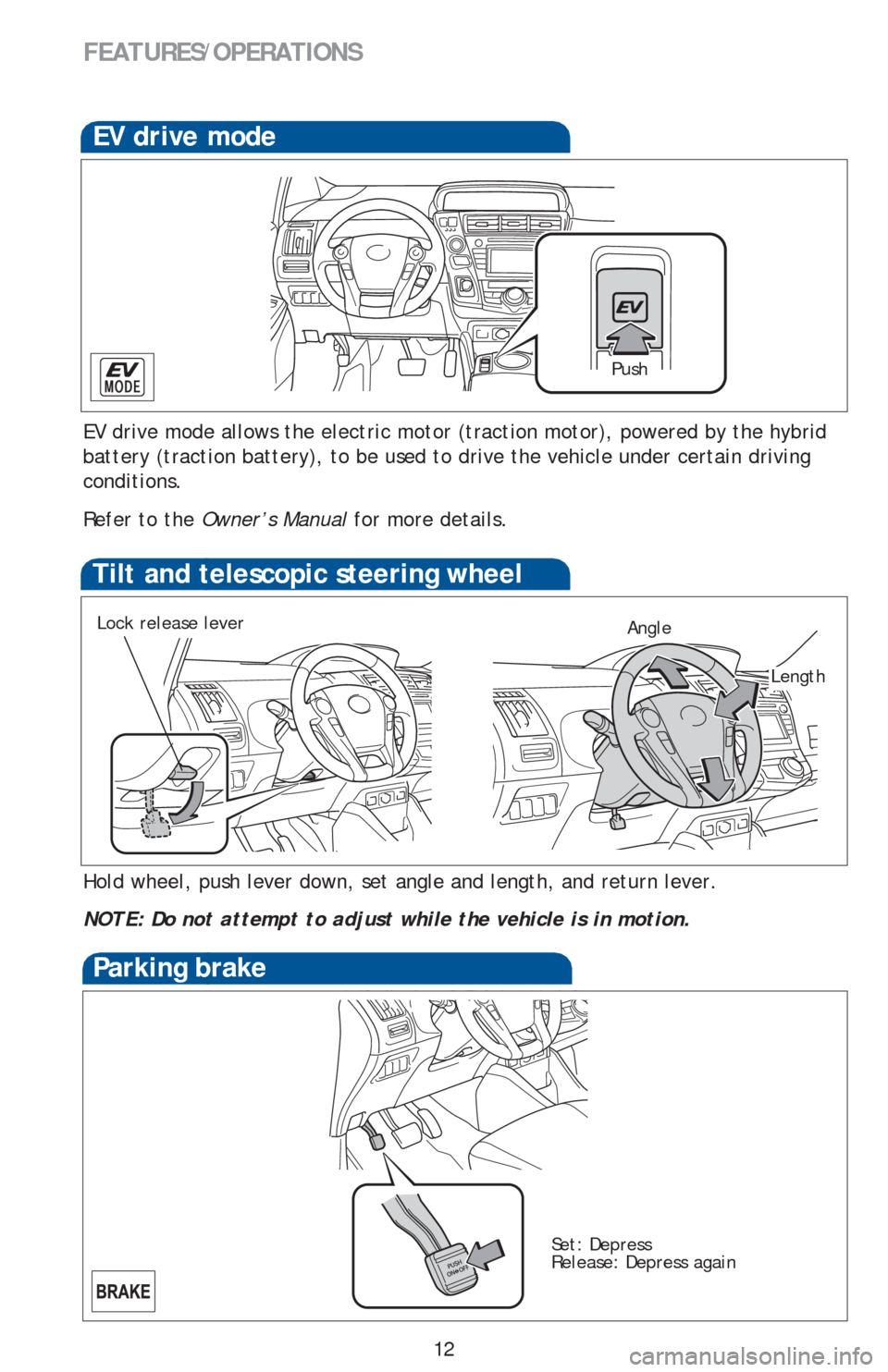

12
FEATURES/OPERATIONS
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
EV drive mode
EV drive mode allows the electric motor (traction motor), powered by the hybrid
battery (traction battery), to be used to drive the vehicle under certain driving
conditions.
Refer to the Owner’s Manual for more details.
Push
Angle
Length
Lock release lever
Parking brake
Set: Depress
Release: Depress again

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13

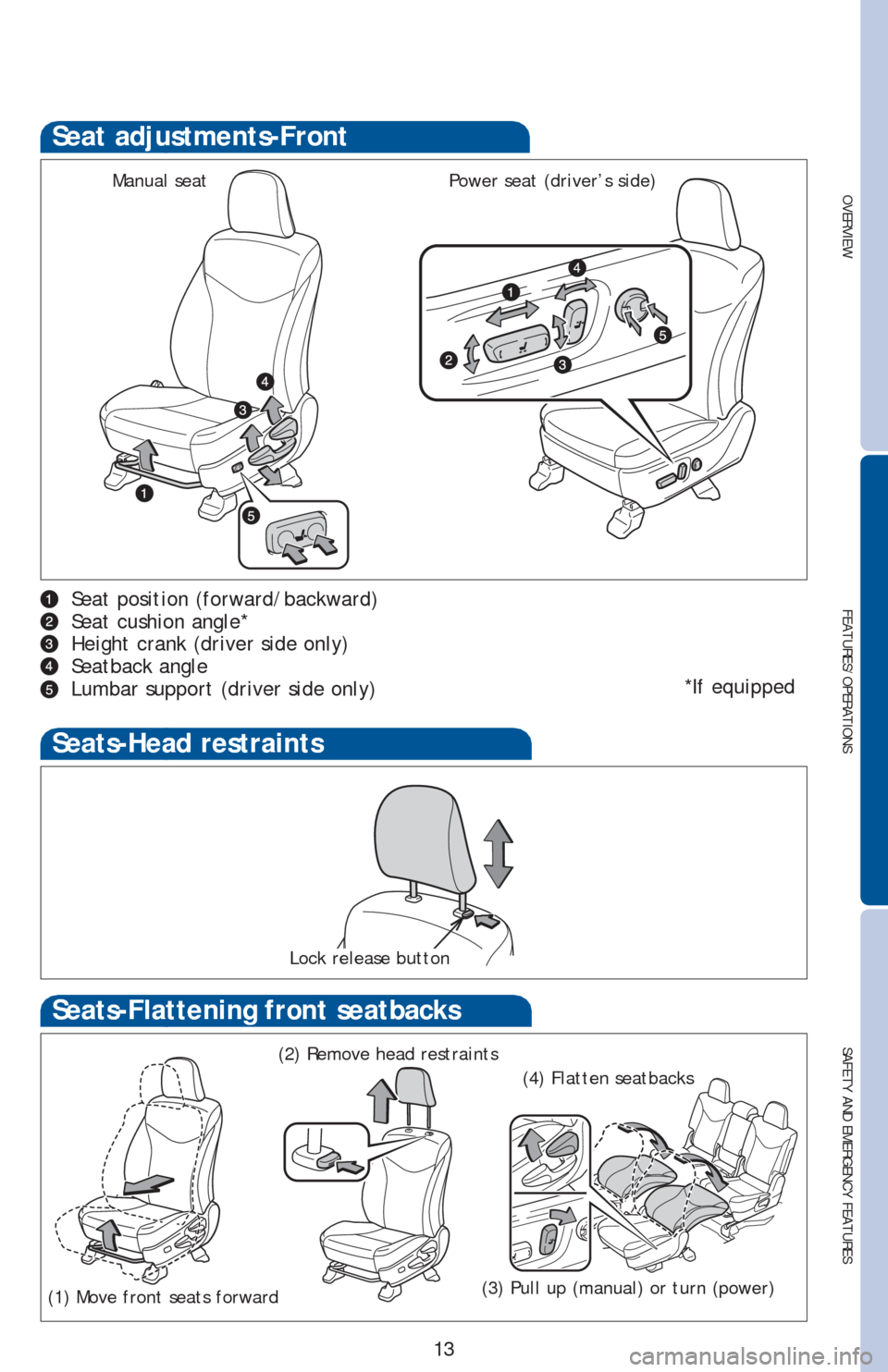

Seat adjustments-Front
Seat position (forward/backward)
Seat cushion angle*
Height crank (driver side only)
Seatback angle
Lumbar support (driver side only)*If equipped
Seats-Head restraints
Lock release button
Seats-Flattening front seatbacks
(1) Move front seats forward(2) Remove head restraints
(3) Pull up (manual) or turn (power)(4) Flatten seatbacks
Manual seatPower seat (driver’s side)

14
FEATURES/OPERATIONS

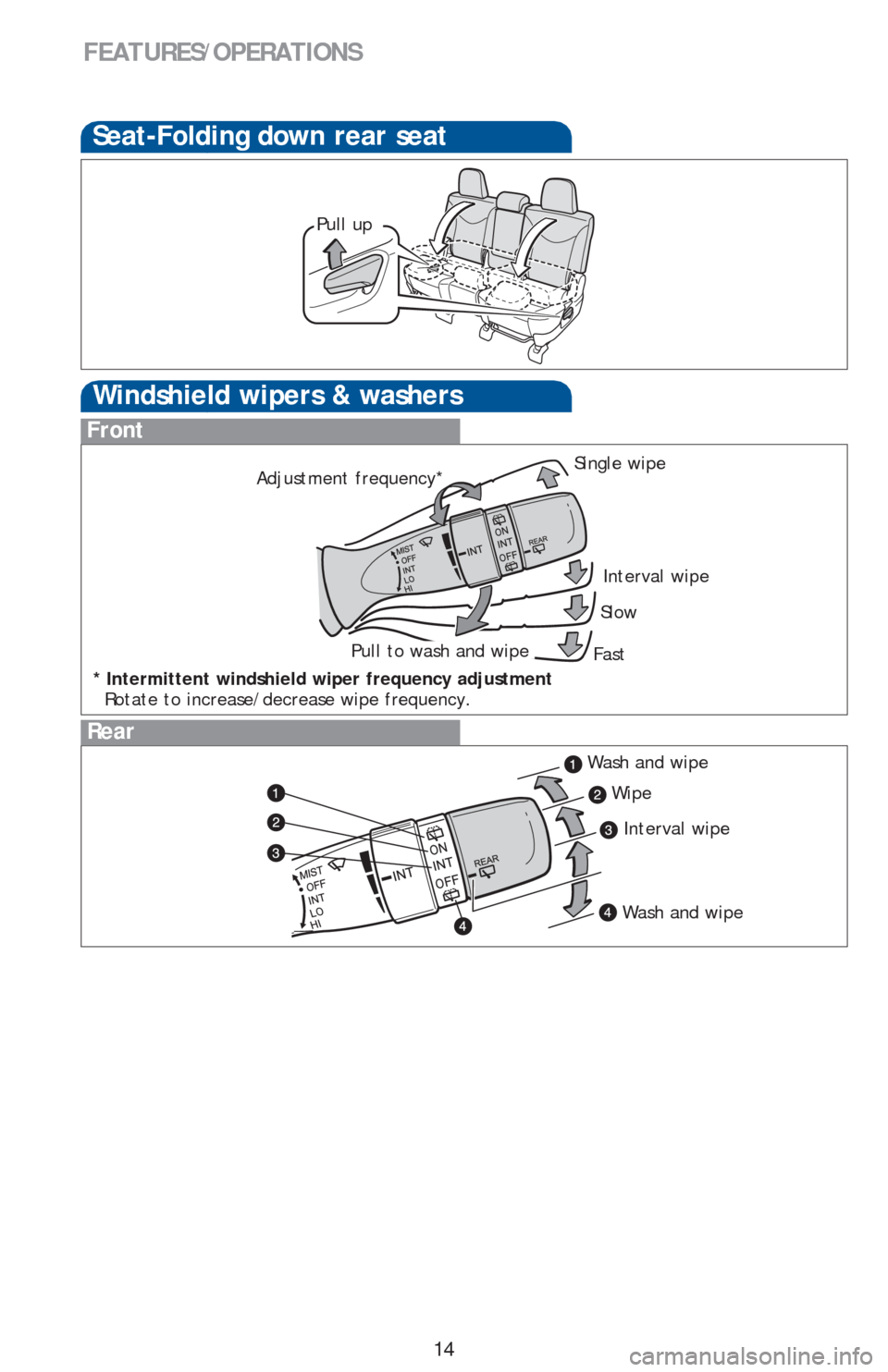

Windshield wipers & washers
Front
Rear
Interval wipe Single wipe
Slow
Fast
Pull to wash and wipe
Pull up
Seat-Folding down rear seat
Adjustment frequency*
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Wash and wipe
Wipe
Interval wipe
Wash and wipe

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15

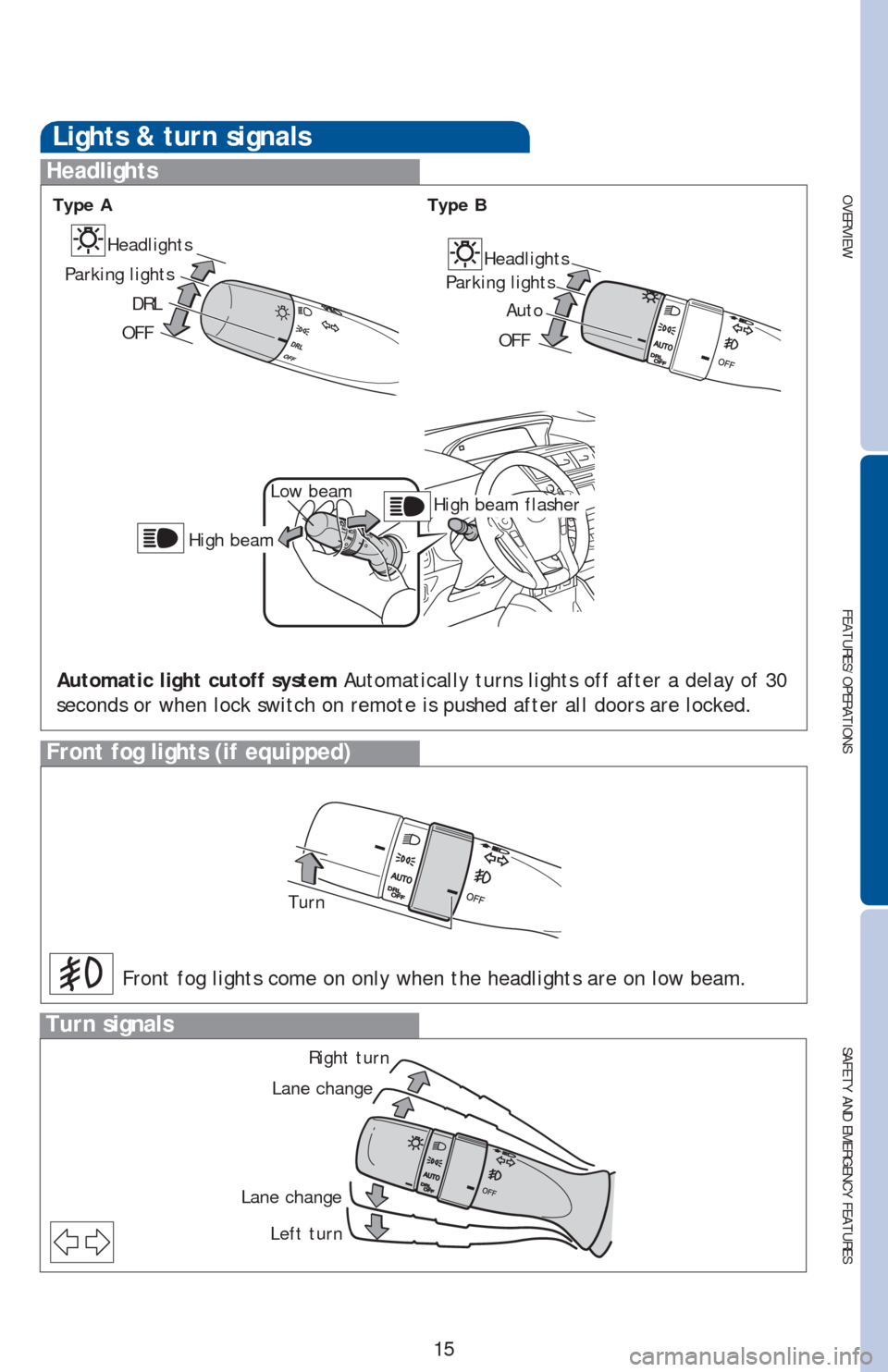

Lights & turn signals
Headlights
Front fog lights (if equipped)
Front fog lights come on only when the headlights are on low beam.
Turn
High beam flasher Low beam
Automatic light cutoff system Automatically turns lights off after a delay of 30
seconds or when lock switch on remote is pushed after all doors are locked.
High beam
Auto Parking lightsHeadlights
OFF
Parking lightsHeadlights
OFFDRL
Type A Type B
Turn signals
Right turn
Lane change
Lane change
Left turn

16
FEATURES/OPERATIONS

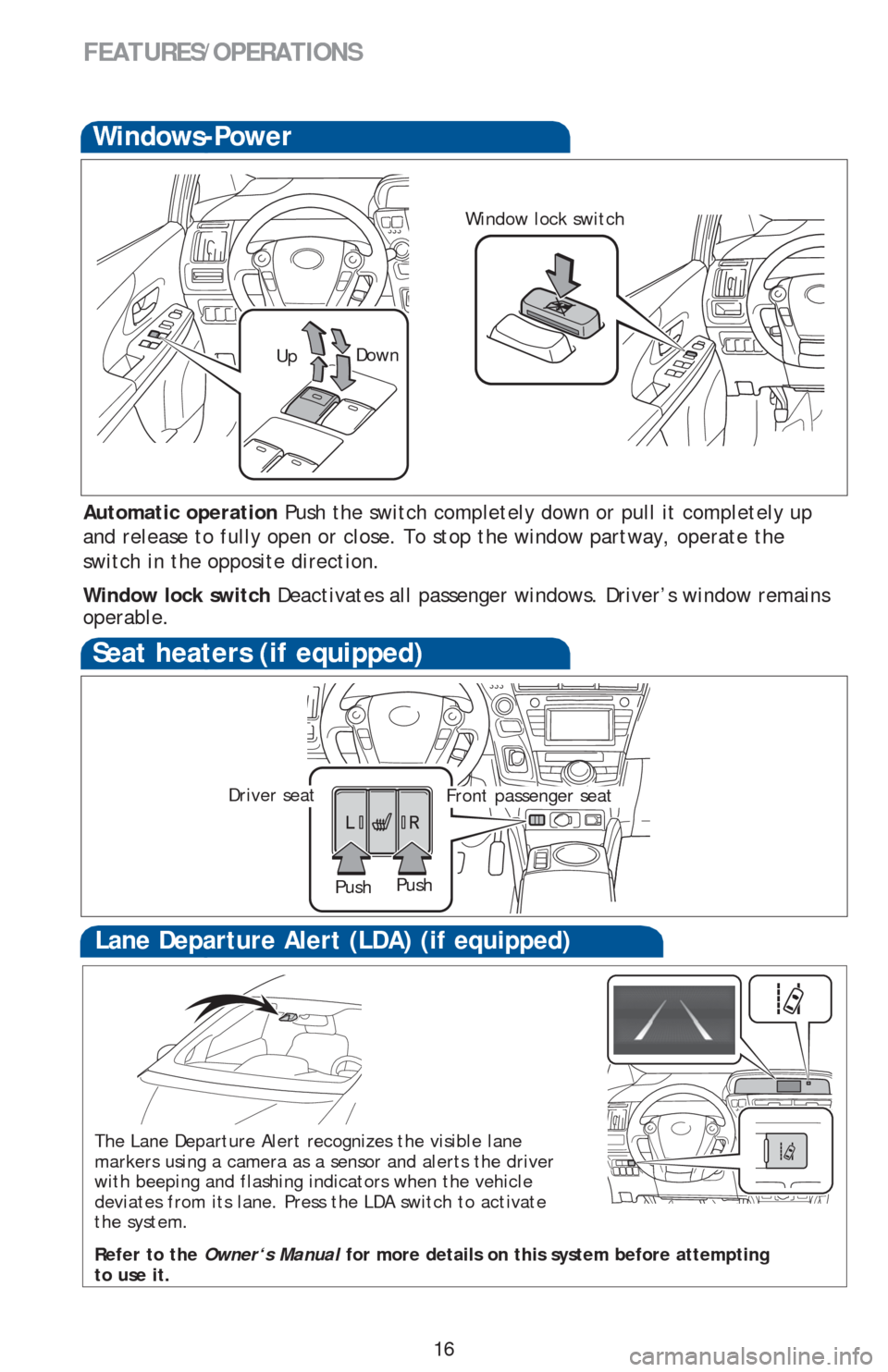

Seat heaters (if equipped)
Push
Push
Driver seatFront passenger seat
Windows-Power
UpDown
Window lock switch
Automatic operation Push the switch completely down or pull it completely up
and release to fully open or close. To stop the window partway, operate the
switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
The Lane Departure Alert recognizes the visible lane
markers using a camera as a sensor and alerts the driver
with beeping and flashing indicators when the vehicle
deviates from its lane. Press the LDA switch to activate
the system.
Refer to the Owner‘s Manual for more details on this system before attempting
to use it.
Lane Departure Alert (LDA) (if equipped)

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17

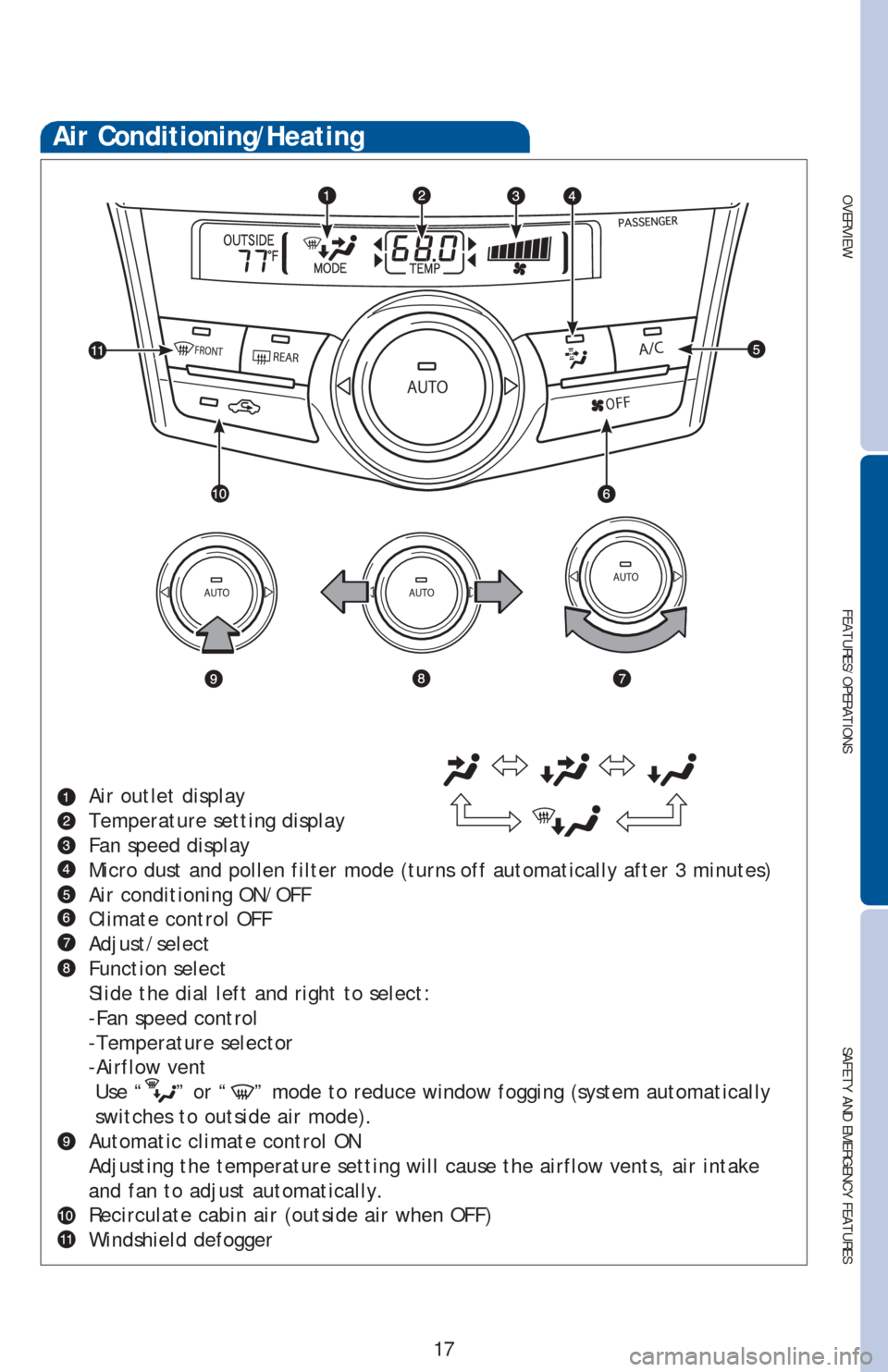

Air Conditioning/Heating
Air outlet display
Temperature setting display
Fan speed display
Micro dust and pollen filter mode (turns off automatically after 3 minutes)
Air conditioning ON/OFF
Climate control OFF
Adjust/select
Function select
Slide the dial left and right to select:
-Fan speed control
-Temperature selector
-Airflow vent
Use “
” or “” mode to reduce window fogging (system automatically
switches to outside air mode).
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake
and fan to adjust automatically.
Recirculate cabin air (outside air when OFF)
Windshield defogger

18
FEATURES/OPERATIONS

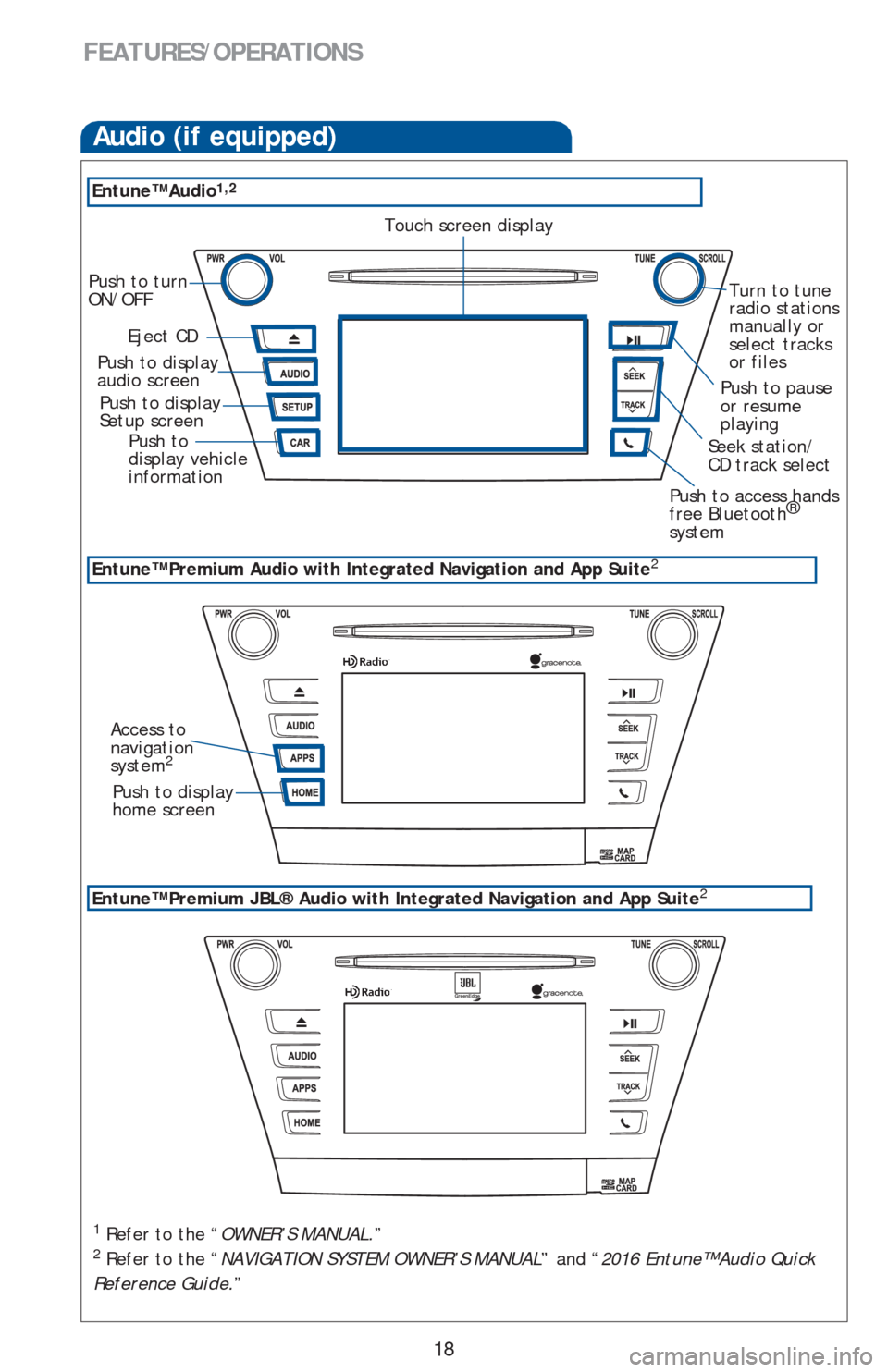

Entune™ Premium Audio with Integrated Navigation and App Suite2
Audio (if equipped)
Entune™ Audio1,2
Eject CD Push to turn
ON/OFF
Seek station/
CD track select Push to display
audio screen
Turn to tune
radio stations
manually or
select tracks
or files
Touch screen display
Push to pause
or resume
playing
Access to
navigation
system
2
Entune™ Premium JBL® Audio with Integrated Navigation and App Suite2
1
Refer to the “OWNER’S MANUAL.”
2
Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL” and “2016 Entune™ Audio Quick
Reference Guide.”
Push to display
Setup screen
Push to
display vehicle
information
Push to access hands
free Bluetooth®

system
Push to display
home screen
