TOYOTA PRIUS V 2018 Owners Manual

PRIUS v_OM_OM47B78U_(U)
1293-2. Opening, closing and locking the doors
3
Operation of each component

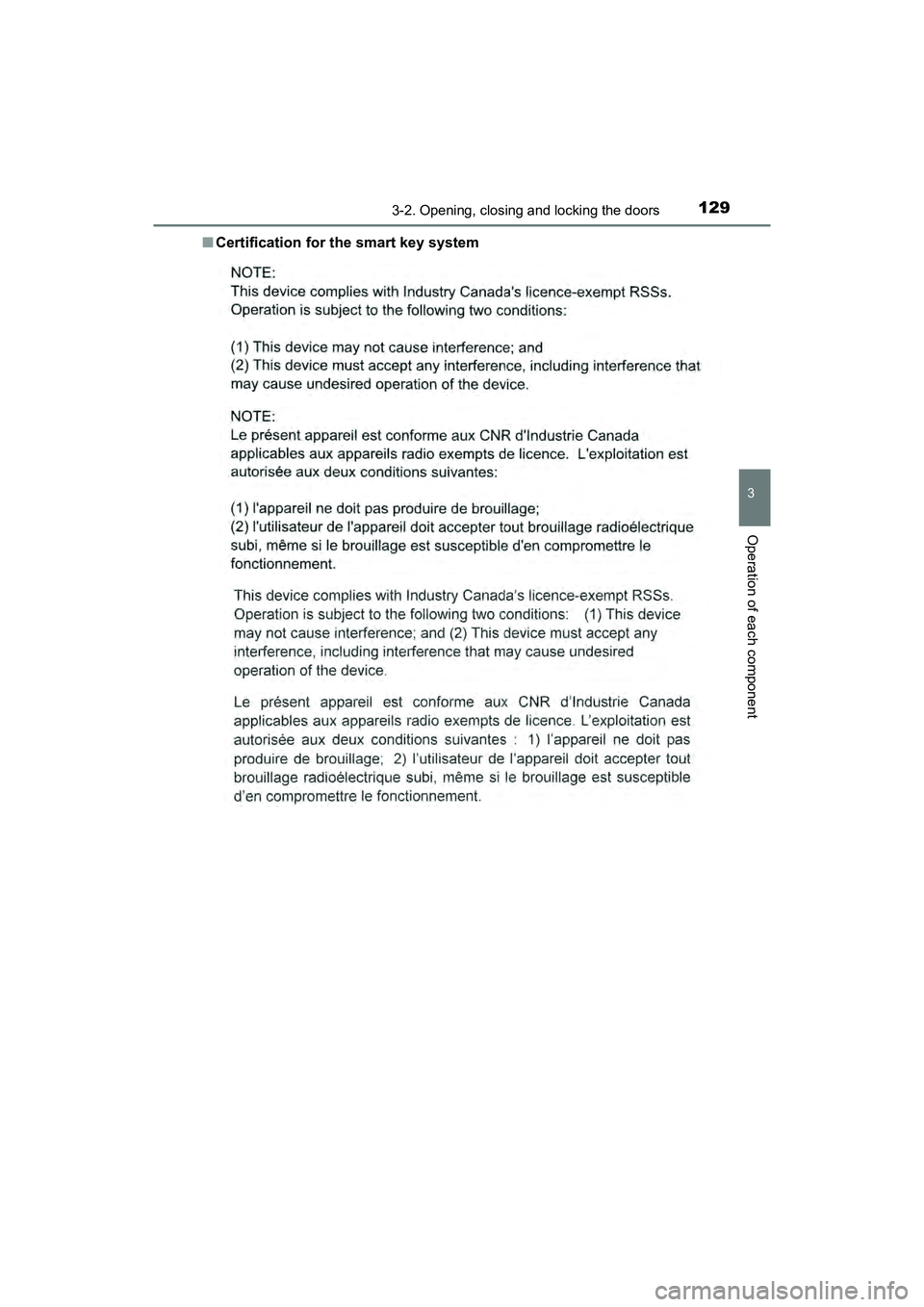

■Certification for the smart key system

130
PRIUS v_OM_OM47B78U_(U)
3-2. Opening, closing and locking the doors
WARNING
■Caution regarding interference with electronic devices
●People with implantable cardiac pac emakers, cardiac resynchronization
therapy-pacemakers or implantable card ioverter defibrillators should keep
away from the smart key system antennas. ( P. 124)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask your Toyota dealer for details, such
as the frequency of radio waves and timing of the emitted radio waves.
Then, consult your doctor to see if you should disable the entry function.
● Users of any electrical medical device other than implantable cardiac
pacemakers, cardiac resynchronization therapy-pacemakers or implanta-
ble cardioverter defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such
medical devices.
Ask your Toyota dealer for details on disabling the entry function.
On vehicles with the Entune Audio or Entune Premium Audio with Naviga-
tion, the entry function can be disabled personally. (P. 559)

131
PRIUS v_OM_OM47B78U_(U)
3-3. Adjusting the seats
3
Operation of each component

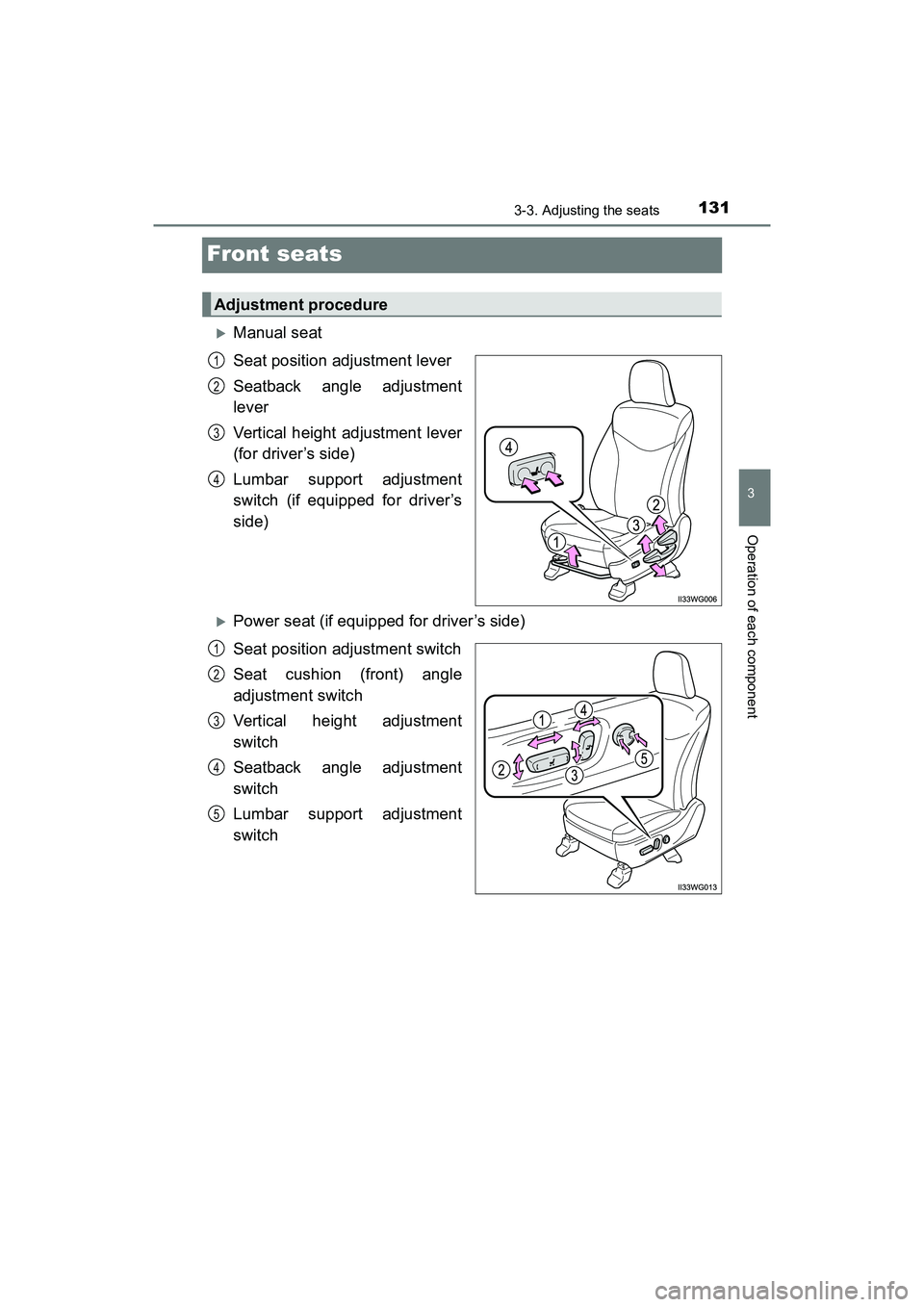

Front seats
Manual seat
Seat position adjustment lever
Seatback angle adjustment
lever
Vertical height adjustment lever
(for driver’s side)
Lumbar support adjustment
switch (if equipped for driver’s
side)
Power seat (if equipped for driver’s side)
Seat position adjustment switch
Seat cushion (front) angle
adjustment switch
Vertical height adjustment
switch
Seatback angle adjustment
switch
Lumbar support adjustment
switch
Adjustment procedure
1
2
3
4
1
2
3
4
5

132
PRIUS v_OM_OM47B78U_(U)
3-3. Adjusting the seats

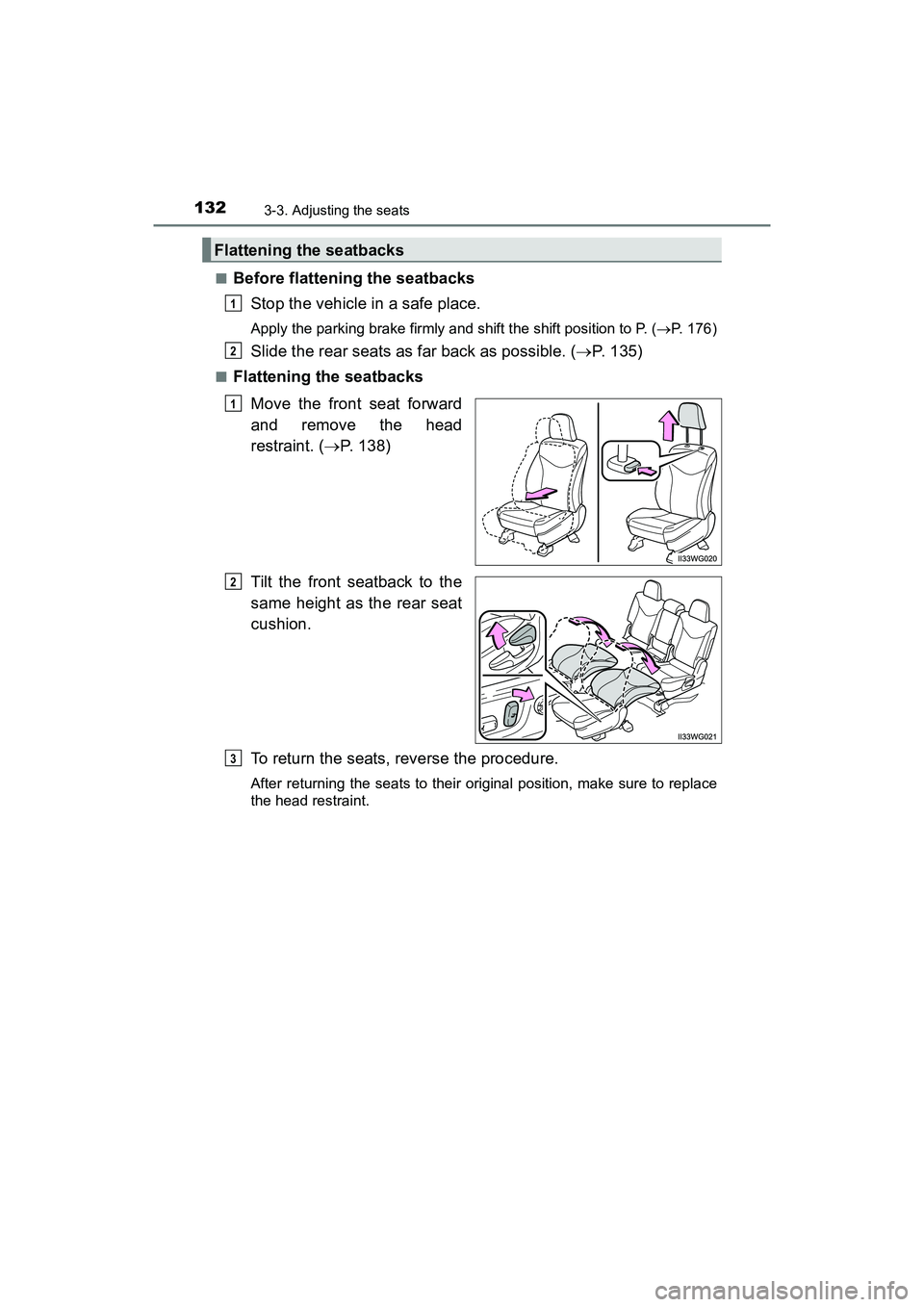

■Before flattening the seatbacksStop the vehicle in a safe place.
Apply the parking brake firmly and shift the shift position to P. ( P. 176)
Slide the rear seats as far back as possible. (P. 135)
■Flattening the seatbacks
Move the front seat forward
and remove the head
restraint. ( P. 138)
Tilt the front seatback to the
same height as the rear seat
cushion.
To return the seats, reverse the procedure.
After returning the seats to their original position, make sure to replace
the head restraint.
Flattening the seatbacks
1
2
1
2
3

PRIUS v_OM_OM47B78U_(U)

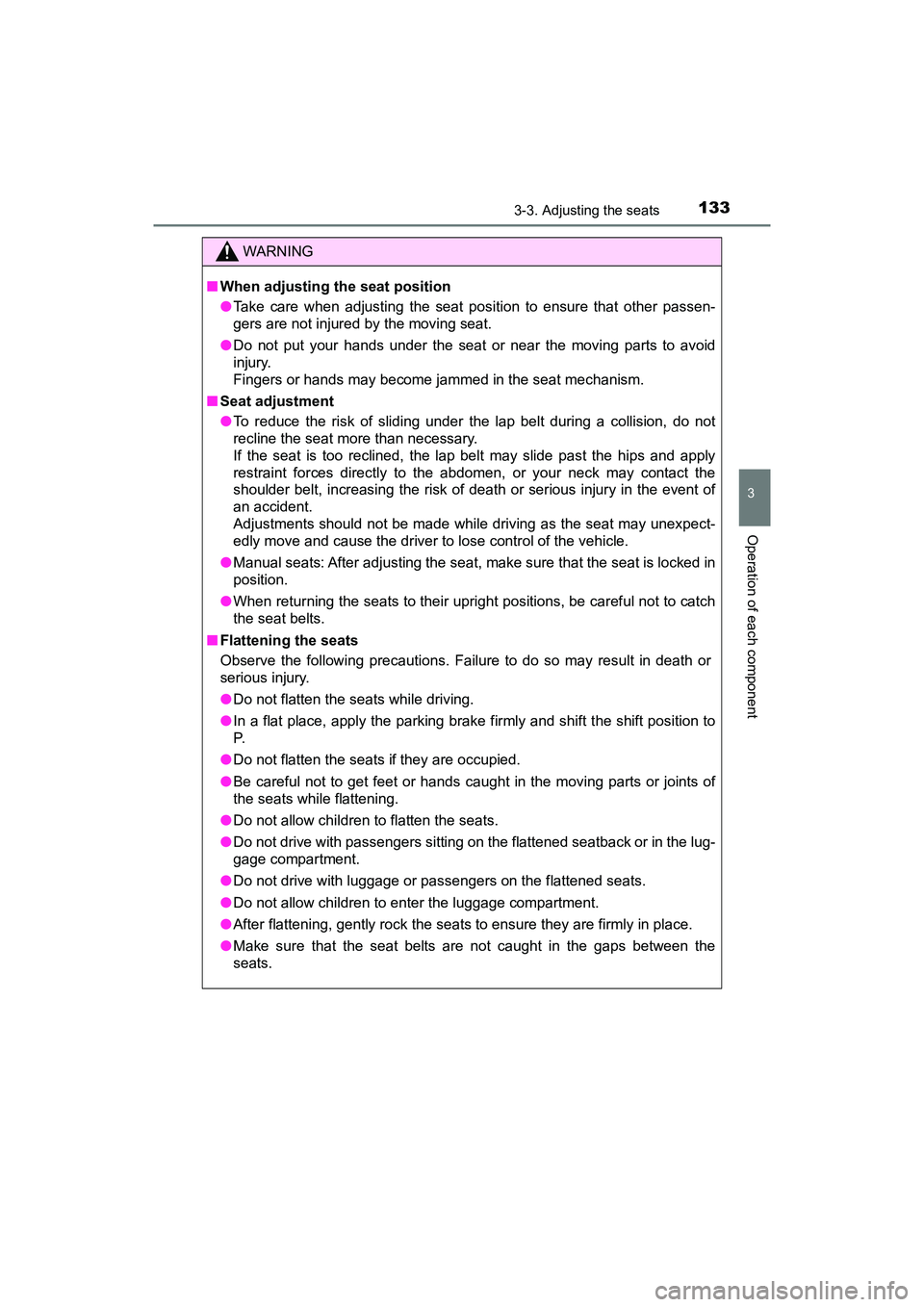

1333-3. Adjusting the seats
3
Operation of each component
WARNING
■When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.
■ Seat adjustment
●To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● Manual seats: After adjusting the seat, make sure that the seat is locked in
position.
● When returning the seats to their upright positions, be careful not to catch
the seat belts.
■ Flattening the seats
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Do not flatten the seats while driving.
● In a flat place, apply the parking brake firmly and shift the shift position to
P.
● Do not flatten the seats if they are occupied.
● Be careful not to get feet or hands caught in the moving parts or joints of
the seats while flattening.
● Do not allow children to flatten the seats.
● Do not drive with passengers sitting on the flattened seatback or in the lug-
gage compartment.
● Do not drive with luggage or passengers on the flattened seats.
● Do not allow children to enter the luggage compartment.
● After flattening, gently rock the seats to ensure they are firmly in place.
● Make sure that the seat belts are not caught in the gaps between the
seats.

134
PRIUS v_OM_OM47B78U_(U)
3-3. Adjusting the seats

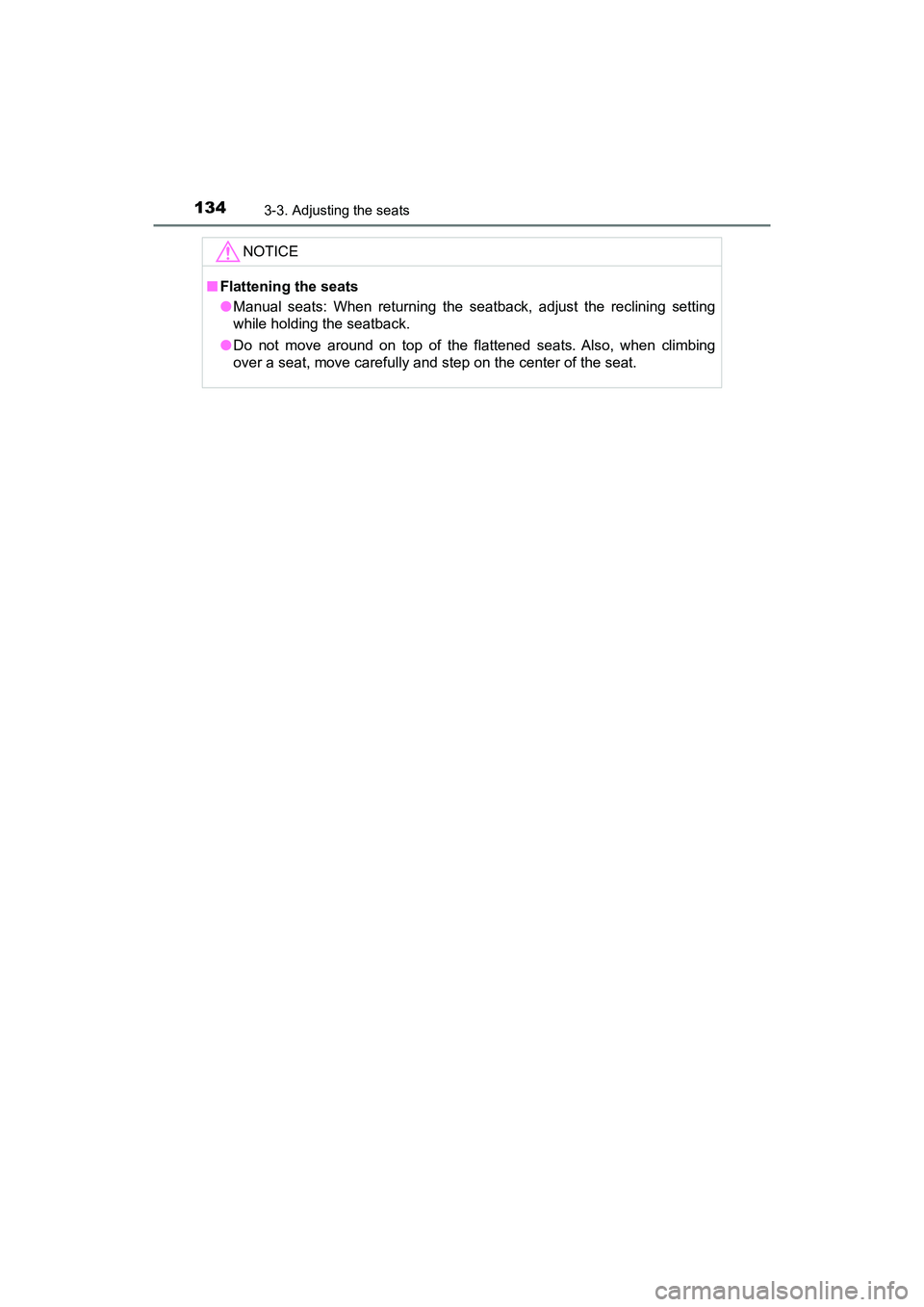

NOTICE
■Flattening the seats
●Manual seats: When returning the seatback, adjust the reclining setting
while holding the seatback.
● Do not move around on top of the flattened seats. Also, when climbing
over a seat, move carefully and step on the center of the seat.

135
PRIUS v_OM_OM47B78U_(U)
3-3. Adjusting the seats
3
Operation of each component

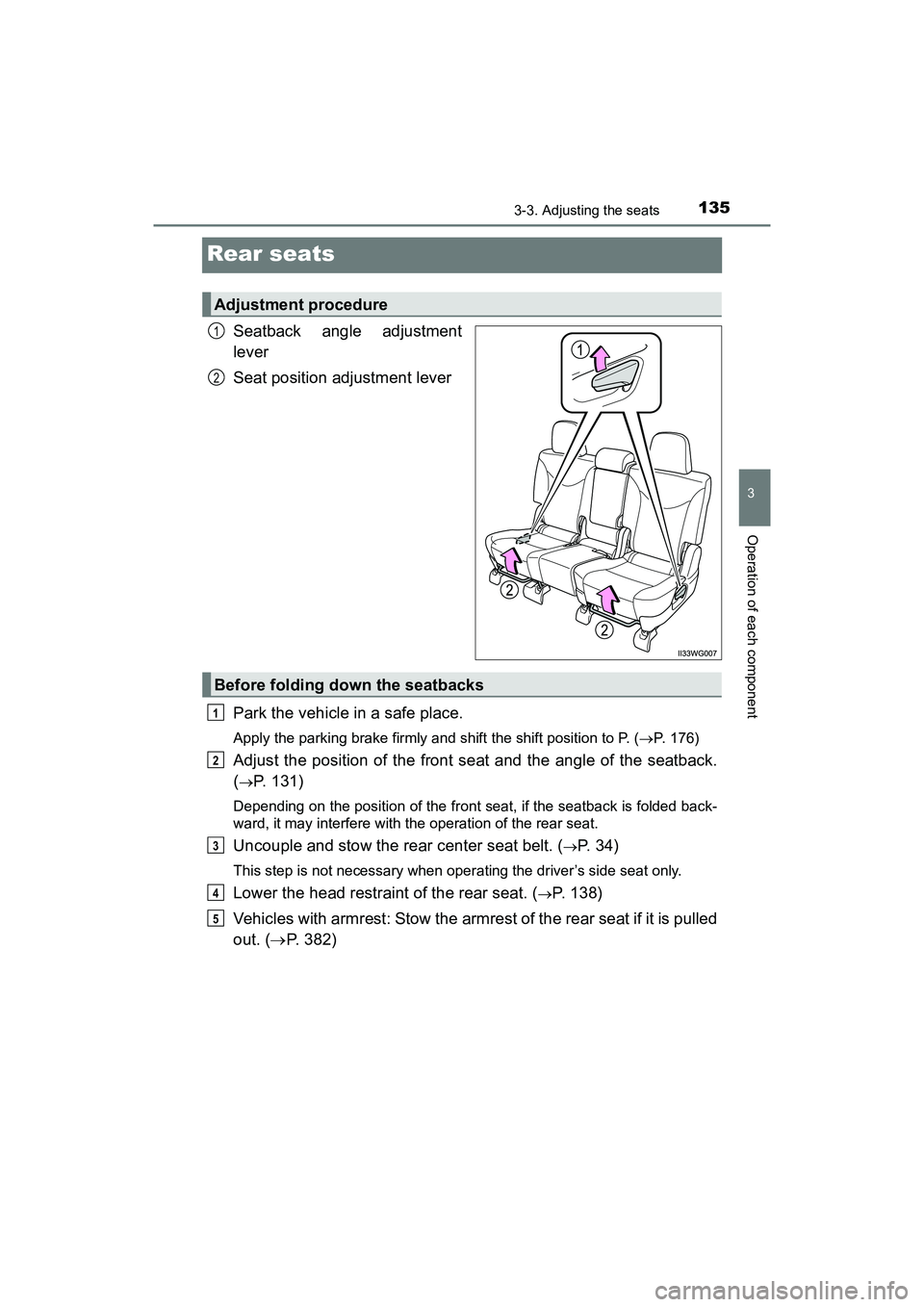

Rear seats
Seatback angle adjustment
lever
Seat position adjustment lever
Park the vehicle in a safe place.
Apply the parking brake firmly and shift the shift position to P. (P. 176)
Adjust the position of the front seat and the angle of the seatback.
(
P. 131)
Depending on the position of the front seat, if the seatback is folded back-
ward, it may interfere with the operation of the rear seat.
Uncouple and stow the rear center seat belt. (P. 3 4 )
This step is not necessary when operating the driver’s side seat only.
Lower the head restraint of the rear seat. (P. 138)
Vehicles with armrest: Stow the armrest of the rear seat if it is pulled
out. ( P. 382)
Adjustment procedure
1
2
Before folding down the seatbacks
1
2
3
4
5

136
PRIUS v_OM_OM47B78U_(U)
3-3. Adjusting the seats

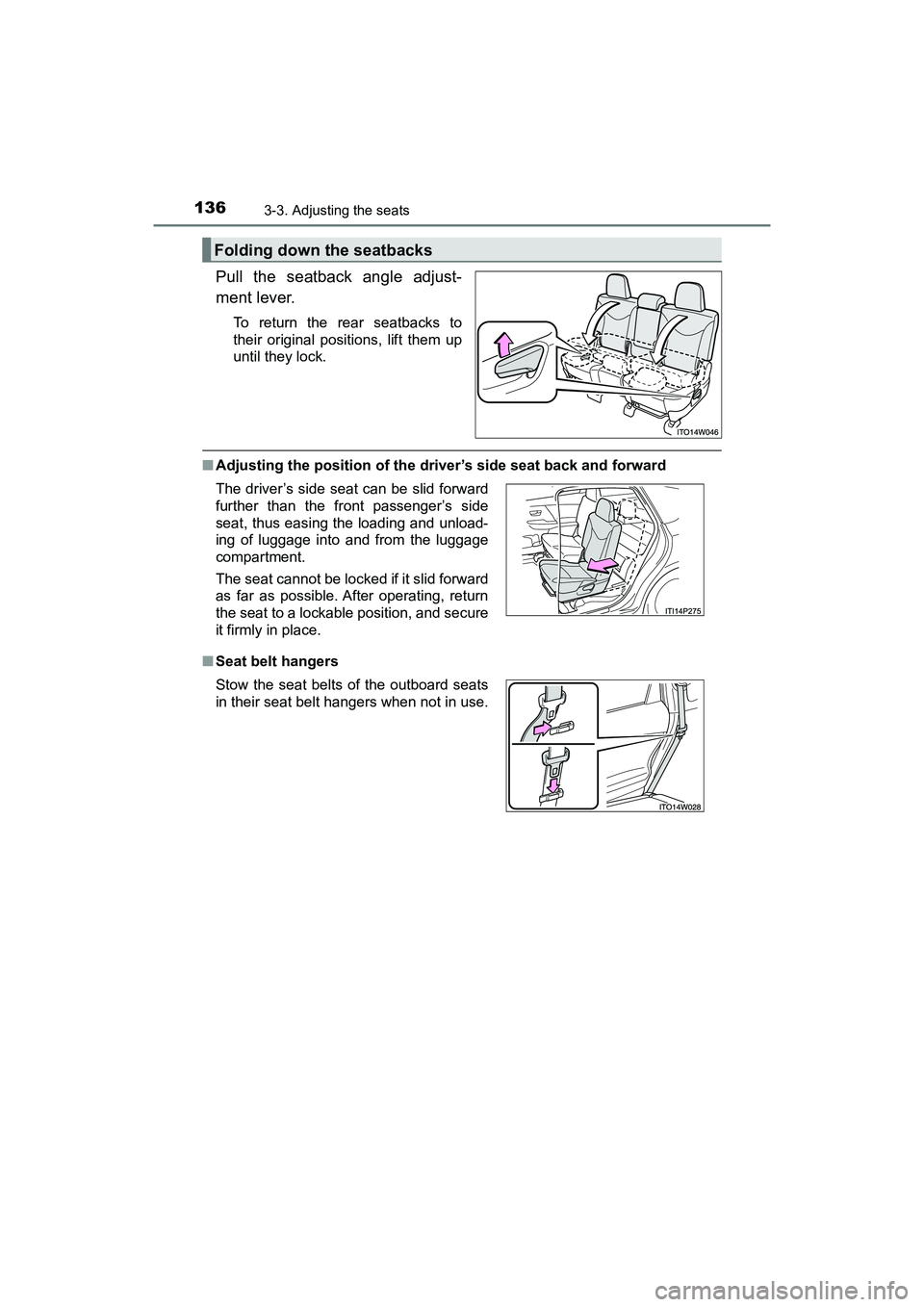

Pull the seatback angle adjust-
ment lever.
To return the rear seatbacks to
their original positions, lift them up
until they lock.
■Adjusting the position of the driver’s side seat back and forward
■ Seat belt hangers
Folding down the seatbacks
The driver’s side seat can be slid forward
further than the front passenger’s side
seat, thus easing the loading and unload-
ing of luggage into and from the luggage
compartment.
The seat cannot be locked if it slid forward
as far as possible. After operating, return
the seat to a lockable position, and secure
it firmly in place.
Stow the seat belts of the outboard seats
in their seat belt hangers when not in use.

PRIUS v_OM_OM47B78U_(U)
1373-3. Adjusting the seats
3
Operation of each component

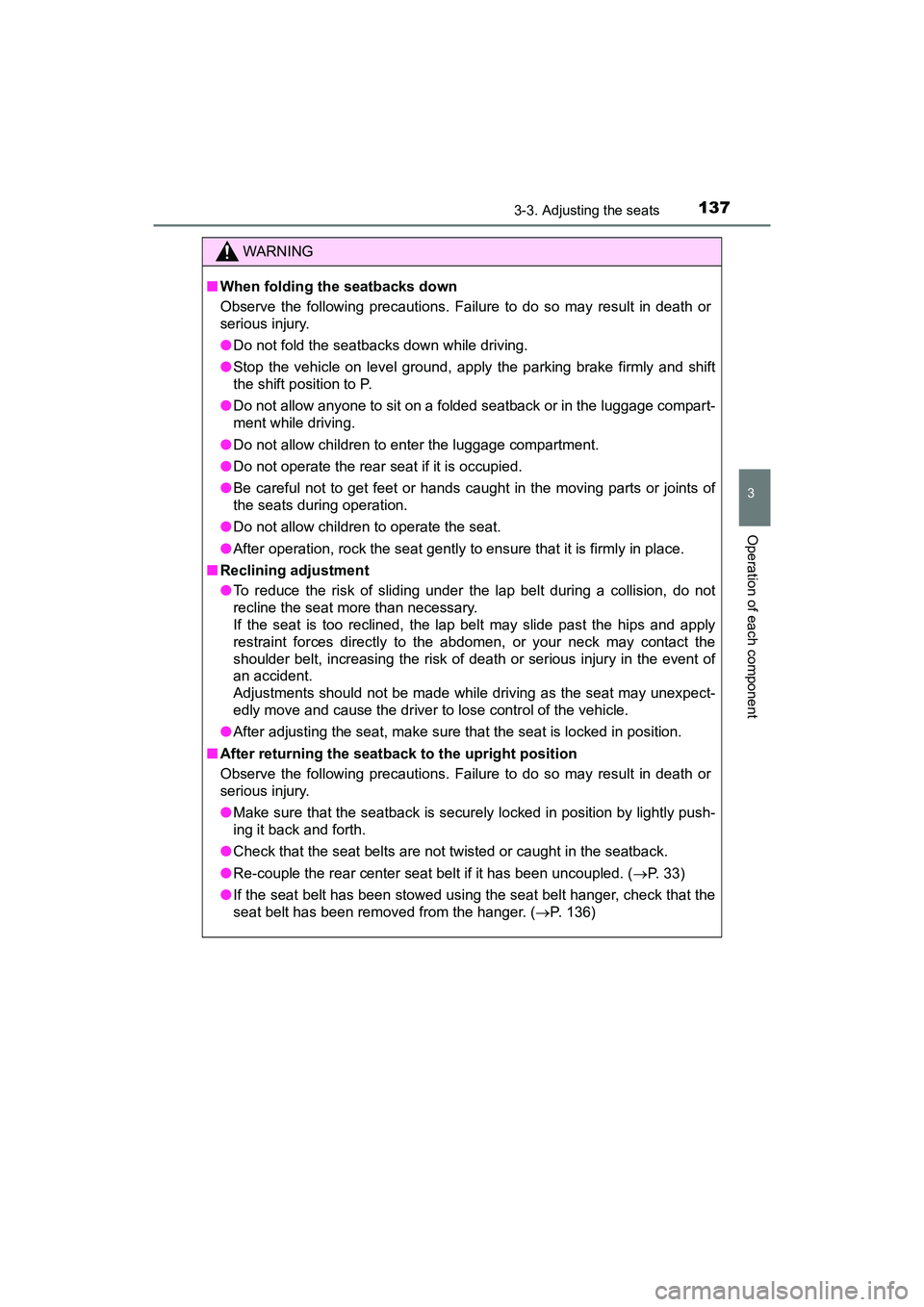

WARNING
■When folding the seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, apply the parking brake firmly and shift
the shift position to P.
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
● Do not operate the rear seat if it is occupied.
● Be careful not to get feet or hands caught in the moving parts or joints of
the seats during operation.
● Do not allow children to operate the seat.
● After operation, rock the seat gently to ensure that it is firmly in place.
■ Reclining adjustment
●To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● After adjusting the seat, make sure that the seat is locked in position.
■ After returning the seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Make sure that the seatback is securely locked in position by lightly push-
ing it back and forth.
● Check that the seat belts are not twisted or caught in the seatback.
● Re-couple the rear center seat belt if it has been uncoupled. ( P. 33)
● If the seat belt has been stowed using the seat belt hanger, check that the
seat belt has been removed from the hanger. ( P. 136)

138
PRIUS v_OM_OM47B78U_(U)
3-3. Adjusting the seats

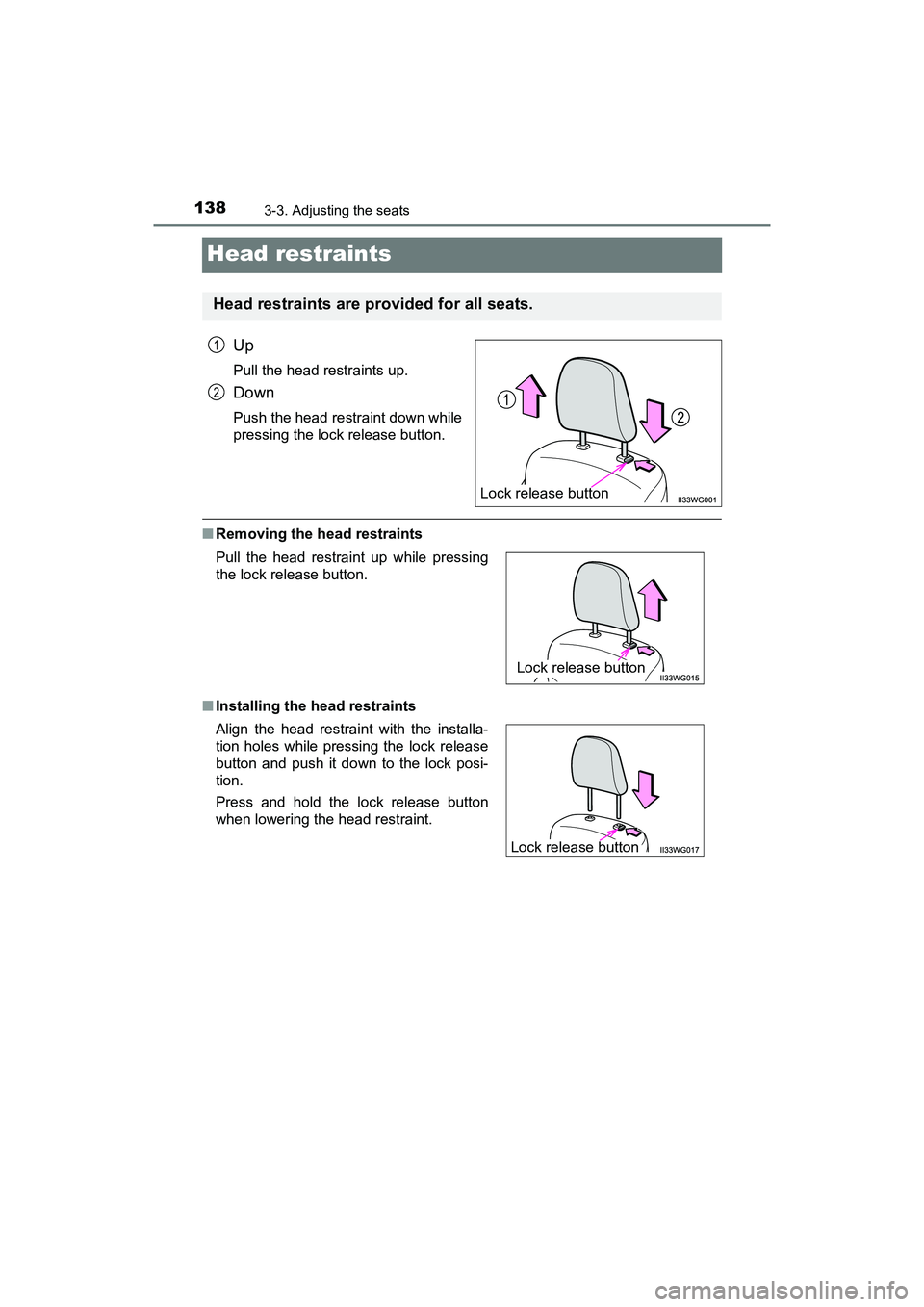

Head restraints
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
■Removing the head restraints
■ Installing the head restraints
Head restraints are provided for all seats.
Lock release button
1
2
Pull the head restraint up while pressing
the lock release button.
Align the head restraint with the installa-
tion holes while pressing the lock release
button and push it down to the lock posi-
tion.
Press and hold the lock release button
when lowering the head restraint.
Lock release button
Lock release button
