key TOYOTA PROACE 2020 (in English) Owner's Manual

73
F Vehicle unlocked, press this button.
F Loading area locked, press this button.
For more information on the Key, Remote control or Smar t Entr y & Star t System, and in particular, programming the selective locking of the loading area, refer to the corresponding section.
This button is inoperative if the vehicle has been locked or deadlocked from outside (using the key, remote control or Smart Entry & Start System, depending on equipment) or if one of the doors is still open.
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
The indicator lamp goes off when one or more of the loading area doors is unlocked.To save energy, with the ignition off and the vehicle totally locked, the indicator lamp goes off.
To deactivate this automatic locking, go to an authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Automatic
The loading area doors always lock while driving.
Locking / unlocking
the loading area
Manual
The indicator lamp comes on to confirm the locking of the vehicle.
F Vehicle locked, press this button.
The indicator lamp goes off to confirm the unlocking of the vehicle.
Cab and loading area selectivity deactivated.
Cab and loading area selectivity activated.
F Loading area unlocked, press this button.
The indicator lamp comes on to confirm the locking of the loading area.
The indicator lamp goes off to confirm the unlocking of the loading area.
2
Access

74
Front doors
Opening
From outside
F Pull the interior control lever of a door to totally unlock the vehicle and open the d o o r.
F Pull the interior control lever of a door to unlock the cab and open the door.
F Pull the interior control lever on a door to totally unlock the vehicle and open the d o o r.
F After unlocking the vehicle (using the key, remote control or Smart Entry & Start System, depending on equipment), pull the door handle.
Cab and loading area selectivity deactivated and the vehicle locked.
Cab and loading area selectivity activated and the vehicle locked.
Vehicle locked.
For more information on the Key, Remote control or Smar t Entr y & Star t System and in particular unlocking the vehicle, refer to the corresponding section.
From inside
The interior door controls do not
operate when the vehicle is deadlocked.
If the door is unlocked, pull the handle to open the door.
Access

75
Closing
F Push or pull the door to close it, then lock it.
For more information on the Key, Remote control or Smar t Entr y & Start System and in particular locking the vehicle, refer to the corresponding section.
When a door is not fully closed:- vehicle stationary and engine running, this warning lamp comes on, accompanied by an alert message for a few seconds,- vehicle moving (speed above 6 mph (10 km/h)), this warning lamp comes on, accompanied by an audible signal and an alert message for a few seconds.
Manual sliding side door(s)
From outside
F After unlocking the vehicle (using the key, remote control or Smart Entry & Start System, depending on equipment) pull the door handle.Take care not to block the guide space on the floor to allow the door to slide c o r r e c t l y.As a safety measure and for functional reasons, do not drive with the sliding side door open.
For more information on the Key, Remote control or Smar t Entr y & Star t System and in particular unlocking the vehicle, refer to the corresponding section.
To hold the sliding side door in the open position, open the door fully to engage the latch (located at the bottom of the door).
2
Access

77
If a sliding side door is not fully closed:- vehicle stationary and engine running, this warning lamp comes on, accompanied by an alert message for a few seconds,- vehicle moving (speed above 6 mph (10 km/h)), this warning lamp comes on, accompanied by an audible signal and an alert message for a few seconds.
For more information on the Key, Remote control or Smar t Entr y & Start System and in particular locking the vehicle, refer to the corresponding section.
Closing
From outside
F Pull the handle toward you, then to the front, and if necessary lock the vehicle.
From inside
F Push the handle for ward to close the door, and if necessary lock the vehicle.
2
Access

79
F Pull the handle toward the rear to unlock the loading area and start the electrically powered opening of the door.
F Pull the handle toward the rear to start the electrically powered opening of the door.
Using the handle
Cab and loading area selectivity activated.
Child lock off (deactivated).
F Pull the handle toward the rear to totally unlock the vehicle and start the electrically powered opening of the door.
From inside
Cab and loading area selectivity deactivated.
For more information on the Key, Remote control or Smar t Entr y & Start System and in particular total or selective unlocking, refer to the corresponding section.
Cab and loading area selectivity deactivated.
From inside, total
unlocking then
opening
F To unlock the vehicle and start the electrically powered opening of a door, press the button for the corresponding d o o r.F Pressing the button again reverses the movement of the door.
The button is inoperative and accompanied by an audible signal, if:- the vehicle is moving,- the vehicle has been locked or deadlocked from outside (using the key, remote control or Smart Entry & Start System, depending on equipment).Depending on equipment, the button for the left hand door is inoperative and accompanied by an audible signal, if the fuel filler flap is open.
Using the button(s) at the front
Vehicle locked
Vehicle unlocked
2
Access

80
F To unlock the loading area only and start the electrically powered opening of a door, press the button for the corresponding d o o r.F Pressing the button again reverses the movement of the door.
The button is inoperative and accompanied by an audible signal, if:- the vehicle is moving,- the vehicle has been locked or deadlocked from outside (using the key, remote control or Smart Entry & Start System, depending on equipment).Depending on equipment, the button for the left hand door is inoperative and accompanied by an audible signal, if the fuel filler flap is open.
For more information on the Key, Remote control or Smar t Entr y & Start System and in particular total or selective unlocking, refer to the corresponding section.
Using the button(s) at the frontFrom inside,
selective unlocking
then opening
Cab and loading area selectivity activated.
Access

81
F Child lock deactivated, to unlock the vehicle and start the electrically powered opening of a door, press the button for the corresponding door.F Pressing the button again reverses the movement of the door.
The button is not operational and pressing it results in an audible signal, if:- the vehicle is moving,- the vehicle has been locked or deadlocked from outside (using the key, remote control or Smart Entry & Start System, depending on equipment),- the child lock is on (activated).The button for the left-hand door is not operational and pressing it results in an audible signal if the fuel filler flap is open.
The button is not available and accompanied by an audible signal, if:- the vehicle is moving,- the vehicle has been locked or deadlocked from outside (using the key, remote control or Smart Entry & Start System, depending on equipment),- the child lock is on (activated).The button for the left-hand door is not available and is accompanied by an audible signal if the fuel filler flap is open.
Using the button(s) at the frontFrom inside,
unlocking then
opening
Using the button(s) on the door pillar
F Child lock deactivated, to unlock the vehicle and start the electrically powered opening of a door, press the button for the corresponding door.F Pressing the button again reverses the movement of the door.
For more information on the Child lock, refer to the corresponding section.
2
Access

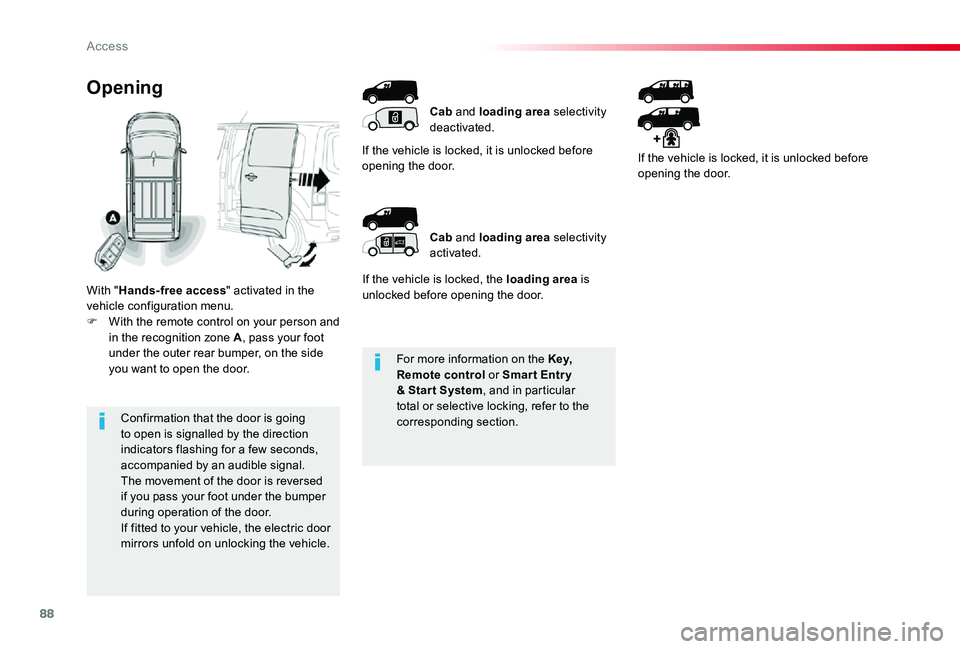

88
For more information on the Key, Remote control or Smar t Entr y & Star t System, and in particular total or selective locking, refer to the corresponding section.Confirmation that the door is going to open is signalled by the direction
indicators flashing for a few seconds, accompanied by an audible signal.The movement of the door is reversed if you pass your foot under the bumper during operation of the door.If fitted to your vehicle, the electric door mirrors unfold on unlocking the vehicle.
Opening
With "Hands-free access" activated in the vehicle configuration menu.F With the remote control on your person and in the recognition zone A, pass your foot under the outer rear bumper, on the side you want to open the door.
Cab and loading area selectivity deactivated.
Cab and loading area selectivity activated.
If the vehicle is locked, it is unlocked before opening the door.
If the vehicle is locked, the loading area is unlocked before opening the door.
If the vehicle is locked, it is unlocked before opening the door.
Access

90

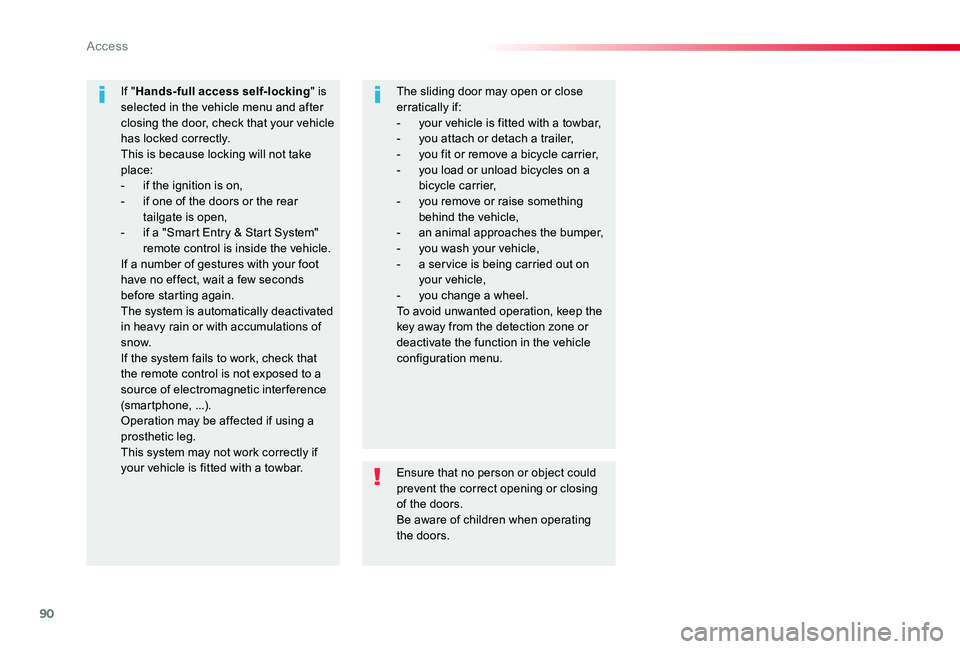

Ensure that no person or object could prevent the correct opening or closing of the doors.Be aware of children when operating the doors.
If "Hands-full access self-locking" is selected in the vehicle menu and after closing the door, check that your vehicle has locked correctly.This is because locking will not take place:- if the ignition is on,- if one of the doors or the rear tailgate is open,- if a "Smart Entry & Start System" remote control is inside the vehicle.If a number of gestures with your foot have no effect, wait a few seconds before starting again.The system is automatically deactivated in heavy rain or with accumulations of snow.If the system fails to work, check that the remote control is not exposed to a source of electromagnetic interference (smar tphone, ...).Operation may be affected if using a prosthetic leg.
This system may not work correctly if your vehicle is fitted with a towbar.
The sliding door may open or close erratically if:- your vehicle is fitted with a towbar,- you attach or detach a trailer,- you fit or remove a bicycle carrier,- you load or unload bicycles on a bicycle carrier,- you remove or raise something behind the vehicle,- an animal approaches the bumper,- you wash your vehicle,- a ser vice is being carried out on your vehicle,- you change a wheel.To avoid unwanted operation, keep the key away from the detection zone or deactivate the function in the vehicle configuration menu.
Access

91
If the left-hand door is not fully closed (the right-hand door is not detected):- vehicle stationary and engine running, this warning lamp comes on, accompanied by an alert message for a few seconds,- vehicle moving (speed above 6 mph (10 km/h)), this warning lamp comes on, accompanied by an audible signal and an alert message for a few seconds.For more information on the Key, Remote control or Smar t Entr y & Star t System and in particular unlocking the vehicle, refer to the corresponding section.
Rear wing doors
with glass windows
The rear wing doors with glass windows are asymmetrical.The left-hand door is fitted with a lock.
F After unlocking the vehicle (using the key, remote control or Smart Entry & Start System, depending on equipment) pull the door handle.
F After first opening the left-hand door, pull the lever A towards you to open the right-hand door.
From outside
Closing
F Close first the right-hand door, then the left-hand door.
If the left-hand door is closed first, a buffer stop located on the edge of the right-hand door prevents it closing.
2
Access
