ESP inoperative TOYOTA PROACE 2020 Owners Manual (in English)

73
F Vehicle unlocked, press this button.
F Loading area locked, press this button.
For more information on the Key, Remote control or Smar t Entr y & Star t System, and in particular, programming the selective locking of the loading area, refer to the corresponding section.
This button is inoperative if the vehicle has been locked or deadlocked from outside (using the key, remote control or Smart Entry & Start System, depending on equipment) or if one of the doors is still open.
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
The indicator lamp goes off when one or more of the loading area doors is unlocked.To save energy, with the ignition off and the vehicle totally locked, the indicator lamp goes off.
To deactivate this automatic locking, go to an authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Automatic
The loading area doors always lock while driving.
Locking / unlocking
the loading area
Manual
The indicator lamp comes on to confirm the locking of the vehicle.
F Vehicle locked, press this button.
The indicator lamp goes off to confirm the unlocking of the vehicle.
Cab and loading area selectivity deactivated.
Cab and loading area selectivity activated.
F Loading area unlocked, press this button.
The indicator lamp comes on to confirm the locking of the loading area.
The indicator lamp goes off to confirm the unlocking of the loading area.

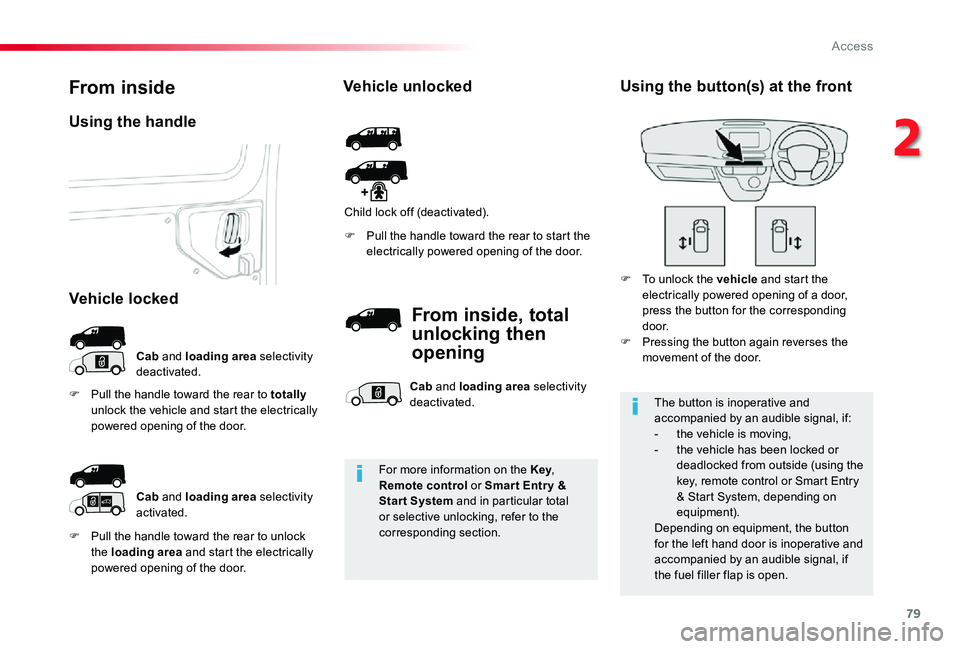

2
Access

79
F Pull the handle toward the rear to unlock the loading area and start the electrically powered opening of the door.
F Pull the handle toward the rear to start the electrically powered opening of the door.
Using the handle
Cab and loading area selectivity activated.
Child lock off (deactivated).
F Pull the handle toward the rear to totally unlock the vehicle and start the electrically powered opening of the door.
From inside
Cab and loading area selectivity deactivated.
For more information on the Key, Remote control or Smar t Entr y & Start System and in particular total or selective unlocking, refer to the corresponding section.
Cab and loading area selectivity deactivated.
From inside, total
unlocking then
opening
F To unlock the vehicle and start the electrically powered opening of a door, press the button for the corresponding d o o r.F Pressing the button again reverses the movement of the door.
The button is inoperative and accompanied by an audible signal, if:- the vehicle is moving,- the vehicle has been locked or deadlocked from outside (using the key, remote control or Smart Entry & Start System, depending on equipment).Depending on equipment, the button for the left hand door is inoperative and accompanied by an audible signal, if the fuel filler flap is open.
Using the button(s) at the front
Vehicle locked
Vehicle unlocked

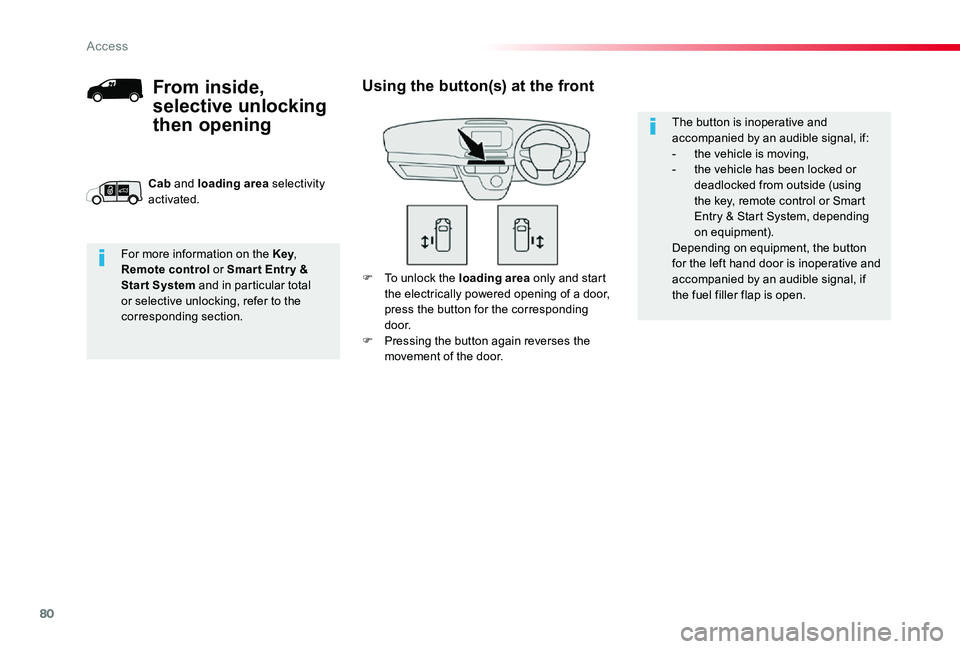

2
Access

80
F To unlock the loading area only and start the electrically powered opening of a door, press the button for the corresponding d o o r.F Pressing the button again reverses the movement of the door.
The button is inoperative and accompanied by an audible signal, if:- the vehicle is moving,- the vehicle has been locked or deadlocked from outside (using the key, remote control or Smart Entry & Start System, depending on equipment).Depending on equipment, the button for the left hand door is inoperative and accompanied by an audible signal, if the fuel filler flap is open.
For more information on the Key, Remote control or Smar t Entr y & Start System and in particular total or selective unlocking, refer to the corresponding section.
Using the button(s) at the frontFrom inside,
selective unlocking
then opening
Cab and loading area selectivity activated.

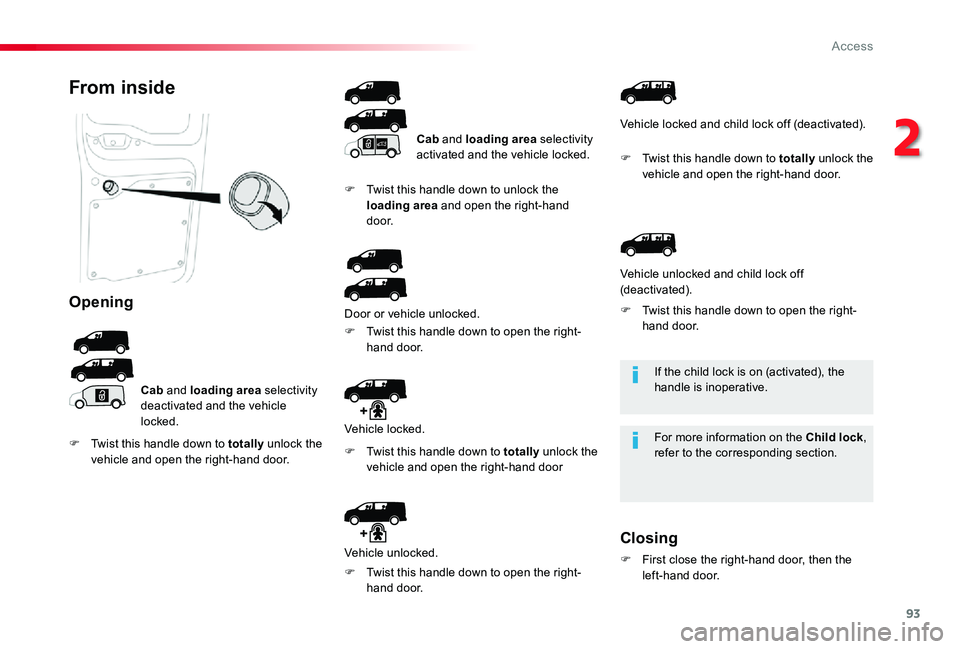

Access

93
If the child lock is on (activated), the handle is inoperative.
For more information on the Child lock, refer to the corresponding section.
From inside
Opening
Cab and loading area selectivity deactivated and the vehicle locked.
Cab and loading area selectivity activated and the vehicle locked.
Door or vehicle unlocked.
F Twist this handle down to totally unlock the vehicle and open the right-hand door.
F Twist this handle down to unlock the loading area and open the right-hand d o o r.
F Twist this handle down to open the right-hand door.
Closing
F First close the right-hand door, then the left-hand door.
Vehicle locked and child lock off (deactivated).
F Twist this handle down to totally unlock the vehicle and open the right-hand door.
Vehicle locked.
F Twist this handle down to totally unlock the vehicle and open the right-hand door
Vehicle unlocked.
F Twist this handle down to open the right-hand door.
Vehicle unlocked and child lock off (deactivated).
F Twist this handle down to open the right-hand door.
2
Access
