243
In the event of a breakdown
8

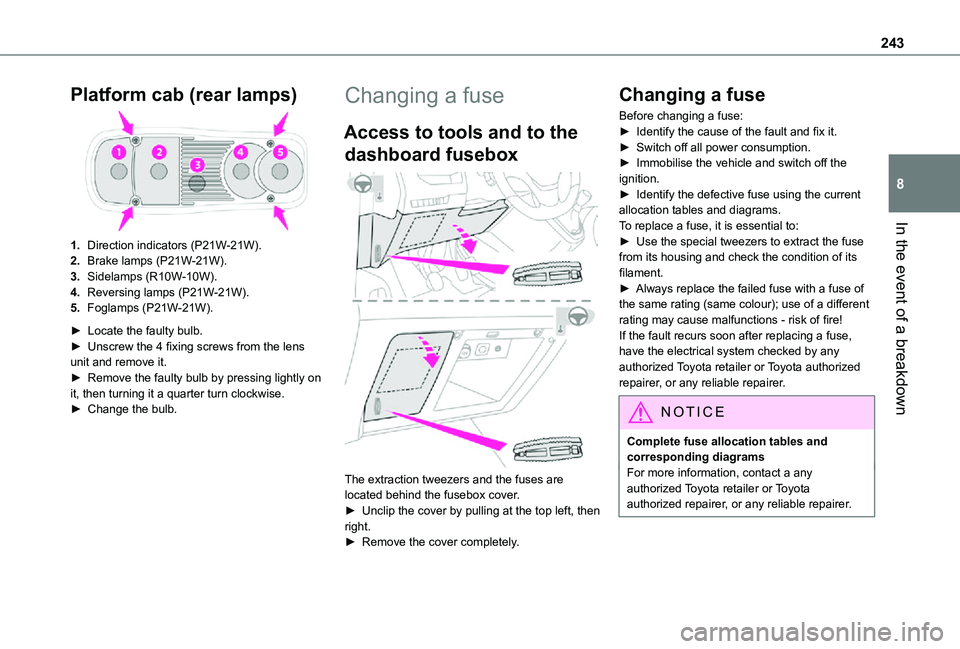

Platform cab (rear lamps)
1.Direction indicators (P21W-21W).
2.Brake lamps (P21W-21W).
3.Sidelamps (R10W-10W).
4.Reversing lamps (P21W-21W).
5.Foglamps (P21W-21W).
â–º Locate the faulty bulb.â–º Unscrew the 4 fixing screws from the lens unit and remove it.â–º Remove the faulty bulb by pressing lightly on it, then turning it a quarter turn clockwise.â–º Change the bulb.
Changing a fuse
Access to tools and to the
dashboard fusebox

The extraction tweezers and the fuses are located behind the fusebox cover.â–º Unclip the cover by pulling at the top left, then right.â–º Remove the cover completely.
Changing a fuse
Before changing a fuse:â–º Identify the cause of the fault and fix it.â–º Switch off all power consumption.â–º Immobilise the vehicle and switch off the ignition.â–º Identify the defective fuse using the current allocation tables and diagrams.To replace a fuse, it is essential to:â–º Use the special tweezers to extract the fuse from its housing and check the condition of its filament.â–º Always replace the failed fuse with a fuse of the same rating (same colour); use of a different rating may cause malfunctions - risk of fire!If the fault recurs soon after replacing a fuse, have the electrical system checked by any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
NOTIC E
Complete fuse allocation tables and corresponding diagramsFor more information, contact a any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
