852-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
Instrument cluster
2
d Shift position display✽
Indicates the selected shift position. ( ➞P. 189)
e Speedometer
Indicates the speed of the vehicle.
fDisplay change button
Switches the display of the multi-information display. (➞P. 87)
g Clock adjustment switches ( ➞P. 88)
▶Vehicles with TFT color multi-information display
a TFT color multi-information display
Displays and sets a variety of information about the vehicle. ( ➞P. 98)
b Speedometer
Indicates the speed of the vehicle.
cFuel gauge
Indicates the amount of remaining fuel.
⬛Meter/display operating conditions
When the engine switch is “ON”
⬛Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal display, and there is no problem continuing to
use the display.
1
3
2
KBRO210202E
RAIZE_OM_General_BZ358E.book 85 ページ ２０２２年５月１７日　火曜日　午後１時５９分

862-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
Multi-information display✽
Display contents
The multi-information display shows a va riety of outside temperature- and
driving-related information.
⚫Trip information ( ➞P. 8 9 )
The displayed items are as follows.
⦁Odometer
⦁ Tr ip m eter A/B
⦁ Instrument panel illumination adjust-
ment
⚫Driving information ( ➞P. 90)
The displayed items are as follows.
⦁Instantaneous fuel economy
⦁ Average fuel economy
⦁ Cruising distance
⦁ Outside temperature
⚫Fuel gauge
Indicates the amount of remaining fuel.
⚫Shift position display✽ (➞ P. 189)
⚫Clock display ( ➞P. 88)
⚫Front corner sensor/Reverse sen-
sor indicator
✽ (➞ P. 221)
▶Vehicles without tachometer
▶Vehicles with tachometer
KBRO210501E
KBRO210301E
RAIZE_OM_General_BZ358E.book 86 ページ ２０２２年５月１７日　火曜日　午後１時５９分

872-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2

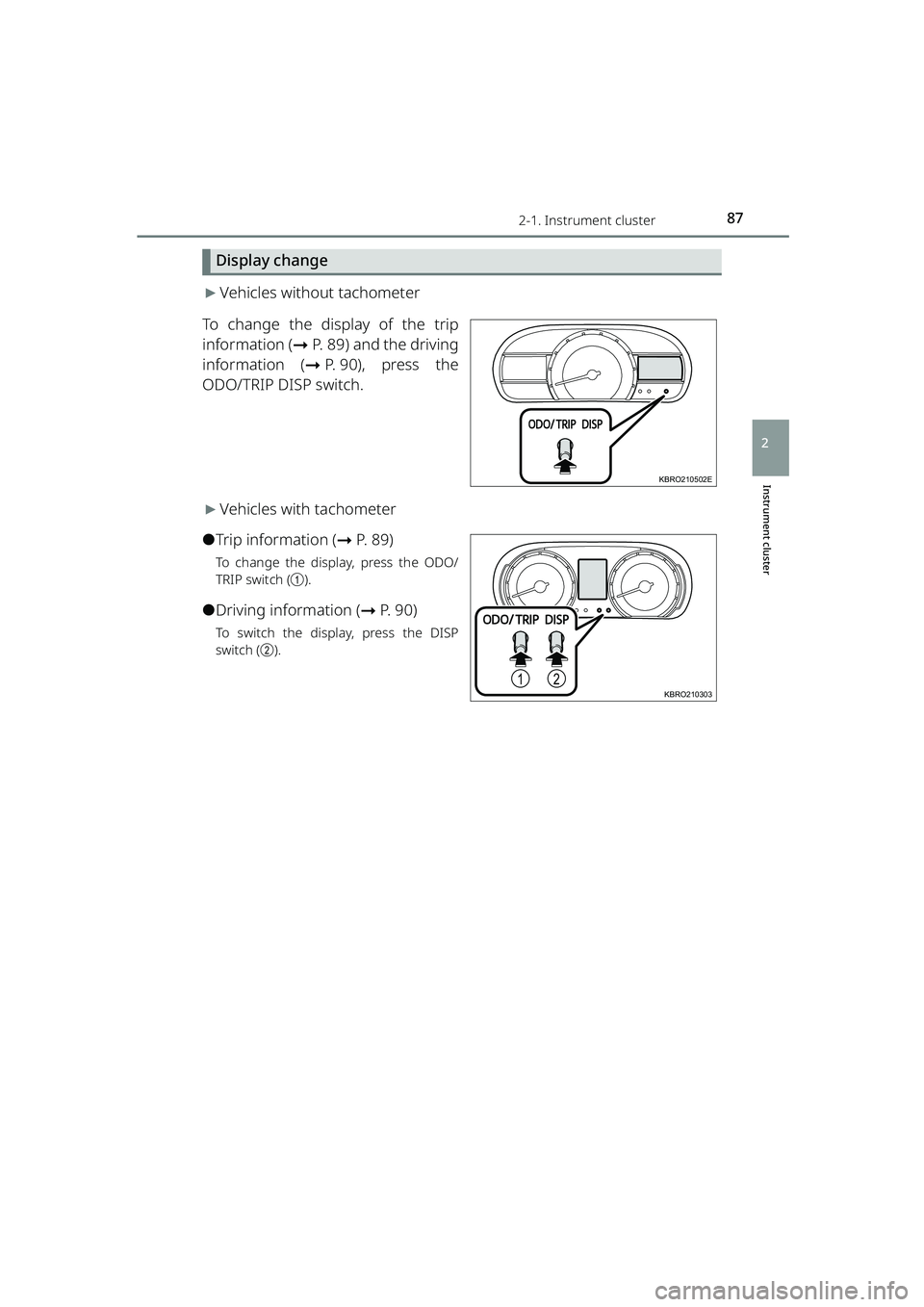

Display change
▶Vehicles without tachometer
To change the display of the trip
information ( ➞P. 89) and the driving
information ( ➞P. 90), press the
ODO/TRIP DISP switch.
▶Vehicles with tachometer
⚫Trip information ( ➞P. 8 9 )
To change the display, press the ODO/
TRIP switch ( a).
⚫Driving information ( ➞P. 90)
To switch the display, press the DISP
switch ( b).
KBRO210502E
12KBRO210303
RAIZE_OM_General_BZ358E.book 87 ページ ２０２２年５月１７日　火曜日　午後１時５９分

882-1. Instrument cluster
RAIZE_OM_General_BZ358E
Clock display
The time can be adjusted by pressing the clock adjustment switches.
Time cannot be adjusted when automatic correction is turned ON on the user cus-
tomization screen. (➞P. 9 2 )
a Adjust “hours” (H)
b Adjust “minutes” (M)
c Set “minutes” to 00*
Press and hold the clock adjustment
switches ( a) and ( b) at the same time.
*(Example) For 1:00 to 1:29, 1:00 is set
For 1:30 to 1:59, 2:00 is set
▶Vehicles without tachometer
▶Vehicles with tachometer
12
3KBRO210503E
12
3KBRO210305
RAIZE_OM_General_BZ358E.book 88 ページ ２０２２年５月１７日　火曜日　午後１時５９分

892-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2

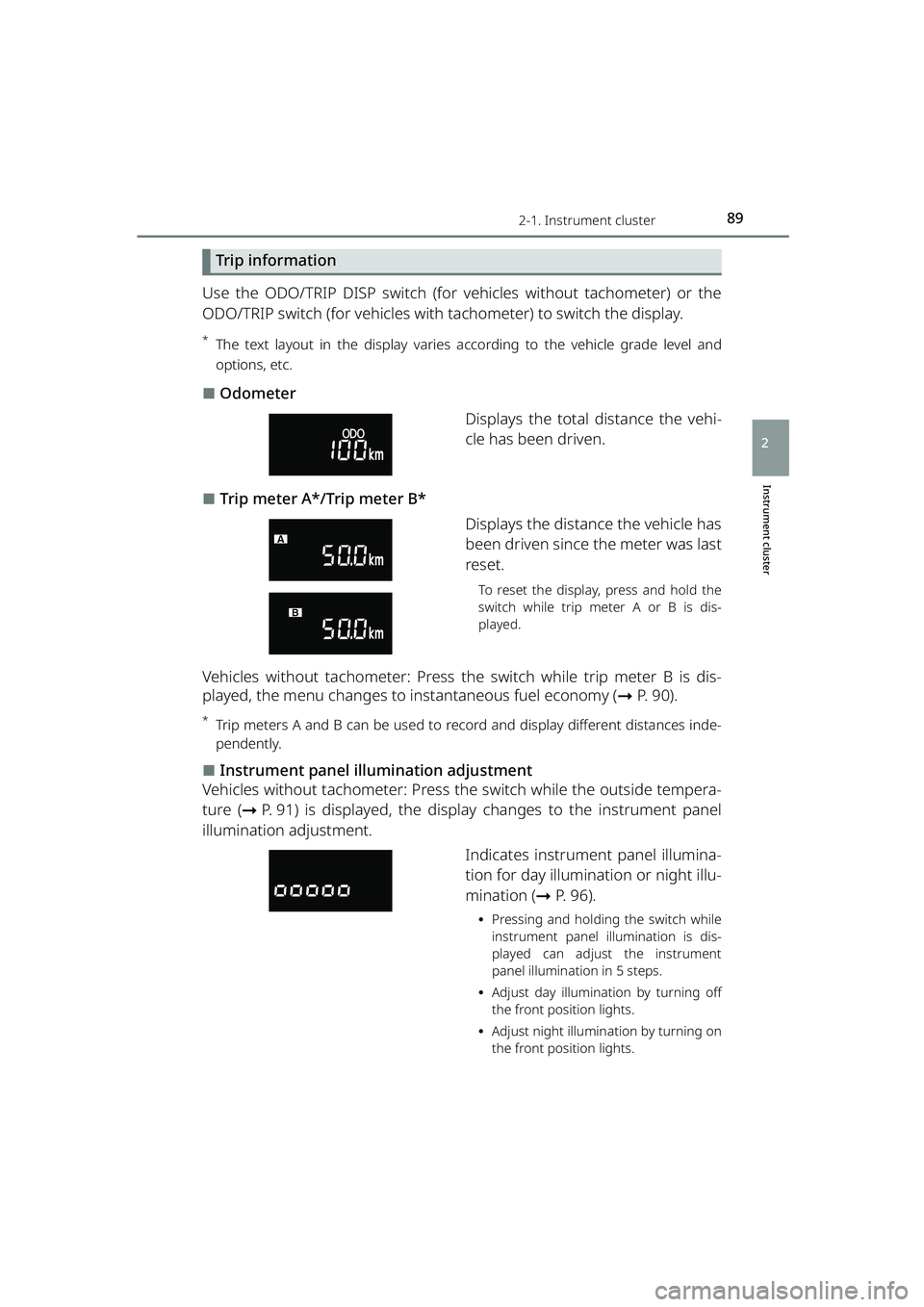

Trip information
Use the ODO/TRIP DISP switch (for vehicles without tachometer) or the
ODO/TRIP switch (for vehicles with tachometer) to switch the display.
*The text layout in the display varies according to the vehicle grade level and
options, etc.
⬛Odometer
Displays the total distance the vehi-
cle has been driven.
⬛Trip meter A*/Trip meter B*Displays the distance the vehicle has
been driven since the meter was last
reset.
To reset the display, press and hold the
switch while trip meter A or B is dis-
played.
Vehicles without tachometer: Press th e switch while trip meter B is dis-
played, the menu changes to instantaneous fuel economy ( ➞P. 90).
*Trip meters A and B can be used to reco rd and display different distances inde-
pendently.
⬛Instrument panel illumination adjustment
Vehicles without tachometer: Press th e switch while the outside tempera-
ture ( ➞P. 91) is displayed, the display changes to the instrument panel
illumination adjustment.
Indicates instrument panel illumina-
tion for day illumination or night illu-
mination (➞P. 96).
⦁Pressing and holding the switch while
instrument panel illumination is dis-
played can adjust the instrument
panel illumination in 5 steps.
⦁ Adjust day illumination by turning off
the front position lights.
⦁ Adjust night illumination by turning on
the front position lights.
RAIZE_OM_General_BZ358E.book 89 ページ ２０２２年５月１７日　火曜日　午後１時５９分

902-1. Instrument cluster
RAIZE_OM_General_BZ358E

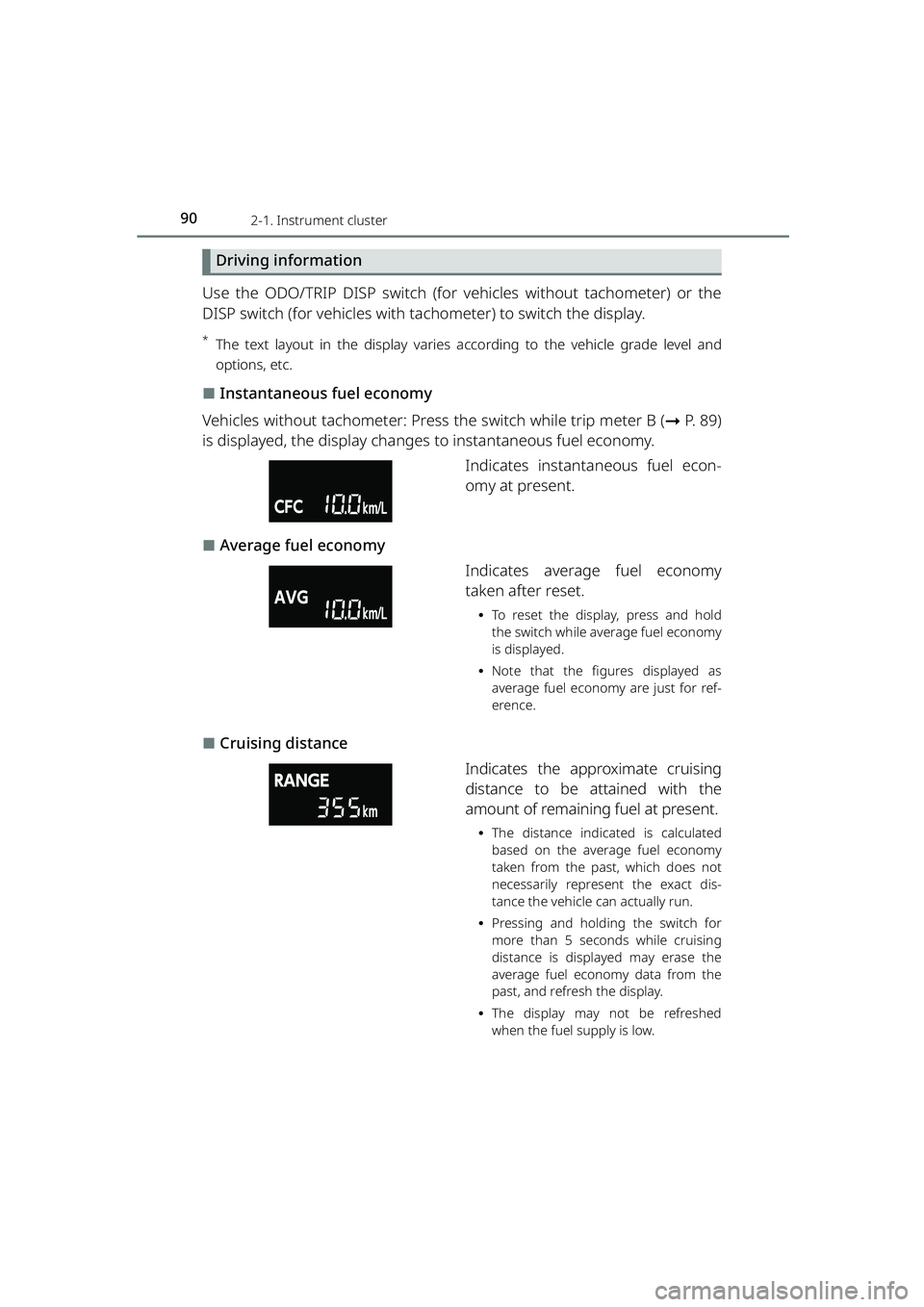

Driving information
Use the ODO/TRIP DISP switch (for vehicles without tachometer) or the
DISP switch (for vehicles with tachometer) to switch the display.
*The text layout in the display varies according to the vehicle grade level and
options, etc.
⬛Instantaneous fuel economy
Vehicles without tachometer: Press the switch while trip meter B (➞P. 89)
is displayed, the display changes to instantaneous fuel economy.
Indicates instantaneous fuel econ-
omy at present.
⬛Average fuel economy
Indicates average fuel economy
taken after reset.
⦁To reset the display, press and hold
the switch while average fuel economy
is displayed.
⦁ Note that the figures displayed as
average fuel economy are just for ref-
erence.
⬛Cruising distance
Indicates the approximate cruising
distance to be attained with the
amount of remaining fuel at present.
⦁The distance indicated is calculated
based on the average fuel economy
taken from the past, which does not
necessarily represent the exact dis-
tance the vehicle can actually run.
⦁ Pressing and holding the switch for
more than 5 seconds while cruising
distance is displayed may erase the
average fuel economy data from the
past, and refresh the display.
⦁ The display may not be refreshed
when the fuel supply is low.
RAIZE_OM_General_BZ358E.book 90 ページ ２０２２年５月１７日　火曜日　午後１時５９分

912-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2

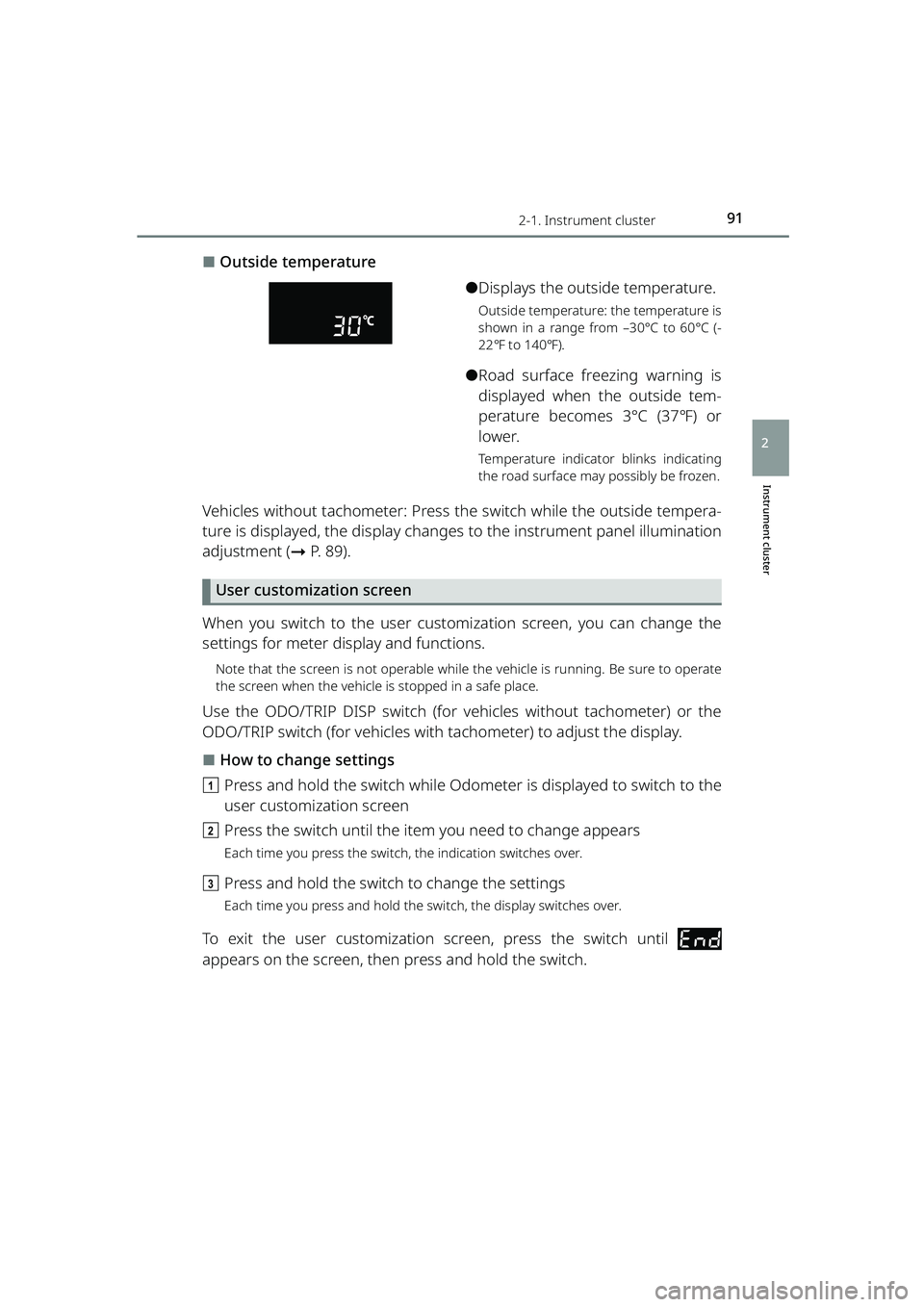

⬛Outside temperature
⚫Displays the outside temperature.
Outside temperature: the temperature is
shown in a range from –30°C to 60°C (-
22℉ to 140 ℉).
⚫Road surface freezing warning is
displayed when the outside tem-
perature becomes 3°C (37 ℉) or
lower.
Temperature indicator blinks indicating
the road surface may possibly be frozen.
Vehicles without tachometer: Press th e switch while the outside tempera-
ture is displayed, the display change s to the instrument panel illumination
adjustment ( ➞P. 8 9 ) .
User customization screen
When you switch to the user customization screen, you can change the
settings for meter display and functions.
Note that the screen is not operable while the vehicle is running. Be sure to operate
the screen when the vehicle is stopped in a safe place.
Use the ODO/TRIP DISP switch (for vehicles without tachometer) or the
ODO/TRIP switch (for vehicles with tachometer) to adjust the display.
⬛How to change settings
a Press and hold the switch while Odometer is displayed to switch to the
user customization screen
b Press the switch until the item you need to change appears
Each time you press the switch, the indication switches over.
cPress and hold the switch to change the settings
Each time you press and hold the switch, the display switches over.
To exit the user customization screen, press the switch until
appears on the screen, then press and hold the switch.
RAIZE_OM_General_BZ358E.book 91 ページ ２０２２年５月１７日　火曜日　午後１時５９分

922-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
⬛Customizable items
ItemSettingsDisplay (Initi al setting)
Resetting average fuel economy when fueling
ON
OFF
Resetting Trip meter A when fueling
ON
OFF
On/Off of Eco Driving Indicator Light
ON
OFF
Automatic correction of time (for vehicles
equipped with 9 inch display audio pairable with
smart phones)ON
OFF
Speed linked door locking function ( ➞P. 136)
ON*1
OFF
Shift-linked auto lock✽ (➞ P. 136)
ON*2
OFF
Shift-linked auto unlock✽ (➞ P. 136)
ON*3
OFF
Engine switch “OFF”-linked auto unlock ( ➞P. 136)
ON*4
OFF
RAIZE_OM_General_BZ358E.book 92 ページ ２０２２年５月１７日　火曜日　午後１時５９分

932-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
Instrument cluster
2
*1When this is set to ON, the setting for shift-linked auto lock✽ turns OFF.
*2When this is set to ON, the setting for speed linked door locking function
turns OFF.
*3When this is set to ON, the setting for door unlocking linked with engine
switch OFF turns OFF.
*4When this is set to ON, the se tting for shift-linked auto unlock✽ turns OFF.
Buzzer volume for answering back (signaling for
wireless remote control operation) ( ➞P. 131)
(Mute)
(Low)
to
(High)
Signal for wireless remote control activation
(emergency flashers) ( ➞P. 121)ON
OFF
Intermittent windshield wiper operation linked
with speed ( ➞P. 203)ON
OFF
Rear wiper reverse wiper function✽ (➞ P. 206)
ON
OFF
The function that the turn signal indicator flashes
3 times when the turn signal lever is pushed half
way through ( ➞P. 196)ON
OFF
ItemSettingsDisplay (Initi al setting)
RAIZE_OM_General_BZ358E.book 93 ページ ２０２２年５月１７日　火曜日　午後１時５９分

942-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
⬛How to initialize settings
a Press and hold the switch while Odometer is displayed to switch to the
user customization screen
b Press the switch until appears
c While is displayed, press and hold the switch. After
appears, press and hold the switch again
After starts flashing, go back to the odometer display to see the fol-
lowing items are initialized.
Engine oil deterioration warning reset✽
Perform this operation after th e engine oil has been changed.
When the engine oil is deteriorated or the engine oil replacement is due soon, the Oil
deteriorate warning light will turn on ( ➞P. 382).
a Press the ODO/TRIP switch to
display trip meter A
b Turn the engine switch to “OFF”
c While pressing the ODO/TRIP
switch, turn “ON” the engine
switch
Do not start the engine yet.
Keep holding the ODO/TRIP switch
until the Oil deteriorate warning light
turns off.
dCheck that the Oil deteriorate
warning light is flashing fast
ItemInitial setting
Resetting average fuel economy when fuelingOFF
Resetting Trip meter A when fuelingOFF
On/Off of Eco Driving Indicator LightON
Automatic correction of time (for vehicles equipped with 9 inch dis-
play audio pairable with smart phones)ON
KBRO210342E
