display TOYOTA RAIZE 2023 Owner's Manual

952-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2
⬛About average fuel economy
⚫Immediately after the engine switch has been turned “ON”, it shows the
value when the engine was stopped last.
⚫Fuel economy is not displayed if the da ta cannot be received when refresh-
ing the display, or if in valid data is received.
⬛About cruising distance
⚫Refreshing time for display depend s on driving conditions (running,
stopped).
⚫Note that the cruising distance data shown as when you receive your new
vehicle does not necessarily represent the correct value.
⚫When a malfunction is detected, cruising distance data may not be displayed
for a while.
⬛About outside temperature
⚫When the outside temperature cannot be measured correctly, it shows “- -°C”.
⚫Under the following conditions, the outside temperature may not be dis-
played properly, or update of temperat ure indication may be delayed. These
phenomena are not considered a failure.
⦁ When the vehicle is stopped or is running at low speeds (approx. 20 km/h
[12.4 mph] or lower)
⦁ When the outside temperature drastically changes (in a garage, or at the
entrance/exit of a tunnel)
⚫The outside temperature indication may change depending on the vehicle
conditions, such as speed and wind direction.
⬛About road surface freezing warning indication
⚫Indication of road surface freezing warnin g is just a guide. Be sure to check
the actual condition of the road.
⚫When the engine switch is turned “ON” , the warning will not be displayed if
the outside temperature is already 3°C (37 ℉) or below.
⚫Once the road surface freezing warning is displayed, the warning will not
appear again until the outside temperature becomes 4°C (39 ℉) or higher
and then goes down to 3°C (37 ℉) or lower.
RAIZE_OM_General_BZ358E.book 95 ページ ２０２２年５月１７日　火曜日　午後１時５９分

962-1. Instrument cluster
RAIZE_OM_General_BZ358E
⬛About instrument panel illumination (day illumination and night illumination)
⚫There are 2 types of instrument panel illumination: day illumination and
night illumination, and the illumination changes at the following times.
⦁ Day illumination: when the front po sition lights are turned off
⦁ Night illumination: when the fron t position lights are turned on
⚫Instrument panel lights become dimmer when it switches to night illumina-
tion. However, illumination does not become dimmer when the level for
night illumination is set to the brightest.
⬛When battery terminals are connected/disconnected
Clock data is reset when battery terminals are connected or disconnected.
⬛About automatic correction of time
Automatic correction of time cannot be set if you connect a device other than 9
inch display audio pairab le with smart phones.
⬛About user customization screen
Operations performed on the user
customization screen will result in dis-
playing “FAIL” if changing the settings
is not allowed.
KBTA210346
RAIZE_OM_General_BZ358E.book 96 ページ ２０２２年５月１７日　火曜日　午後１時５９分

972-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2
WARNING
⬛Caution while driving
For safety reasons, do not operate the display change button or the clock
adjustment switch while driving. Doing so is dangerous and may lead to an
accident such as incorrect op eration of the steering wheel.
Stop the vehicle to operate it. While drivin g, keep the time that you look at the
display to the minimum necessary.
⬛When changing settings
As the engine needs to be running duri ng setting up the display, ensure that
the vehicle is parked in a place with adeq uate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may col-
lect and enter the vehicle. This may cau se death or a serious health hazard.
NOTICE
⬛Screen display at low temperatures
When the display screen temperature is extremely low, the display changes
may be delayed. Allow the interior of th e vehicle to warm up before using it.
⬛When changing display settings
Make sure that the engine is running, as otherwise the battery may discharge.
⬛About cruising distance
Even if the value indicated for cruising distance seems sufficient, try to fill the
fuel tank when the fuel gauge nears “E”, or the low fuel level warning light
turns on.
RAIZE_OM_General_BZ358E.book 97 ページ ２０２２年５月１７日　火曜日　午後１時５９分

982-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
TFT color multi-information display✽
Display contents
TFT color multi-information display sh ows various information on vehicle
and running, or allows you to change the settings.
a Eco driving assist illumination
Color of the illumination changes to green in 3 levels based on drivability regarding
eco-friendliness.
⦁ When power mode is selected, the illumination changes to yellow. ( ➞P. 190)
b Display contents
A variety of information can be di splayed by switching menu icons.
Cautions or advice is displayed according to the driving conditions by pop-up notifi-
cation.
c Menu icons
Switching icons will di splay various contents.
dClock display
Date is indicated while analog clock ( ➞P. 101) is displayed.
e Shift position display✽
Indicates the selected shift position. ( ➞P. 189)
f Tachometer display
The engine speed in revolutions per minute is displayed.
gTrip information ( ➞P. 100)
3
6
1
897
24
5KBRO210401E
RAIZE_OM_General_BZ358E.book 98 ページ ２０２２年５月１７日　火曜日　午後１時５９分

992-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2

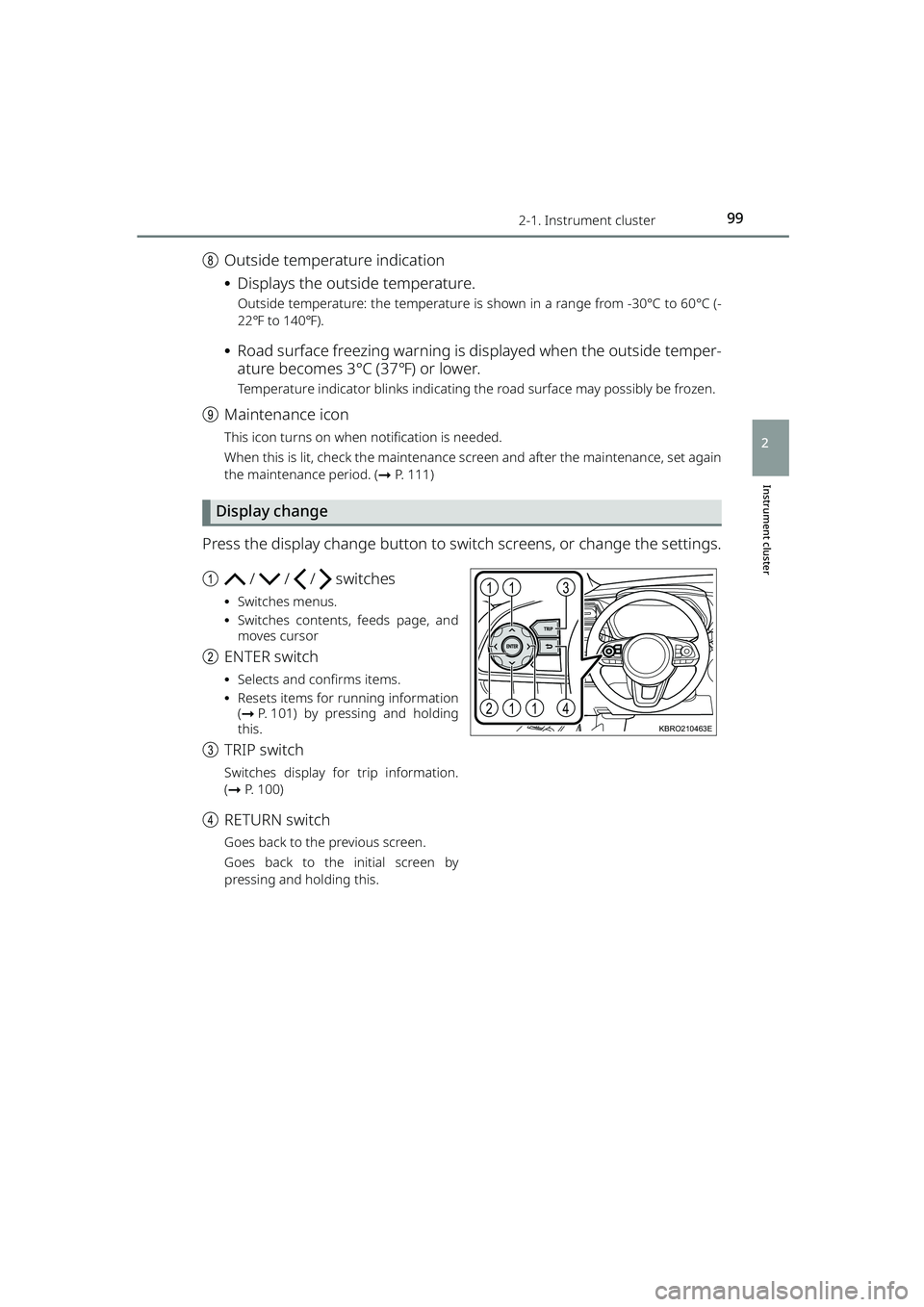

hOutside temperature indication
⦁Displays the outside temperature.
Outside temperature: the temperature is shown in a range from -30°C to 60°C (-
22℉ to 140℉ ).
⦁Road surface freezing warning is displayed when the outside temper-
ature becomes 3°C (37 ℉) or lower.
Temperature indicator blinks indicating th e road surface may possibly be frozen.
iMaintenance icon
This icon turns on when notification is needed.
When this is lit, check the maintenance screen and after the maintenance, set again
the maintenance period. ( ➞P. 111)
Display change
Press the display change button to switch screens, or change the settings.
a / / / switches
⦁Switches menus.
⦁ Switches contents, feeds page, and
moves cursor
b ENTER switch
⦁Selects and confirms items.
⦁ Resets items for running information
(➞ P. 101) by pressing and holding
this.
c TRIP switch
Switches display for trip information.
(➞ P. 100)
d RETURN switch
Goes back to the previous screen.
Goes back to the initial screen by
pressing and holding this.
4
31
121
1
KBRO210463E
RAIZE_OM_General_BZ358E.book 99 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1002-1. Instrument cluster
RAIZE_OM_General_BZ358E

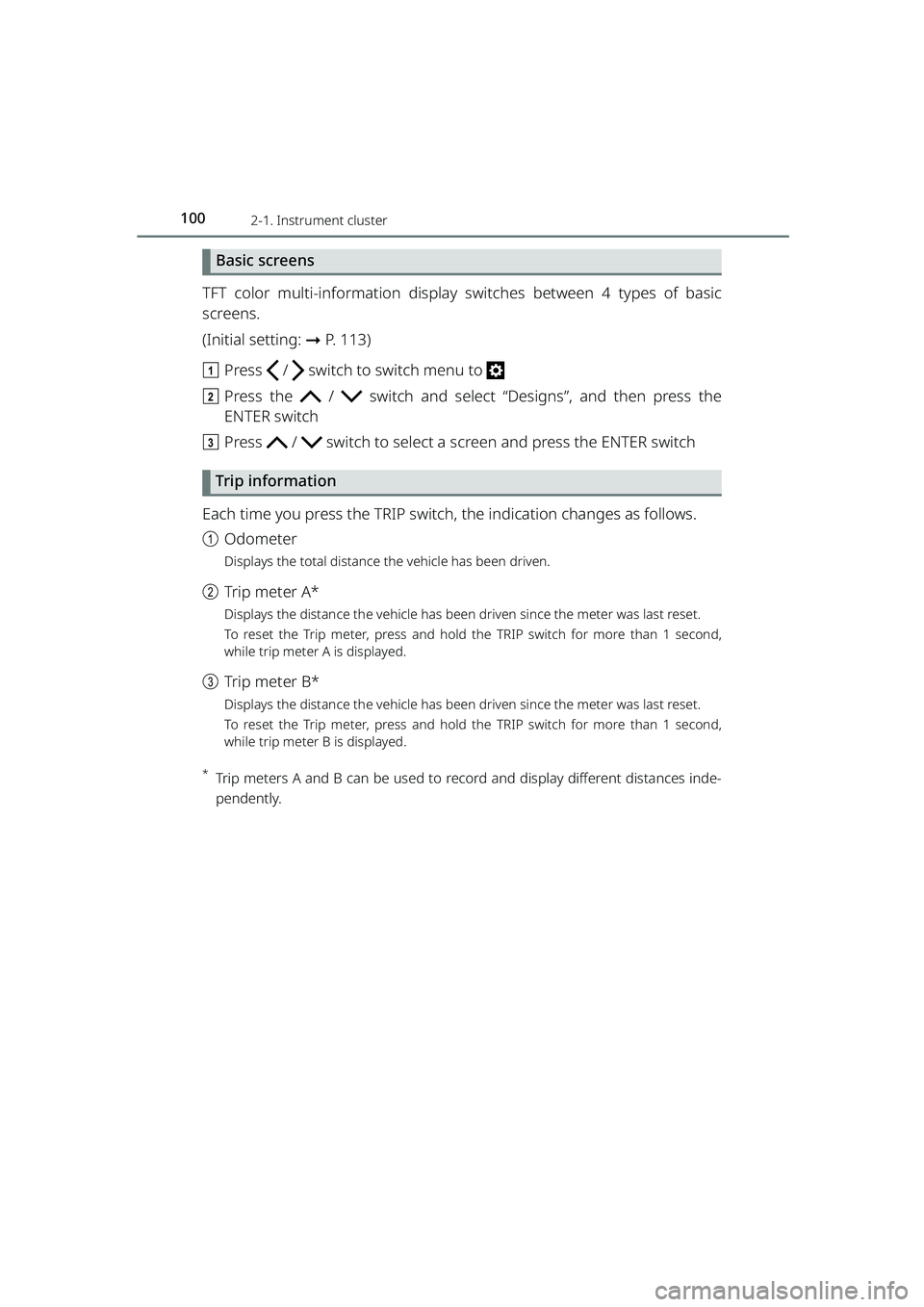

Basic screens
TFT color multi-information display switches between 4 types of basic
screens.
(Initial setting: ➞P. 113)
a Press / switch to switch menu to
b Press the / switch and select “Designs”, and then press the
ENTER switch
c Press / switch to select a screen and press the ENTER switch
Trip information
Each time you press the TRIP switch, the indication changes as follows.
a Odometer
Displays the total distance the vehicle has been driven.
bTrip meter A*
Displays the distance the vehicle has been driven since the meter was last reset.
To reset the Trip meter, press and hold the TRIP switch for more than 1 second,
while trip meter A is displayed.
cTrip meter B*
Displays the distance the vehicle has been driven since the meter was last reset.
To reset the Trip meter, press and hold the TRIP switch for more than 1 second,
while trip meter B is displayed.
*Trip meters A and B can be used to reco rd and display different distances inde-
pendently.
RAIZE_OM_General_BZ358E.book 100 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1012-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2
Running information
Various information on fuel economy is displayed.
aPress / switch to switch menu to
b Press / switch to switch display contents
⬛“Current”/“Average”
⚫“Current”
Indicates instantaneous fuel economy at present.
⚫“Average”
Indicates average fuel economy taken after reset.
⦁To reset, hold down the ENTER switch while “Average” is being displayed.
⦁ Note that the figures displayed as average fuel economy are just for reference.
⬛“Range”
Indicates the approximate cruising distance to be attained with the
amount of remaining fuel at present.
⚫The distance indicated is calculated based on the average fuel economy
taken from the past, which does not necessarily represent the exact dis-
tance the vehicle can actually run.
⦁ Pressing and holding the ENTER switch for approx. 5 seconds and longer while
“Range” is being displayed may erase the average fuel economy data from the past
and refresh the display.
⚫The display may not be refreshed when the fuel supply is low.
Vehicle information
Various information on vehicles is displayed.
a Press / switch to switch menu to
b Press / switch to switch display contents
⬛Analog clock
Analog clock is displayed.
⬛Screen OFF
Contents are hidden.
RAIZE_OM_General_BZ358E.book 101 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1022-1. Instrument cluster
RAIZE_OM_General_BZ358E
Warning messages
turns yellow only when a warning message with further confirmation is
available.
Press / switch to switch menu to .
When a malfunction is found, messages regarding the issue and the
measure to be taken are displayed.
When more than 2 messages are disp layed, press / switch to tog-
gle the messages.
When no message is stored, “No Messages” will be displayed.
Steering wheel position monitor
When the shift lever is set to R, the orientation of front wheel tires dis-
played.
At the same time, the operating condition of front corner sensor/reverse sensor
(➞ P. 221) is also displayed.
RAIZE_OM_General_BZ358E.book 102 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1032-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2
Opening screen
When the engine switch is turned to “ON”, the date and the notification
screen appear for a few seconds, after the presentation screen.
The following notification screens can be displayed.
⚫New year greetings
⚫Birthday
⚫Anniversary
⚫Date of vehicle inspection
⚫Date of inspection
⚫Engine oil replacement
⚫Oil filter replacement
⚫Tire rotation
⚫Distance driven
⬛New year greetings
Displayed on January 1.
⬛Birthday, and Anniversary
Displayed on the specified days.
⬛Date of vehicle inspection , and date of inspection
Displayed when the remaining days till the specified day are less than 1
month, and when once a day after the specified day.
⬛Engine oil replacement, oil filter replacement, and tire rotation
Displayed once a day when the remaining distance to the specified dis-
tance becomes less than 500 km (310 miles) or when it has reached the
specified distance.
Ending screen
When the engine switch is turned “O FF”, the notification screen appears.
⬛Driving record, scores (fuel economy)
When the ending setting is switched to “ECO” ( ➞P. 106), the driving
records, which were taken between a period from turning the engine
switch “ON” to “OFF”, will be displayed, and the score for environment-
friendly level will be displayed as points.
RAIZE_OM_General_BZ358E.book 103 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1042-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
Settings
While the vehicle is parked with the engine switch turned “ON”, you can
specify or adjust the display and configure the function settings by press-
ing the / switch to change the menu to .
Note that the screen is not operable while the vehicle is running. Be sure
to operate the screen when the ve hicle is stopped in a safe place.
The following items can be set and adjusted.
⚫Instrument panel illumination
adjustment (➞ P. 104)
⚫Time and date ( ➞P. 105)
⚫Display options ( ➞P. 106)
⚫Screens ( ➞P. 1 0 0 )
⚫Buzzers (➞ P. 107)
⚫Notification dates ( ➞P. 108)
⚫BSM/RCTA✽ (➞ P. 109)
⚫Door lock ( ➞P. 109)
⚫Windshield wipers ( ➞P. 110)
⚫Turn signal lights ( ➞P. 111)
⚫Maintenance ( ➞P. 111)
⚫Engine oil deterioration warning
reset
✽ (➞ P. 112)
⚫Initialization of display settings
(➞ P. 113)
⚫Language (➞ P. 114)
⬛Instrument panel illumination adjustment
Day illumination or ni ght illumination (➞P. 114) for the meter can be
adjusted.
(Initial setting: ➞P. 113)
a Press / switch to switch menu to
b Press the / switch and select “Display Brightness”, and then
press the ENTER switch
c After pressing the ENTER switch, pr ess / switches to adjust the
brightness
⦁ After is displayed, press / to adjust the brightness, and then press
the ENTER switch again.
⦁ Adjust day illumination by turnin g off the front position lights.
⦁ Adjust night illumination by turning on the front position lights.
⦁ Illumination can be adjusted in 10 steps.
RAIZE_OM_General_BZ358E.book 104 ページ ２０２２年５月１７日　火曜日　午後１時５９分
