Instrument cluster
2
⬛Time and date
Time and date can be set.
Vehicles equipped with 9 inch display audio pairable with smart phones:
ON/OFF for automatic correction of date and time can be set.
a Press / switch to switch menu to
b Press the / switch and select “Time and Date”, and then press
the ENTER switch
c Press / / / switch to select an item you need to set, and
press the ENTER switch
⦁ Each time you press the ENTER switch, “Auto Time ADJ” is switched “ON” or “OFF”.
⦁ When “Auto Time ADJ” is set to “ON”, the date and time adjustment is not availa-
ble.
⦁ For Year/Hour/Minute, after appears, use / switch to set the value,
and press the ENTER switch again.
The clock starts counting from 0 second, which is the reset state of the set time.
⦁ For “12H/24H”, “12H” (12-hour format) and “24H” (24-hour format) will be
switched every time the ENTER switch is pressed.
⦁ Regardless of the “12H/24H” setting, the time is displayed in the 24-hour format
during time adjustment.
⬛Screen selection
Basic screens can be changed. ( ➞P. 100)
RAIZE_OM_General_BZ358E.book 105 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1062-1. Instrument cluster
RAIZE_OM_General_BZ358E

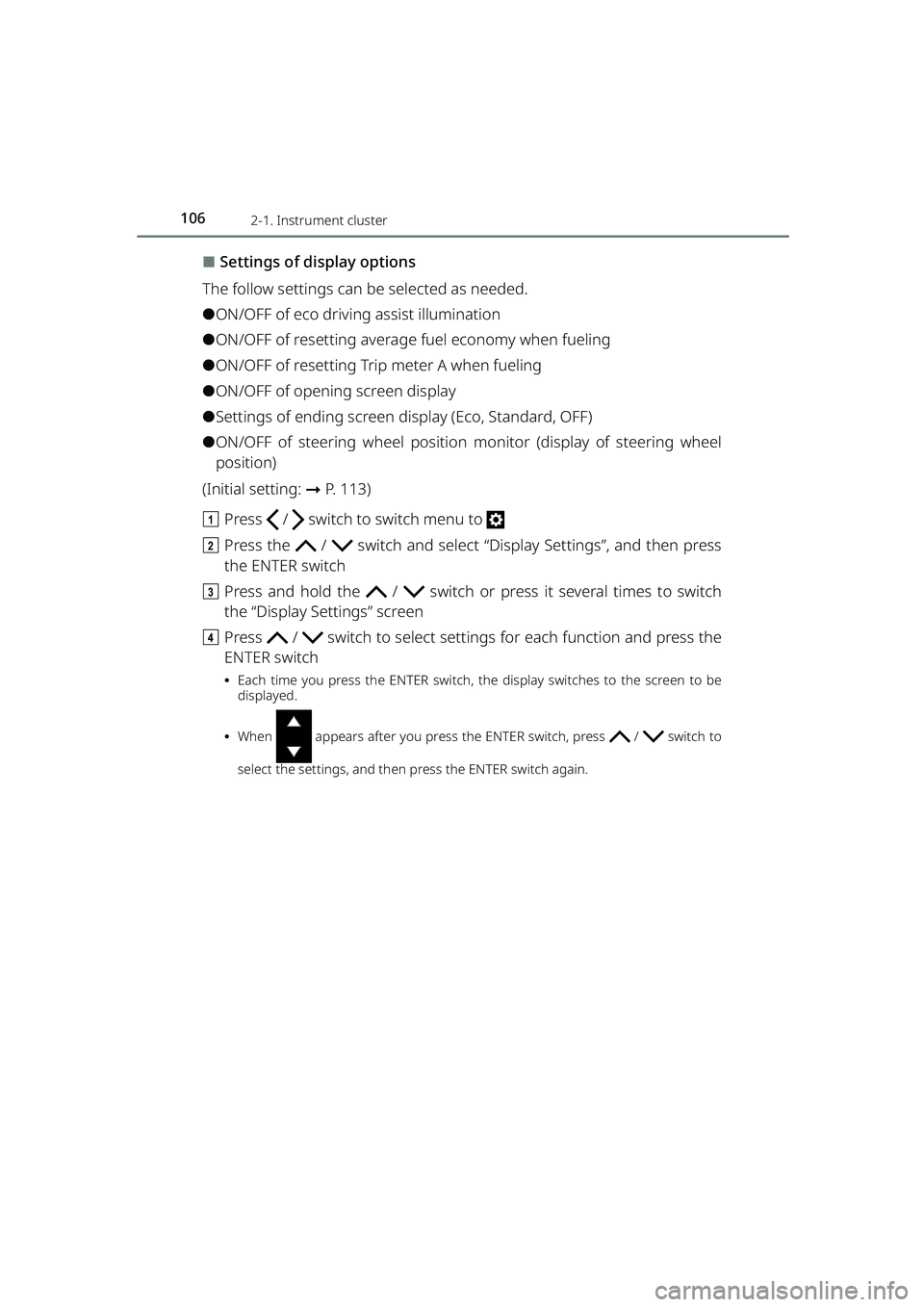

⬛Settings of display options
The follow settings can be selected as needed.
⚫ON/OFF of eco driving assist illumination
⚫ON/OFF of resetting average fuel economy when fueling
⚫ON/OFF of resetting Trip meter A when fueling
⚫ON/OFF of opening screen display
⚫Settings of ending screen display (Eco, Standard, OFF)
⚫ON/OFF of steering wheel position monitor (display of steering wheel
position)
(Initial setting: ➞P. 113)
a Press / switch to switch menu to
b Press the / switch and select “Display Settings”, and then press
the ENTER switch
c Press and hold the / switch or press it several times to switch
the “Display Settings” screen
d Press / switch to select setting s for each function and press the
ENTER switch
⦁ Each time you press the ENTER switch, the display switches to the screen to be
displayed.
⦁ When appears after you press the ENTER switch, press / switch to
select the settings, and then press the ENTER switch again.
RAIZE_OM_General_BZ358E.book 106 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1072-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
Instrument cluster
2

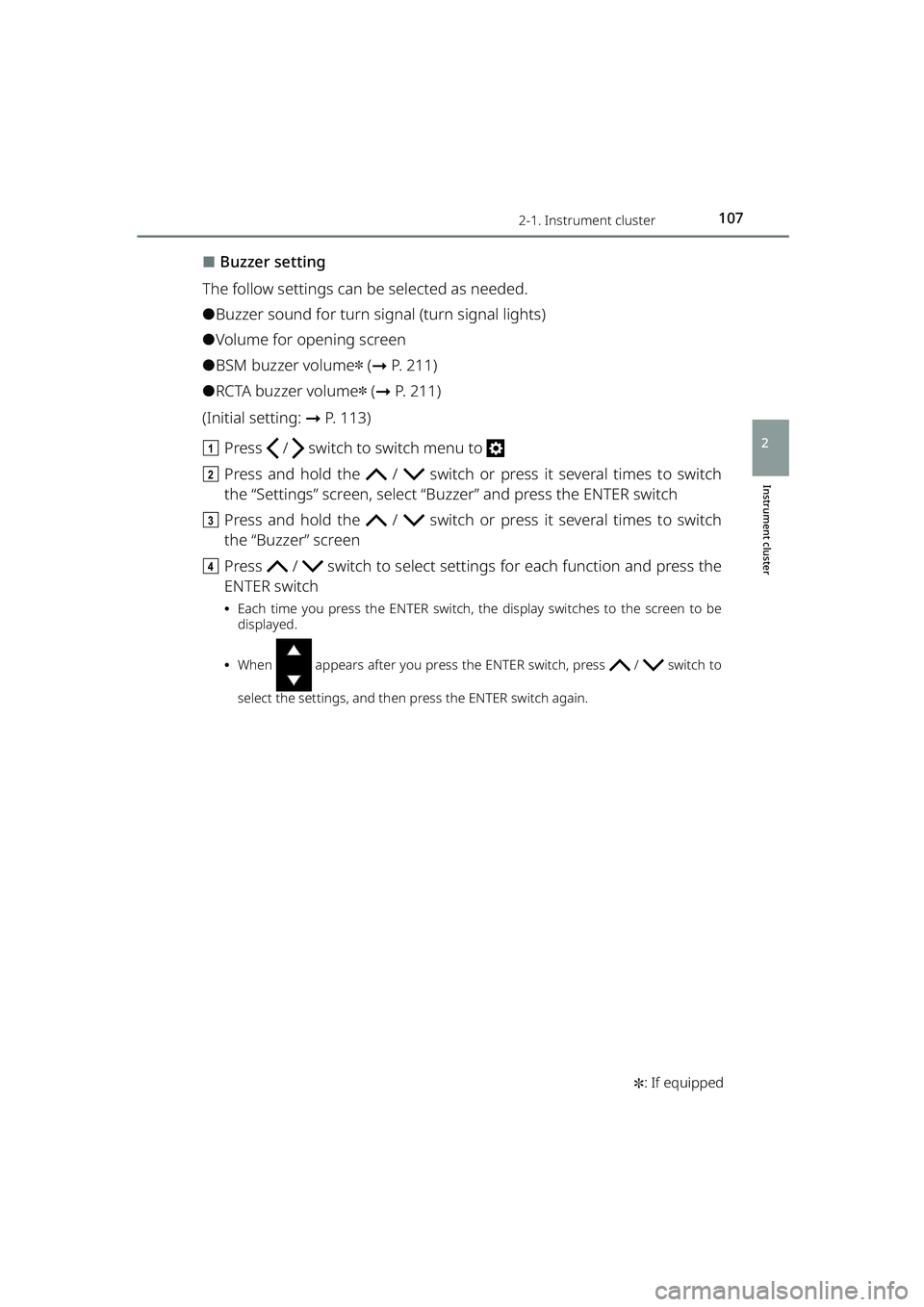

⬛Buzzer setting
The follow settings can be selected as needed.
⚫Buzzer sound for turn signal (turn signal lights)
⚫Volume for opening screen
⚫BSM buzzer volume✽ ( ➞ P. 211)
⚫RCTA buzzer volume✽ (➞ P. 211)
(Initial setting: ➞P. 113)
a Press / switch to switch menu to
b Press and hold the / switch or press it several times to switch
the “Settings” screen, select “B uzzer” and press the ENTER switch
c Press and hold the / switch or press it several times to switch
the “Buzzer” screen
d Press / switch to select setting s for each function and press the
ENTER switch
⦁ Each time you press the ENTER switch, the display switches to the screen to be
displayed.
⦁ When appears after you press the ENTER switch, press / switch to
select the settings, and then press the ENTER switch again.
RAIZE_OM_General_BZ358E.book 107 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1082-1. Instrument cluster
RAIZE_OM_General_BZ358E

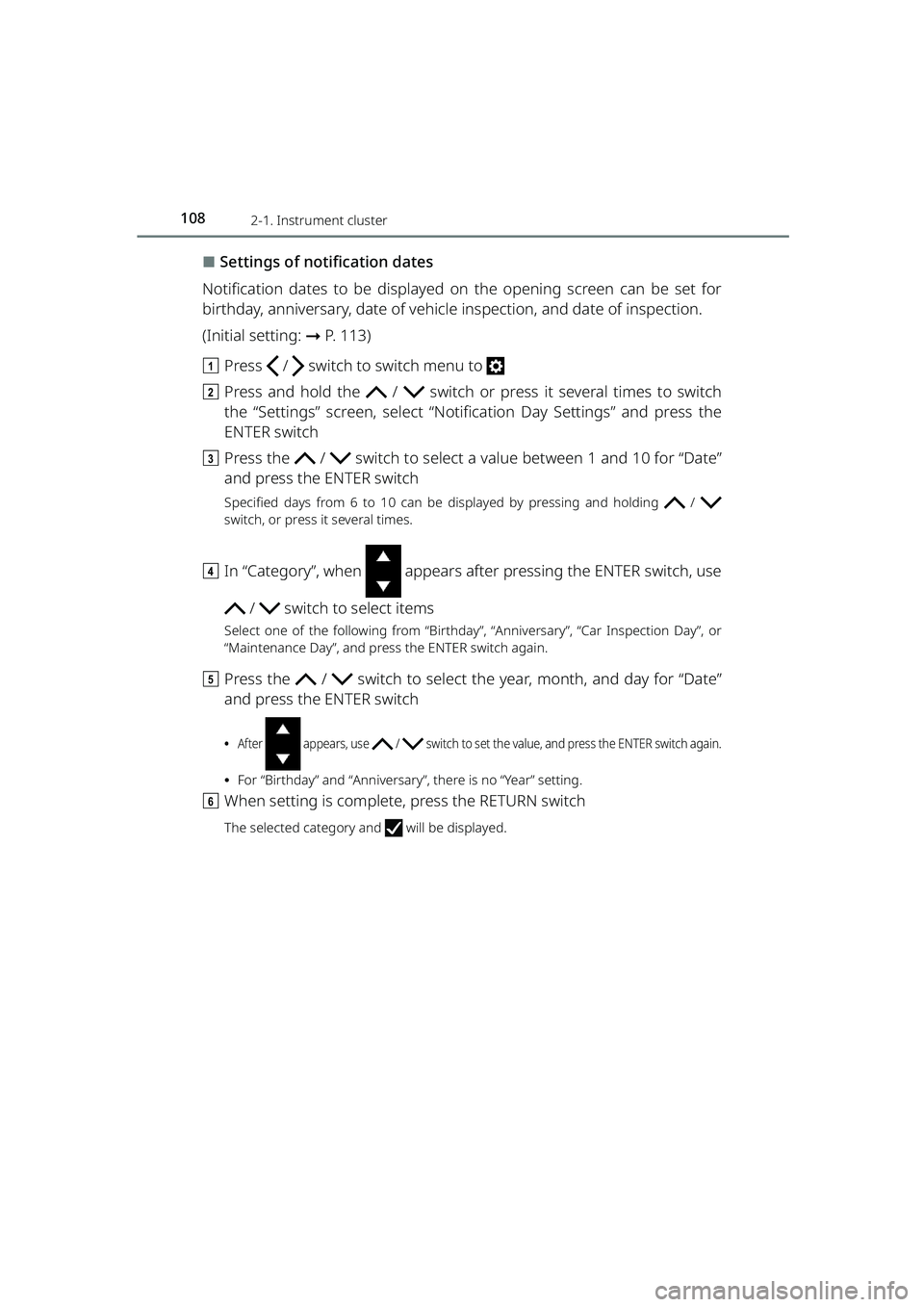

⬛Settings of notification dates
Notification dates to be displayed on the opening screen can be set for
birthday, anniversary, date of vehicle inspection, and date of inspection.
(Initial setting: ➞P. 113)
a Press / switch to switch menu to
b Press and hold the / switch or press it several times to switch
the “Settings” screen, select “Notif ication Day Settings” and press the
ENTER switch
c Press the / switch to select a value between 1 and 10 for “Date”
and press the ENTER switch
Specified days from 6 to 10 can be di splayed by pressing and holding /
switch, or press it several times.
d In “Category”, when appears after pressing the ENTER switch, use
/ switch to select items
Select one of the following from “Birthday”, “Anniversary”, “Car Inspection Day”, or
“Maintenance Day”, and pres s the ENTER switch again.
ePress the / switch to select the year, month, and day for “Date”
and press the ENTER switch
⦁After appears, use / switch to set the value, and press the ENTER switch again.
⦁For “Birthday” and “Anniversary”, there is no “Year” setting.
f When setting is complete, press the RETURN switch
The selected category and will be displayed.
RAIZE_OM_General_BZ358E.book 108 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1092-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
Instrument cluster
2
⬛Settings of BSM/RCTA✽
The follow settings can be selected as needed.
⚫ON/OFF of BSM ( ➞P. 211)
⚫ON/OFF of RCTA ( ➞P. 2 1 1 )
⚫Luminance of outside rear view mirror indicators ( ➞P. 211)
(List of customizable features: ➞ P. 430)
a Press / switch to switch menu to
b Press and hold the / switch or press it several times to switch the
“Settings” screen, select “Vehicle Settings” and press the ENTER switch
c Press the / switch to select “BSM/RCTA” and press the ENTER
switch
d Press / switch to select setting s for each function and press the
ENTER switch
⦁ Each time you press the ENTER switch, the display switches to the screen to be
displayed.
⬛Settings of door locking
The follow settings can be selected as needed.
⚫ON/OFF of speed linked door locking ( ➞P. 136)
Setting this ON will turn OFF the setting for door locking linked with shifting✽.
⚫ON/OFF of door locking linked with shifting ✽(➞ P. 136)
When this set to ON, the setting for speed linked door locking turns OFF.
⚫ON/OFF of door unlocking linked with shifting ✽(➞ P. 136)
When this is set to ON, the setting for door unlocking at the time of the ignition OFF
(when the engine switch is “OFF”) turns OFF.
⚫ON/OFF of door unlocking at the time of the ignition OFF (when the
engine switch is “OFF”) ( ➞P. 136)
Setting this ON will turn OFF the setting for door unlocking linked with shifting✽.
⚫Buzzer volume for answering back (s ignal for key-free system activation)
( ➞ P. 1 2 1 )
⚫ON/OFF of emergency flashers for answering back (signal for key-free
system activation) ( ➞P. 121)
(List of customizable features: ➞ P. 430)
RAIZE_OM_General_BZ358E.book 109 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1102-1. Instrument cluster
RAIZE_OM_General_BZ358E
aPress / switch to switch menu to
b Press and hold the / switch or press it several times to switch
the “Settings” screen, select “Vehicle Settings” and press the ENTER
switch
c Press the / switch to select “Door Lock” and press the ENTER
switch
d Press and hold the / switch or press it several times to switch
the “Door Lock” screen
e Press / switch to select setting s for each function and press the
ENTER switch
⦁ Each time you press the ENTER switch, the display switches to the screen to be
displayed.
⦁ When appears after you press the ENTER switch, press / switch to
select the settings, and then press the ENTER switch again.

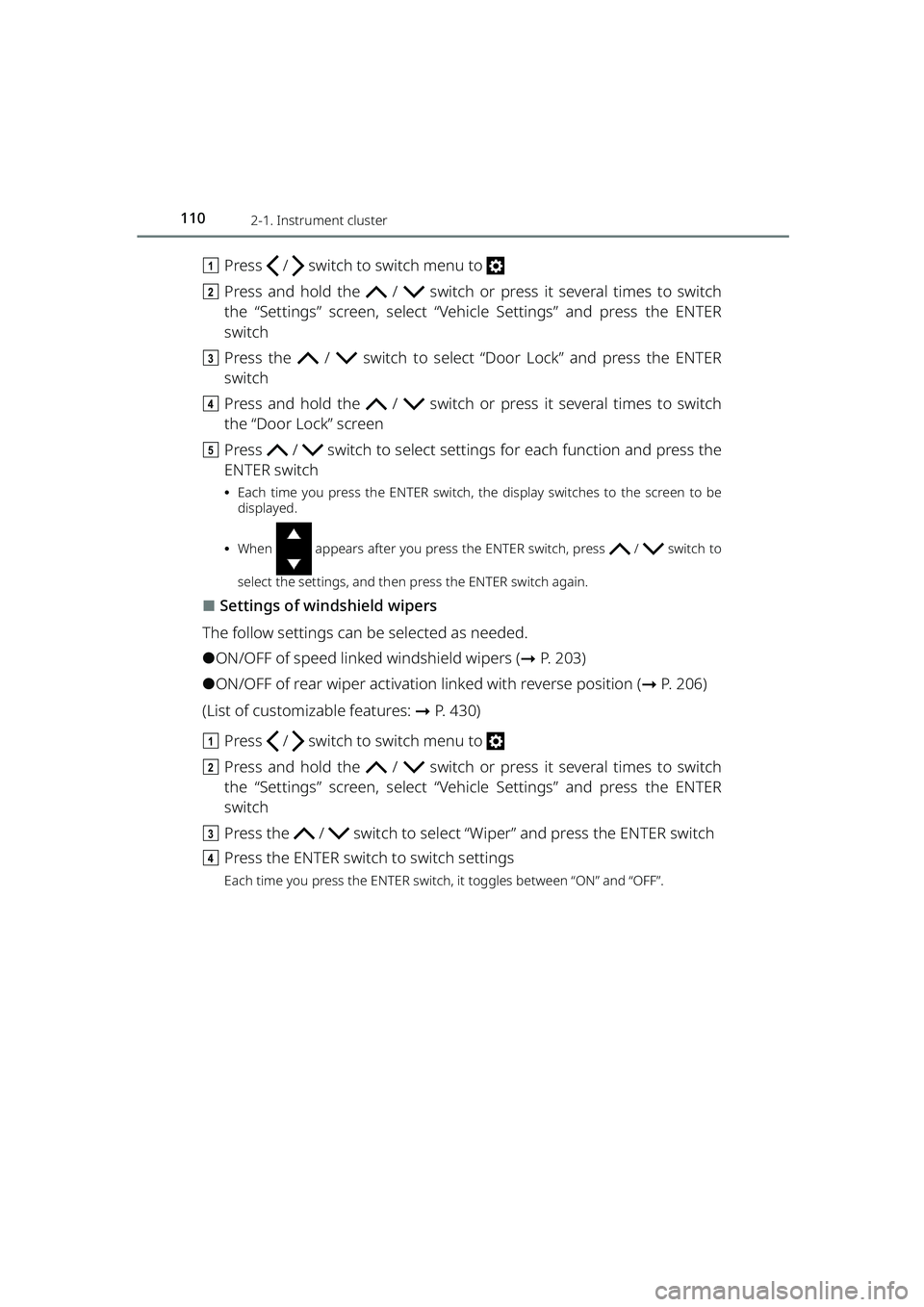

⬛Settings of windshield wipers
The follow settings can be selected as needed.
⚫ON/OFF of speed linked windshield wipers ( ➞P. 203)
⚫ON/OFF of rear wiper activation linked with reverse position ( ➞P. 2 0 6 )
(List of customizable features: ➞ P. 430)
a Press / switch to switch menu to
b Press and hold the / switch or press it several times to switch
the “Settings” screen, select “Vehicle Settings” and press the ENTER
switch
c Press the / switch to select “Wiper” and press the ENTER switch
d Press the ENTER switch to switch settings
Each time you press the ENTER switch, it toggles between “ON” and “OFF”.
RAIZE_OM_General_BZ358E.book 110 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1112-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2
⬛Settings of turn signal lights
You can set ON/OFF of the one-touch turn signal lights (3-time blinking of
turn signal indicator when the turn signal lever is pushed half way
through).
(List of customizable features: ➞ P. 430)
a Press / switch to switch menu to
b Press and hold the / switch or press it several times to switch the
“Settings” screen, select “Vehicle Settings” and press the ENTER switch
c Press and hold the / switch or press it several times to switch the
“Vehicle Settings” screen, select “T urn Signal” and press the ENTER switch
d Press the ENTER switch to switch settings
Each time you press the ENTER switch, it toggles between “ON” and “OFF”.
⬛Settings of maintenance
Timings for engine oil replacement, oil filter replacement, and tire rotation,
which appear on the opening screen ca n be set by the unit of distance.
(Initial setting: ➞P. 113)
a Press / switch to switch menu to
b Press and hold the / switch or press it several times to switch
the “Settings” screen, select “Mai ntenance Settings” and press the
ENTER switch
c To set ON or OFF, press the / switch to select “ON” or “OFF” for
each maintenance item, and then press the ENTER switch
Screens for oil filter replacement and tire rotation can be displayed by pressing and
holding / switch, or pressing it several times.
▶When the display is set to “OFF” and the distance is not specified
It displays the “Next Notice Timing” screen, as specified in Step e. (➞ P. 112)
▶If the distance is already set
Each time you press the ENTER switch, it toggles between “ON” and “OFF”.
d To set or reset the distance, press the / switch to select “Notifi-
cation Timing Settings” for each ma intenance item, and then press the
ENTER switch
Screens for oil filter replacement and tire rotation can be displayed by pressing and
holding / switch, or pressing it several times.
RAIZE_OM_General_BZ358E.book 111 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1122-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
e Press / switch to select di stance and press the ENTER switch
⦁After appears, use / switch to set the distance, and press the
ENTER switch again.
⦁ If the distance is already set, the distance to go before the next notification time
is displayed.
⦁ To reset the distance, press / switch to select “Reset” and press the
ENTER switch.
⬛Engine oil deterioration warning reset✽
Perform this operation after th e engine oil has been changed.
When the engine oil is deteriorated or the engine oil replacement is due soon, a mes-
sage reminding you of changing the engine oil will appear ( ➞P. 392).
a Press / switch to switch menu to
b Press and hold the / switch or press it several times to switch
the “Settings” screen, select “Oil De teriorate WNG Reset” and press the
ENTER switch
c Press the / switch to select “Yes”, and then press the ENTER
switch
Make sure that “Reset Completed” is displayed.
RAIZE_OM_General_BZ358E.book 112 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1132-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2

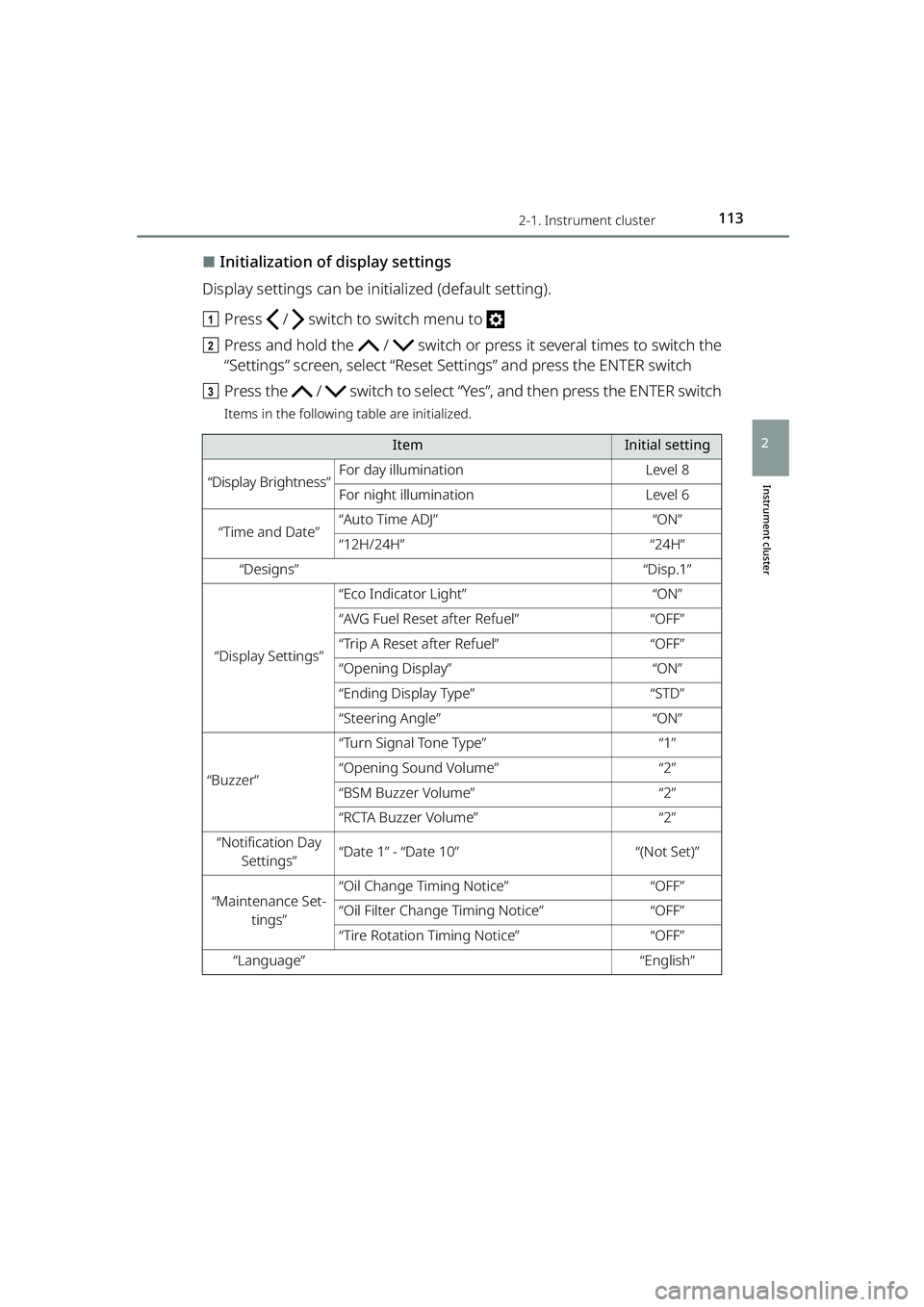

⬛Initialization of display settings
Display settings can be initialized (default setting).
a Press / switch to switch menu to
b Press and hold the / switch or press it several times to switch the
“Settings” screen, select “Reset Settings” and press the ENTER switch
c Press the / switch to select “Y es”, and then press the ENTER switch
Items in the following table are initialized.
ItemInitial setting
“Display Brightness”For day illuminationLevel 8
For night illuminationLevel 6
“Time and Date”“Auto Time ADJ”“ON”
“12H/24H”“24H”
“Designs”“Disp.1”
“Display Settings”
“Eco Indicator Light”“ON”
“AVG Fuel Reset after Refuel”“OFF”
“Trip A Reset after Refuel”“OFF”
“Opening Display”“ON”
“Ending Display Type”“STD”
“Steering Angle”“ON”
“Buzzer”
“Turn Signal Tone Type”“1”
“Opening Sound Volume”“2”
“BSM Buzzer Volume”“2”
“RCTA Buzzer Volume”“2”
“Notification Day
Settings”“Date 1” - “Date 10”“(Not Set)”
“Maintenance Set- tings”“Oil Change Timing Notice”“OFF”
“Oil Filter Change Timing Notice”“OFF”
“Tire Rotation Timing Notice”“OFF”
“Language”“English”
RAIZE_OM_General_BZ358E.book 113 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1142-1. Instrument cluster
RAIZE_OM_General_BZ358E

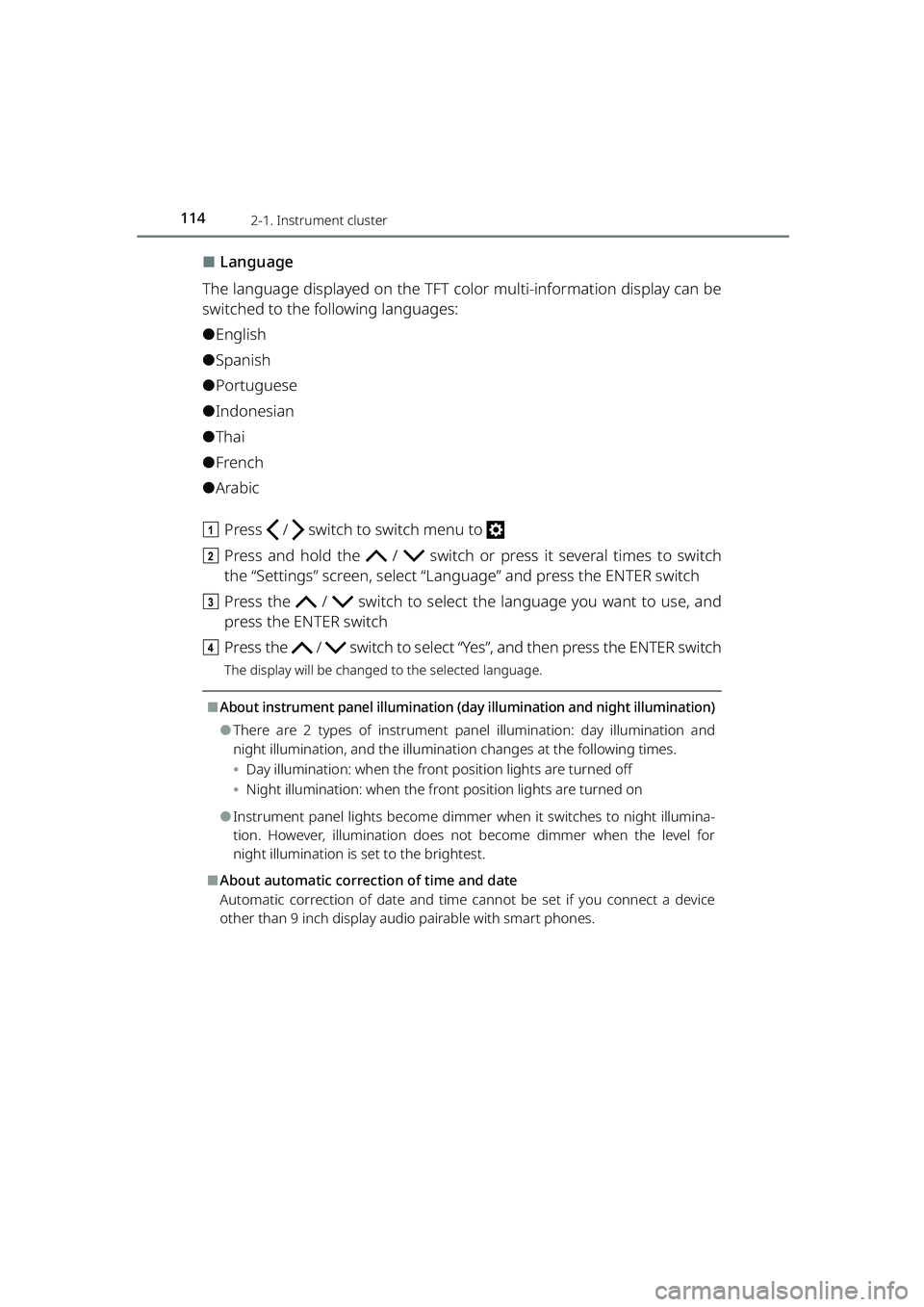

⬛Language
The language displayed on the TFT color multi-information display can be
switched to the following languages:
⚫English
⚫Spanish
⚫Portuguese
⚫Indonesian
⚫Thai
⚫French
⚫Arabic
a Press / switch to switch menu to
b Press and hold the / switch or press it several times to switch
the “Settings” screen, select “Lan guage” and press the ENTER switch
c Press the / switch to select th e language you want to use, and
press the ENTER switch
d Press the / switch to select “Y es”, and then press the ENTER switch
The display will be changed to the selected language.
⬛About instrument panel illumination (day illumination and night illumination)
⚫There are 2 types of instrument pa nel illumination: day illumination and
night illumination, and the illumination changes at the following times.
⦁ Day illumination: when the front po sition lights are turned off
⦁ Night illumination: when the fron t position lights are turned on
⚫Instrument panel lights become dimmer when it switches to night illumina-
tion. However, illumination does not become dimmer when the level for
night illumination is set to the brightest.
⬛About automatic correction of time and date
Automatic correction of da te and time cannot be set if you connect a device
other than 9 inch display audio pairable with smart phones.
RAIZE_OM_General_BZ358E.book 114 ページ ２０２２年５月１７日　火曜日　午後１時５９分
