3106-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
WARNING
The engine compartment contains many mechanisms and fluids that may move
suddenly, become hot, or become electrically energized. To avoid death or seri-
ous injury, observe the following precautions.
⬛When working on the engine compartment
⚫Keep hands, clothing and tools away from the moving fan and engine drive
belt.
⚫Be careful not to touch the engine, radiator, exhaust manifold, etc., right
after driving as they may be hot. O il and other fluids may also be hot.
⚫Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
⚫Do not smoke, cause sparks or expose an open flame to fuel or the battery.
Fuel and battery fumes are flammable.
⚫Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
⚫Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with cl ean water immediately.
If you still experience discomfort, consult a doctor.
⬛When working near the electric cooling fan or radiator grille
Be sure the engine switch is in off.
With the engine switch in “ON”, the elect ric cooling fan may automatically start
to run if the air conditioning is on and/or the coolant temperature is high.
( ➞ P. 320)
⬛Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting in your eyes.
NOTICE
⬛If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
⬛If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear
or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.
RAIZE_OM_General_BZ358E.book 310 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3166-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
aWasher fluid tank ( ➞P. 324)
b Engine oil filler cap (➞ P. 317)
c Engine oil level dipstick ( ➞P. 316)
d Brake fluid reservoir ( ➞P. 320)
e Battery ( ➞P. 321)
f Fuse box ( ➞P. 348) g
Air cleaner ( ➞P. 325)
hEngine coolant reservoir (➞P. 319)
i Electric cooling fan
j Condenser ( ➞P. 320)
k Radiator ( ➞P. 320)
Engine oil
With the engine at operating temper ature and turned off, check the oil
level on the dipstick.
⬛Checking the engine oil
a Park the vehicle on level ground. After warming up the engine and
turning it off, wait more than 5 minutes for the oil to drain back into the
bottom of the engine.
b Holding a rag under the end, pull the dipstick out.
▶WA-VE engine▶1KR-VET engine
c Wipe the dipstick clean.
d Reinsert the dipstick fully.
eHolding a rag under the end, pull the
dipstick out and check the oil level.
a Low
b Normal
c Excessive
The shape of the dipstick may dif-
fer depending on the type of
vehicle or engine.
f Wipe the dipstick and reinsert it fully.
KBRO620901NKBRO620902N
KBRO620905N
RAIZE_OM_General_BZ358E.book 316 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3196-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
Engine coolant
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines
on the reservoir when the engine is cold.
a Reservoir cap
b “FULL” line
c “LOW” line
If the level is on or below the “LOW”
line, add coolant up to the “FULL” line.
(➞ P. 412)
⬛Coolant selection
Only use “Toyota Super Long Life Coolan t” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid org anic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -35°C [-31°F])
For more details about engine coolant, contact your Toyota Genuine dealer.
⬛If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir cap, drain cock and
water pump.
If you cannot find a leak, have your Toyo ta dealer test the cap and check for
leaks in the cooling system.
WARNING
⬛When the engine is hot
Do not remove the radiator cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing seri ous injuries, such as burns.
⬛When replacing the coolant
To avoid coolant spilling on the altern ator, do not remove the upper radiator
hose from engine side (remove from the radiator side). Coolant spilled on the
alternator will cause corrosion of the coil and a fire.
1
3
2
KBRO620908N
RAIZE_OM_General_BZ358E.book 319 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3206-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
NOTICE
⬛When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
⬛If you spill coolant
Be sure to wash it off with water to pr event it from damaging parts or paint.
Radiator and condenser
Check the radiator and condenser and clear away any foreign objects. If
either of the above parts is extremel y dirty or you are not sure of their
condition, have your vehicle inspected by your Toyota dealer.
WARNING
⬛When the engine is hot
Do not touch the radiator or condenser as they may be hot and cause serious
injuries, such as burns.
Brake fluid
⬛Checking fluid level
The brake fluid level should be
between the “MAX” and “MIN” lines
on the tank.
⬛Adding fluid
Make sure to check the fluid type and prepare the necessary item.
KBRO620912E
Fluid typeFMVSS No.116 DOT 3 brake fluid
ItemClean funnel
RAIZE_OM_General_BZ358E.book 320 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3777-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7

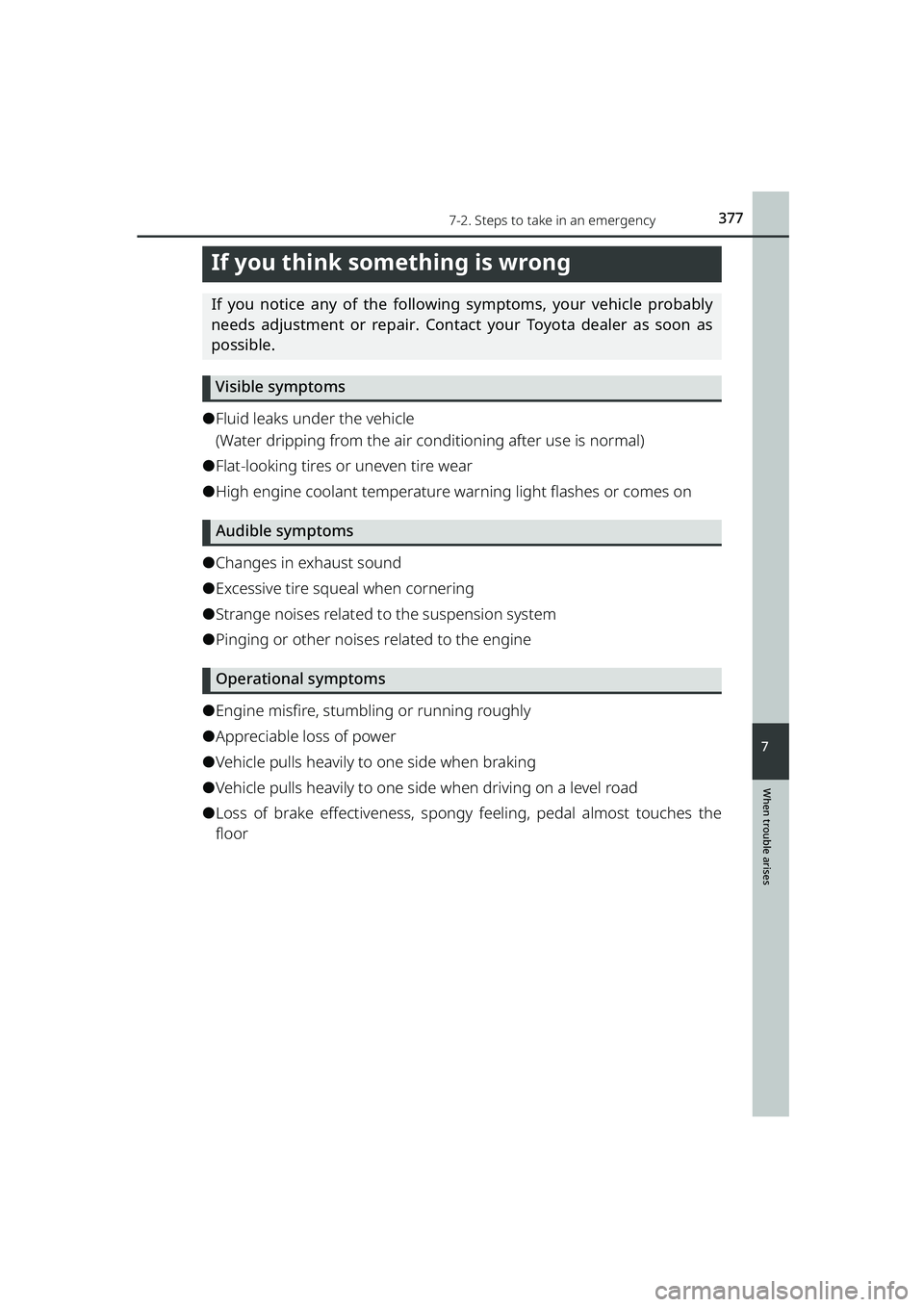

If you think something is wrong
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact your Toyota dealer as soon as
possible.
Visible symptoms
⚫Fluid leaks under the vehicle
(Water dripping from the air co nditioning after use is normal)
⚫Flat-looking tires or uneven tire wear
⚫High engine coolant temperature warning light flashes or comes on
Audible symptoms
⚫Changes in exhaust sound
⚫Excessive tire squeal when cornering
⚫Strange noises related to the suspension system
⚫Pinging or other noises related to the engine
Operational symptoms
⚫Engine misfire, stumbling or running roughly
⚫Appreciable loss of power
⚫Vehicle pulls heavily to one side when braking
⚫Vehicle pulls heavily to one side when driving on a level road
⚫Loss of brake effectiveness, spongy feeling, pedal almost touches the
floor
RAIZE_OM_General_BZ358E.book 377 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3797-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
When trouble arises
7

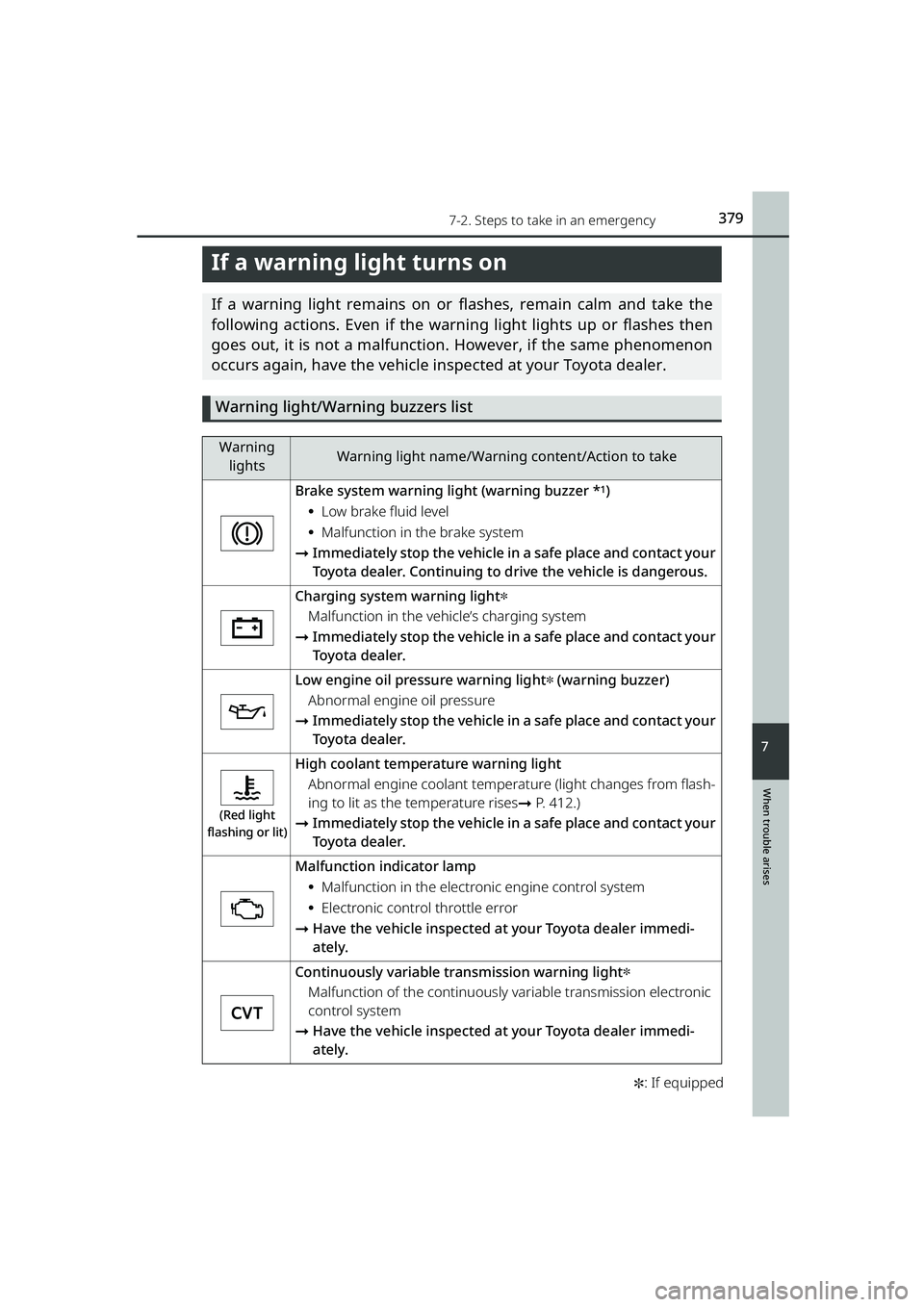

If a warning light turns on
If a warning light remains on or flashes, remain calm and take the
following actions. Even if the warn ing light lights up or flashes then
goes out, it is not a malfunction. However, if the same phenomenon
occurs again, have the vehicle inspected at your Toyota dealer.
Warning light/Warning buzzers list
Warning lightsWarning light name/Warning content/Action to take
Brake system warning light (warning buzzer *1)
⦁Low brake fluid level
⦁Malfunction in the brake system
➞ Immediately stop the vehicle in a safe place and contact your
Toyota dealer. Continuing to drive the vehicle is dangerous.
Charging system warning light✽
Malfunction in the vehicle’s charging system
➞ Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
Low engine oil pressure warning light✽ (warning buzzer)
Abnormal engine oil pressure
➞ Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
(Red light
flashing or lit)
High coolant temperature warning light
Abnormal engine coolant temperat ure (light changes from flash-
ing to lit as the temperature rises ➞P. 412.)
➞ Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
Malfunction indicator lamp
⦁Malfunction in the electron ic engine control system
⦁Electronic control throttle error
➞ Have the vehicle inspected at your Toyota dealer immedi-
ately.
Continuously variable transmission warning light✽
Malfunction of the continuously variable transmission electronic
control system
➞ Have the vehicle inspected at your Toyota dealer immedi-
ately.
RAIZE_OM_General_BZ358E.book 379 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3877-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
When trouble arises
7

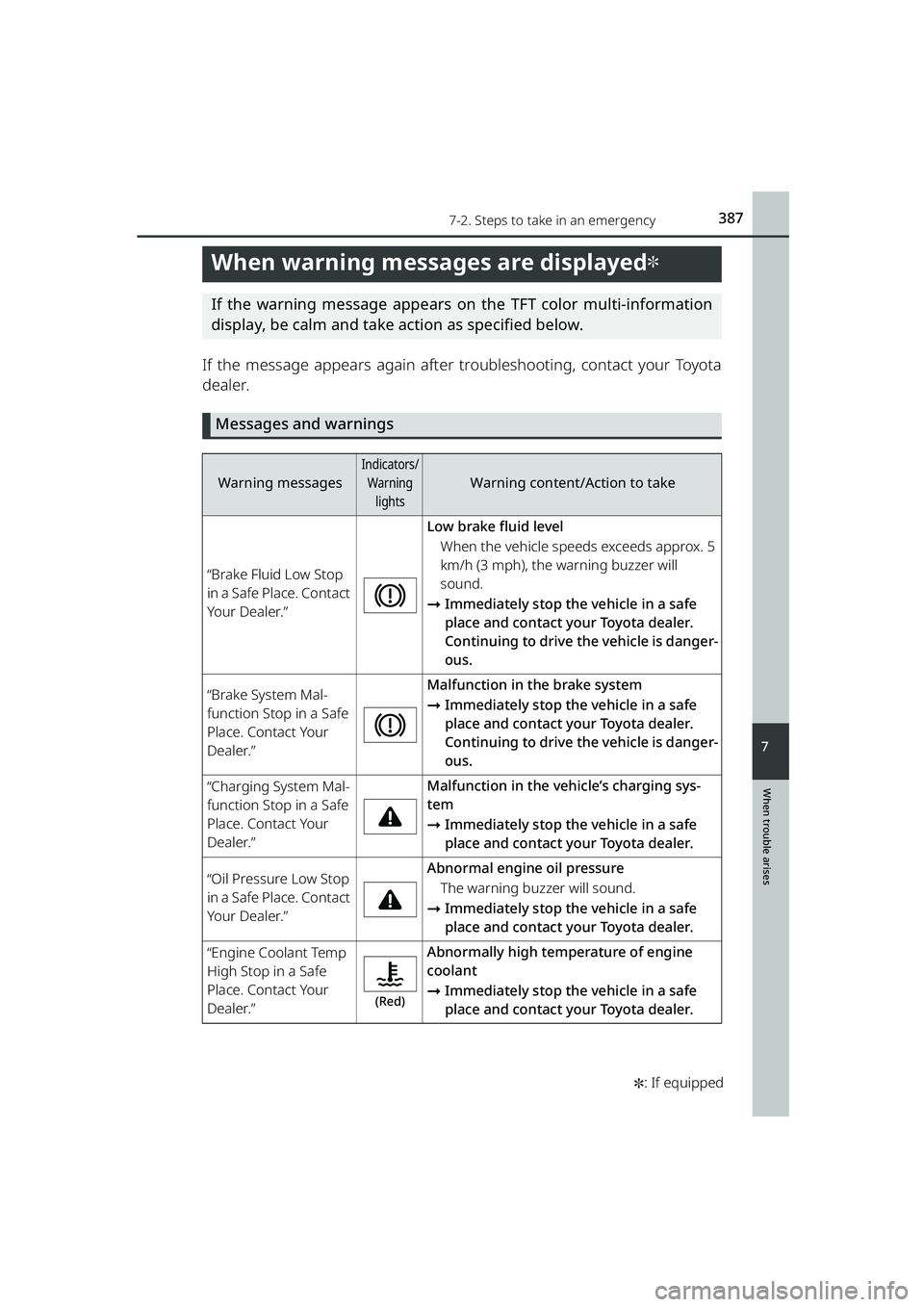

When warning messages are displayed✽
If the warning message appears on the TFT color multi-information
display, be calm and take action as specified below.
If the message appears again after tr oubleshooting, contact your Toyota
dealer.
Messages and warnings
Warning messages
Indicators/Warning lights
Warning content/Action to take
“Brake Fluid Low Stop
in a Safe Place. Contact
Your Dealer.”
Low brake fluid level
When the vehicle speeds exceeds approx. 5
km/h (3 mph), the warning buzzer will
sound.
➞ Immediately stop the vehicle in a safe
place and contact your Toyota dealer.
Continuing to drive the vehicle is danger-
ous.
“Brake System Mal-
function Stop in a Safe
Place. Contact Your
Dealer.”Malfunction in the brake system
➞ Immediately stop the vehicle in a safe
place and contact your Toyota dealer.
Continuing to drive the vehicle is danger-
ous.
“Charging System Mal-
function Stop in a Safe
Place. Contact Your
Dealer.”Malfunction in the ve hicle’s charging sys-
tem
➞ Immediately stop the vehicle in a safe
place and contact your Toyota dealer.
“Oil Pressure Low Stop
in a Safe Place. Contact
Your Dealer.”Abnormal engine oil pressure
The warning buzzer will sound.
➞ Immediately stop the vehicle in a safe
place and contact your Toyota dealer.
“Engine Coolant Temp
High Stop in a Safe
Place. Contact Your
Dealer.”
(Red)
Abnormally high temperature of engine
coolant
➞Immediately stop the vehicle in a safe
place and contact your Toyota dealer.
RAIZE_OM_General_BZ358E.book 387 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3927-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
⬛Warning messages
The displayed warning message in this document may be different from the
actual display depending on the use co nditions or vehicle specifications.
⬛Warning message display
⚫By pressing the RETURN switch when the engine switch is “ON”, the warning
message will disappear.
⚫Even when you hide the warning message by pressing the RETURN switch,
the following warning messages wi ll appear in a few seconds.
⦁ Low brake fluid
⦁ Brake system malfunction
⦁ Charging system malfunction
⦁ Low engine oil pressure
⦁ High temperature of engine coolant
⬛When the “Open” warning message is displayed
To avoid battery discharge, the message will automatically disappear after
approx. 10 minutes with the door open when the engine switch is “ACC” or
“OFF”.
“Oil Deterioration
Warning Oil Mainte-
nance Required Soon”
―
The engine oil replacement is due soon✽
➞ Have the vehicle inspected at your Toy-
ota dealer.
“Oil Deterioration
Warning Oil Mainte-
nance Required Visit
Your Dealer”
―
The engine oil is deteriorated✽
➞Have the vehicle inspected at your Toy-
ota dealer immediately.
Warning messages
Indicators/
Warning lights
Warning content/Action to take
RAIZE_OM_General_BZ358E.book 392 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4127-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
If your vehicle overheats
The following may indicate that your vehicle is overheating:
⚫High coolant temperat ure warning light (➞P. 379) is flashing or lit in red
⚫Vehicles with TFT color multi-information display: “Engine Coolant
Temp High” warning message ( ➞P. 387) is displayed
⚫A loss of engine power is experienced (the vehicle cannot reach
higher speeds, etc.)
⚫Steam comes out from th e engine compartment
Measures to take
⬛The high coolant temperature warn ing light is flashing or lit
a Stop the vehicle in a safe place an d turn OFF the air conditioning sys-
tem, and then stop the engine
b If you see steam:
After making sure that the steam has stopped, carefully lift the hood
If you do not see steam:
Carefully lift the hood
c After the engine has cooled
down sufficiently, inspect the
hoses and radiator core (radiat-
ing part) for any leaks
aCooling fan
b Radiator
If a large amount of coolant has leaked,
immediately contact your Toyota
dealer.
d Check that the amount of coolant
in the reservoir tank is between
“F” (upper limit) and “L” (lower
limit)
aReservoir tank
b “F” (upper limit)
c “L” (lower limit)
d Radiator cap
1
2KBRO721001N
1
3
4
2
KBRO721002N
RAIZE_OM_General_BZ358E.book 412 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4137-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7
eAdd coolant if necessary
Water can be used in an emergency if
coolant is unavailable.
fStart the engine and turn the air co nditioning system on to check that
the radiator cooling fan operates and to check again for coolant leaks
from the radiator core or hoses
The fan operates when the air conditioning system is turned on immediately after a
cold start. Confirm that the fan is operat ing by checking the fan sound and air flow.
If it is difficult to check them, turn the air conditioning system ON and OFF repeat-
edly.
(The fan may not operate in freezing temperatures)
g If the fan is not operating:
Stop the engine immediately and contact your Toyota dealer
If the fan is operating:
Have the vehicle inspected at the nearest Toyota dealer
WARNING
⬛Before taking measures
Do not remove the radiator cap if the coolant is hot. The radiator cap is under
the pressure of the coolant. Therefore, steam or hot water may spurt out of it,
causing serious injury such as burns.
⬛To prevent an accident or injury when inspecting under the hood of your
vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
⚫If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
⚫Keep hands and clothing (especially a tie, a scarf or a muffler) away from the
fan and belts. Failure to do so may caus e the hands or clothing to be caught,
resulting in serious injury.
⚫Do not loosen the radiator cap an d the coolant reservoir cap while the
engine and radiator are hot. High te mperature steam or coolant could spray
out.
KBRO721003N
RAIZE_OM_General_BZ358E.book 413 ページ ２０２２年５月１７日　火曜日　午後１時５９分
