sensor TOYOTA RAIZE 2023 User Guide

211
RAIZE_OM_General_BZ358E✽
: If equipped
Driving
4
4-5. Using the driving support systems

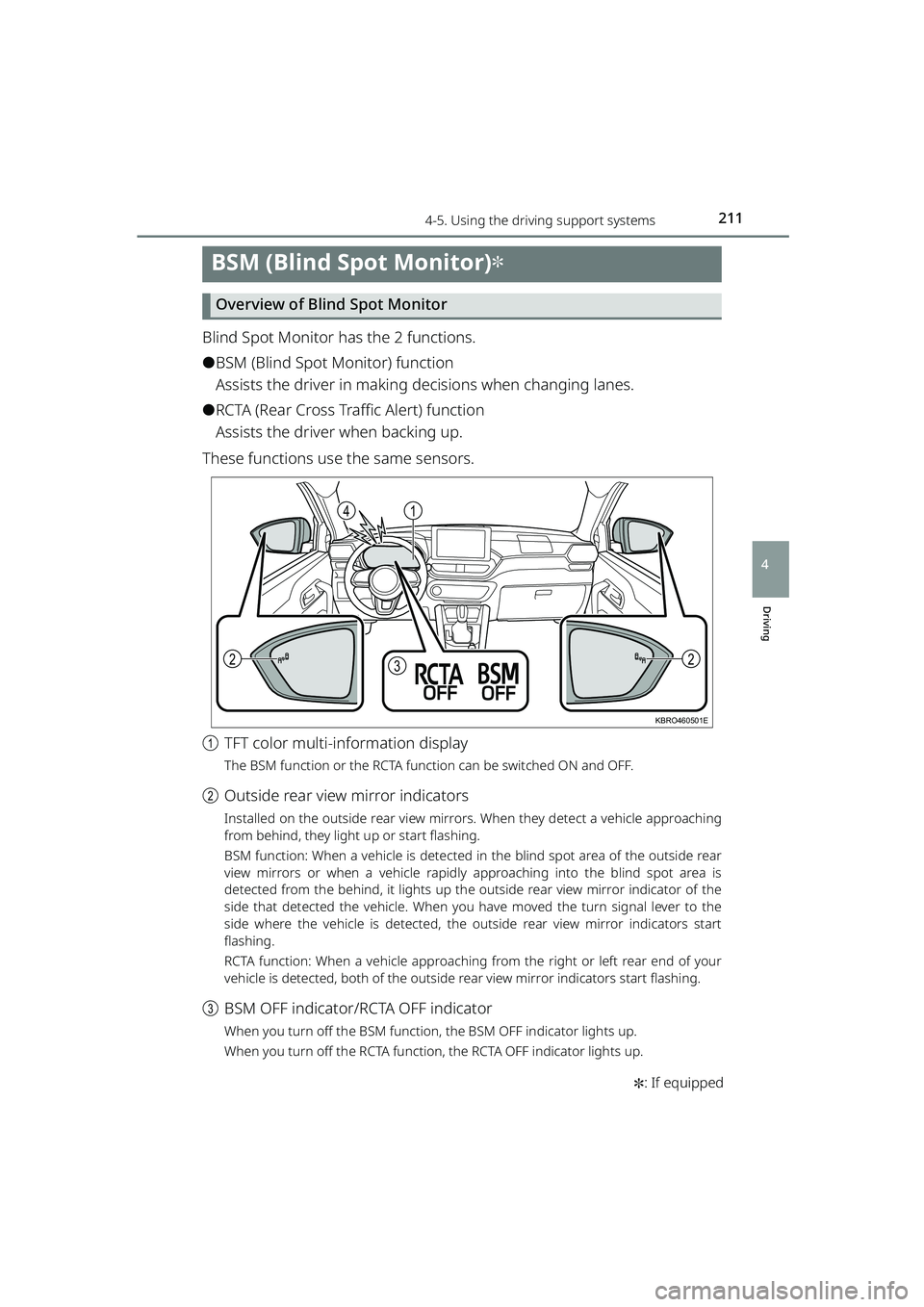

BSM (Blind Spot Monitor)✽
Overview of Blind Spot Monitor
Blind Spot Monitor has the 2 functions.
⚫BSM (Blind Spot Monitor) function
Assists the driver in making decisions when changing lanes.
⚫RCTA (Rear Cross Traffic Alert) function
Assists the driver when backing up.
These functions use the same sensors.
a TFT color multi-information display
The BSM function or the RCTA function can be switched ON and OFF.
bOutside rear view mirror indicators
Installed on the outside rear view mirrors. When they detect a vehicle approaching
from behind, they light up or start flashing.
BSM function: When a vehicle is detected in the blind spot area of the outside rear
view mirrors or when a vehicle rapidly approaching into the blind spot area is
detected from the behind, it lights up the outside rear view mirror indicator of the
side that detected the vehicle. When you have moved the turn signal lever to the
side where the vehicle is detected, the outside rear view mirror indicators start
flashing.
RCTA function: When a vehicle approaching from the right or left rear end of your
vehicle is detected, both of the outside rear view mirror indicators start flashing.
c BSM OFF indicator/RCTA OFF indicator
When you turn off the BSM function, the BSM OFF indicator lights up.
When you turn off the RCTA function, the RCTA OFF indicator lights up.
4
322
1
KBRO460501E
RAIZE_OM_General_BZ358E.book 211 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2134-5. Using the driving support systems
RAIZE_OM_General_BZ358E
Driving
4

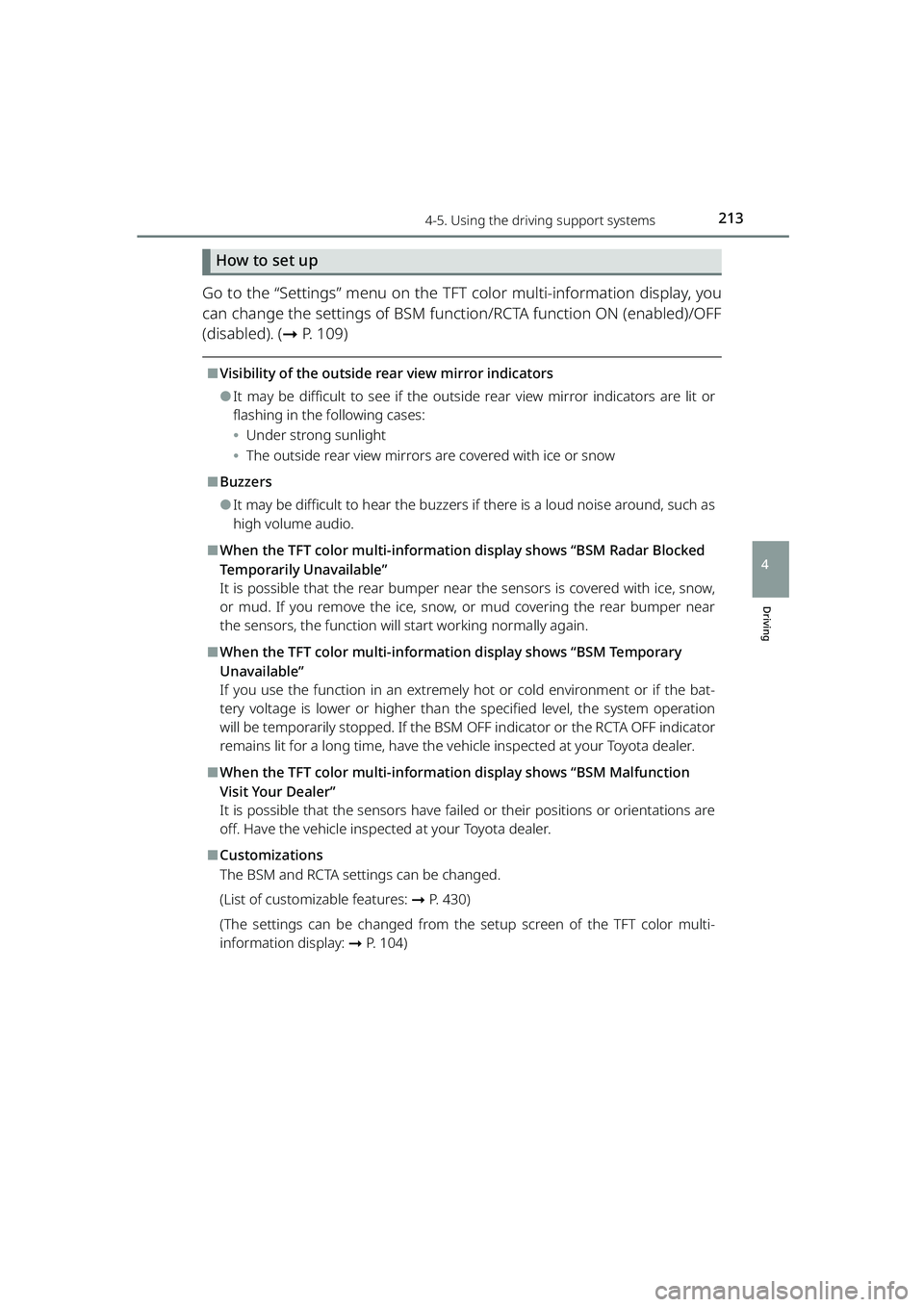

How to set up
Go to the “Settings” menu on the TFT color multi-information display, you
can change the settings of BSM function/RCTA function ON (enabled)/OFF
(disabled). (➞P. 109)
⬛Visibility of the outside rear view mirror indicators
⚫It may be difficult to see if the outsid e rear view mirror indicators are lit or
flashing in the following cases:
⦁ Under strong sunlight
⦁ The outside rear view mirrors are covered with ice or snow
⬛Buzzers
⚫It may be difficult to hear the buzzers if there is a loud noise around, such as
high volume audio.
⬛When the TFT color multi-information display shows “BSM Radar Blocked
Temporarily Unavailable”
It is possible that the rear bumper near the sensors is covered with ice, snow,
or mud. If you remove the ice, snow, or mud covering the rear bumper near
the sensors, the function will start working normally again.
⬛When the TFT color multi-information display shows “BSM Temporary
Unavailable”
If you use the function in an extremely hot or cold environment or if the bat-
tery voltage is lower or higher than th e specified level, the system operation
will be temporarily stopped. If the BSM OFF indicator or the RCTA OFF indicator
remains lit for a long time, have the vehi cle inspected at your Toyota dealer.
⬛When the TFT color multi-information display shows “BSM Malfunction
Visit Your Dealer”
It is possible that the sensors have failed or their positions or orientations are
off. Have the vehicle inspec ted at your Toyota dealer.
⬛Customizations
The BSM and RCTA settings can be changed.
(List of customizable features: ➞ P. 430)
(The settings can be changed from the setup screen of the TFT color multi-
information display: ➞ P. 104)
RAIZE_OM_General_BZ358E.book 213 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2144-5. Using the driving support systems
RAIZE_OM_General_BZ358E

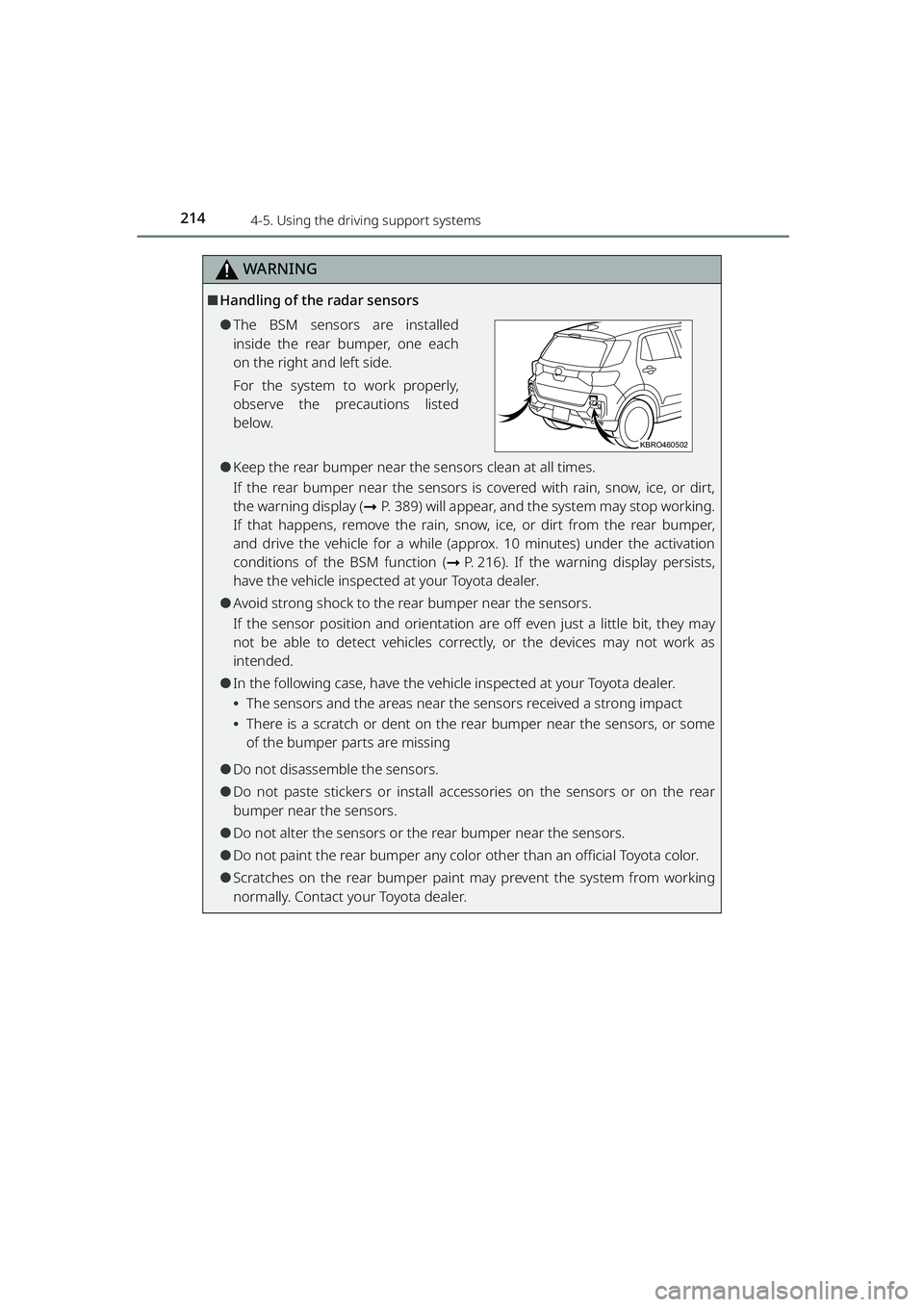

WARNING
⬛Handling of the radar sensors
⚫The BSM sensors are installed
inside the rear bumper, one each
on the right and left side.
For the system to work properly,
observe the precautions listed
below.
⚫Keep the rear bumper near the sensors clean at all times.
If the rear bumper near the sensors is covered with rain, snow, ice, or dirt,
the warning display ( ➞P. 389) will appear, and the system may stop working.
If that happens, remove the rain, snow, ice, or dirt from the rear bumper,
and drive the vehicle for a while (appro x. 10 minutes) under the activation
conditions of the BSM function ( ➞P. 216). If the warning display persists,
have the vehicle inspected at your Toyota dealer.
⚫Avoid strong shock to the rear bumper near the sensors.
If the sensor position and orientation ar e off even just a little bit, they may
not be able to detect vehicles correctly, or the devices may not work as
intended.
⚫In the following case, have the vehicle inspected at your Toyota dealer.
⦁ The sensors and the areas near the sensors received a strong impact
⦁ There is a scratch or dent on the rear bumper near the sensors, or some
of the bumper parts are missing
⚫Do not disassemble the sensors.
⚫Do not paste stickers or install accessories on the sensors or on the rear
bumper near the sensors.
⚫Do not alter the sensors or the rear bumper near the sensors.
⚫Do not paint the rear bumper any color other than an official Toyota color.
⚫Scratches on the rear bumper paint may prevent the system from working
normally. Contact your Toyota dealer.
KBRO460502
RAIZE_OM_General_BZ358E.book 214 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2154-5. Using the driving support systems
RAIZE_OM_General_BZ358E
Driving
4

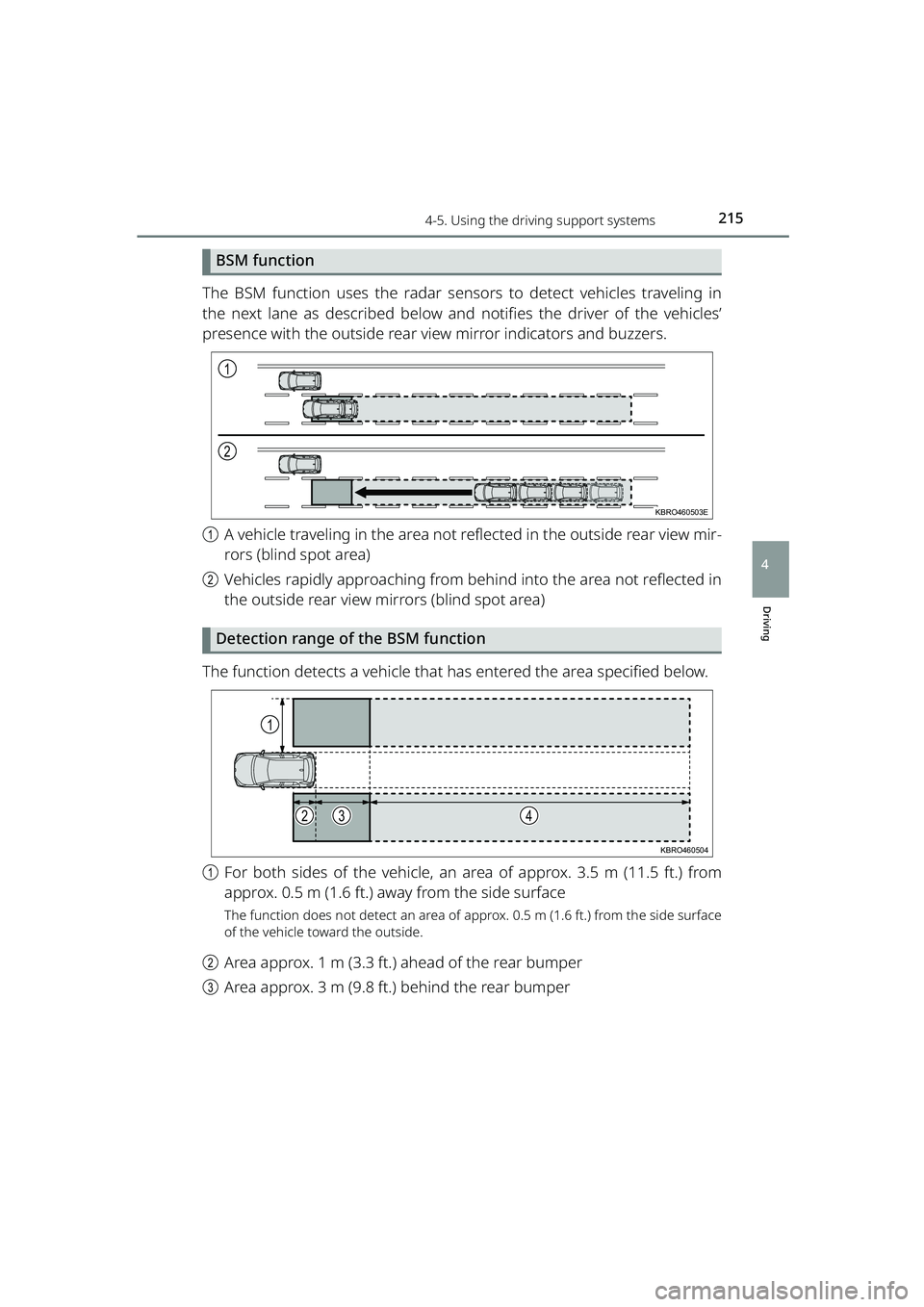

BSM function
The BSM function uses the radar sensors to detect vehicles traveling in
the next lane as described below and notifies the driver of the vehicles’
presence with the outside rear view mirror indicators and buzzers.
a A vehicle traveling in the area not re flected in the outside rear view mir-
rors (blind spot area)
b Vehicles rapidly approaching from behind into the area not reflected in
the outside rear view mirrors (blind spot area)
Detection range of the BSM function
The function detects a vehicle that has entered the area specified below.
a For both sides of the vehicle, an ar ea of approx. 3.5 m (11.5 ft.) from
approx. 0.5 m (1.6 ft.) away from the side surface
The function does not detect an area of a pprox. 0.5 m (1.6 ft.) from the side surface
of the vehicle toward the outside.
b Area approx. 1 m (3.3 ft.) ahead of the rear bumper
c Area approx. 3 m (9.8 ft.) behind the rear bumper
1
2
KBRO460503E
1
234
KBRO460504
RAIZE_OM_General_BZ358E.book 215 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2174-5. Using the driving support systems
RAIZE_OM_General_BZ358E
Driving
4

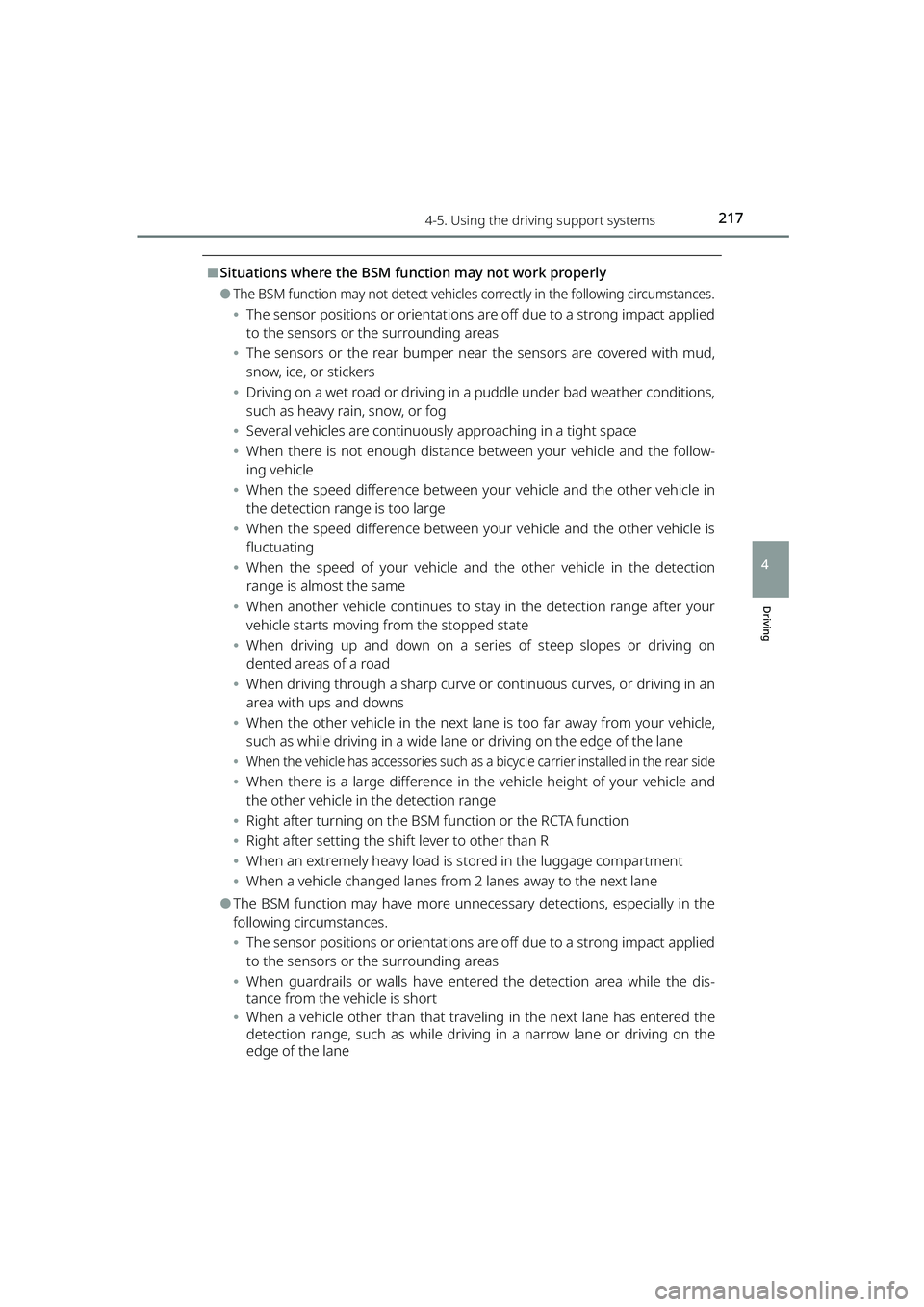

⬛Situations where the BSM function may not work properly
⚫The BSM function may not detect vehicles correctly in the following circumstances.
⦁The sensor positions or orientations are off due to a strong impact applied
to the sensors or the surrounding areas
⦁ The sensors or the rear bumper near the sensors are covered with mud,
snow, ice, or stickers
⦁ Driving on a wet road or driving in a puddle under bad weather conditions,
such as heavy rain, snow, or fog
⦁ Several vehicles are continuously approaching in a tight space
⦁ When there is not enough distance between your vehicle and the follow-
ing vehicle
⦁ When the speed difference between yo ur vehicle and the other vehicle in
the detection range is too large
⦁ When the speed difference between your vehicle and the other vehicle is
fluctuating
⦁ When the speed of your vehicle and the other vehicle in the detection
range is almost the same
⦁ When another vehicle continues to stay in the detection range after your
vehicle starts moving from the stopped state
⦁ When driving up and down on a series of steep slopes or driving on
dented areas of a road
⦁ When driving through a sharp curve or continuous curves, or driving in an
area with ups and downs
⦁ When the other vehicle in the next la ne is too far away from your vehicle,
such as while driving in a wide lane or driving on the edge of the lane
⦁When the vehicle has accessories such as a bicycle carrier installed in the rear side
⦁When there is a large difference in th e vehicle height of your vehicle and
the other vehicle in the detection range
⦁ Right after turning on the BSM function or the RCTA function
⦁ Right after setting the shift lever to other than R
⦁ When an extremely heavy load is st ored in the luggage compartment
⦁ When a vehicle changed lanes from 2 lanes away to the next lane
⚫The BSM function may have more unnecessary detections, especially in the
following circumstances.
⦁The sensor positions or orientations are off due to a strong impact applied
to the sensors or the surrounding areas
⦁ When guardrails or walls have ente red the detection area while the dis-
tance from the vehicle is short
⦁ When a vehicle other than that trave ling in the next lane has entered the
detection range, such as while driving in a narrow lane or driving on the
edge of the lane
RAIZE_OM_General_BZ358E.book 217 ページ ２０２２年５月１７日　火曜日　午後１時５９分

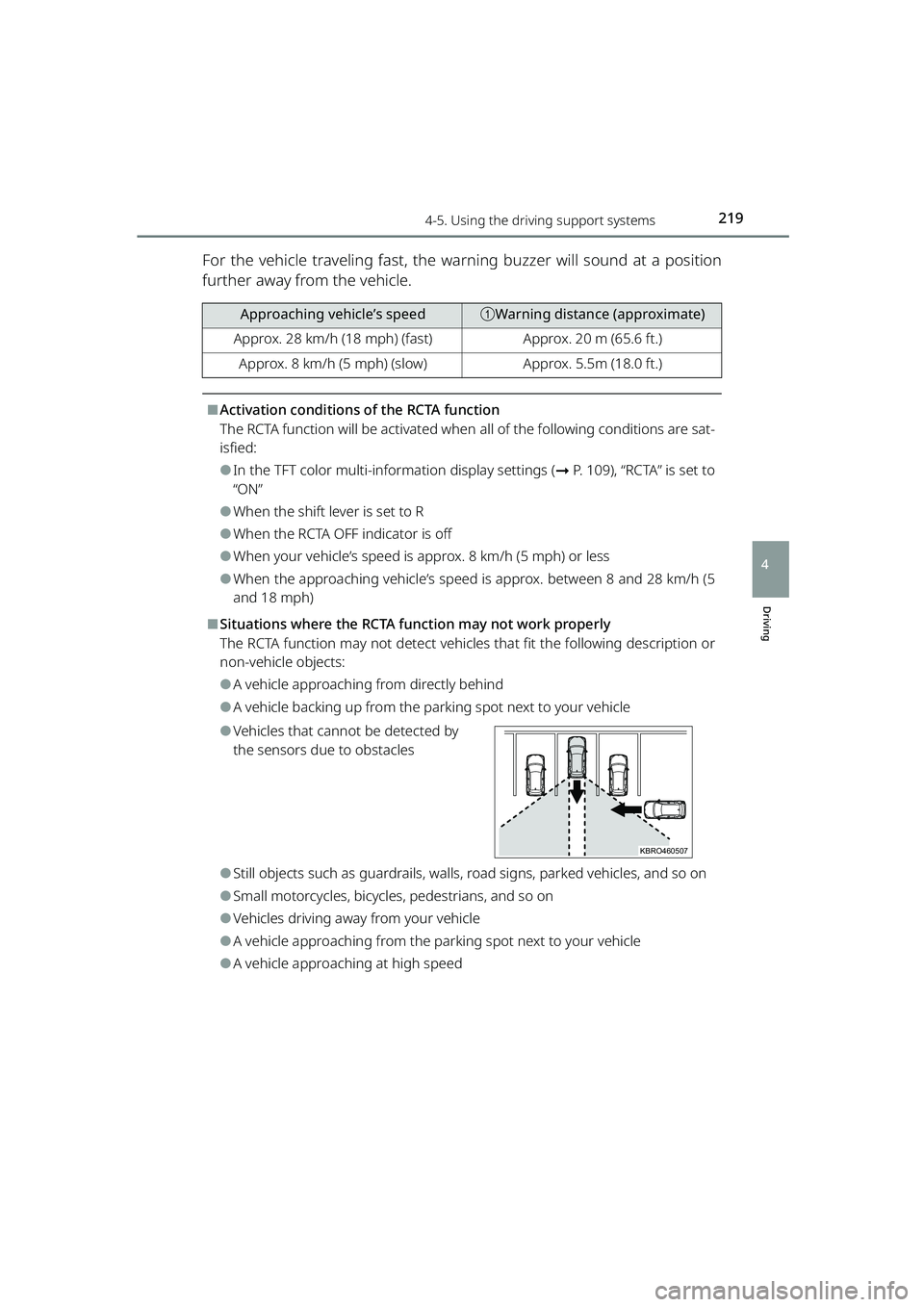

2194-5. Using the driving support systems
RAIZE_OM_General_BZ358E
Driving
4
For the vehicle traveling fast, the warning buzzer will sound at a position
further away from the vehicle.
⬛Activation conditions of the RCTA function
The RCTA function will be activated when all of the following conditions are sat-
isfied:
⚫In the TFT color multi-info rmation display settings (➞P. 109), “RCTA” is set to
“ON”
⚫When the shift lever is set to R
⚫When the RCTA OFF indicator is off
⚫When your vehicle’s speed is approx. 8 km/h (5 mph) or less
⚫When the approaching vehicle’s speed is approx. between 8 and 28 km/h (5
and 18 mph)
⬛Situations where the RCTA function may not work properly
The RCTA function may not detect vehicles that fit the following description or
non-vehicle objects:
⚫A vehicle approaching from directly behind
⚫A vehicle backing up from the parking spot next to your vehicle
⚫Vehicles that cannot be detected by
the sensors due to obstacles
⚫Still objects such as guardrails, walls, road signs, parked vehicles, and so on
⚫Small motorcycles, bicycles, pedestrians, and so on
⚫Vehicles driving away from your vehicle
⚫A vehicle approaching from the parki ng spot next to your vehicle
⚫A vehicle approaching at high speed
Approaching vehicle’s speedaWarning distance (approximate)
Approx. 28 km/h (18 mph) (fast)Approx. 20 m (65.6 ft.)
Approx. 8 km/h (5 mph) (slow)Approx. 5.5m (18.0 ft.)
KBRO460507
RAIZE_OM_General_BZ358E.book 219 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2204-5. Using the driving support systems
RAIZE_OM_General_BZ358E
⬛Situations where the RCTA function may not work properly
⚫The RCTA function may not detect vehicles correctly in the following circumstances.
⦁The sensor positions or orientations are off due to a strong impact applied
to the sensors or the surrounding areas
⦁ The sensors or the rear bumper near the sensors are covered with mud,
snow, ice, or stickers
⦁ Driving on a wet road or driving in a puddle under bad weather conditions,
such as heavy rain, snow, or fog
⦁ When several vehicles are passing continuously behind your vehicle or
when a vehicle is approaching from th e opposite direction to the vehicle
detected first
⦁ When the vehicle is parked on a hill or an uneven road
⦁ When the vehicle has accessories such as a bicycle carrier installed in the
rear side
⦁ When the vehicle is moving backward on a steep hill with varying slopes
⦁ When the vehicle is parked diagonally
⦁ Right after turning on the RCTA function
⦁ Right after starting the engine wi th the RCTA function turned on
⦁ When being affected by radio wave interference from the radar sensors
installed on the vehicle parked next to your vehicle
⦁ When getting out from a sloped parking spot
⦁ When a large vehicle is parked next to your vehicle
⦁ When the vehicle is backing up at fast speed
⚫The RCTA function may have more unnecessary detections, especially in the
following circumstances.
⦁The sensor positions or orientations are off due to a strong impact applied
to the sensors or the surrounding areas
⦁ When another vehicle passes through the side of your vehicle
⦁ When the vehicle is traveling on a
road facing a parking lot
⦁ When metal objects (such as guardrails, walls, signs, parked vehicles) that
can easily reflect radio waves are located behind the vehicle
⦁ When the vehicle has accessories such as a bicycle carrier installed in the
rear side
⦁ When buildings or roadside walls are present in the direction to which the
vehicle is backing up
KBRO460508
RAIZE_OM_General_BZ358E.book 220 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2214-5. Using the driving support systems
RAIZE_OM_General_BZ358E✽
: If equipped
Driving
4

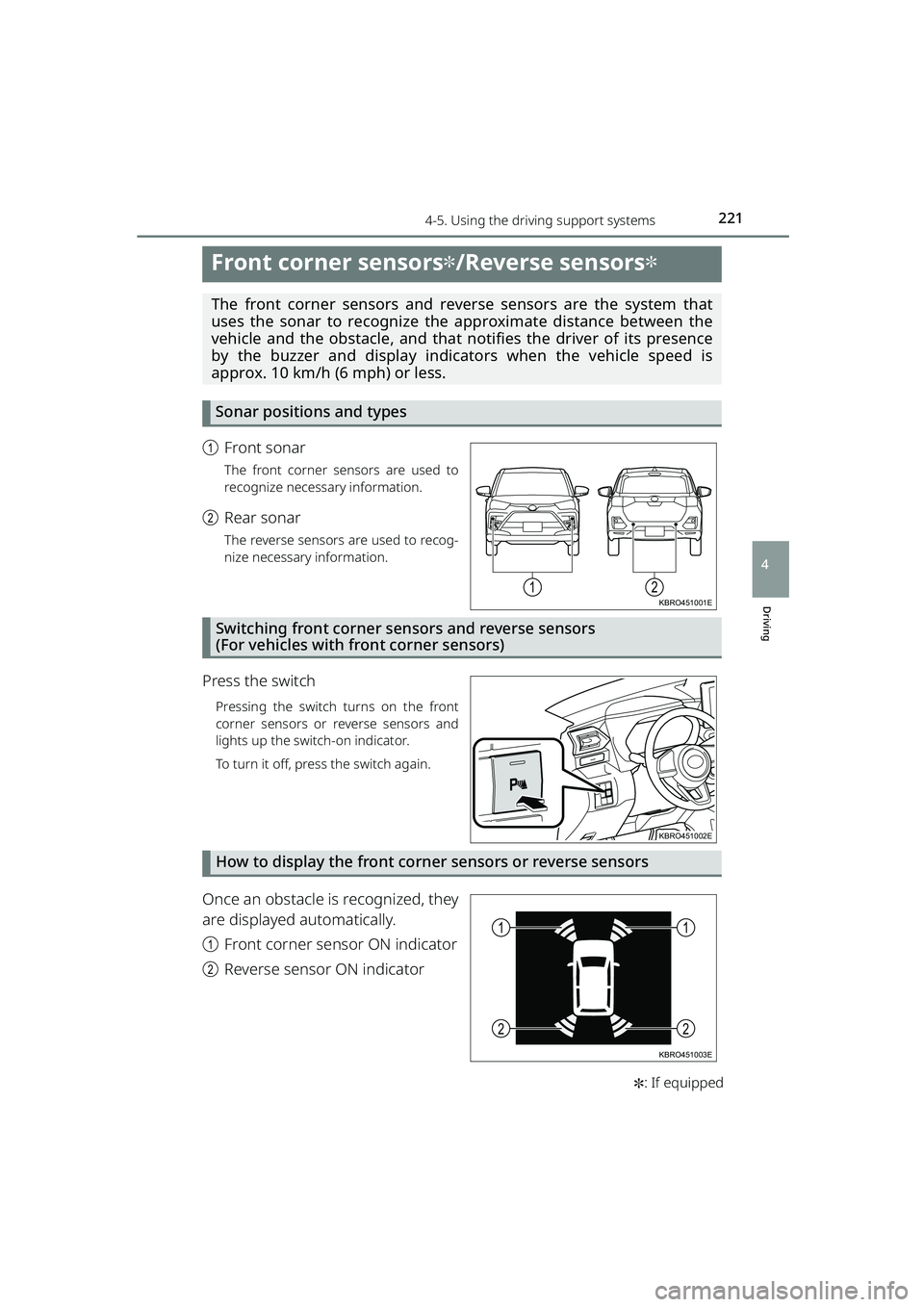

Front corner sensors✽/Reverse sensors✽
The front corner sensors and reverse sensors are the system that
uses the sonar to recognize the approximate distance between the
vehicle and the obstacle, and that notifies the driver of its presence
by the buzzer and display indica tors when the vehicle speed is
approx. 10 km/h (6 mph) or less.
Sonar positions and types
a Front sonar
The front corner sensors are used to
recognize necessary information.
bRear sonar
The reverse sensors are used to recog-
nize necessary information.
Switching front corner sensors and reverse sensors
(For vehicles with front corner sensors)
Press the switch
Pressing the switch turns on the front
corner sensors or reverse sensors and
lights up the switch-on indicator.
To turn it off, press the switch again.
How to display the front corner sensors or reverse sensors
Once an obstacle is recognized, they
are displayed automatically.
aFront corner sensor ON indicator
b Reverse sensor ON indicator
12KBRO451001E
KBRO451002E
11
22
KBRO451003E
RAIZE_OM_General_BZ358E.book 221 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2234-5. Using the driving support systems
RAIZE_OM_General_BZ358E
Driving
4

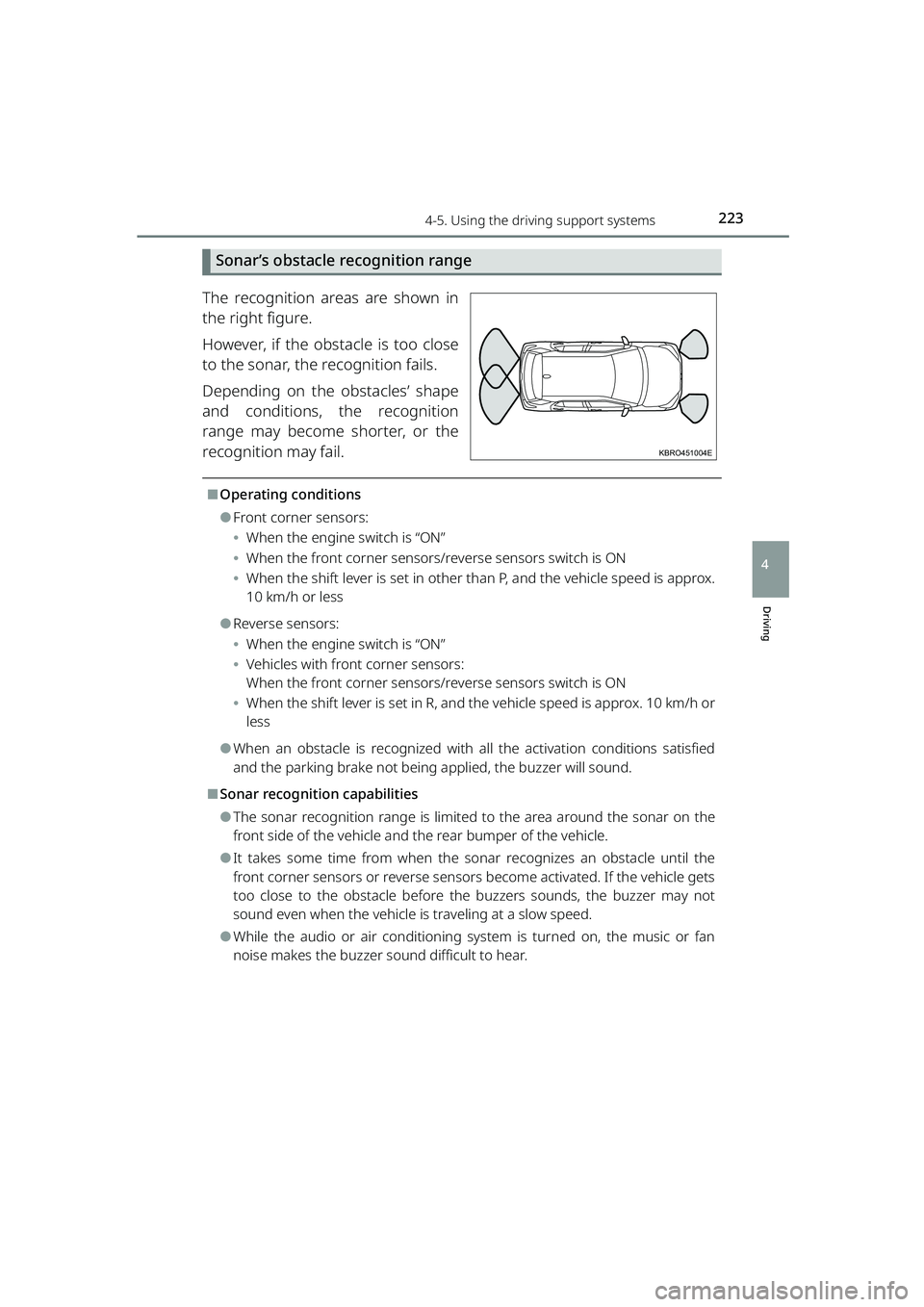

Sonar’s obstacle recognition range
The recognition areas are shown in
the right figure.
However, if the obstacle is too close
to the sonar, the recognition fails.
Depending on the obstacles’ shape
and conditions, the recognition
range may become shorter, or the
recognition may fail.
⬛Operating conditions
⚫Front corner sensors:
⦁When the engine switch is “ON”
⦁ When the front corner sensors/reverse sensors switch is ON
⦁ When the shift lever is set in other than P, and the vehicle speed is approx.
10 km/h or less
⚫Reverse sensors:
⦁When the engine switch is “ON”
⦁ Vehicles with front corner sensors:
When the front corner sensors/reverse sensors switch is ON
⦁ When the shift lever is set in R, and the vehicle speed is approx. 10 km/h or
less
⚫When an obstacle is recognized with all the activation conditions satisfied
and the parking brake not being applied, the buzzer will sound.
⬛Sonar recognition capabilities
⚫The sonar recognition range is limited to the area around the sonar on the
front side of the vehicle and th e rear bumper of the vehicle.
⚫It takes some time from when the sonar recognizes an obstacle until the
front corner sensors or reverse sensors become activated. If the vehicle gets
too close to the obstacle before the buzzers sounds, the buzzer may not
sound even when the vehicle is traveling at a slow speed.
⚫While the audio or air conditioning system is turned on, the music or fan
noise makes the buzzer sound difficult to hear.
KBRO451004E
RAIZE_OM_General_BZ358E.book 223 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2244-5. Using the driving support systems
RAIZE_OM_General_BZ358E

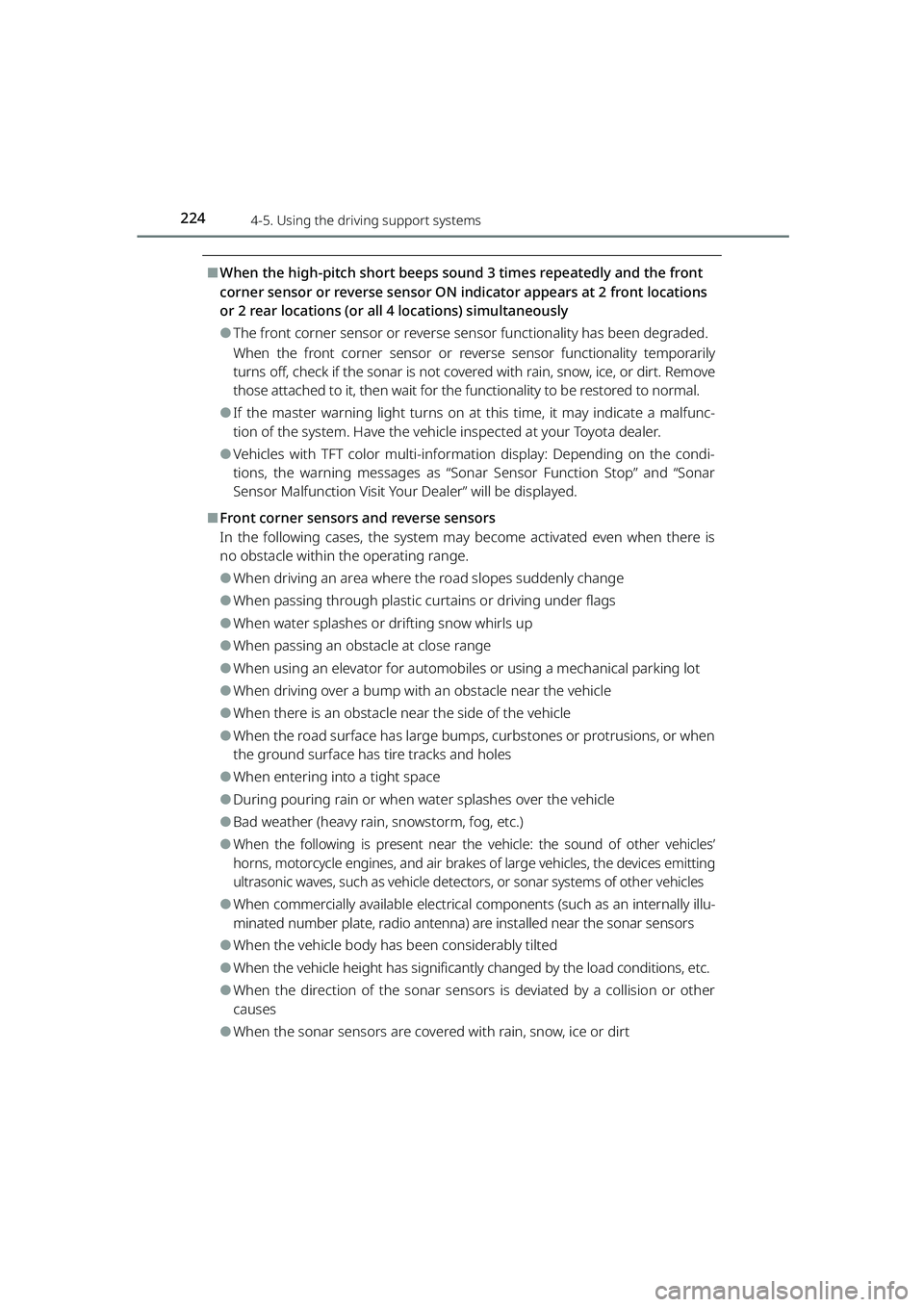

⬛When the high-pitch short beeps sound 3 times repeatedly and the front
corner sensor or reverse sensor ON indicator appears at 2 front locations
or 2 rear locations (or all 4 locations) simultaneously
⚫The front corner sensor or reverse se nsor functionality has been degraded.
When the front corner sensor or re verse sensor functionality temporarily
turns off, check if the sonar is not cove red with rain, snow, ice, or dirt. Remove
those attached to it, then wait for the f unctionality to be restored to normal.
⚫If the master warning light turns on at this time, it may indicate a malfunc-
tion of the system. Have the vehicle inspected at your Toyota dealer.
⚫Vehicles with TFT color multi-informati on display: Depending on the condi-
tions, the warning messages as “Son ar Sensor Function Stop” and “Sonar
Sensor Malfunction Visit Your Dealer” will be displayed.
⬛Front corner sensors and reverse sensors
In the following cases, the system ma y become activated even when there is
no obstacle within the operating range.
⚫When driving an area where the road slopes suddenly change
⚫When passing through plastic curtains or driving under flags
⚫When water splashes or drifting snow whirls up
⚫When passing an obstacle at close range
⚫When using an elevator for automobiles or using a mechanical parking lot
⚫When driving over a bump with an obstacle near the vehicle
⚫When there is an obstacle near the side of the vehicle
⚫When the road surface has large bumps, curbstones or protrusions, or when
the ground surface has tire tracks and holes
⚫When entering into a tight space
⚫During pouring rain or when water splashes over the vehicle
⚫Bad weather (heavy rain, snowstorm, fog, etc.)
⚫When the following is present near the vehicle: the sound of other vehicles’
horns, motorcycle engines, and air brakes of large vehicles, the devices emitting
ultrasonic waves, such as vehicle detect ors, or sonar systems of other vehicles
⚫When commercially available electrical components (such as an internally illu-
minated number plate, radio antenna) are installed near the sonar sensors
⚫When the vehicle body has been considerably tilted
⚫When the vehicle height has significantly changed by the load conditions, etc.
⚫When the direction of the sonar sensors is deviated by a collision or other
causes
⚫When the sonar sensors are covere d with rain, snow, ice or dirt
RAIZE_OM_General_BZ358E.book 224 ページ ２０２２年５月１７日　火曜日　午後１時５９分
