⬛Starting off on an uphill
The hill-start assist control will be activated. (➞P. 232)
⬛Driving in the rain
⚫Drive carefully when it is raining, bec ause visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
⚫Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
⚫Refrain from driving at high speeds on an expressway in the rain, because
there may be a layer of water between the tires an d the road surface, pre-
venting the steering and brakes from operating properly.
⬛Engine speed while driving (continuous ly variable transmission vehicles)
In the following conditions, the engine speed may become high while driving.
This is due to automatic up-shifting re striction or down-shifting implementa-
tion to meet driving conditions. It do es not indicate sudden acceleration.
⚫The vehicle is judged to be driving uphill or downhill
⚫When the accelerator pedal is released
⬛Engine power suppression control (Brake Override System)
When the accelerator pedal and the brake pedal are depressed simultane-
ously, the engine output may be suppressed.
▶Vehicles without TFT color multi-information display
⚫When the Brake Override System is op erating, the warning light turns on.
( ➞ P. 381)
▶Vehicles with TFT color multi-information display
⚫When the Brake Override System is op erating, the warning message is dis-
played. ( ➞P. 390)
⬛Idling before stopping the engine (turbo vehicles)
Immediately after driving at high-speed or climbing on a hill, idle the engine
for approx. 1 minute and then stop the engine in order to prevent the turbo
system from being damaged.
⬛Overheating
The following severe driving situations can cause overheating.
⚫Driving up a long uphill on a hot day
⚫Sudden deceleration or stop imme diately after high-speed driving
RAIZE_OM_General_BZ358E.book 168 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1704-1. Driving the vehicle
RAIZE_OM_General_BZ358E
WARNING
Observe the following precautions. Failure to do so may cause death or serious
injury.
⬛When starting to move the vehicle (continuously variable transmission
vehicles)
Always depress the brake pedal while st opped with the engine running. This
prevents the vehicle from creeping.
⬛When driving the vehicle
⚫Do not drive if you are unfamiliar with the location of the brake and accelera-
tor pedals to avoid depressing the wrong pedal.
⦁ Accidentally depressing the accelera tor pedal instead of the brake pedal
will result in sudden acceleratio n that may lead to an accident.
⦁ When backing up, you may twist your body around, leading to difficulty in
operating the pedals. Make sure to operate the pedals properly.
⦁ Make sure to keep a correct driving posture even when moving the vehicle
only slightly. This allows you to depress the brake and accelerator pedals
properly.
⦁ Depress the brake pedal using your right foot. Depressing the brake pedal
using your left foot may delay response in an emergency, resulting in an
accident.
⚫Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust pipes and exhaust gases can be extremely hot, and may cause a
fire if there is any flammable material nearby.
⚫During normal driving, do not turn of f the engine. Turning the engine off
while driving will not cause loss of steering or braking control, but the power
assist to these systems will be lost. This will make it more difficult to steer
and brake, so you should pull over and st op the vehicle as soon as it is safe
to do so.
However, in the event of an emergency, such as if it becomes impossible to
stop the vehicle in the normal way: ➞P. 3 6 7
⚫Use engine braking to maintain a safe speed when driving down a steep hill.
Using a foot brake continuously may cause the brake to overheat and lose
effectiveness. ( ➞P. 189)
⚫Depending on the road surface and speed, shift down as follows and also
use engine braking.
⦁Set the shift lever to S (continuousl y variable transmission vehicles)
⦁ Set Manual Mode ( ➞P. 190) and downshift by 1 gear at a time (continu-
ously variable transmission vehicles)
⦁ Lower the gear by 1 level (Manual transmission vehicles)
RAIZE_OM_General_BZ358E.book 170 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1734-1. Driving the vehicle
RAIZE_OM_General_BZ358E
WARNING
Driving
4
⚫Avoid revving or racing the engine.
Running the engine at high speed while the vehicle is stopped may cause
the exhaust system to overheat, which could result in a fire if combustible
material is nearby.
⬛When parking the vehicle
⚫Do not leave glasses, cigarette lighters, aerosol cans, or carbonated bever-
age cans in the vehicle under the scorching sun.
Doing so may result in the following:
⦁ Gas may leak from a cigarette lighter or aerosol can, and may lead to a fire
⦁ The glasses with plastic lenses and plastic material may deform or crack
⦁ Carbonated beverage cans may fracture, causing the contents to spill over
the interior of the vehicle, and may al so cause a short circuit in the vehi-
cle’s electrical components
⚫Do not leave cigarette lighters in the vehi cle. If a cigarette lighter is in a stor-
age compartment or on the floor, it ma y be lit accidentally when luggage is
loaded or the seat is adjusted, causing a fire.
⚫Do not attach adhesive discs to the windshield or windows. Do not place
containers such as fragrance on the instrument panel or dashboard.
Adhesive discs or containers may act as lenses, causing a fire in the vehicle.
⚫Do not leave a door or window open if the curved glass is coated with a
metallized film such as a silver-colored one.
Reflected sunlight may cause the glass to act as a lens, causing a fire.
⚫For continuously variable transmission vehicles, always apply the parking
brake, set the shift lever to P, stop the engine, and lock the vehicle when
leaving the vehicle unattended.
Do not leave the vehicle unattende d while the engine is running.
If the vehicle is parked wi th the shift lever in P but the parking brake is not
set, the vehicle may start to move, possibly leading to an accident.
⚫Do not touch the exhaust pipes while th e engine is running or immediately
after turning the engine off.
Doing so may cause burns.
⬛When taking a nap in the vehicle
Always turn the engine off.
Otherwise, if you accidentally move the shift lever or depress the accelerator
pedal, this could cause an accident or fire due to engine overheating. Addition-
ally, if the vehicle is parked in a poorly ventilated area, exhaust gases may enter
the vehicle, leading to death or a serious health hazard.
RAIZE_OM_General_BZ358E.book 173 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1834-2. Driving procedures
RAIZE_OM_General_BZ358E
WARNING
Driving
4
⬛How to stop the engine in an emergency
If you want to stop the engine in case of an emergency while driving, turn the
engine switch to “ACC” and then stop the engine. ( ➞P. 367) Except in the case
of an emergency, do not touch the engine switch while driving.
If you stop the engine while driving, th e steering wheel and the brake will still
work, but not having the power assist wi ll make the steering wheel and brake
operation difficult. As soon as you confirm the safety, pull over and stop the
vehicle on the side of the road.
NOTICE
⬛To prevent battery discharge
Do not leave the engine switch “ACC” or “ON” for long periods of time without
the engine running.
⬛When starting the engine
⚫Do not rotate the starter for 30 seconds or longer at a time.
⚫Do not race a cold engine.
⚫If you have trouble starting the engine or experience frequent stalling, have
the vehicle inspected at your Toyota dealer immediately.
RAIZE_OM_General_BZ358E.book 183 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1864-2. Driving procedures
RAIZE_OM_General_BZ358E
Stopping the engine with the shift lever placed in other than P
(continuously variable transmission vehicles)
When the engine was stopped with the shift lever placed in other than P,
the engine stops, but the engine switch mode will not turn “OFF”. Use the
following procedures to turn off the engine.
aCheck that the parking brake is applied
b Set the shift lever to P
c After you verify that the engine switch indicator is slowly flashing in
green, press the engine switch twice
d Make sure that the engine switch indicator light is off
⬛Auto power-off function
▶Continuously variable transmission vehicles
If you leave the engine switch “ON” (the engine is not running) for 20 minutes
or longer or leave it as “ACC” for 1 hour or longer with the shift lever placed in
P, the engine switch automatically turns “OFF”.
Note that the auto power-off function is not designed to prevent the battery
from dying all the time. When the engi ne is not running, do not leave the
engine switch to “ACC” or “ON” for a long time.
▶Manual transmission vehicles
If you leave the engine switch “ON” (the engine is not running) for 20 minutes
or longer, or if you leave it as “ACC” for 1 hour or longer, the engine switch
automatically turns “OFF”.
Note that the auto power-off function is not designed to prevent the battery
from dying all the time. When the engi ne is not running, do not leave the
engine switch to “ACC” or “ON” for a long time.
⬛Low battery of the electronic key
➞ P. 1 2 8
⬛Situations where the key-free system may not work properly
➞P. 1 2 5
⬛Important information
➞P. 1 2 6
⬛When the engine will not start
The engine immobilizer system may not have been deactivated. ( ➞P. 7 2 )
Contact your Toyota dealer.
RAIZE_OM_General_BZ358E.book 186 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1874-2. Driving procedures
RAIZE_OM_General_BZ358E
Driving
4
⬛Steering wheel lock
⚫Opening or closing one of the doors (except for opening the back door) after
turning the engine switch “OFF” will lock the steering wheel. Operating the
engine switch will automatically unlock the steering wheel.
⚫If the vehicle’s battery is dead, the st eering wheel lock will not be activated.
⬛When unable to unlock the steering wheel
The indicator of the engine switch will
continue to flash in green at a fast
pace.
Once you have verified that the shift le ver is set to P (continuously variable
transmission vehicles), try operating the engine switch while rotating the steer-
ing wheel in a clockwise and counterclockwise direction.
⬛Overheat protection of the steering wheel lock motor
If you repeat the engine start and stop operation in a short period, the opera-
tion may be restricted to prevent th e motor from being overheated. If that
happens, stop the operation. The system will return to normal in about 10 sec-
onds.
⬛The indicator of the engine switch lights up or flashes in yellow
It may indicate a malfunction in the systems. Have the vehicle inspected at
your Toyota dealer immediately.
⬛When the electronic key runs out of battery
➞ P. 3 4 4
⬛Engine switch operation
⚫If the switch was not pushed firmly or the switch was pushed quickly several
times, the mode may not switch or the engine may not start.
⚫If you start the engine again right afte r turning “OFF” the engine switch, the
engine may not start. If you want to start the engine again after turning
“OFF” the engine switch, wait for a few seconds.
⬛When the key-free system was deactivated by customization
➞ P. 4 0 6
KBRO420204
RAIZE_OM_General_BZ358E.book 187 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1884-2. Driving procedures
RAIZE_OM_General_BZ358E
WARNING
⬛When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting th e engine under any circumstances.
Doing so may cause an unforeseen accident re sulting in death or serious injury.
⬛Caution while driving
If the vehicle starts sliding when the engine stops, do not open, lock or unlock
the doors until the vehicle stops safely . Doing so may activate the steering wheel
lock and lead to an unforeseen accident, resulting in serious injury or death.
⬛Stopping the engine in an emergency
If you want to stop the engine in an em ergency while driving the vehicle, press
and hold the engine switch for more than 3 seconds, or press it briefly 3 times
or more in succession. ( ➞P. 367)
However, do not touch the engine switch while driving except in an emer-
gency. Turning the engine off while driving will not cause loss of steering or
braking control, but the power assist to these systems will be lost. This will
make it more difficult to steer and brake, so you should pull over and stop the
vehicle as soon as it is safe to do so.
NOTICE
⬛To prevent battery discharge
⚫Do not leave the engine switch “ACC” or “ON” for long peri ods of time with-
out the engine running.
⚫When the engine switch indi cator is not turned off, the engine switch is not
“OFF”. Before you leave the vehicle, turn “OFF” the engine switch.
⚫For the continuously variable transmission vehicles, do not stop the engine
with the shift lever placed in other t han P. When you stop the engine with
the shift lever placed in other than P and leave it as is, it could cause the bat-
tery to die since the engine switch will be set to “ACC”.
⬛When starting the engine
⚫Do not race a cold engine.
⚫If you have trouble starting the engine or experience frequent stalling, have
the vehicle inspected at your Toyota dealer immediately.
⬛Engine switch operation
If you experience unusual symptoms such as the switch being stuck when
pushing the engine switch, the switch may be broken. Contact your Toyota
dealer immediately.
RAIZE_OM_General_BZ358E.book 188 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2054-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E
Driving
4

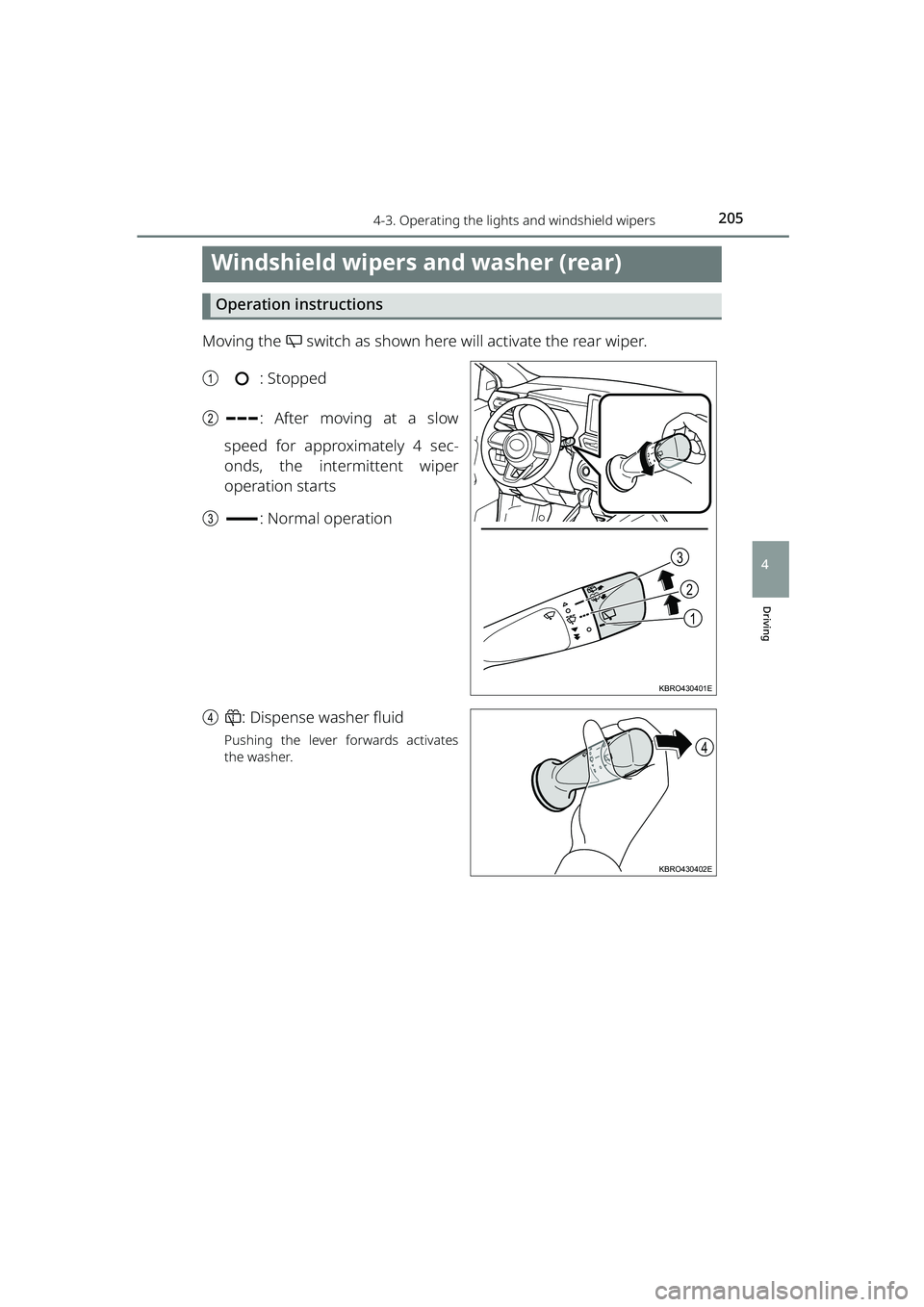

Windshield wipers and washer (rear)
Operation instructions
Moving the switch as shown here will activate the rear wiper.
a: Stopped
b : After moving at a slow
speed for approximately 4 sec-
onds, the intermittent wiper
operation starts
c : Normal operation
d : Dispense washer fluid
Pushing the lever forwards activates
the washer.
2
1
3
KBRO430401E
4
KBRO430402E
RAIZE_OM_General_BZ358E.book 205 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2134-5. Using the driving support systems
RAIZE_OM_General_BZ358E
Driving
4
How to set up
Go to the “Settings” menu on the TFT color multi-information display, you
can change the settings of BSM function/RCTA function ON (enabled)/OFF
(disabled). (➞P. 109)
⬛Visibility of the outside rear view mirror indicators
⚫It may be difficult to see if the outsid e rear view mirror indicators are lit or
flashing in the following cases:
⦁ Under strong sunlight
⦁ The outside rear view mirrors are covered with ice or snow
⬛Buzzers
⚫It may be difficult to hear the buzzers if there is a loud noise around, such as
high volume audio.
⬛When the TFT color multi-information display shows “BSM Radar Blocked
Temporarily Unavailable”
It is possible that the rear bumper near the sensors is covered with ice, snow,
or mud. If you remove the ice, snow, or mud covering the rear bumper near
the sensors, the function will start working normally again.
⬛When the TFT color multi-information display shows “BSM Temporary
Unavailable”
If you use the function in an extremely hot or cold environment or if the bat-
tery voltage is lower or higher than th e specified level, the system operation
will be temporarily stopped. If the BSM OFF indicator or the RCTA OFF indicator
remains lit for a long time, have the vehi cle inspected at your Toyota dealer.
⬛When the TFT color multi-information display shows “BSM Malfunction
Visit Your Dealer”
It is possible that the sensors have failed or their positions or orientations are
off. Have the vehicle inspec ted at your Toyota dealer.
⬛Customizations
The BSM and RCTA settings can be changed.
(List of customizable features: ➞ P. 430)
(The settings can be changed from the setup screen of the TFT color multi-
information display: ➞ P. 104)
RAIZE_OM_General_BZ358E.book 213 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2174-5. Using the driving support systems
RAIZE_OM_General_BZ358E
Driving
4
⬛Situations where the BSM function may not work properly
⚫The BSM function may not detect vehicles correctly in the following circumstances.
⦁The sensor positions or orientations are off due to a strong impact applied
to the sensors or the surrounding areas
⦁ The sensors or the rear bumper near the sensors are covered with mud,
snow, ice, or stickers
⦁ Driving on a wet road or driving in a puddle under bad weather conditions,
such as heavy rain, snow, or fog
⦁ Several vehicles are continuously approaching in a tight space
⦁ When there is not enough distance between your vehicle and the follow-
ing vehicle
⦁ When the speed difference between yo ur vehicle and the other vehicle in
the detection range is too large
⦁ When the speed difference between your vehicle and the other vehicle is
fluctuating
⦁ When the speed of your vehicle and the other vehicle in the detection
range is almost the same
⦁ When another vehicle continues to stay in the detection range after your
vehicle starts moving from the stopped state
⦁ When driving up and down on a series of steep slopes or driving on
dented areas of a road
⦁ When driving through a sharp curve or continuous curves, or driving in an
area with ups and downs
⦁ When the other vehicle in the next la ne is too far away from your vehicle,
such as while driving in a wide lane or driving on the edge of the lane
⦁When the vehicle has accessories such as a bicycle carrier installed in the rear side
⦁When there is a large difference in th e vehicle height of your vehicle and
the other vehicle in the detection range
⦁ Right after turning on the BSM function or the RCTA function
⦁ Right after setting the shift lever to other than R
⦁ When an extremely heavy load is st ored in the luggage compartment
⦁ When a vehicle changed lanes from 2 lanes away to the next lane
⚫The BSM function may have more unnecessary detections, especially in the
following circumstances.
⦁The sensor positions or orientations are off due to a strong impact applied
to the sensors or the surrounding areas
⦁ When guardrails or walls have ente red the detection area while the dis-
tance from the vehicle is short
⦁ When a vehicle other than that trave ling in the next lane has entered the
detection range, such as while driving in a narrow lane or driving on the
edge of the lane
RAIZE_OM_General_BZ358E.book 217 ページ ２０２２年５月１７日　火曜日　午後１時５９分
