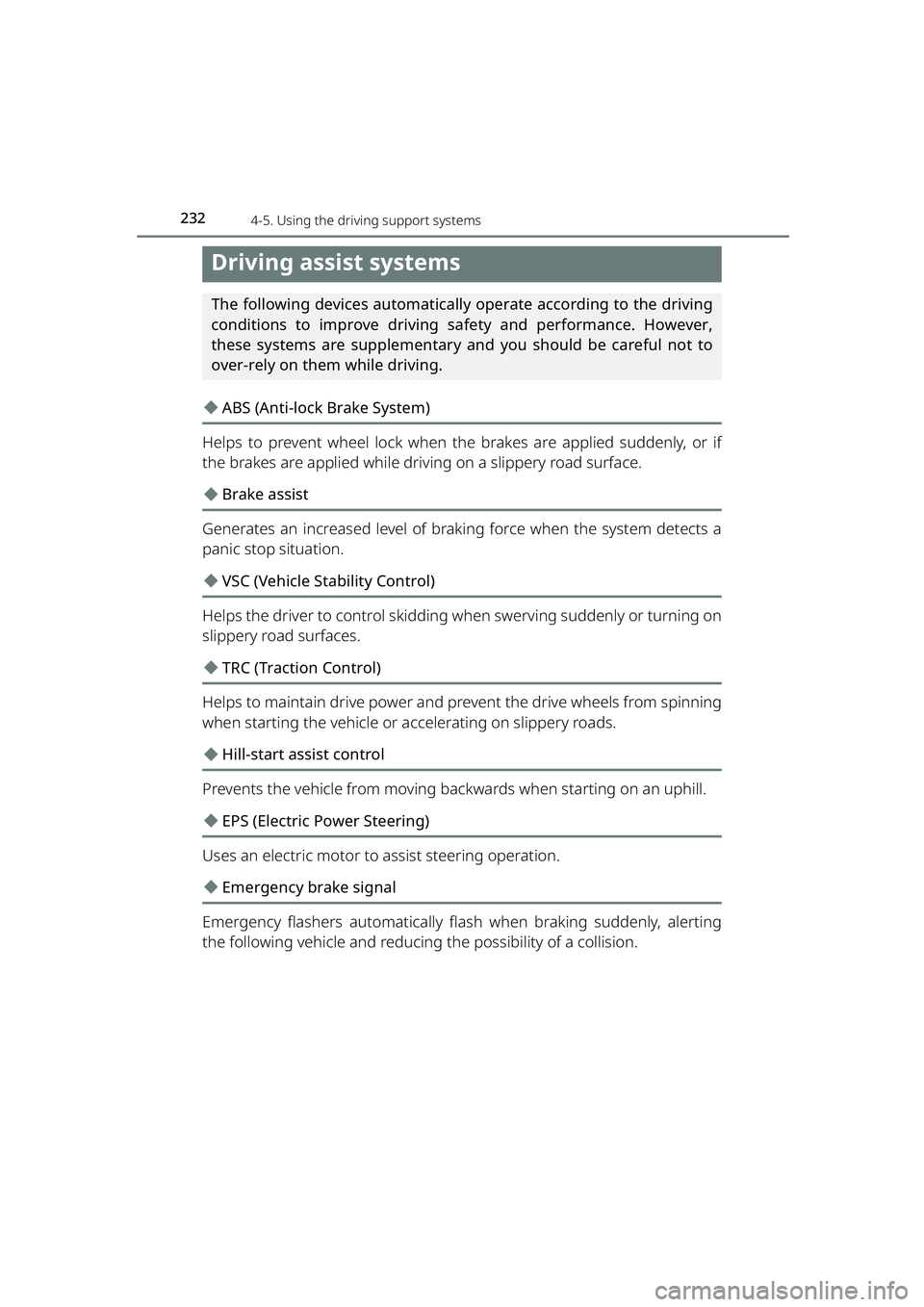

2324-5. Using the driving support systems
RAIZE_OM_General_BZ358E
Driving assist systems
The following devices automatically operate according to the driving
conditions to improve driving safety and performance. However,
these systems are supplementary and you should be careful not to
over-rely on them while driving.
◆ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly, or if
the brakes are applied while driving on a slippery road surface.
◆Brake assist
Generates an increased level of braking force when the system detects a
panic stop situation.
◆VSC (Vehicle Stability Control)
Helps the driver to control skidding when swerving suddenly or turning on
slippery road surfaces.
◆TRC (Traction Control)
Helps to maintain drive power and pr event the drive wheels from spinning
when starting the vehicle or accelerating on slippery roads.
◆Hill-start assist control
Prevents the vehicle from moving backwards when starting on an uphill.
◆EPS (Electric Power Steering)
Uses an electric motor to assist steering operation.
◆Emergency brake signal
Emergency flashers automatically fl ash when braking suddenly, alerting
the following vehicle and reducing the possibility of a collision.
RAIZE_OM_General_BZ358E.book 232 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2334-5. Using the driving support systems
RAIZE_OM_General_BZ358E
Driving
4
When VSC/TRC is operating
When VSC/TRC is operating, the slip
indicator flashes.
To s t o p T R C
If TRC is activated when escaping from a muddy, sandy, or snowy road, the
engine output may not increase even when the accelerator pedal is
depressed, making it difficult to escape. In such a case, pressing
may make it easier to escape.
Press to stop TRC
The TRC OFF indicator lights.
Press again to return to system
ready state.
⬛To stop VSC and TRC
To stop VSC and TRC, press and hold for 3 seconds or more when the
vehicle has come to a stop.
The TRC OFF indicator and VS C OFF indicator light up.
Press again to return to system ready state.
⬛When the TRC OFF indicator lights up without pressing
The TRC and hill-start assist control ca nnot be activated. Contact your Toyota
dealer.
KBRO460201E
KBRO460202E
RAIZE_OM_General_BZ358E.book 233 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2344-5. Using the driving support systems
RAIZE_OM_General_BZ358E
⬛Activation of ABS/VSC
ABS/VSC does not work at low speeds. The operation is the same as the nor-
mal brake.
⬛Activation sound and vibration of the ABS, brake assist, VSC, TRC, and hill-
start assist control
⚫A sound may be heard from the engine compartment when the brake pedal
is depressed repeatedly, when the engine is started or just after the vehicle
begins to move. This sound does not indicate that a malfunction has
occurred in any of these systems.
⚫Any of the following conditions may occur when the above systems are oper-
ating. None of them indicates that a malfunction has occurred.
⦁ Vibrations may be felt through th e vehicle body and steering wheel
⦁ A motor sound may be heard even after the vehicle has come to a stop
⦁ The brake pedal may pulsate slightly after the ABS is activated
⦁ The brake pedal may move down slightly after the ABS is activated
⬛EPS motor operation sound
When the steering wheel is operated, a motor sound (whirring sound) may be
heard, but this does not indicate a malfunction.
⬛Automatic reactivation of VSC and TRC
After turning the TRC and VSC systems off, the systems will return to the ready
state in the following situations:
⚫When the engine switch is turned to “OFF”
⚫If only the TRC system is turned off, when vehicle speed increases
If both the TRC and VSC systems are tu rned off, automatic reactivation will
not occur when vehicle speed increases.
⬛Reduced effectiveness of the EPS system
The effectiveness of the EPS system is reduced to prevent the system from
overheating when there is frequent steering input over an extended period of
time. The steering wheel ma y feel heavy as a result.
Should this occur, refrain from excessive steering input or stop the vehicle and
turn the engine off. It should re turn to normal within 10 minutes.
RAIZE_OM_General_BZ358E.book 234 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2354-5. Using the driving support systems
RAIZE_OM_General_BZ358E
Driving
4
⬛Activation conditions of the hill-start assist control
The system operates when all of the following conditions are met:
⚫Continuously variable transmission vehi cles: The shift lever is set to other
than P or N (when starting to move the vehicle forward or backward on an
uphill)
⚫Manual transmission vehicles: The shift lever is set to other than R when
starting to move the vehicle forward on an uphill or the shift lever is set to R
when starting to move the vehicle backward on an uphill
⚫Vehicle stopped state
⚫Not depressing the accelerator
⚫Parking brake is not applied
⬛Automatic deactivation of the hill-start assist control
The system is deactivated when one of the following occurs:
⚫Continuously variable transmission vehicl es: The shift lever is set to P or N
⚫Manual transmission vehicles: The shift lever is set to R when starting to
move the vehicle forward on an uphill or the shift lever is set to other than R
when starting to move the vehicle backward on an uphill
⚫The driver depresses the accelerator
⚫The driver applies the parking brake
⚫About 2 seconds have passed since releasing the brake pedal
⬛When the slip indicator turns on and the warning message ( ➞P. 389)
appears
It may indicate a malfunction in the systems. Contact your Toyota dealer.
⬛Activation conditions of the emergency brake signal
The system operates when all of the following conditions are met:
⚫The emergency flashers are not flashing
⚫The vehicle speed is 60 km/h (38 mph) or more
⚫The brake pedal is depressed and the vehicle is deemed to brake suddenly
based on the deceleration, or ABS is activated
⬛Automatic deactivation of the emergency brake signal
The system is deactivated when one of the following occurs:
⚫The emergency flashers were set to flashing
⚫The brake pedal was released
⚫It was determined that the vehicle did not brake suddenly based on the
deceleration
⚫ABS stopped working
RAIZE_OM_General_BZ358E.book 235 ページ ２０２２年５月１７日　火曜日　午後１時５９分

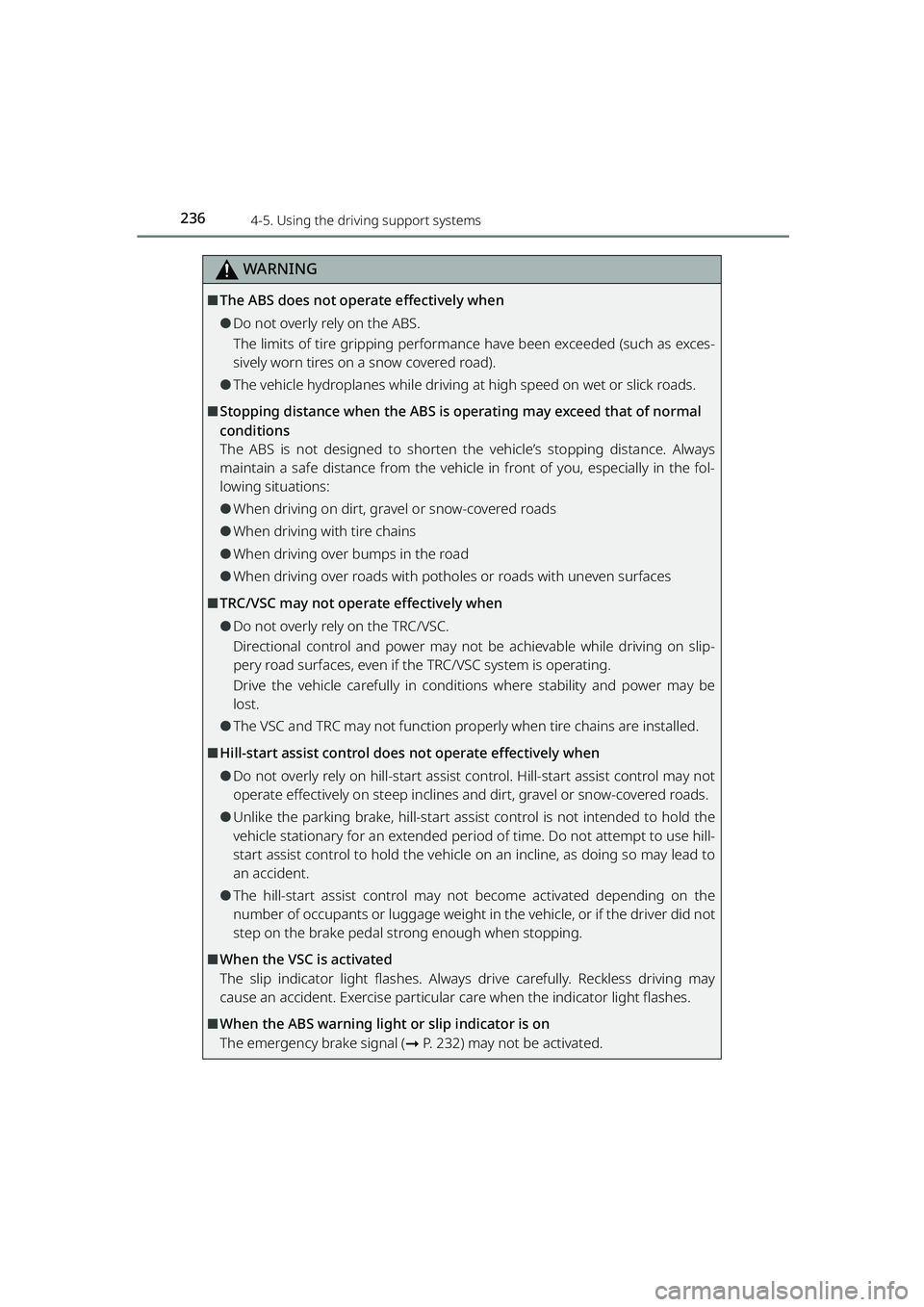

2364-5. Using the driving support systems
RAIZE_OM_General_BZ358E
WARNING
⬛The ABS does not operate effectively when
⚫Do not overly rely on the ABS.
The limits of tire gripping performance have been exceeded (such as exces-
sively worn tires on a snow covered road).
⚫The vehicle hydroplanes while driving at high speed on wet or slick roads.
⬛Stopping distance when the ABS is operating may exceed that of normal
conditions
The ABS is not designed to shorten th e vehicle’s stopping distance. Always
maintain a safe distance from the vehicle in front of you, especially in the fol-
lowing situations:
⚫When driving on dirt, grav el or snow-covered roads
⚫When driving with tire chains
⚫When driving over bumps in the road
⚫When driving over roads with potholes or roads with uneven surfaces
⬛TRC/VSC may not operate effectively when
⚫Do not overly rely on the TRC/VSC.
Directional control and power may not be achievable while driving on slip-
pery road surfaces, even if the TRC/VSC system is operating.
Drive the vehicle carefully in condit ions where stability and power may be
lost.
⚫The VSC and TRC may not function proper ly when tire chains are installed.
⬛Hill-start assist control does not operate effectively when
⚫Do not overly rely on hill-start assist control. Hill-start assist control may not
operate effectively on steep inclines an d dirt, gravel or snow-covered roads.
⚫Unlike the parking brake, hill-start assist control is not intended to hold the
vehicle stationary for an extended period of time. Do not attempt to use hill-
start assist control to hold the vehicle on an incline, as doing so may lead to
an accident.
⚫The hill-start assist control may no t become activated depending on the
number of occupants or luggage weight in the vehicle, or if the driver did not
step on the brake pedal strong enough when stopping.
⬛When the VSC is activated
The slip indicator light flashes. Always drive carefully. Reckless driving may
cause an accident. Exercise particular care when the indicator light flashes.
⬛When the ABS warning light or slip indicator is on
The emergency brake signal ( ➞P. 232) may not be activated.
RAIZE_OM_General_BZ358E.book 236 ページ ２０２２年５月１７日　火曜日　午後１時５９分

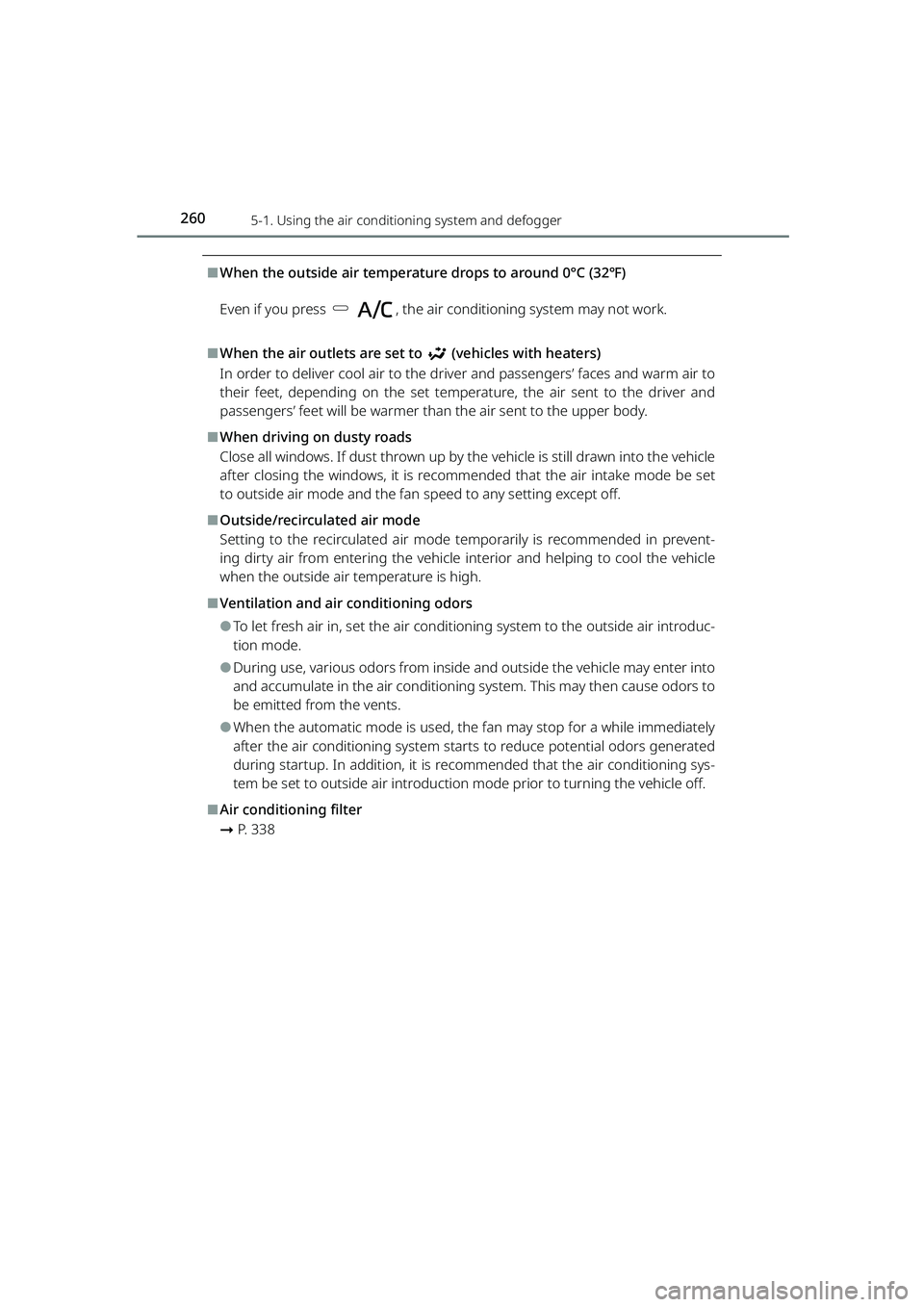

2605-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
⬛When the outside air temperature drops to around 0°C (32℉)
Even if you press , the air conditioning system may not work.
⬛When the air outlets are set to (vehicles with heaters)
In order to deliver cool air to the driver and passe ngers’ faces and warm air to
their feet, depending on the set temperature, the air sent to the driver and
passengers’ feet will be warmer than the air sent to the upper body.
⬛When driving on dusty roads
Close all windows. If dust thrown up by the vehicle is still drawn into the vehicle
after closing the windows, it is recomme nded that the air intake mode be set
to outside air mode and the fan speed to any setting except off.
⬛Outside/recirculated air mode
Setting to the recirculated air mode temporarily is recommended in prevent-
ing dirty air from entering the vehicle interior and helping to cool the vehicle
when the outside air temperature is high.
⬛Ventilation and air conditioning odors
⚫To let fresh air in, set the air conditio ning system to the outside air introduc-
tion mode.
⚫During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odors to
be emitted from the vents.
⚫When the automatic mode is used, the fan may stop for a while immediately
after the air conditioning system starts to reduce potential odors generated
during startup. In addition, it is re commended that the air conditioning sys-
tem be set to outside air introduction mode prior to turning the vehicle off.
⬛Air conditioning filter
➞P. 3 3 8
RAIZE_OM_General_BZ358E.book 260 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2795-5. Using the other interior features
RAIZE_OM_General_BZ358E
Interior features
5
cAfter use, make sure to remove the cable
Check that the lids are closed.
⚫If charging stops temporarily when th e engine restarts, the battery may be
deteriorated. In that case, contact your Toyota dealer.
⚫Depending on the devices connected, charging may occasionally be sus-
pended and then start again. This is not a malfunction.
⬛Operating conditions
When the engine switch is “ACC” or “ON”
⬛Situations where the USB ports may not work properly
⚫If a device requiring more than the maximum rating is connected
⦁ Charging may not be possible due to protection features.
⦁ Even if charging starts, it may ta ke long time to be completed.
⚫If the temperature inside the vehicle is high, such as immediately after the
vehicle has been parked in the hot sun
⦁ By using the air conditioning system or other means, ventilate the vehicle
and decrease the temperature inside it. After a while, start charging.
⦁ If charging is performed in a high temperature environment, it may be
automatically stopped by the temperature sensor.
WARNING
⚫Inserting fingers or foreign matter such as metals and liquid into the USB
ports may cause damage, a short circuit, or electric shock.
⚫Be careful not to trip over the cables co nnected. This may cause damage to the
device or injury due to falling.
NOTICE
⚫Do not apply strong impact or force.
⬛To prevent battery discharge
⚫Do not use the USB ports for a long time with the engine stopped.
⚫Even when the ports are used while dr iving, remove the cables when they
are no longer in use.
RAIZE_OM_General_BZ358E.book 279 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3126-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Close the hood
aSupport the hood with one hand
b Hold the grip and remove the hood stay, and restore it to its original
position
c Lower the hood gently and close it by pushing it with your hand
⬛To disconnect the battery terminals
If you disconnect the battery terminals, the information stored in the computer
will be erased. Before removing the battery terminals, contact your Toyota
dealer for assistance.
WARNING
⬛Check before driving
⚫Make sure the hood is securely locked.
Driving without locking the hood can caus e it to suddenly open while driving,
causing death or serious injury.
⚫If the hood is opened, the hood st ay may detach and the hood may close
unexpectedly. Be especially careful on windy days.
⬛To prevent injury
The interior of the engine compartment is hot after driving. Touching hot com-
ponents can cause serious injury such as burns.
⬛Verification after inspecting the engine compartment
Before starting the engine, make sure that no flammable materials are left in
the engine compartment. Make sure th at there are no flammable materials
such as twigs brought in by small animals and birds in the engine compart-
ment, especially if you have not used th e vehicle for a long time. Such flamma-
ble materials may lead to a vehicle fire.
If you notice a burning smell from th e engine compartment while driving,
immediately stop at a safe place and contact your Toyota dealer.
⬛Checking and changing oil
Make sure that oil is not adhered to the alternator. If oil is ad hered, wipe it off
immediately. If oil is adhered, it may lead to a vehicle fire.
RAIZE_OM_General_BZ358E.book 312 ページ ２０２２年５月１７日　火曜日　午後１時５９分

365
7
RAIZE_OM_General_BZ358E
When trouble arises
7-1. Essential information
Emergency flashers .................. 366
If your vehicle has to be stopped in an emergency ......................... 367
Fire extinguisher........................ 369
If the vehicle is submerged or water on the road is rising ... 371
7-2. Steps to take in an emergency
If your vehicle needs to be towed ........................................ 372
If you think something is wrong ........................................ 377
Fuel pump shut off system ..... 378
If a warning light turns on....... 379
When warning messages are displayed .................................. 387
If you have a flat tire ................. 396
If the engine does not start .... 405
If the electronic key does not work properly (vehicles with key-free
system) ...................................... 406
If the vehicle battery is discharged ............................... 408
If your vehicle overheats ......... 412
If the vehicle has become stuck .......................................... 415
RAIZE_OM_General_BZ358E.book 365 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3787-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
Fuel pump shut off system
If the engine stalls due to a strong external impact, the fuel pump
shut off system may be operating. The fuel pump shut off system is a
device that prevents secondary disasters such as fires by stopping
the supply of fuel to the engine.
Follow the procedure below to restart the engine after the system is
activated
a Turn the engine switch to “ACC” or “OFF”
b Restart the engine
WARNING
⬛Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto th e ground, the fuel system has been dam-
aged and is in need of repair. Do not restart the engine.
RAIZE_OM_General_BZ358E.book 378 ページ ２０２２年５月１７日　火曜日　午後１時５９分
