Page 6 of 516
4
RAIZE_OM_General_BZ358E
TABLE OF CONTENTS
6 Maintenance and care
6-1. Maintenance and care
Cleaning and protecting the vehicle exterior ........................ 284
Cleaning and protecting the vehicle interior ......................... 289
6-2. Maintenance
Maintenance requirements..... 292
Scheduled maintenance .......... 294
General maintenance ............... 306
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions .............................. 309
Hood ............................................. 311
Floor jack ..................................... 314
Engine compartment ................ 315
Tires .............................................. 327
Tire pressure............................... 334
Wheels.......................................... 336
Replacing the air conditioning filter ............................................ 338
Replacing the wiper rubbers... 340
Replacing the key battery ........ 344
Checking and replacing fuses ........................ 348
Replacing light bulbs ................ 352
7 When trouble arises
7-1. Essential information
Emergency flashers................... 366
If your vehicle has to be stopped in an emergency .......................... 367
Fire extinguisher ........................ 369
If the vehicle is submerged or water on the road is rising.... 371
7-2. Steps to take in an emergency
If your vehicle needs to be towed .............................. 372
If you think something is wrong ........................................ 377
Fuel pump shut off system ...... 378
If a warning light turns on ....... 379
When warning messages are displayed................................... 387
If you have a flat tire ................. 396
If the engine does not start .... 405
If the electronic key does not work properly (vehicles with key-free
system) ...................................... 406
If the vehicle battery is discharged................................ 408
If your vehicle overheats.......... 412
If the vehicle has become stuck........................................... 415
RAIZE_OM_General_BZ358E.book 4 ページ 2022年5月17日 火曜日 午後1時59分
Page 16 of 516
14Pictorial index
RAIZE_OM_General_BZ358E✽
: If equipped
Instrument panel (Left- hand drive vehicles)
aEngine switch ....................................................................................... P. 180, 184
Engine start/mode switching ....................................................................... P. 180, 184
Emergency stop of the engine .............................................................................. P. 367
When the engine will not start .............................................................................. P. 405
Warning lights
✽/warning messages✽......................................................... P. 379, 387
b Shift lever .............................................................................................. P. 189, 194
Changing the shift position .......................................................................... P. 189, 194
Precautions against towing ................................................................................... P. 372
When the shift lever does not move
✽.................................................................. P. 191
4351014
211113987
6
12KBRO040201E
RAIZE_OM_General_BZ358E.book 14 ページ 2022年5月17日 火曜日 午後1時59分
Page 22 of 516
20Pictorial index
RAIZE_OM_General_BZ358E✽
: If equipped
Instrument panel (Right- hand drive vehicles)
aEngine switch ....................................................................................... P. 180, 184
Engine start/mode switching ....................................................................... P. 180, 184
Emergency stop of the engine .............................................................................. P. 367
When the engine will not start .............................................................................. P. 405
Warning lights
✽/warning messages✽......................................................... P. 379, 387
b Shift lever .............................................................................................. P. 189, 194
Changing the shift position .......................................................................... P. 189, 194
Precautions against towing ................................................................................... P. 372
When the shift lever does not move
✽.................................................................. P. 191
43510
211113987
6
121
14
KBRO040501E
RAIZE_OM_General_BZ358E.book 20 ページ 2022年5月17日 火曜日 午後1時59分

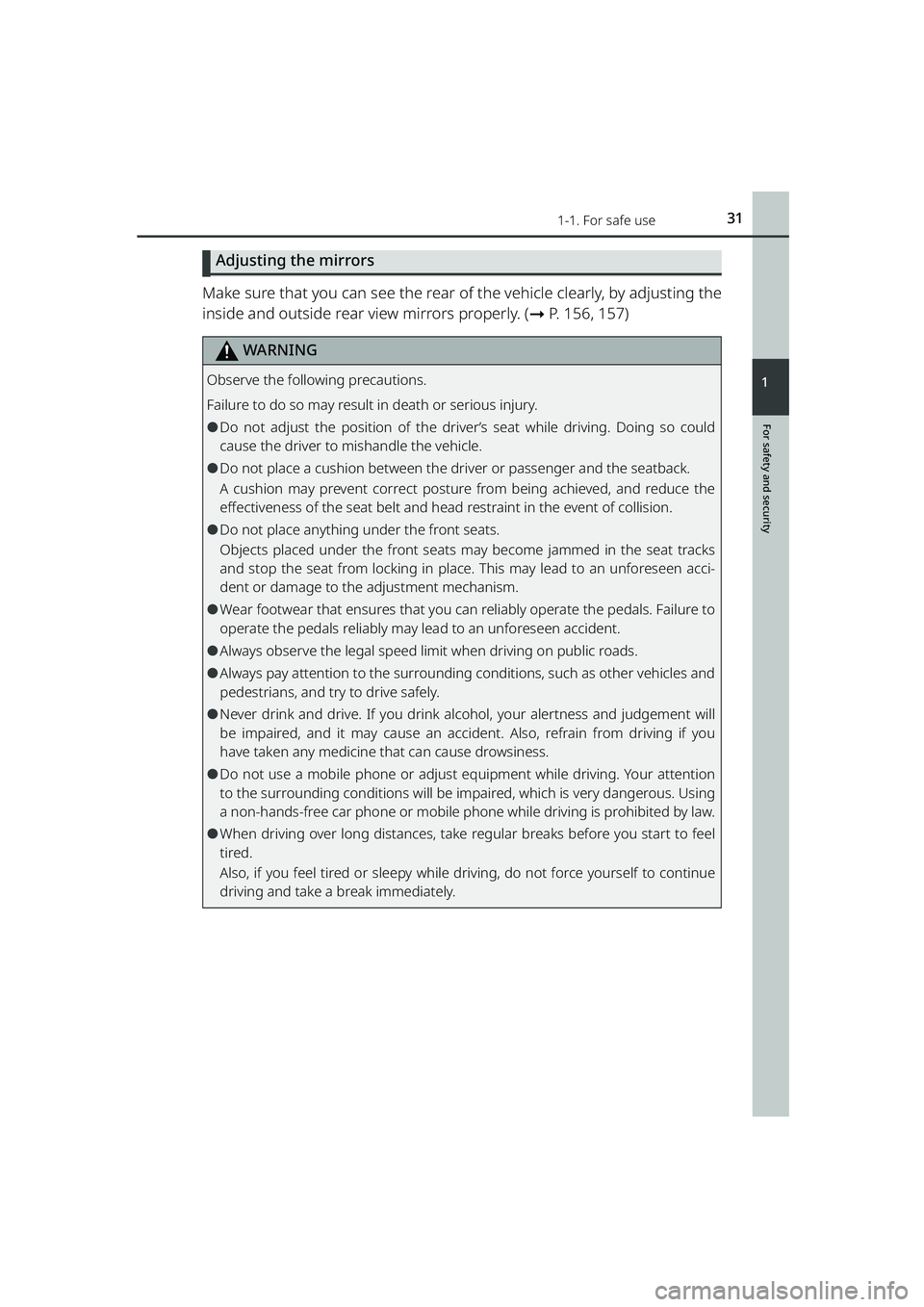

Page 33 of 516
311-1. For safe use
RAIZE_OM_General_BZ358E
For safety and security
1
Adjusting the mirrors
Make sure that you can see the rear of the vehicle clearly, by adjusting the
inside and outside rear view mirrors properly. ( ➞P. 156, 157)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
⚫Do not adjust the position of the driv er’s seat while driving. Doing so could
cause the driver to mishandle the vehicle.
⚫Do not place a cushion between the dr iver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the
effectiveness of the seat belt and head restraint in the event of collision.
⚫Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks
and stop the seat from locking in plac e. This may lead to an unforeseen acci-
dent or damage to the adjustment mechanism.
⚫Wear footwear that ensures that you c an reliably operate the pedals. Failure to
operate the pedals reliably may lead to an unforeseen accident.
⚫Always observe the legal speed li mit when driving on public roads.
⚫Always pay attention to the surrounding conditions, such as other vehicles and
pedestrians, and try to drive safely.
⚫Never drink and drive. If you drink alco hol, your alertness and judgement will
be impaired, and it may cause an accident. Also, refrain from driving if you
have taken any medicine that can cause drowsiness.
⚫Do not use a mobile phone or adjust eq uipment while driving. Your attention
to the surrounding conditions will be im paired, which is very dangerous. Using
a non-hands-free car phone or mobile phon e while driving is prohibited by law.
⚫When driving over long distances, take regular breaks before you start to feel
tired.
Also, if you feel tired or sleepy while driv ing, do not force yourself to continue
driving and take a break immediately.
RAIZE_OM_General_BZ358E.book 31 ページ 2022年5月17日 火曜日 午後1時59分
Page 76 of 516
741-4. Theft deterrent system
RAIZE_OM_General_BZ358E
Stopping the alarm
Do one of the following to stop the alarm:
⚫Press the lock or unlock button of the wireless remote control.
⚫Press the lock/unlock switch on the front door while carrying the elec-
tronic key with you.
⚫Press the lock button on the back do or while carrying the electronic key
with you (when opening the driver’s door).
⚫Press the back door opener switch on the back door while carrying the
electronic key with you (when closing the driver’s door).
⚫Get in the car with the electronic key.
⚫Turn the engine switch to “ON”, or start the engine.
⬛If the electronic key does not operate properly
If the electronic key does not work du e to battery depletion, etc., perform
the following operation.
a Vehicles with a continuously vari-
able transmission:
Depress the brake pedal.
Vehicles with a manual transmis-
sion:
Depress the clutch pedal.
b Touch the electronic key to the
engine switch, as shown in the
illustration.
KBRO820801E
RAIZE_OM_General_BZ358E.book 74 ページ 2022年5月17日 火曜日 午後1時59分

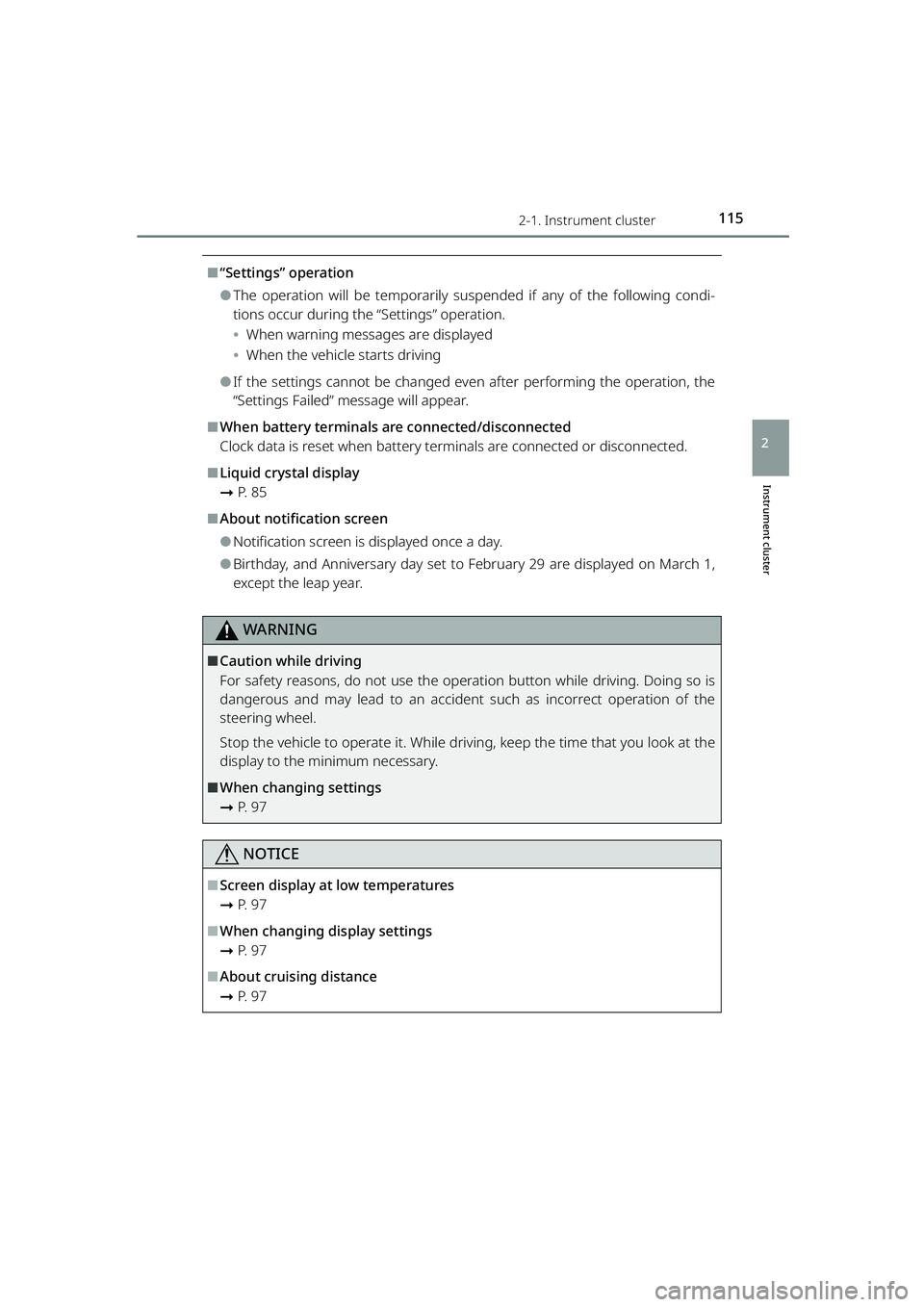

Page 117 of 516
1152-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2
⬛“Settings” operation
⚫The operation will be temporarily suspended if any of the following condi-
tions occur during the “Settings” operation.
⦁When warning messages are displayed
⦁ When the vehicle starts driving
⚫If the settings cannot be changed even after performing the operation, the
“Settings Failed” message will appear.
⬛When battery terminals are connected/disconnected
Clock data is reset when battery terminals are connected or disconnected.
⬛Liquid crystal display
➞ P. 8 5
⬛About notification screen
⚫Notification screen is displayed once a day.
⚫Birthday, and Anniversary day set to Fe bruary 29 are displayed on March 1,
except the leap year.
WARNING
⬛Caution while driving
For safety reasons, do not use the oper ation button while driving. Doing so is
dangerous and may lead to an accident such as incorrect operation of the
steering wheel.
Stop the vehicle to operate it. While drivin g, keep the time that you look at the
display to the minimum necessary.
⬛When changing settings
➞ P. 9 7
NOTICE
⬛Screen display at low temperatures
➞P. 9 7
⬛When changing display settings
➞P. 9 7
⬛About cruising distance
➞P. 9 7
RAIZE_OM_General_BZ358E.book 115 ページ 2022年5月17日 火曜日 午後1時59分
Page 131 of 516
1293-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3
⚫When the remaining battery becomes lo w, a warning buzzer will sound from
inside the vehicle when the engine is stopped. ( ➞P. 394)
⚫To prevent significant battery drainage, do not store the electronic key within
1 m (3.3 ft.) from the following electr onic devices that are known to emit a
magnetic field.
⦁ TV
⦁ Audio system
⦁ Personal computers
⦁ AC adapters
⦁ Mobile phones, cordless phones, and chargers
⦁ Desk lamps
⦁ Medical electronic devices such as lo w-frequency electric therapy equip-
ment
⦁ Liquid crystal display
⦁ Motors
⦁ Induction cookers
⚫Do not leave electronic keys inside or near the vehicle. Since the electronic
key and the vehicle are constantly communicating with one another, it
speeds up the battery draining. When they enter in the constant communi-
cation state, the indicator of the electro nic key starts blinking. Keep the elec-
tronic key away from the vehic le until the indicator turns off.
⚫If you do not plan on using the electr onic key for a long time, set the key to
the battery-saving mode to mini mize battery consumption. (➞P. 125)
⬛Running out of the battery
➞P. 3 4 4
⬛Functions configurable by Toyota dealers
Toyota dealers can deactivate the key-free system.
(List of customizable features: ➞ P. 430)
⬛When the key-free system was deactivated by a Toyota dealer
⚫Locking and unlocking doors: The doors can be locked and unlocked using
the wireless function or the emergency key. ( ➞P. 133, 406)
⚫Starting the engine and swit ching the engine switch mode: ➞ P. 4 0 6
⚫Stopping the engine: ➞P. 1 8 5
RAIZE_OM_General_BZ358E.book 129 ページ 2022年5月17日 火曜日 午後1時59分
Page 163 of 516
1613-5. Opening and closing the windows
RAIZE_OM_General_BZ358E
Operation of each component
3
⬛Overheat protection function of the power window motor
The power window motor has a built-in overheat protection function. If the
power window motor continues to run at a high load, the overheat protection
function may get activated and temporarily stops the power window opera-
tion. After a dozen seconds, it starts working normally again.
⬛When the driver’s door window will not close
When the driver’s door window will not close all the way due to the jam protec-
tion function being activated abnormall y, perform the following operations
using the window switch on the driver’s door.
a Stop the vehicle and turn the engine switch to “ON”
b Pull the window switch on the driver’s door until it reaches the “automatic
full close” position, close the door wind ow all the way, and keep holding the
switch for 6 seconds
If you release your hand from the swit ch while the door window is moving, you
need to start over from the beginning.
If these operations do not close the door window all the way and the window
still moves in a reverse direction, bring your vehicle to a Toyota dealer for
inspection.
⬛Reconnecting the battery
Follow the steps described below and configure the initial settings to ensure
proper operation of the power windows.
a Turn the engine switch to “ON”
b Hold down the window switch of the driver’s door to open the window all
the way
c Pull the window switch on the driver’s door until it reaches the “automatic
full close” position, close the door wind ow all the way, and keep holding the
switch for 2 seconds
If you release your hands from the switch while the door window is moving,
you need to start over from the step b.
RAIZE_OM_General_BZ358E.book 161 ページ 2022年5月17日 火曜日 午後1時59分
Page 168 of 516
166
RAIZE_OM_General_BZ358E
4-1. Driving the vehicle
Driving the vehicle
The following procedures should be observed to ensure safe driving:
Starting the engine
➞ P. 180, 184
Starting the vehicle
▶Continuously variable transmission vehicles
a With the brake pedal depressed, set the shift lever to D ( ➞P. 189)
b Release the parking brake ( ➞P. 197)
c Gradually release the brake pedal and gently depress the accelerator
pedal to start off the vehicle
▶Manual transmission vehicles
a With the clutch pedal depressed, set the shift lever to the gear 1
(➞ P. 194)
b Release the parking brake ( ➞P. 197)
c Gradually release your foot from the clutch pedal and gently depress
the accelerator pedal to start moving the vehicle
Stopping the vehicle
▶Continuously variable transmission vehicles
a With the shift lever in D, depress the brake pedal
b If necessary, apply the parking brake
If the vehicle is to be stopped for an extended period of time, set the shift lever to P
or N. ( ➞P. 189)
▶Manual transmission vehicles
a Depress the brake pedal while stepping on the clutch pedal
b If necessary, apply the parking brake
If you plan to stop the vehicle for an extended period, set the shift lever to N.
(➞ P. 194)
RAIZE_OM_General_BZ358E.book 166 ページ 2022年5月17日 火曜日 午後1時59分
Page 169 of 516
1674-1. Driving the vehicle
RAIZE_OM_General_BZ358E
Driving
4
Parking the vehicle
▶Continuously variable transmission vehicles
a With the shift lever in D, depress the brake pedal to stop the vehicle
completely
b With the brake pedal depressed, apply the parking brake ( ➞P. 197),
and set the shift lever in P ( ➞P. 189)
c Turn “OFF” the engine sw itch to stop the engine
d Release your foot gradually from the brake pedal
e Lock the door, making sure that you have the key on your person
When you park the vehicle in the middle of a hill, use wheel chocks as needed.
▶Manual transmission vehicles
a Depress the brake pedal while stepping on the clutch pedal
b Apply the parking brake
c Set the shift lever to N ( ➞P. 194)
d Turn “OFF” the engine sw itch to stop the engine
e Lock the door, making sure that you have the key on your person
When you park the vehicle in the middle of a hill, set the shift lever to the gear 1
(uphill) or R (downhill) and use wheel chocks as needed.
Starting off on an uphill
▶Continuously variable transmission vehicles
a Make sure that the parking brake is applied and set the shift lever to D
b Gently depress the accelerator pedal
c When you feel the vehicle start to move, release the parking brake and
start off
▶Manual transmission vehicles
a Make sure to apply the parking brak e all the way and set the shift lever
to the gear 1
b Lightly step on the accelerator pedal and release your foot from the
clutch pedal at the same time
c When you feel the vehicle start to move, release the parking brake and
start off
RAIZE_OM_General_BZ358E.book 167 ページ 2022年5月17日 火曜日 午後1時59分
