2064-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E✽
: If equipped

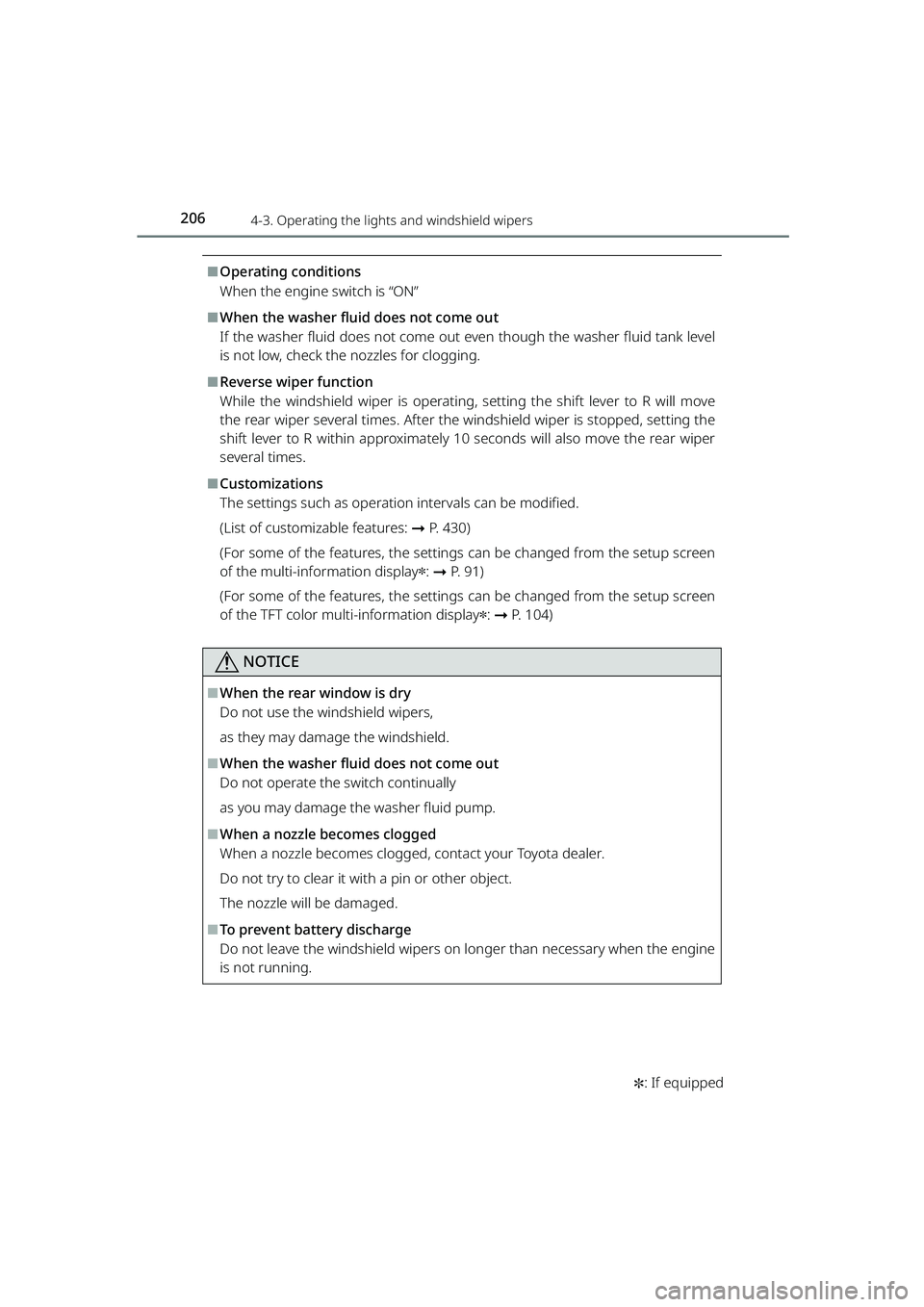

⬛Operating conditions
When the engine switch is “ON”
⬛When the washer flui d does not come out
If the washer fluid does not come out even though the washer fluid tank level
is not low, check the nozzles for clogging.
⬛Reverse wiper function
While the windshield wiper is operating, setting the shift lever to R will move
the rear wiper several times. After the windshield wiper is stopped, setting the
shift lever to R within approximately 10 seconds will also move the rear wiper
several times.
⬛Customizations
The settings such as operation intervals can be modified.
(List of customizable features: ➞ P. 430)
(For some of the features, the settings can be changed from the setup screen
of the multi-info rmation display
✽: ➞ P. 9 1 )
(For some of the features, the settings can be changed from the setup screen
of the TFT color multi-information display
✽: ➞ P. 104)
NOTICE
⬛When the rear window is dry
Do not use the windshield wipers,
as they may damage the windshield.
⬛When the washer flui d does not come out
Do not operate the switch continually
as you may damage th e washer fluid pump.
⬛When a nozzle becomes clogged
When a nozzle becomes clogged, contact your Toyota dealer.
Do not try to clear it with a pin or other object.
The nozzle will be damaged.
⬛To prevent battery discharge
Do not leave the windshield wipers on longer than necessary when the engine
is not running.
RAIZE_OM_General_BZ358E.book 206 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2244-5. Using the driving support systems
RAIZE_OM_General_BZ358E
⬛When the high-pitch short beeps sound 3 times repeatedly and the front
corner sensor or reverse sensor ON indicator appears at 2 front locations
or 2 rear locations (or all 4 locations) simultaneously
⚫The front corner sensor or reverse se nsor functionality has been degraded.
When the front corner sensor or re verse sensor functionality temporarily
turns off, check if the sonar is not cove red with rain, snow, ice, or dirt. Remove
those attached to it, then wait for the f unctionality to be restored to normal.
⚫If the master warning light turns on at this time, it may indicate a malfunc-
tion of the system. Have the vehicle inspected at your Toyota dealer.
⚫Vehicles with TFT color multi-informati on display: Depending on the condi-
tions, the warning messages as “Son ar Sensor Function Stop” and “Sonar
Sensor Malfunction Visit Your Dealer” will be displayed.
⬛Front corner sensors and reverse sensors
In the following cases, the system ma y become activated even when there is
no obstacle within the operating range.
⚫When driving an area where the road slopes suddenly change
⚫When passing through plastic curtains or driving under flags
⚫When water splashes or drifting snow whirls up
⚫When passing an obstacle at close range
⚫When using an elevator for automobiles or using a mechanical parking lot
⚫When driving over a bump with an obstacle near the vehicle
⚫When there is an obstacle near the side of the vehicle
⚫When the road surface has large bumps, curbstones or protrusions, or when
the ground surface has tire tracks and holes
⚫When entering into a tight space
⚫During pouring rain or when water splashes over the vehicle
⚫Bad weather (heavy rain, snowstorm, fog, etc.)
⚫When the following is present near the vehicle: the sound of other vehicles’
horns, motorcycle engines, and air brakes of large vehicles, the devices emitting
ultrasonic waves, such as vehicle detect ors, or sonar systems of other vehicles
⚫When commercially available electrical components (such as an internally illu-
minated number plate, radio antenna) are installed near the sonar sensors
⚫When the vehicle body has been considerably tilted
⚫When the vehicle height has significantly changed by the load conditions, etc.
⚫When the direction of the sonar sensors is deviated by a collision or other
causes
⚫When the sonar sensors are covere d with rain, snow, ice or dirt
RAIZE_OM_General_BZ358E.book 224 ページ ２０２２年５月１７日　火曜日　午後１時５９分

238
RAIZE_OM_General_BZ358E

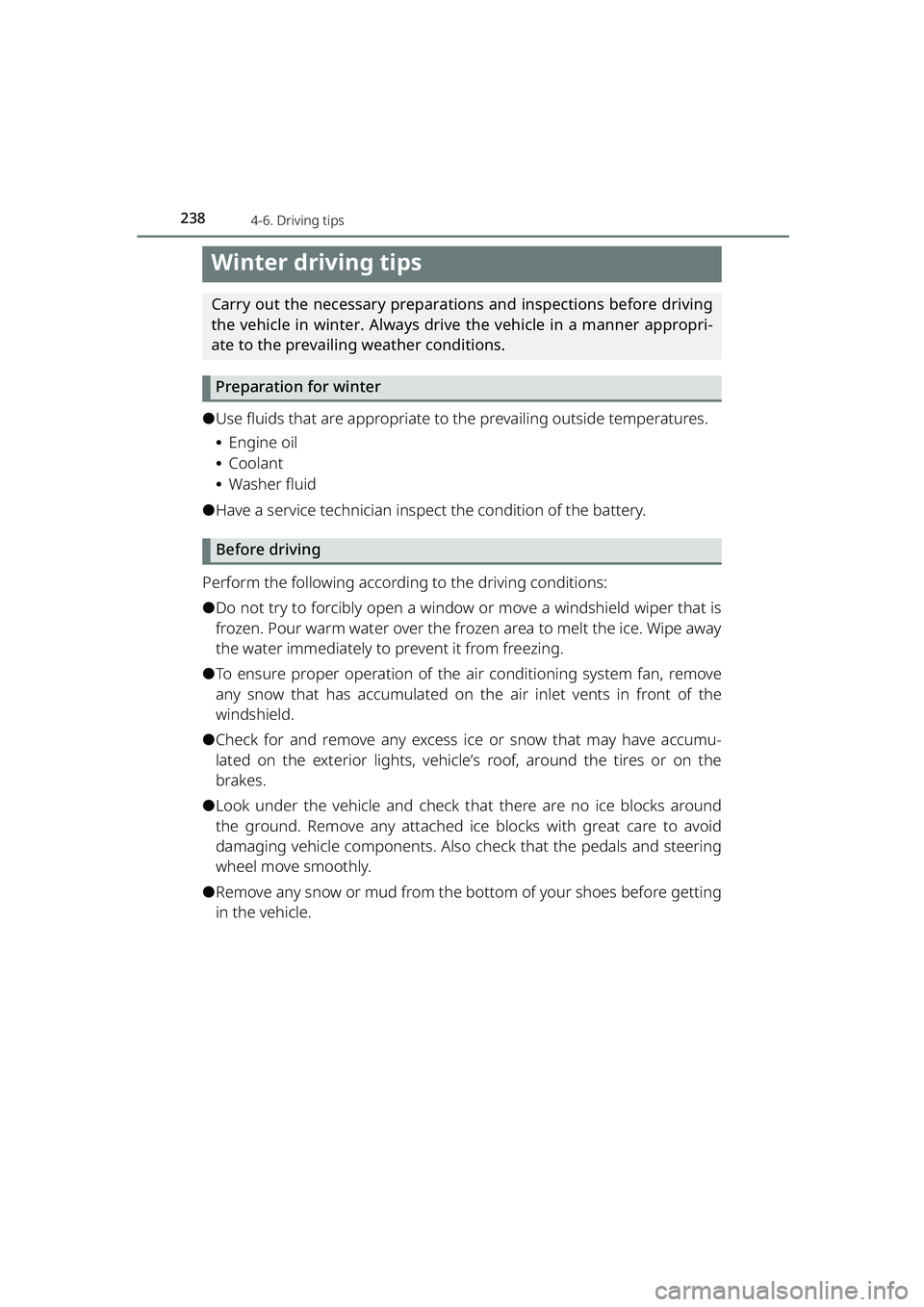

4-6. Driving tips
Winter driving tips
Carry out the necessary preparations and inspections before driving
the vehicle in winter. Always drive the vehicle in a manner appropri-
ate to the prevailing weather conditions.Preparation for winter
⚫Use fluids that are appropriate to the prevailing outside temperatures.
⦁ Engine oil
⦁ Coolant
⦁ Washer fluid
⚫Have a service technician inspec t the condition of the battery.
Before driving
Perform the following according to the driving conditions:
⚫Do not try to forcibly open a window or move a windshield wiper that is
frozen. Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
⚫To ensure proper operation of the air conditioning system fan, remove
any snow that has accumulated on the air inlet vents in front of the
windshield.
⚫Check for and remove any excess ice or snow that may have accumu-
lated on the exterior lights, vehicle’s roof, around the tires or on the
brakes.
⚫Look under the vehicle and check that there are no ice blocks around
the ground. Remove any attached ice blocks with great care to avoid
damaging vehicle components. Also check that the pedals and steering
wheel move smoothly.
⚫Remove any snow or mud from the bottom of your shoes before getting
in the vehicle.
RAIZE_OM_General_BZ358E.book 238 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2424-6. Driving tips
RAIZE_OM_General_BZ358E

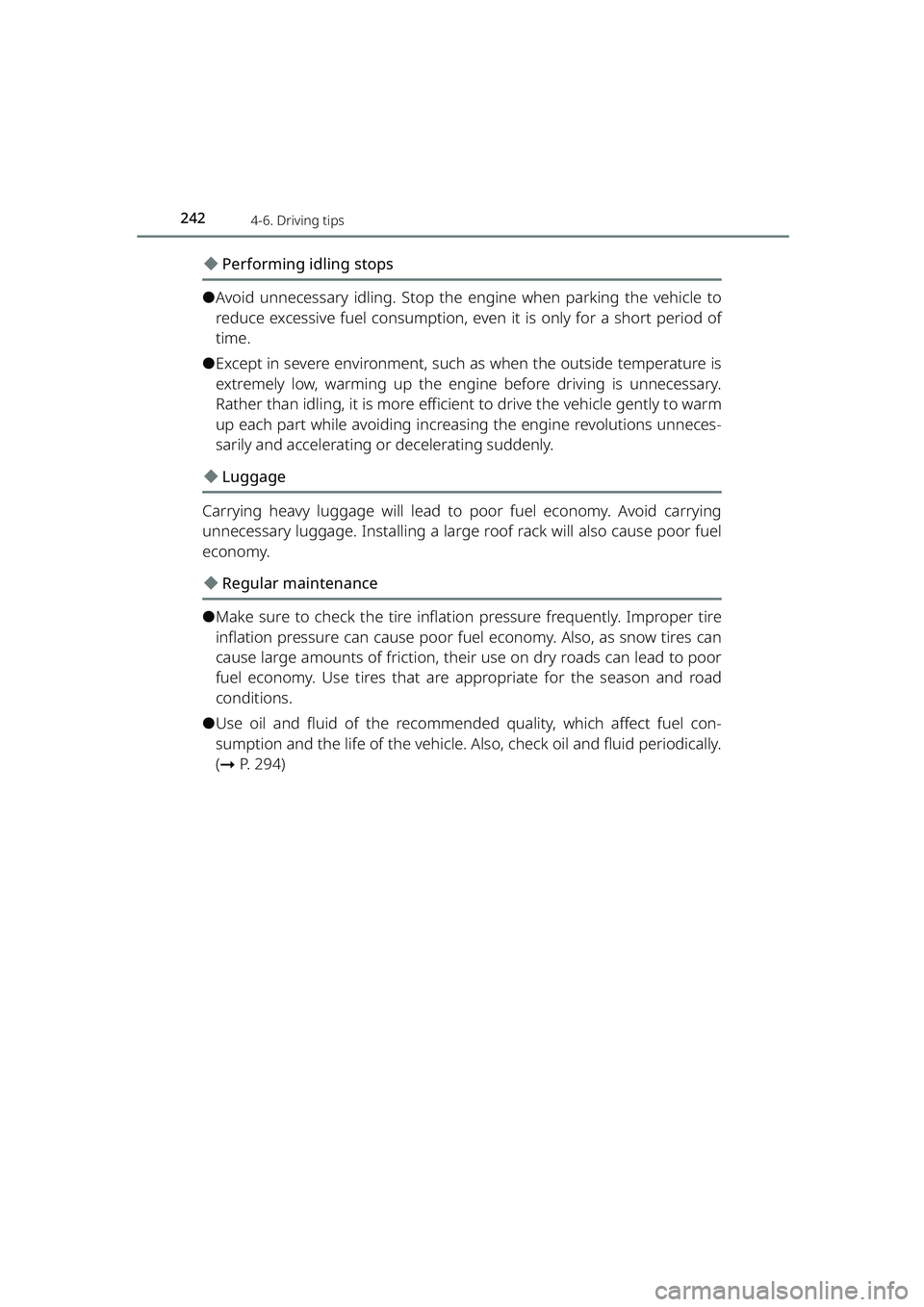

◆Performing idling stops
⚫Avoid unnecessary idling. Stop the engine when parking the vehicle to
reduce excessive fuel consumption, even it is only for a short period of
time.
⚫Except in severe environment, such as when the outside temperature is
extremely low, warming up the engine before driving is unnecessary.
Rather than idling, it is more efficient to drive the vehicle gently to warm
up each part while avoiding increasing the engine revolutions unneces-
sarily and accelerating or decelerating suddenly.
◆Luggage
Carrying heavy luggage will lead to poor fuel economy. Avoid carrying
unnecessary luggage. Installing a large roof rack will also cause poor fuel
economy.
◆Regular maintenance
⚫Make sure to check the tire inflation pressure frequently. Improper tire
inflation pressure can cause poor fu el economy. Also, as snow tires can
cause large amounts of friction, thei r use on dry roads can lead to poor
fuel economy. Use tires that are appropriate for the season and road
conditions.
⚫Use oil and fluid of the recommended quality, which affect fuel con-
sumption and the life of the vehicle. Also, check oil and fluid periodically.
( ➞ P. 2 9 4 )
RAIZE_OM_General_BZ358E.book 242 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2795-5. Using the other interior features
RAIZE_OM_General_BZ358E
Interior features
5
cAfter use, make sure to remove the cable
Check that the lids are closed.
⚫If charging stops temporarily when th e engine restarts, the battery may be
deteriorated. In that case, contact your Toyota dealer.
⚫Depending on the devices connected, charging may occasionally be sus-
pended and then start again. This is not a malfunction.
⬛Operating conditions
When the engine switch is “ACC” or “ON”
⬛Situations where the USB ports may not work properly
⚫If a device requiring more than the maximum rating is connected
⦁ Charging may not be possible due to protection features.
⦁ Even if charging starts, it may ta ke long time to be completed.
⚫If the temperature inside the vehicle is high, such as immediately after the
vehicle has been parked in the hot sun
⦁ By using the air conditioning system or other means, ventilate the vehicle
and decrease the temperature inside it. After a while, start charging.
⦁ If charging is performed in a high temperature environment, it may be
automatically stopped by the temperature sensor.
WARNING
⚫Inserting fingers or foreign matter such as metals and liquid into the USB
ports may cause damage, a short circuit, or electric shock.
⚫Be careful not to trip over the cables co nnected. This may cause damage to the
device or injury due to falling.
NOTICE
⚫Do not apply strong impact or force.
⬛To prevent battery discharge
⚫Do not use the USB ports for a long time with the engine stopped.
⚫Even when the ports are used while dr iving, remove the cables when they
are no longer in use.
RAIZE_OM_General_BZ358E.book 279 ページ ２０２２年５月１７日　火曜日　午後１時５９分

283
6
RAIZE_OM_General_BZ358E

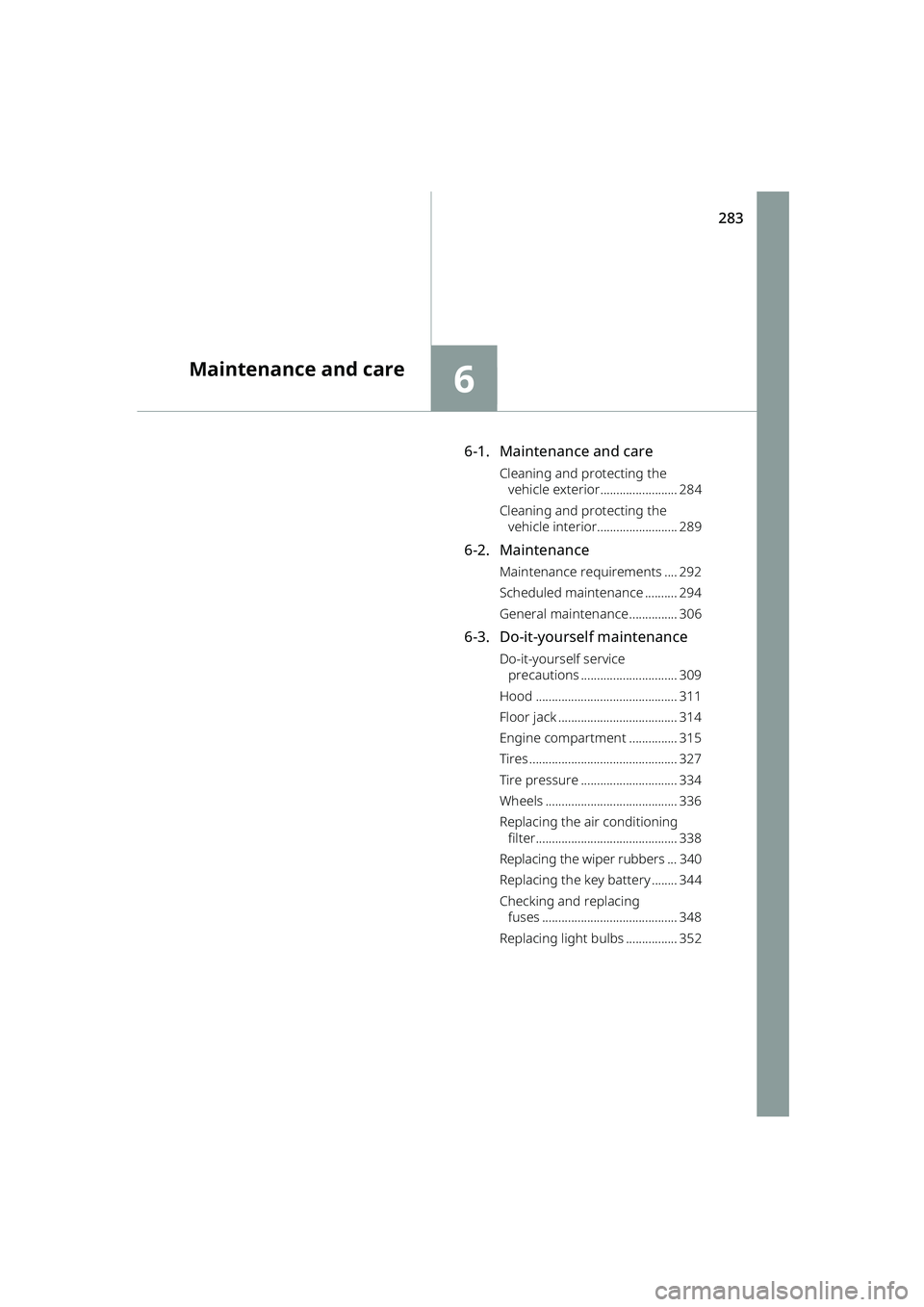

Maintenance and care
6-1. Maintenance and care
Cleaning and protecting the vehicle exterior........................ 284
Cleaning and protecting the vehicle interior......................... 289
6-2. Maintenance
Maintenance requirements .... 292
Scheduled maintenance .......... 294
General maintenance ............... 306
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions .............................. 309
Hood ............................................ 311
Floor jack ..................................... 314
Engine compartment ............... 315
Tires .............................................. 327
Tire pressure .............................. 334
Wheels ......................................... 336
Replacing the air conditioning filter............................................ 338
Replacing the wiper rubbers ... 340
Replacing the key battery ........ 344
Checking and replacing fuses .......................................... 348
Replacing light bulbs ................ 352
RAIZE_OM_General_BZ358E.book 283 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2936-2. Maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6

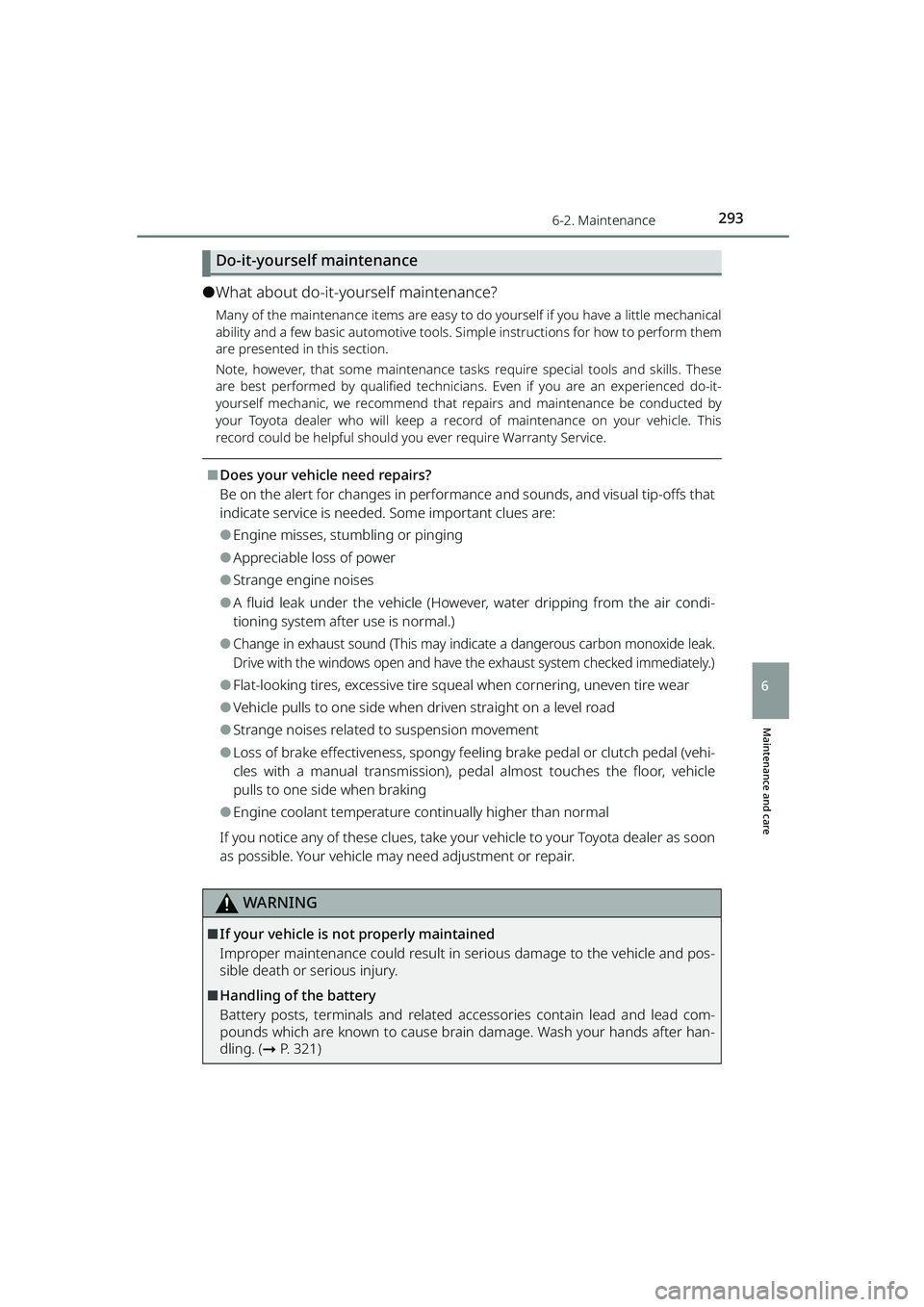

Do-it-yourself maintenance
⚫What about do-it-yourself maintenance?
Many of the maintenance items are easy to do yourself if you have a little mechanical
ability and a few basic automotive tools. Simple instructions for how to perform them
are presented in this section.
Note, however, that some maintenance task s require special tools and skills. These
are best performed by qualified technician s. Even if you are an experienced do-it-
yourself mechanic, we recommend that repairs and maintenance be conducted by
your Toyota dealer who will keep a record of maintenance on your vehicle. This
record could be helpful should you ever require Warranty Service.
⬛Does your vehicle need repairs?
Be on the alert for changes in performance and sounds, and visual tip-offs that
indicate service is needed. Some important clues are:
⚫Engine misses, stumbling or pinging
⚫Appreciable loss of power
⚫Strange engine noises
⚫A fluid leak under the vehicle (However , water dripping from the air condi-
tioning system after use is normal.)
⚫Change in exhaust sound (This may indica te a dangerous carbon monoxide leak.
Drive with the windows open and have th e exhaust system checked immediately.)
⚫Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
⚫Vehicle pulls to one side when driven straight on a level road
⚫Strange noises related to suspension movement
⚫Loss of brake effectiveness, spongy feeling brake pedal or clutch pedal (vehi-
cles with a manual transmission), pe dal almost touches the floor, vehicle
pulls to one side when braking
⚫Engine coolant temperature continually higher than normal
If you notice any of these clues, take yo ur vehicle to your Toyota dealer as soon
as possible. Your vehicle may need adjustment or repair.
WARNING
⬛If your vehicle is not properly maintained
Improper maintenance could result in serious damage to the vehicle and pos-
sible death or serious injury.
⬛Handling of the battery
Battery posts, terminals and related accessories contain lead and lead com-
pounds which are known to cause brain damage. Wash your hands after han-
dling. ( ➞P. 321)
RAIZE_OM_General_BZ358E.book 293 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3066-2. Maintenance
RAIZE_OM_General_BZ358E
General maintenance

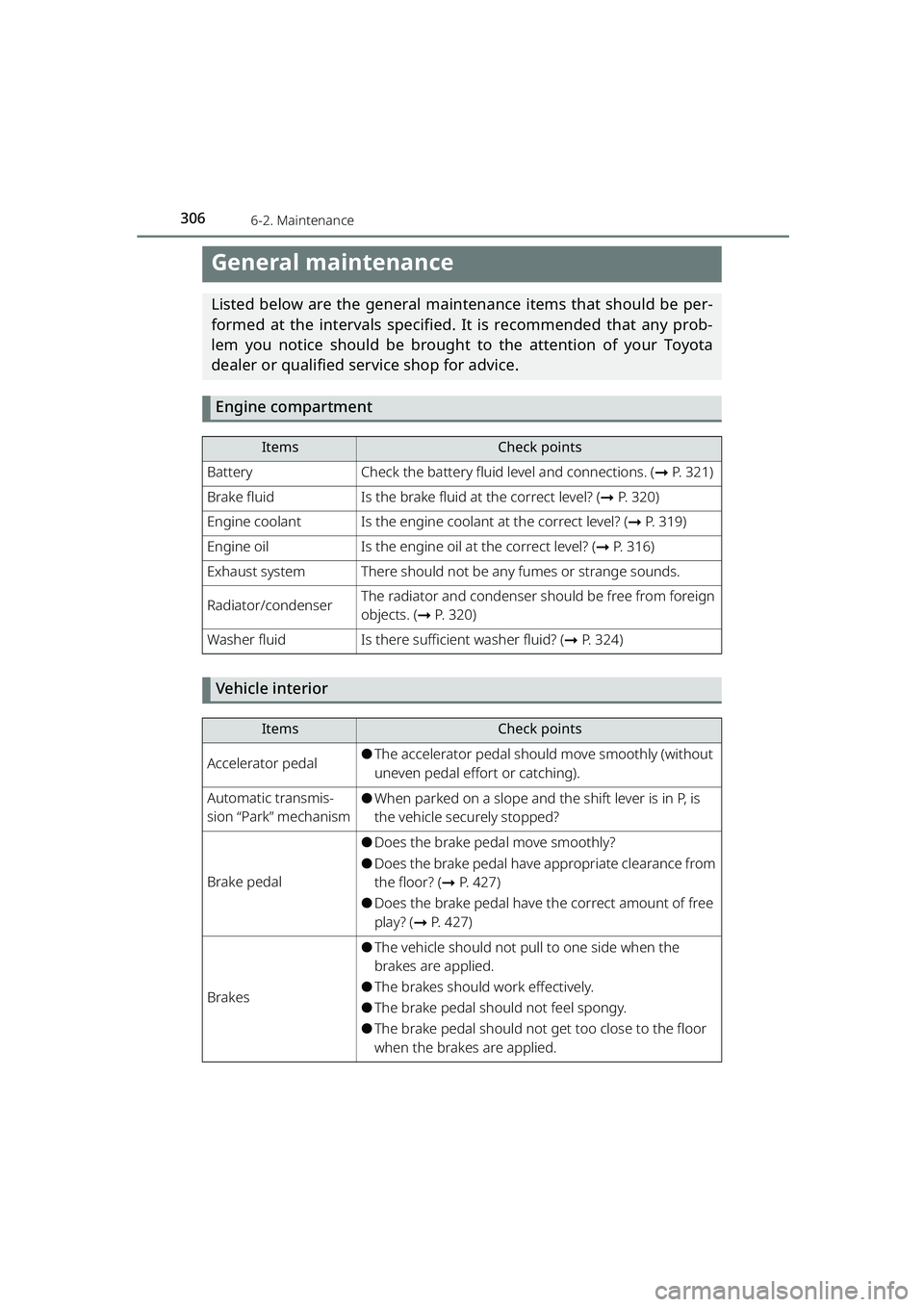

Listed below are the general maintenance items that should be per-
formed at the intervals specified. It is recommended that any prob-
lem you notice should be brought to the attention of your Toyota
dealer or qualified service shop for advice.
Engine compartment
Vehicle interior
ItemsCheck points
BatteryCheck the battery fluid level and connections. ( ➞P. 321)
Brake fluidIs the brake fluid at the correct level? ( ➞P. 320)
Engine coolantIs the engine coolant at the correct level? (➞ P. 319)
Engine oilIs the engine oil at the correct level? (➞P. 316)
Exhaust systemThere should not be any fumes or strange sounds.
Radiator/condenserThe radiator and condenser should be free from foreign
objects. ( ➞P. 320)
Washer fluidIs there sufficient washer fluid? ( ➞P. 324)
ItemsCheck points
Accelerator pedal⚫The accelerator pedal should move smoothly (without
uneven pedal effort or catching).
Automatic transmis-
sion “Park” mechanism⚫When parked on a slope and th e shift lever is in P, is
the vehicle securely stopped?
Brake pedal
⚫Does the brake pedal move smoothly?
⚫Does the brake pedal have appropriate clearance from
the floor? (➞ P. 427)
⚫Does the brake pedal have the correct amount of free
play? (➞P. 427)
Brakes
⚫The vehicle should not pull to one side when the
brakes are applied.
⚫The brakes should work effectively.
⚫The brake pedal should not feel spongy.
⚫The brake pedal should not get too close to the floor
when the brakes are applied.
RAIZE_OM_General_BZ358E.book 306 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3086-2. Maintenance
RAIZE_OM_General_BZ358E

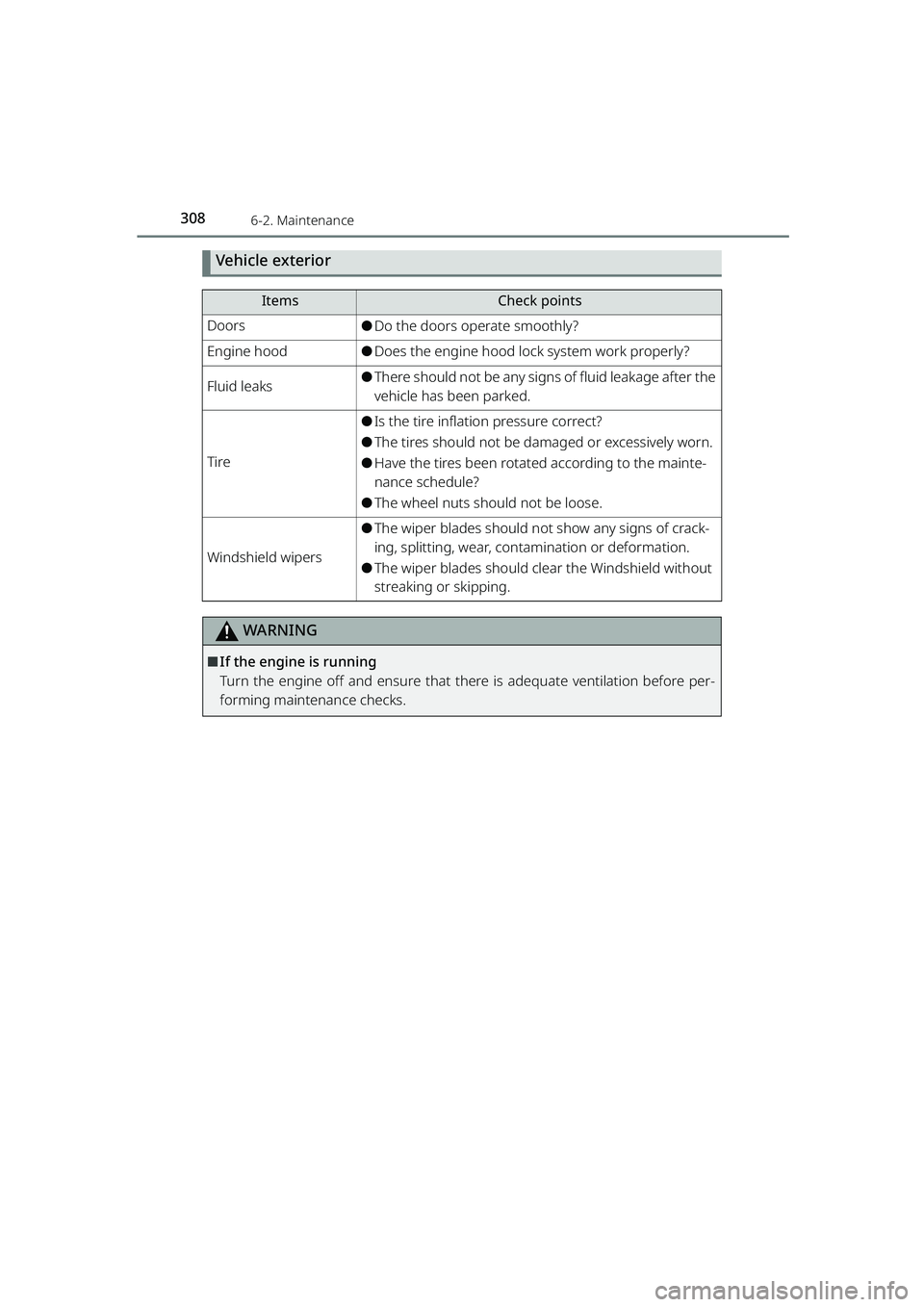

Vehicle exterior
WARNING
⬛If the engine is running
Turn the engine off and ensure that there is adequate ventilation before per-
forming maintenance checks.
ItemsCheck points
Doors⚫Do the doors operate smoothly?
Engine hood⚫Does the engine hood lock system work properly?
Fluid leaks⚫There should not be any signs of fluid leakage after the
vehicle has been parked.
Tire
⚫Is the tire inflation pressure correct?
⚫The tires should not be da maged or excessively worn.
⚫Have the tires been rotated according to the mainte-
nance schedule?
⚫The wheel nuts should not be loose.
Windshield wipers
⚫The wiper blades should not show any signs of crack-
ing, splitting, wear, contamination or deformation.
⚫The wiper blades should clear the Windshield without
streaking or skipping.
RAIZE_OM_General_BZ358E.book 308 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3126-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Close the hood
aSupport the hood with one hand
b Hold the grip and remove the hood stay, and restore it to its original
position
c Lower the hood gently and close it by pushing it with your hand
⬛To disconnect the battery terminals
If you disconnect the battery terminals, the information stored in the computer
will be erased. Before removing the battery terminals, contact your Toyota
dealer for assistance.
WARNING
⬛Check before driving
⚫Make sure the hood is securely locked.
Driving without locking the hood can caus e it to suddenly open while driving,
causing death or serious injury.
⚫If the hood is opened, the hood st ay may detach and the hood may close
unexpectedly. Be especially careful on windy days.
⬛To prevent injury
The interior of the engine compartment is hot after driving. Touching hot com-
ponents can cause serious injury such as burns.
⬛Verification after inspecting the engine compartment
Before starting the engine, make sure that no flammable materials are left in
the engine compartment. Make sure th at there are no flammable materials
such as twigs brought in by small animals and birds in the engine compart-
ment, especially if you have not used th e vehicle for a long time. Such flamma-
ble materials may lead to a vehicle fire.
If you notice a burning smell from th e engine compartment while driving,
immediately stop at a safe place and contact your Toyota dealer.
⬛Checking and changing oil
Make sure that oil is not adhered to the alternator. If oil is ad hered, wipe it off
immediately. If oil is adhered, it may lead to a vehicle fire.
RAIZE_OM_General_BZ358E.book 312 ページ ２０２２年５月１７日　火曜日　午後１時５９分
