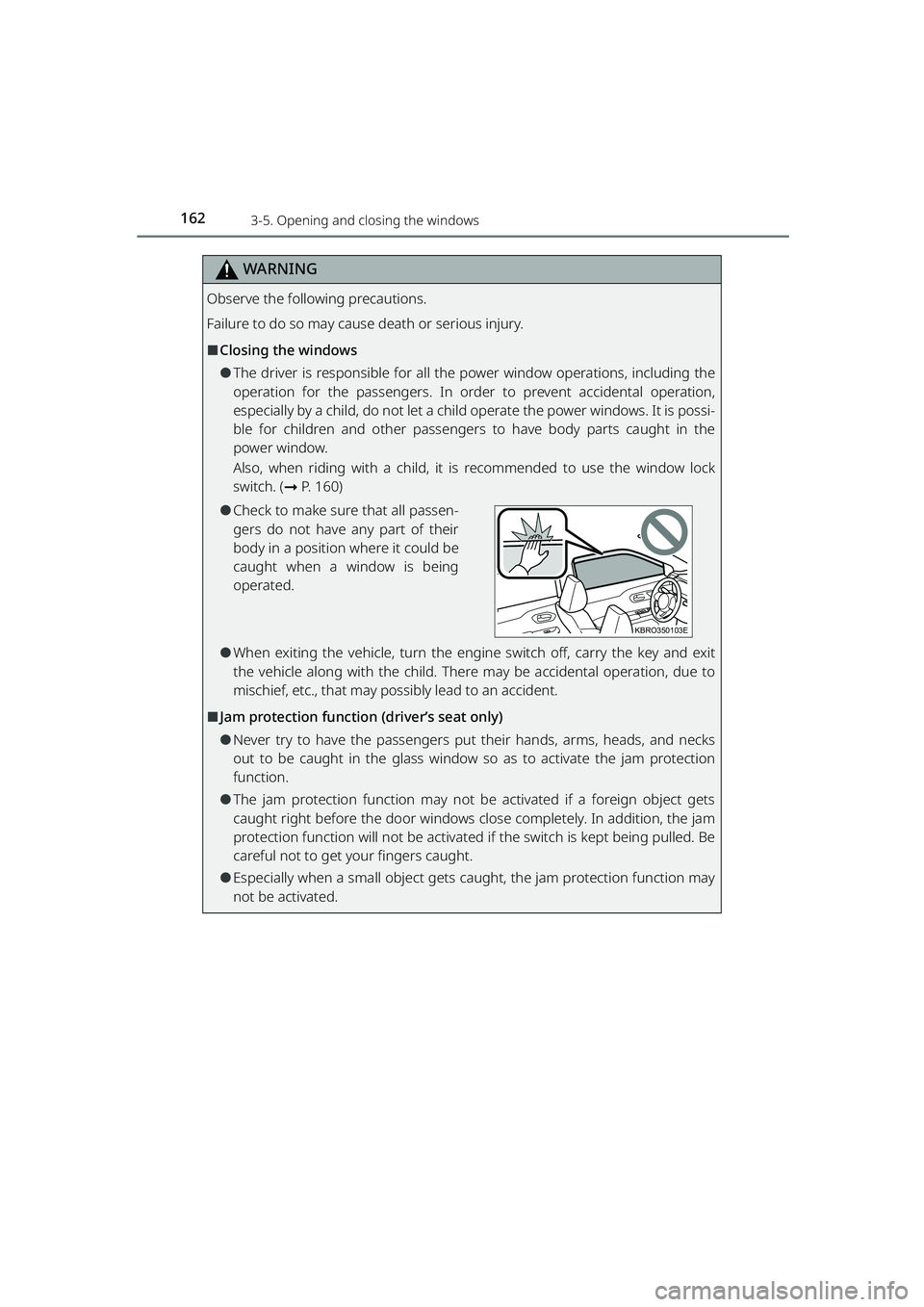

1623-5. Opening and closing the windows
RAIZE_OM_General_BZ358E
WARNING
Observe the following precautions.
Failure to do so may cause death or serious injury.
⬛Closing the windows
⚫The driver is responsible for all the power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is possi-
ble for children and other passengers to have body parts caught in the
power window.
Also, when riding with a child, it is recommended to use the window lock
switch. ( ➞P. 160)
⚫Check to make sure that all passen-
gers do not have any part of their
body in a position where it could be
caught when a window is being
operated.
⚫When exiting the vehicle, turn the engine switch off, carry the key and exit
the vehicle along with the child. There may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.
⬛Jam protection function (driver’s seat only)
⚫Never try to have the passengers put their hands, arms, heads, and necks
out to be caught in the glass window so as to activate the jam protection
function.
⚫The jam protection function may not be activated if a foreign object gets
caught right before the door windows close completely. In addition, the jam
protection function will not be activated if the switch is kept being pulled. Be
careful not to get your fingers caught.
⚫Especially when a small object gets caught, the jam protection function may
not be activated.
KBRO350103E
RAIZE_OM_General_BZ358E.book 162 ページ ２０２２年５月１７日　火曜日　午後１時５９分

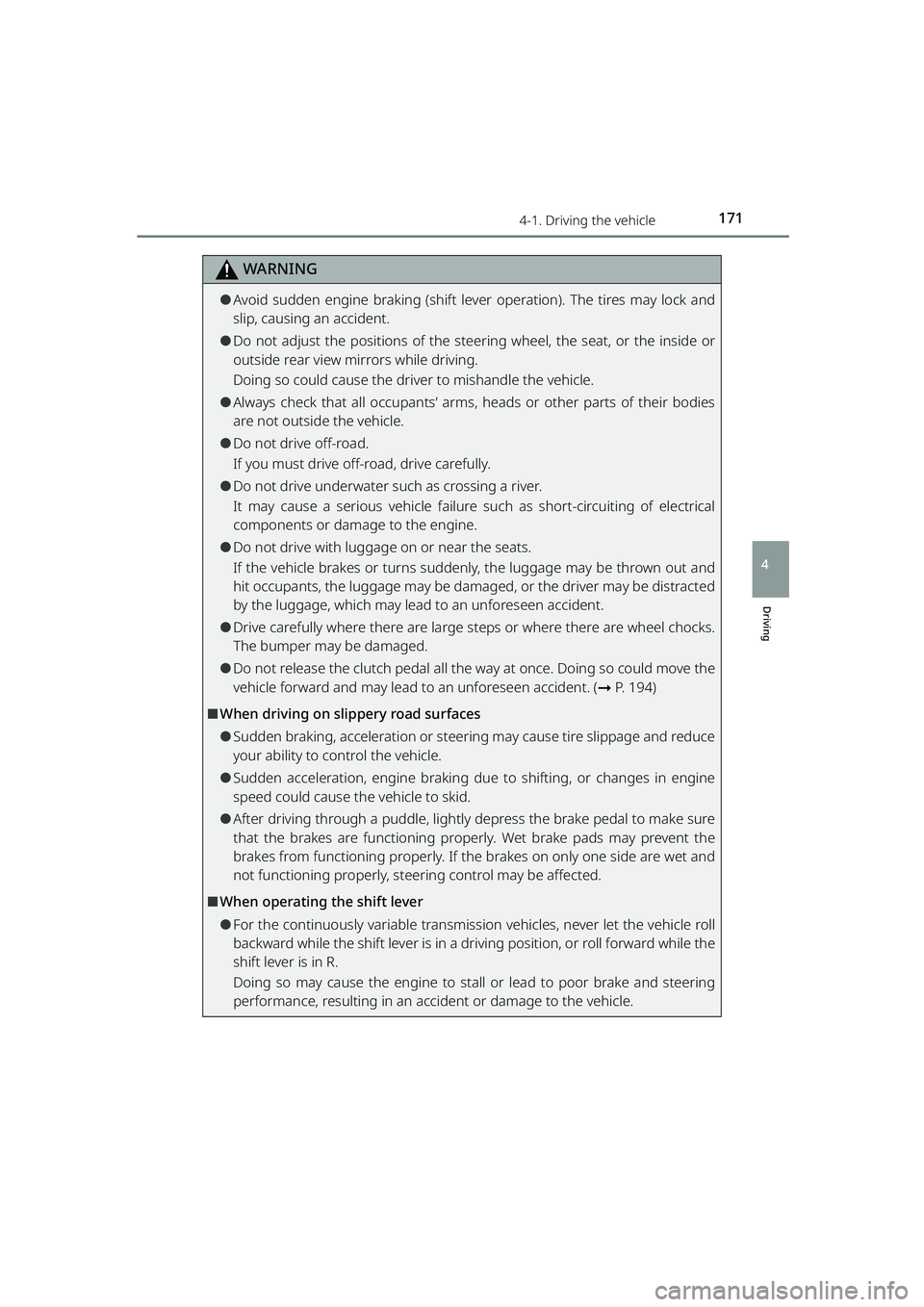

1714-1. Driving the vehicle
RAIZE_OM_General_BZ358E
WARNING
Driving
4
⚫Avoid sudden engine braking (shift lever operation). The tires may lock and
slip, causing an accident.
⚫Do not adjust the positions of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so could cause the driver to mishandle the vehicle.
⚫Always check that all occupants’ arms , heads or other parts of their bodies
are not outside the vehicle.
⚫Do not drive off-road.
If you must drive off-road, drive carefully.
⚫Do not drive underwater such as crossing a river.
It may cause a serious vehicle failure such as short-circuiting of electrical
components or damage to the engine.
⚫Do not drive with luggage on or near the seats.
If the vehicle brakes or turns sudden ly, the luggage may be thrown out and
hit occupants, the luggage may be dama ged, or the driver may be distracted
by the luggage, which may lead to an unforeseen accident.
⚫Drive carefully where there are large steps or where there are wheel chocks.
The bumper may be damaged.
⚫Do not release the clutch pedal all the way at once. Doing so could move the
vehicle forward and may lead to an unforeseen accident. (➞ P. 194)
⬛When driving on slippery road surfaces
⚫Sudden braking, acceleration or steering may cause tire slippage and reduce
your ability to control the vehicle.
⚫Sudden acceleration, engine braking due to shifting, or changes in engine
speed could cause the vehicle to skid.
⚫After driving through a puddle, lightly depress the brake pedal to make sure
that the brakes are functioning prop erly. Wet brake pads may prevent the
brakes from functioning properly. If th e brakes on only one side are wet and
not functioning properly, steering control may be affected.
⬛When operating the shift lever
⚫For the continuously variable transmissi on vehicles, never let the vehicle roll
backward while the shift lever is in a driv ing position, or roll forward while the
shift lever is in R.
Doing so may cause the engine to sta ll or lead to poor brake and steering
performance, resulting in an acci dent or damage to the vehicle.
RAIZE_OM_General_BZ358E.book 171 ページ ２０２２年５月１７日　火曜日　午後１時５９分

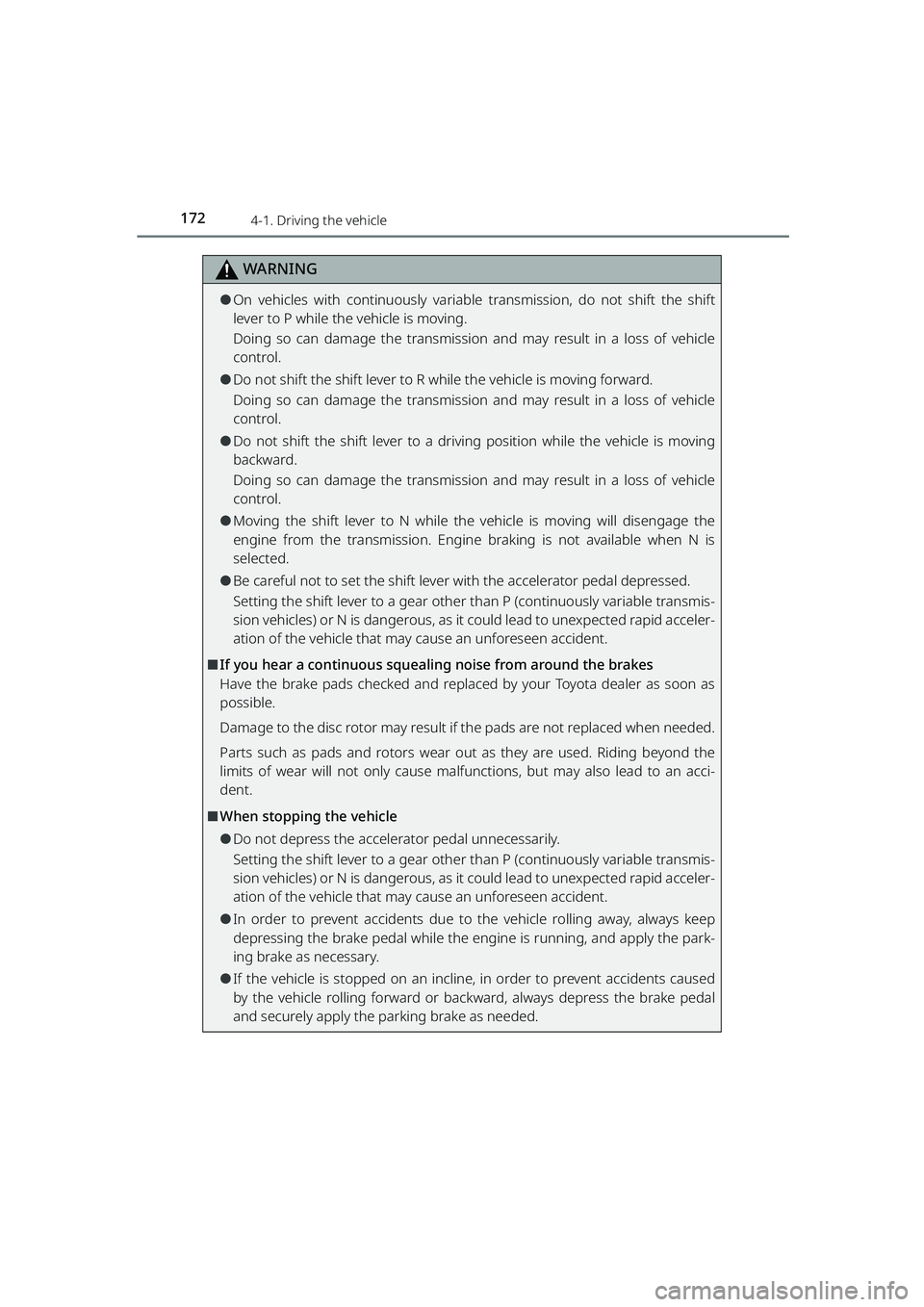

1724-1. Driving the vehicle
RAIZE_OM_General_BZ358E
WARNING
⚫On vehicles with continuously variable transmission, do not shift the shift
lever to P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle
control.
⚫Do not shift the shift lever to R wh ile the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
⚫Do not shift the shift lever to a driv ing position while the vehicle is moving
backward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
⚫Moving the shift lever to N while the vehicle is moving will disengage the
engine from the transmission. Engine braking is not available when N is
selected.
⚫Be careful not to set the shift lever with the accelerator pedal depressed.
Setting the shift lever to a gear othe r than P (continuously variable transmis-
sion vehicles) or N is dangerous, as it could lead to unexpected rapid acceler-
ation of the vehicle that may cause an unforeseen accident.
⬛If you hear a continuous squealing noise from around the brakes
Have the brake pads checked and replaced by your Toyota dealer as soon as
possible.
Damage to the disc rotor may result if the pads are not replaced when needed.
Parts such as pads and rotors wear out as they are used. Riding beyond the
limits of wear will not only cause malfunctions, but may also lead to an acci-
dent.
⬛When stopping the vehicle
⚫Do not depress the accelerator pedal unnecessarily.
Setting the shift lever to a gear othe r than P (continuously variable transmis-
sion vehicles) or N is dangerous, as it could lead to unexpected rapid acceler-
ation of the vehicle that may cause an unforeseen accident.
⚫In order to prevent accidents due to the vehicle rolling away, always keep
depressing the brake pedal while the en gine is running, and apply the park-
ing brake as necessary.
⚫If the vehicle is stopped on an incline, in order to prevent accidents caused
by the vehicle rolling forward or back ward, always depress the brake pedal
and securely apply the parking brake as needed.
RAIZE_OM_General_BZ358E.book 172 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1764-1. Driving the vehicle
RAIZE_OM_General_BZ358E
NOTICE
⬛If you feel the clutch is slipping (Manual transmission vehicles)
Have the vehicle inspected at your Toyota dealer as soon as possible. If your
vehicle does not accelerate by stepping on the accelerator pedal even when
the clutch is engaged, the clutch ma y be slipping and the vehicle may no
longer be able to run.
⬛To prevent damage to the tu rbo system (Turbo vehicles)
⚫Immediately after driving at high speed or climbing on a hill, do not stop the
engine. Make sure to idle the engine for approx. 1 minute to cool down the
turbo system, and then stop the engine.
⚫Do not use any parts other than those specified for the exhaust pipes.
⚫Never alter the exhaust pipes.
⚫Never race or accelerate suddenly when the engine is cold.
⚫Make sure to change the oil periodically. ( ➞P. 418)
⬛When encountering flooded roads
Do not drive on a road that has flooded after heavy rain, etc. Doing so may
cause the following serious damage to the vehicle:
⚫Engine stalling
⚫Short in electrical components
⚫Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have your Toyota dealer check the following:
⚫Brake function
⚫Changes in quantity and quality of oi ls and fluids such as engine oil,
transaxle oil, and differential oil
⚫Poor lubrication of the bearings and joints, etc.
RAIZE_OM_General_BZ358E.book 176 ページ ２０２２年５月１７日　火曜日　午後１時５９分

180
RAIZE_OM_General_BZ358E
4-2. Driving procedures
Engine (ignition) switch
(vehicles without key-free system)
Procedure to start the engine
▶Continuously variable transmission vehicles
a Adjust the position of the seat to give the correct driving posture
(➞ P. 30), and check the position of each pedal
b Check that the parking brake is applied
c Check that the shift lever is set in P
d Firmly depress the brake pedal
e Turn the engine switch to “START”
The starter rotates for up to 30 seconds until the engine starts.
▶Manual transmission vehicles
a Adjust the position of the seat to give the correct driving posture
(➞ P. 30), and check the position of each pedal
b Check that the parking brake is applied
c Check that the shift lever is set in N
d Firmly depress the clutch pedal and the brake pedal
e Turn the engine switch to “START”
The starter rotates for up to 30 seconds until the engine starts.
RAIZE_OM_General_BZ358E.book 180 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1844-2. Driving procedures
RAIZE_OM_General_BZ358E
Engine (ignition) switch
(vehicles with key-free system)
You can start the engine or change the engine switch mode by per-
forming the following operations when you have the electronic key
with you.Procedure to start the engine
a Adjust the position of the seat to give the correct driving posture
(➞ P. 30), and check the position of each pedal
b Check that the parking brake is applied
c Continuously variable transmission ve hicles: Check that the shift lever
is set in P
Manual transmission vehicles: Check that the shift lever is set in N
d Continuously variable transmis-
sion vehicles: Firmly depress the
brake pedal
Manual transmission vehicles:
Firmly depress the clutch pedal
and the brake pedal
The indicator of the engine switch
lights up in green.
Without the light being lit in green, the
engine will not start.
eFirmly and briefly push the
engine switch
If you push it firmly and briefly, you do
not need to press and hold.
The starter rotates for up to 30 sec-
onds until the engine starts.
Continuously variable transmission vehi-
cles: Keep stepping on the brake pedal
until the engine has started running.
Manual transmission vehicles: Keep
stepping on the clutch pedal and brake
pedal until the engine has started run-
ning.
The engine can start in any mode
(➞ P. 185) of the engine switch.
KBRO420201E
KBRO420202E
RAIZE_OM_General_BZ358E.book 184 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1864-2. Driving procedures
RAIZE_OM_General_BZ358E
Stopping the engine with the shift lever placed in other than P
(continuously variable transmission vehicles)
When the engine was stopped with the shift lever placed in other than P,
the engine stops, but the engine switch mode will not turn “OFF”. Use the
following procedures to turn off the engine.
aCheck that the parking brake is applied
b Set the shift lever to P
c After you verify that the engine switch indicator is slowly flashing in
green, press the engine switch twice
d Make sure that the engine switch indicator light is off
⬛Auto power-off function
▶Continuously variable transmission vehicles
If you leave the engine switch “ON” (the engine is not running) for 20 minutes
or longer or leave it as “ACC” for 1 hour or longer with the shift lever placed in
P, the engine switch automatically turns “OFF”.
Note that the auto power-off function is not designed to prevent the battery
from dying all the time. When the engi ne is not running, do not leave the
engine switch to “ACC” or “ON” for a long time.
▶Manual transmission vehicles
If you leave the engine switch “ON” (the engine is not running) for 20 minutes
or longer, or if you leave it as “ACC” for 1 hour or longer, the engine switch
automatically turns “OFF”.
Note that the auto power-off function is not designed to prevent the battery
from dying all the time. When the engi ne is not running, do not leave the
engine switch to “ACC” or “ON” for a long time.
⬛Low battery of the electronic key
➞ P. 1 2 8
⬛Situations where the key-free system may not work properly
➞P. 1 2 5
⬛Important information
➞P. 1 2 6
⬛When the engine will not start
The engine immobilizer system may not have been deactivated. ( ➞P. 7 2 )
Contact your Toyota dealer.
RAIZE_OM_General_BZ358E.book 186 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1914-2. Driving procedures
RAIZE_OM_General_BZ358E✽
: If equipped
Driving
4
⬛Temporary manual mode✽
When the shift lever is set to D, moving the paddle shift switch to the “+”
side or “-” side will cause the vehicle to enter the manual mode temporar-
ily, allowing the driver to select the desired shift position.
a Upshift
b Downshift
The meter displays the selected shift
position between D1 and D7.
To restore the normal driving mode,
keep holding the “+” side of the paddle
shift switch for a certain period.
⬛Shift lock system
The shift lock system is a system to pr event accidental operation of the shift
lever in starting. The shift lever will not move from P unless the brake pedal is
stepped on while the engine switch is “ON”.
⬛If the shift lever cannot be shifted from P
Check whether the brake pedal is being depressed.
If the shift lever cannot be shifted whil e depressing the brake pedal, there may
be a problem with the shift lock syst em. Have the vehicle inspected at your
Toyota dealer immediately. The following steps may be used as an emergency
measure to ensure that the shift lever can be shifted.
Releasing the shift lock:
a Apply the parking brake
b Turn the engine switch to “OFF”
c Depress the brake pedal
12
KBRO420306E
RAIZE_OM_General_BZ358E.book 191 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1964-2. Driving procedures
RAIZE_OM_General_BZ358E✽
: If equipped

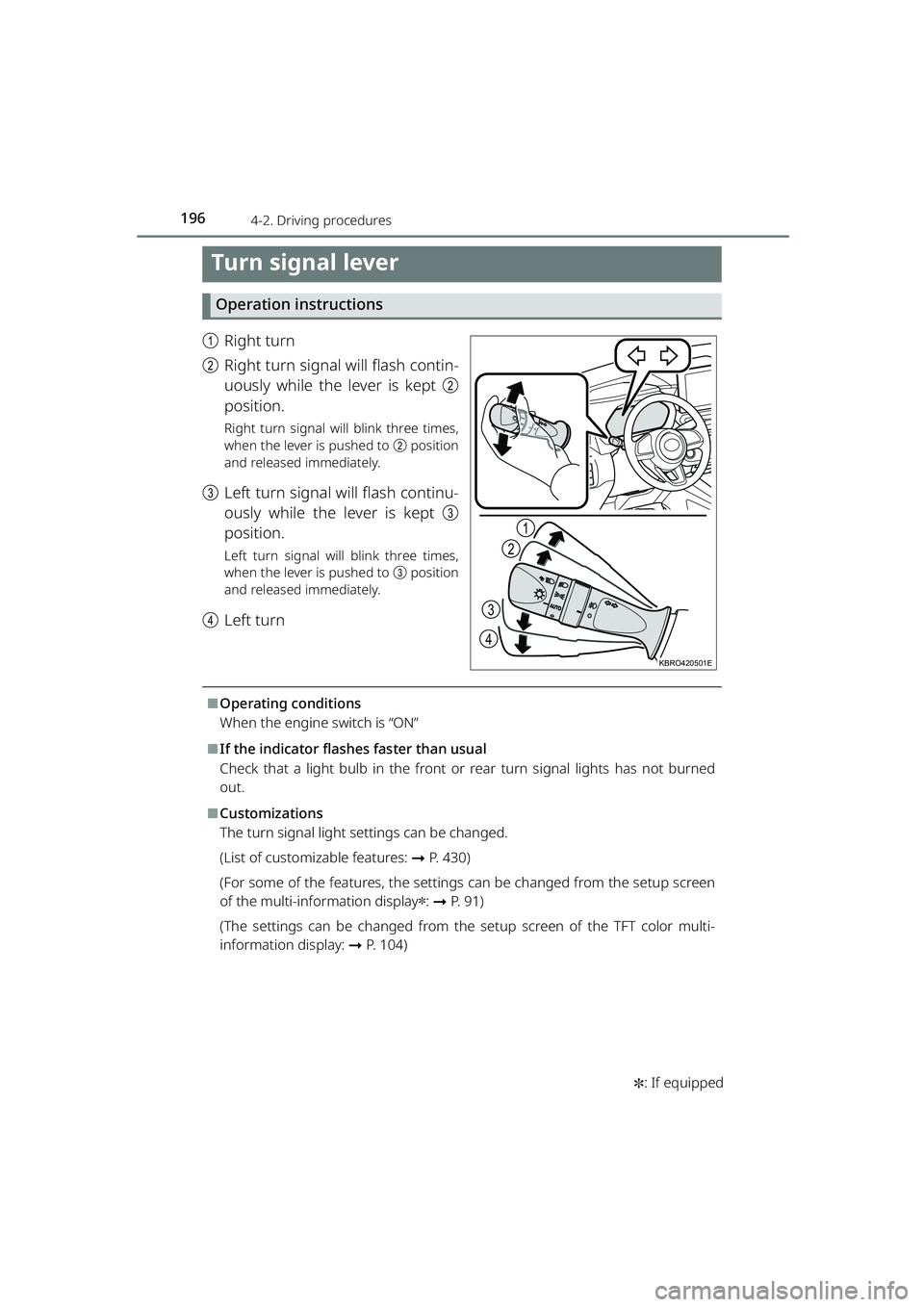

Turn signal lever
Operation instructions
a Right turn
b Right turn signal will flash contin-
uously while the lever is kept b
position.
Right turn signal will blink three times,
when the lever is pushed to b position
and released immediately.
c Left turn signal will flash continu-
ously while the lever is kept c
position.
Left turn signal will blink three times,
when the lever is pushed to c position
and released immediately.
d Left turn
⬛Operating conditions
When the engine switch is “ON”
⬛If the indicator flashe s faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
⬛Customizations
The turn signal light settings can be changed.
(List of customizable features: ➞P. 430)
(For some of the features, the settings can be changed from the setup screen
of the multi-info rmation display
✽: ➞ P. 9 1 )
(The settings can be changed from the setup screen of the TFT color multi-
information display: ➞ P. 104)
1
2
3
4
KBRO420501E
RAIZE_OM_General_BZ358E.book 196 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2044-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E✽
: If equipped

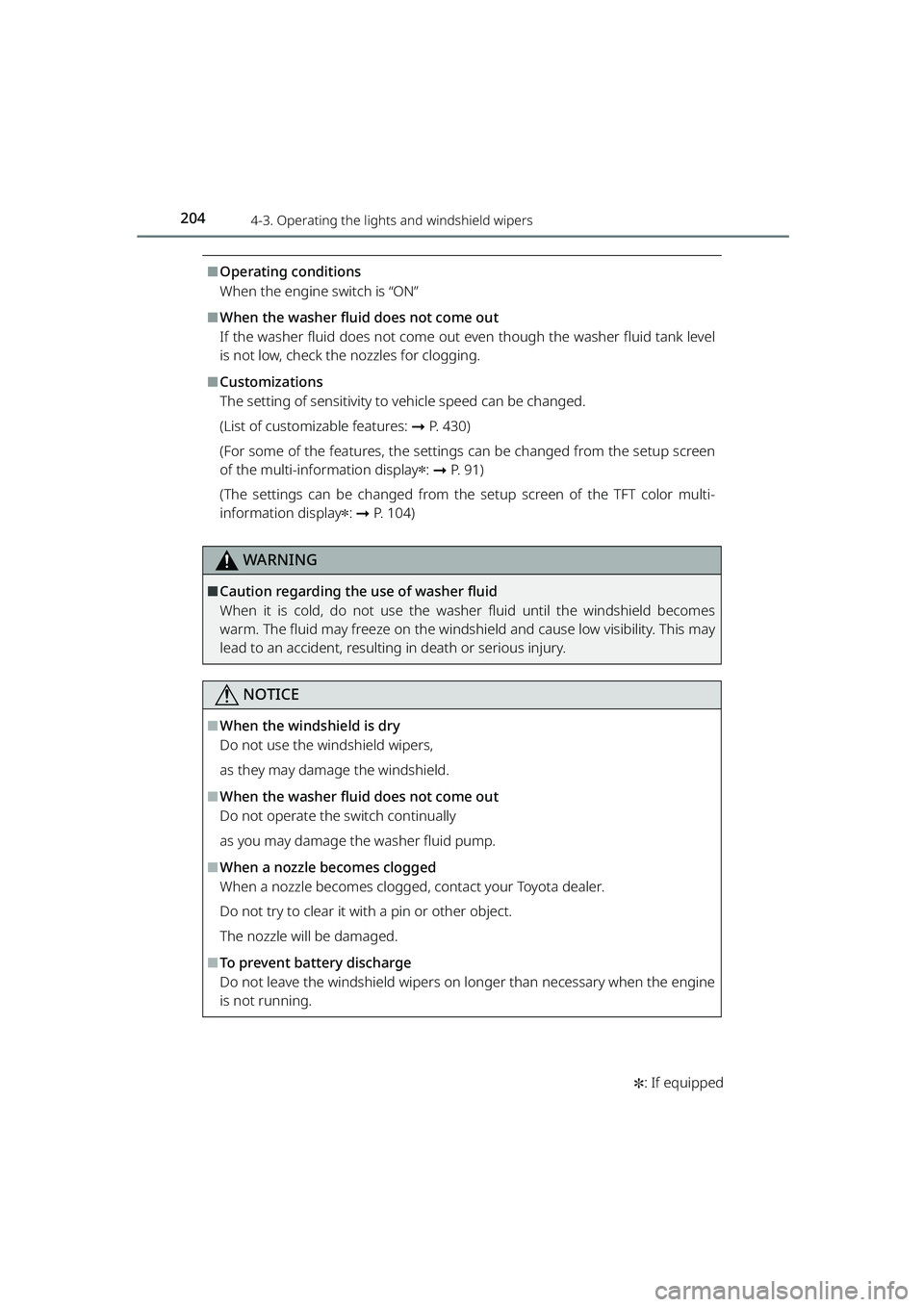

⬛Operating conditions
When the engine switch is “ON”
⬛When the washer flui d does not come out
If the washer fluid does not come out even though the washer fluid tank level
is not low, check the nozzles for clogging.
⬛Customizations
The setting of sensitivity to vehicle speed can be changed.
(List of customizable features: ➞ P. 430)
(For some of the features, the settings can be changed from the setup screen
of the multi-info rmation display
✽: ➞ P. 9 1 )
(The settings can be changed from the setup screen of the TFT color multi-
information display
✽: ➞ P. 104)
WARNING
⬛Caution regarding the use of washer fluid
When it is cold, do not use the wash er fluid until the windshield becomes
warm. The fluid may fr eeze on the windshield and cause low visibility. This may
lead to an accident, resulting in death or serious injury.
NOTICE
⬛When the windshield is dry
Do not use the windshield wipers,
as they may damage the windshield.
⬛When the washer fluid does not come out
Do not operate the switch continually
as you may damage th e washer fluid pump.
⬛When a nozzle becomes clogged
When a nozzle becomes clogged, contact your Toyota dealer.
Do not try to clear it with a pin or other object.
The nozzle will be damaged.
⬛To prevent battery discharge
Do not leave the windshield wipers on longer than necessary when the engine
is not running.
RAIZE_OM_General_BZ358E.book 204 ページ ２０２２年５月１７日　火曜日　午後１時５９分
