Maintenance and care
6
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct
procedure as given in these sections.
ItemsParts and tools
Battery condition
(➞ P. 321)
⚫Warm water
⚫Baking soda
⚫Grease
⚫Conventional wrench (for terminal clamp bolts)
⚫Distilled water
Brake fluid level
(➞ P. 320)⚫FMVSS No.116 DOT 3 brake fluid
⚫Rag or paper towel
⚫Funnel (used only for adding brake fluid)
Engine coolant level
(➞ P. 319)
⚫“Toyota Super Long Life Coolan t” or a similar high quality
ethylene glycol-based non-silicate, non-amine, non-nitrite
and non-borate coolant with long-life hybrid organic acid
technology “Toyota Super Long Life Coolant” is premixed
with 50% coolant and 50% deionized water.
⚫Funnel (used only for adding coolant)
Engine oil level
( ➞ P. 316)⚫Engine oil
⚫Rag or paper towel
⚫Funnel (used only for adding engine oil)
Fuses ( ➞P. 348)⚫Fuse with same amperage rating as original
Light bulbs
(➞ P. 352)⚫Bulb with same number and wattage rating as original
⚫Flathead screwdriver
⚫Wrench
Radiator and con-
denser ( ➞P. 320)―
Tire inflation pres-
sure ( ➞P. 334)⚫Tire pressure gauge
⚫Compressed air source
Washer fluid
(➞ P. 324)⚫Water or washer fluid containing antifreeze (for winter
use)
⚫Funnel (used only for addi ng water or washer fluid)
RAIZE_OM_General_BZ358E.book 309 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3106-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
WARNING
The engine compartment contains many mechanisms and fluids that may move
suddenly, become hot, or become electrically energized. To avoid death or seri-
ous injury, observe the following precautions.
⬛When working on the engine compartment
⚫Keep hands, clothing and tools away from the moving fan and engine drive
belt.
⚫Be careful not to touch the engine, radiator, exhaust manifold, etc., right
after driving as they may be hot. O il and other fluids may also be hot.
⚫Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
⚫Do not smoke, cause sparks or expose an open flame to fuel or the battery.
Fuel and battery fumes are flammable.
⚫Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
⚫Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with cl ean water immediately.
If you still experience discomfort, consult a doctor.
⬛When working near the electric cooling fan or radiator grille
Be sure the engine switch is in off.
With the engine switch in “ON”, the elect ric cooling fan may automatically start
to run if the air conditioning is on and/or the coolant temperature is high.
( ➞ P. 320)
⬛Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting in your eyes.
NOTICE
⬛If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
⬛If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear
or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.
RAIZE_OM_General_BZ358E.book 310 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3116-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6

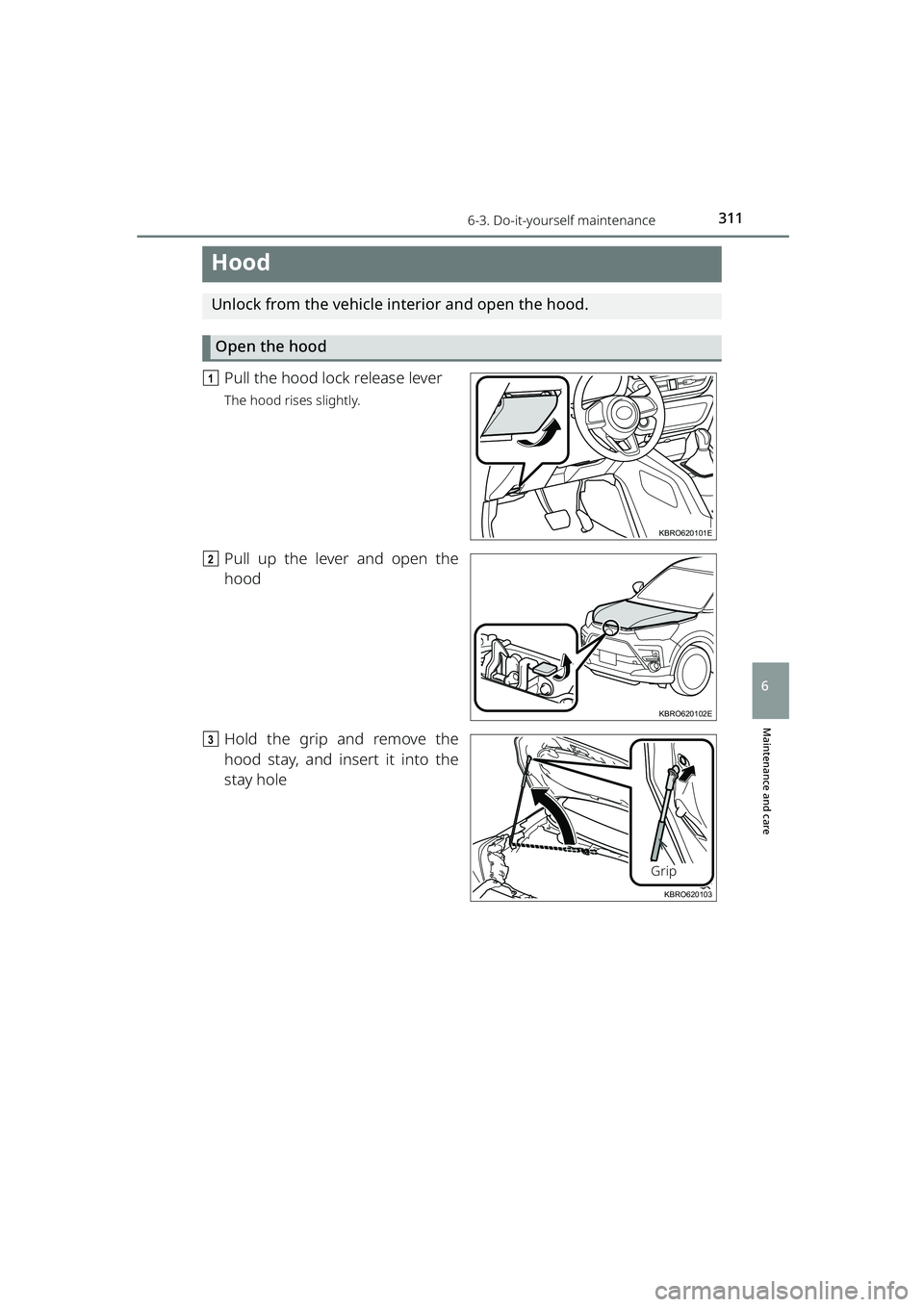

Hood
Unlock from the vehicle interior and open the hood.Open the hood
a Pull the hood lock release lever
The hood rises slightly.
bPull up the lever and open the
hood
c Hold the grip and remove the
hood stay, and insert it into the
stay hole
KBRO620101E
KBRO620102E
KBRO620103
Grip
RAIZE_OM_General_BZ358E.book 311 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3126-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Close the hood
aSupport the hood with one hand
b Hold the grip and remove the hood stay, and restore it to its original
position
c Lower the hood gently and close it by pushing it with your hand
⬛To disconnect the battery terminals
If you disconnect the battery terminals, the information stored in the computer
will be erased. Before removing the battery terminals, contact your Toyota
dealer for assistance.
WARNING
⬛Check before driving
⚫Make sure the hood is securely locked.
Driving without locking the hood can caus e it to suddenly open while driving,
causing death or serious injury.
⚫If the hood is opened, the hood st ay may detach and the hood may close
unexpectedly. Be especially careful on windy days.
⬛To prevent injury
The interior of the engine compartment is hot after driving. Touching hot com-
ponents can cause serious injury such as burns.
⬛Verification after inspecting the engine compartment
Before starting the engine, make sure that no flammable materials are left in
the engine compartment. Make sure th at there are no flammable materials
such as twigs brought in by small animals and birds in the engine compart-
ment, especially if you have not used th e vehicle for a long time. Such flamma-
ble materials may lead to a vehicle fire.
If you notice a burning smell from th e engine compartment while driving,
immediately stop at a safe place and contact your Toyota dealer.
⬛Checking and changing oil
Make sure that oil is not adhered to the alternator. If oil is ad hered, wipe it off
immediately. If oil is adhered, it may lead to a vehicle fire.
RAIZE_OM_General_BZ358E.book 312 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3136-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
WARNING
Maintenance and care
6

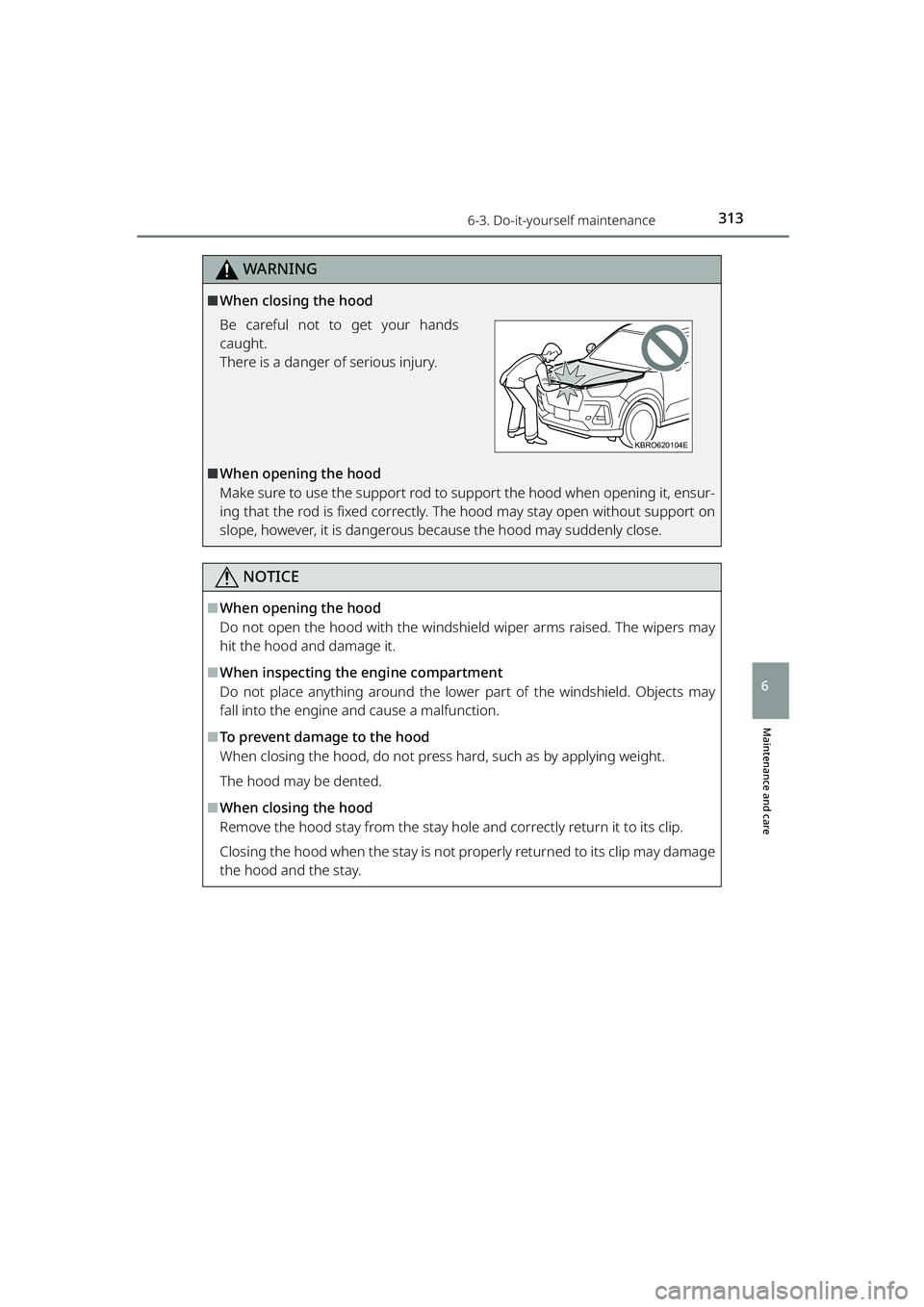

⬛When closing the hood
Be careful not to get your hands
caught.
There is a danger of serious injury.
⬛When opening the hood
Make sure to use the support rod to support the hood when opening it, ensur-
ing that the rod is fixed correctly. Th e hood may stay open without support on
slope, however, it is dangerous because the hood may suddenly close.
NOTICE
⬛When opening the hood
Do not open the hood with the windshield wiper arms raised. The wipers may
hit the hood and damage it.
⬛When inspecting the engine compartment
Do not place anything around the lowe r part of the windshield. Objects may
fall into the engine and cause a malfunction.
⬛To prevent damage to the hood
When closing the hood, do not press hard, such as by applying weight.
The hood may be dented.
⬛When closing the hood
Remove the hood stay from the stay hole and correctly return it to its clip.
Closing the hood when the stay is not pr operly returned to its clip may damage
the hood and the stay.
KBRO620104E
RAIZE_OM_General_BZ358E.book 313 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3146-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E

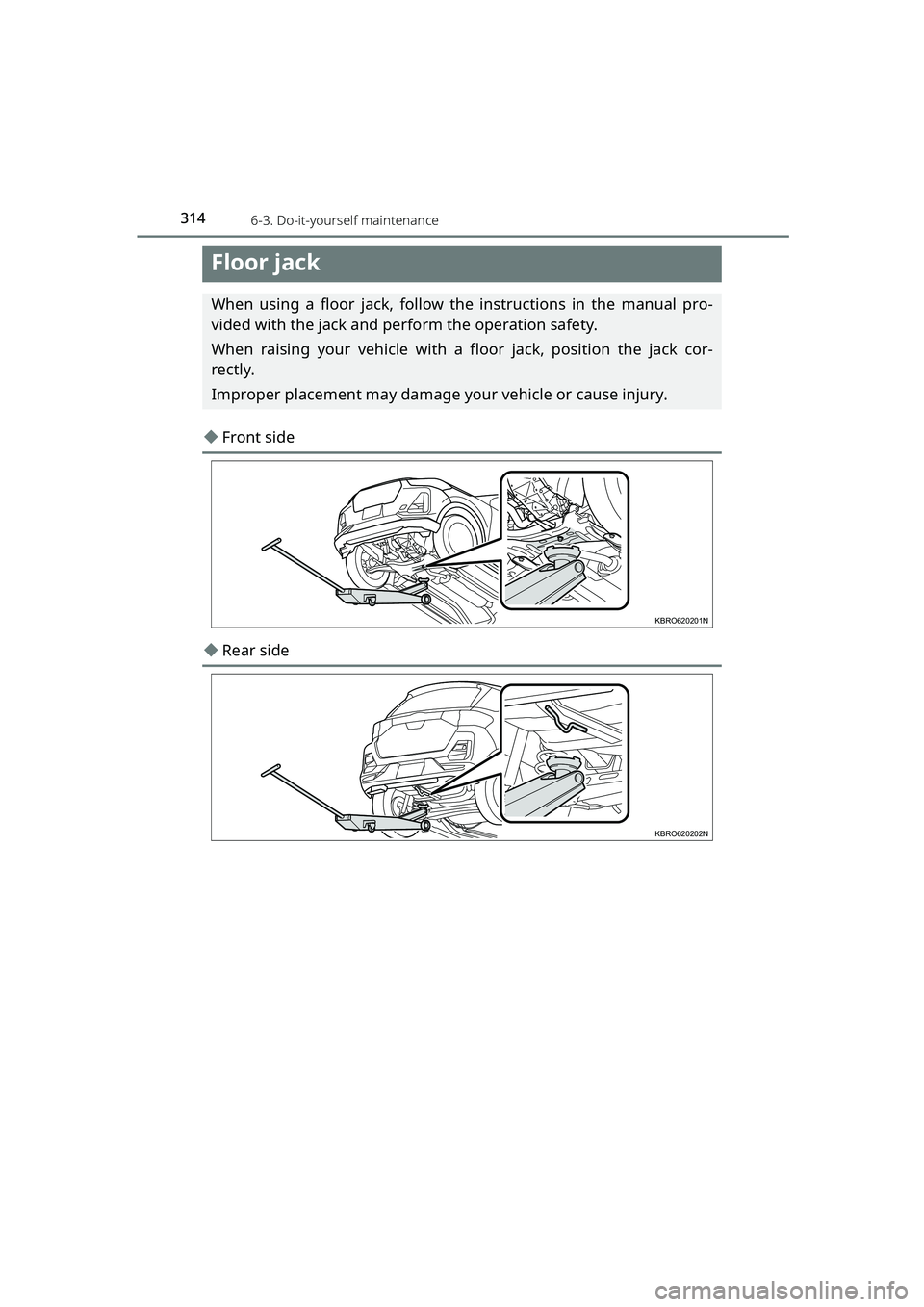

Floor jack
When using a floor jack, follow the instructions in the manual pro-
vided with the jack and perform the operation safety.
When raising your vehicle with a floor jack, position the jack cor-
rectly.
Improper placement may damage your vehicle or cause injury.
◆Front side
◆Rear side
KBRO620201N
KBRO620202N
RAIZE_OM_General_BZ358E.book 314 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3156-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6

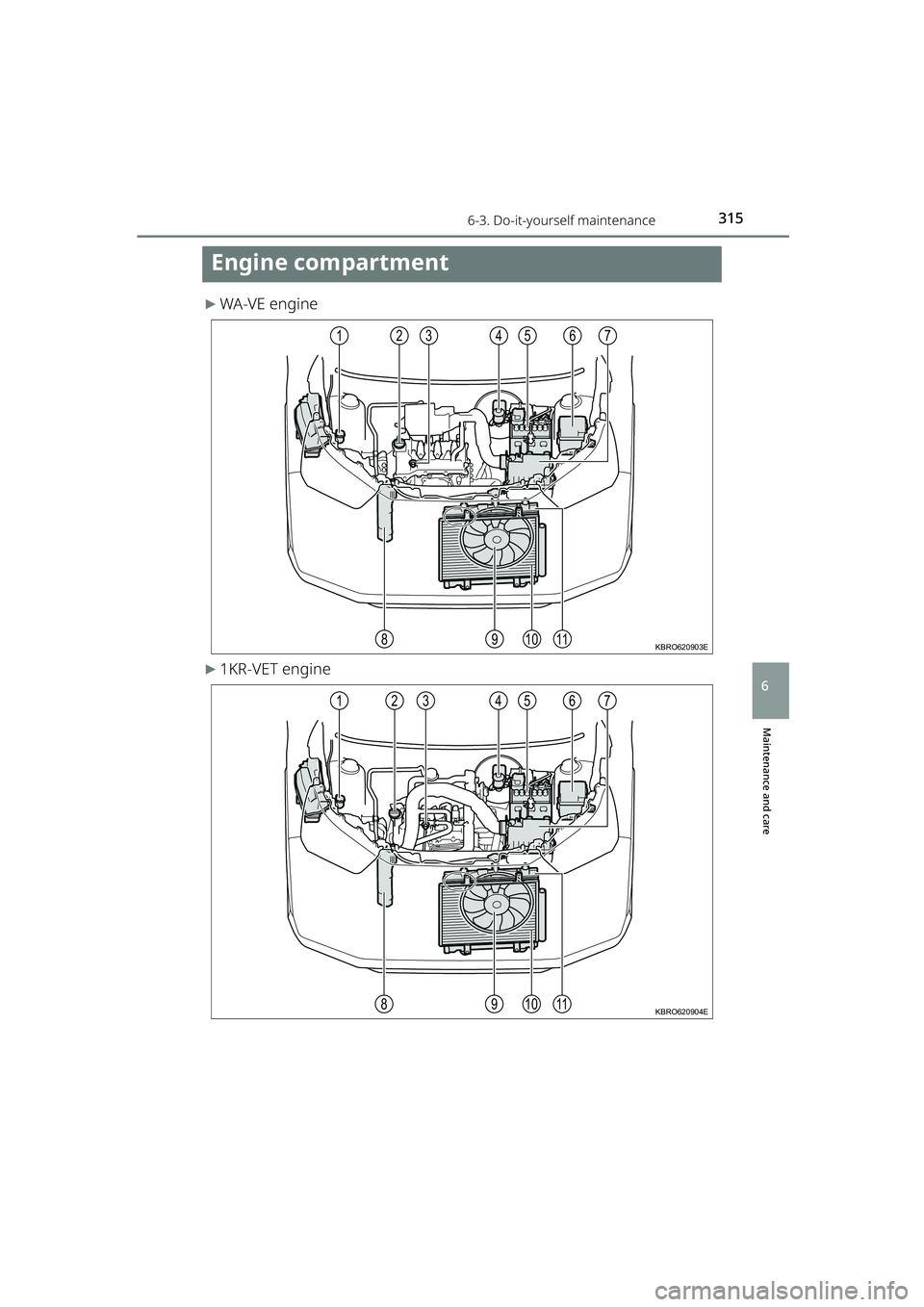

Engine compartment
▶WA-VE engine
▶1KR-VET engine
98
1236574
1011KBRO620903E
123
98
6574
1011KBRO620904E
RAIZE_OM_General_BZ358E.book 315 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3166-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
aWasher fluid tank ( ➞P. 324)
b Engine oil filler cap (➞ P. 317)
c Engine oil level dipstick ( ➞P. 316)
d Brake fluid reservoir ( ➞P. 320)
e Battery ( ➞P. 321)
f Fuse box ( ➞P. 348) g
Air cleaner ( ➞P. 325)
hEngine coolant reservoir (➞P. 319)
i Electric cooling fan
j Condenser ( ➞P. 320)
k Radiator ( ➞P. 320)
Engine oil
With the engine at operating temper ature and turned off, check the oil
level on the dipstick.
⬛Checking the engine oil
a Park the vehicle on level ground. After warming up the engine and
turning it off, wait more than 5 minutes for the oil to drain back into the
bottom of the engine.
b Holding a rag under the end, pull the dipstick out.
▶WA-VE engine▶1KR-VET engine
c Wipe the dipstick clean.
d Reinsert the dipstick fully.
eHolding a rag under the end, pull the
dipstick out and check the oil level.
a Low
b Normal
c Excessive
The shape of the dipstick may dif-
fer depending on the type of
vehicle or engine.
f Wipe the dipstick and reinsert it fully.
KBRO620901NKBRO620902N
KBRO620905N
RAIZE_OM_General_BZ358E.book 316 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3176-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
⬛Adding engine oil
If the oil level is below or near the low level mark, add engine oil of the
same type as that already in the engine.
▶WA-VE engine▶1KR-VET engine
Make sure to check the oil type and prepare the items needed before add-
ing oil.
a Remove the oil filler cap by turning it counterclockwise.
b Add engine oil slowly, checking the dipstick.
c Install the oil filler cap by turning it clockwise.
⬛Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
⚫When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine
⚫If low quality oil or oil of an inappropriate viscosity is used
⚫When driving at high engine speeds or with a heavy load, or when driving
while accelerating or decelerating frequently
⚫When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
KBRO620906NKBRO620907N
Engine oil selection➞ P. 421, 423
Oil quantity (Low to Full)1.5 L (1.6 qt., 1.3 Imp.qt.)
ItemsClean funnel
RAIZE_OM_General_BZ358E.book 317 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3186-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
⚫When the outside temperature is low, the engine oil may become white and
creamy, and it may get to the back of the oil filler cap or oil filling port.This
phenomenon takes place when water vapor in the engine is cooled, forming
water drops, which in turn are mixed wi th the engine oil. This, however, will
disappear when the water evaporates as the outside temperature gets high
or the engine warms up.The engine oil does not deteriorate due to this phe-
nomenon and there will be no problem if the engine oil is continued to be
used.
WARNING
⬛Used engine oil
⚫Used engine oil contains potentially harmful contaminants which may cause
skin disorders such as inflammation and skin cancer, so care should be
taken to avoid prolonged and repeated contact. To remove used engine oil
from your skin, wash thoroughly with soap and water.
⚫Dispose of used oil and filters only in a safe and acceptable manner. Do not
dispose of used oil and filters in hous ehold trash, in sewers or onto the
ground.
Call your Toyota dealer, service stat ion or auto parts store for information
concerning recycling or disposal.
⚫Do not leave used engine oil within the reach of children.
⬛If engine oil is spilled
If oil is spilled on the alternator, wipe off the oil immediately. Oil spilled on the
alternator will cause a fire.
NOTICE
⬛To prevent serious engine damage
Observe the following precautions.
⚫Check the oil level on a regular basis.
⚫Do not use any engine oil additive.
⬛When replacing the engine oil
⚫Be careful not to spill engine oil on the vehicle components.
⚫Avoid overfilling, or the engine could be damaged.
⚫Check the oil level on the dipstick every time you refill the vehicle.
⚫Be sure the engine oil filler cap is properly tightened.
RAIZE_OM_General_BZ358E.book 318 ページ ２０２２年５月１７日　火曜日　午後１時５９分
