3496-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
If the fuse box has a cover,
remove the cover
c Remove the fuse removal tool
▶Engine compartment
Remove the fuse removal tool
from the inner side of the cover
▶Instrument panel
Remove the fuse removal tool
from the fuse box
d Remove the fuse by pinching it
with the fuse removal tool
KBRO620705E
KBRO620706E
KBTA620704
KBTA620706
RAIZE_OM_General_BZ358E.book 349 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3506-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
eCheck if the fuse is blown.
aNormal fuse
b Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
▶Type A▶Type B
f To install, reverse the removal procedure
⬛After a fuse is replaced
⚫If the lights do not turn on even afte r the fuse has been replaced, replace the
bulb. ( ➞P. 352)
⚫If the replaced fuse blows again, or if the electrical system does not work,
have the vehicle inspected by your Toyota dealer.
⬛If there is an overload in a circuit
The fuses are designed to blow, protec ting the wiring harness from damage.
⬛When replacing light bulbs
We recommend that you use genuine Toyota products designated for this
vehicle. Because certain bulbs are connect ed to circuits designed to prevent
overload, products other than the Toyo ta genuine parts designated for this
vehicle may be unusable.
KBTE731003KBTE731004
RAIZE_OM_General_BZ358E.book 350 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3516-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
WARNING
⬛To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
⚫Never use a fuse of a higher amperage rating than that indicated, or use any
other object in place of a fuse.
⚫Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
⚫Do not modify the fuses or fuse boxes.
NOTICE
⬛Before replacing fuses
If you find that the cause of the blown fuse is an overload of electricity, have
the vehicle inspected at your Toyota dealer.
RAIZE_OM_General_BZ358E.book 351 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3526-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E✽
: If equipped
Replacing light bulbs
You can replace the bulbs listed below yourself. The difficulty of
replacing bulbs depends on the bulb. We recommend that you
replace the parts at your Toyota dealer because they may get dam-
aged.
Preparing light bulbs
Check the W (wattage) of the defective light bulb. ( ➞P. 428)
Bulb position

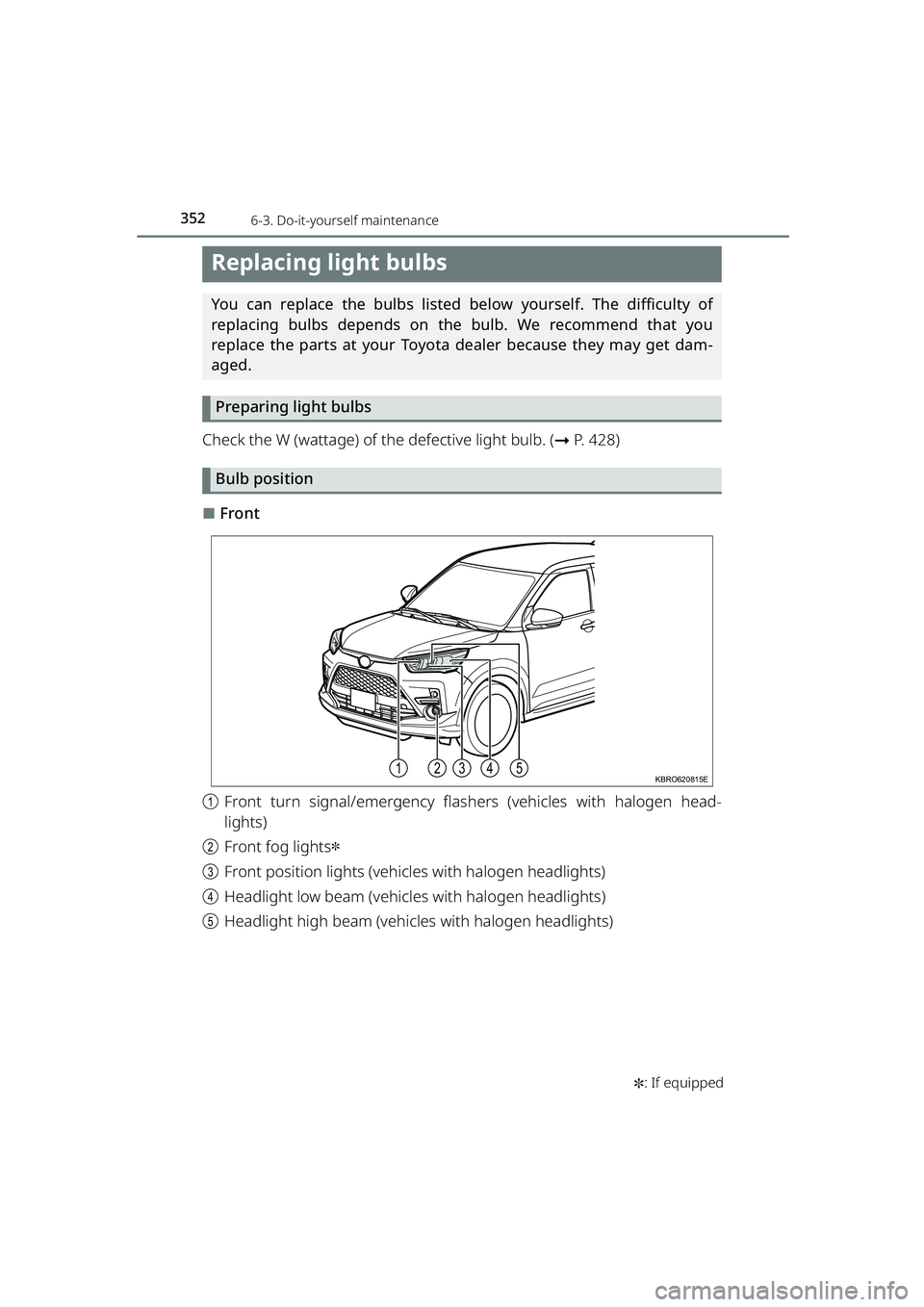

⬛Front
a Front turn signal/emergency flashers (vehicles with halogen head-
lights)
b Front fog lights
✽
cFront position lights (vehicles with halogen headlights)
d Headlight low beam (vehicles with halogen headlights)
e Headlight high beam (vehicles with halogen headlights)
12345KBRO620815E
RAIZE_OM_General_BZ358E.book 352 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3536-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6

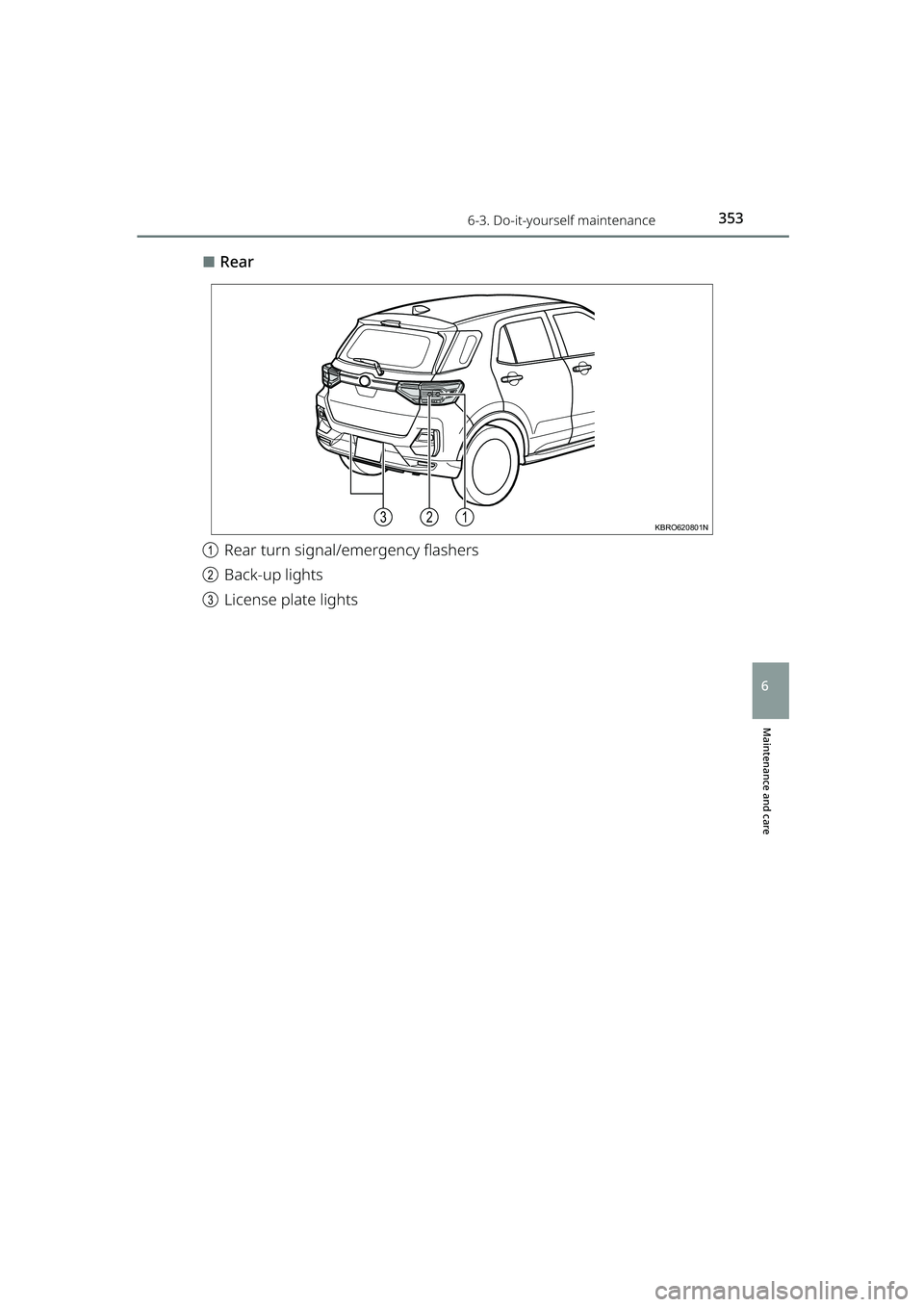

⬛Rear
a Rear turn signal/emergency flashers
b Back-up lights
c License plate lights
312KBRO620801N
RAIZE_OM_General_BZ358E.book 353 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3546-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E

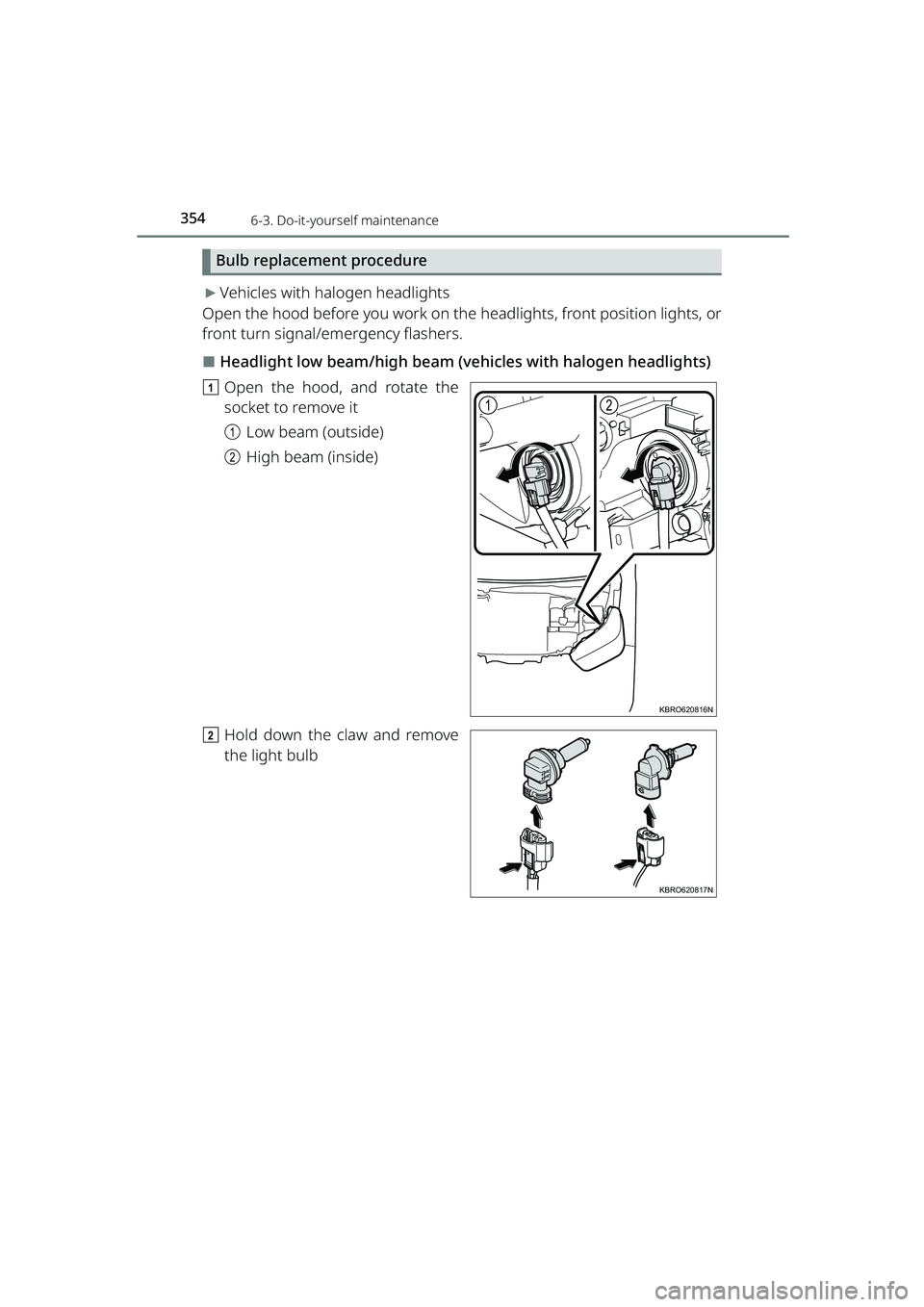

Bulb replacement procedure
▶Vehicles with halogen headlights
Open the hood before you work on th e headlights, front position lights, or
front turn signal/emergency flashers.
⬛Headlight low beam/high beam (v ehicles with halogen headlights)
a Open the hood, and rotate the
socket to remove it
aLow beam (outside)
b High beam (inside)
b Hold down the claw and remove
the light bulb
12
KBRO620816N
KBRO620817N
RAIZE_OM_General_BZ358E.book 354 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3556-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6

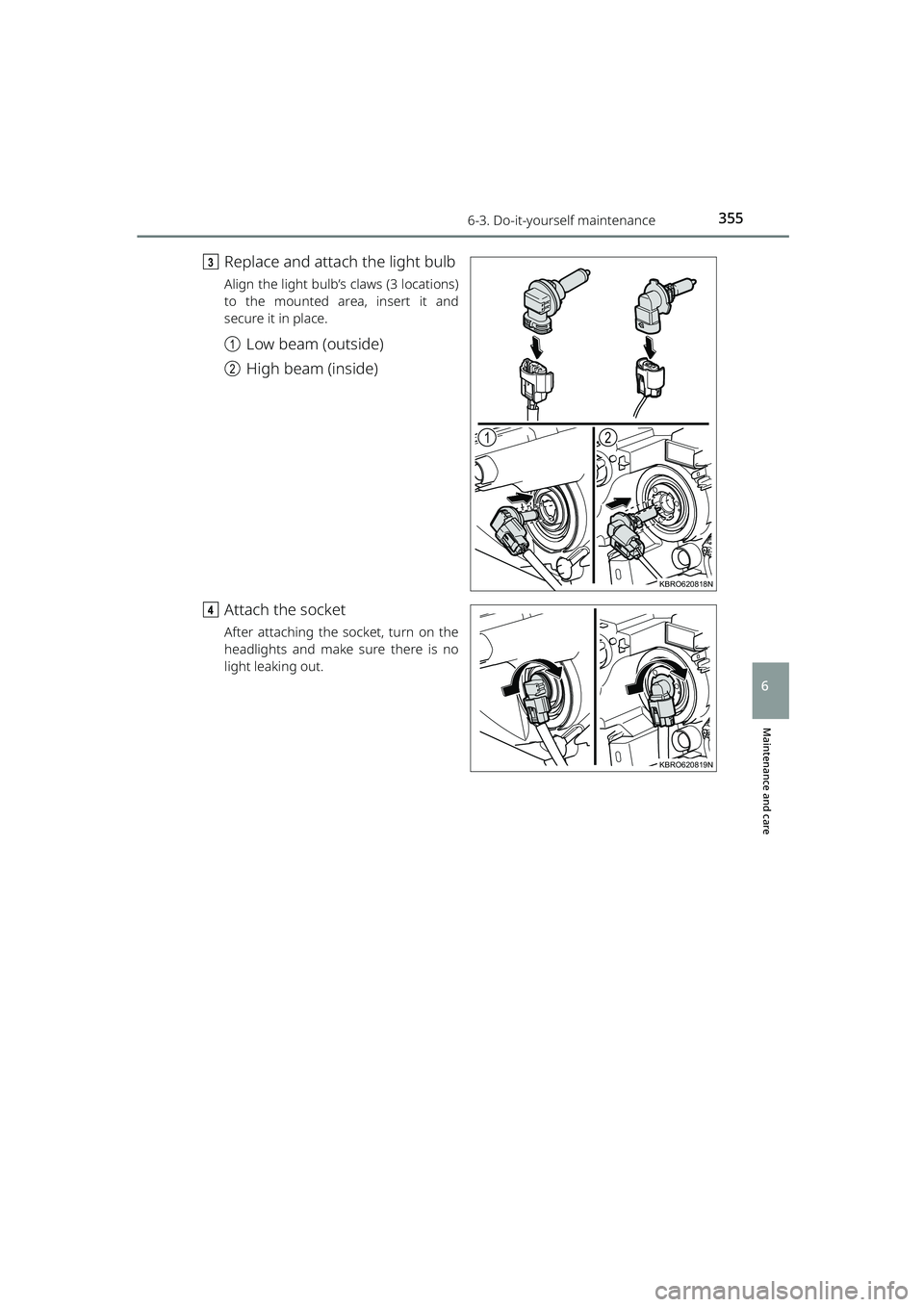

cReplace and attach the light bulb
Align the light bulb’s claws (3 locations)
to the mounted area, insert it and
secure it in place.
aLow beam (outside)
b High beam (inside)
d Attach the socket
After attaching the socket, turn on the
headlights and make sure there is no
light leaking out.
12
KBRO620818N
KBRO620819N
RAIZE_OM_General_BZ358E.book 355 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3566-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E

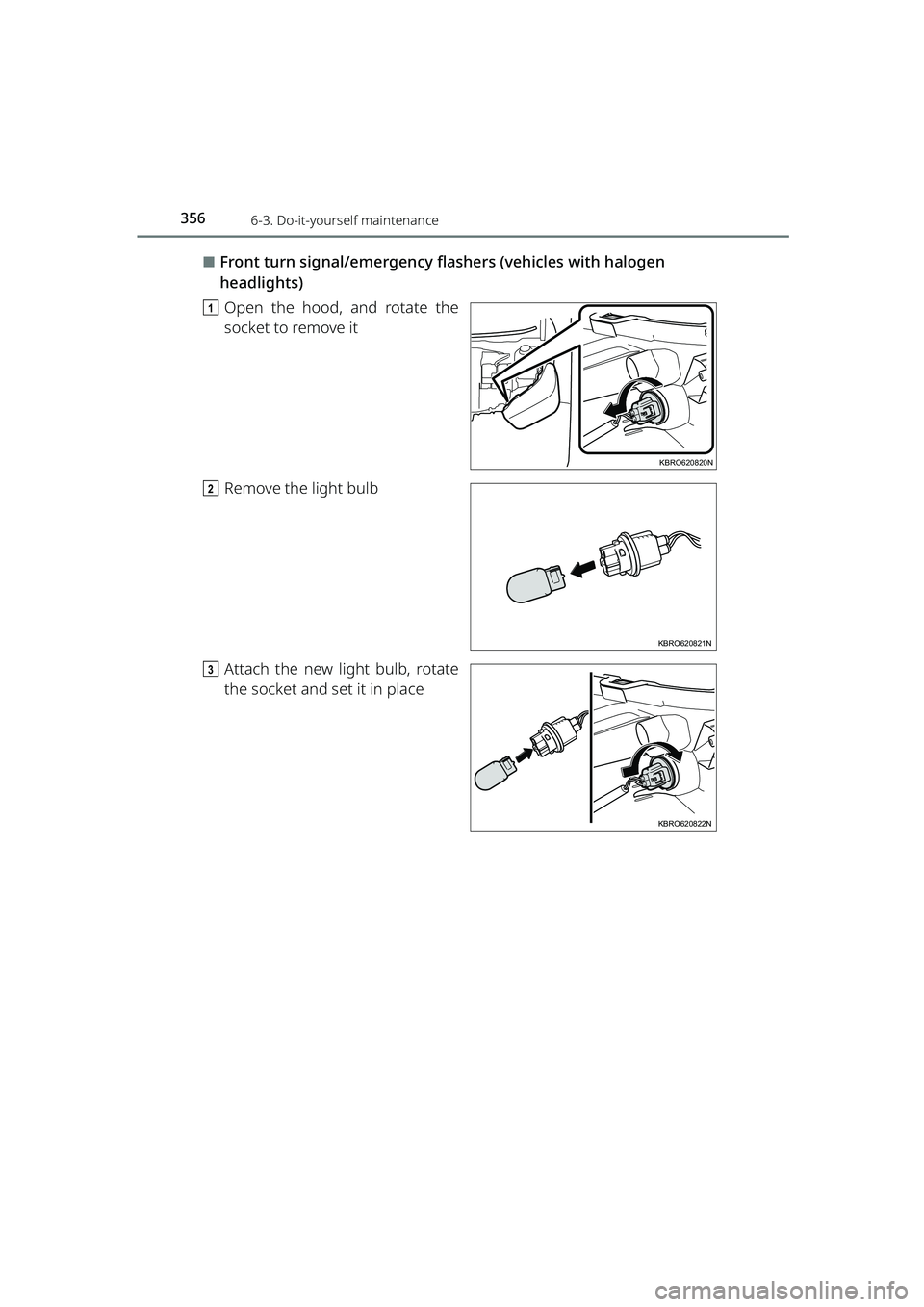

⬛Front turn signal/emergency flashers (vehicles with halogen
headlights)
a Open the hood, and rotate the
socket to remove it
b Remove the light bulb
c Attach the new light bulb, rotate
the socket and set it in place
KBRO620820N
KBRO620821N
KBRO620822N
RAIZE_OM_General_BZ358E.book 356 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3576-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6

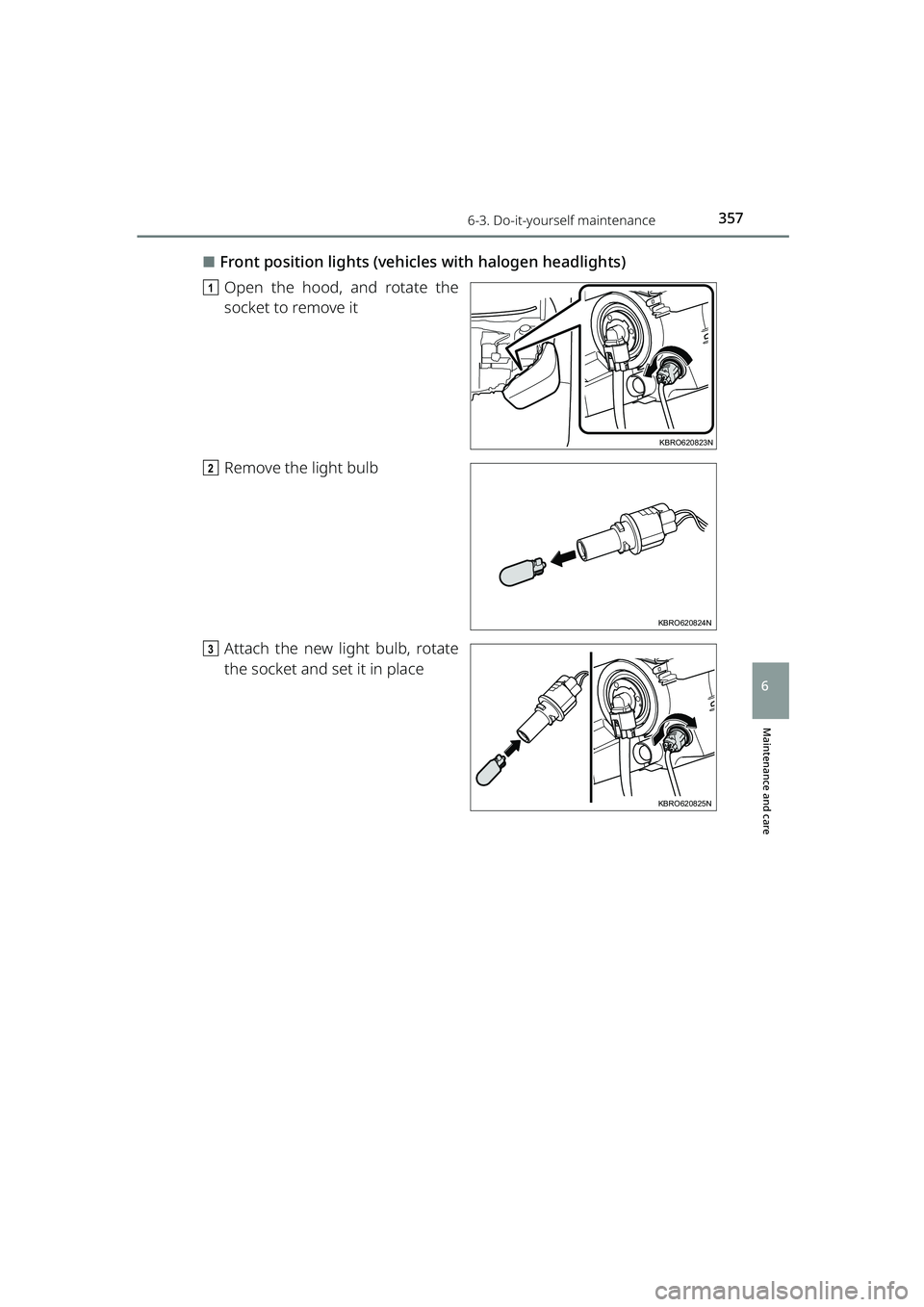

⬛Front position lights (vehicles with halogen headlights)
a Open the hood, and rotate the
socket to remove it
b Remove the light bulb
c Attach the new light bulb, rotate
the socket and set it in place
KBRO620823N
KBRO620824N
KBRO620825N
RAIZE_OM_General_BZ358E.book 357 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3586-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E✽
: If equipped

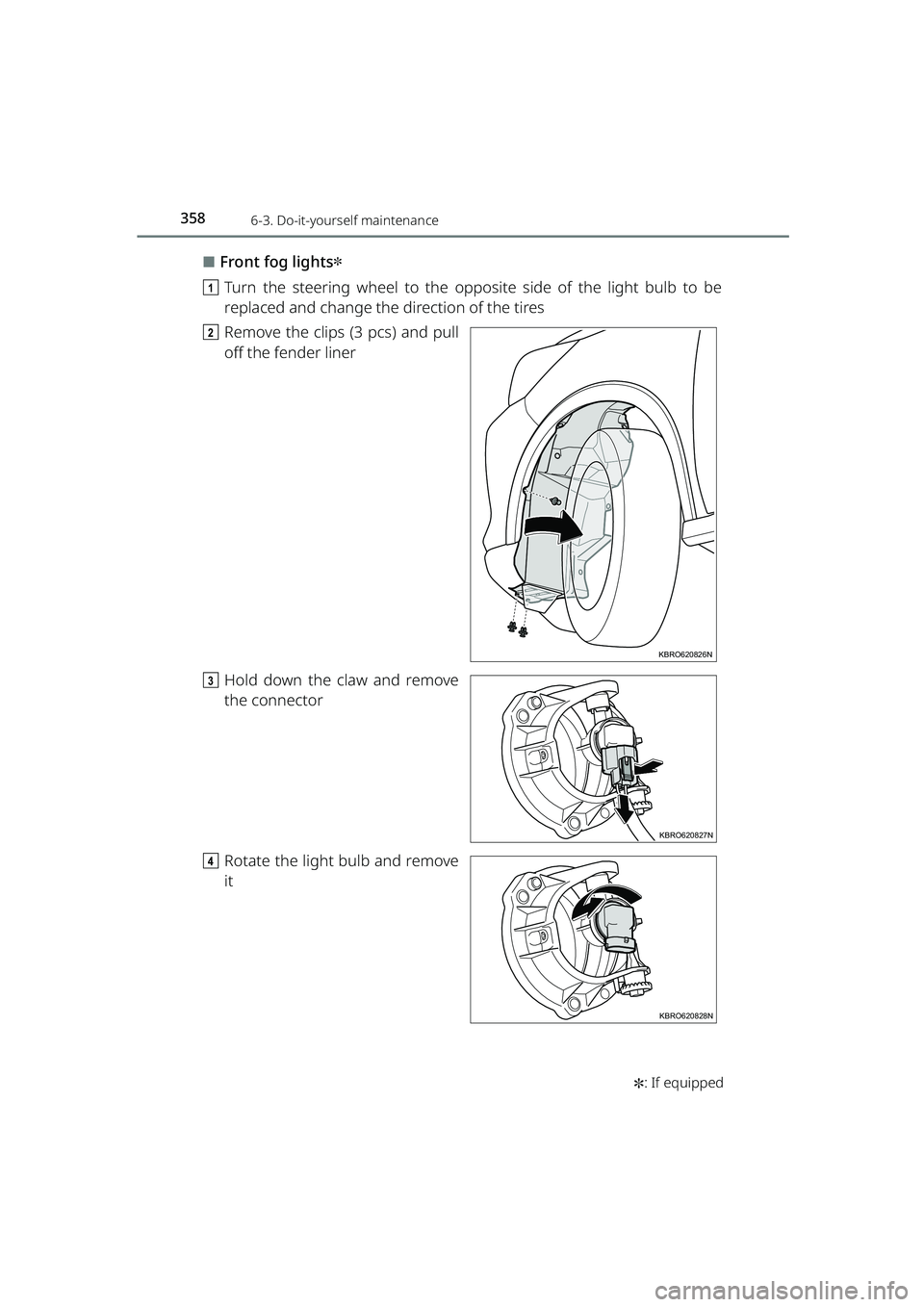

⬛Front fog lights✽
a Turn the steering wheel to the opposite side of the light bulb to be
replaced and change the direction of the tires
b Remove the clips (3 pcs) and pull
off the fender liner
c Hold down the claw and remove
the connector
d Rotate the light bulb and remove
it
KBRO620826N
KBRO620827N
KBRO620828N
