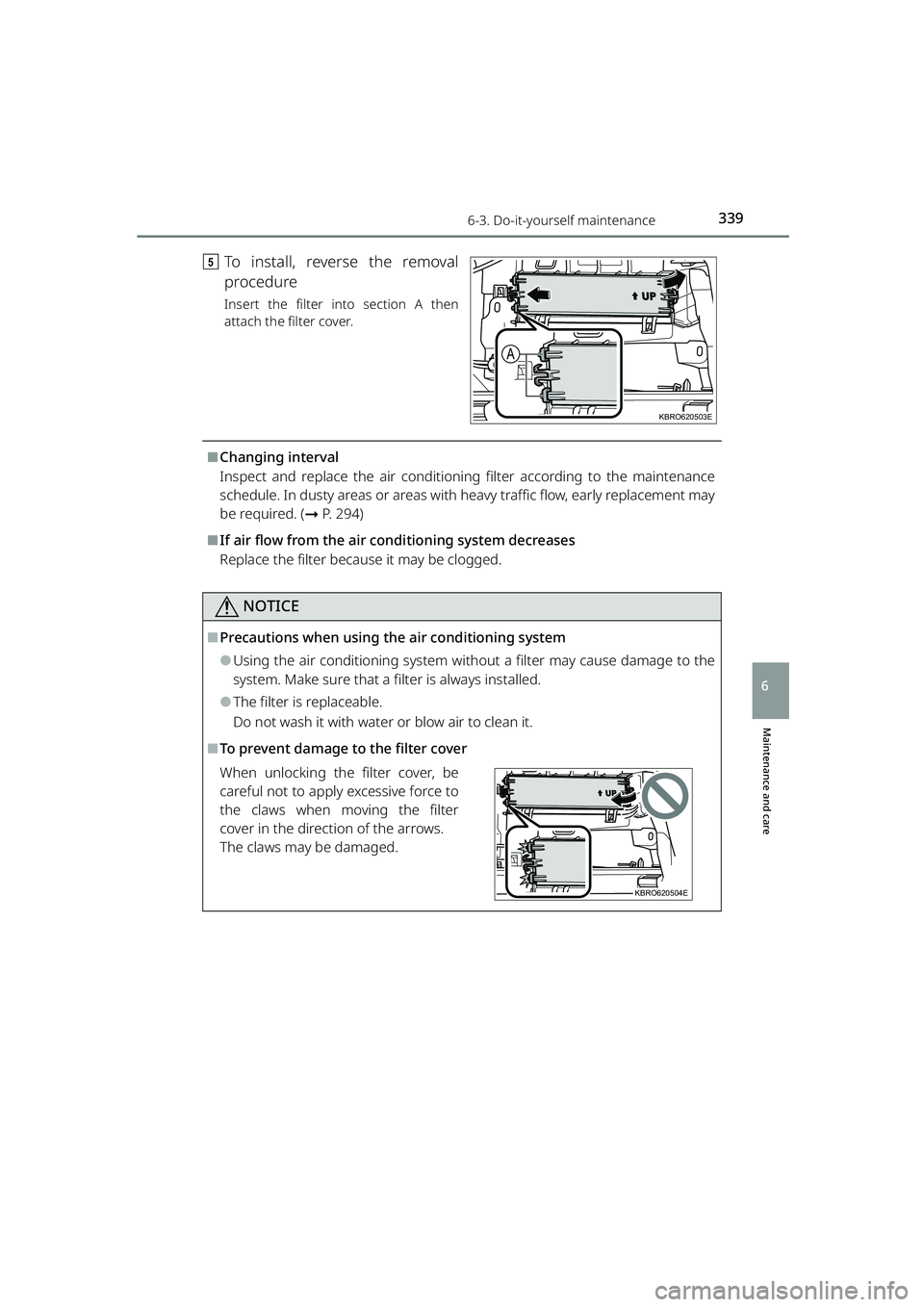

TOYOTA RAIZE 2023 Owners Manual

3396-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
eTo install, reverse the removal
procedure
Insert the filter into section A then
attach the filter cover.
⬛Changing interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement may
be required. ( ➞P. 294)
⬛If air flow from the air conditioning system decreases
Replace the filter because it may be clogged.
NOTICE
⬛Precautions when using th e air conditioning system
⚫Using the air conditioning system without a filter may cause damage to the
system. Make sure that a filter is always installed.
⚫The filter is replaceable.
Do not wash it with water or blow air to clean it.
⬛To prevent damage to the filter cover
When unlocking the filter cover, be
careful not to apply excessive force to
the claws when moving the filter
cover in the direction of the arrows.
The claws may be damaged.
A
KBRO620503E
KBRO620504E
RAIZE_OM_General_BZ358E.book 339 ページ ２０２２年５月１７日　火曜日　午後１時５９分

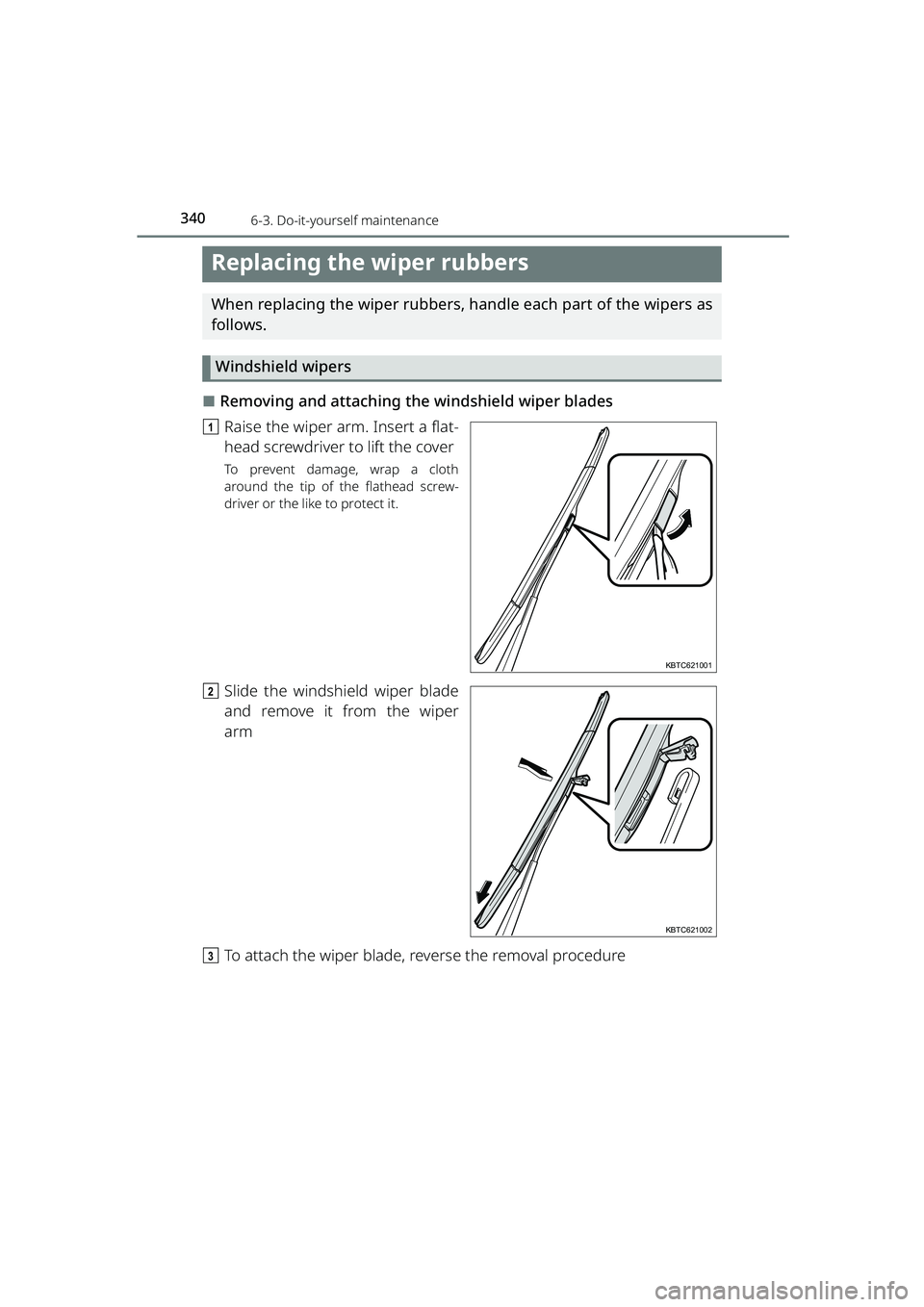

3406-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Replacing the wiper rubbers
When replacing the wiper rubbers, handle each part of the wipers as
follows.
Windshield wipers
⬛Removing and attaching the windshield wiper blades
a Raise the wiper arm. Insert a flat-
head screwdriver to lift the cover
To prevent damage, wrap a cloth
around the tip of the flathead screw-
driver or the like to protect it.
bSlide the windshield wiper blade
and remove it from the wiper
arm
c To attach the wiper blade, reverse the removal procedure
KBTC621001
KBTC621002
RAIZE_OM_General_BZ358E.book 340 ページ ２０２２年５月１７日　火曜日　午後１時５９分

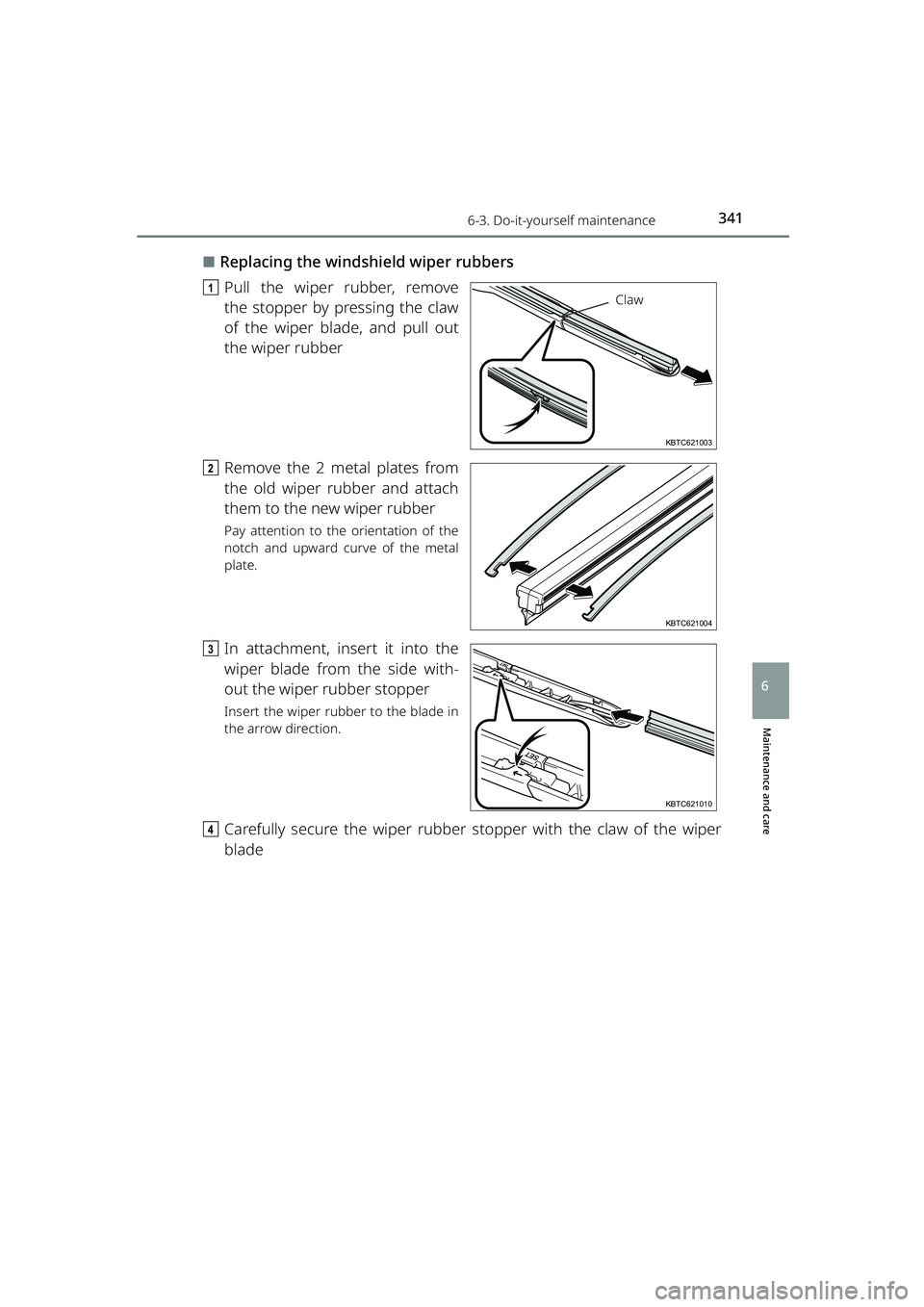

3416-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
⬛Replacing the windshield wiper rubbers
a Pull the wiper rubber, remove
the stopper by pressing the claw
of the wiper blade, and pull out
the wiper rubber
b Remove the 2 metal plates from
the old wiper rubber and attach
them to the new wiper rubber
Pay attention to the orientation of the
notch and upward curve of the metal
plate.
cIn attachment, insert it into the
wiper blade from the side with-
out the wiper rubber stopper
Insert the wiper rubber to the blade in
the arrow direction.
dCarefully secure the wiper rubber stopper with the claw of the wiper
blade
KBTC621003
Claw
KBTC621004
KBTC621010
RAIZE_OM_General_BZ358E.book 341 ページ ２０２２年５月１７日　火曜日　午後１時５９分

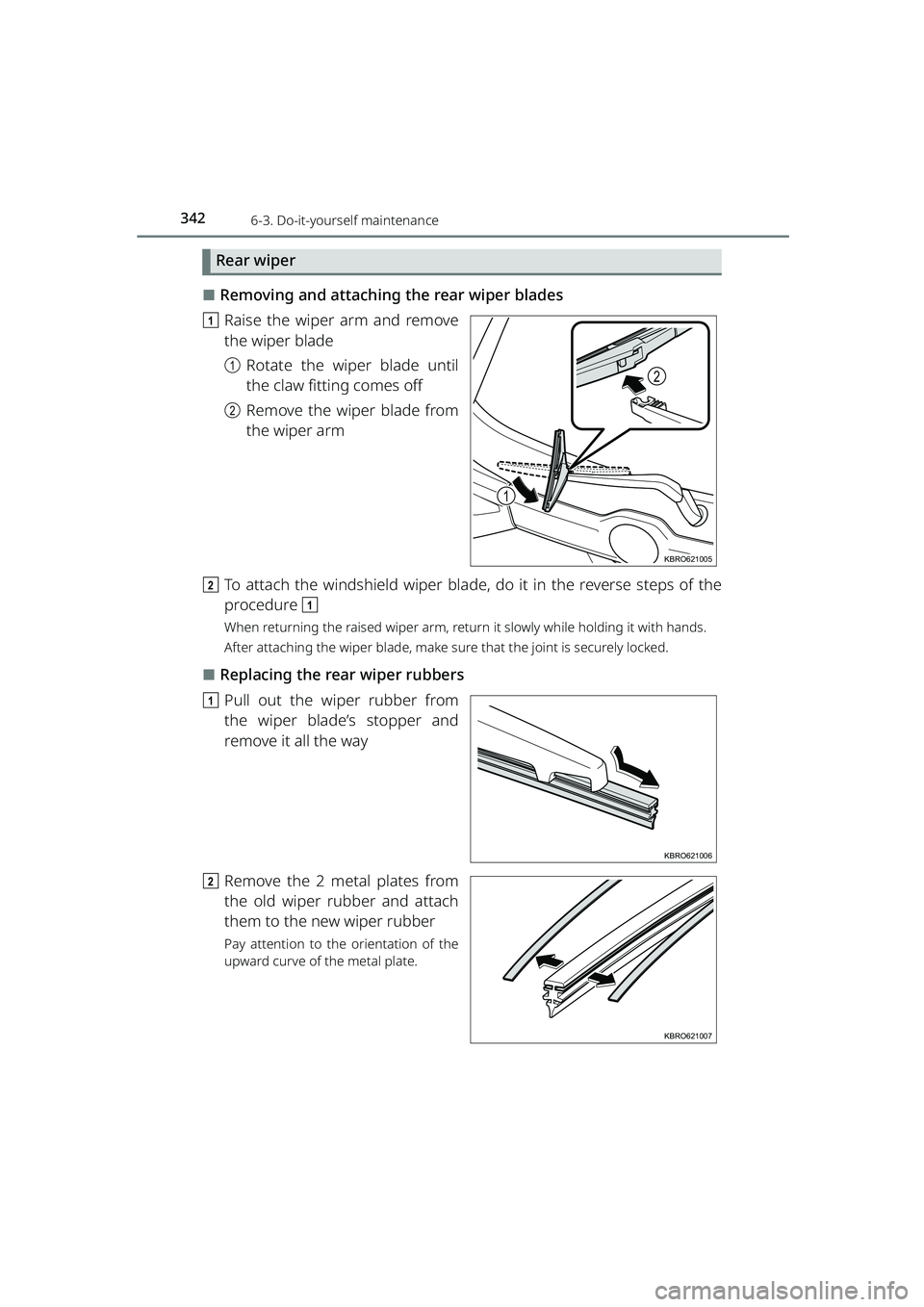

3426-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Rear wiper
⬛Removing and attaching the rear wiper blades
a Raise the wiper arm and remove
the wiper blade
aRotate the wiper blade until
the claw fitting comes off
b Remove the wiper blade from
the wiper arm
b To attach the windshield wiper blade, do it in the reverse steps of the
procedure a
When returning the raised wiper arm, return it slowly while holding it with hands.
After attaching the wiper blade, make sure that the joint is securely locked.
⬛Replacing the rear wiper rubbers
a Pull out the wiper rubber from
the wiper blade’s stopper and
remove it all the way
b Remove the 2 metal plates from
the old wiper rubber and attach
them to the new wiper rubber
Pay attention to the orientation of the
upward curve of the metal plate.
2
1
KBRO621005
KBRO621006
KBRO621007
RAIZE_OM_General_BZ358E.book 342 ページ ２０２２年５月１７日　火曜日　午後１時５９分

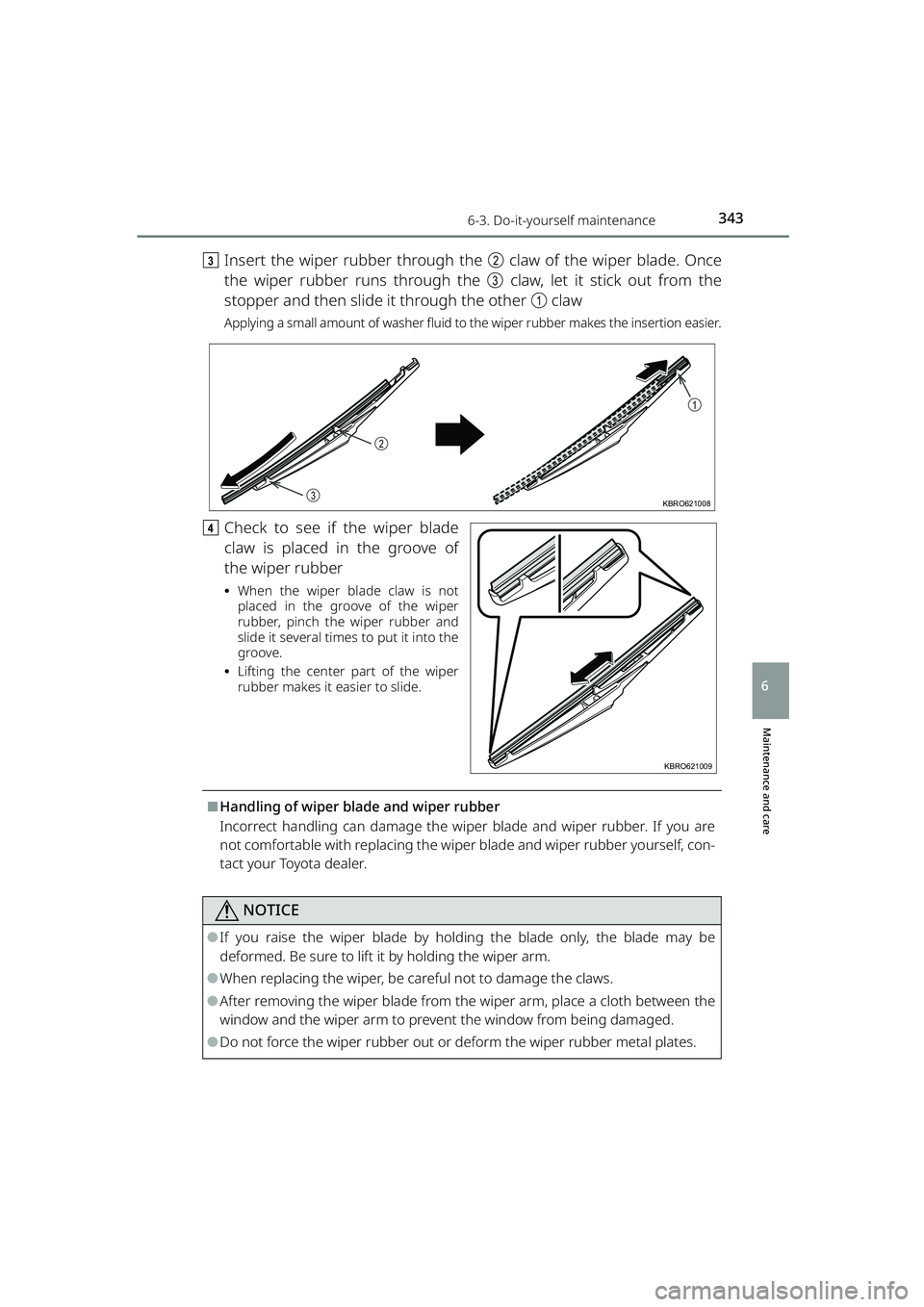

3436-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
cInsert the wiper rubber through the b claw of the wiper blade. Once
the wiper rubber runs through the c claw, let it stick out from the
stopper and then slide it through the other a claw
Applying a small amount of washer fluid to the wiper rubber makes the insertion easier.
dCheck to see if the wiper blade
claw is placed in the groove of
the wiper rubber
⦁When the wiper blade claw is not
placed in the groove of the wiper
rubber, pinch the wiper rubber and
slide it several times to put it into the
groove.
⦁ Lifting the center part of the wiper
rubber makes it easier to slide.
⬛Handling of wiper blade and wiper rubber
Incorrect handling can damage the wiper blade and wiper rubber. If you are
not comfortable with replacing the wipe r blade and wiper rubber yourself, con-
tact your Toyota dealer.
NOTICE
⚫If you raise the wiper blade by hold ing the blade only, the blade may be
deformed. Be sure to lift it by holding the wiper arm.
⚫When replacing the wiper, be careful not to damage the claws.
⚫After removing the wiper blade from th e wiper arm, place a cloth between the
window and the wiper arm to prevent the window from being damaged.
⚫Do not force the wiper rubber out or deform the wiper rubber metal plates.
KBRO621008
a
c
b
KBRO621009
RAIZE_OM_General_BZ358E.book 343 ページ ２０２２年５月１７日　火曜日　午後１時５９分

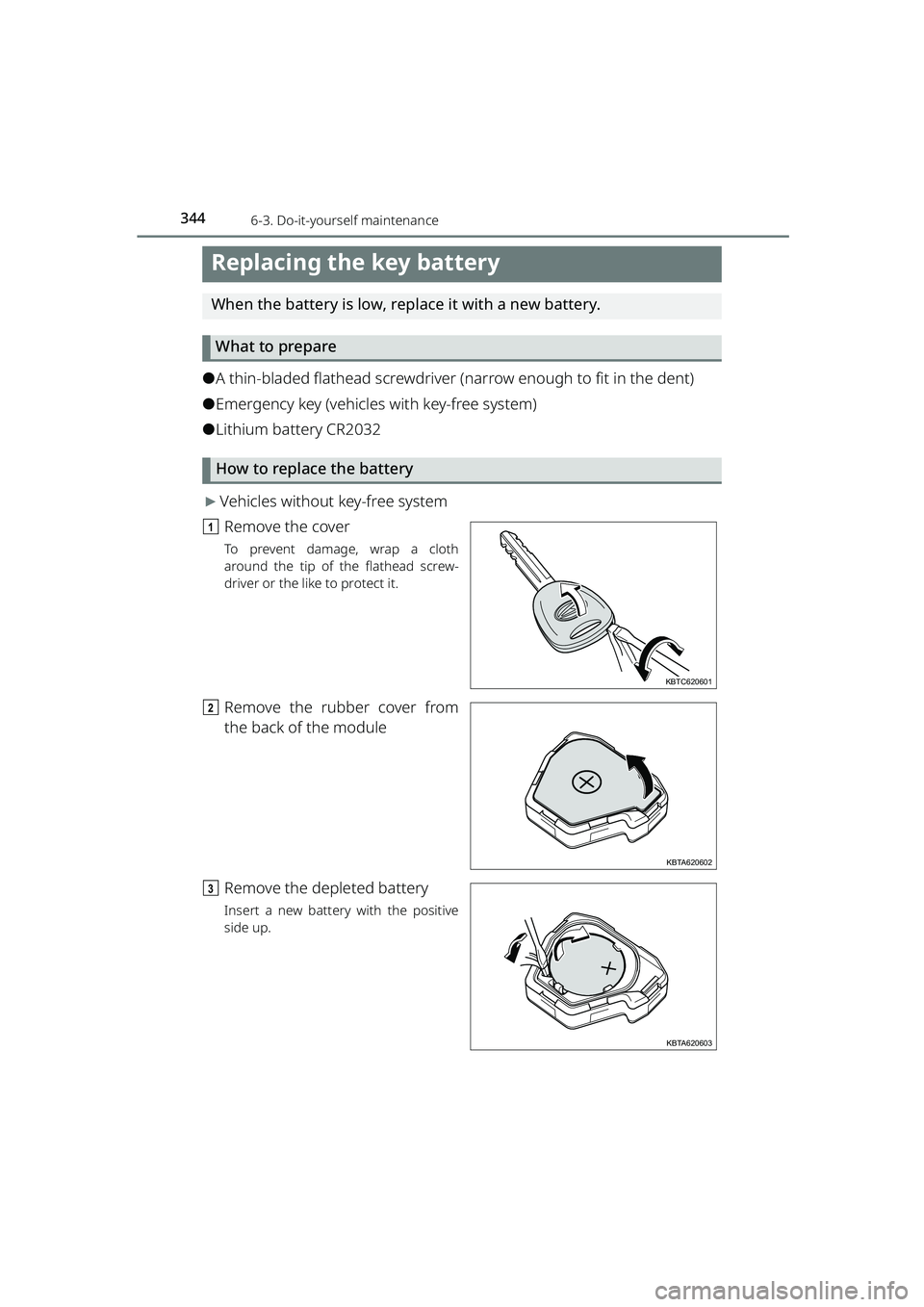

3446-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Replacing the key battery
When the battery is low, replace it with a new battery.What to prepare
⚫A thin-bladed flathead screwdriver (narrow enough to fit in the dent)
⚫Emergency key (vehicles with key-free system)
⚫Lithium battery CR2032
How to replace the battery
▶Vehicles without key-free system
a Remove the cover
To prevent damage, wrap a cloth
around the tip of the flathead screw-
driver or the like to protect it.
bRemove the rubber cover from
the back of the module
c Remove the depleted battery
Insert a new battery with the positive
side up.
KBTC620601
KBTA620602
KBTA620603
RAIZE_OM_General_BZ358E.book 344 ページ ２０２２年５月１７日　火曜日　午後１時５９分

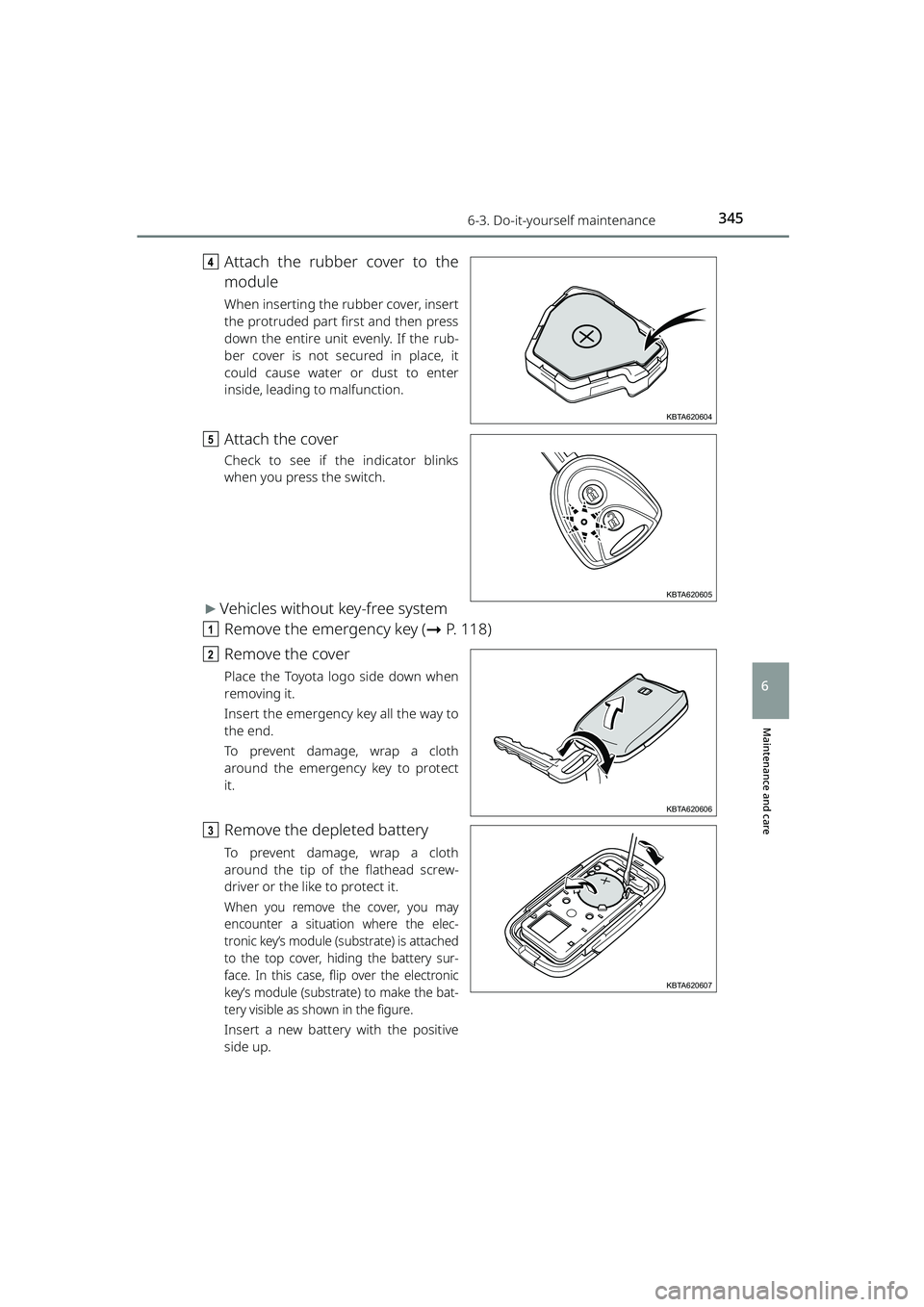

3456-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
dAttach the rubber cover to the
module
When inserting the rubber cover, insert
the protruded part first and then press
down the entire unit evenly. If the rub-
ber cover is not secured in place, it
could cause water or dust to enter
inside, leading to malfunction.
eAttach the cover
Check to see if the indicator blinks
when you press the switch.
▶Vehicles without key-free system
a Remove the emergency key ( ➞P. 118)
b Remove the cover
Place the Toyota logo side down when
removing it.
Insert the emergency key all the way to
the end.
To prevent damage, wrap a cloth
around the emergency key to protect
it.
cRemove the depleted battery
To prevent damage, wrap a cloth
around the tip of the flathead screw-
driver or the like to protect it.
When you remove the cover, you may
encounter a situation where the elec-
tronic key’s module (s ubstrate) is attached
to the top cover, hiding the battery sur-
face. In this case, flip over the electronic
key’s module (substrate) to make the bat-
tery visible as shown in the figure.
Insert a new battery with the positive
side up.
KBTA620604
KBTA620605
KBTA620606
KBTA620607
RAIZE_OM_General_BZ358E.book 345 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3466-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E✽
: If equipped
d Attach the cover
Check to see if the indicator blinks
when you press the switch

⬛Replacing the battery
Incorrect handling could damage the key. If you are not comfortable with
replacing the battery yourself, contact your Toyota dealer.
⬛When the components of the electronic key✽ get separated
See the figure below and assemble them.
When you assemble, keep the pr otruded part to face down.
⬛Use a CR2032 lithium battery
⚫Batteries can be purchased at your Toyo ta dealer, local electrical appliance
shops or camera stores.
⚫Replace only with the same or equivalent type recommended by the manufacturer.
⚫Dispose of used batteries according to local laws.
⬛When the battery of the electronic key✽ is low
You will experience the following:
⚫The key-free system or wireless remote control will not start
⚫The activation range becomes short
⚫The indicators do not flash
KBRO620604
KBRO620605
Protruded part
Maintenance.fm 346 ページ ２０２２年６月１７日　金曜日　午前９時６分

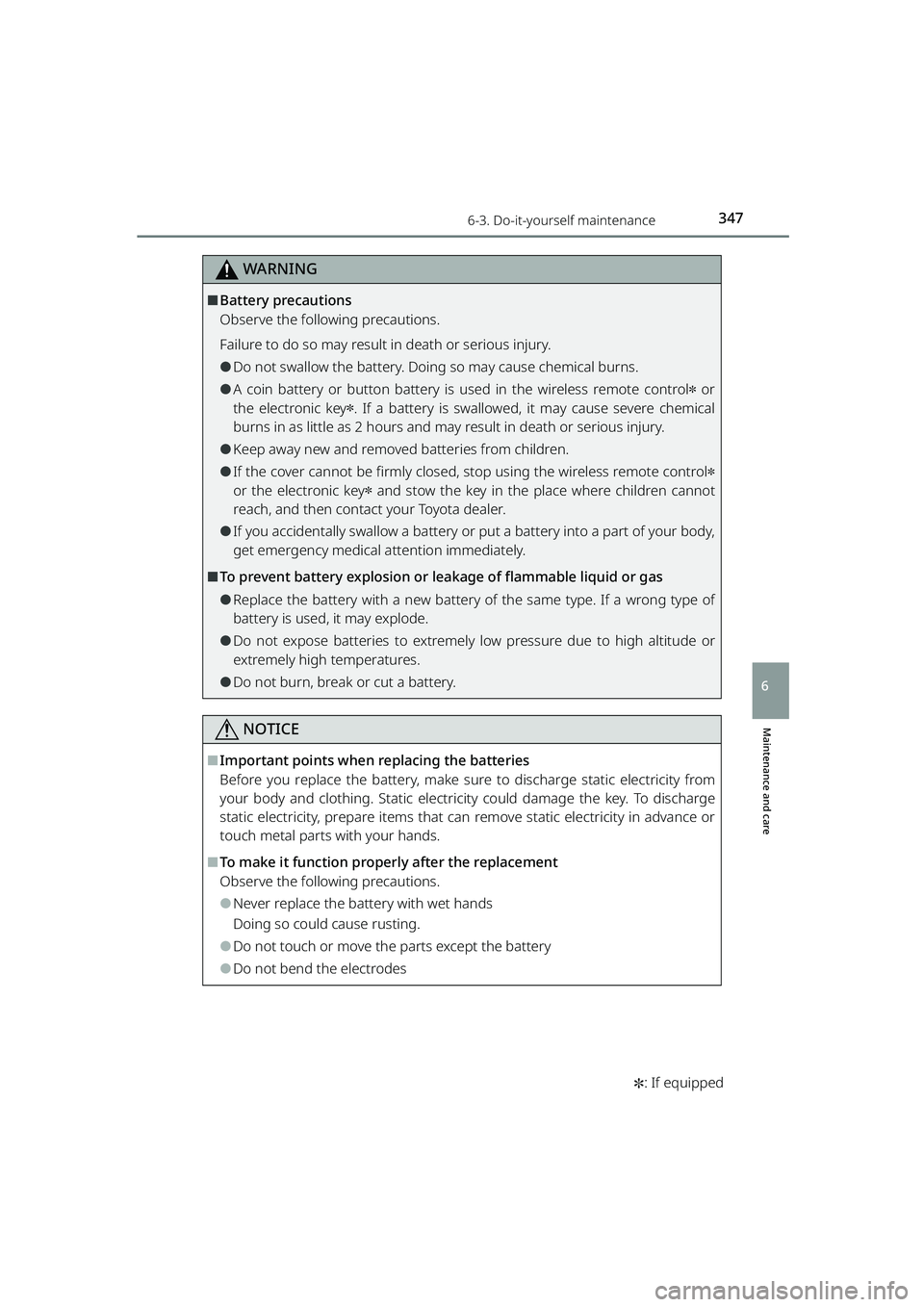

3476-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E✽
: If equipped
Maintenance and care
6
WARNING
⬛Battery precautions
Observe the following precautions.
Failure to do so may result in death or serious injury.
⚫Do not swallow the battery. Doing so may cause chemical burns.
⚫A coin battery or button battery is used in the wireless remote control✽ or
the electronic key
✽. If a battery is swallowed, it may cause severe chemical
burns in as little as 2 hours and may result in death or serious injury.
⚫Keep away new and removed batteries from children.
⚫If the cover cannot be firmly closed, st op using the wireless remote control✽
or the electronic key✽ and stow the key in the place where children cannot
reach, and then contact your Toyota dealer.
⚫If you accidentally swallow a battery or put a battery into a part of your body,
get emergency medical attention immediately.
⬛To prevent battery explosion or leakage of flammable liquid or gas
⚫Replace the battery with a new battery of the same type. If a wrong type of
battery is used, it may explode.
⚫Do not expose batteries to extremely low pressure due to high altitude or
extremely high temperatures.
⚫Do not burn, break or cut a battery.
NOTICE
⬛Important points when replacing the batteries
Before you replace the battery, make sure to discharge static electricity from
your body and clothing. Static electricity could damage the key. To discharge
static electricity, prepare items that can remove static electricity in advance or
touch metal parts with your hands.
⬛To make it function properly after the replacement
Observe the following precautions.
⚫Never replace the batte ry with wet hands
Doing so could cause rusting.
⚫Do not touch or move the parts except the battery
⚫Do not bend the electrodes
RAIZE_OM_General_BZ358E.book 347 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3486-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Checking and replacing fuses
If a light or the electrical system does not operate, a fuse may have
blown. Check the fuse.
a Turn the engine switch to “OFF”
b Open the fuse box
▶Engine compartment
While pressing down the claw, lift
the cover
▶Instrument panel
For right-hand drive vehicles,
remove the glove box in the leg-
room of the passenger's seat
a Push the left side inward and
disengage the upper claw
b Push the right side inward
and disengage the upper claw
c Disengage the lower claws
For left-hand drive vehicles, dis-
engage the claws at 8 locations
and remove the lower cover in
the legroom of the driver's seat
KBRO620702N
1
3
2
KBRO620703N
KBRO620704E
