Engine start TOYOTA RAIZE 2023 Owner's Guide

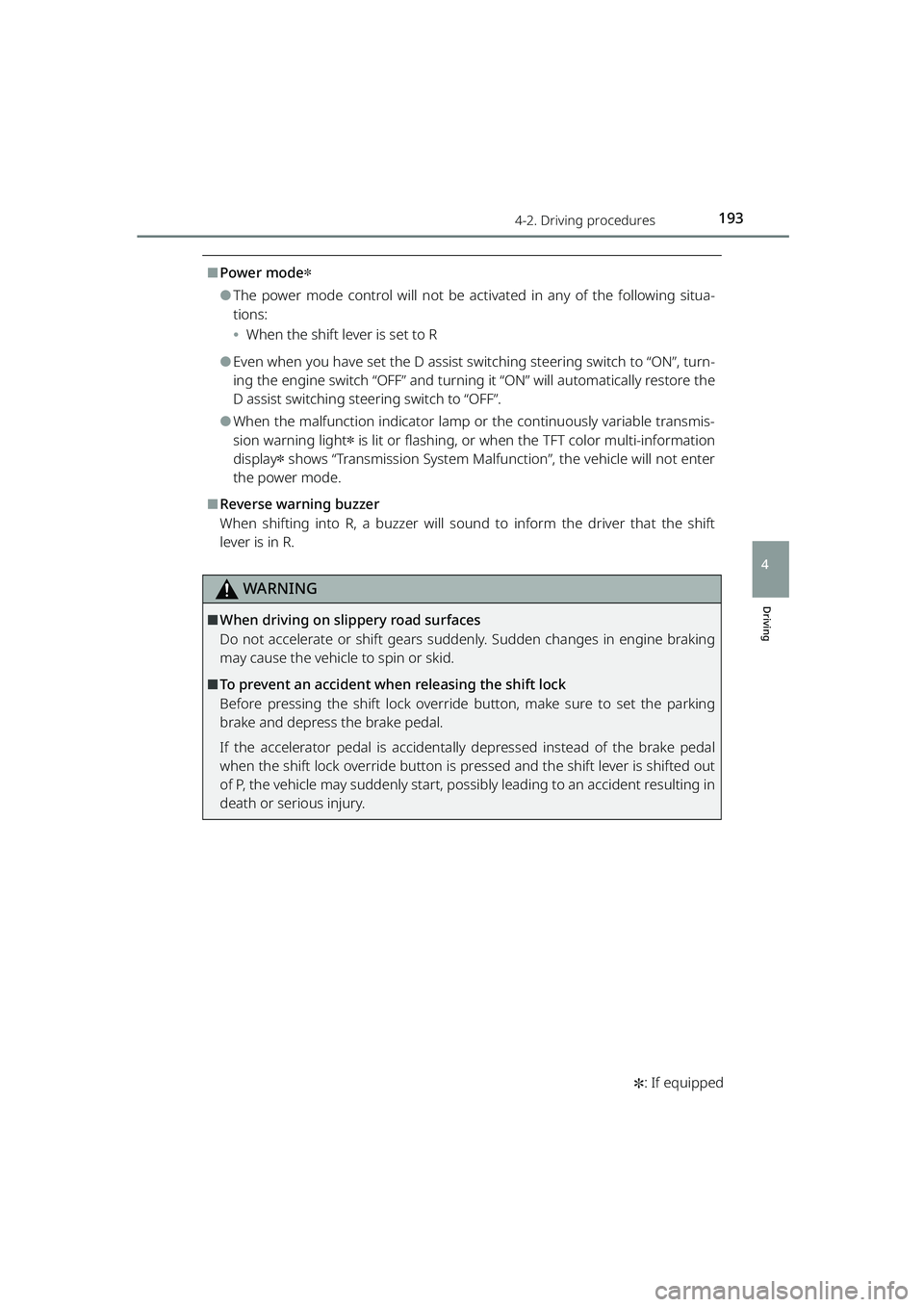

1934-2. Driving procedures
RAIZE_OM_General_BZ358E
✽: If equipped
Driving
4
⬛Power mode✽
⚫The power mode control will not be acti vated in any of the following situa-
tions:
⦁ When the shift lever is set to R
⚫Even when you have set the D assist switching steering switch to “ON”, turn-
ing the engine switch “OFF ” and turning it “ON” will automatically restore the
D assist switching steering switch to “OFF”.
⚫When the malfunction indicator lamp or the continuously variable transmis-
sion warning light
✽ is lit or flashing, or when the TFT color multi-information
display
✽ shows “Transmission System Malfun ction”, the vehicle will not enter
the power mode.
⬛Reverse warning buzzer
When shifting into R, a buzzer will so und to inform the driver that the shift
lever is in R.
WARNING
⬛When driving on slippery road surfaces
Do not accelerate or shift gears sudde nly. Sudden changes in engine braking
may cause the vehicle to spin or skid.
⬛To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking
brake and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal
when the shift lock override button is pr essed and the shift lever is shifted out
of P, the vehicle may suddenly start, po ssibly leading to an accident resulting in
death or serious injury.
RAIZE_OM_General_BZ358E.book 193 ページ ２０２２年５月１７日　火曜日　午後１時５９分

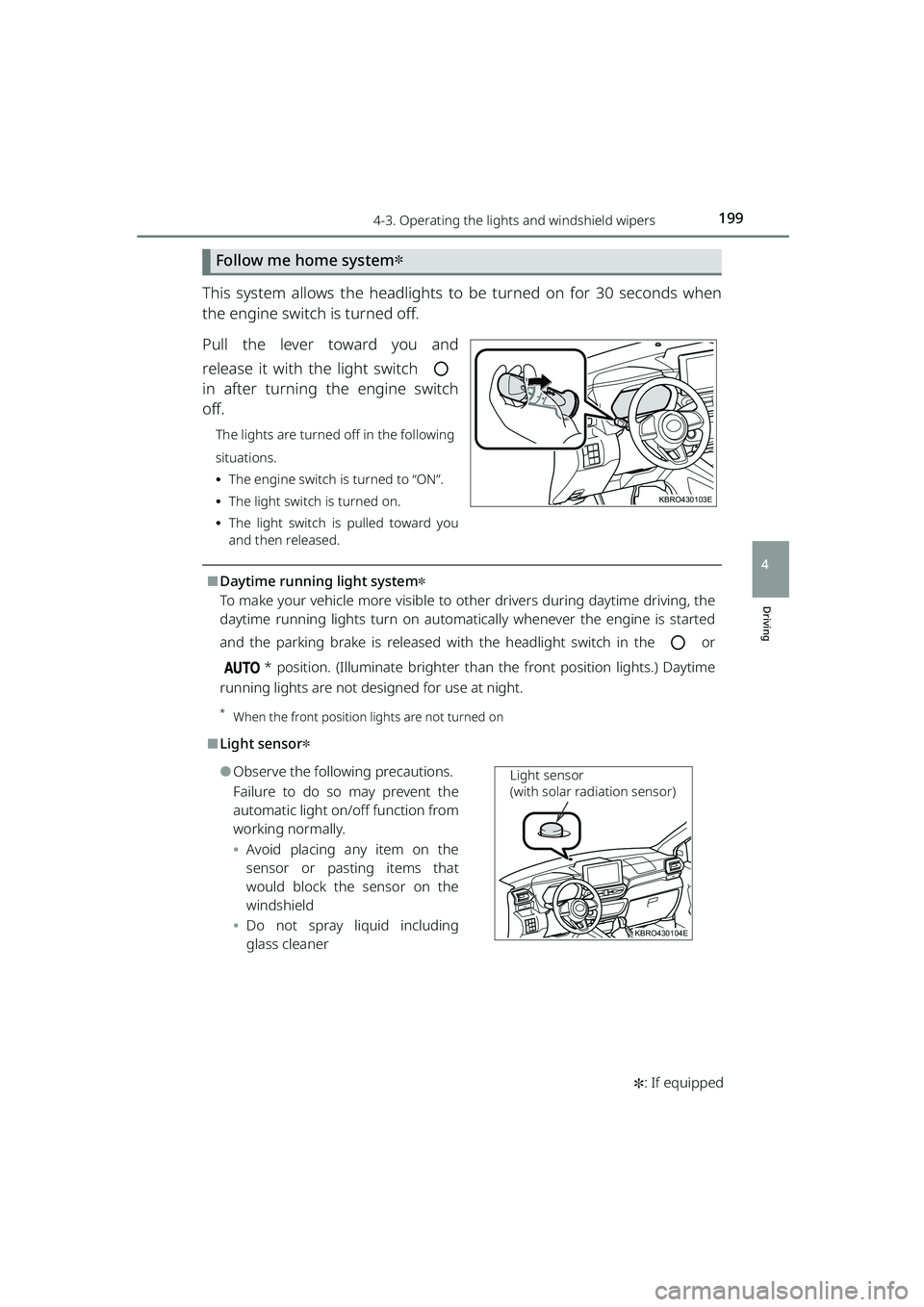

1994-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E✽
: If equipped
Driving
4
Follow me home system✽
This system allows the headlights to be turned on for 30 seconds when
the engine switch is turned off.
Pull the lever toward you and
release it with the light switch
in after turning the engine switch
off.
The lights are turned off in the following
situations.
⦁ The engine switch is turned to “ON”.
⦁ The light switch is turned on.
⦁ The light switch is pulled toward you
and then released.
⬛Daytime running light system✽
To make your vehicle more visible to ot her drivers during daytime driving, the
daytime running lights turn on automatically whenever the engine is started
and the parking brake is released wi th the headlight switch in the or
* position. (Illuminate brighter than the front position lights.) Daytime
running lights are not designed for use at night.
*When the front position lights are not turned on
⬛Light sensor✽
⚫Observe the following precautions.
Failure to do so may prevent the
automatic light on/off function from
working normally.
⦁ Avoid placing any item on the
sensor or pasting items that
would block the sensor on the
windshield
⦁ Do not spray liquid including
glass cleaner
KBRO430103E
KBRO430104E
Light sensor
(with solar radiation sensor)
RAIZE_OM_General_BZ358E.book 199 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2204-5. Using the driving support systems
RAIZE_OM_General_BZ358E
⬛Situations where the RCTA function may not work properly
⚫The RCTA function may not detect vehicles correctly in the following circumstances.
⦁The sensor positions or orientations are off due to a strong impact applied
to the sensors or the surrounding areas
⦁ The sensors or the rear bumper near the sensors are covered with mud,
snow, ice, or stickers
⦁ Driving on a wet road or driving in a puddle under bad weather conditions,
such as heavy rain, snow, or fog
⦁ When several vehicles are passing continuously behind your vehicle or
when a vehicle is approaching from th e opposite direction to the vehicle
detected first
⦁ When the vehicle is parked on a hill or an uneven road
⦁ When the vehicle has accessories such as a bicycle carrier installed in the
rear side
⦁ When the vehicle is moving backward on a steep hill with varying slopes
⦁ When the vehicle is parked diagonally
⦁ Right after turning on the RCTA function
⦁ Right after starting the engine wi th the RCTA function turned on
⦁ When being affected by radio wave interference from the radar sensors
installed on the vehicle parked next to your vehicle
⦁ When getting out from a sloped parking spot
⦁ When a large vehicle is parked next to your vehicle
⦁ When the vehicle is backing up at fast speed
⚫The RCTA function may have more unnecessary detections, especially in the
following circumstances.
⦁The sensor positions or orientations are off due to a strong impact applied
to the sensors or the surrounding areas
⦁ When another vehicle passes through the side of your vehicle
⦁ When the vehicle is traveling on a
road facing a parking lot
⦁ When metal objects (such as guardrails, walls, signs, parked vehicles) that
can easily reflect radio waves are located behind the vehicle
⦁ When the vehicle has accessories such as a bicycle carrier installed in the
rear side
⦁ When buildings or roadside walls are present in the direction to which the
vehicle is backing up
KBRO460508
RAIZE_OM_General_BZ358E.book 220 ページ ２０２２年５月１７日　火曜日　午後１時５９分

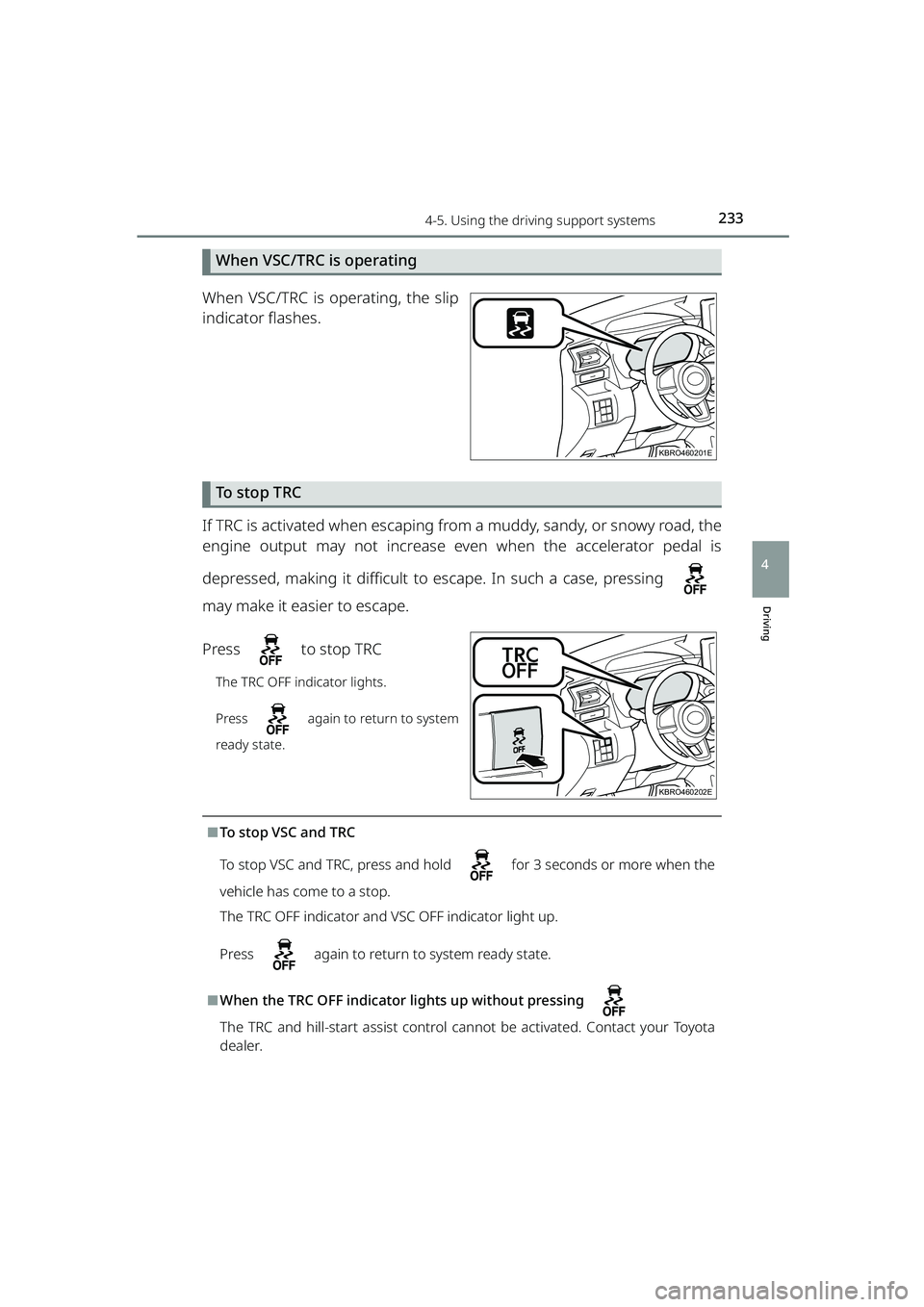

2334-5. Using the driving support systems
RAIZE_OM_General_BZ358E
Driving
4
When VSC/TRC is operating
When VSC/TRC is operating, the slip
indicator flashes.
To s t o p T R C
If TRC is activated when escaping from a muddy, sandy, or snowy road, the
engine output may not increase even when the accelerator pedal is
depressed, making it difficult to escape. In such a case, pressing
may make it easier to escape.
Press to stop TRC
The TRC OFF indicator lights.
Press again to return to system
ready state.
⬛To stop VSC and TRC
To stop VSC and TRC, press and hold for 3 seconds or more when the
vehicle has come to a stop.
The TRC OFF indicator and VS C OFF indicator light up.
Press again to return to system ready state.
⬛When the TRC OFF indicator lights up without pressing
The TRC and hill-start assist control ca nnot be activated. Contact your Toyota
dealer.
KBRO460201E
KBRO460202E
RAIZE_OM_General_BZ358E.book 233 ページ ２０２２年５月１７日　火曜日　午後１時５９分

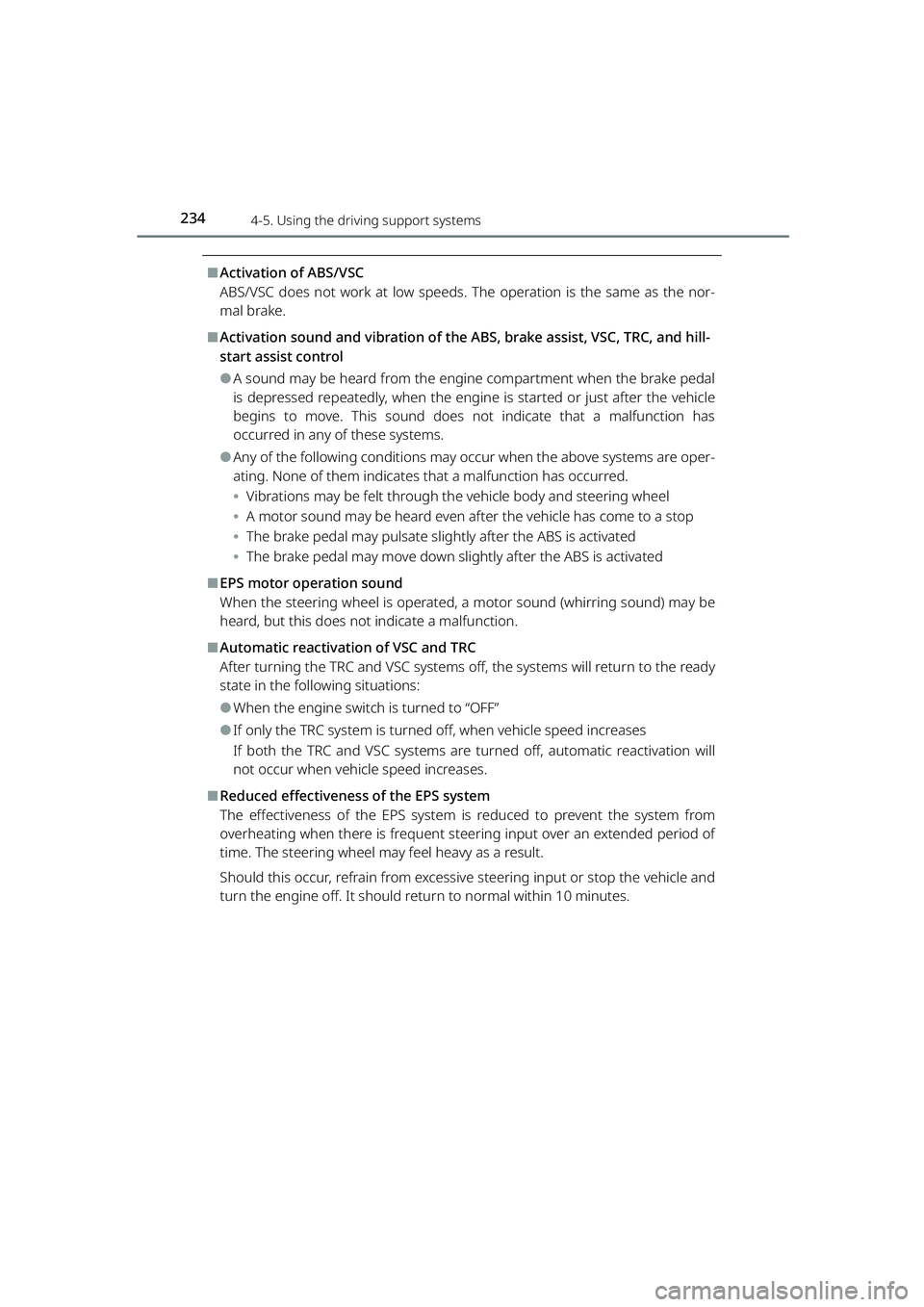

2344-5. Using the driving support systems
RAIZE_OM_General_BZ358E
⬛Activation of ABS/VSC
ABS/VSC does not work at low speeds. The operation is the same as the nor-
mal brake.
⬛Activation sound and vibration of the ABS, brake assist, VSC, TRC, and hill-
start assist control
⚫A sound may be heard from the engine compartment when the brake pedal
is depressed repeatedly, when the engine is started or just after the vehicle
begins to move. This sound does not indicate that a malfunction has
occurred in any of these systems.
⚫Any of the following conditions may occur when the above systems are oper-
ating. None of them indicates that a malfunction has occurred.
⦁ Vibrations may be felt through th e vehicle body and steering wheel
⦁ A motor sound may be heard even after the vehicle has come to a stop
⦁ The brake pedal may pulsate slightly after the ABS is activated
⦁ The brake pedal may move down slightly after the ABS is activated
⬛EPS motor operation sound
When the steering wheel is operated, a motor sound (whirring sound) may be
heard, but this does not indicate a malfunction.
⬛Automatic reactivation of VSC and TRC
After turning the TRC and VSC systems off, the systems will return to the ready
state in the following situations:
⚫When the engine switch is turned to “OFF”
⚫If only the TRC system is turned off, when vehicle speed increases
If both the TRC and VSC systems are tu rned off, automatic reactivation will
not occur when vehicle speed increases.
⬛Reduced effectiveness of the EPS system
The effectiveness of the EPS system is reduced to prevent the system from
overheating when there is frequent steering input over an extended period of
time. The steering wheel ma y feel heavy as a result.
Should this occur, refrain from excessive steering input or stop the vehicle and
turn the engine off. It should re turn to normal within 10 minutes.
RAIZE_OM_General_BZ358E.book 234 ページ ２０２２年５月１７日　火曜日　午後１時５９分

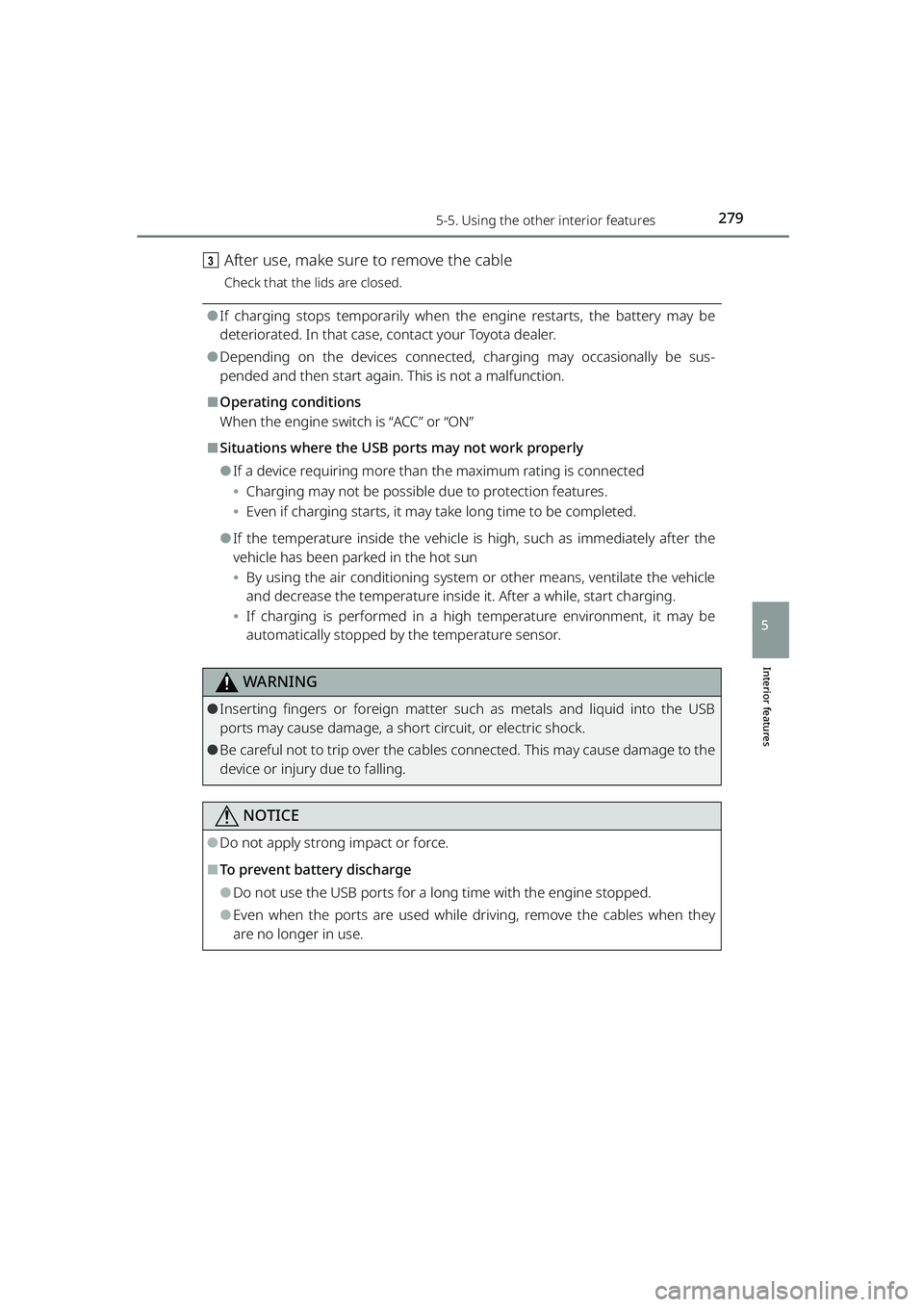

2795-5. Using the other interior features
RAIZE_OM_General_BZ358E
Interior features
5
cAfter use, make sure to remove the cable
Check that the lids are closed.
⚫If charging stops temporarily when th e engine restarts, the battery may be
deteriorated. In that case, contact your Toyota dealer.
⚫Depending on the devices connected, charging may occasionally be sus-
pended and then start again. This is not a malfunction.
⬛Operating conditions
When the engine switch is “ACC” or “ON”
⬛Situations where the USB ports may not work properly
⚫If a device requiring more than the maximum rating is connected
⦁ Charging may not be possible due to protection features.
⦁ Even if charging starts, it may ta ke long time to be completed.
⚫If the temperature inside the vehicle is high, such as immediately after the
vehicle has been parked in the hot sun
⦁ By using the air conditioning system or other means, ventilate the vehicle
and decrease the temperature inside it. After a while, start charging.
⦁ If charging is performed in a high temperature environment, it may be
automatically stopped by the temperature sensor.
WARNING
⚫Inserting fingers or foreign matter such as metals and liquid into the USB
ports may cause damage, a short circuit, or electric shock.
⚫Be careful not to trip over the cables co nnected. This may cause damage to the
device or injury due to falling.
NOTICE
⚫Do not apply strong impact or force.
⬛To prevent battery discharge
⚫Do not use the USB ports for a long time with the engine stopped.
⚫Even when the ports are used while dr iving, remove the cables when they
are no longer in use.
RAIZE_OM_General_BZ358E.book 279 ページ ２０２２年５月１７日　火曜日　午後１時５９分

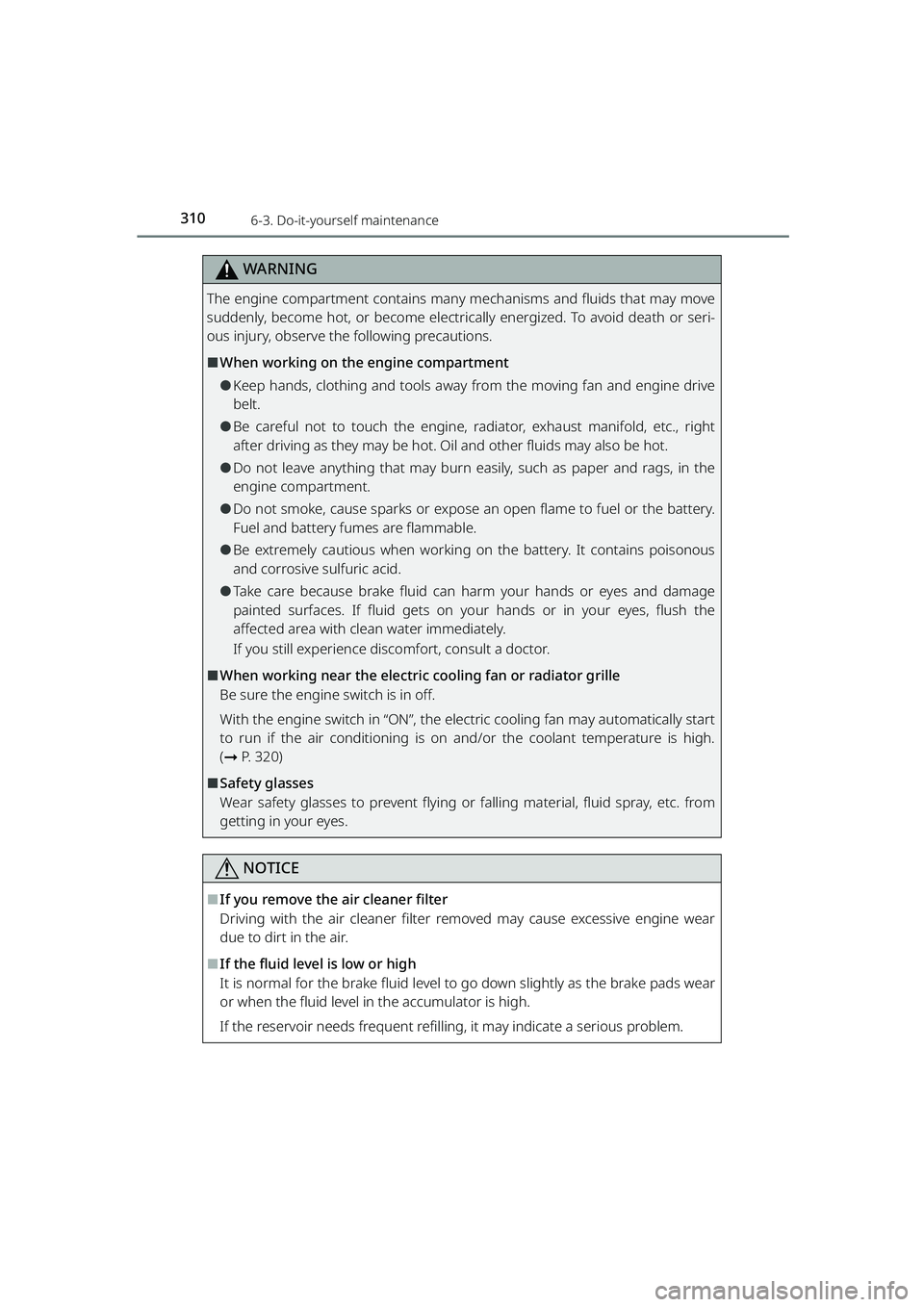

3106-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
WARNING
The engine compartment contains many mechanisms and fluids that may move
suddenly, become hot, or become electrically energized. To avoid death or seri-
ous injury, observe the following precautions.
⬛When working on the engine compartment
⚫Keep hands, clothing and tools away from the moving fan and engine drive
belt.
⚫Be careful not to touch the engine, radiator, exhaust manifold, etc., right
after driving as they may be hot. O il and other fluids may also be hot.
⚫Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
⚫Do not smoke, cause sparks or expose an open flame to fuel or the battery.
Fuel and battery fumes are flammable.
⚫Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
⚫Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with cl ean water immediately.
If you still experience discomfort, consult a doctor.
⬛When working near the electric cooling fan or radiator grille
Be sure the engine switch is in off.
With the engine switch in “ON”, the elect ric cooling fan may automatically start
to run if the air conditioning is on and/or the coolant temperature is high.
( ➞ P. 320)
⬛Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting in your eyes.
NOTICE
⬛If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
⬛If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear
or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.
RAIZE_OM_General_BZ358E.book 310 ページ ２０２２年５月１７日　火曜日　午後１時５９分

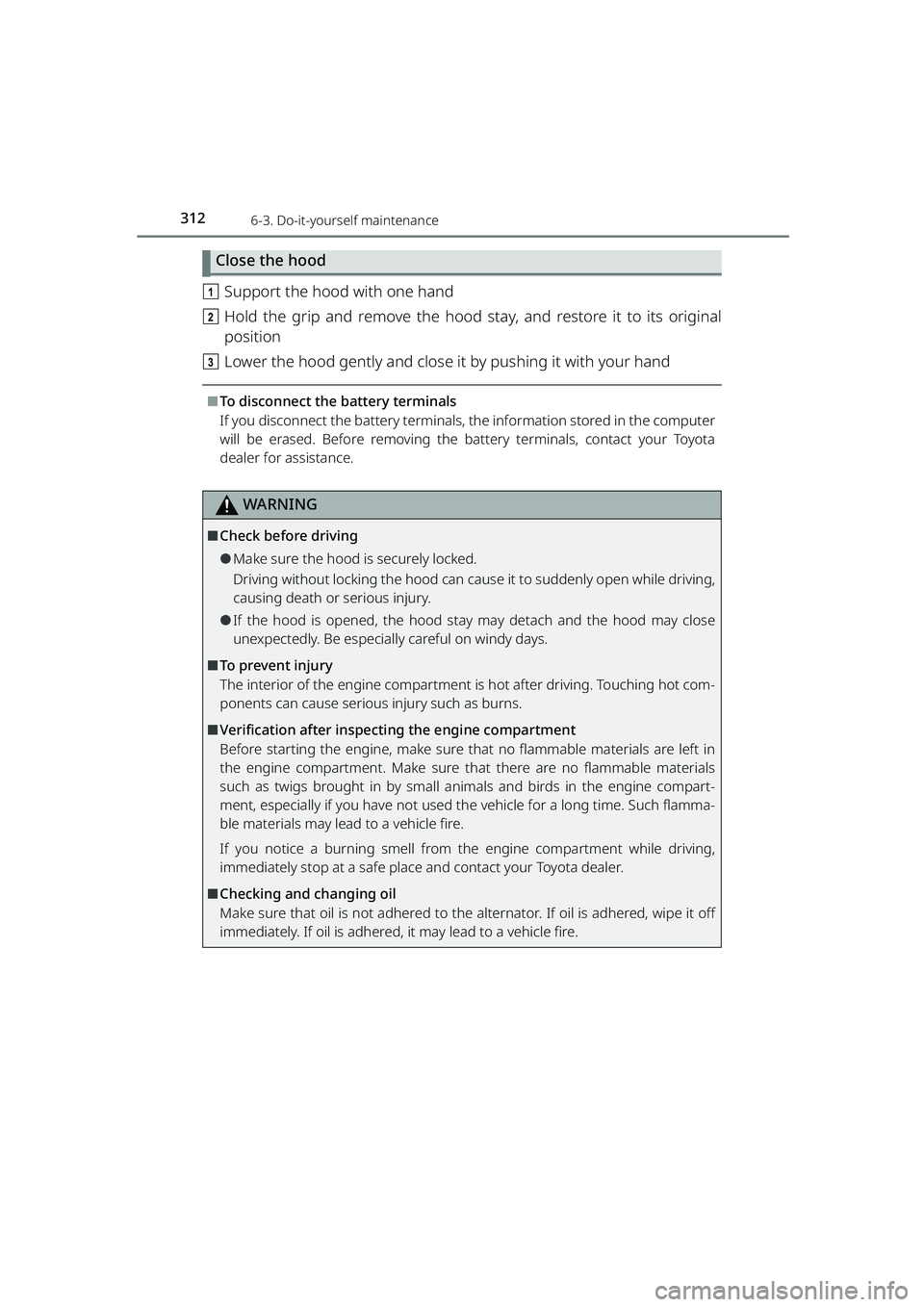

3126-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Close the hood
aSupport the hood with one hand
b Hold the grip and remove the hood stay, and restore it to its original
position
c Lower the hood gently and close it by pushing it with your hand
⬛To disconnect the battery terminals
If you disconnect the battery terminals, the information stored in the computer
will be erased. Before removing the battery terminals, contact your Toyota
dealer for assistance.
WARNING
⬛Check before driving
⚫Make sure the hood is securely locked.
Driving without locking the hood can caus e it to suddenly open while driving,
causing death or serious injury.
⚫If the hood is opened, the hood st ay may detach and the hood may close
unexpectedly. Be especially careful on windy days.
⬛To prevent injury
The interior of the engine compartment is hot after driving. Touching hot com-
ponents can cause serious injury such as burns.
⬛Verification after inspecting the engine compartment
Before starting the engine, make sure that no flammable materials are left in
the engine compartment. Make sure th at there are no flammable materials
such as twigs brought in by small animals and birds in the engine compart-
ment, especially if you have not used th e vehicle for a long time. Such flamma-
ble materials may lead to a vehicle fire.
If you notice a burning smell from th e engine compartment while driving,
immediately stop at a safe place and contact your Toyota dealer.
⬛Checking and changing oil
Make sure that oil is not adhered to the alternator. If oil is ad hered, wipe it off
immediately. If oil is adhered, it may lead to a vehicle fire.
RAIZE_OM_General_BZ358E.book 312 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3316-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
✽: If equipped
Maintenance and care
6
⬛Situations in which the tire pressure warning system may not operate properly✽
⚫In the following cases, the tire pressure warning system may not operate
properly.
⦁ If non-genuine Toyota wheels are used.
⦁A tire has been replaced with a tire that is not an OE (Original Equipment) tire.
⦁A tire has been replaced with a tire that is not of the specified size.
⦁ Tire chains, etc., are equipped.
⦁ An auxiliary-supported run-flat tire is equipped.
⦁ If a window tint that affects the radio wave signals is installed.
⦁ If there is a lot of snow or ice on th e vehicle, particularly around the wheels
or wheel housings.
⦁ If the tire inflation pressure is extr emely higher than the specified level.
⦁ If the spare tire is in a location subj ect to poor radio wave signal reception.
⦁ If a large metallic object which can in terfere with signal reception is put
near the spare tire.
⦁ If a wheel, not equipped with a tire pressure warning valve and transmit-
ter, is used.
⦁ If the ID code on the tire pressure warning valves and transmitters is not
registered in the tire pressure warning computer.
⚫Performance may be affected in the following situations.
⦁Near a TV tower, electric power plant, gas station, radio station, large display,
airport or other facility that generates strong radio waves or electrical noise
⦁ When carrying a portable radio, cellul ar phone, cordless phone or other
wireless communication device
⚫When the vehicle is parked, the time ta ken for the warning to start or go off
could be extended.
⚫When tire inflation pressure declin es rapidly for example when a tire has
burst, the warning may not function.
⬛The initialization operation (vehicles with the tire pressure warning system)
⚫Make sure to carry out init ialization after adjusting th e tire inflation pressure.
Also, make sure the tires are cold befo re carrying out initialization or tire
inflation pressure adjustment.
⚫If you have accidentally turned the engi ne switch to “OFF” during initializa-
tion, it is not necessary to press the reset switch again as initialization will
restart automatically when the engine switch has been turned to “ON” for
the next time.
⚫If you accidentally press the reset switch when initialization is not necessary,
adjust the tire inflation pressure to the specified level when the tires are
cold, and conduct initialization again.
RAIZE_OM_General_BZ358E.book 331 ページ ２０２２年５月１７日　火曜日　午後１時５９分

365
7
RAIZE_OM_General_BZ358E
When trouble arises
7-1. Essential information
Emergency flashers .................. 366
If your vehicle has to be stopped in an emergency ......................... 367
Fire extinguisher........................ 369
If the vehicle is submerged or water on the road is rising ... 371
7-2. Steps to take in an emergency
If your vehicle needs to be towed ........................................ 372
If you think something is wrong ........................................ 377
Fuel pump shut off system ..... 378
If a warning light turns on....... 379
When warning messages are displayed .................................. 387
If you have a flat tire ................. 396
If the engine does not start .... 405
If the electronic key does not work properly (vehicles with key-free
system) ...................................... 406
If the vehicle battery is discharged ............................... 408
If your vehicle overheats ......... 412
If the vehicle has become stuck .......................................... 415
RAIZE_OM_General_BZ358E.book 365 ページ ２０２２年５月１７日　火曜日　午後１時５９分
