Engine start TOYOTA RAIZE 2023 Workshop Manual

4067-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E

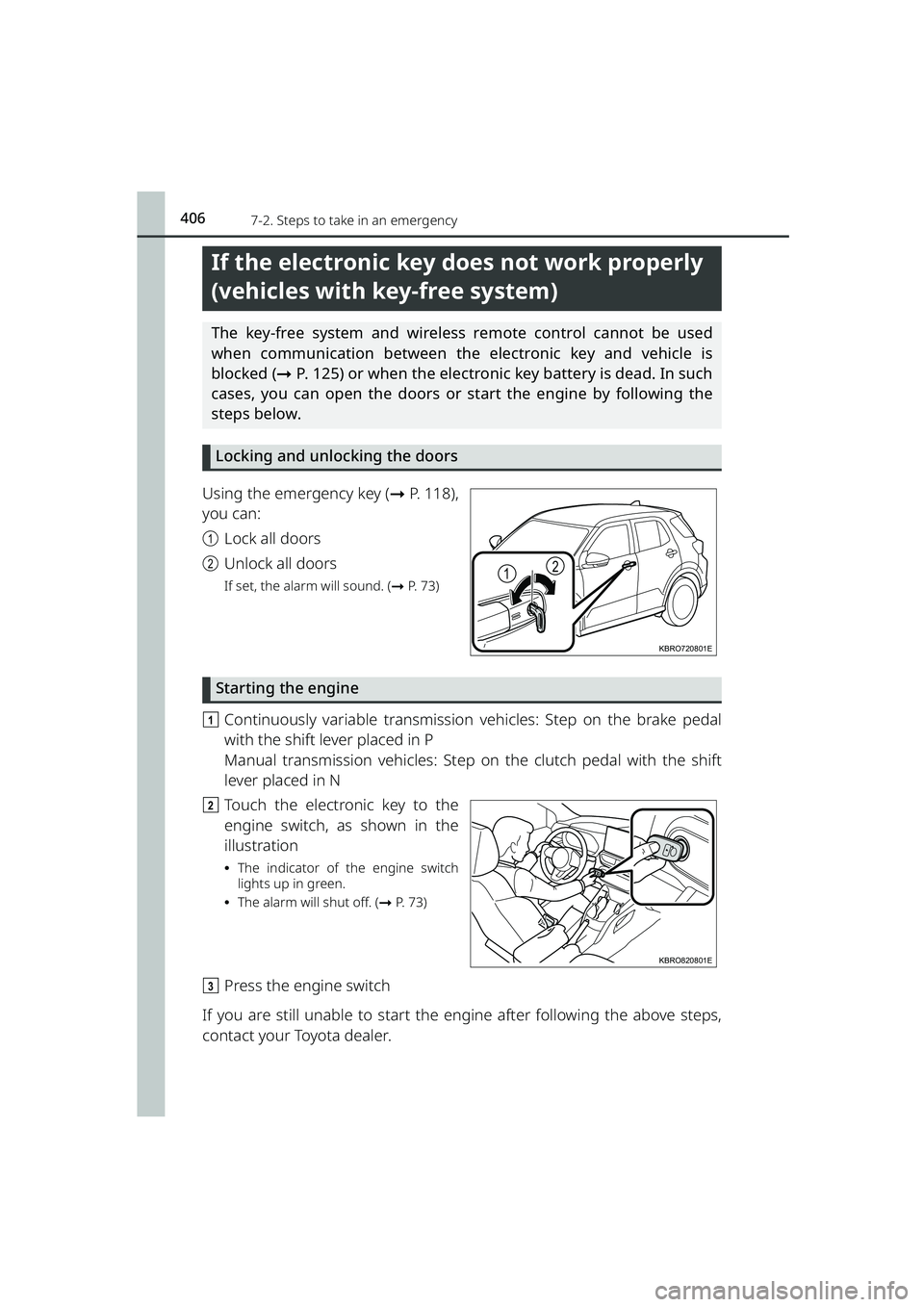

If the electronic key does not work properly
(vehicles with key-free system)
The key-free system and wireless remote control cannot be used
when communication between the electronic key and vehicle is
blocked (➞P. 125) or when the electronic key battery is dead. In such
cases, you can open the doors or start the engine by following the
steps below.
Locking and unloc king the doors
Using the emergency key ( ➞P. 118),
you can:
a Lock all doors
b Unlock all doors
If set, the alarm will sound. ( ➞P. 73)
Starting the engine
a Continuously variable transmission vehicles: Step on the brake pedal
with the shift lever placed in P
Manual transmission vehicles: Step on the clutch pedal with the shift
lever placed in N
b Touch the electronic key to the
engine switch, as shown in the
illustration
⦁The indicator of the engine switch
lights up in green.
⦁ The alarm will shut off. (➞ P. 73)
cPress the engine switch
If you are still unable to start the engine after following the above steps,
contact your Toyota dealer.
12
KBRO720801E
KBRO820801E
RAIZE_OM_General_BZ358E.book 406 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4077-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7

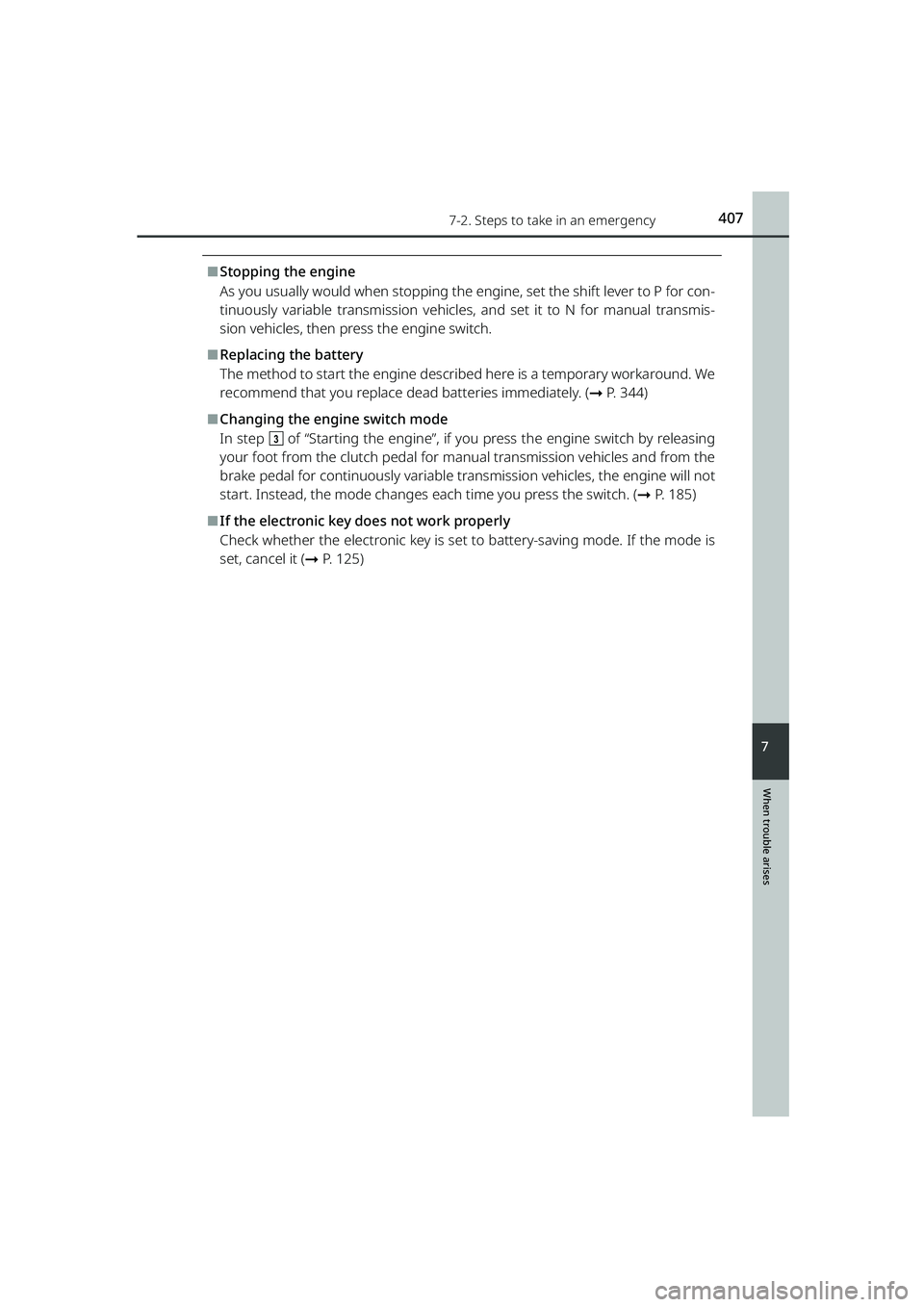

⬛Stopping the engine
As you usually would when stopping the engine, set the shift lever to P for con-
tinuously variable transmission vehicles , and set it to N for manual transmis-
sion vehicles, then press the engine switch.
⬛Replacing the battery
The method to start the engine descri bed here is a temporary workaround. We
recommend that you replace dead batteries immediately. ( ➞P. 344)
⬛Changing the engine switch mode
In step c of “Starting the engine ”, if you press the engine switch by releasing
your foot from the clutch pedal for manual transmission vehicles and from the
brake pedal for continuously variable tr ansmission vehicles, the engine will not
start. Instead, the mode changes each time you press the switch. (➞P. 185)
⬛If the electronic key does not work properly
Check whether the electronic key is set to battery-saving mode. If the mode is
set, cancel it ( ➞P. 125)
RAIZE_OM_General_BZ358E.book 407 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4087-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E

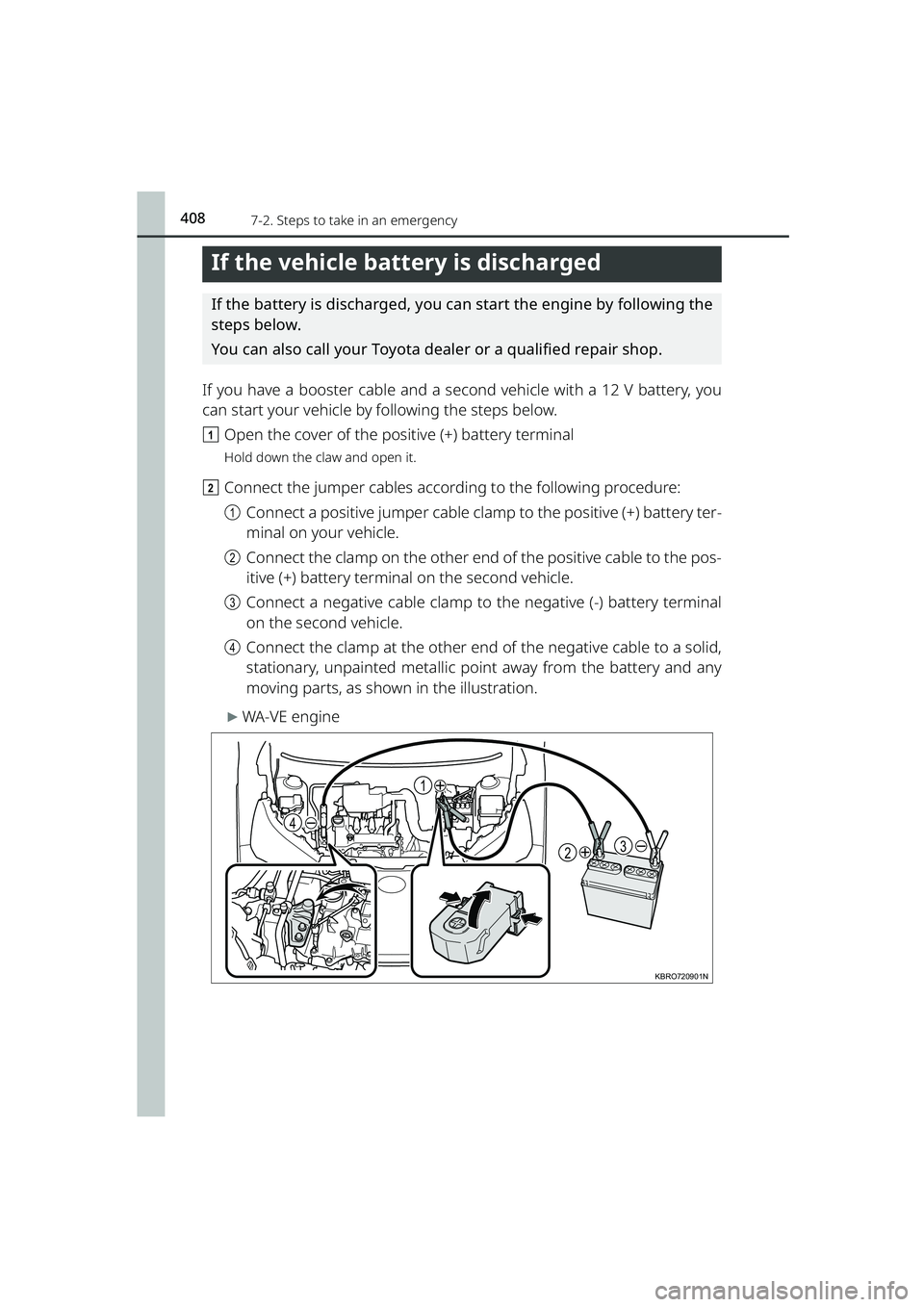

If the vehicle battery is discharged
If the battery is discharged, you can start the engine by following the
steps below.
You can also call your Toyota deal er or a qualified repair shop.
If you have a booster cable and a second vehicle with a 12 V battery, you
can start your vehicle by following the steps below.
a Open the cover of the positive (+) battery terminal
Hold down the claw and open it.
bConnect the jumper cables accord ing to the following procedure:
a Connect a positive jumper cable clamp to the positive (+) battery ter-
minal on your vehicle.
b Connect the clamp on the other end of the positive cable to the pos-
itive (+) battery terminal on the second vehicle.
c Connect a negative cable clamp to the negative (-) battery terminal
on the second vehicle.
d Connect the clamp at the other end of the negative cable to a solid,
stationary, unpainted metallic point away from the battery and any
moving parts, as show n in the illustration.
▶WA-VE engine
4
1
32
KBRO720901N
RAIZE_OM_General_BZ358E.book 408 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4097-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7

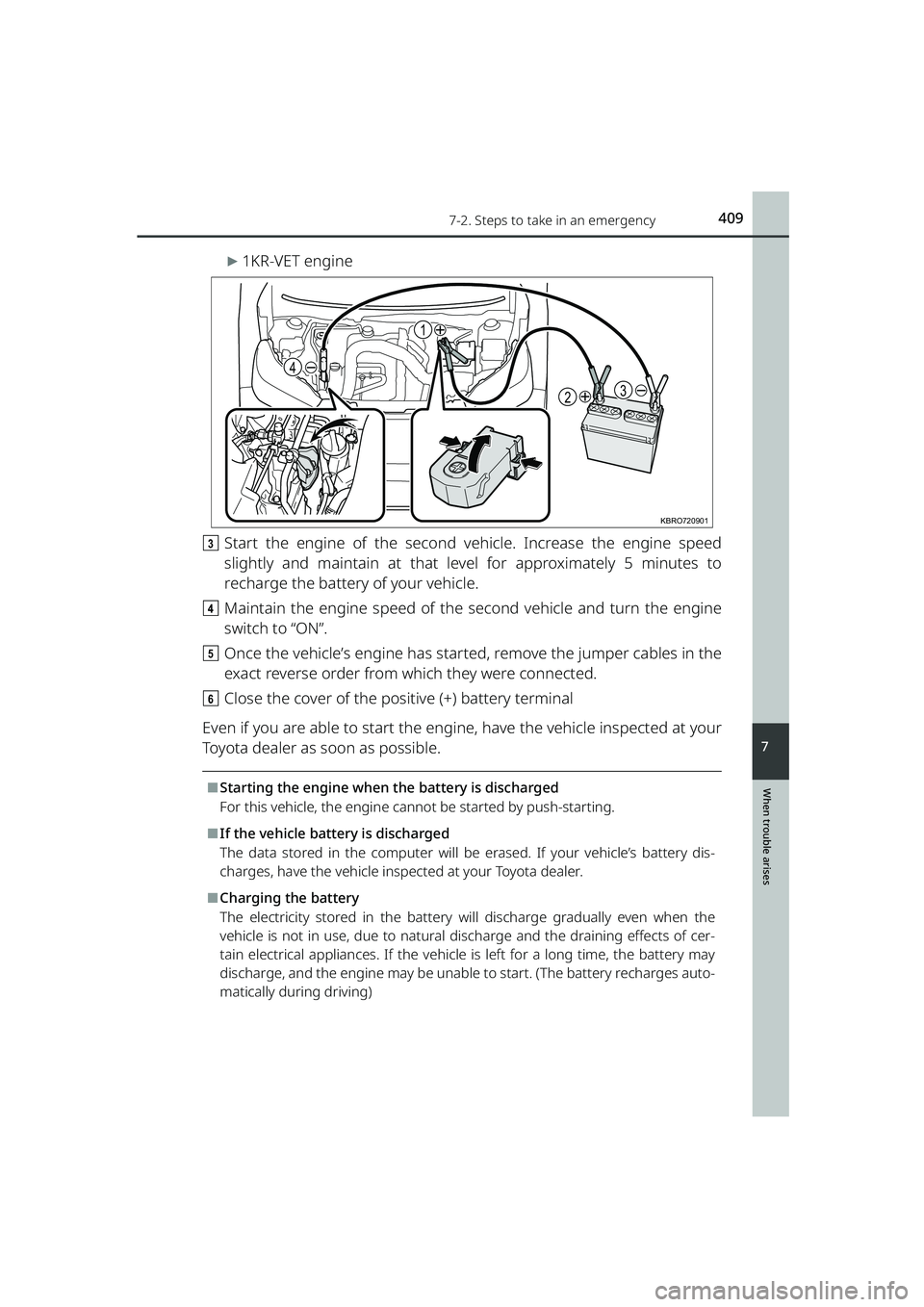

▶1KR-VET engine
c Start the engine of the second ve hicle. Increase the engine speed
slightly and maintain at that level for approximately 5 minutes to
recharge the battery of your vehicle.
d Maintain the engine speed of the second vehicle and turn the engine
switch to “ON”.
e Once the vehicle’s engine has started, remove the jumper cables in the
exact reverse order from which they were connected.
f Close the cover of the positive (+) battery terminal
Even if you are able to start the engine, have the vehicle inspected at your
Toyota dealer as soon as possible.
⬛Starting the engine when the battery is discharged
For this vehicle, the engine c annot be started by push-starting.
⬛If the vehicle battery is discharged
The data stored in the comp uter will be erased. If your vehicle’s battery dis-
charges, have the vehicle insp ected at your Toyota dealer.
⬛Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges auto-
matically during driving)
4
1
32
KBRO720901
RAIZE_OM_General_BZ358E.book 409 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4107-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E

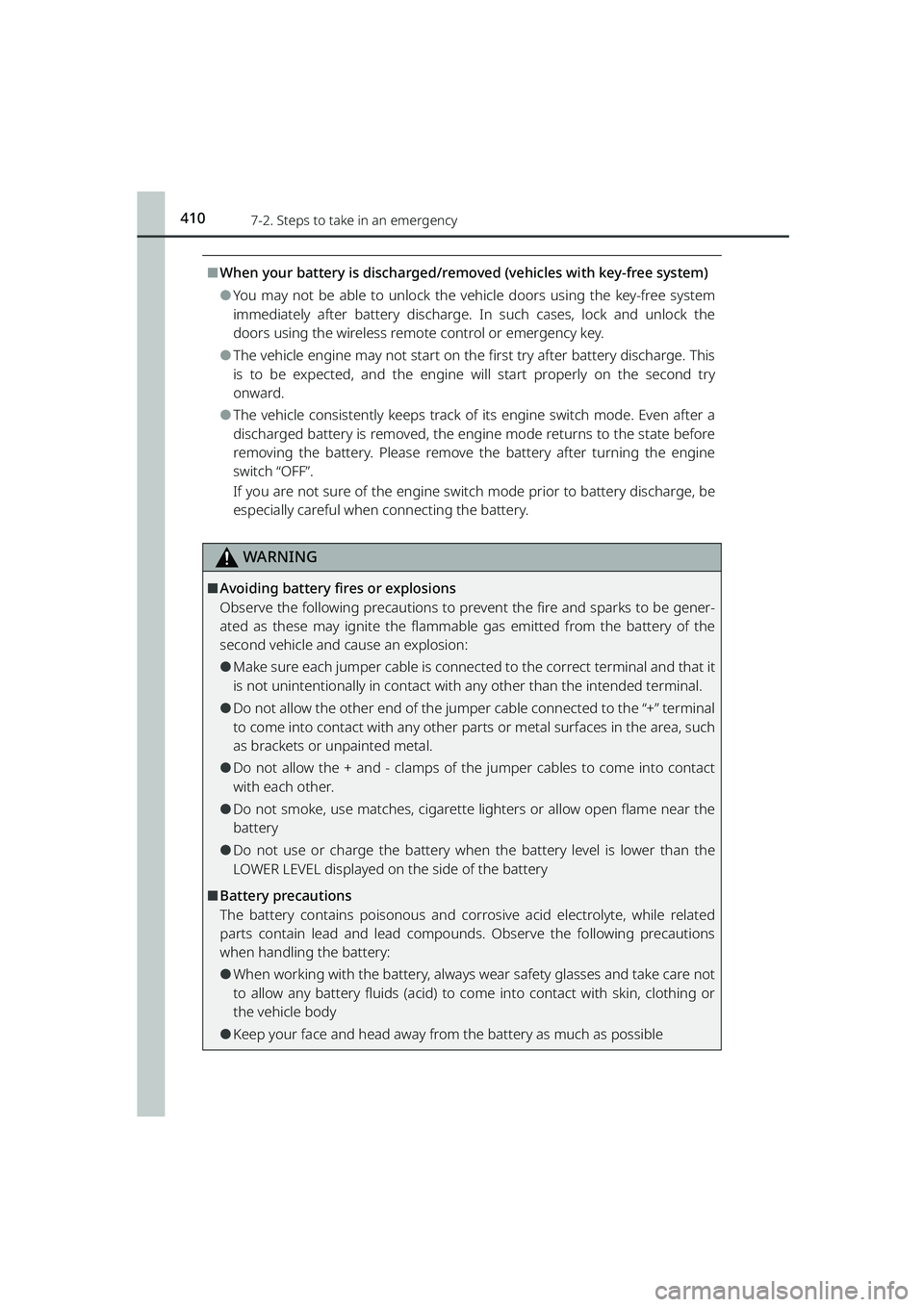

⬛When your battery is discharged/removed (vehicles with key-free system)
⚫You may not be able to unlock the vehicle doors using the key-free system
immediately after battery discharge. In such cases, lock and unlock the
doors using the wireless remote control or emergency key.
⚫The vehicle engine may not start on the first try after battery discharge. This
is to be expected, and the engine will start properly on the second try
onward.
⚫The vehicle consistently keeps track of its engine switch mode. Even after a
discharged battery is removed, the en gine mode returns to the state before
removing the battery. Please remove the battery after turning the engine
switch “OFF”.
If you are not sure of the engine swit ch mode prior to battery discharge, be
especially careful when connecting the battery.
WARNING
⬛Avoiding battery fires or explosions
Observe the following precautions to prev ent the fire and sparks to be gener-
ated as these may ignite the flammab le gas emitted from the battery of the
second vehicle and cause an explosion:
⚫Make sure each jumper cable is connec ted to the correct terminal and that it
is not unintentionally in contact with any other than the intended terminal.
⚫Do not allow the other end of the jump er cable connected to the “+” terminal
to come into contact with any other pa rts or metal surfaces in the area, such
as brackets or unpainted metal.
⚫Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
⚫Do not smoke, use matches, cigarette li ghters or allow open flame near the
battery
⚫Do not use or charge the battery when the battery level is lower than the
LOWER LEVEL displayed on the side of the battery
⬛Battery precautions
The battery contains poisonous and corr osive acid electrolyte, while related
parts contain lead and lead compounds. Observe the following precautions
when handling the battery:
⚫When working with the battery, always wear safety glasses and take care not
to allow any battery fluids (acid) to co me into contact with skin, clothing or
the vehicle body
⚫Keep your face and head away from the battery as much as possible
RAIZE_OM_General_BZ358E.book 410 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4117-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
WARNING
When trouble arises
7

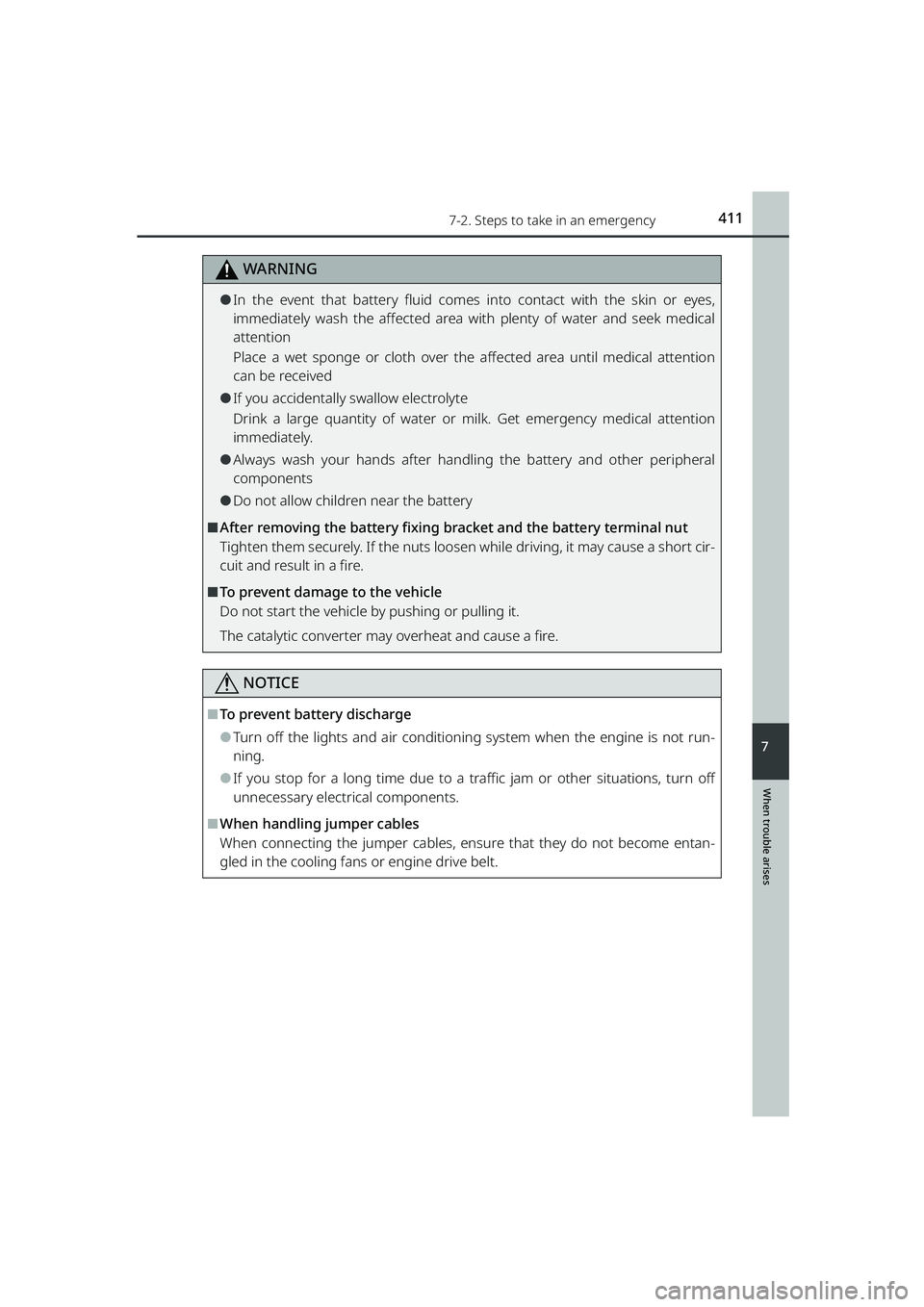

⚫In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with plenty of water and seek medical
attention
Place a wet sponge or cloth over the affected area until medical attention
can be received
⚫If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.
⚫Always wash your hands after handling the battery and other peripheral
components
⚫Do not allow children near the battery
⬛After removing the battery fixing bracket and the battery terminal nut
Tighten them securely. If the nuts loosen while driving, it may cause a short cir-
cuit and result in a fire.
⬛To prevent damage to the vehicle
Do not start the vehicle by pushing or pulling it.
The catalytic converter may overheat and cause a fire.
NOTICE
⬛To prevent battery discharge
⚫Turn off the lights and air conditioning system when the engine is not run-
ning.
⚫If you stop for a long time due to a traffic jam or other situations, turn off
unnecessary electrical components.
⬛When handling jumper cables
When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fans or engine drive belt.
RAIZE_OM_General_BZ358E.book 411 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4137-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7
eAdd coolant if necessary
Water can be used in an emergency if
coolant is unavailable.
fStart the engine and turn the air co nditioning system on to check that
the radiator cooling fan operates and to check again for coolant leaks
from the radiator core or hoses
The fan operates when the air conditioning system is turned on immediately after a
cold start. Confirm that the fan is operat ing by checking the fan sound and air flow.
If it is difficult to check them, turn the air conditioning system ON and OFF repeat-
edly.
(The fan may not operate in freezing temperatures)
g If the fan is not operating:
Stop the engine immediately and contact your Toyota dealer
If the fan is operating:
Have the vehicle inspected at the nearest Toyota dealer
WARNING
⬛Before taking measures
Do not remove the radiator cap if the coolant is hot. The radiator cap is under
the pressure of the coolant. Therefore, steam or hot water may spurt out of it,
causing serious injury such as burns.
⬛To prevent an accident or injury when inspecting under the hood of your
vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
⚫If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
⚫Keep hands and clothing (especially a tie, a scarf or a muffler) away from the
fan and belts. Failure to do so may caus e the hands or clothing to be caught,
resulting in serious injury.
⚫Do not loosen the radiator cap an d the coolant reservoir cap while the
engine and radiator are hot. High te mperature steam or coolant could spray
out.
KBRO721003N
RAIZE_OM_General_BZ358E.book 413 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4157-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7

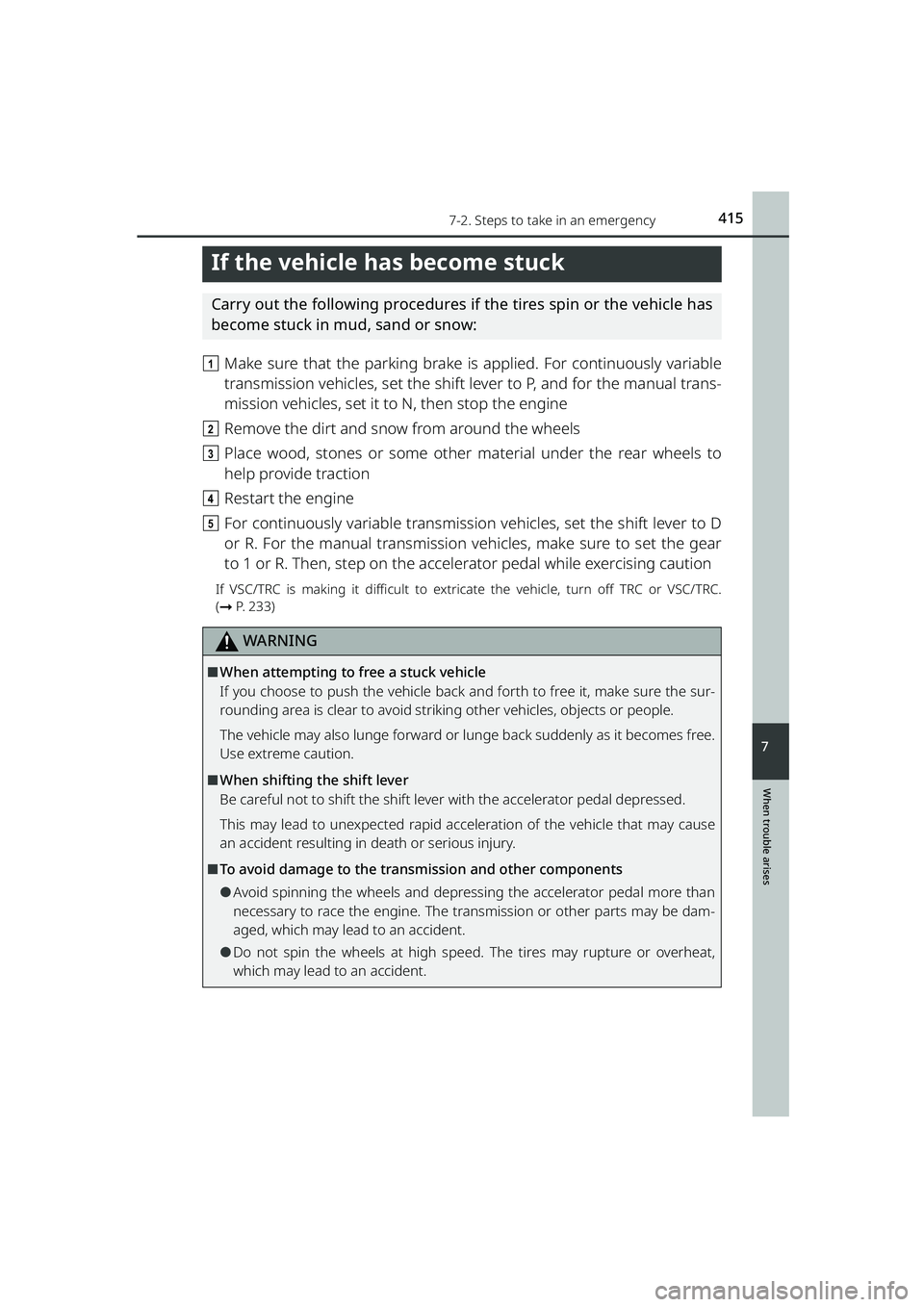

If the vehicle has become stuck
Carry out the following procedures if the tires spin or the vehicle has
become stuck in mud, sand or snow:
a Make sure that the parking brake is applied. For continuously variable
transmission vehicles, set the shift lever to P, and for the manual trans-
mission vehicles, set it to N, then stop the engine
b Remove the dirt and snow from around the wheels
c Place wood, stones or some other material under the rear wheels to
help provide traction
d Restart the engine
e For continuously variable transmission vehicles, set the shift lever to D
or R. For the manual transmission ve hicles, make sure to set the gear
to 1 or R. Then, step on the accelerator pedal while exercising caution
If VSC/TRC is making it difficult to extricate the vehicle, turn off TRC or VSC/TRC.
( ➞ P. 233)
WARNING
⬛When attempting to free a stuck vehicle
If you choose to push the vehicle back an d forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lu nge back suddenly as it becomes free.
Use extreme caution.
⬛When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause
an accident resulting in death or serious injury.
⬛To avoid damage to the transmission and other components
⚫Avoid spinning the wheels and depre ssing the accelerator pedal more than
necessary to race the engine. The tr ansmission or other parts may be dam-
aged, which may lead to an accident.
⚫Do not spin the wheels at high speed. The tires may rupture or overheat,
which may lead to an accident.
RAIZE_OM_General_BZ358E.book 415 ページ ２０２２年５月１７日　火曜日　午後１時５９分

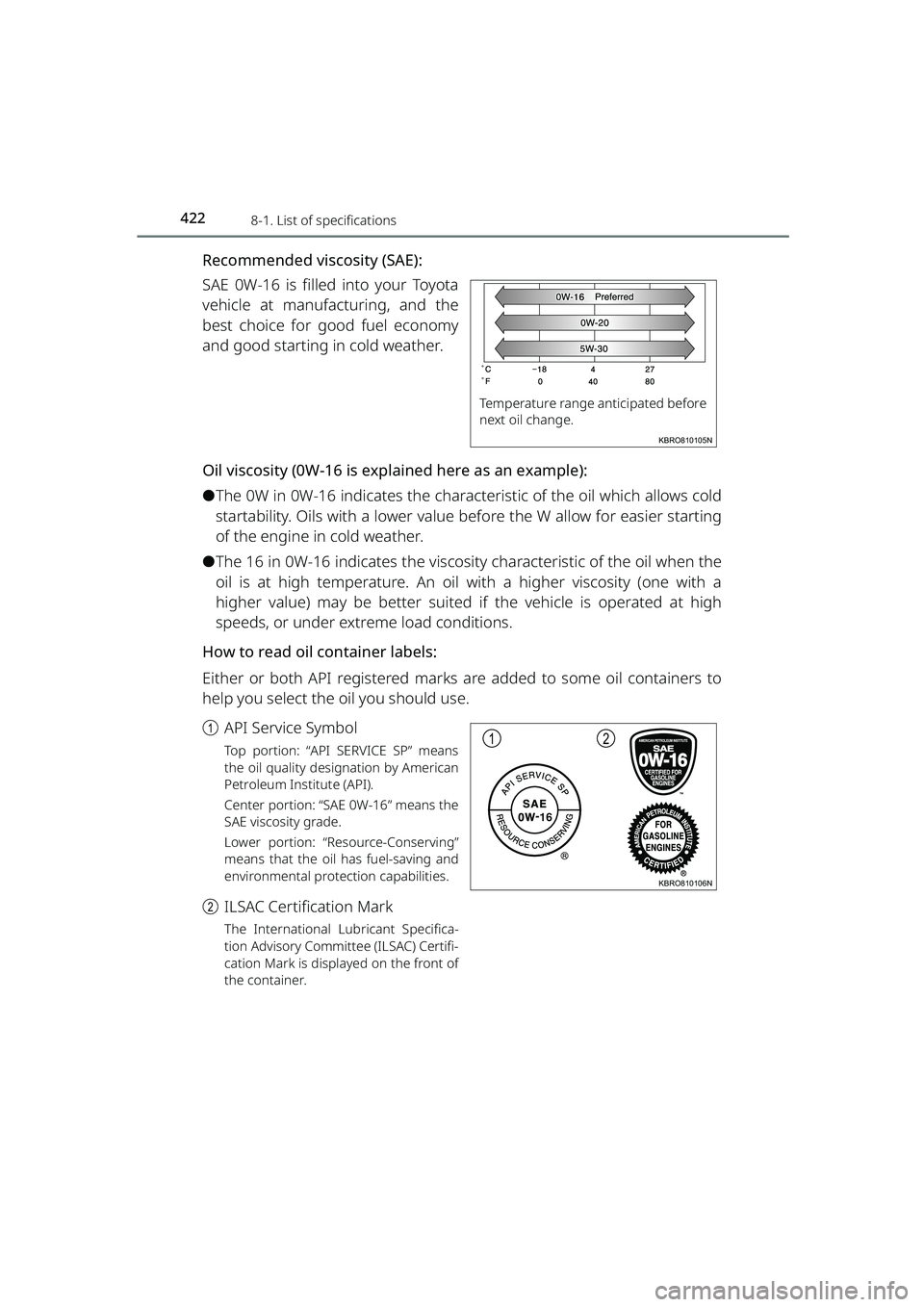

4228-1. List of specifications
RAIZE_OM_General_BZ358E
Recommended viscosity (SAE):
SAE 0W-16 is filled into your Toyota
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
Oil viscosity (0W-16 is explained here as an example):
⚫The 0W in 0W-16 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting
of the engine in cold weather.
⚫The 16 in 0W-16 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extr eme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to
help you select the oil you should use.
a API Service Symbol
Top portion: “API SERVICE SP” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-16” means the
SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
bILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Committee (ILSAC) Certifi-
cation Mark is displayed on the front of
the container.
KBRO810105N
Temperature range anticipated before
next oil change.
12
KBRO810106N
RAIZE_OM_General_BZ358E.book 422 ページ ２０２２年５月１７日　火曜日　午後１時５９分

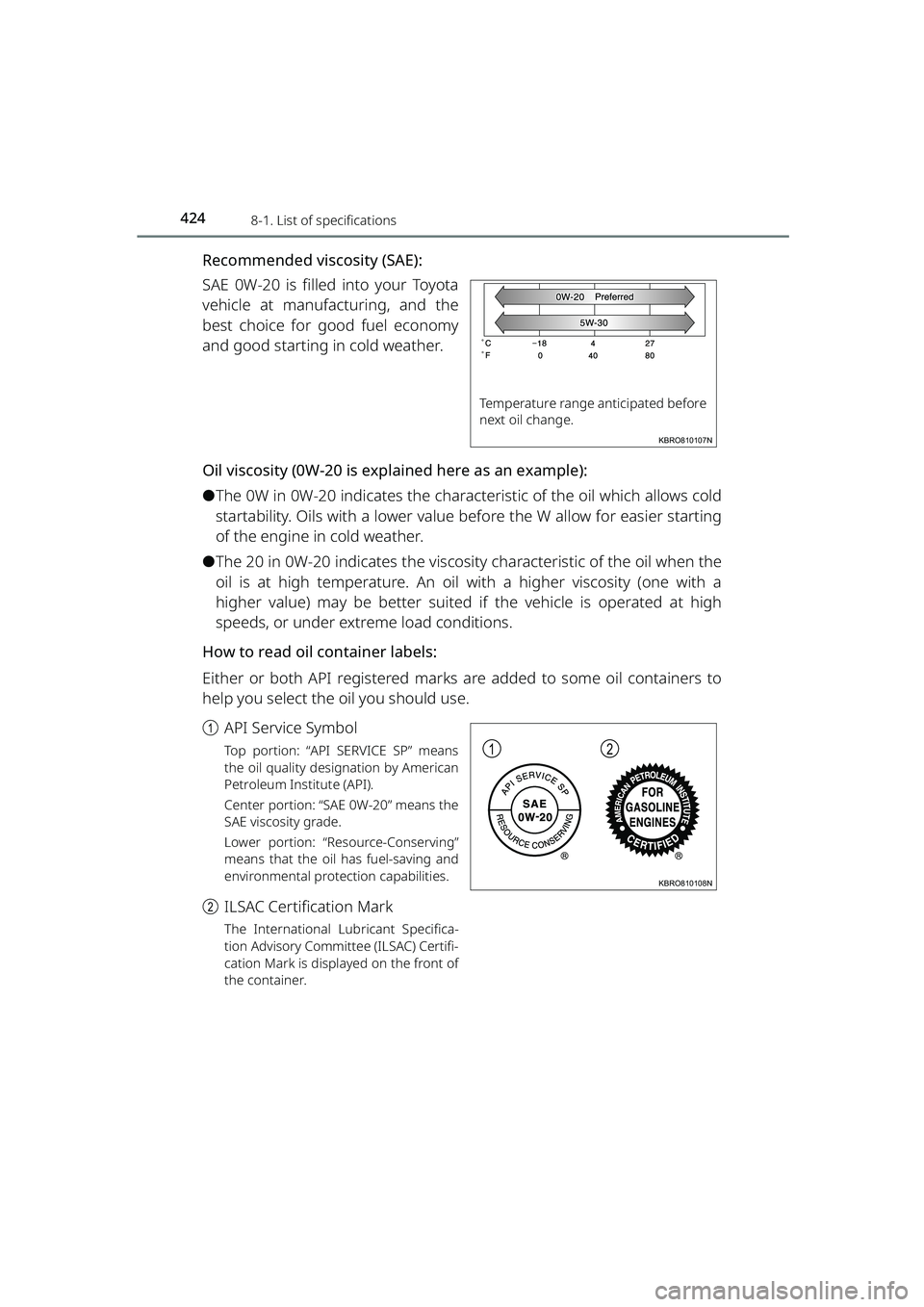

4248-1. List of specifications
RAIZE_OM_General_BZ358E
Recommended viscosity (SAE):
SAE 0W-20 is filled into your Toyota
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
Oil viscosity (0W-20 is explained here as an example):
⚫The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting
of the engine in cold weather.
⚫The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extr eme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to
help you select the oil you should use.
a API Service Symbol
Top portion: “API SERVICE SP” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-20” means the
SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
bILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Committee (ILSAC) Certifi-
cation Mark is displayed on the front of
the container.
KBRO810107N
Temperature range anticipated before
next oil change.
12
KBRO810108N
RAIZE_OM_General_BZ358E.book 424 ページ ２０２２年５月１７日　火曜日　午後１時５９分
