display TOYOTA RAIZE 2023 Repair Manual

2144-5. Using the driving support systems
RAIZE_OM_General_BZ358E
WARNING
⬛Handling of the radar sensors
⚫The BSM sensors are installed
inside the rear bumper, one each
on the right and left side.
For the system to work properly,
observe the precautions listed
below.
⚫Keep the rear bumper near the sensors clean at all times.
If the rear bumper near the sensors is covered with rain, snow, ice, or dirt,
the warning display ( ➞P. 389) will appear, and the system may stop working.
If that happens, remove the rain, snow, ice, or dirt from the rear bumper,
and drive the vehicle for a while (appro x. 10 minutes) under the activation
conditions of the BSM function ( ➞P. 216). If the warning display persists,
have the vehicle inspected at your Toyota dealer.
⚫Avoid strong shock to the rear bumper near the sensors.
If the sensor position and orientation ar e off even just a little bit, they may
not be able to detect vehicles correctly, or the devices may not work as
intended.
⚫In the following case, have the vehicle inspected at your Toyota dealer.
⦁ The sensors and the areas near the sensors received a strong impact
⦁ There is a scratch or dent on the rear bumper near the sensors, or some
of the bumper parts are missing
⚫Do not disassemble the sensors.
⚫Do not paste stickers or install accessories on the sensors or on the rear
bumper near the sensors.
⚫Do not alter the sensors or the rear bumper near the sensors.
⚫Do not paint the rear bumper any color other than an official Toyota color.
⚫Scratches on the rear bumper paint may prevent the system from working
normally. Contact your Toyota dealer.
KBRO460502
RAIZE_OM_General_BZ358E.book 214 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2164-5. Using the driving support systems
RAIZE_OM_General_BZ358E

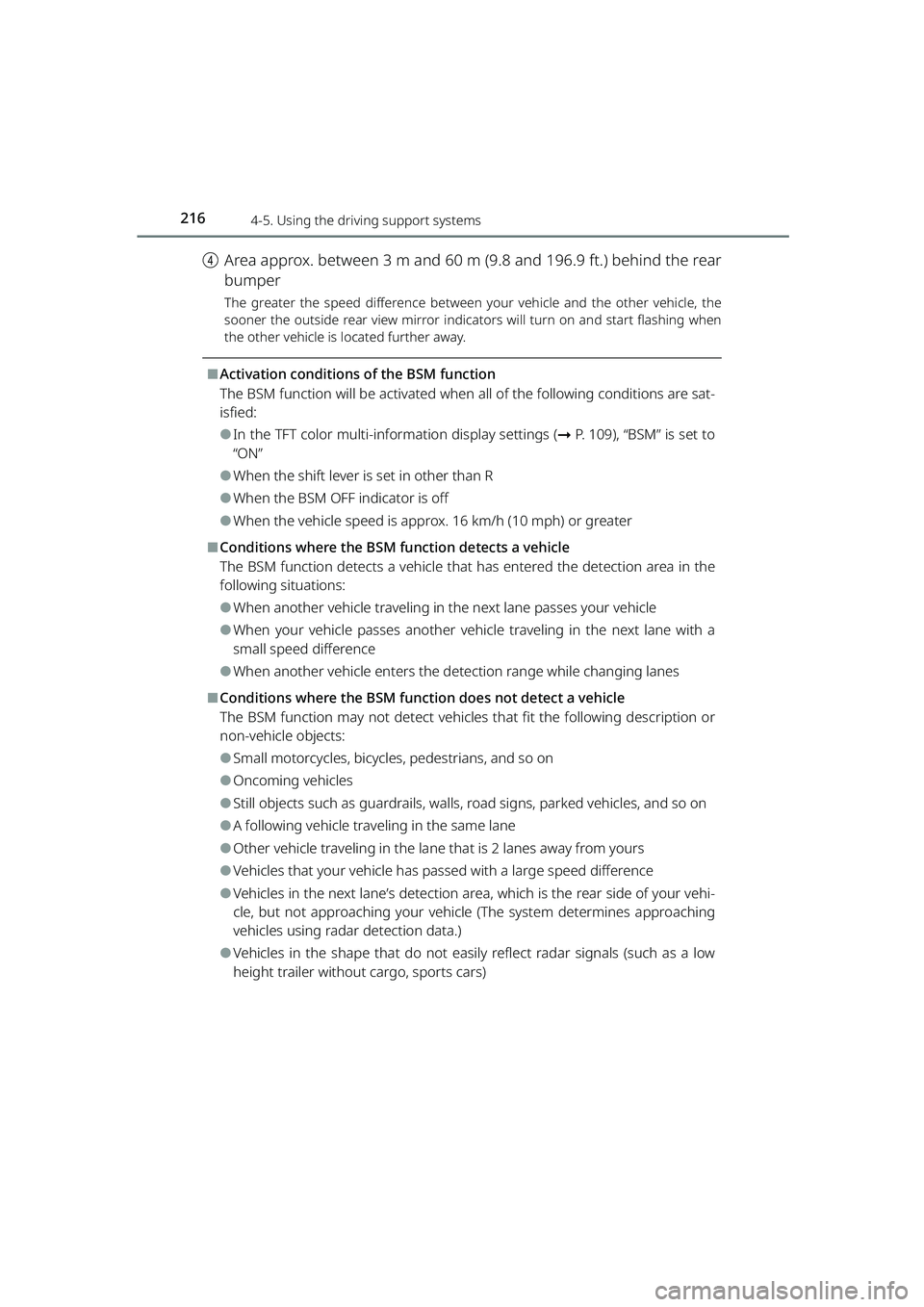

dArea approx. between 3 m and 60 m (9.8 and 196.9 ft.) behind the rear
bumper
The greater the speed difference between your vehicle and the other vehicle, the
sooner the outside rear view mirror indicators will turn on and start flashing when
the other vehicle is located further away.
⬛Activation conditions of the BSM function
The BSM function will be activated when all of the following conditions are sat-
isfied:
⚫In the TFT color multi-info rmation display settings (➞P. 109), “BSM” is set to
“ON”
⚫When the shift lever is set in other than R
⚫When the BSM OFF indicator is off
⚫When the vehicle speed is approx. 16 km/h (10 mph) or greater
⬛Conditions where the BSM fu nction detects a vehicle
The BSM function detects a vehicle that has entered the detection area in the
following situations:
⚫When another vehicle traveling in th e next lane passes your vehicle
⚫When your vehicle passes another vehicl e traveling in the next lane with a
small speed difference
⚫When another vehicle enters the de tection range while changing lanes
⬛Conditions where the BSM function does not detect a vehicle
The BSM function may not detect vehicles that fit the following description or
non-vehicle objects:
⚫Small motorcycles, bicycles , pedestrians, and so on
⚫Oncoming vehicles
⚫Still objects such as guardrails, walls, road signs, parked vehicles, and so on
⚫A following vehicle traveling in the same lane
⚫Other vehicle traveling in the lane that is 2 lanes away from yours
⚫Vehicles that your vehicle has passed with a large speed difference
⚫Vehicles in the next lane’s detection area, which is the rear side of your vehi-
cle, but not approaching your vehic le (The system determines approaching
vehicles using radar detection data.)
⚫Vehicles in the shape that do not easily reflect radar signals (such as a low
height trailer without cargo, sports cars)
RAIZE_OM_General_BZ358E.book 216 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2194-5. Using the driving support systems
RAIZE_OM_General_BZ358E
Driving
4
For the vehicle traveling fast, the warning buzzer will sound at a position
further away from the vehicle.
⬛Activation conditions of the RCTA function
The RCTA function will be activated when all of the following conditions are sat-
isfied:
⚫In the TFT color multi-info rmation display settings (➞P. 109), “RCTA” is set to
“ON”
⚫When the shift lever is set to R
⚫When the RCTA OFF indicator is off
⚫When your vehicle’s speed is approx. 8 km/h (5 mph) or less
⚫When the approaching vehicle’s speed is approx. between 8 and 28 km/h (5
and 18 mph)
⬛Situations where the RCTA function may not work properly
The RCTA function may not detect vehicles that fit the following description or
non-vehicle objects:
⚫A vehicle approaching from directly behind
⚫A vehicle backing up from the parking spot next to your vehicle
⚫Vehicles that cannot be detected by
the sensors due to obstacles
⚫Still objects such as guardrails, walls, road signs, parked vehicles, and so on
⚫Small motorcycles, bicycles, pedestrians, and so on
⚫Vehicles driving away from your vehicle
⚫A vehicle approaching from the parki ng spot next to your vehicle
⚫A vehicle approaching at high speed
Approaching vehicle’s speedaWarning distance (approximate)
Approx. 28 km/h (18 mph) (fast)Approx. 20 m (65.6 ft.)
Approx. 8 km/h (5 mph) (slow)Approx. 5.5m (18.0 ft.)
KBRO460507
RAIZE_OM_General_BZ358E.book 219 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2214-5. Using the driving support systems
RAIZE_OM_General_BZ358E✽
: If equipped
Driving
4
Front corner sensors✽/Reverse sensors✽
The front corner sensors and reverse sensors are the system that
uses the sonar to recognize the approximate distance between the
vehicle and the obstacle, and that notifies the driver of its presence
by the buzzer and display indica tors when the vehicle speed is
approx. 10 km/h (6 mph) or less.
Sonar positions and types
a Front sonar
The front corner sensors are used to
recognize necessary information.
bRear sonar
The reverse sensors are used to recog-
nize necessary information.
Switching front corner sensors and reverse sensors
(For vehicles with front corner sensors)
Press the switch
Pressing the switch turns on the front
corner sensors or reverse sensors and
lights up the switch-on indicator.
To turn it off, press the switch again.
How to display the front corner sensors or reverse sensors
Once an obstacle is recognized, they
are displayed automatically.
aFront corner sensor ON indicator
b Reverse sensor ON indicator
12KBRO451001E
KBRO451002E
11
22
KBRO451003E
RAIZE_OM_General_BZ358E.book 221 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2224-5. Using the driving support systems
RAIZE_OM_General_BZ358E

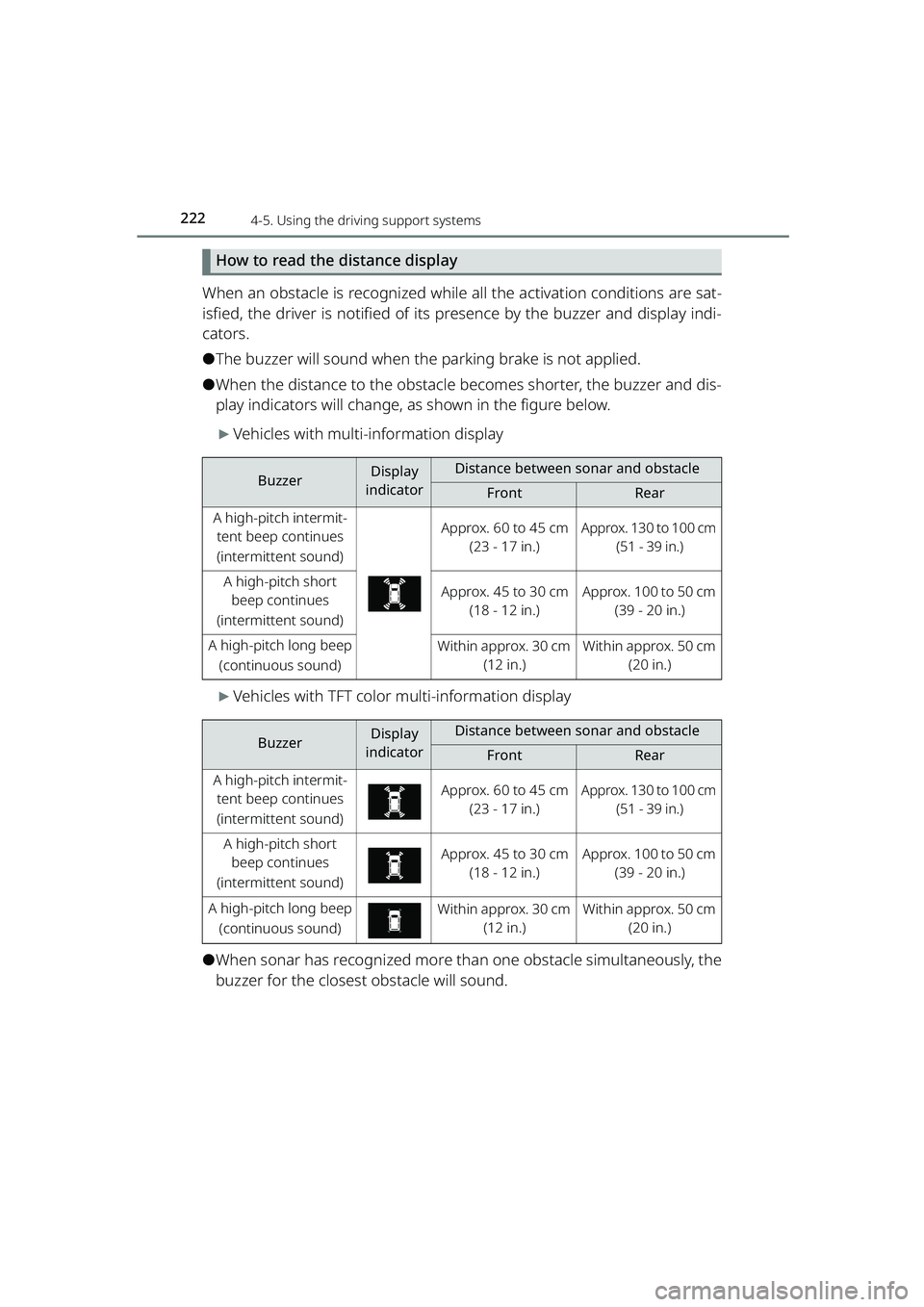

How to read the distance display
When an obstacle is recognized while all the activation conditions are sat-
isfied, the driver is notified of its presence by the buzzer and display indi-
cators.
⚫The buzzer will sound when the parking brake is not applied.
⚫When the distance to the obstacle becomes shorter, the buzzer and dis-
play indicators will change, as shown in the figure below.
▶Vehicles with multi-information display
▶Vehicles with TFT color multi-information display
⚫When sonar has recognized more than one obstacle simultaneously, the
buzzer for the closest obstacle will sound.
BuzzerDisplay
indicatorDistance between sonar and obstacle
FrontRear
A high-pitch intermit- tent beep continues
(intermittent sound)Approx. 60 to 45 cm (23 - 17 in.)Approx. 130 to 100 cm (51 - 39 in.)
A high-pitch short beep continues
(intermittent sound)Approx. 45 to 30 cm (18 - 12 in.)Approx. 100 to 50 cm (39 - 20 in.)
A high-pitch long beep
(continuous sound)Within approx. 30 cm (12 in.)Within approx. 50 cm (20 in.)
BuzzerDisplay
indicatorDistance between sonar and obstacle
FrontRear
A high-pitch intermit- tent beep continues
(intermittent sound)Approx. 60 to 45 cm (23 - 17 in.)Approx. 130 to 100 cm (51 - 39 in.)
A high-pitch short beep continues
(intermittent sound)Approx. 45 to 30 cm (18 - 12 in.)Approx. 100 to 50 cm (39 - 20 in.)
A high-pitch long beep
(continuous sound)Within approx. 30 cm (12 in.)Within approx. 50 cm (20 in.)
RAIZE_OM_General_BZ358E.book 222 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2244-5. Using the driving support systems
RAIZE_OM_General_BZ358E
⬛When the high-pitch short beeps sound 3 times repeatedly and the front
corner sensor or reverse sensor ON indicator appears at 2 front locations
or 2 rear locations (or all 4 locations) simultaneously
⚫The front corner sensor or reverse se nsor functionality has been degraded.
When the front corner sensor or re verse sensor functionality temporarily
turns off, check if the sonar is not cove red with rain, snow, ice, or dirt. Remove
those attached to it, then wait for the f unctionality to be restored to normal.
⚫If the master warning light turns on at this time, it may indicate a malfunc-
tion of the system. Have the vehicle inspected at your Toyota dealer.
⚫Vehicles with TFT color multi-informati on display: Depending on the condi-
tions, the warning messages as “Son ar Sensor Function Stop” and “Sonar
Sensor Malfunction Visit Your Dealer” will be displayed.
⬛Front corner sensors and reverse sensors
In the following cases, the system ma y become activated even when there is
no obstacle within the operating range.
⚫When driving an area where the road slopes suddenly change
⚫When passing through plastic curtains or driving under flags
⚫When water splashes or drifting snow whirls up
⚫When passing an obstacle at close range
⚫When using an elevator for automobiles or using a mechanical parking lot
⚫When driving over a bump with an obstacle near the vehicle
⚫When there is an obstacle near the side of the vehicle
⚫When the road surface has large bumps, curbstones or protrusions, or when
the ground surface has tire tracks and holes
⚫When entering into a tight space
⚫During pouring rain or when water splashes over the vehicle
⚫Bad weather (heavy rain, snowstorm, fog, etc.)
⚫When the following is present near the vehicle: the sound of other vehicles’
horns, motorcycle engines, and air brakes of large vehicles, the devices emitting
ultrasonic waves, such as vehicle detect ors, or sonar systems of other vehicles
⚫When commercially available electrical components (such as an internally illu-
minated number plate, radio antenna) are installed near the sonar sensors
⚫When the vehicle body has been considerably tilted
⚫When the vehicle height has significantly changed by the load conditions, etc.
⚫When the direction of the sonar sensors is deviated by a collision or other
causes
⚫When the sonar sensors are covere d with rain, snow, ice or dirt
RAIZE_OM_General_BZ358E.book 224 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2254-5. Using the driving support systems
RAIZE_OM_General_BZ358E
Driving
4
WARNING
⬛Before using the front corner sensors or reverse sensors
Make sure to observe the following precautions.
Failure to do so is dangerous, as it may lead to an unforeseen accident.
⚫Do not let the vehicle speed exceed approx. 10 km/h (6 mph).
⚫There is a limit to the sonar’s recognition range and activation speed. When
you move your vehicle forward or backward, make sure to check the safety
around the vehicle, which is outside the sonar’s recognition range (especially
the sides of the vehicle), use the brak e pedal to control the speed adequately
and drive slowly.
⚫Do not paste stickers or install accesso ries on the sonar sensors or their sur-
rounding areas.
⚫Vehicles with TFT color multi-informa tion display: If the warning message
“Sonar Sensor Function Stop” appears, check the sonar conditions. If the
warning message appears even when the sonar is not covered with rain,
snow, ice, or dirt, it could be due to a malfunction of the front corner sensors
or reverse sensors. Have the vehicl e inspected at your Toyota dealer.
⬛Front corner sensors and reverse sensors
In the following situations, the front corner sensors or reverse sensors may
not work normally and could lead to an unforeseen accident. Make sure to
drive carefully.
⚫Road conditions (slopes, unevenness, etc.)
⚫Vehicle’s maintenance conditions (brake-r elated issues, worn out tires, infla-
tion pressure, driving on a spare tire, etc.)
⚫Bad weather (heavy rain, snowstorm, fog, etc.)
⚫When the vehicle is signif icantly tilted by carrying a heavy load or being on
the surface with different height, or when the vehicle height has significantly
changed
⚫Distance from the obstacle, orientatio n or position (the obstacle is located
near the center of the vehicle)
⚫When driving on a steep slope
⚫When the sonar system cannot recognize the obstacle correctly (the follow-
ing cases in particular)
⦁ When an obstacle is extremely clos e to the sonar (when approaching too
close to the obstacle, the buzzer may change from continuous sound to
intermittent sound)
⦁ When an obstacle is located at a high position from the ground
⦁ Short obstacles
⦁ Small obstacles (such as small animals and infants), narrow obstacles
RAIZE_OM_General_BZ358E.book 225 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2284-5. Using the driving support systems
RAIZE_OM_General_BZ358E✽
: If equipped
Rear-view camera✽
The rear-view camera is a device designed to assist driving when the
vehicle backs up, such as during pa rking, by displaying the vehicle’s
rear-view image on the display audio screen.
The operation may differ depending on the display audio your vehi-
cle has. For details, refer to the included instruction manual.
The screen illustration used in this document is an example. The actual
image displayed will be different from this illustration in terms of how the
vehicle appears. Rear-view camera screen display
When the shift lever is set to R with the engine switch turned “ON”, the dis-
play audio screen shows the vehicle’s rear-view image.
Setting the shift lever to other than R will restore the previous screen.
The rear-view camera image takes prec edence over any other screen dis-
play.
Precautions for the rear-view camera
⬛Screen projection range
KBRO460301
Projection rangeScreen
The screen shows a part of the
vehicle body (such as a bumper).
RAIZE_OM_General_BZ358E.book 228 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2304-5. Using the driving support systems
RAIZE_OM_General_BZ358E

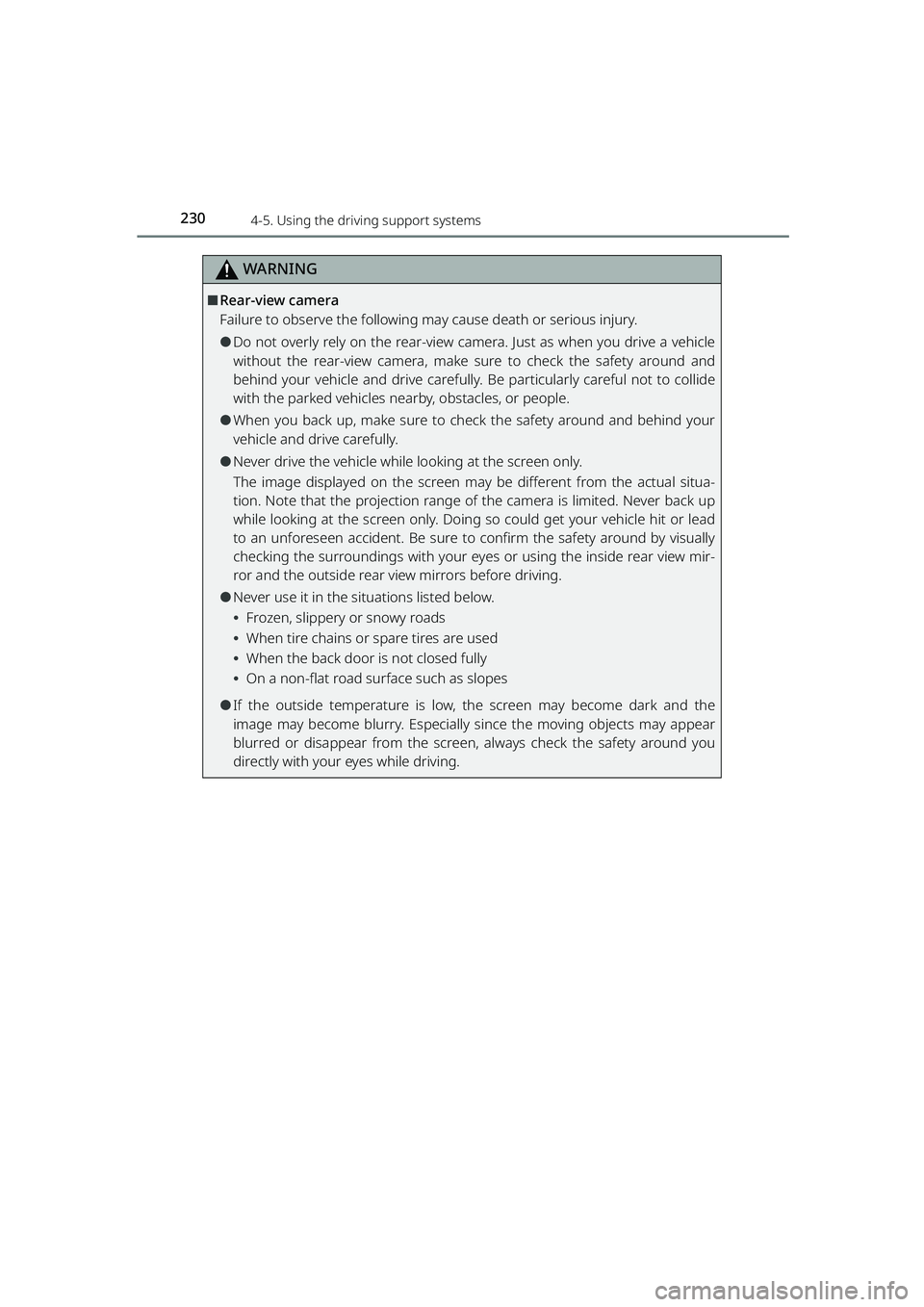

WARNING
⬛Rear-view camera
Failure to observe the following may cause death or serious injury.
⚫Do not overly rely on the rear-view camera. Just as when you drive a vehicle
without the rear-view camera, make su re to check the safety around and
behind your vehicle and drive carefully. Be particularly careful not to collide
with the parked vehicles nearby, obstacles, or people.
⚫When you back up, make sure to check the safety around and behind your
vehicle and drive carefully.
⚫Never drive the vehicle while looking at the screen only.
The image displayed on the screen ma y be different from the actual situa-
tion. Note that the projection range of the camera is limited. Never back up
while looking at the screen only. Doing so could get your vehicle hit or lead
to an unforeseen accident. Be sure to confirm the safety around by visually
checking the surroundings with your ey es or using the inside rear view mir-
ror and the outside rear view mirrors before driving.
⚫Never use it in the situations listed below.
⦁ Frozen, slippery or snowy roads
⦁ When tire chains or spare tires are used
⦁ When the back door is not closed fully
⦁ On a non-flat road surface such as slopes
⚫If the outside temperature is low, the screen may be come dark and the
image may become blurry. Especially since the moving objects may appear
blurred or disappear from the screen, always check the safety around you
directly with your eyes while driving.
RAIZE_OM_General_BZ358E.book 230 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2805-5. Using the other interior features
RAIZE_OM_General_BZ358E✽
: If equipped

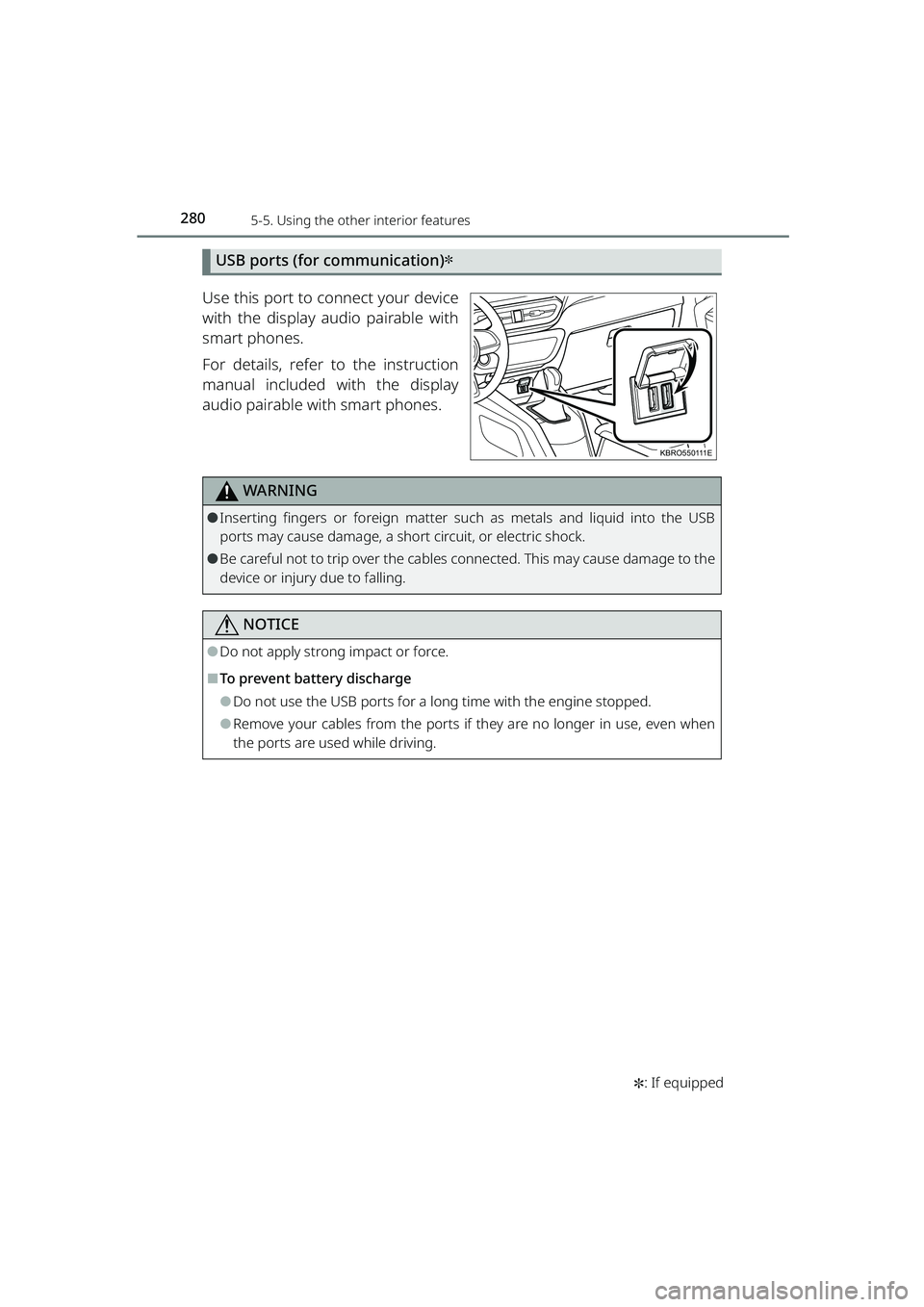

USB ports (for communication)✽
Use this port to connect your device
with the display audio pairable with
smart phones.
For details, refer to the instruction
manual included with the display
audio pairable with smart phones.
WARNING
⚫Inserting fingers or foreign matter such as metals and liquid into the USB
ports may cause damage, a short circuit, or electric shock.
⚫Be careful not to trip over the cables co nnected. This may cause damage to the
device or injury due to falling.
NOTICE
⚫Do not apply strong impact or force.
⬛To prevent battery discharge
⚫Do not use the USB ports for a long time with the engine stopped.
⚫Remove your cables from the ports if they are no longer in use, even when
the ports are used while driving.
KBRO550111E
RAIZE_OM_General_BZ358E.book 280 ページ ２０２２年５月１７日　火曜日　午後１時５９分
