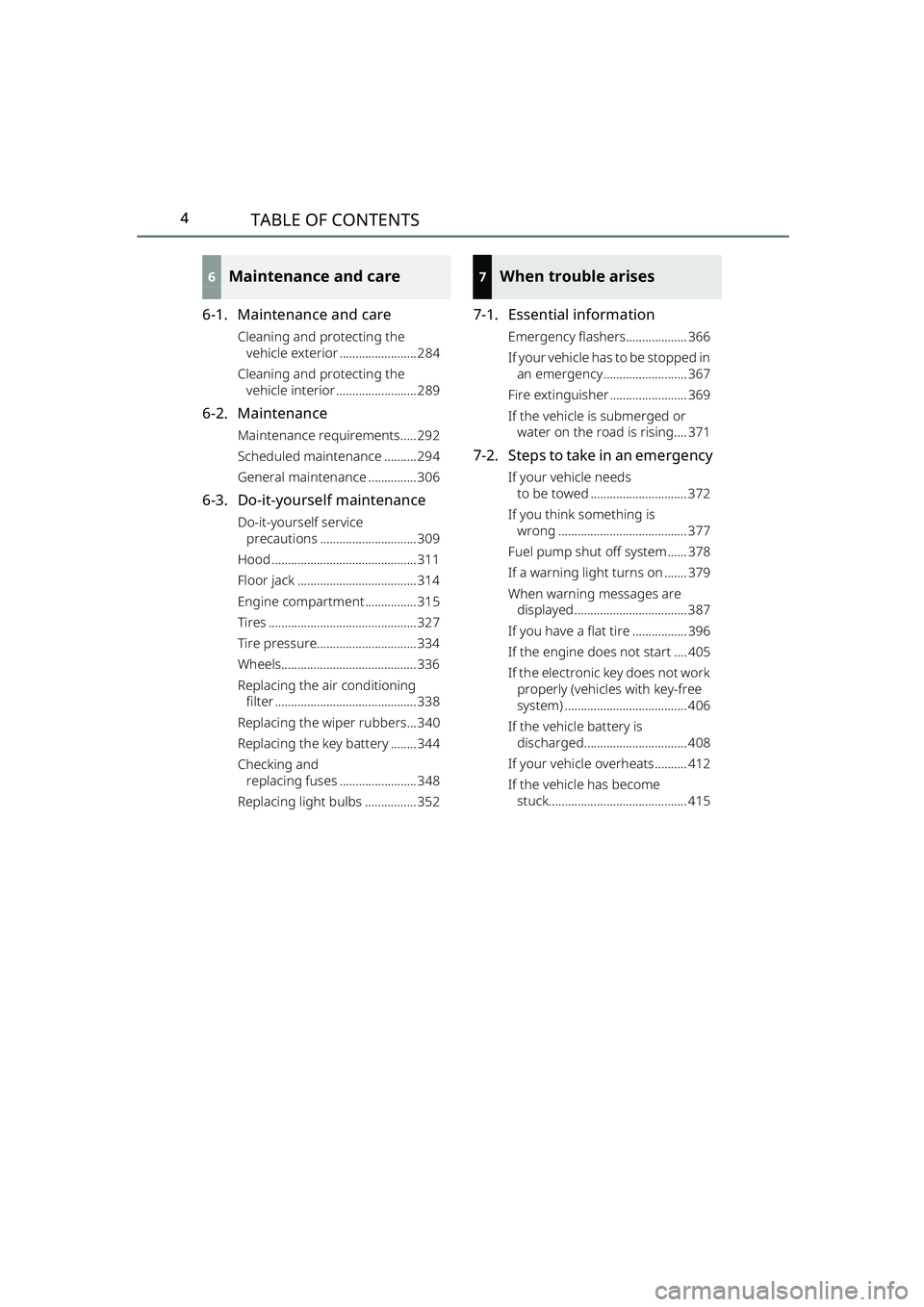

Page 6 of 516

4
RAIZE_OM_General_BZ358E
TABLE OF CONTENTS
6 Maintenance and care
6-1. Maintenance and care
Cleaning and protecting the vehicle exterior ........................ 284
Cleaning and protecting the vehicle interior ......................... 289
6-2. Maintenance
Maintenance requirements..... 292
Scheduled maintenance .......... 294
General maintenance ............... 306
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions .............................. 309
Hood ............................................. 311
Floor jack ..................................... 314
Engine compartment ................ 315
Tires .............................................. 327
Tire pressure............................... 334
Wheels.......................................... 336
Replacing the air conditioning filter ............................................ 338
Replacing the wiper rubbers... 340
Replacing the key battery ........ 344
Checking and replacing fuses ........................ 348
Replacing light bulbs ................ 352
7 When trouble arises
7-1. Essential information
Emergency flashers................... 366
If your vehicle has to be stopped in an emergency .......................... 367
Fire extinguisher ........................ 369
If the vehicle is submerged or water on the road is rising.... 371
7-2. Steps to take in an emergency
If your vehicle needs to be towed .............................. 372
If you think something is wrong ........................................ 377
Fuel pump shut off system ...... 378
If a warning light turns on ....... 379
When warning messages are displayed................................... 387
If you have a flat tire ................. 396
If the engine does not start .... 405
If the electronic key does not work properly (vehicles with key-free
system) ...................................... 406
If the vehicle battery is discharged................................ 408
If your vehicle overheats.......... 412
If the vehicle has become stuck........................................... 415
RAIZE_OM_General_BZ358E.book 4 ページ 2022年5月17日 火曜日 午後1時59分

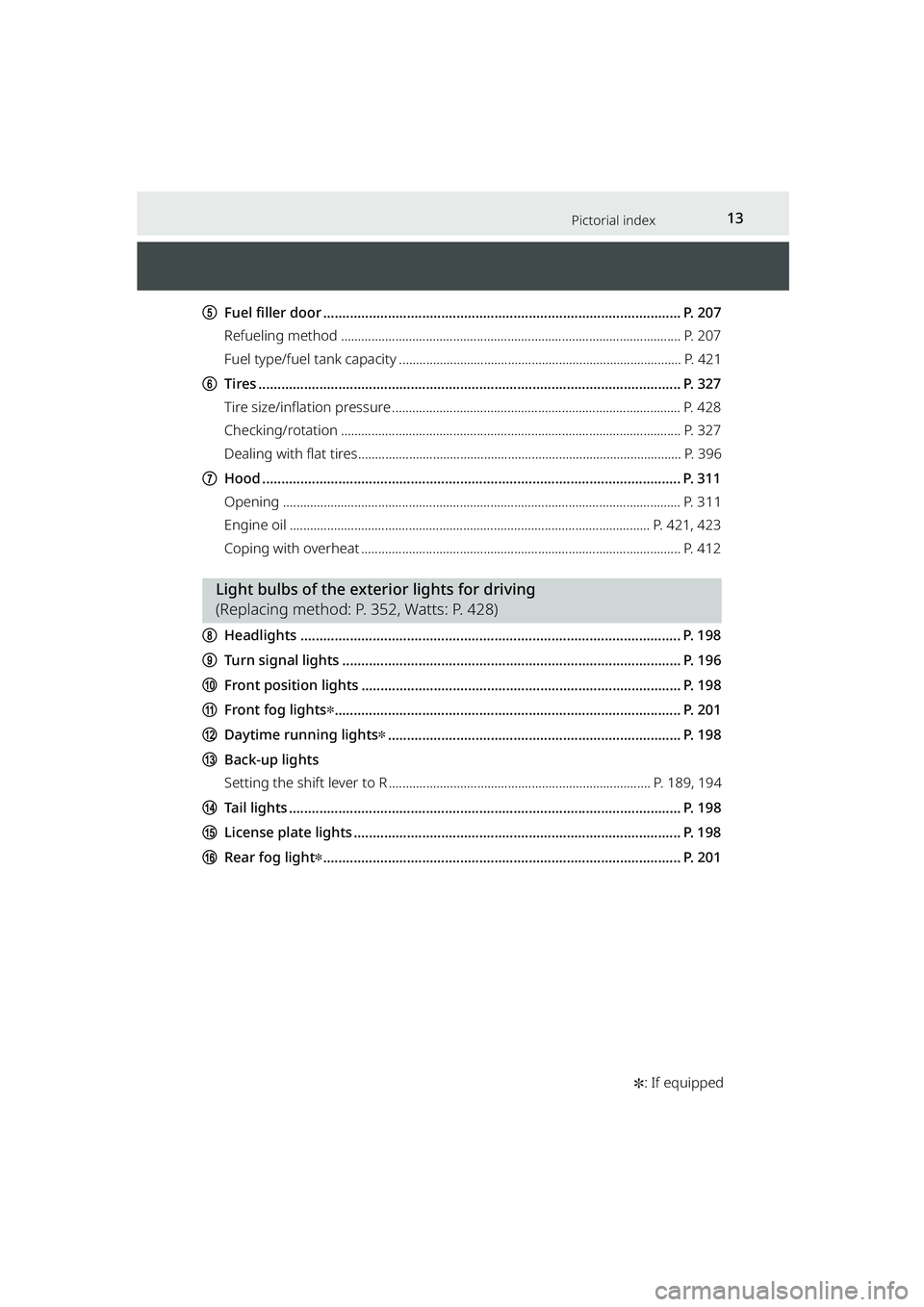

Page 15 of 516

13Pictorial index
RAIZE_OM_General_BZ358E✽
: If equipped
e Fuel filler door .............................................................................................. P. 207
Refueling method .................................................................................................... P. 207
Fuel type/fuel tank capacity ................................................................................... P. 421
f Tires ............................................................................................................... P. 327
Tire size/inflation pressure ..................................................................................... P. 428
Checking/rotation .................................................................................................... P. 327
Dealing with flat tires............................................................................................... P. 396
g Hood .............................................................................................................. P. 311
Opening ..................................................................................................................... P. 3 11
Engine oil .......................................................................................................... P. 421, 423
Coping with overheat .............................................................................................. P. 412
Light bulbs of the exterior lights for driving
(Replacing method: P. 352, Watts: P. 428)
h Headlights .................................................................................................... P. 198
i Turn signal lights ......................................................................................... P. 196
j Front position lights .................................................................................... P. 198
k Front fog lights
✽........................................................................................... P. 201
l Daytime running lights
✽............................................................................. P. 198
m Back-up lights
Setting the shift lever to R ............................................................................. P. 189, 194
n Tail lights ....................................................................................................... P. 198
o License plate lights ...................................................................................... P. 198
p Rear fog light
✽.............................................................................................. P. 201
RAIZE_OM_General_BZ358E.book 13 ページ 2022年5月17日 火曜日 午後1時59分

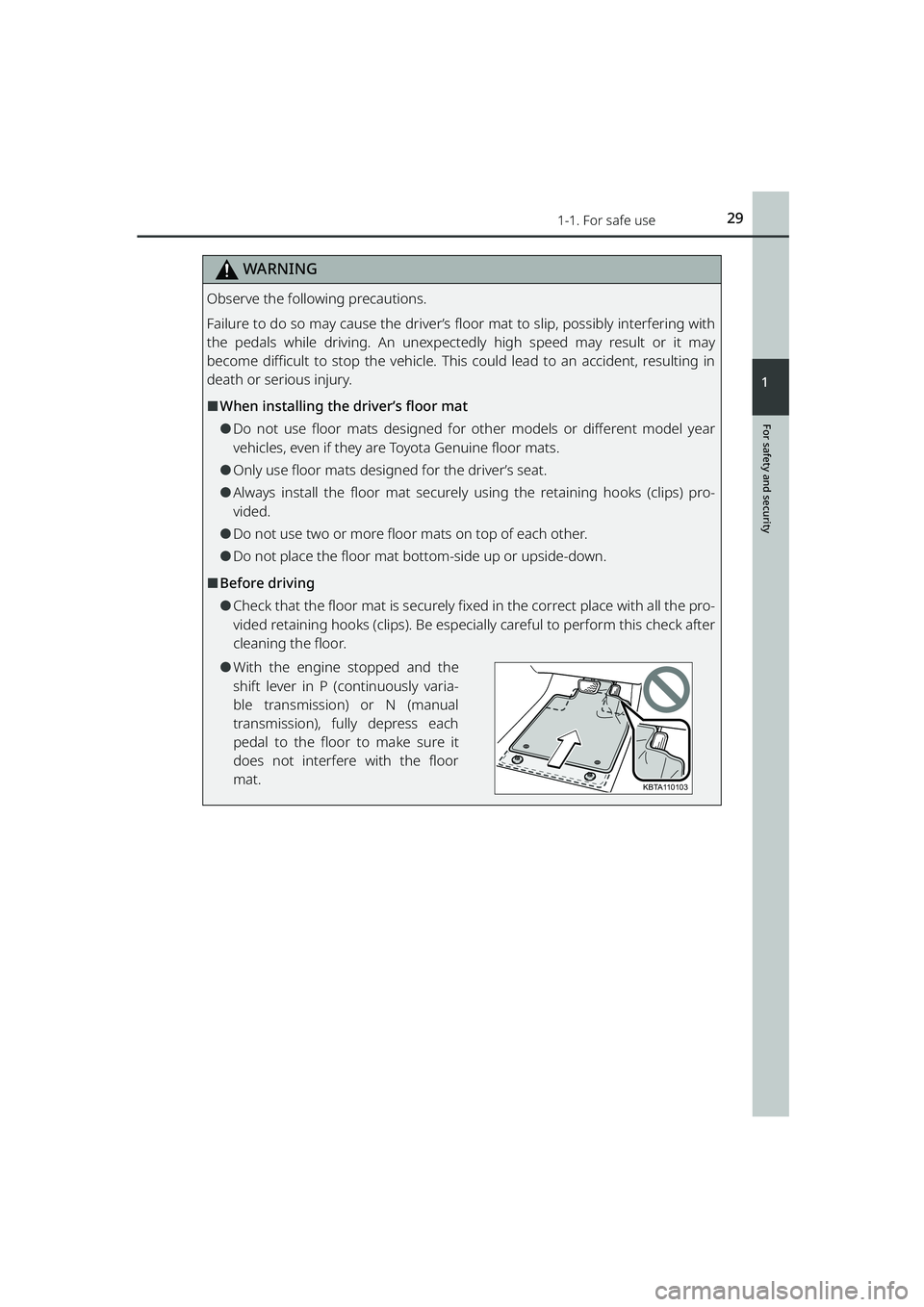

Page 31 of 516

291-1. For safe use
RAIZE_OM_General_BZ358E
For safety and security
1
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with
the pedals while driving. An unexpected ly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
⬛When installing the driver’s floor mat
⚫Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
⚫Only use floor mats designed for the driver’s seat.
⚫Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
⚫Do not use two or more floor mats on top of each other.
⚫Do not place the floor mat bottom-side up or upside-down.
⬛Before driving
⚫Check that the floor mat is securely fixed in the correct place with all the pro-
vided retaining hooks (clips). Be especial ly careful to perform this check after
cleaning the floor.
⚫With the engine stopped and the
shift lever in P (continuously varia-
ble transmission) or N (manual
transmission), fully depress each
pedal to the floor to make sure it
does not interfere with the floor
mat.
KBTA110103
RAIZE_OM_General_BZ358E.book 29 ページ 2022年5月17日 火曜日 午後1時59分

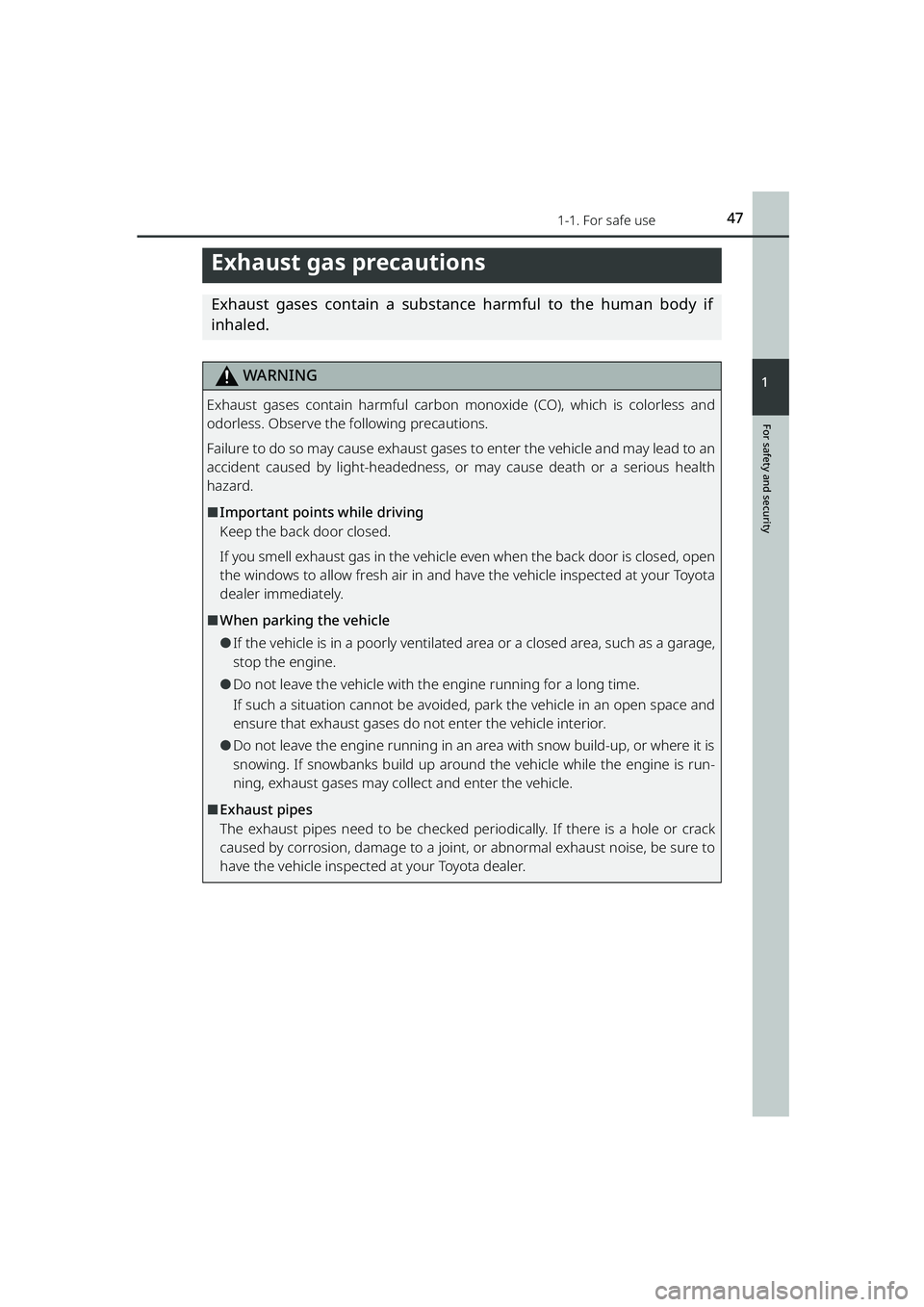

Page 49 of 516

471-1. For safe use
RAIZE_OM_General_BZ358E
For safety and security
1
Exhaust gas precautions
Exhaust gases contain a substance harmful to the human body if
inhaled.
WARNING
Exhaust gases contain harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases to enter the vehicle and may lead to an
accident caused by light-headedness, or may cause death or a serious health
hazard.
⬛Important points while driving
Keep the back door closed.
If you smell exhaust gas in the vehicle even when the back door is closed, open
the windows to allow fresh air in and have the vehicle inspected at your Toyota
dealer immediately.
⬛When parking the vehicle
⚫If the vehicle is in a poorly ventilated ar ea or a closed area, such as a garage,
stop the engine.
⚫Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and
ensure that exhaust gases do not enter the vehicle interior.
⚫Do not leave the engine running in an area with snow build-up, or where it is
snowing. If snowbanks build up around the vehicle while the engine is run-
ning, exhaust gases may collect and enter the vehicle.
⬛Exhaust pipes
The exhaust pipes need to be checked periodically. If there is a hole or crack
caused by corrosion, damage to a joint, or abnormal exhaust noise, be sure to
have the vehicle inspected at your Toyota dealer.
RAIZE_OM_General_BZ358E.book 47 ページ 2022年5月17日 火曜日 午後1時59分

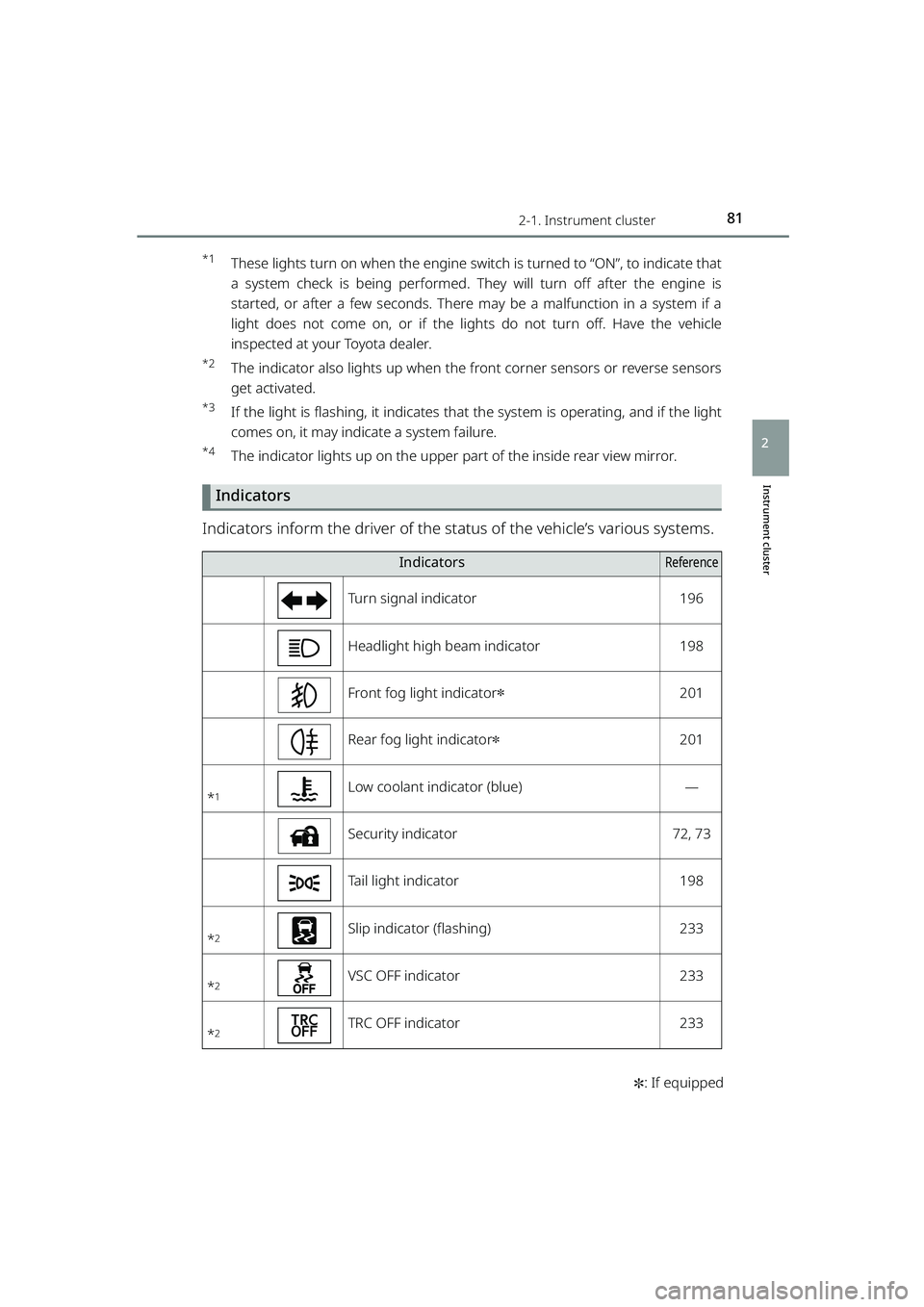

Page 83 of 516

812-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
Instrument cluster
2
*1These lights turn on when the engine swit ch is turned to “ON”, to indicate that
a system check is being performed. Th ey will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the light s do not turn off. Have the vehicle
inspected at your Toyota dealer.
*2The indicator also lights up when the fr ont corner sensors or reverse sensors
get activated.
*3If the light is flashing, it indicates that the system is operating, and if the light
comes on, it may indicate a system failure.
*4The indicator lights up on the upper part of the inside rear view mirror.
Indicators
Indicators inform the driver of the st atus of the vehicle’s various systems.
IndicatorsReference
Turn signal indicator196
Headlight high beam indicator198
Front fog light indicator✽201
Rear fog light indicator✽201
*1Low coolant indicator (blue)―
Security indicator72, 73
Tail light indicator198
*2Slip indicator (flashing)233
*2VSC OFF indicator233
*2TRC OFF indicator233
RAIZE_OM_General_BZ358E.book 81 ページ 2022年5月17日 火曜日 午後1時59分

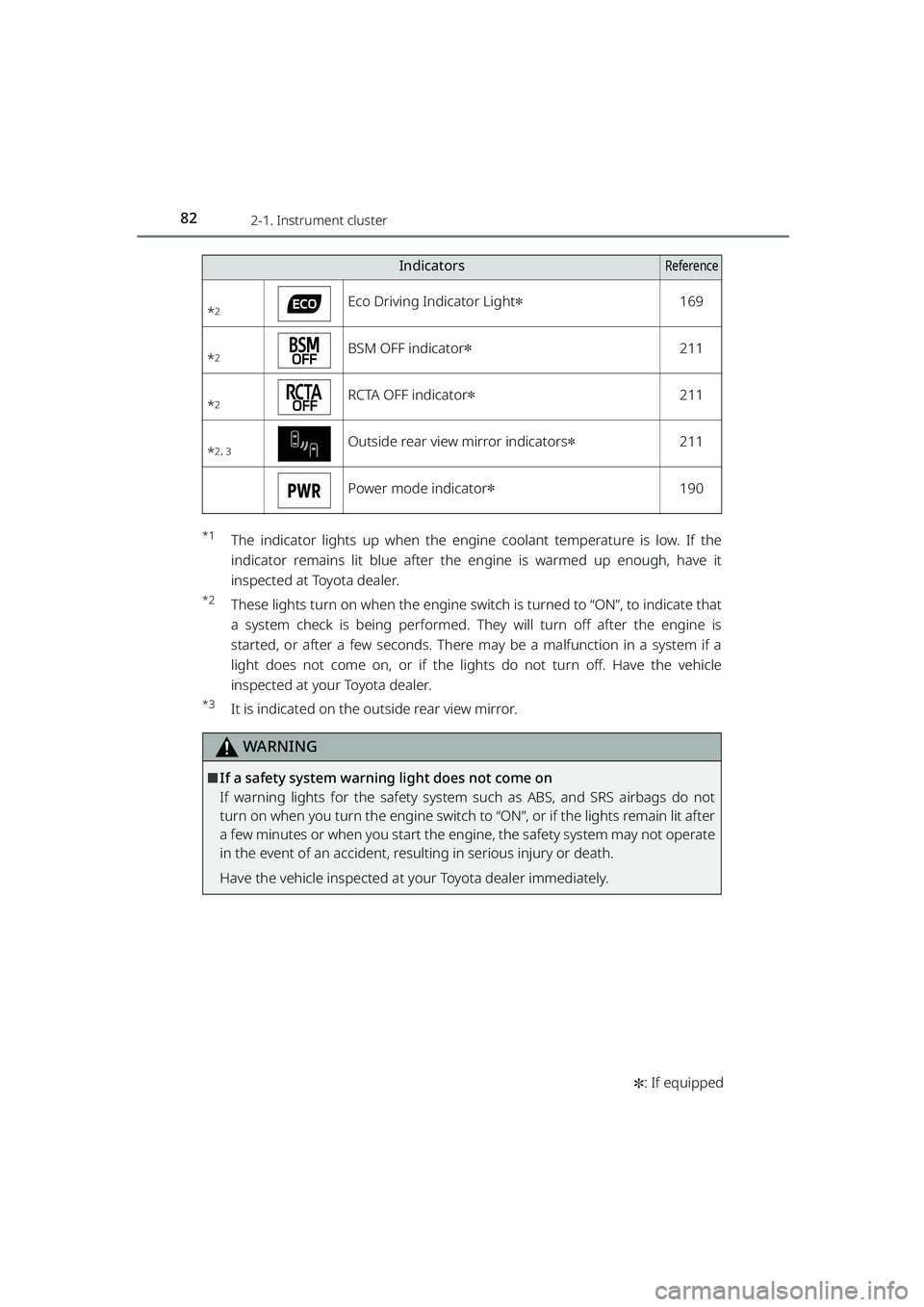

Page 84 of 516

822-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
*1The indicator lights up when the engine coolant temperature is low. If the
indicator remains lit blue after the engine is warmed up enough, have it
inspected at Toyota dealer.
*2These lights turn on when the engine swit ch is turned to “ON”, to indicate that
a system check is being performed. Th ey will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the light s do not turn off. Have the vehicle
inspected at your Toyota dealer.
*3It is indicated on the outside rear view mirror.
WARNING
⬛If a safety system warning light does not come on
If warning lights for the safety system such as ABS, and SRS airbags do not
turn on when you turn the engine switch to “ON”, or if the lights remain lit after
a few minutes or when you start the engi ne, the safety system may not operate
in the event of an accident, result ing in serious injury or death.
Have the vehicle inspected at your Toyota dealer immediately.
*2Eco Driving Indicator Light✽169
*2BSM OFF indicator✽211
*2RCTA OFF indicator✽211
*2, 3Outside rear view mirror indicators✽211
Power mode indicator✽190
IndicatorsReference
RAIZE_OM_General_BZ358E.book 82 ページ 2022年5月17日 火曜日 午後1時59分

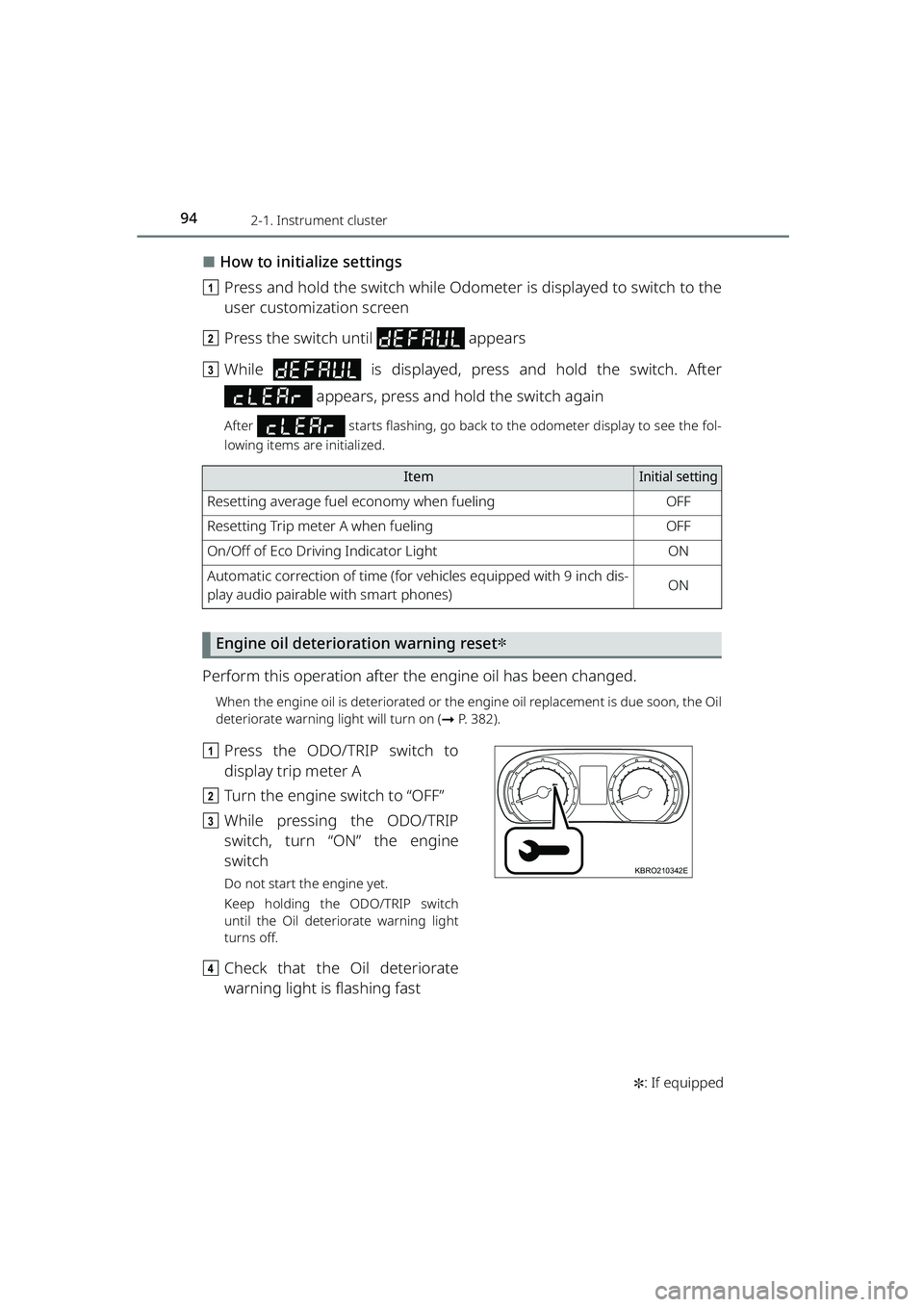

Page 96 of 516

942-1. Instrument cluster
RAIZE_OM_General_BZ358E✽
: If equipped
⬛How to initialize settings
a Press and hold the switch while Odometer is displayed to switch to the
user customization screen
b Press the switch until appears
c While is displayed, press and hold the switch. After
appears, press and hold the switch again
After starts flashing, go back to the odometer display to see the fol-
lowing items are initialized.
Engine oil deterioration warning reset✽
Perform this operation after th e engine oil has been changed.
When the engine oil is deteriorated or the engine oil replacement is due soon, the Oil
deteriorate warning light will turn on ( ➞P. 382).
a Press the ODO/TRIP switch to
display trip meter A
b Turn the engine switch to “OFF”
c While pressing the ODO/TRIP
switch, turn “ON” the engine
switch
Do not start the engine yet.
Keep holding the ODO/TRIP switch
until the Oil deteriorate warning light
turns off.
dCheck that the Oil deteriorate
warning light is flashing fast
ItemInitial setting
Resetting average fuel economy when fuelingOFF
Resetting Trip meter A when fuelingOFF
On/Off of Eco Driving Indicator LightON
Automatic correction of time (for vehicles equipped with 9 inch dis-
play audio pairable with smart phones)ON
KBRO210342E
RAIZE_OM_General_BZ358E.book 94 ページ 2022年5月17日 火曜日 午後1時59分

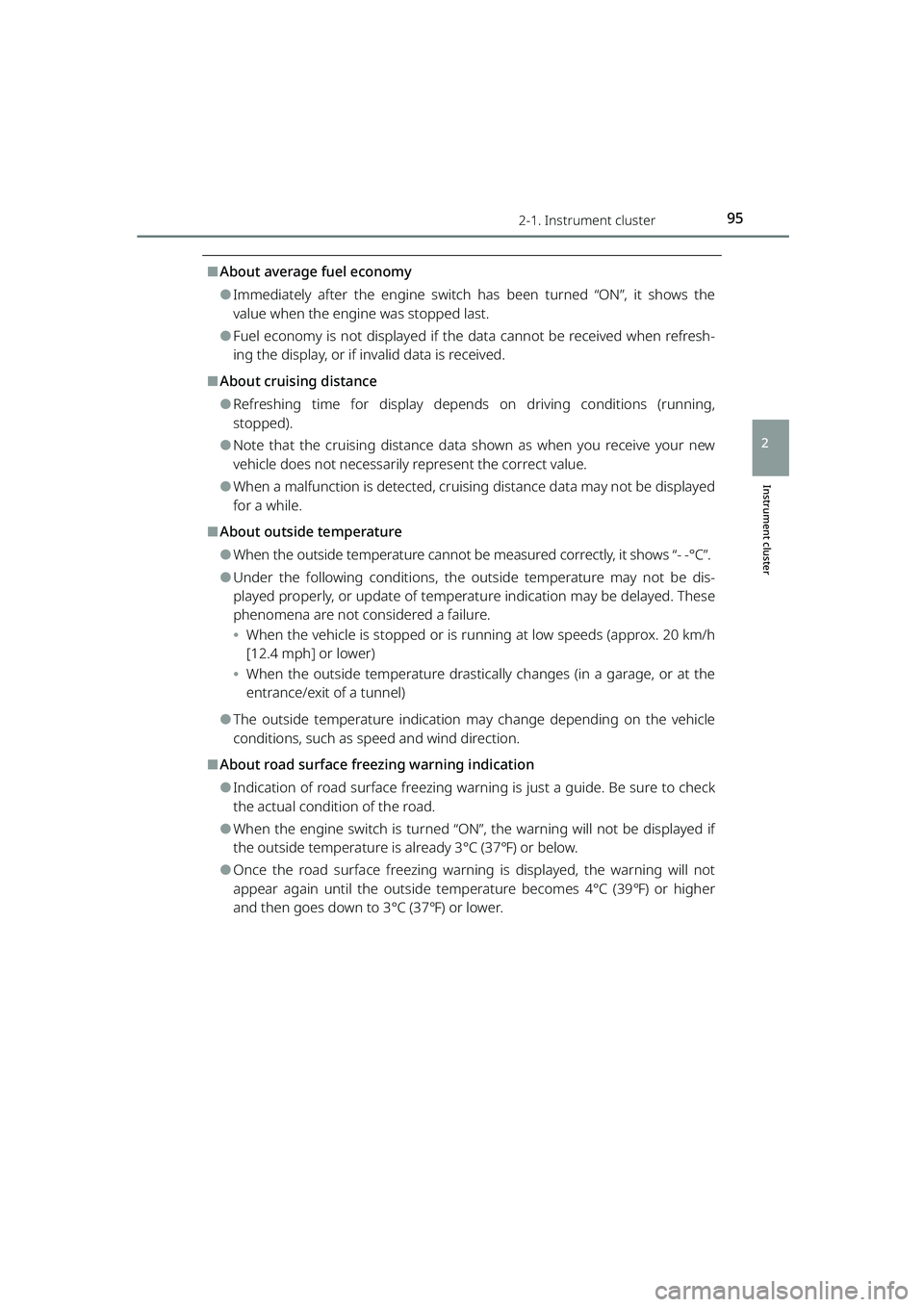

Page 97 of 516

952-1. Instrument cluster
RAIZE_OM_General_BZ358E
Instrument cluster
2
⬛About average fuel economy
⚫Immediately after the engine switch has been turned “ON”, it shows the
value when the engine was stopped last.
⚫Fuel economy is not displayed if the da ta cannot be received when refresh-
ing the display, or if in valid data is received.
⬛About cruising distance
⚫Refreshing time for display depend s on driving conditions (running,
stopped).
⚫Note that the cruising distance data shown as when you receive your new
vehicle does not necessarily represent the correct value.
⚫When a malfunction is detected, cruising distance data may not be displayed
for a while.
⬛About outside temperature
⚫When the outside temperature cannot be measured correctly, it shows “- -°C”.
⚫Under the following conditions, the outside temperature may not be dis-
played properly, or update of temperat ure indication may be delayed. These
phenomena are not considered a failure.
⦁ When the vehicle is stopped or is running at low speeds (approx. 20 km/h
[12.4 mph] or lower)
⦁ When the outside temperature drastically changes (in a garage, or at the
entrance/exit of a tunnel)
⚫The outside temperature indication may change depending on the vehicle
conditions, such as speed and wind direction.
⬛About road surface freezing warning indication
⚫Indication of road surface freezing warnin g is just a guide. Be sure to check
the actual condition of the road.
⚫When the engine switch is turned “ON” , the warning will not be displayed if
the outside temperature is already 3°C (37 ℉) or below.
⚫Once the road surface freezing warning is displayed, the warning will not
appear again until the outside temperature becomes 4°C (39 ℉) or higher
and then goes down to 3°C (37 ℉) or lower.
RAIZE_OM_General_BZ358E.book 95 ページ 2022年5月17日 火曜日 午後1時59分
Page 121 of 516

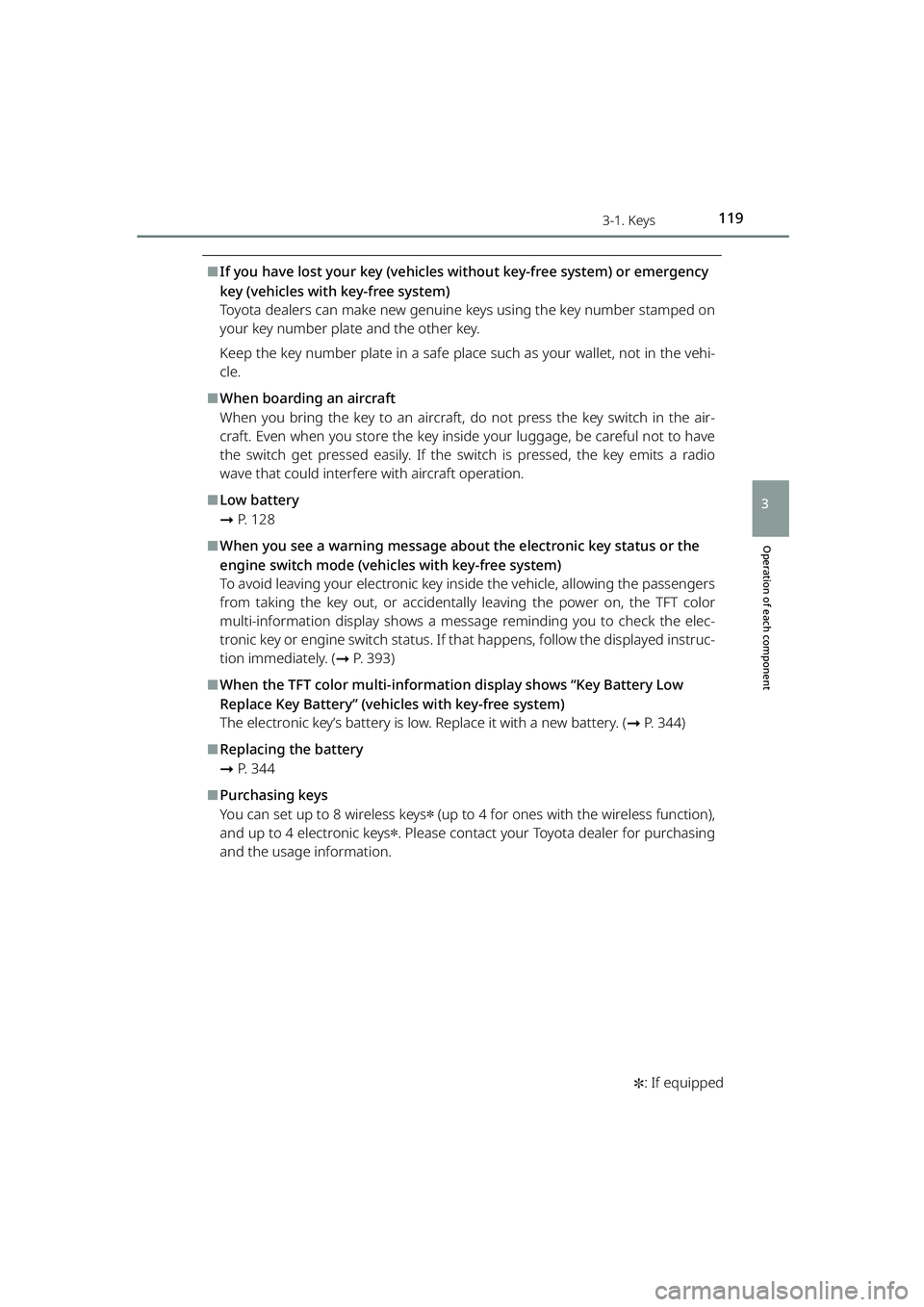

1193-1. Keys
RAIZE_OM_General_BZ358E✽
: If equipped
Operation of each component
3
⬛If you have lost your key (vehicles without key-free system) or emergency
key (vehicles with key-free system)
Toyota dealers can make new genuine keys using the key number stamped on
your key number plate and the other key.
Keep the key number plate in a safe place such as your wallet, not in the vehi-
cle.
⬛When boarding an aircraft
When you bring the key to an aircraft, do not press the key switch in the air-
craft. Even when you store the key inside your luggage, be careful not to have
the switch get pressed easily. If the switch is pressed, the key emits a radio
wave that could interfere with aircraft operation.
⬛Low battery
➞ P. 1 2 8
⬛When you see a warning message about the electronic key status or the
engine switch mode (vehicles with key-free system)
To avoid leaving your electronic key insi de the vehicle, allowing the passengers
from taking the key out, or accidenta lly leaving the power on, the TFT color
multi-information display shows a messa ge reminding you to check the elec-
tronic key or engine switch status. If t hat happens, follow the displayed instruc-
tion immediately. ( ➞P. 393)
⬛When the TFT color multi-information display shows “Key Battery Low
Replace Key Battery” (vehicles with key-free system)
The electronic key’s battery is low. Replace it with a new battery. ( ➞P. 344)
⬛Replacing the battery
➞P. 3 4 4
⬛Purchasing keys
You can set up to 8 wireless keys
✽ (up to 4 for ones with the wireless function),
and up to 4 electronic keys
✽. Please contact your Toyota dealer for purchasing
and the usage information.
RAIZE_OM_General_BZ358E.book 119 ページ 2022年5月17日 火曜日 午後1時59分
Page 145 of 516

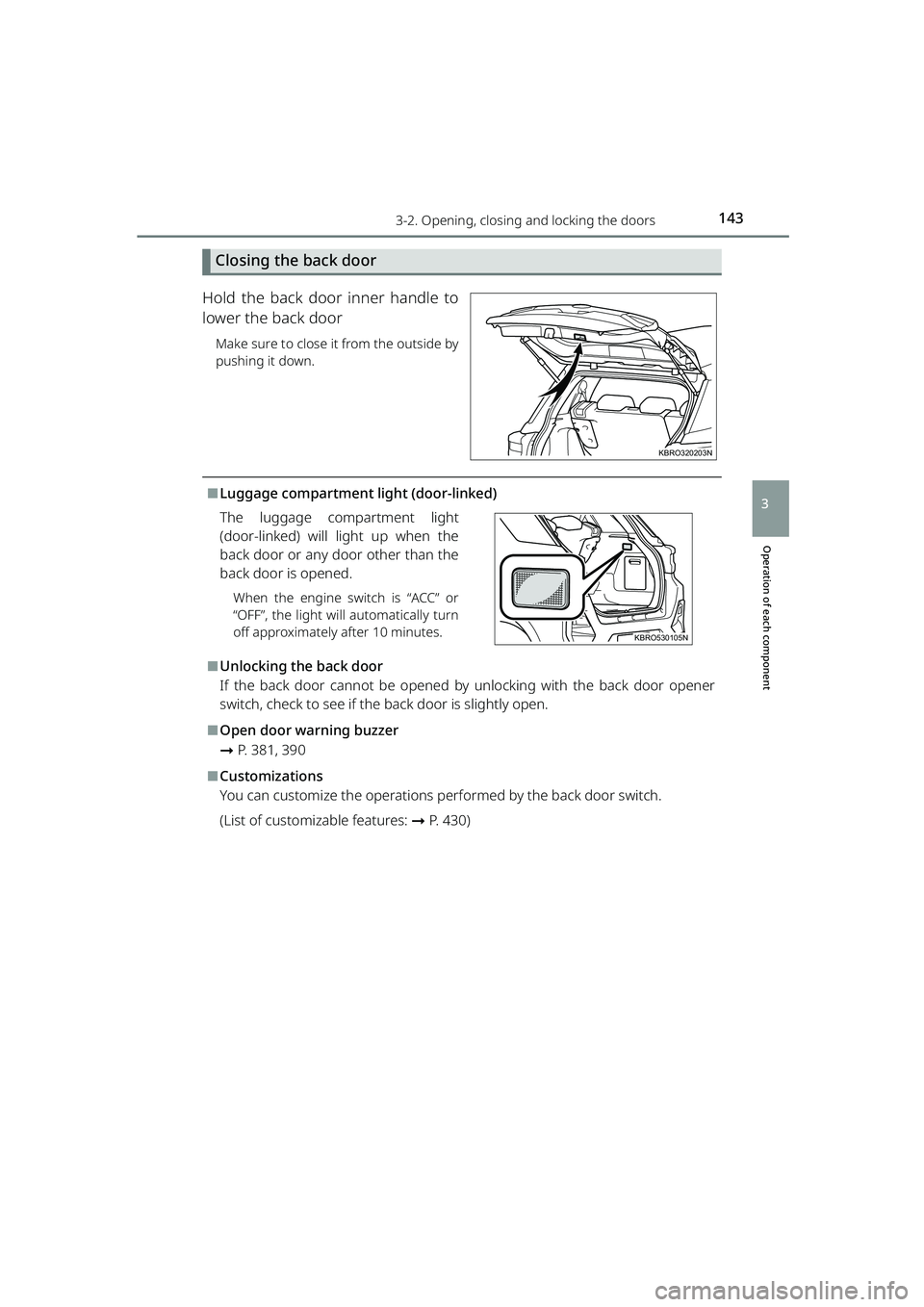

1433-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3
Closing the back door
Hold the back door inner handle to
lower the back door
Make sure to close it from the outside by
pushing it down.
⬛Luggage compartment light (door-linked) The luggage compartment light
(door-linked) will light up when the
back door or any door other than the
back door is opened.
When the engine switch is “ACC” or
“OFF”, the light will automatically turn
off approximately after 10 minutes.
⬛Unlocking the back door
If the back door cannot be opened by unlocking with the back door opener
switch, check to see if the b ack door is slightly open.
⬛Open door warning buzzer
➞P. 381, 390
⬛Customizations
You can customize the operations performed by the back door switch.
(List of customizable features: ➞ P. 430)
KBRO320203N
KBRO530105N
Parts.fm 143 ページ 2022年6月17日 金曜日 午前9時2分
