engine TOYOTA RAV4 2005 XA30 / 3.G User Guide

'05 Rav4_U (L/O 0409)
13
2005 RAV4 from Sep. '04 Prod. (OM42570U)
The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key's head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
In the following cases, contact your Toyota
dealer.

The indicator light stays on.

The indicator light does not start flash-
ing when the key is removed from the
ignition switch.

The indicator light flashes inconsistent-
ly.
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off. For your Toyota dealer to make you a
new key with built- in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-tem. If any unauthorized changes ormodifications are made, proper opera-
tion of the system cannot be guaran-teed.
Engine immobilizer system

'05 Rav4_U (L/O 0409)

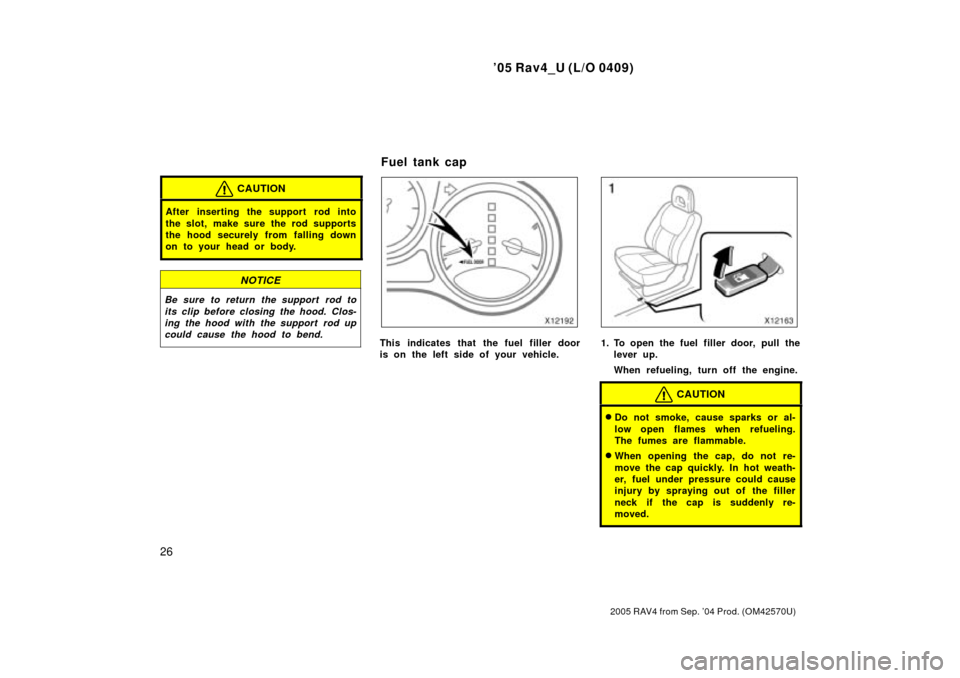

26
2005 RAV4 from Sep. '04 Prod. (OM42570U)
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
NOTICE
Be sure to return the support rod toits clip before closing the hood. Clos-ing the hood with the support rod upcould cause the hood to bend.
This indicates that the fuel filler door
is on the left side of your vehicle.1. To open the fuel filler door, pull the lever up.
When refueling, turn off the engine.
CAUTION

Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.

When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
Fuel tank cap

'05 Rav4_U (L/O 0409)
44
2005 RAV4 from Sep. '04 Prod. (OM42570U)
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;

Babies, small children, elderly per-
sons, sick persons or persons with
physical disabilities

Persons who have delicate skin

Persons who are exhausted

Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
NOTICE

Do not put unevenly weighed ob- jects on the seat and do not sticksharp objects (needles, nails, etc.)into the seat.

When cleaning the seats, do notuse organic substances (paint thin-ner, benzine, alcohol, gasoline,
etc.). They may damage the heaterand seat surface.

To prevent the battery from beingdischarged, turn the switch offwhen the engine is not running.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle's seat belts. See Child restraintº
on page 69 in this Section for details.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle's seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.
Seat beltsÐ
ÐSeat belt precautions

'05 Rav4_U (L/O 0409)
98
2005 RAV4 from Sep. '04 Prod. (OM42570U)
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1ÐParking, tail, license plate,
side marker and instrument panel lights
Position 2ÐHeadlights and all of the
above
Light reminder buzzer
A buzzer will remind you to turn the lights
off when the driver 's door is opened if you
remove the key with the headlight switch
on.
NOTICE
To prevent the battery from being dis-charged, do not leave the lights onfor a long period when the engine isnot running.
Daytime running light system
(on some models)
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the engine started, even with the light
switch in the OFFº position. They will not
go off until the ignition switch is turned
off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
to full intensity for driving at night.
High- Low beamsÐ For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)ÐPull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to OFFº.
Headlights and turn signals

'05 Rav4_U (L/O 0409)
105
2005 RAV4 from Sep. '04 Prod. (OM42570U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge106
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Engine coolant temperature gauge 106
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Odometer and two trip meters 108
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 109
. . . . . . . . . . . . . .
SECTION 1- 6

'05 Rav4_U (L/O 0409)
106
2005 RAV4 from Sep. '04 Prod. (OM42570U)
The gauge indicates the approximate
quantity of fuel remaining in the tank
when the ignition switch is on.
Nearly fullÐNeedle at Fº
Nearly emptyÐNeedle at Eº
It is a good idea to keep the tank over
1/4 full.
The needle moves when braking, acceler-
ating or making turns. This is caused by
the movement of the fuel in the tank.
If the fuel level approaches Eº or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
It is not a malfunction even if the needle
of the fuel gauge returns to Eº when the
ignition switch is turned to the STARTº
position.The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:

Driving up a long hill on a hot day.

Reducing speed or stopping after high
speed driving.
Fuel gauge
Engine coolant temperature
gauge

'05 Rav4_U (L/O 0409)
107
2005 RAV4 from Sep. '04 Prod. (OM42570U)

Idling for a long period with the air
conditioning on in stop- and- go traffic.

Towing a trailer.
It is not a malfunction even if the needle
of the engine coolant temperature gauge
returns to Cº when the ignition switch is
turned to the STARTº position.
NOTICE

Do not remove the thermostat in the engine cooling system as thismay cause the engine to overheat.The thermostat is designed to con-
trol the flow of coolant to keep thetemperature of the engine withinthe specified operating range.

Do not continue driving with anoverheated engine. See If your ve-hicle overheatsº on page 246 in
Section 4.
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and over- revving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
It is not a malfunction even if the needle
of the tachometer returns to the bottom
position when the ignition switch is turned
to the STARTº position.
NOTICE
Do not let the indicator needle getinto the red zone. This may causesevere engine damage.
Tachometer

'05 Rav4_U (L/O 0409)
11 0
2005 RAV4 from Sep. '04 Prod. (OM42570U)
If the indicator or buzzer comes on...Do this.
(h)orTake vehicle to Toyota dealer.
If brake system warning light is also on, stop immediately and contact Toyota dealer.
(i)Close all side doors and back door.
(j)Take vehicle to Toyota dealer immediately.
(k)Stop and check.
(l)Take vehicle to Toyota dealer.
(m)Adjust tire inflation pressure and turn off warning light by pushing reset switch for a
few seconds. If warning light remains, contact Toyota dealer.
(n)Add washer fluid.
(o)Replace engine oil.

'05 Rav4_U (L/O 0409)
11 2
2005 RAV4 from Sep. '04 Prod. (OM42570U)
(a) Brake System Warning Light
This light comes on in the following cases
when the ignition key is in the ONº posi-
tion.

When the parking brake is applied...
Vehicles with anti- lock brake systemÐ
This light comes on for a few seconds
when the ignition key is turned to the
ONº position even after the parking brake
is released.

When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Toyota dealer in the following cases:

The light does not come on even if the
parking brake is applied when the igni-
tion key is in the ONº position.
Vehicles with anti- lock brake systemÐ

The light does not come on even if the
ignition key is turned on with the park-
ing brake released. A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Toyota dealer.

The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will become longer. De-
press the brake pedal firmly and
bring the vehicle to an immediate
stop.
Vehicles with anti- lock brake sys-
temÐ

The brake system warning light re-
mains on together with the ABSº
warning light.
In this case, not only the anti- lock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
(b) Driver's Seat Belt Reminder Light and Buzzer
The light and buzzer act as a reminder to
buckle up the driver's seat belt.
Once the ignition key is turned to ONº or
STARTº, the reminder light flashes and
buzzer sounds if the driver 's seat belt is
not fastened. Unless the driver fastens the
belt, the light continues flashing and the
buzzer stops after about 4 to 8 seconds.
(c) Front Passenger 's Seat Belt Re- minder Light
The light acts as a reminder to have the
front passenger buckle up the seat belt.
Once the ignition key is turned to ONº or
STARTº, the reminder light flashes if a
passenger sits in the front passenger seat
and does not fasten the seat belt. Howev-
er, if a front passenger uses an additional
seat cushion, the light may not flash even
when the seat belt is not buckled up.
If luggage or other load is placed on the
front passenger seat, depending on its
weight and how it is placed on the seat,
built- in sensors in the seat cushion may
detect the pressure, causing the reminder
light to keep flashing.

'05 Rav4_U (L/O 0409)
11 3
2005 RAV4 from Sep. '04 Prod. (OM42570U)
(d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio,etc., and drive directly to the
nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the enginedrive belt is broken or loose.
(e) Low Engine Oil Pressure Warning Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance. The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light onÐeven for one block.It may ruin the engine.
(f) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the ONº position and
goes off after the engine starts. This
means that the warning light system is
operating properly.
If the lamp remains on, or the lamp
comes on while driving, first check the
followings.

Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.

Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp does not go off even after
several trips, contact your Toyota dealer
as soon as possible.
If the fuel tank is not empty or the fuel
tank cap is not loose...

There is a problem somewhere in the
engine, emission control system, elec-
tronic throttle control system, automatic
transmission electrical system or warn-
ing light system itself.
Contact your Toyota dealer as soon as
possible to service the vehicle.
If engine speed does not increase when
the accelerator pedal is depressed, there
may be a problem somewhere in the elec-
tronic throttle control system.
At this time, vibration may occur. Howev-
er, if you depress the accelerator pedal
more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle
checked by your Toyota dealer as soon as
possible.
