TOYOTA RAV4 2005 XA30 / 3.G Owners Manual

'05 Rav4_U (L/O 0409)
303
2005 RAV4 from Sep. '04 Prod. (OM42570U)
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.

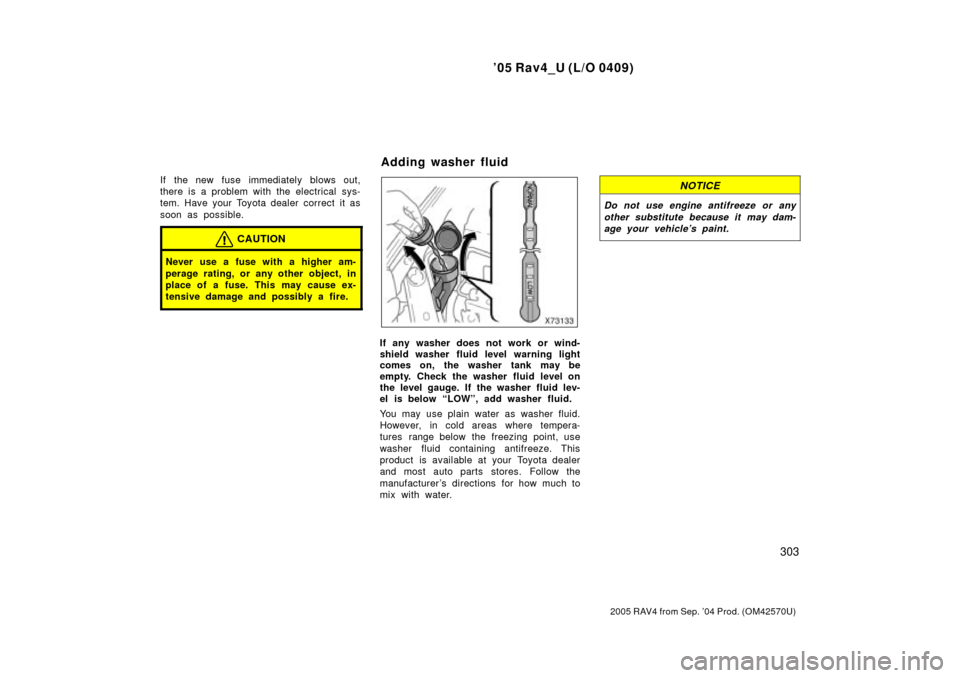

If any washer does not work or wind-
shield washer fluid level warning light
comes on, the washer tank may be
empty. Check the washer fluid level on
the level gauge. If the washer fluid lev-
el is below LOWº, add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer 's directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or anyother substitute because it may dam-age your vehicle's paint.
Adding washer fluid

'05 Rav4_U (L/O 0409)
304
2005 RAV4 from Sep. '04 Prod. (OM42570U)
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION

To prevent burning yourself, do not
replace the light bulbs while they
are hot.

Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights900360/55A
Parking and front
side marker lights1685B
Front turn signal
lights744021B
Front fog lightsÐ51C
Rear turn signal
lights744021B
Stop/tail and rear
side marker lights744321/5B
Back- up lights92116B
High mounted stop
light744021B
License plate light1685B
Interior lightsÐ8D
Personal lightÐ10D
A: HB2 halogen bulbs
B: Wedge base bulbs
C: HB4 halogen bulbs
D: Double end bulbs
Replacing light bulbsÐ

'05 Rav4_U (L/O 0409)
305
2005 RAV4 from Sep. '04 Prod. (OM42570U)

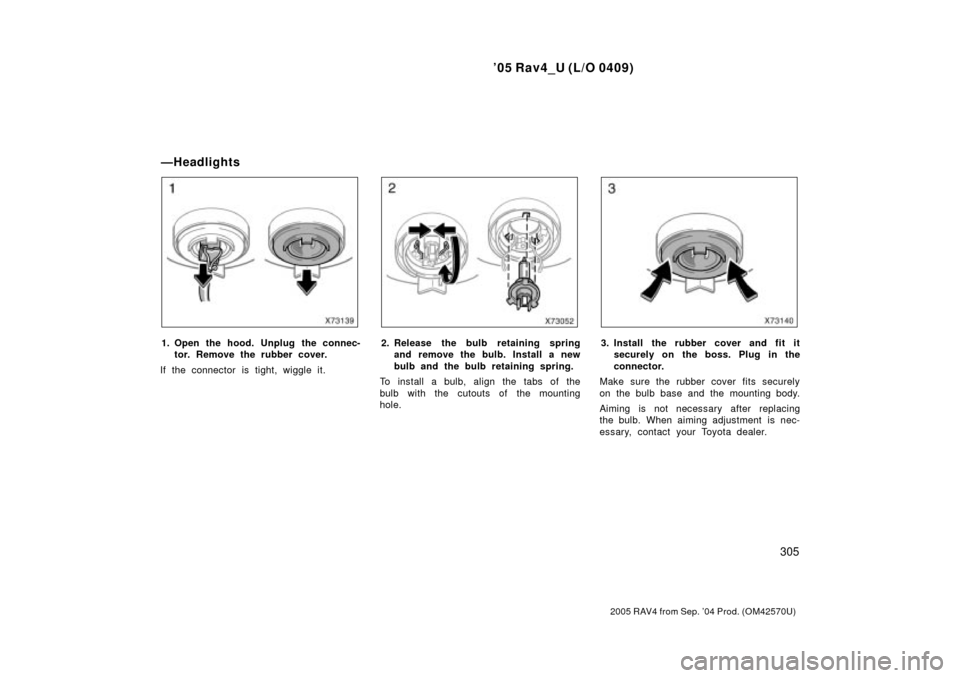

1. Open the hood. Unplug the connec-tor. Remove the rubber cover.
If the connector is tight, wiggle it.2. Release the bulb retaining spring and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.3. Install the rubber cover and fit it securely on the boss. Plug in the
connector.
Make sure the rubber cover fits securely
on the bulb base and the mounting body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
ÐHeadlights

'05 Rav4_U (L/O 0409)
306
2005 RAV4 from Sep. '04 Prod. (OM42570U)

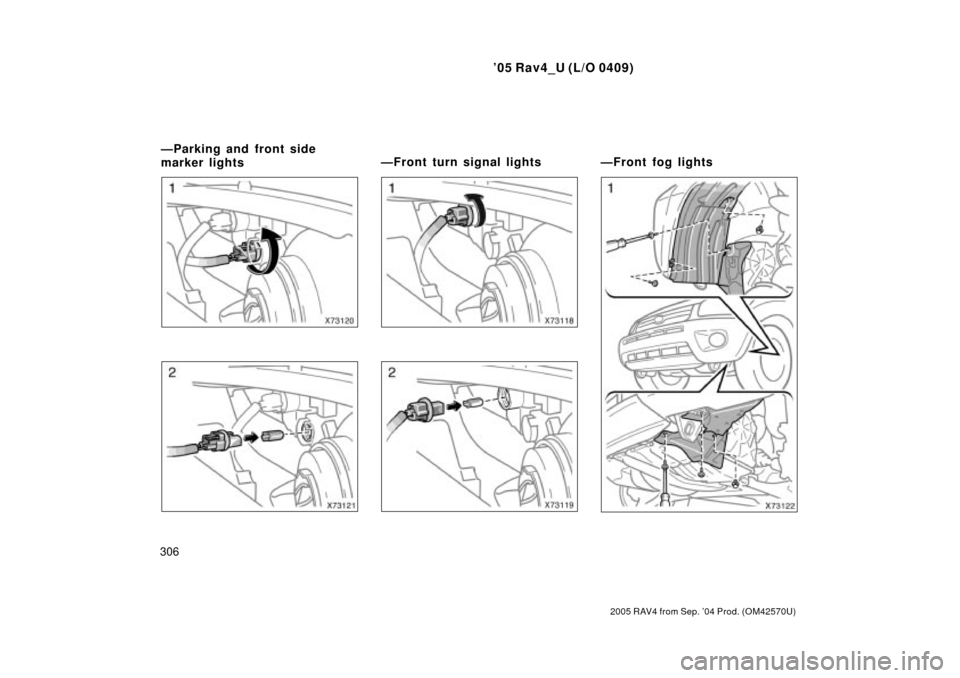

ÐParking and front side
marker lightsÐFront turn signal lights ÐFront fog lights

'05 Rav4_U (L/O 0409)
307
2005 RAV4 from Sep. '04 Prod. (OM42570U)

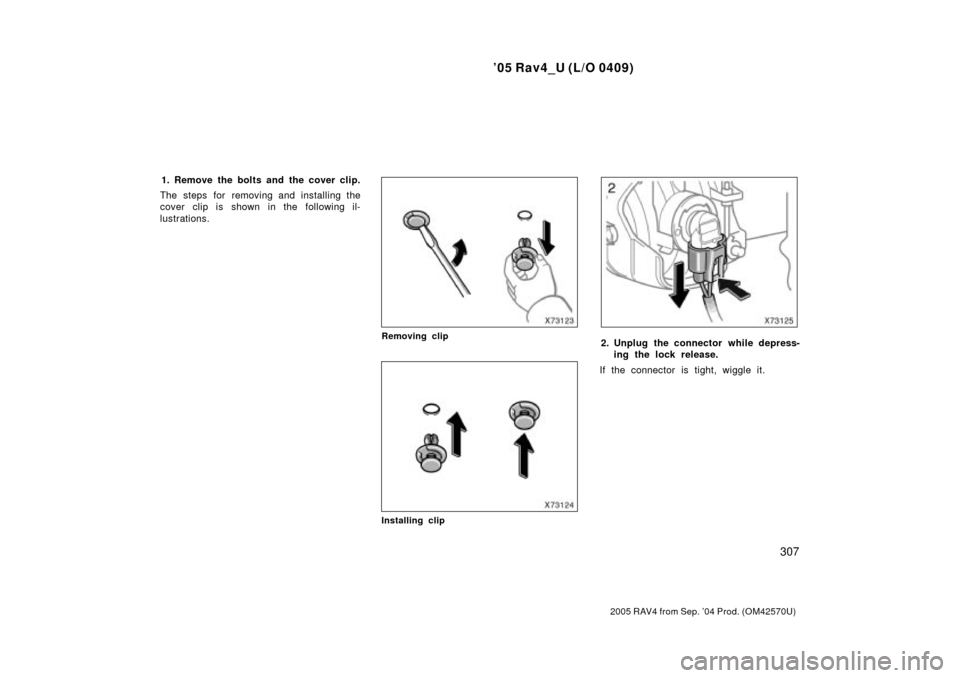

1. Remove the bolts and the cover clip.
The steps for removing and installing the
cover clip is shown in the following il-
lustrations.
Removing clip
Installing clip
2. Unplug the connector while depress- ing the lock release.
If the connector is tight, wiggle it.

'05 Rav4_U (L/O 0409)
308
2005 RAV4 from Sep. '04 Prod. (OM42570U)

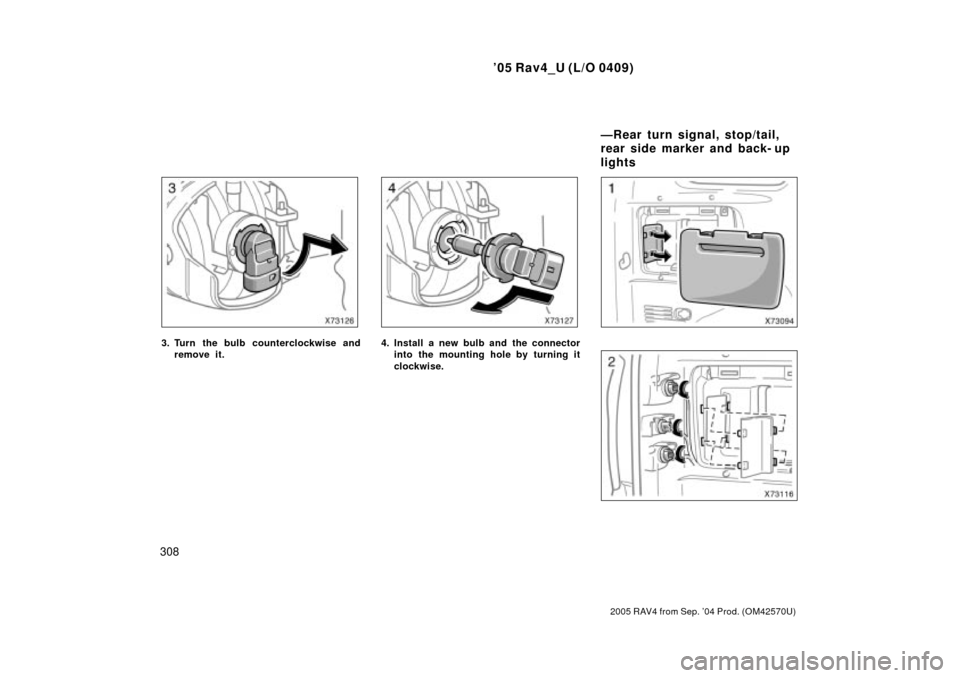

3. Turn the bulb counterclockwise andremove it.4. Install a new bulb and the connectorinto the mounting hole by turning it
clockwise.
ÐRear turn signal, stop/tail,
rear side marker and back- up
lights

'05 Rav4_U (L/O 0409)
309
2005 RAV4 from Sep. '04 Prod. (OM42570U)

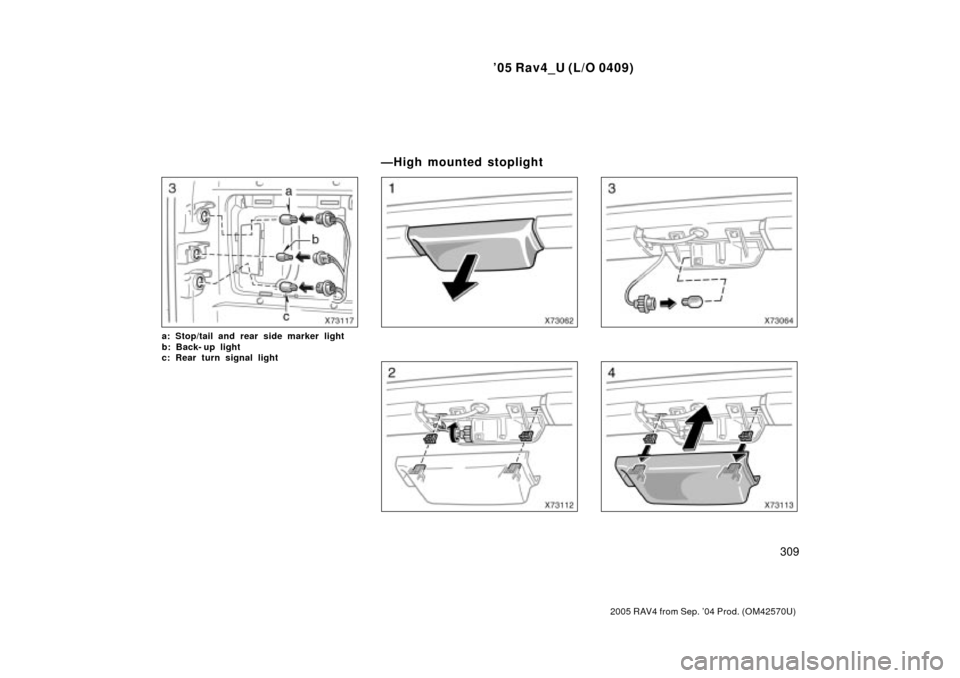

a: Stop/tail and rear side marker light
b: Back- up light
c: Rear turn signal light
ÐHigh mounted stoplight

'05 Rav4_U (L/O 0409)
310
2005 RAV4 from Sep. '04 Prod. (OM42570U)
Use a Flat- bladed screwdriver.
ÐLicense plate light

'05 Rav4_U (L/O 0409)
311
2005 RAV4 from Sep. '04 Prod. (OM42570U)
SPECIFICATIONS
Specifications
Dimensions and weights312
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Engine 313
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 313
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 313
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

'05 Rav4_U (L/O 0409)
312
2005 RAV4 from Sep. '04 Prod. (OM42570U)
*1: Unladen vehicle*2: With steel wheel spare tire and half
spare tire cover
*3: With aluminum wheel spare tire and
half spare tire cover
*4: With full spare tire cover*5: With over fender*6: Two- wheel drive models*7: Four- wheel drive models*8: With roof rails*9: With automatic transmission*10: With manual transmission
Dimensions and weights
Overall length mm (in.)
Overall width mm (in.)
Overall height
*1mm (in.)
Wheelbase mm (in.)
Front tread mm (in.)
Rear tread mm (in.)
Vehicle capacity
weight (occupants
+ luggage) kg (lb.) 215/70R16 tires 235/60R16 tires
4205 (165.6)
4210 (165.7)
* 2
4215 (165.9)*3
4255 (167.5)*4
4220 (166.1)
4225 (166.3)*3
4255 (167.5)*4
1735 (68.3)
1785 (70.3)*51785 (70.3)
1670 (65.7)
1705 (67.1)
*8
2490 (98.0) 2490 (98.0)
1505 (59.3)
* 7
1510 (59.4)*61525 (60.0)
1495 (58.9)
* 7
1500 (59.1)*61520 (59.8)
345 (761)
* 7, 9
375 (826)*7, 10
417 (919)*6, 9
447 (985)*6, 10
345 (761)*7, 9
375 (826)*7, 10
417 (919)*6, 9
447 (985)*6, 10
1670 (65.7)*6
1680 (66.1)*7
1705 (67.1)*6, 8
1715 (67.5)*7, 8
Towing capacity (trailer
weight + cargo weight)
kg (lb.)680 (1500) 680 (1500)
