OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Steering switches overview 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Overhead console overview 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 9
. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1

’07 Rav4_U (L/O 0701)
2
2007 RAV4 from Dec. ’06 Prod. (OM42662U)

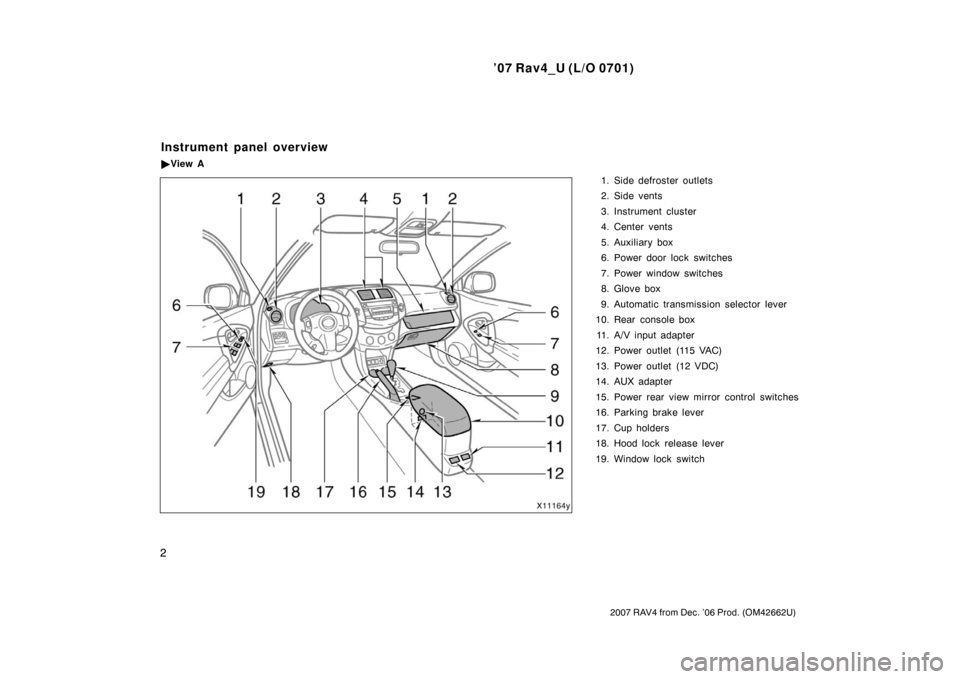

1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Auxiliary box
6. Power door lock switches
7. Power window switches
8. Glove box
9. Automatic transmission selector lever
10. Rear console box
11. A/V input adapter
12. Power outlet (115 VAC)
13. Power outlet (12 VDC)
14. AUX adapter
15. Power rear view mirror control switches
16. Parking brake lever
17. Cup holders
18. Hood lock release lever
19. Window lock switch

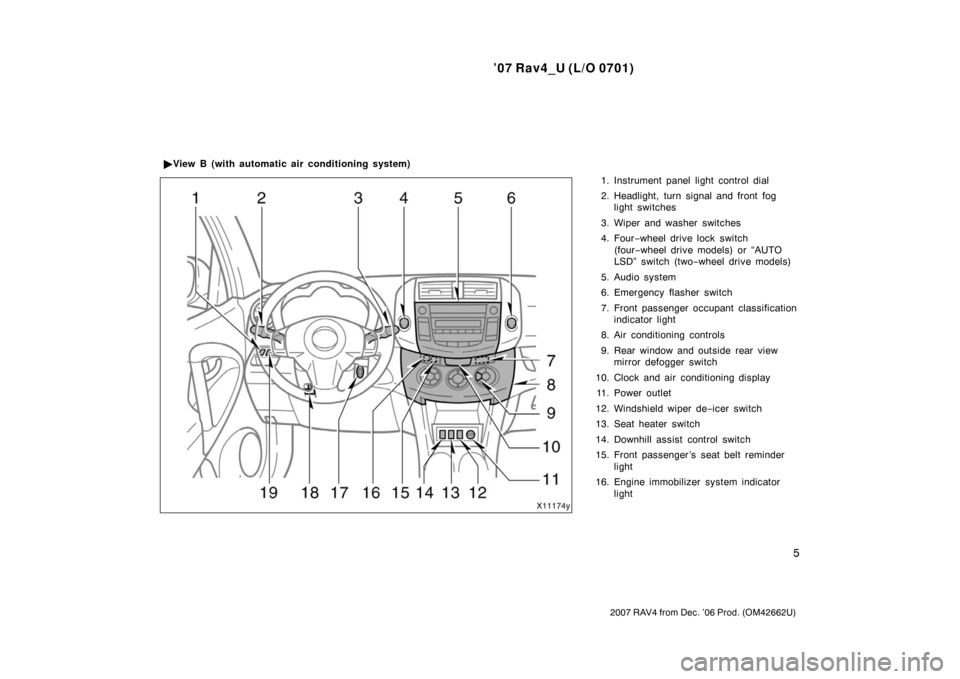

Instrument panel overview
 View A

’07 Rav4_U (L/O 0701)
3
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
1. Instrument panel light control dial
2. Headlight, turn signal and front foglight switches
3. Wiper and washer switches
4. Four −wheel drive lock switch
(four −wheel drive models) or “AUTO
LSD” switch (two −wheel drive models)
5. Audio system
6. Emergency flasher switch
7. Front passenger occupant classification indicator light
8. Air conditioning controls
9. Clock display
10. Rear window and outside rear view mirror defogger switch
11. Power outlet
12. Windshield wiper de −icer switch
13. Seat heater switch
14. Downhill assist control switch
15. Front passenger ’s seat belt reminder light
16. Engine immobilizer system indicator light

View B (with manual air conditioning system)

’07 Rav4_U (L/O 0701)
4
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
17. Ignition switch
18. Tilt and telescopic steering lock releaselever

’07 Rav4_U (L/O 0701)
5
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
1. Instrument panel light control dial
2. Headlight, turn signal and front foglight switches
3. Wiper and washer switches
4. Four −wheel drive lock switch
(four −wheel drive models) or “AUTO
LSD” switch (two −wheel drive models)
5. Audio system
6. Emergency flasher switch
7. Front passenger occupant classification indicator light
8. Air conditioning controls
9. Rear window and outside rear view mirror defogger switch
10. Clock and air conditioning display 11. Power outlet
12. Windshield wiper de −icer switch
13. Seat heater switch
14. Downhill assist control switch
15. Front passenger ’s seat belt reminder light
16. Engine immobilizer system indicator light

View B (with automatic air conditioning system)

’07 Rav4_U (L/O 0701)
6
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
17. Ignition switch
18. Tilt and telescopic steering lock releaselever
19. Power outlet main switch

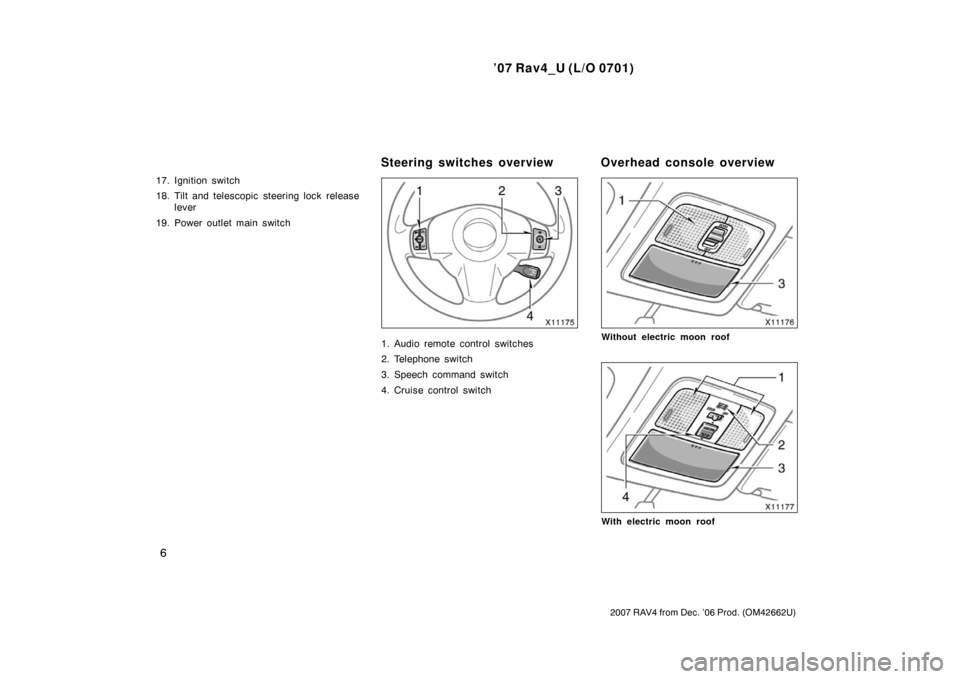

1. Audio remote control switches
2. Telephone switch
3. Speech command switch
4. Cruise control switchWithout electric moon roof
With electric moon roof
Steering switches overview Overhead console overview

’07 Rav4_U (L/O 0701)
7
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
1. Front personal lights
2. Microphone
3. Auxiliary box
4. Electric moon roof switch

’07 Rav4_U (L/O 0701)
8
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
1. Tachometer
2. Service reminder indicators andindicator lights
3. Speedometer 4. Engine coolant temperature gauge
5. Fuel gauge
6. Odometer, two trip meters and outside
temperature display 7. Trip meter reset knob
Instrument cluster overview

’07 Rav4_U (L/O 0701)
9
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
Brake system warning light∗1
Charging system warning light∗1
Low engine oil pressure warning light∗1
Malfunction indicator lamp∗1
Automatic transmission fluid temperature
warning light∗1
Driver ’s seat belt reminder light∗1
Open door warning light∗1
Low fuel level warning light∗1
SRS warning light∗1
Anti −lock brake system warning light∗
1
or
or
Front passenger ’s seat belt reminder light∗1
or
Tire pressure warning light∗1
Vehicle stability control system/traction control
system warning light∗1
“4WD” warning light∗1
Indicator symbols on the instrument panel

’07 Rav4_U (L/O 0701)
10
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 127 in Section 1 −6.
∗
2: If this light flashes, see “Cruise control” on page 166 in
Section 1 −7.Cruise control indicator light
∗
2
Four −wheel drive lock indicator light
Headlight high beam indicator light
Turn signal indicator lights
Automatic transmission indicator lights
(4 −speed)
Engine oil replacement reminder light
∗ 1
Slip indicator light
Front fog light indicator light Headlight indicator light
Tail light indicator light
“AIRBAG ON” and “AIRBAG OFF” indicator
lights
Downhill assist control system indicator light “AUTO LSD” indicator light
Low windshield washer fluid level warning
light∗1
Electric power steering system warning light∗1
Automatic transmission indicator lights
(5 −speed)
