Keys and Doors
Keys12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Back door 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Hood 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel tank cap 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2

’08 Rav4_U (L/O 0802)
12
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

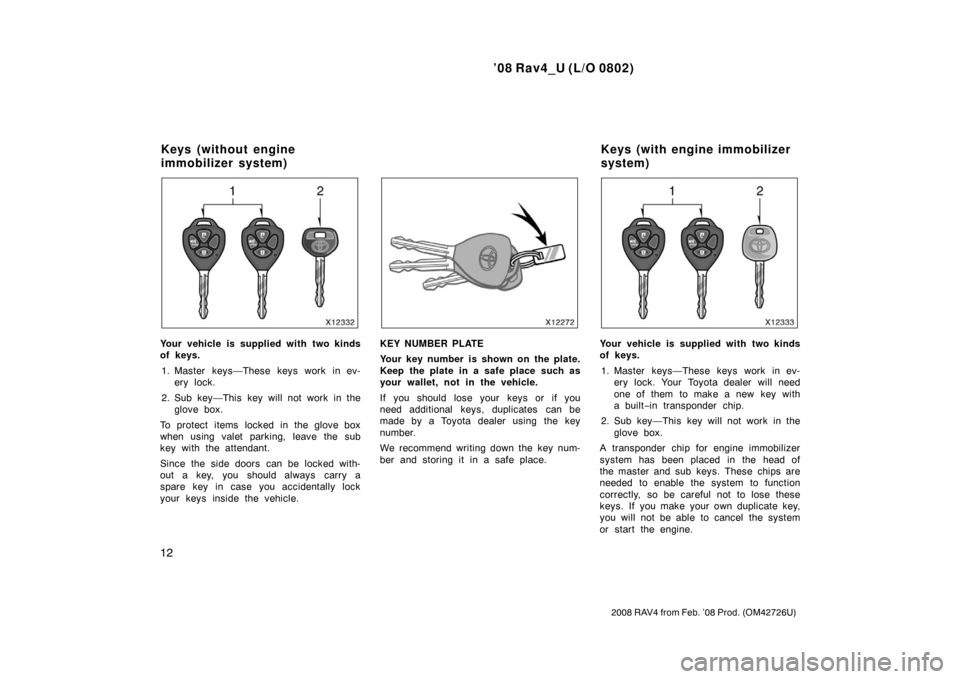

Your vehicle is supplied with two kinds
of keys.1. Master keys—These keys work in ev- ery lock.
2. Sub key—This key will not work in the glove box.
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.Your vehicle is supplied with two kinds
of keys. 1. Master keys—These keys work in ev- ery lock. Your Toyota dealer will need
one of them to make a new key with
a built −in transponder chip.
2. Sub key—This key will not work in the glove box.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (without engine
immobilizer system) Keys (with engine immobilizer
system)

’08 Rav4_U (L/O 0802)
13
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
NOTICE

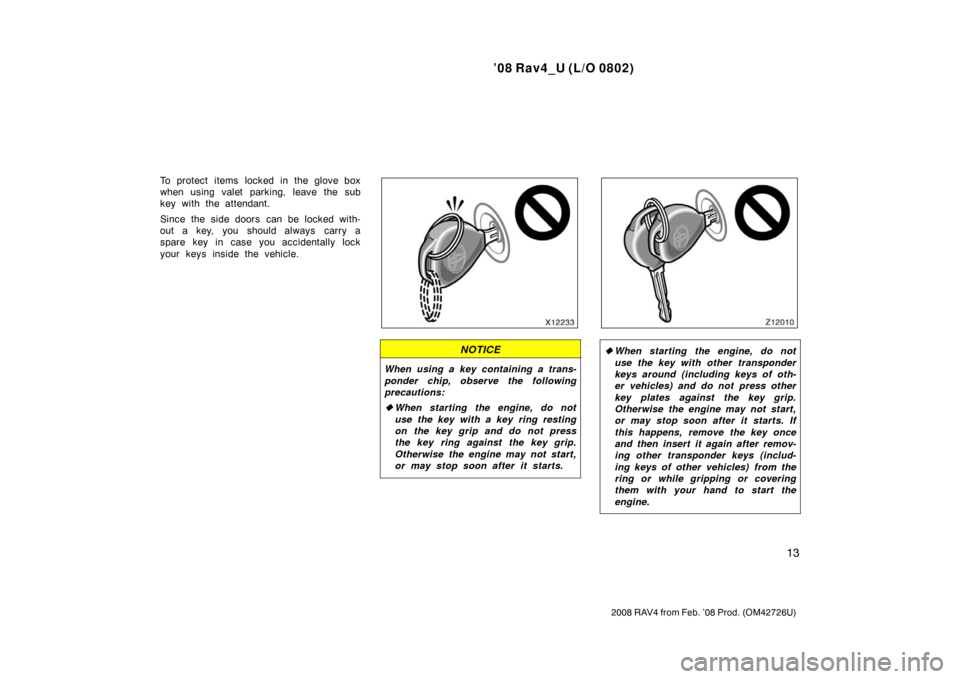

When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

’08 Rav4_U (L/O 0802)
14
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

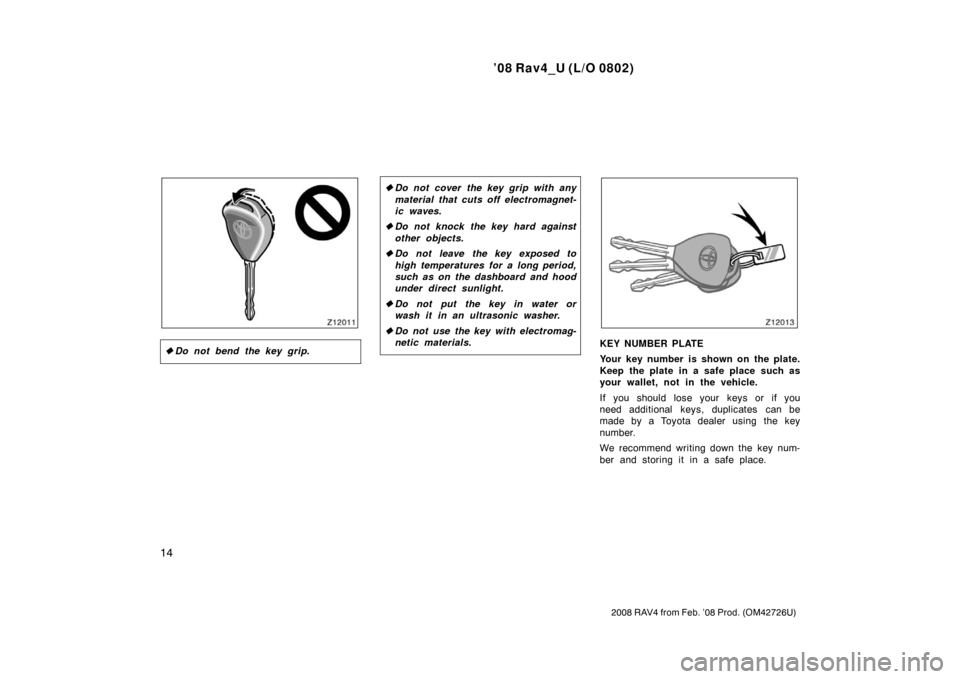

Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.

’08 Rav4_U (L/O 0802)
15
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the engine switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
Never leave the keys inside the vehicle
when you leave the vehicle.The system is automatically set when the
key is removed from the engine switch.
The indicator light will start flashing to
show the system is set.
In the following cases, contact your Toyota
dealer.
The indicator light stays on.
The indicator light does not start flash-
ing when the key is removed from the
engine switch.
The indicator light flashes inconsistent-
ly.
Inserting the registered key in the engine
switch automatically cancels the system,
which enables the engine to start. The

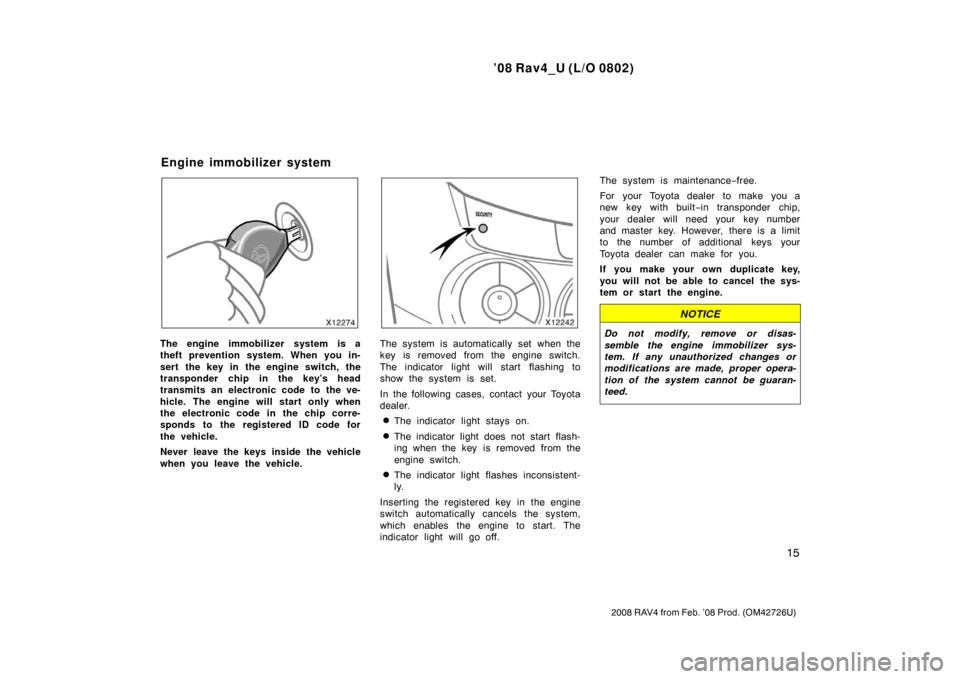

indicator light will go off. The system is maintenance−
free.
For your Toyota dealer to make you a
new key with built −in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.
Engine immobilizer system

’08 Rav4_U (L/O 0802)
16
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
For vehicles sold in U.S.A.
FCC ID: MOZRI20BTY
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS−210 of
industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

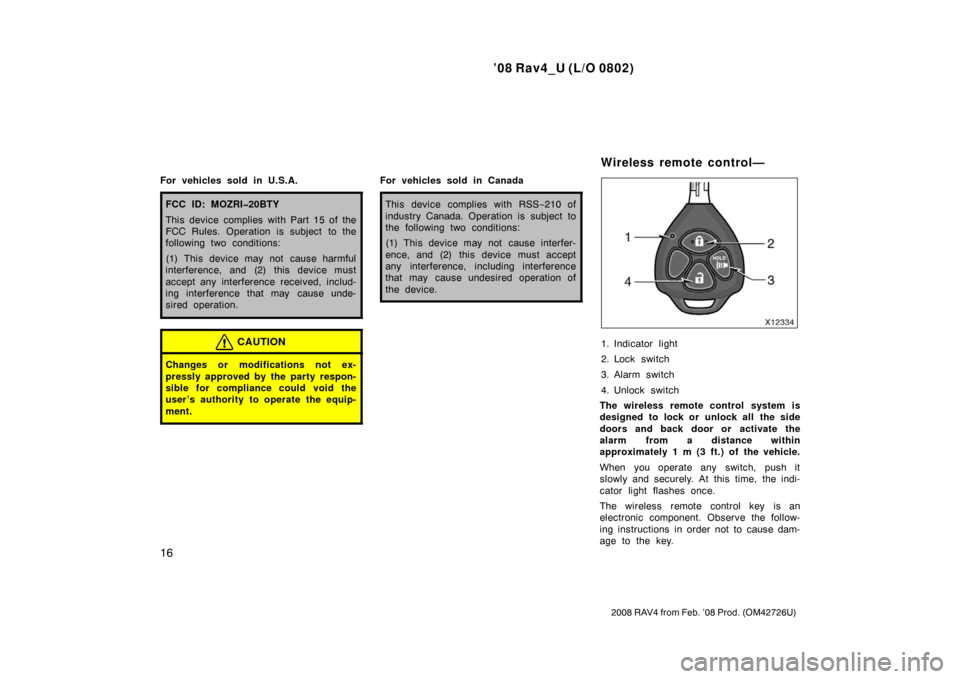

1. Indicator light
2. Lock switch
3. Alarm switch
4. Unlock switch
The wireless remote control system is
designed to lock or unlock all the side
doors and back door or activate the
alarm from a distance within
approximately 1 m (3 ft.) of the vehicle.
When you operate any switch, push it
slowly and securely. At this time, the indi-
cator light flashes once.
The wireless remote control key is an
electronic component. Observe the follow-
ing instructions in order not to cause dam-
age to the key.
Wireless remote control—

’08 Rav4_U (L/O 0802)
17
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Do not leave the key in places where
the temperature becomes high such as
on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 3 wireless remote con-
trol keys for the same vehicle. Contact
your Toyota dealer for detailed information.
If the wireless remote control key does
not actuate the side doors and back door
or alarm, or operate from a normal dis-
tance or the indicator on the key is
dimmed or does not come on:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the key.
The battery may have been consumed.

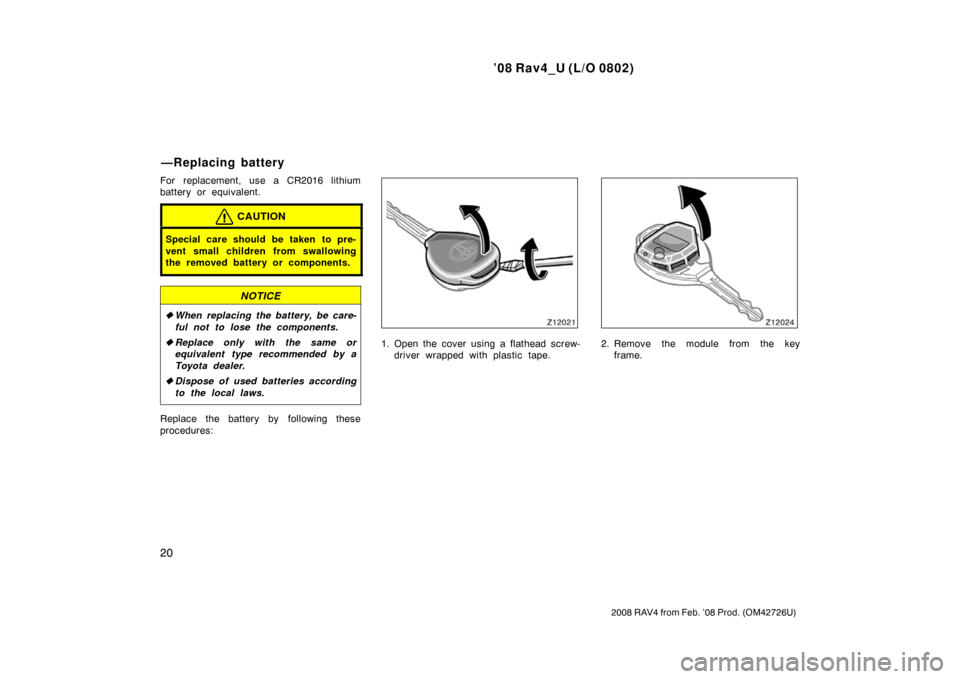

Check the battery in the key. To re-
place the battery, see “—Replacing bat-
tery” on page 20.
If you lose your wireless remote control
key, contact your Toyota dealer as soon
as possible to avoid the possibility of
theft, or an accident. (See “If you lose
your keys” on page 379 in Section 4.) For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there
is no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:

’08 Rav4_U (L/O 0802)
18
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
NOTE
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
Locking operation
Unlocking operation
To lock and unlock all the doors, push
the switches of the key slowly and se-
curely. At this time, the indicator light
on the key grip flashes once.

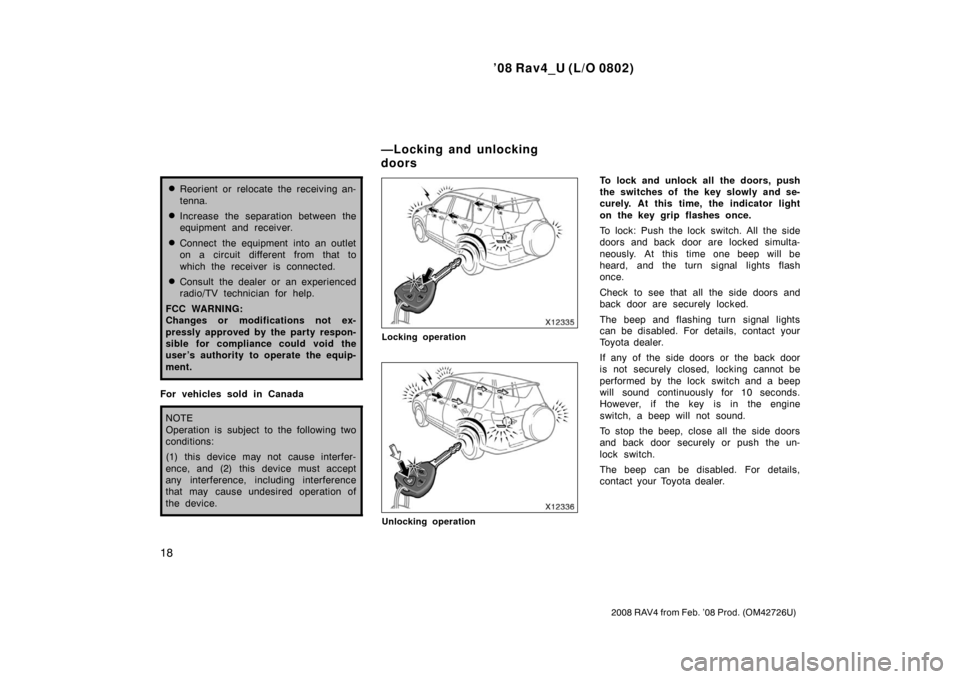

To lock: Push the lock switch. All the side
doors and back door are locked simulta-
neously. At this time one beep will be
heard, and the turn signal lights flash
once.
Check to see that all the side doors and
back door are securely locked.
The beep and flashing turn signal lights
can be disabled. For details, contact your
Toyota dealer.
If any of the side doors or the back door
is not securely closed, locking cannot be
performed by the lock switch and a beep
will sound continuously for 10 seconds.
However, if the key is in the engine
switch, a beep will not sound.
To stop the beep, close all the side doors
and back door securely or push the un-
lock switch.
The beep can be disabled. For details,
contact your Toyota dealer.
—Locking and unlocking
doors

’08 Rav4_U (L/O 0802)
19
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
To unlock: Push the unlock switch once to
unlock the driver ’s door alone. Pushing
the switch twice within 3 seconds unlocks
all the side doors and back door simulta-
neously. Each time the unlock switch is
pushed, two beeps will be heard, and the
turn signal lights flash twice.
This double switch operation to unlock all
the side doors and back door can be
changed to a single switch operation. For
details, contact your Toyota dealer.
When you unlock all the doors using the
wireless remote control, the illuminated
entry function will be activated. (For fur-
ther information, see “Illuminated entry
system” on page 119 in Section 1−5.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will be automati-
cally locked again.
The time before automatic door lock func-
tion can be changed. For details, contact
your Toyota dealer.
If the lock or unlock switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again.
Pushing the alarm switch blows the
horn intermittently and flashes the
headlights, tail lights and turn signal
lights and turns on the interior and per-
sonal lights.
The alarm switch is used to deter vehicle
theft when you witness anyone attempting
to break into or damage your vehicle.
The alarm will last for one minute. To stop
alarm midway, push any of the switch on
the key. You can also stop the alarm by
turning the engine switch from the “LOCK”
to the “ON” position.
The alarm function does not work when
the engine switch is in the “ON” position. This alarm function can be disabled. For
details, contact your Toyota dealer.
—Activating alarm

’08 Rav4_U (L/O 0802)
20
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
For replacement, use a CR2016 lithium
battery or equivalent.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed battery or components.
NOTICE
When replacing the battery, be care-
ful not to lose the components.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.
Replace the battery by following these
procedures:
1. Open the cover using a flathead screw-
driver wrapped with plastic tape.2. Remove the module from the keyframe.
—Replacing battery
