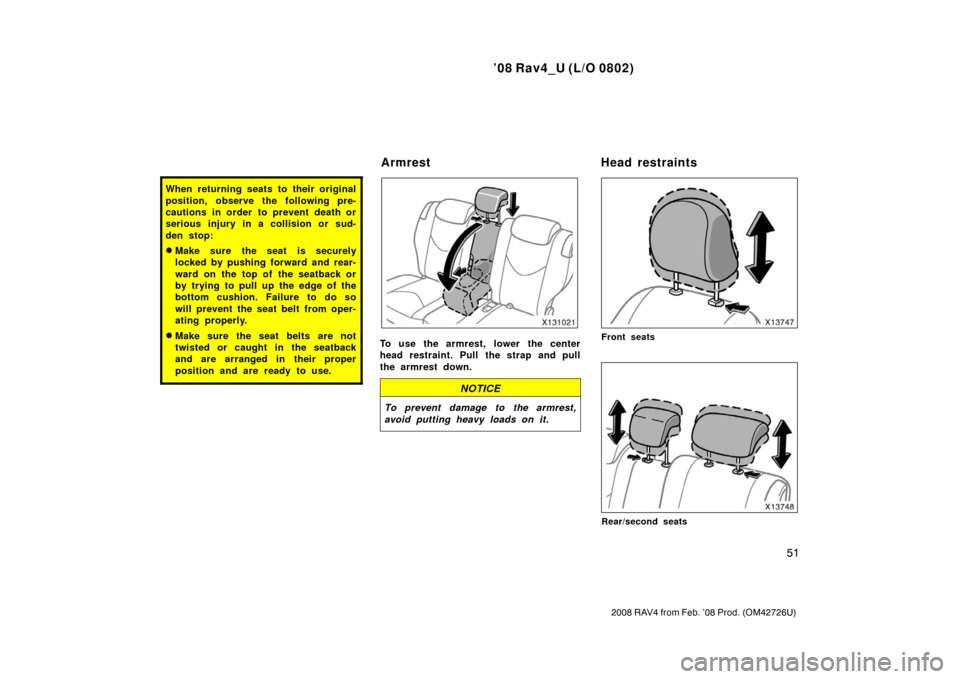

When returning seats to their original
position, observe the following pre-
cautions in order to prevent death or
serious injury in a collision or sud-
den stop:
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.To use the armrest, lower the center
head restraint. Pull the strap and pull
the armrest down.
NOTICE
To prevent damage to the armrest,
avoid putting heavy loads on it.
Front seats
Rear/second seats
ArmrestHead restraints

’08 Rav4_U (L/O 0802)
52
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Third seats
For your safety and comfort, adjust the
head restraint before driving.

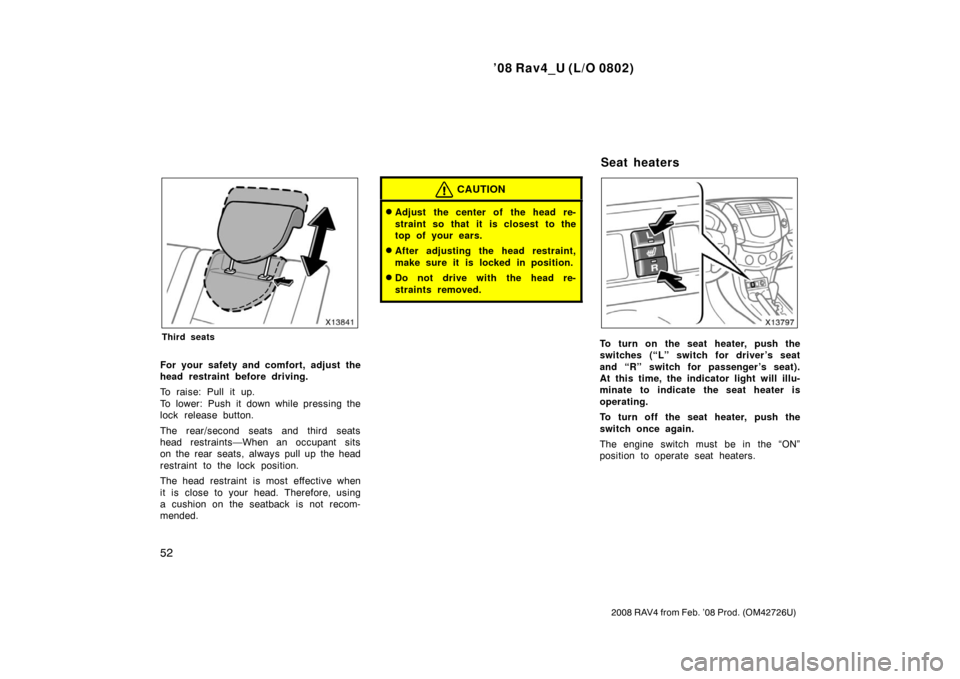

To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
The rear/second seats and third seats
head restraints—When an occupant sits
on the rear seats, always pull up the head
restraint to the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
To turn on the seat heater, push the
switches (“L” switch for driver ’s seat
and “R” switch for passenger ’s seat).
At this time, the indicator light will illu-
minate to indicate the seat heater is
operating.
To turn off the seat heater, push the
switch once again.
The engine switch must be in the “ON”
position to operate seat heaters.
Seat heaters

’08 Rav4_U (L/O 0802)
53
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or persons with
physical disabilities
Persons who have sensitive skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
NOTICE
 Do not put unevenly weighed ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
 When cleaning the seats, do not
use organic substances (paint thin-
ner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
 To prevent the battery from being
discharged, turn the switch off
when the engine is not running.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
on page 85 in this Section for details.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.
Seat belts—
—Seat belt precautions

’08 Rav4_U (L/O 0802)
54
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Do not allow any children to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. Holding a child in your arms
does not provide sufficient restraint.
Pregnant woman. Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer death or serious bodily inju-
ry, in the event of sudden braking or
a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
driver and the front passenger are
sitting up straight and well back in
the seats. If you are reclined, the
lap belt may slide past your hips
and apply restraint forces directly
to the abdomen or your neck may
contact the shoulder belt. In the
event of a frontal co llision, the
more the seat is reclined, the great-
er the risk of death or serious inju-
ry.
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or side doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers, or allow them to come into
contact with the belts—they may
severely weaken the belts. (See
“Cleaning the interior” on page 386
in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.

’08 Rav4_U (L/O 0802)
55
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Ta b
Buckle

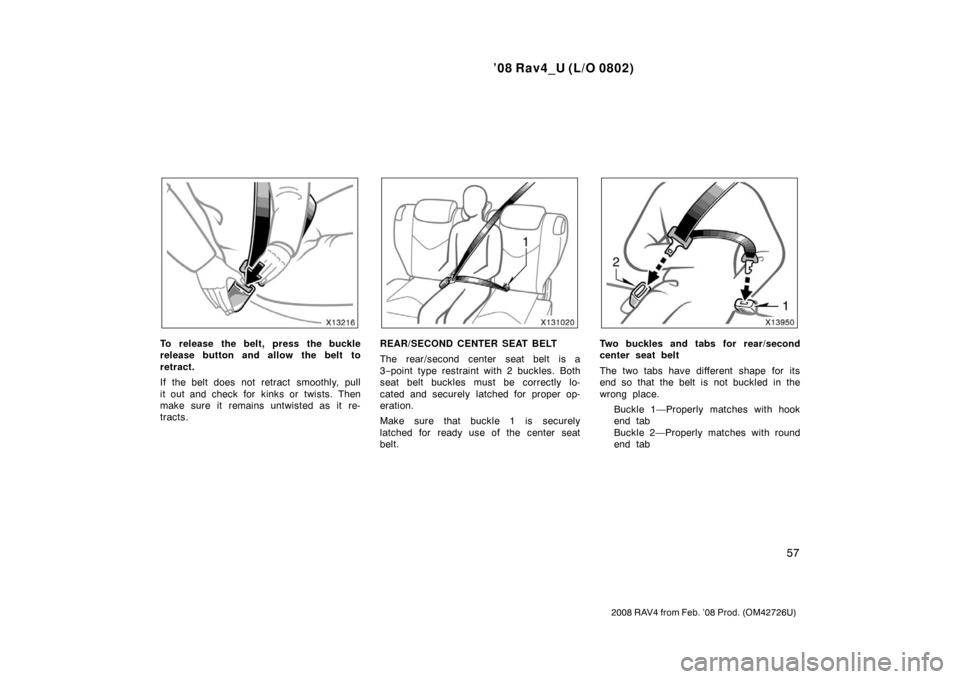

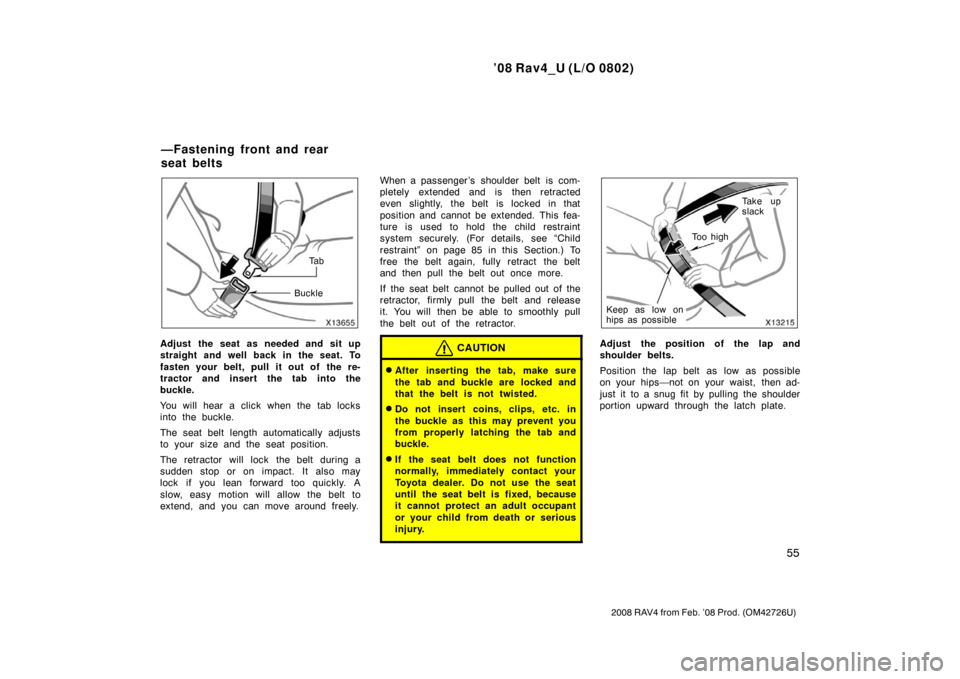

Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely. When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see “Child
restraint” on page 85 in this Section.) To
free the belt again, fully retract the belt
and then pull the belt out once more.
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from death or serious
injury.
Ta k e u p
slack
To o h i g h
Keep as low on
hips as possible
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hips—not on your waist, then ad-
just it to a snug fit by pulling the shoulder
portion upward through the latch plate.
—Fastening front and rear
seat belts

’08 Rav4_U (L/O 0802)
56
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
CAUTION
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on hips as possible.
Do not place the shoulder belt un-
der your arm.

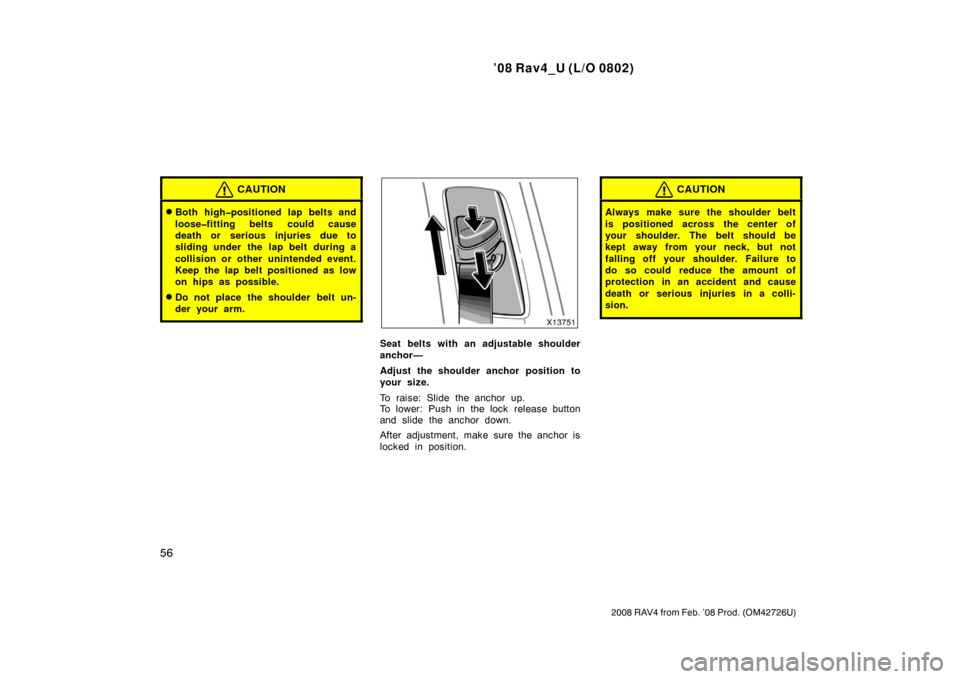

Seat belts with an adjustable shoulder
anchor—
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment, make sure the anchor is
locked in position.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
death or serious injuries in a colli-
sion.

’08 Rav4_U (L/O 0802)
57
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
To release the belt, press the buckle
release button and allow the belt to
retract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it re-
tracts.REAR/SECOND CENTER SEAT BELT
The rear/second center seat belt is a
3−point type restraint with 2 buckles. Both
seat belt buckles must be correctly lo-
cated and securely latched for proper op-
eration.
Make sure that buckle 1 is securely
latched for ready use of the center seat
belt.Two buckles and tabs for rear/second
center seat belt
The two tabs have different shape for its
end so that the belt is not buckled in the
wrong place.
Buckle 1—Properly matches with hook
end tab
Buckle 2—Properly matches with round
end tab

’08 Rav4_U (L/O 0802)
58
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
CAUTION
Make sure the both buckles are cor-
rectly located and securely latched.
Failure to properly match the buckle
and tab may cause death or severe
injury in case of an accident or a
collision.

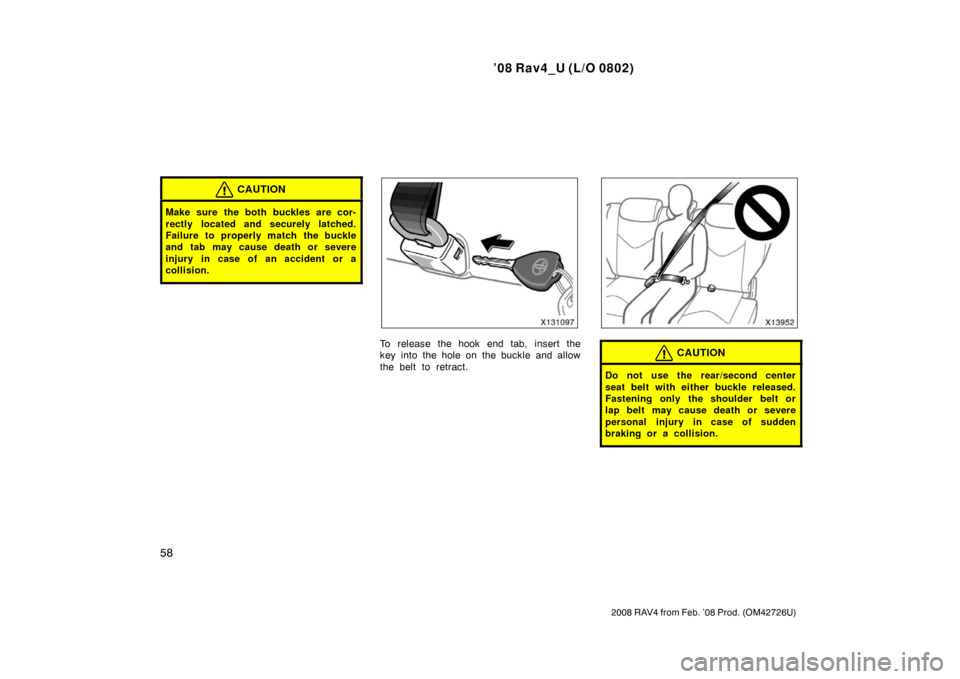

To release the hook end tab, insert the
key into the hole on the buckle and allow
the belt to retract.CAUTION
Do not use the rear/second center
seat belt with either buckle released.
Fastening only the shoulder belt or
lap belt may cause death or severe
personal injury in case of sudden
braking or a collision.

’08 Rav4_U (L/O 0802)
59
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Rear/second seat belt buckles
Third seat belt buckles
The rear seat belt buckles can be
stowed when not in use.
The seat belt buckles must be stowed
before you fold the seatback.
CAUTION
Before using the seat belt, pull out
the buckle and make sure the belt is
not twisted.
STOWING THE REAR/SECOND CENTER
SEAT BELT
Insert the tabs of the center seat belt
into the cover as shown above. Make
sure the tabs are securely locked in the
cover.
The seat belt must be stowed before you
fold the seatback.
NOTICE
Stow the rear/second center seat belt
when not in use.
—Stowing the rear seat belt
buckles—Stowing the rear/second
center seat belt

’08 Rav4_U (L/O 0802)
60
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
If your seat belts cannot be fastened se-
curely because they are not long enough,
a personalized seat belt extender is avail-
able from your Toyota dealer free of
charge.
Please contact your local Toyota dealer to
order the proper required length for the
extender. Bring the heaviest coat you ex-
pect to wear for proper measurement and
selection of length. Additional ordering in-
formation is available at your Toyota deal-
er.
CAUTION
When using the seat belt extender,
observe the following precautions.
Failure to follow these instructions
could reduce the effectiveness of the
seat belt restraint system in case of
an accident, increasing the chance of
death or serious injury.
Remember that the extender pro-
vided for you may not be safe when
used on a different vehicle, for
another person, or at a different
seating position than the one origi-
nally intended.
If the seat belt extender has been
connected to the driver ’s seat belt
buckle without wearing the seat belt
when using the extender in the
driver ’s seat, the SRS driver ’s air-
bag system will judge that the driv-
er wears the seat belt even if not
wearing it. In this case, the driver ’s
airbag may not activate correctly,
causing death or serious injury in
the event of collision. Be sure to
wear the seat belt with the seat belt
extender.
Make sure the “AIR BAG ON”
indicator light is illuminated when
using the seat belt extender for the
front passenger seat. If the “AIR
BAG OFF” indicator light is
illuminated, disconnect the extender
tongue from the seat belt buckle,
then reconnect the seat belt.
Reconnect the seat belt extender
after making sure the “AIR BAG
ON” indicator light is illuminated. If
you use the seat belt extender
while the “AIR BAG OFF” indicator
light is illuminated, the front
passenger airbag and side airbag
on the front passenger side may
not activate correctly, causing death
or serious injury in the event of
collision.
Be sure to wear the seat belt with-
out the seat belt extender if you
can fasten the seat belt without the
extender.
—Seat belt extender
