TOYOTA RAV4 2008 XA30 / 3.G Owner's Manual

’08 Rav4_U (L/O 0802)
21
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
3. Open and remove the battery casecover using a coin.4. Take out the discharged battery andput in a new battery with the positive
(+) side up.
5. Install the battery case cover and then install the module into the key frame.
Close the cover.
6. When pushing either switch on the wireless key, make sure the indicator
light comes on.
NOTICE
Do not bend the terminals.
 Make sure the positive side and
negative side of the battery are
faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
 Be careful not to bend the electrode
when inserting the battery and that
dust or oils do not adhere to the
battery case.
 Close the battery case securely.
After replacing the battery, check that the
key operates properly. If the key still does
not operate properly, contact your Toyota
dealer.

’08 Rav4_U (L/O 0802)
22
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

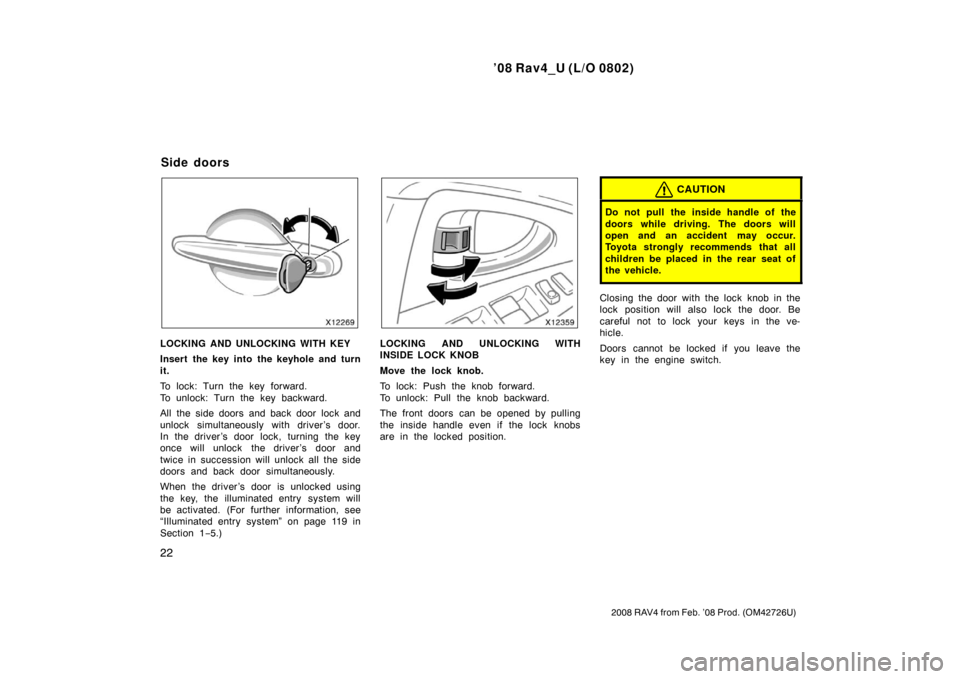

LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the side doors and back door lock and
unlock simultaneously with driver ’s door.
In the driver’s door lock, turning the key
once will unlock the driver’s door and
twice in succession will unlock all the side
doors and back door simultaneously.
When the driver’s door is unlocked using
the key, the illuminated entry system will
be activated. (For further information, see
“Illuminated entry system” on page 119 in
Section 1−5.)LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handle even if the lock knobs
are in the locked position.
CAUTION
Do not pull the inside handle of the
doors while driving. The doors will
open and an accident may occur.
Toyota strongly recommends that all
children be placed in the rear seat of
the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Doors cannot be locked if you leave the
key in the engine switch.
Side doors

’08 Rav4_U (L/O 0802)
23
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

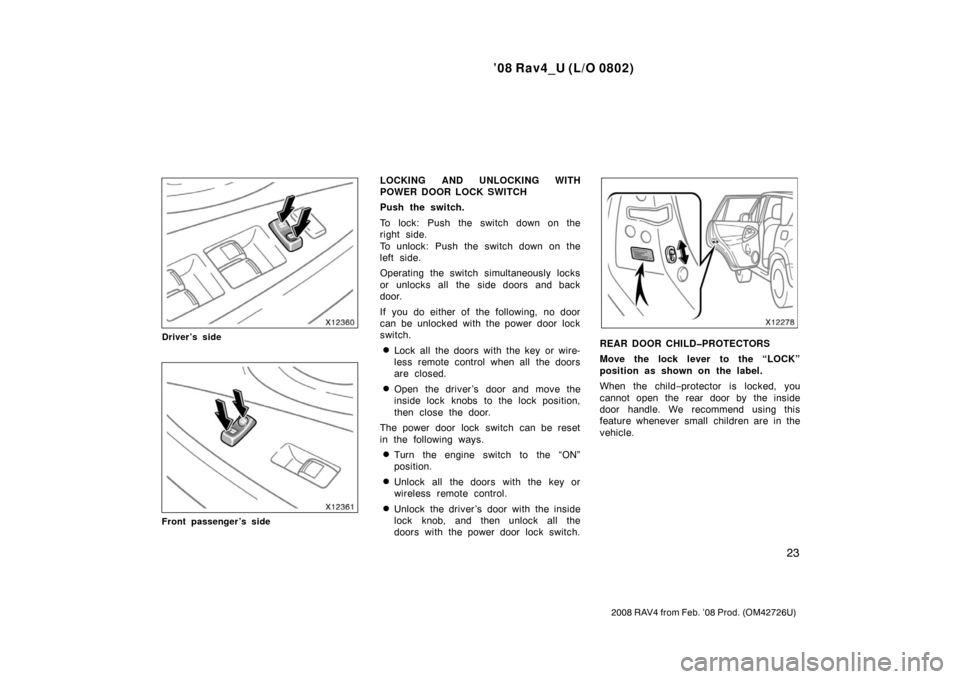

Driver’s side
Front passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
right side.
To unlock: Push the switch down on the
left side.
Operating the switch simultaneously locks
or unlocks all the side doors and back
door.
If you do either of the following, no door
can be unlocked with the power door lock
switch.
Lock all the doors with the key or wire-
less remote control when all the doors
are closed.
Open the driver’s door and move the
inside lock knobs to the lock position,
then close the door.
The power door lock switch can be reset
in the following ways.
Turn the engine switch to the “ON”
position.
Unlock all the doors with the key or
wireless remote control.
Unlock the driver’s door with the inside
lock knob, and then unlock all the
doors with the power door lock switch.
REAR DOOR CHILDPROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
When the child −protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.

’08 Rav4_U (L/O 0802)
24
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

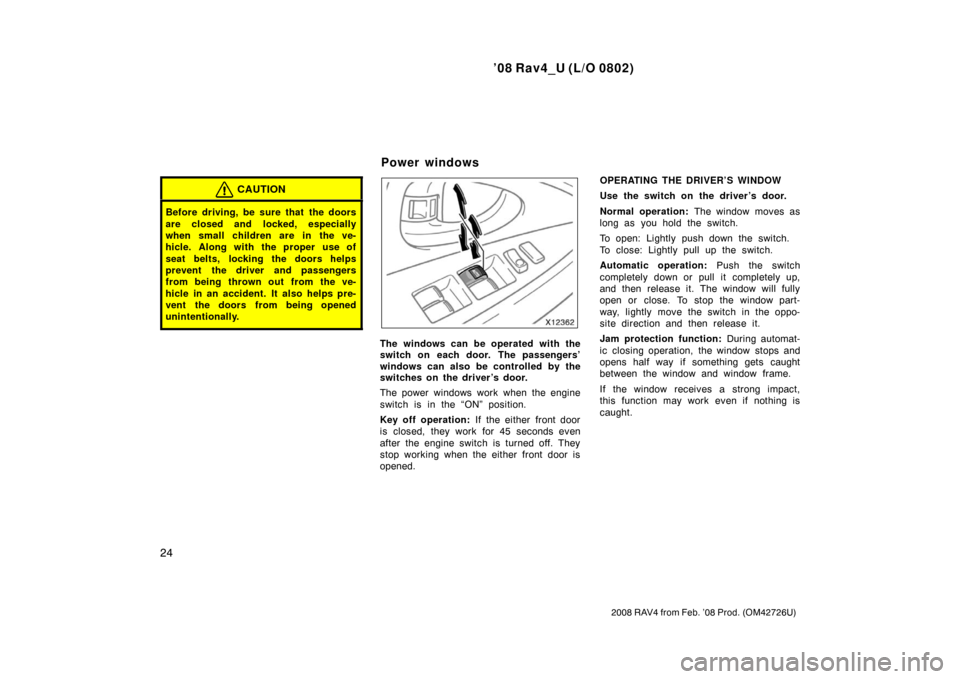

CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle in an accident. It also helps pre-
vent the doors from being opened
unintentionally.
The windows can be operated with the
switch on each door. The passengers’
windows can also be controlled by the
switches on the driver ’s door.
The power windows work when the engine
switch is in the “ON” position.
Key off operation: If the either front door
is closed, they work for 45 seconds even
after the engine switch is turned off. They
stop working when the either front door is
opened. OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation:
The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
Jam protection function: During automat-
ic closing operation, the window stops and
opens half way if something gets caught
between the window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
Power windows

’08 Rav4_U (L/O 0802)
25
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
If the power window does not operate
automatically or the jam protection
function does not operate correctly, you
should normalize the power window.
To normalize the power window:1. Push down the power window switch and lower the windows fully.
2. Pull up the switch until the windows close and hold the switch for a second.
Make sure that the window open and
close automatically. If the power windows
cannot be operated properly, have it
checked by your Toyota dealer.
CAUTION
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in a death or serious injury.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
Window
lock
switch
OPERATING THE PASSENGERS’
WINDOWS
Use the switch on each passenger ’s
door or the switches on the driver ’s
door that control each passenger ’s win-
dow.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.

’08 Rav4_U (L/O 0802)
26
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
CAUTION
To avoid death or serious personal
injury, you must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the key when
you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the key still in-
serted. Otherwise, he/she could use
the power window switches and get
trapped in a window. Unattended
person (particularly a small child)
can be involved in a serious acci-
dent.
To open the back door, pull the handle.
All the side doors and back door lock and
unlock simultaneously with the driver ’s
door.
Operating the power door lock switch or
wireless remote control key simultaneously
locks or unlocks the back door. (See
“—Locking and unlocking doors” on page
18 and “Side doors” on page 22 in this
Section.)
When closing the back door, make sure
it is fully closed.
See “—Stowage precautions” on page 336
in Section 2 for precautions when loading
luggage.
Back door

’08 Rav4_U (L/O 0802)
27
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

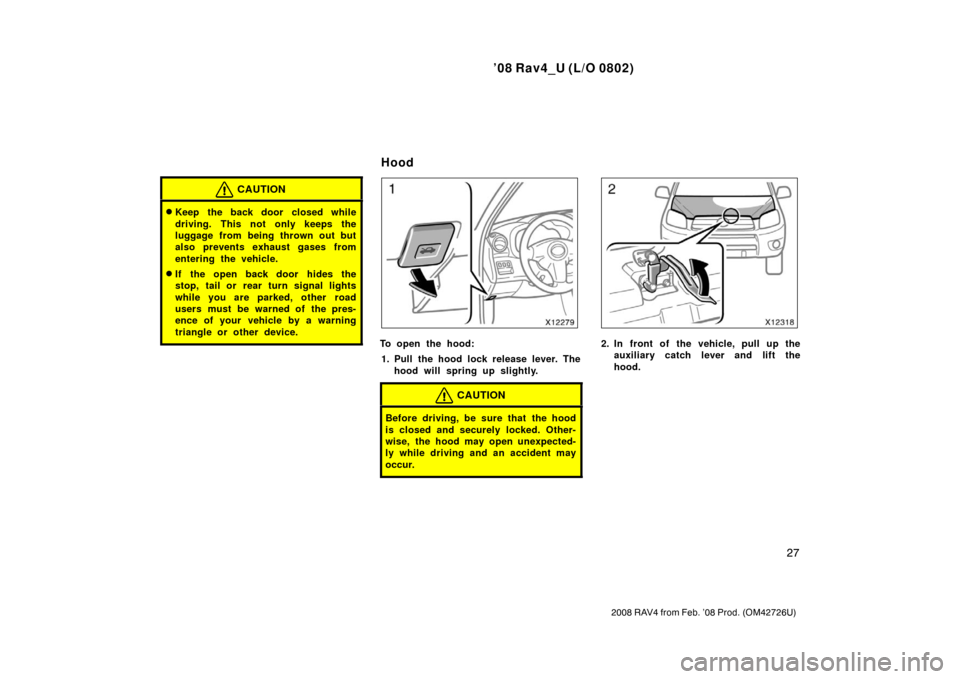

CAUTION
Keep the back door closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
If the open back door hides the
stop, tail or rear turn signal lights
while you are parked, other road
users must be warned of the pres-
ence of your vehicle by a warning
triangle or other device.
To open the hood:
1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Hood

’08 Rav4_U (L/O 0802)
28
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
3. Hold the hood open by inserting thesupport rod into the slot.
To insert the support rod into the slot,
move it straight up. If it is moved to the
side or toward the inside of the vehicle,
it may become detached.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
NOTICE
Be sure to return the support rod to
its clip before closing the hood. Clos-
ing the hood with the support rod up
could cause the hood to bend.
This indicates that the fuel filler door
is on the left side of your vehicle.
Fuel tank cap

’08 Rav4_U (L/O 0802)
29
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

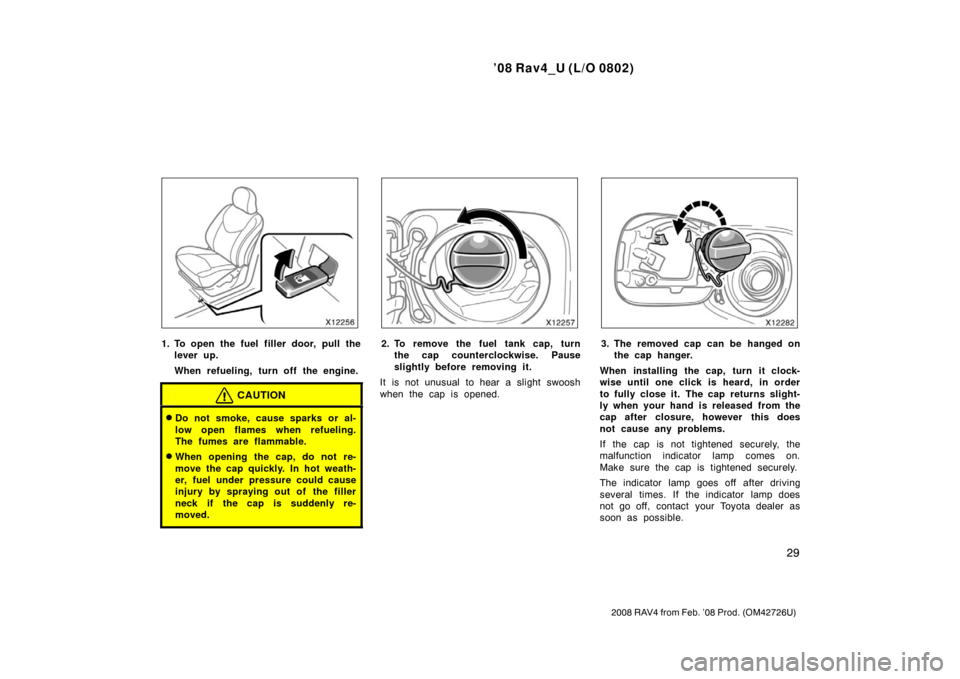

1. To open the fuel filler door, pull thelever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turnthe cap counterclockwise. Pause
slightly before removing it.
It is not unusual to hear a slight swoosh
when the cap is opened.3. The removed cap can be hanged on the cap hanger.
When installing the cap, turn it clock-
wise until one click is heard, in order
to fully close it. The cap returns slight-
ly when your hand is released from the
cap after closure, however this does
not cause any problems.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.

’08 Rav4_U (L/O 0802)
30
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

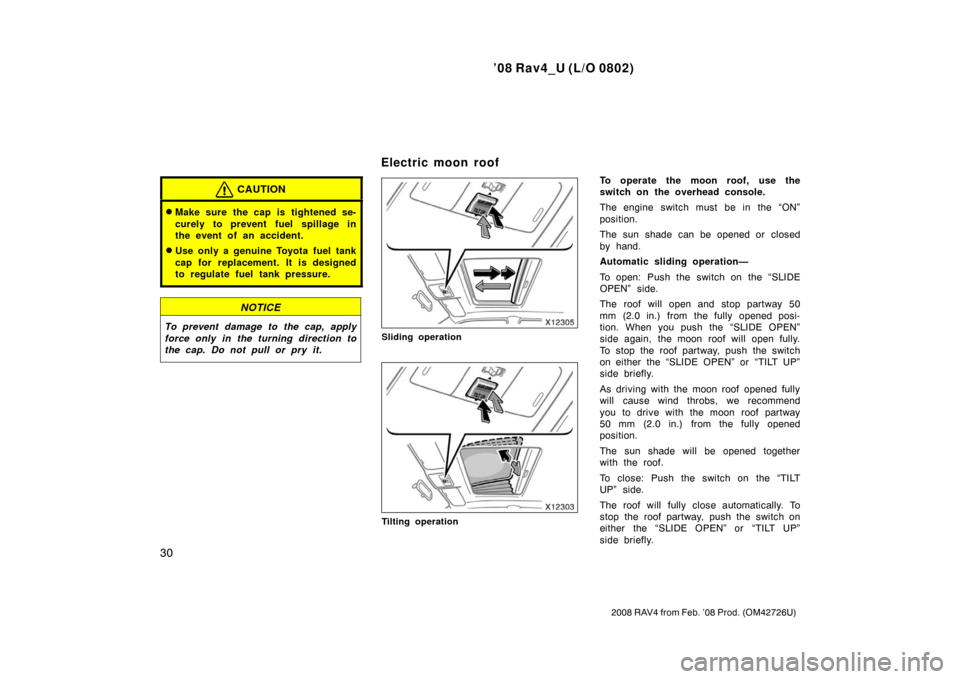

CAUTION
Make sure the cap is tightened se-
curely to prevent fuel spillage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
NOTICE
To prevent damage to the cap, apply
force only in the turning direction to
the cap. Do not pull or pry it.Sliding operation
Tilting operation
To operate the moon roof, use the
switch on the overhead console.
The engine switch must be in the “ON”
position.
The sun shade can be opened or closed
by hand.
Automatic sliding operation—
To open: Push the switch on the “SLIDE
OPEN” side.
The roof will open and stop partway 50
mm (2.0 in.) from the fully opened posi-
tion. When you push the “SLIDE OPEN”
side again, the moon roof will open fully.
To stop the roof partway, push the switch
on either the “SLIDE OPEN” or “TILT UP”
side briefly.
As driving with the moon roof opened fully
will cause wind throbs, we recommend
you to drive with the moon roof partway
50 mm (2.0 in.) from the fully opened
position.
The sun shade will be opened together
with the roof.
To close: Push the switch on the “TILT
UP” side.
The roof will fully close automatically. To
stop the roof partway, push the switch on
either the “SLIDE OPEN” or “TILT UP”
side briefly.
Electric moon roof
