3-1. Using the air conditioning system
and defogger
3
Interior features

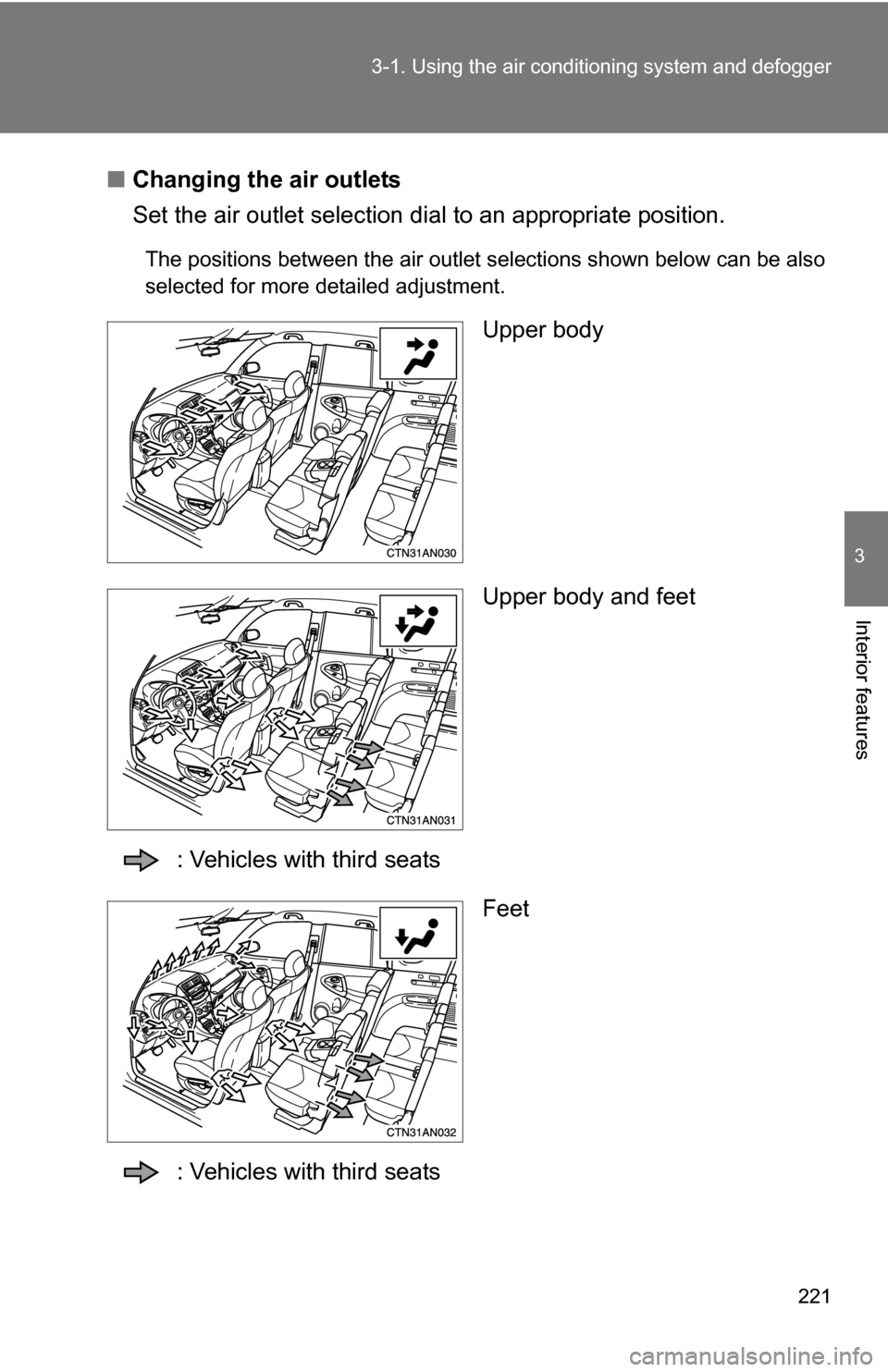

■Changing the air outlets
Set the air outlet selection di al to an appropriate position.
The positions between the air outlet selections shown below can be also
selected for more detailed adjustment.
Upper body
Upper body and feet
: Vehicles with third seats Feet
: Vehicles with third seats

222 3-1. Using the air conditioning system and defogger

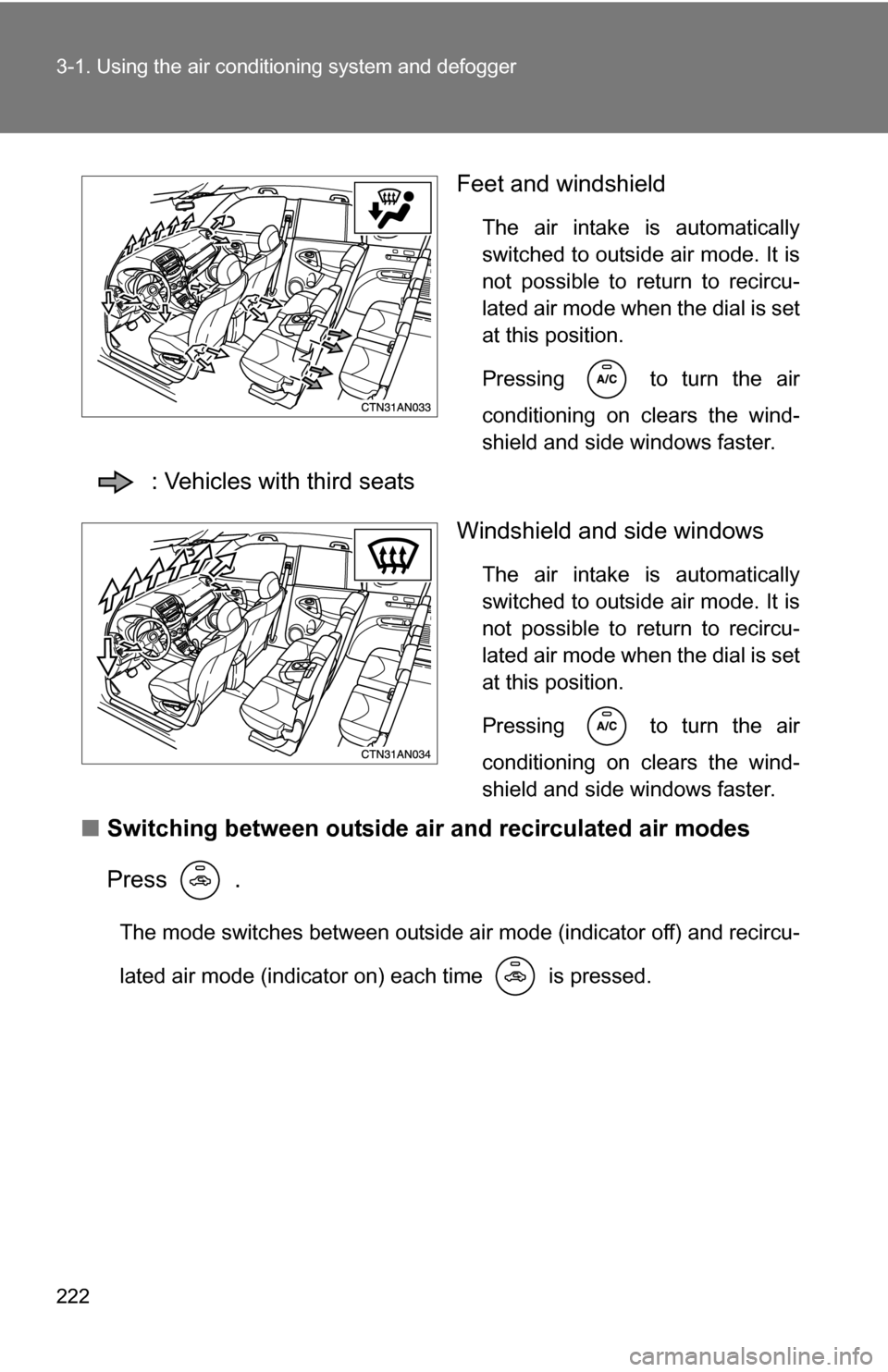

Feet and windshield
The air intake is automatically
switched to outside air mode. It is
not possible to return to recircu-
lated air mode when the dial is set
at this position.
Pressing
to turn the air
conditioning on clears the wind-
shield and side windows faster.
: Vehicles with third seats
Windshield and side windows
The air intake is automatically
switched to outside air mode. It is
not possible to return to recircu-
lated air mode when the dial is set
at this position.
Pressing
to turn the air
conditioning on clears the wind-
shield and side windows faster.
■ Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) each time is pressed.

223
3-1. Using the air conditioning system
and defogger
3
Interior features

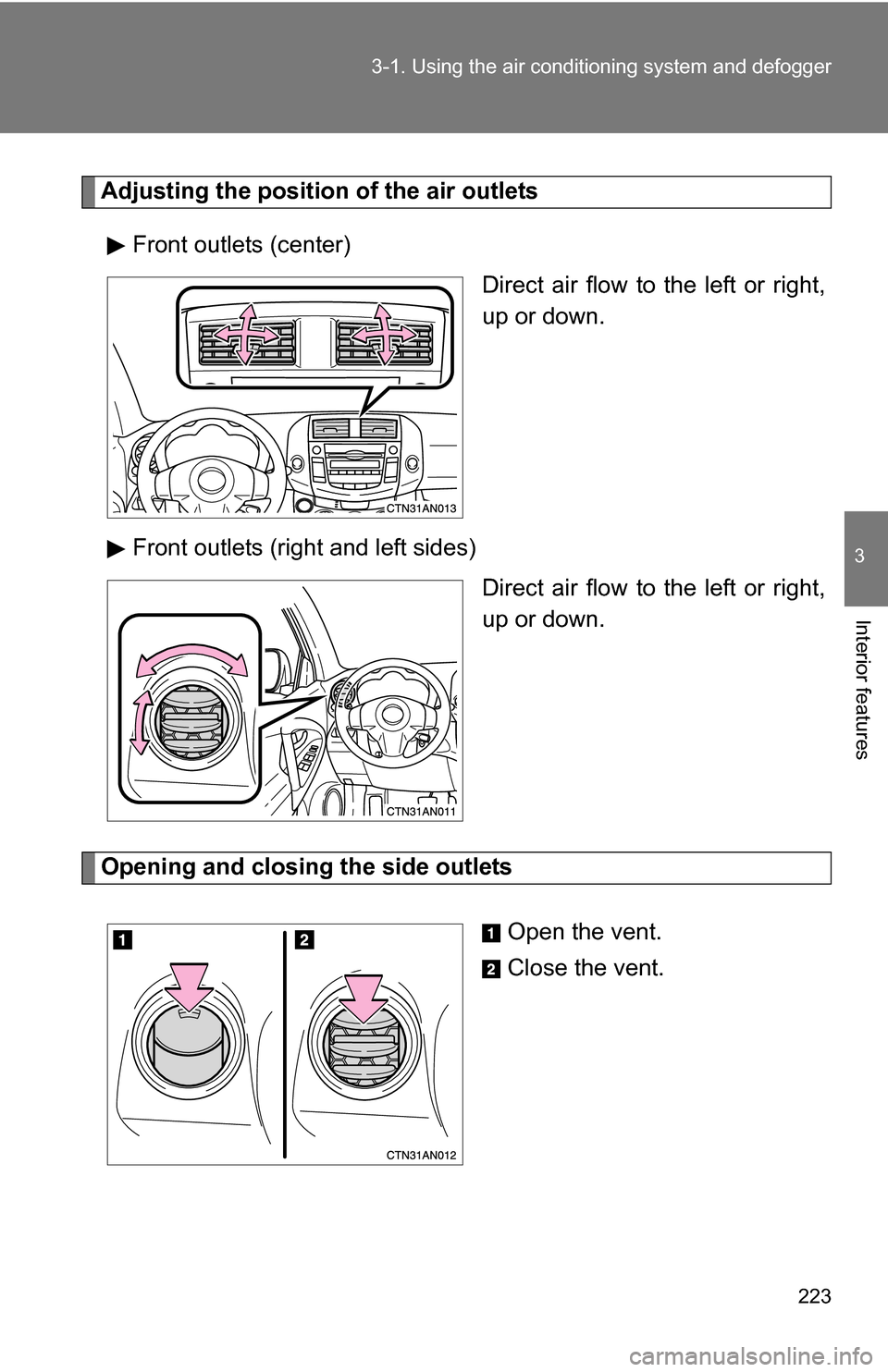

Adjusting the position of the air outlets
Front outlets (center) Direct air flow to the left or right,
up or down.
Front outlets (right and left sides) Direct air flow to the left or right,
up or down.
Opening and closing the side outlets
Open the vent.
Close the vent.

224 3-1. Using the air conditioning system and defogger

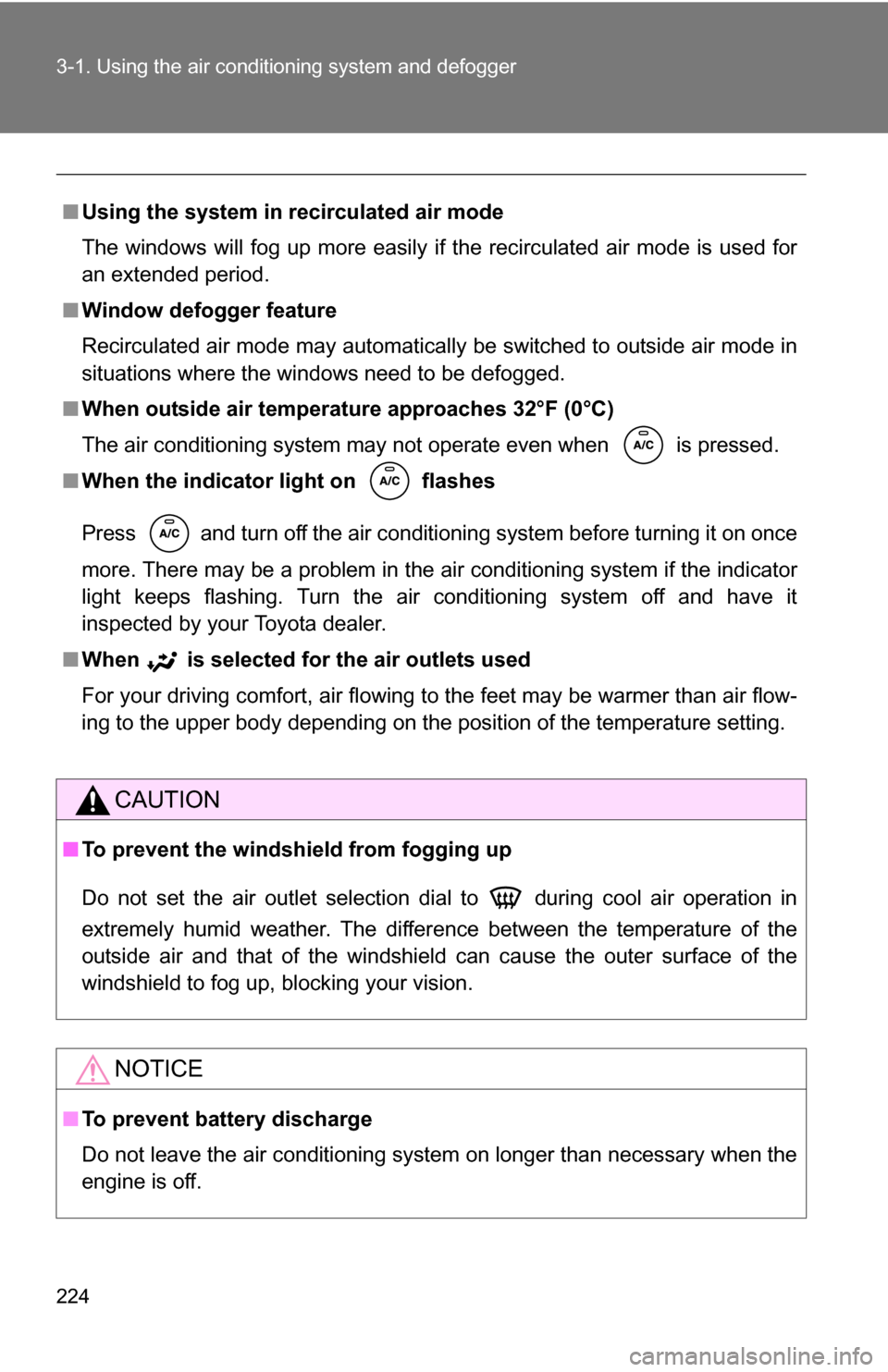

■Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ Window defogger feature
Recirculated air mode may automatically be switched to outside air mode in
situations where the windows need to be defogged.
■ When outside air temperat ure approaches 32°F (0°C)
The air conditioning system may not operate even when
is pressed.
■ When the indicator light on flashes
Press
and turn off the air conditioning system before turning it on once
more. There may be a problem in the ai r conditioning system if the indicator
light keeps flashing. Turn the air conditioning system off and have it
inspected by your Toyota dealer.
■ When
is selected for the air outlets used
For your driving comfort, air flowing to the feet may be warmer than air flow-
ing to the upper body depending on the position of the temperature setting.
CAUTION
■ To prevent the windshield from fogging up
Do not set the air outlet selection dial to during cool air operation in
extremely humid weather. The difference between the temperature of the
outside air and that of the windshield can cause the outer surface of the
windshield to fog up, blocking your vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is off.

225
3-1. Using the air conditioning system and defogger
3
Interior features
Automatic air conditioning system
Using the automatic modePress .
The air conditioning system begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Press “” on to increase the temperature and “ ” to
decrease the temperature.
Air outlets and fan speed for the driver and passenger seats may be
set separately depending on the temperature setting.
Airflow and outlets are automatical ly adjusted according to the tem-
perature setting.
Fan speed Air conditioning
on/off switch
Changes the air outlets used
Off
Driver's side
temperature control
Automatic mode
Windshield defogger
Outside air or
recirculated air modeAir flow display
Micro dust and pollen filter Passenger’s side
temperature control
STEP 1
STEP 2
: If equipped

226 3-1. Using the air conditioning system and defogger

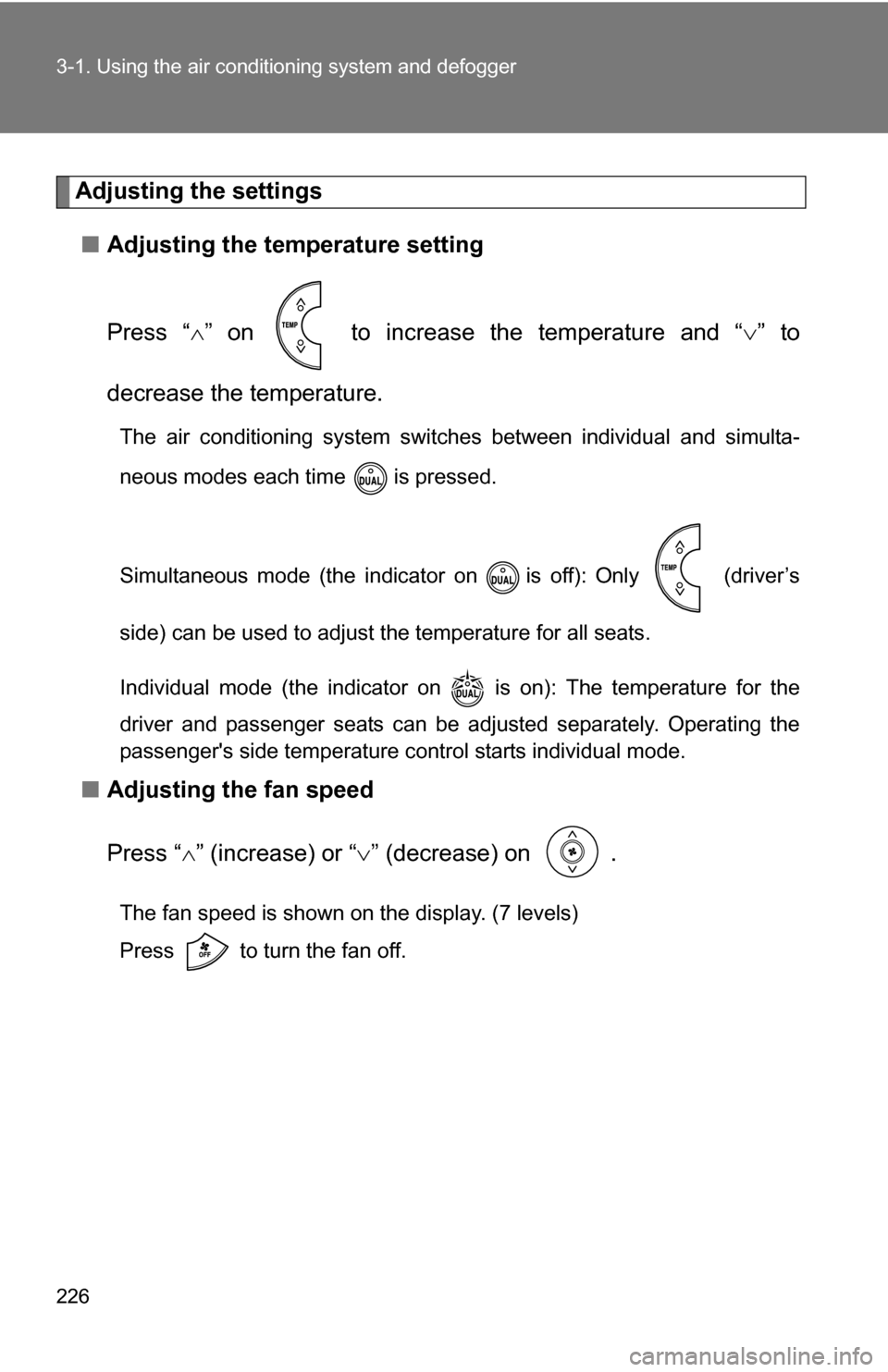

Adjusting the settings
■ Adjusting the temperature setting
Press “ ” on to increase the temperature and “ ” to
decrease the temperature.
The air conditioning system switches between individual and simulta-
neous modes each time is pressed.
Simultaneous mode (the indicator on is off): Only (driver’s
side) can be used to adjust the temperature for all seats.
Individual mode (the indicator on is on): The temperature for the
driver and passenger seats can be adjusted separately. Operating the
passenger's side temperature control starts individual mode.
■ Adjusting the fan speed
Press “ ” (increase) or “ ” (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.

227
3-1. Using the air conditioning system
and defogger
3
Interior features

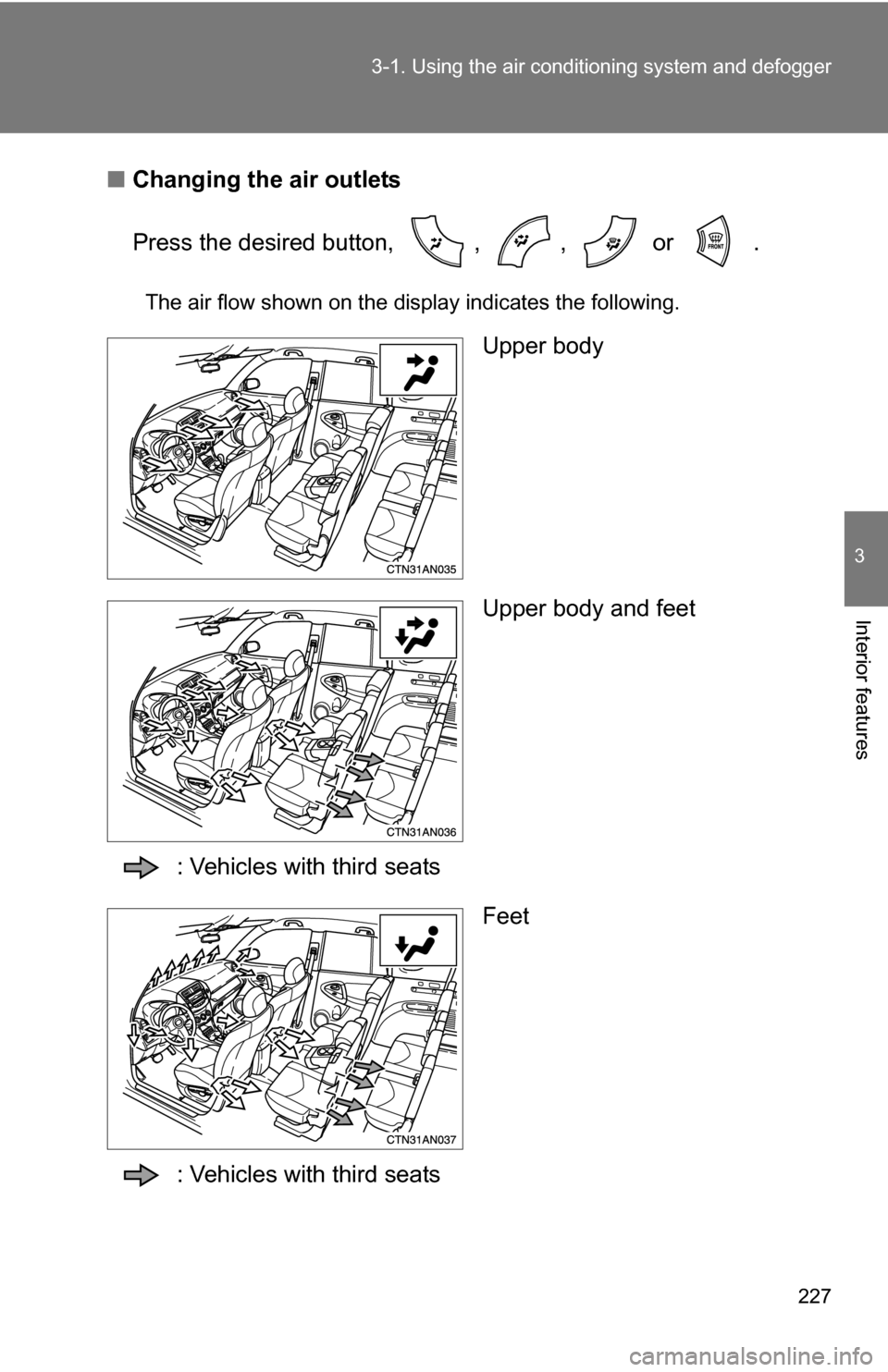

■Changing the air outlets
Press the desired button, , , or .
The air flow shown on the display indicates the following.
Upper body
Upper body and feet
: Vehicles with third seats Feet
: Vehicles with third seats

228 3-1. Using the air conditioning system and defogger
Feet and windshield
: Vehicles with third seats
■ Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) each time is pressed.

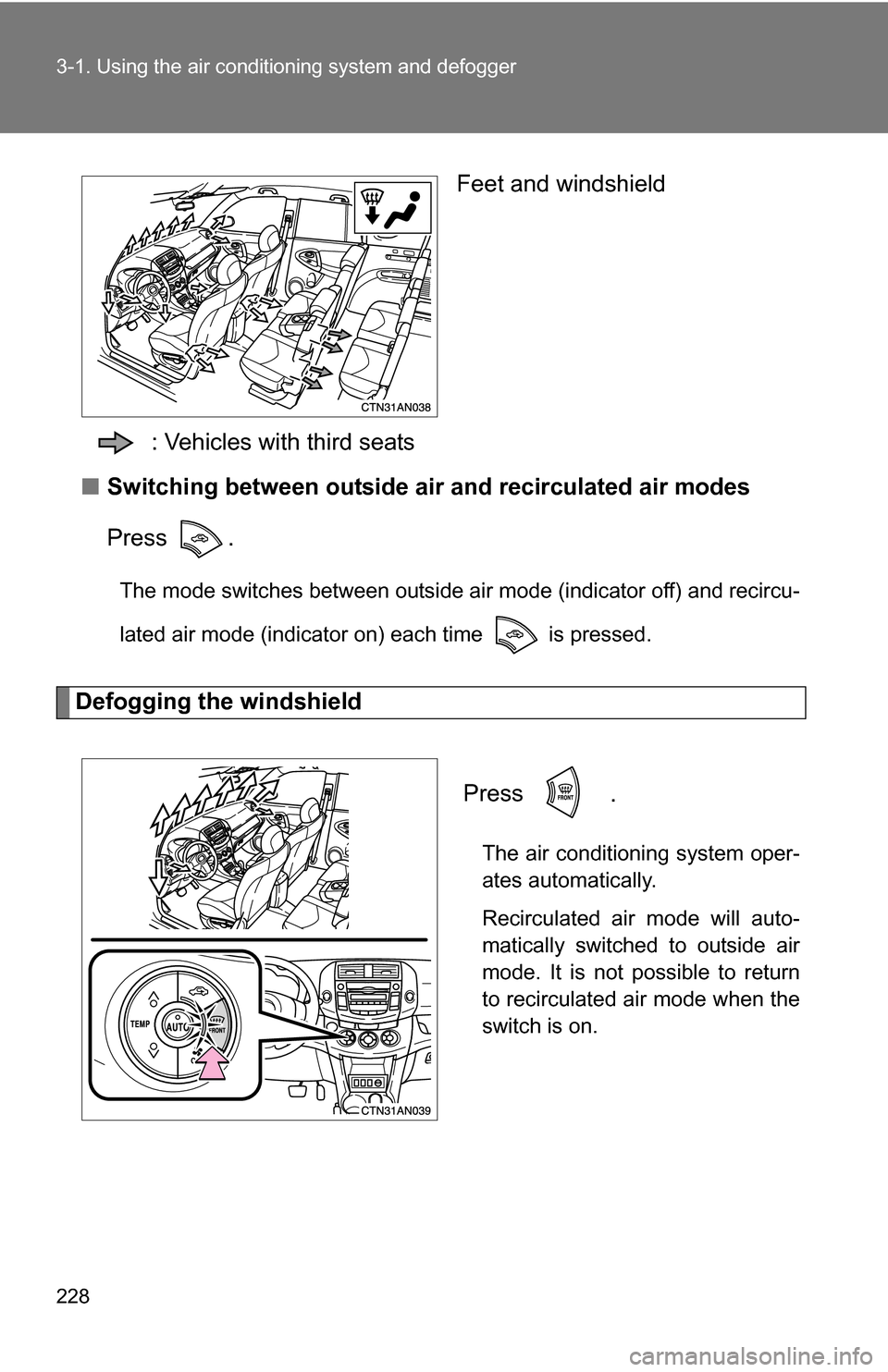

Defogging the windshield
Press
.
The air conditioning system oper-
ates automatically.
Recirculated air mode will auto-
matically switched to outside air
mode. It is not possible to return
to recirculated air mode when the
switch is on.

229
3-1. Using the air conditioning system
and defogger
3
Interior features
Micro dust and pollen filter
Press .
Outside air mode will be switched
to recirculated air mode. Pollen is
removed from the air and the air
flows to the upper part of the
body.
Usually the system will turn off
automatically after approximately
3 minutes.
To stop the operation, pressagain.
Adjusting the position of the air outlets
Front outlets (center) Direct air flow to the left or right,
up or down.

230 3-1. Using the air conditioning system and defogger
Front outlets (right and left sides)
Direct air flow to the left or right,
up or down.
Opening and closing the side outlets
Open the vent.
Close the vent.
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature set-
ting and ambient conditions. In addition, the following may occur.
●The system may switch automatically to recirculated mode when the
coolest temperature setting is selected in summer.
● Immediately after is pressed, the fan may stop for a while until
warm or cool air is ready to flow.
● Cool air may flow to the area around the upper body when the heater is
on.
■ Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
